XM2-DFEDigital Front End

www.tekotelecom.it www.tekotelecom.it Let us repeat ! SIRIUS: Teko Telecom Modular Coverage and Capacity System TECHNICAL HANDBOOK Doc ID Number 91 080 0781 - Rel. 04 english www.tekotelecom.it www.tekotelecom.it Let us repeat ! english Doc ID Number 91 080 0781 - Rel. 04 BOLOGNA, 11/10/2010 UPDATINGS: Rel. 02 (11/04/2011) Rel. 03 (15/03/2012) Rel. 04 (11/06/2012) Document Identification Number 91 080 0781 – Rel. 04 SIRIUS: Teko Telecom Modular Coverage and Capacity System www.tekotelecom.it www.tekotelecom.it SIRIUS: Teko Telecom Modular Coverage and Capacity System Let us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 3 english Table of Contents 1. Teko Telecom Modular Coverage and Capacity System - General Description ............. 10 1.1 Components .......................................................................................................................... 11 1.1.1 Modules providing the RF interface towards the signal source ...................................... 13 1.1.2 Equipment extending coverage / distributing capacity ..................................................... 20 1.1.3 Modules providing the optical interface towards Remote Units .................................... 23 1.1.4 Passive Modules providing distribution and filtering ......................................................... 30 1.1.5 Modules for the management of the System ......................................................................... 39 1.1.6 Power Supply Modules ................................................................................................................... 44 1.1.7 Subracks hosting the System modules ..................................................................................... 46 1.1.8 Forced-air cooling Subrack ............................................................................................................ 47 1.2 Coverage and Capacity Solutions ...................................................................................... 48 1.2.1 Modular Off-air Repeaters - General description .................................................................. 48 1.2.2 Optical Systems - General Description ...................................................................................... 51 A – Master Unit ........................................................................................................................................... 51 B – Remote Units ....................................................................................................................................... 57 1.2.3 Coverage Systems Management and Power Supply ........................................................... 65 1.2.4 Teko Telecom Coverage Systems Technical Specifications ................................................ 69 2. System Installation ................................................................................................................... 72 2.1 Mechanical Installation ....................................................................................................... 73 2.1.1 Positioning Master Unit Subracks ............................................................................................... 75 2.1.2 Positioning Remote Units .............................................................................................................. 76 2.2 Connections ........................................................................................................................... 79 2.2.1 RF Connections .................................................................................................................................. 80 2.2.2 RS485 Connections ........................................................................................................................111 A – Connecting monitored subracks mounted within the same rack hosting the Master subrack .......................................................................................................................................................112 B – Connecting remote monitored subracks ................................................................................113 2.2.3 Optical Connections ......................................................................................................................114 A – Connecting Master Unit to Remote Units ...............................................................................115 www.tekotelecom.it www.tekotelecom.it SIRIUS: Teko Telecom Modular Coverage and Capacity System Let us repeat ! Doc ID Number 91 080 0781 - Rel. 04 page 4 english B – Connecting Master point to point Modules to Slave point to point Modules ..........117 2.2.4 Power Supply and External Alarms connections .................................................................118 A – Active Subracks Power Supply Connection ...........................................................................119 B – Very High/High/Medium Power Remote Unit External Alarms Connection ..............122 C – Remote Units Power Supply Connection ................................................................................123 2.3 Power-Up ..............................................................................................................................126 3. System Commissioning ..........................................................................................................128 4. Preventive Maintenance ........................................................................................................130 4.1 Optical Fibres .......................................................................................................................130 4.2 Remote Units .......................................................................................................................130 4.2.1 Remote Units with passive cooling system (natural convection - fan unit not equipped) ......................................…

Text truncated - open the document above for the full version.

Teko Telecom S.p.A. Via Meucci, 24/a Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Qualità ed Ambiente certificato – ISO 9001:2000, ISO 14001:2004 Castel San Pietro Terme, 15 June 2012 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Nemko Spa – via del Carroccio n. 4, Biassono (MB) Italy to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with (applicant name and address). Dated 15 June 2012 By: ALESSANDRO BRUNELLI Signature Printed Title: CERTIFICATION ENGINEER On behalf of : TEKO TELECOM Telephone: +39 051 6946811

Teko Telecom S.p.A. Via Meucci, 24/a Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Qualità ed Ambiente certificato – ISO 9001:2000, ISO 14001:2004 Castel San Pietro Terme, 15 June 2012 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: XM2-DFE Product Name: Donor Front End Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: Schematic diagrams Block diagram Tune up information These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated 15 June 2012 By: ALESSANDRO BRUNELLI Signature Printed Title: CERTIFICATION ENGINEER On behalf of : TEKO TELECOM Telephone: +39 051 6946811

Teko Telecom S.p.A. Via Meucci, 24/a Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Qualità ed Ambiente certificato – ISO 9001:2000, ISO 14001:2004 Castel San Pietro Terme, 15 June 2012 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: XM2-DFE Product Name: Digital Front End RESTRICTED ACCESS OF EQUIPMENT AND DOCUMENTATION NOTICE This Restricted Access of Equipment and Documentation Notice is to inform the licensee that access to equipment and related documentation supplied by Teko Telecom S.p.A. is to be restricted to only authorized users by means to ensure the security of the equipment and confidentiality of related documentation at all times, and only designated professionals shall be allowed to maintain or service the equipment. Tampering with the internal parts of these non-consumer type devices by removal of external covers can damage or destroy the equipment, therefore it is necessary that the device be kept in a restricted location, and inaccessible to the general public. This notice includes, but is not limited to, Schematic, Block Diagrams, User Manual, Tune Up information, and Internal Photos. Dated 15 June 2012 By: ALESSANDRO BRUNELLI Signature Printed Title: CERTIFICATION ENGINEER On behalf of : TEKO TELECOM Telephone: +39 051 6946811

Teko Telecom S.p.A. Via Meucci, 24/a Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Qualità ed Ambiente certificato – ISO 9001:2000, ISO 14001:2004 Castel San Pietro Terme, 29 June 2012 Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 FCC ID: XM2-DFE Product Name: Donor Front End MODEL DIFFERENCE LETTER Digital Donor Front-End equipment is a single band interface towards a Donor antenna. Each Digital Donor Front-End equipment is composed by: - a module for down-link direction, the input connector is linked to donor antenna and the output connector can be linked to a high power amplifier or to an optical system (but not to an antenna); - a module for up-link direction, the input connector can be linked to an optical system (but not to an antenna) and the output connector is linked to a donor antenna; these modules work at the same time and they can not be separated. Each Digital Donor Front-End works on different band. All equipment are similar because have the same mechanical characteristics, the same electrical characteristics and the same RF performance. Only the components that determine the characteristics of the filter change. TEKO TELECOM CODE UPLINK OPERATING FREQUENCY BAND DOWNLlNK OPERA TING FREQUENCY BAND Modulation TDFE-7SL 698 ÷ 716MHz 728 ÷ 746 MHz LTE (QAM, QPSK) TDFE-7SH 776 ÷ 787MHz 746 ÷ 757 MHz LTE (QAM, QPSK) TDFE-8S 806 ÷ 824 MHz 851 ÷ 869 MHz iDEN TDFE-8A 824 ÷ 849 MHz 869 ÷ 894 MHz GSM-EDGE-TDMA- CDMA-WCDMA-LTE (QAM, QPSK) TDFE-9S 896 ÷ 902 MHz 935 ÷ 941 MHz iDEN TDFE-19 1850 ÷ 1915 MHz 1930 ÷ 1995 MHz GSM-EDGE-TDMA- CDMA-WCDMA-LTE (QAM, QPSK) TDFE-AW 1710 ÷ 1755 MHz 2110 ÷ 2155 MHz CDMA-WCDMA-LTE (QAM, QPSK) Teko Telecom S.p.A. Via Meucci, 24/a Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Qualità ed Ambiente certificato – ISO 9001:2000, ISO 14001:2004 Dated 29 June 2012 By: ALESSANDRO BRUNELLI Signature Printed Title: CERTIFICATION ENGINEER On behalf of : TEKO TELECOM Telephone: +39 051 6946811



          ! " #$ %&# &'%%( ) ! " #$ %# ' * "

   %'&$ &% %+ ,-. ,// %'&$ &% % -0&& 1,,.2/.//. 3--  4/.3/5/./#%6 '.% %6

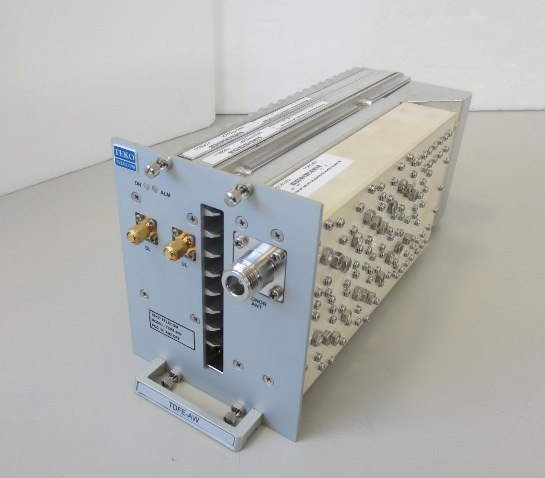

TDFE module – External Views TDFE-AW module, front view TDFE-AW module, rear view TDFE-9S module, front view TDFE-9S module, rear view


          ! " #$ %&# &'%%( ) ! " #$ %# ' * "

   %'&$ &% %+ ,-. ,// %'&$ &% % -0&& 1,,.2/.//. 3--  4/.3/5/./#%6 '.% %6

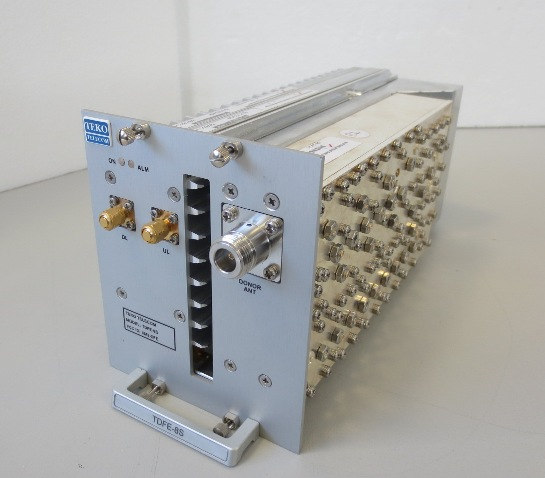

TDFE-8S module, front view TDFE-8S module, rear view TDFE-8A module, front view TDFE-8A module, rear view


          ! " #$ %&# &'%%( ) ! " #$ %# ' * "

   %'&$ &% %+ ,-. ,// %'&$ &% % -0&& 1,,.2/.//. 3--  4/.3/5/./#%6 '.% %6

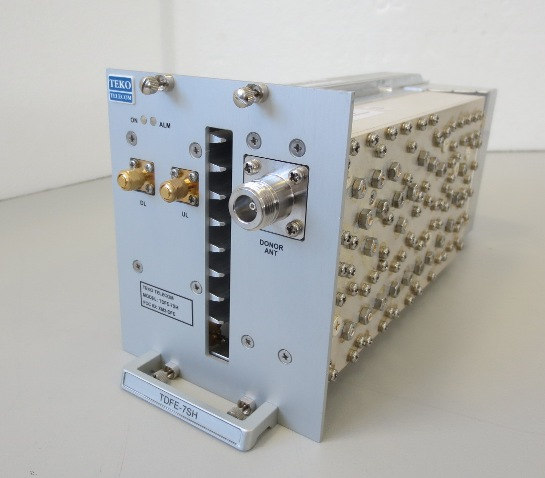

TDFE-7SL module, front view TDFE-7SL module, rear view TDFE-7SH module, front view TDFE-7SH module, rear view


          ! " #$ %&# &'%%( ) ! " #$ %# ' * "

   %'&$ &% %+ ,-. ,// %'&$ &% % -0&& 1,,.2/.//. 3--  4/.3/5/./#%6 '.% %6

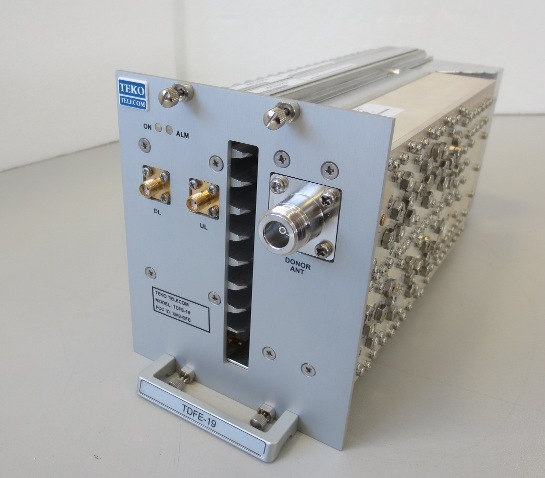

TDFE-19 module, front view TDFE-19 module, rear view

Teko Telecom S.p.A. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Gestione certificato secondo le norme ISO 9001:2008 ed ISO 14001:2004 LABEL LOCATION TDFE-7SL Teko Telecom S.p.A. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Gestione certificato secondo le norme ISO 9001:2008 ed ISO 14001:2004 TDFE-7SH Teko Telecom S.p.A. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Gestione certificato secondo le norme ISO 9001:2008 ed ISO 14001:2004 TDFE-8S Teko Telecom S.p.A. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Gestione certificato secondo le norme ISO 9001:2008 ed ISO 14001:2004 TDFE-8A Teko Telecom S.p.A. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Gestione certificato secondo le norme ISO 9001:2008 ed ISO 14001:2004 TDFE-9S Teko Telecom S.p.A. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Gestione certificato secondo le norme ISO 9001:2008 ed ISO 14001:2004 TDFE-19 Teko Telecom S.p.A. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Gestione certificato secondo le norme ISO 9001:2008 ed ISO 14001:2004 TDFE-AW

Teko Telecom S.p.A. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Gestione certificato secondo le norme ISO 9001:2008 ed ISO 14001:2004 INTERNAL PHOTOS TDFE-7SL Down-link and Up-link module Teko Telecom S.p.A. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Gestione certificato secondo le norme ISO 9001:2008 ed ISO 14001:2004 TDFE-7SH Down-link and Up-link module Teko Telecom S.p.A. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Gestione certificato secondo le norme ISO 9001:2008 ed ISO 14001:2004 TDFE-8S Down-link module Up-link module Teko Telecom S.p.A. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Gestione certificato secondo le norme ISO 9001:2008 ed ISO 14001:2004 TDFE-8A Down-link module Up-link module Teko Telecom S.p.A. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Gestione certificato secondo le norme ISO 9001:2008 ed ISO 14001:2004 TDFE-9S Down-link module Up-link module Teko Telecom S.p.A. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Gestione certificato secondo le norme ISO 9001:2008 ed ISO 14001:2004 TDFE-19 Down-link module Up-link module Teko Telecom S.p.A. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Gestione certificato secondo le norme ISO 9001:2008 ed ISO 14001:2004 TDFE-AW Down-link module Teko Telecom S.p.A. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Gestione certificato secondo le norme ISO 9001:2008 ed ISO 14001:2004 Up-link module Teko Telecom S.p.A. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Gestione certificato secondo le norme ISO 9001:2008 ed ISO 14001:2004 Sink (the same for each model)

www.tekotelecom.it www.tekotelecom.it Doc ID Number 91 080 0781 - Rel. 01 page 8 english Teko Telecom Coverage and Capacity Systems Let us repeat ! Teko Telecom Coverage and Capacity Systems General Descrip-1. tion Teko Telecom Coverage and Capacity Systems are flexible multi-band multi-operator Systems that provide a wide range of solutions to extend both indoor and outdoor cellular coverage in shadow areas -where the RF signal is not available- and to increase capacity in indoor and outdoor hot spots -where the operators need a dedicated coverage. Modular design is a key feature of Teko Telecom Coverage and Capacity Systems: it offers flexible configuration options to build the most suitable solution for any coverage need. The Coverage and Capacity Systems include a wide range of active and passive components that can be assembled in a variety of ways in order to provide easy to set-up, maintain, and upgrade products in the 380 to 2700MHz frequency range. The Coverage and Capacity Systems components can be used in different Systems with different functionalities to meet present needs and to allow system adaptation to changing conditions, always assuring optimized performances. This technical handbook describes the components of Teko Telecom Coverage and Capacity Systems and how these components can be assembled to provide Optical Systems and modular Off-air Repeaters to improve coverage in different environments. www.tekotelecom.it www.tekotelecom.it Doc ID Number 91 080 0781 - Rel. 01 page 13 english Teko Telecom Coverage and Capacity Systems Let us repeat ! Teko Telecom Digital Donor Front End• The Digital Donor Front End Module is the single-band/single-operator System RF interface towards a Donor Antenna. No physical connections are required between the DFE and the cellular network: the Donor Antenna provides the connection to a BTS or NodeB over an air link. Coverage Systems can be equipped with one or more Donor Front End modules to make multiple configurations available: single operator (single band / multi-band) and multi- operator (single-band / multi-band). A single-band single-operator modular Off-air Repeater can be set-up combining a Digital Donor Front End Module and a Service Front End (Teko Telecom single-band/multi-operator interface towards a Service Antenna). Up to 4 Donor Front End Modules can be connected to a single Service Front End to provide a single-band 4-operator modular Off-air Repeater. Digital Donor Front End Modules can also be used to drive Optical Systems: the Digital Donor Front End Module allows Optical Systems to be driven without the need of a dedicated BTS or Node B. A donor antenna picks-up the signal and the Optical System acts as a repeater with distributed Service antennas connected to the Remote Units. Service Front End subracks can be connected to DFE modules to provide coverage to the area next to the Master Unit site. www.tekotelecom.it www.tekotelecom.it Doc ID Number 91 080 0781 - Rel. 01 page 14 english Teko Telecom Coverage and Capacity Systems Let us repeat ! Each DFE module hosts the duplexer, to be connected to the Donor Antenna to separate/ combine downlink and uplink paths. In downlink the signal from the Donor Antenna is preamplified by a Low Noise Amplifier and converted into an IF signal by a downconverter. The selection of the band of frequencies or channels to be extended is handled by a digital filter. The digital filter can manage 1 variable band or 2 variable sub-bands. An upconverter converts the IF signal into the RF output signal. In uplink the signal from the Service Front End Subrack or from the Optical System is converted into an IF signal by a downconverter, filtered and re-converted into an RF signal, amplified by a power amplifier and re-transmitted to the signal source. DIGITAL FILTER DIGITAL FILTER PA LNA DL RF Out UL RF In Donor Antenna Port DUPLEXER μPDC/DC +12V+1.8V+3.3V 28VDC RS485 FANS Digital Donor Front End Module block diagram www.tekotelecom.it www.tekotelecom.it Doc ID Number 91 080 0781 - Rel. 01 page 15 english Teko Telecom Coverage and Capacity Systems Let us repeat ! Digital Donor Front End Module Access Points RF Connectors Description DL Downlink path RF output (SMA connector) to Service Front End or Fiber Optic Modules UL Uplink path RF input (SMA connector) from Service Front End or Fiber Optic Modules DONOR ANT Donor Antenna Port (N type connector) LEDsDescription ON Digital Donor Front End Module operating status green LED ON when power supply is present ALM Digital Donor Front End Module alarm status LED: OFF: regular operation Blinking Orange: presence of active alarms with warning severity level (4) Orange: presence of active alarms with minor severity level (3) Blinking Red: presence of active alarms with major severity level (2) Red: presence of active alarms with critical severity level (1)


          ! " #$ %&# &'%%( ) ! " #$ %# ' * "

   %'&$ &% %+ ,-. ,// %'&$ &% % -0&& 1,,.2/.//. 3--  4/.3/5/./#%6 '.% %6
TECHNICAL DESCRIPTION DIGITAL FRONT END MODULES COMMERCIAL CODES TDFE-7SL; TDFE-7SH (TDFE- Teko Telecom band code) TDFE-8S; TDFE-8A; TDFE-9S For UL/DL Operating bands please refer to TDFE-19; TDFE-AW the Operating frequency bands Summary Table Down-Link Output Power: 10 dBm Gain: 63 dBm Up-Link Output Power: 26 dBm Gain: 64 dBm Number of variable sub-bands Up to 2 Variable sub-band bandwidth 200kHz to 25MHz (100kHz step) - 1 sub-band 200kHz to 14.2MHz (100kHz step) - 2 sub-bands Processed Band up to 35MHz Attenuation range on each sub-band (relative to set RF gain) 0 ÷ 30dB (0.5dB step) independent on each sub-band Connector to the Donor Antenna N (f) Cooling Active (with fans) Power sup…
