XM2-EP6BEnhanced Power Remote Unit for Optical system booster

Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 03272231204– Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 10.000,00 i.v. Società con Sistema di Qualità ed Ambiente certificato – ISO 9001:2008, ISO 14001:2004 Castel San Pietro Terme, 02 March 2015 Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 FCC ID: XM2- EP6B Product Name: TRE7S8SC8A9S19AWAS ATTESTATION With respect to section V (g) of 935210 D02 Signal Booster Certification v02r01, we confirm the signal booster warning label messages and Class B disclosure will be shown in online and point-of- sale marketing materials and on outside packaging of device. Dated 02 March 2015 By: ALESSANDRO BRUNELLI Signature Printed Title: CERTIFICATION ENGINEER On behalf of : TEKO TELECOM Telephone: +39 051 6946811

P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 Castel San Pietro Terme, 02 March 2015 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Nemko Spa – via del Carroccio n. 4, Biassono (MB) Italy to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Nemko Spa – via del Carroccio n. 4, Biassono (MB) Italy. Dated 02 March 2015 By: ALESSANDRO BRUNELLI Signature Printed Title: CERTIFICATION ENGINEER On behalf of : TEKO TELECOM Telephone: +39 051 6946811

P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 Castel San Pietro Terme, 02 March 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: XM2- EP6B Product Name: TRE7S8SC8A9S19AWAS Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematic diagrams  Block diagram  Tune up information  Parts List  Operational Descriptions  User’s manual (non-consumer device – highly technical)  Internal photos (non-consumer device – professionally installed device) These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 Nonroutine Long-Term Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s rule, we hereby request that nonroutine confidential treatment of information accompanying this application as outlined below:  User’s manual The EUT is part of our product portfolio consisting exclusively of professional communication devices and periphery designed for and delivered to mobile network operators. These devices are generally installed by well-trained professional installers under the control of the network operators at locations, where the general public has no access; such as mounted at masts, on building roofs or locked inside telecommunication shelters/rooms serviceable only by the licensee or designated technicians. Besides, the internal part of the equipment is protected by warranty seals, to avoid unauthorized access. Only Teko Telecom’s technical personnel is authorized to open the seals to access the equipment. The highly technical installation guides are only handed-out with the ordered devices to the network operator/professional installer. There is an NDA (Non-Disclosure Agreement) between us and our customer that assures that these instructions will never be made available to third parties. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified to its competitors. The applicant understands that pursuant to rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 Dated 02 March 2015 By: ALESSANDRO BRUNELLI Signature Printed Title: CERTIFICATION ENGINEER On behalf of : TEKO TELECOM Telephone: +39 051 6946811 P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 MUTUAL NON-DISCLOSURE AGREEMENT THIS AGREEMENT, made effective as of the [Text] day of [Text], 2014, by and between [Text], having a place of business at [Text] (hereinafter “[Text]”) and John Mezzalingua Associates, LLC d/b/a JMA, having a place of business at 7645 Henry Clay Blvd., Liverpool, NY USA 13088 (hereinafter “JMA”). [Text] and JMA may be both Discloser and Recipient during the exchange of information under this Agreement. This Agreement shall apply to the both party’s Affiliates and subsidiaries. When used herein, the term “Affiliate” shall mean a business entity now or hereafter controlled by, controlling or under common control with JMA or [Text]. Control exists when any entity owns or controls at least 50% of the voting power of the entity. For the avoidance of doubt, “JMA” shall mean John Mezzalingua Associates, LLC and its Affiliates, including, but not limited to Teko Telecom S.r.l., having a place of business at via Meucci, 24/A, Castel San Pietro Terme (BO), Italy (hereinafter “Teko”), and CSS Antenna, Inc., having a place of business at 2206 Lakeside Blvd., Edgewood, MD USA 21040 (hereinafter “CSS”). The parties have a mutual interest in discussing and/or evaluating a potential business relationship (the “Purpose”) at which time the Discloser will disclose proprietary or CONFIDENTIAL INFORMATION to Recipient in the course of discussing or implementing such Purpose. For instance, the Purpose of such disclosure generally may relate to [Text]. In order to facilitate the Purpose and induce the parties to disclose and accept such information, the parties agree as follows: 1. “CONFIDENTIAL I…

Text truncated - open the document above for the full version.

Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 03272231204– Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 10.000,00 i.v. Società con Sistema di Qualità ed Ambiente certificato – ISO 9001:2008, ISO 14001:2004 Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 03272231204– Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 10.000,00 i.v. Società con Sistema di Qualità ed Ambiente certificato – ISO 9001:2008, ISO 14001:2004

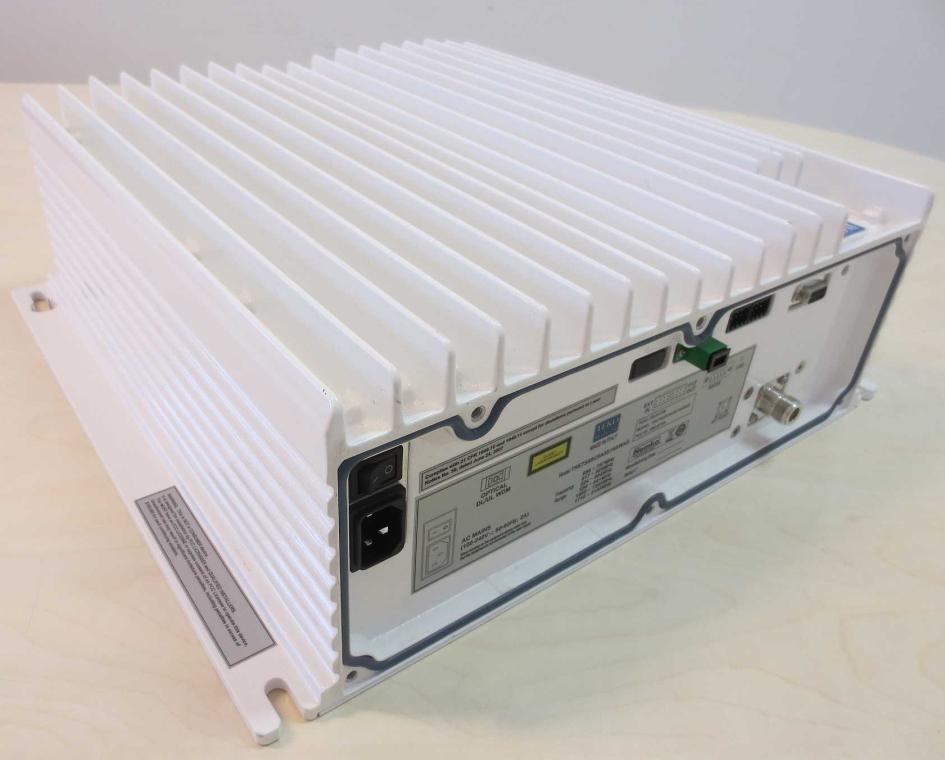

P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 LABEL LOCATION P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:31.00(dBm) Maximum peak output power at antenna input terminal:1258.925412(mW) Antenna gain(maximum):16(dBi) Maximum antenna gain:39.81071706(numeric) Time Averaging:100(%) Prediction distance:100(cm) Prediction frequency:728(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.485(mW/cm^2) Power density at prediction frequency:0.398832(mW/cm^2) Margin of compliance:-0.9(dB) This equates to:3.988321282W/m^2 2 4R PG S  

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:31.00(dBm) Maximum peak output power at antenna input terminal:1258.925412(mW) Antenna gain(maximum):20(dBi) Maximum antenna gain:100(numeric) Time Averaging:100(%) Prediction distance:100(cm) Prediction frequency:2000(MHz) MPE limit for uncontrolled exposure at prediction frequency:1.000(mW/cm^2) Power density at prediction frequency:1.001821(mW/cm^2) Margin of compliance:0.0(dB) This equates to:10.01821011W/m^2 2 4R PG S  

Nemko Spa, 20853 Biassono (MB) - Italy. All rights reserved. This publication may be reproduced in whole for noncommercial purposes as long as Nemko Spa is acknowledged as copyright owner and source of the material. Nemko Spa takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Nemko Spa accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This test report may not be partially reproduced, except with the prior written permission of Nemko Spa. The test report merely corresponds to the test sample. The phase of sampling / collection of equipment under test is carried out by the customer. This Test Report, when bearing the Nemko name and logo is only valid when issued by a Nemko laboratory, or by a laboratory having special agreement with Nemko. Report Reference ID: 2786161TRFWL Test specification: Title 47 – Telecommunication Chapter I – Federal Communications Commission Subchapter D – Safety and special radio services Part 90 – Private land mobile services Subpart I – General technical standards Applicant: TEKO Telecom Srl Via Meucci, 24/a I40024 Castel S. Pietro Terme (BO) (Italy) Apparatus: Remote Unit Model: TRE7S8SC8A9S19AWAS FCC ID: XM2EP6B Testing laboratory: Nemko Italy Spa Via del Carroccio, 4 20853 Biassono (MB) – Italy Telephone: +39 039 2201201 Facsimile: +39 039 2201221 Name and title Date Tested by: G. Curioni, Wireless/EMC Specialist 20150312 Reviewed by: P. Barbieri, Wireless/EMC Specialist 20150312 Product: TRE7S8SC8A9S19AWAS Specification: FCC 90 Report reference 2786161TRFWL Page 2 of 31 Table of contents Section 1: Report summary ......................................................................................................... 3 Section 2: Equipment under test ................................................................................................. 4 2.1 Identification of equipment under test (EUT) ..........................................................................4 2.2 Accessories and support equipment ......................................................................................5 2.3 EUT description .....................................................................................................................6 2.4 Technical specifications of the EUT .......................................................................................6 2.5 EUT setup diagram ................................................................................................................7 2.6 Operation of the EUT during testing .......................................................................................8 2.7 Modifications incorporated in the EUT ...................................................................................8 Section 3: Test conditions ........................................................................................................... 9 3.1 Deviations from laboratory tests procedures ..........................................................................9 3.2 Test conditions, power source and ambient temperatures .....................................................9 3.3 Measurement uncertainty .................................................................................................... 10 3.4 Test equipment .................................................................................................................... 10 Section 4: Result summary ........................................................................................................ 11 4.1 FCC Part 90: test results ..................................................................................................... 11 Appendix A: Test results ............................................................................................................ 12 Clause 90.205, 90.219(e)(1) Output power ............................................................................................. 12 Clause 90.209, 90.219(e)(4) Occupied bandwidth .................................................................................. 14 Clause 90.209, 90.210(i), 90.210(j), 90.219(e)(3) Spurious emissions at the antenna terminal ............... 15 Clause 90.209, 90.219(e)(3) Field strength of spurious radiation ............................................................ 17 Clause 90.219(e)(2) Noise Figure ........................................................................................................... 23 Clause 935210 D02v02r01 Appendix D.3 (i) Intermodulation .................................................................. 24 Clause 935210 D02v02r01 (D.3)(l) Out of band rejection ........................................................................ 25 Appendix B: Block diagrams of test set-ups ............................................................................ 26 Appendix C: EUT Photos............................................................................................................ 27 Section 1: Report summary Product: TRE7S8SC8A9S19AWAS Specification: FCC 90 Report reference 2786161TRFWL Page 3 of 31 Section 1: Report summary This report contains an assessment of apparatus against specifications based upon tests carried out on samples submitted at Nemko Spa. Test specification: FCC Part 90 Private land mobile services Subpart I – General technical standards Compliance status: Complies Exclusions: None Noncompliances: None Report release history: Original release Test location: Nemko Spa Via Del Carroccio, 4 – 20853 Biassono (MB)  Italy Registration number: 481407 (10 m Semi anechoic chamber) Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report ha…
