XM2-EP7S19AWEEnhanced Power Remote Unit for Optical system booster

Teko Telecom Srl

Click to zoom

Application Details

Equipment Class: B2I - Part 20 Industrial Booster (CMRS)
Date of Grant: Jul 14, 2015
Application Purpose: Original Equipment
Date of Application: Jul 13, 2015
Equipment Note: Enhanced Power Remote Unit for Optical system booster
Frequency Range: 2110.00000000 - 2180.00000000
Company: Teko Telecom Srl
Country: Italy

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 Castel San Pietro Terme, 15 May 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: XM2-EP7S19AWE Product Name: TRU7S19AWEWE/AC-WS Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematic diagrams  Block diagram  Tune up information  Parts List  Operational Descriptions  User’s manual (non-consumer device – highly technical)  Internal photos (non-consumer device – professionally installed device) These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 Nonroutine Long-Term Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s rule, we hereby request that nonroutine confidential treatment of information accompanying this application as outlined below:  User’s manual  Internal photos The EUT is part of our product portfolio consisting exclusively of professional communication devices and periphery designed for and delivered to mobile network operators. These devices are generally installed by well-trained professional installers under the control of the network operators at locations, where the general public has no access; such as mounted at masts, on building roofs or locked inside telecommunication shelters/rooms serviceable only by the licensee or designated technicians. Besides, the internal part of the equipment is protected by warranty seals, to avoid unauthorized access. Only Teko Telecom’s technical personnel is authorized to open the seals to access the equipment. The highly technical installation guides are only handed-out with the ordered devices to the network operator/professional installer. There is an NDA (Non-Disclosure Agreement) between us and our customer that assures that these instructions will never be made available to third parties. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified to its competitors. The applicant understands that pursuant to rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 Dated 15 May 2015 By: ALESSANDRO BRUNELLI Signature Printed Title: CERTIFICATION ENGINEER On behalf of : TEKO TELECOM Telephone: +39 051 6946811 P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 MUTUAL NON-DISCLOSURE AGREEMENT THIS AGREEMENT, made effective as of the [Text] day of [Text], 2014, by and between [Text], having a place of business at [Text] (hereinafter “[Text]”) and John Mezzalingua Associates, LLC d/b/a JMA, having a place of business at 7645 Henry Clay Blvd., Liverpool, NY USA 13088 (hereinafter “JMA”). [Text] and JMA may be both Discloser and Recipient during the exchange of information under this Agreement. This Agreement shall apply to the both party’s Affiliates and subsidiaries. When used herein, the term “Affiliate” shall mean a business entity now or hereafter controlled by, controlling or under common control with JMA or [Text]. Control exists when any entity owns or controls at least 50% of the voting power of the entity. For the avoidance of doubt, “JMA” shall mean John Mezzalingua Associates, LLC and its Affiliates, including, but not limited to Teko Telecom S.r.l., having a place of business at via Meucci, 24/A, Castel San Pietro Terme (BO), Italy (hereinafter “Teko”), and CSS Antenna, Inc., having a place of business at 2206 Lakeside Blvd., Edgewood, MD USA 21040 (hereinafter “CSS”). The parties have a mutual interest in discussing and/or evaluating a potential business relationship (the “Purpose”) at which time the Discloser will disclose proprietary or CONFIDENTIAL INFORMATION to Recipient in the course of discussing or implementing such Purpose. For instance, the Purpose of such disclosure generally may relate to [Text]. In order to facilitate the Purpose and induce the parties to disclose and accept such information, the parties agree as follows: …

Text truncated - open the document above for the full version.

Cover Letter(s)

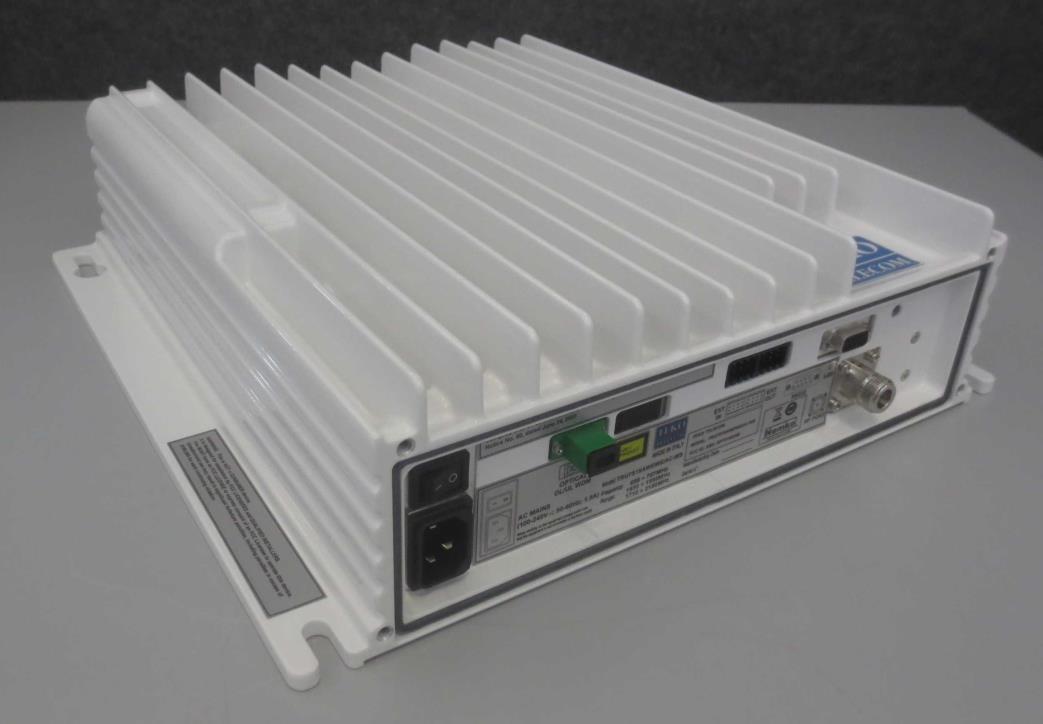

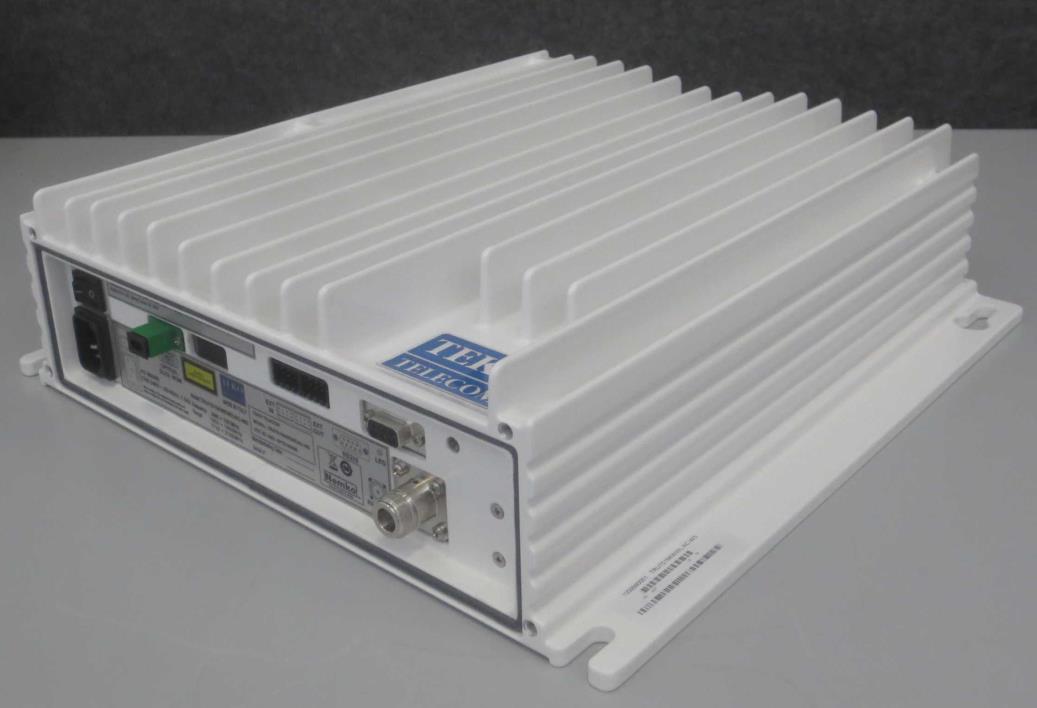

External Photos

ID Label/Location Info

RF Exposure Info

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:31,00(dBm) Maximum peak output power at antenna input terminal:1258,925412(mW) Antenna gain(maximum):16(dBi) Maximum antenna gain:39,81071706(numeric) Time Averaging:100(%) Prediction distance:100(cm) Prediction frequency:728(MHz) MPE limit for uncontrolled exposure at prediction frequency:0,485(mW/cm^2) Power density at prediction frequency:0,398832(mW/cm^2) Margin of compliance:-0,9(dB) This equates to:3,988321282W/m^2 2 4R PG S  

RF Exposure Info

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:31,00(dBm) Maximum peak output power at antenna input terminal:1258,925412(mW) Antenna gain(maximum):20(dBi) Maximum antenna gain:100(numeric) Time Averaging:100(%) Prediction distance:100(cm) Prediction frequency:2180(MHz) MPE limit for uncontrolled exposure at prediction frequency:1,000(mW/cm^2) Power density at prediction frequency:1,001821(mW/cm^2) Margin of compliance:0,0(dB) This equates to:10,01821011W/m^2 2 4R PG S  

Test Report

Nemko Spa, 20853 Biassono (MB) - Italy. All rights reserved. This publication may be reproduced in whole for non-commercial purposes as long as Nemko Spa is acknowledged as copyright owner and source of the material. Nemko Spa takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Nemko Spa accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This test report may not be partially reproduced, except with the prior written permission of Nemko Spa. The test report merely corresponds to the test sample. The phase of sampling / collection of equipment under test is carried out by the customer. This Test Report, when bearing the Nemko name and logo is only valid when issued by a Nemko laboratory, or by a laboratory having special agreement with Nemko. Report Reference ID: 283398-1TRFWL Test specification: Title 47 – Telecommunication Chapter I – Federal Communications Commission Subchapter B – Common carrier services Part 27 – Miscellaneous wireless communications services Applicant: TEKO Telecom Srl. Via Meucci, 24/a I-40024 Castel S. Pietro Terme (BO) (Italy) Apparatus: Remote Unit Model: TRU7S19AWEWE/AC-WS FCC ID: XM2-EP7S19AWE Testing laboratory: Nemko Italy Spa Via del Carroccio, 4 20853 Biassono (MB) – Italy Telephone: +39 039 2201201 Facsimile: +39 039 2201221 Name and title Date Tested by: G. Curioni, Wireless/EMC Specialist 2015-05-22 Reviewed by: P. Barbieri, Wireless/EMC Specialist 2015-05-22 Product: TRL7S8SC8A19AW23AS Specification: FCC 27 Report reference 283398-1TRFWL Page 2 of 43 Table of contents Section 1: Report summary ......................................................................................................... 4 1.1 Test specification ...................................................................................................................4 1.2 Statement of compliance .......................................................................................................4 1.3 Exclusions .............................................................................................................................4 1.4 Registration number ..............................................................................................................4 1.5 Test report revision history ....................................................................................................4 1.6 Limits of responsibility............................................................................................................4 Section 2: Summary of test results ............................................................................................. 5 2.1 FCC Part 27, test results .......................................................................................................5 Section 3: Equipment under test (EUT) and application details ................................................ 6 3.1 Applicant details ....................................................................................................................6 3.2 Modular equipment ................................................................................................................6 3.3 Product details .......................................................................................................................6 3.4 Application purpose ...............................................................................................................6 3.5 Composite/related equipment ................................................................................................7 3.6 Sample information ................................................................................................................7 3.7 EUT technical specifications ..................................................................................................7 3.8 Accessories and support equipment ......................................................................................8 3.9 Operation of the EUT during testing .......................................................................................9 3.10 EUT setup diagram ................................................................................................................9 Section 4: Engineering considerations ..................................................................................... 10 4.1 Modifications incorporated in the EUT ................................................................................. 10 4.2 Deviations from laboratory tests procedures ........................................................................ 10 4.3 Technical judgment ............................................................................................................. 10 Section 5: Test conditions ......................................................................................................... 11 5.1 Deviations from laboratory tests procedures ........................................................................ 11 5.2 Test conditions, power source and ambient temperatures ................................................... 11 5.3 Measurement uncertainty .................................................................................................... 12 5.4 Test equipment .................................................................................................................... 12 Appendix A: Test results ............................................................................................................ 13 Clause 27.50(c) Peak output power at RF antenna connector ................................................................ 13 Clause 27.53(g) Spurious emissions at RF antenna connector ............................................................... 17 Clause 27.53(g) Radiated spuriou…

Text truncated - open the document above for the full version.

Test Report

Nemko Spa, 20853 Biassono (MB) - Italy. All rights reserved. This publication may be reproduced in whole for non-commercial purposes as long as Nemko Spa is acknowledged as copyright owner and source of the material. Nemko Spa takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Nemko Spa accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This test report may not be partially reproduced, except with the prior written permission of Nemko Spa. The test report merely corresponds to the test sample. The phase of sampling / collection of equipment under test is carried out by the customer. This Test Report, when bearing the Nemko name and logo is only valid when issued by a Nemko laboratory, or by a laboratory having special agreement with Nemko. Report Reference ID: 283398-2TRFWL Test specification: Title 47 – Telecommunication Chapter I – Federal Communications Commission Subchapter B – Common carrier services Part 27 – Miscellaneous wireless communications services Applicant: TEKO Telecom Srl. Via Meucci, 24/a I-40024 Castel S. Pietro Terme (BO) (Italy) Apparatus: Remote Unit Model: TRU7S19AWEWE/AC-WS FCC ID: XM2-EP7S19AWE Testing laboratory: Nemko Italy Spa Via del Carroccio, 4 20853 Biassono (MB) – Italy Telephone: +39 039 2201201 Facsimile: +39 039 2201221 Name and title Date Tested by: G. Curioni, Wireless/EMC Specialist 2015-05-22 Reviewed by: P. Barbieri, Wireless/EMC Specialist 2015-05-22 Product: TRU7S19AWEWE/AC-WS Specification: FCC 27 Report reference 283398-2TRFWL Page 2 of 47 Table of contents Section 1: Report summary ......................................................................................................... 4 1.1 Test specification ...................................................................................................................4 1.2 Statement of compliance .......................................................................................................4 1.3 Exclusions .............................................................................................................................4 1.4 Registration number ..............................................................................................................4 1.5 Test report revision history ....................................................................................................4 1.6 Limits of responsibility............................................................................................................4 Section 2: Summary of test results ............................................................................................. 5 2.1 FCC Part 27, test results .......................................................................................................5 Section 3: Equipment under test (EUT) and application details ................................................ 6 3.1 Applicant details ....................................................................................................................6 3.2 Modular equipment ................................................................................................................6 3.3 Product details .......................................................................................................................6 3.4 Application purpose ...............................................................................................................6 3.5 Composite/related equipment ................................................................................................7 3.6 Sample information ................................................................................................................7 3.7 EUT technical specifications ..................................................................................................7 3.8 Operation of the EUT during testing .......................................................................................9 3.9 EUT setup diagram ................................................................................................................9 Section 4: Engineering considerations ..................................................................................... 10 4.1 Modifications incorporated in the EUT ................................................................................. 10 4.2 Deviations from laboratory tests procedures ........................................................................ 10 4.3 Technical judgment ............................................................................................................. 10 Section 5: Test conditions ......................................................................................................... 11 5.1 Deviations from laboratory tests procedures ........................................................................ 11 5.2 Test conditions, power source and ambient temperatures ................................................... 11 5.3 Measurement uncertainty .................................................................................................... 12 5.4 Test equipment .................................................................................................................... 12 Appendix A: Test results ............................................................................................................ 13 Clause 27.50(b) Peak output power at RF antenna connector ................................................................ 13 Clause 27.53(c) Spurious emissions at RF antenna connector ............................................................... 17 Clause 27.53(c) Radiated spurious emissions ........................................................................................ 28 Clause 27.53(f) Radiate…

Text truncated - open the document above for the full version.

Test Report

Nemko Spa, 20853 Biassono (MB) - Italy. All rights reserved. This publication may be reproduced in whole for non-commercial purposes as long as Nemko Spa is acknowledged as copyright owner and source of the material. Nemko Spa takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Nemko Spa accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This test report may not be partially reproduced, except with the prior written permission of Nemko Spa. The test report merely corresponds to the test sample. The phase of sampling / collection of equipment under test is carried out by the customer. This Test Report, when bearing the Nemko name and logo is only valid when issued by a Nemko laboratory, or by a laboratory having special agreement with Nemko. Report Reference ID: 283398-3TRFWL Test specification: Title 47 – Telecommunication Chapter I – Federal Communications Commission Subchapter A – General Part 24 – Personal Communication Services Subpart E – Broadband PCS Applicant: TEKO Telecom Srl. Via Meucci, 24/a I-40024 Castel S. Pietro Terme (BO) (Italy) Apparatus: Remote Unit Model: TRU7S19AWEWE/AC-WS FCC ID: XM2-EP7S19AWE Testing laboratory: Nemko Italy Spa Via del Carroccio, 4 20853 Biassono (MB) – Italy Telephone: +39 039 2201201 Facsimile: +39 039 2201221 Name and title Date Tested by: G. Curioni, Wireless/EMC Specialist 2015-03-22 Reviewed by: P. Barbieri, Wireless/EMC Specialist 2015-03-22 Product: TRU7S19AWEWE/AC-WS Specification: FCC 24 Subpart E Report reference 283398-3TRFWL Page 2 of 57 Table of contents Section 1: Report summary ......................................................................................................... 3 Section 2: Equipment under test ................................................................................................. 4 2.1 Identification of equipment under test (EUT) ..........................................................................4 2.2 Accessories and support equipment ......................................................................................5 2.3 EUT description .....................................................................................................................6 2.4 Technical specifications of the EUT .......................................................................................6 2.5 EUT setup diagram ................................................................................................................7 2.6 Operation of the EUT during testing .......................................................................................7 2.7 Modifications incorporated in the EUT ...................................................................................7 Section 3: Test conditions ........................................................................................................... 8 3.1 Deviations from laboratory tests procedures ..........................................................................8 3.2 Test conditions, power source and ambient temperatures .....................................................8 3.3 Measurement uncertainty ......................................................................................................9 3.4 Test equipment ......................................................................................................................9 Section 4: Result summary ........................................................................................................ 10 4.1 Test results .......................................................................................................................... 10 Appendix A: Test results ............................................................................................................ 11 Clause 24.232(a) Power and antenna height limits ................................................................................. 11 Clause 2.1049 Occupied bandwidth ........................................................................................................ 17 Clause 24.238(a) Spurious emissions at antenna terminal ..................................................................... 26 Clause 24.238(a) Field strength of spurious radiation ............................................................................. 44 Clause 935210 D02v02r01 (D.3)(l) Out of band rejection ........................................................................ 51 Appendix B: Block diagrams of test set-ups ............................................................................ 52 Appendix C: EUT Photos.............…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Alessandro Brunelli(Certification Engineer)

[email protected]+39 051 6946811Fax: +39 051 948473

Technical Contact

Teko Telecom srlMassimo Notargiacomo

[email protected]

Castel San Pietro Terme · Italy

Non-Technical Contact

Teko Telecom srlMarco Della Mora

[email protected]

Test Firm

Nemko SpARalph Spanevello

[email protected]39-0392201201Fax: 39-0392201221

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
7	27	2.11 GHz - 2.18 GHz	1.25 W	D7W	Amp

Confidentiality

Long Term

Grant Notes

Power output listed is the composite for multi-channel operation. This transmitter operates as a remote unit as part of a system along with host/master unit components as described in this filing and excluding any other devices connected to the (uplink) output terminal of the master unit. This application covers only the system configuration with host/master unit connected to a base station in the uplink path; operations if any with host/master unit connected to antenna or amplifier in the uplink require separate equipment authorization. This filing has compliance demonstration information and test data only for SISO (single-input single-output) booster system configurations; additional equipment authorization is required to allow this device to be used in MIMO (multiple-input multiple-output) industrial booster systems. Antennas installed for each remote unit must provide a minimum 100 cm separation distance from all persons as described in this filing. The antenna(s) used for this transmitter must be fixed-mounted on outdoor/indoor permanent structures. Users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance, including antenna co-location requirements of 1.1307(b)(3). RF exposure compliance may need to be addressed at the time of licensing, as required by the responsible FCC Bureau(s).
