Teko Telecom S.p.A. Via Meucci, 24/a Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Qualità ed Ambiente certificato – ISO 9001:2000, ISO 14001:2004 REMOTE UNIT VERY HIGH POWER VARIANTS Commercial name Description REMOTE UNIT VERY HIGH POWER TRU Teko Telecom Remote Unit xxxxx = Operating band: 7S: SMR700 (UL: 698-716+776-787MHz) DL: 728-757MHz) 7P: Public Safety 700 (DL: 763-775MHz; UL: 793-805MHz) 8S: SMR800 (DL: 851-869MHz; UL: 806-824MHz) 8A: AMPS (DL: 869-894MHz; UL: 824-849MHz) 9S: SMR900 (DL: 935-941MHz; UL: 896-902MHz) 19: PCS1900 (DL: 1930-1995MHz; UL: 1850-1915MHz) AW: AWS2100 (DL: 2110-2155MHz; UL: 1710-1755MHz) and combination of these c = RF Connector: W: wideband D: duplexed B: bi duplexed N: no duplexed S: single connector V = Very high power TRUxxxxxcV/zz-kkkj-r zz = Power supply: AC: 85-264Vac, 50-60Hz Teko Telecom S.p.A. Via Meucci, 24/a Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 02186561201 – Reg. Imprese di Bologna n. 02186561201 Capitale sociale Euro 660.000,00 i.v. – Soggetta a direzione e coordinamento di MetaSystem Group S.p.A. Società con Sistema di Qualità ed Ambiente certificato – ISO 9001:2000, ISO 14001:2004 kkk = Laser version: Without option: NO WDM Termocontrolled laser version: W21:
= 1560,61nm W23:
= 1558,98nm W25:
= 1557,36nm W27:
= 1555,75nm W29:
= 1554,13nm W31:
= 1552,52nm W:
= 1550,92nm W35:
= 1549,32nm W37:
= 1547,72nm No termocontrolled laser version: M11:
= 1470 ± 3 nm M12:
= 1490 ± 3 nm M13:
= 1510 ± 3 nm M14:
= 1530 ± 3 nm W:
= 1550 ± 3 nm M16:
= 1570 ± 3 nm M17:
= 1590 ± 3 nm M18:
= 1610 ± 3 nm j = Optical connector: S: SC-APC E: E-2000 r = Redundancy: Without option: NO redundancy 1: Power Supply 2: HPA 3: Optical Module 4: Power Supply + HPA 5: Power Supply + Optical Module 6: HPA + Optical Module 7: Power Supply + Optical Module + HPA

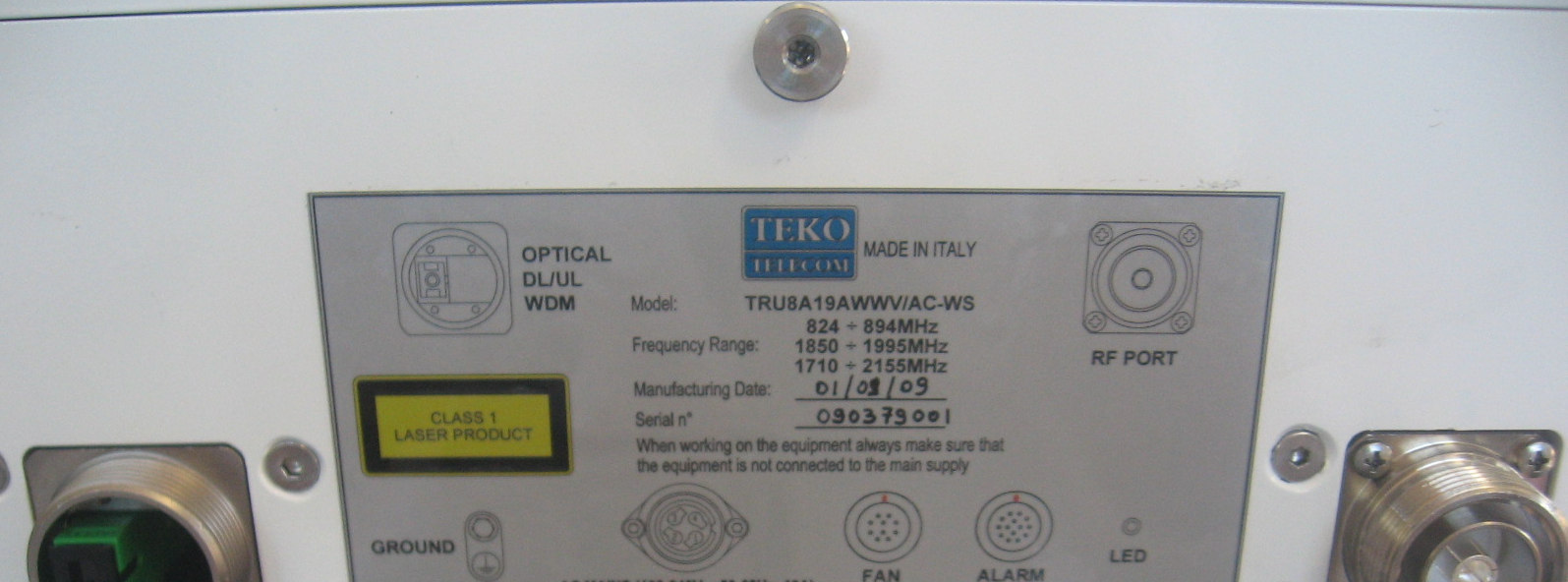

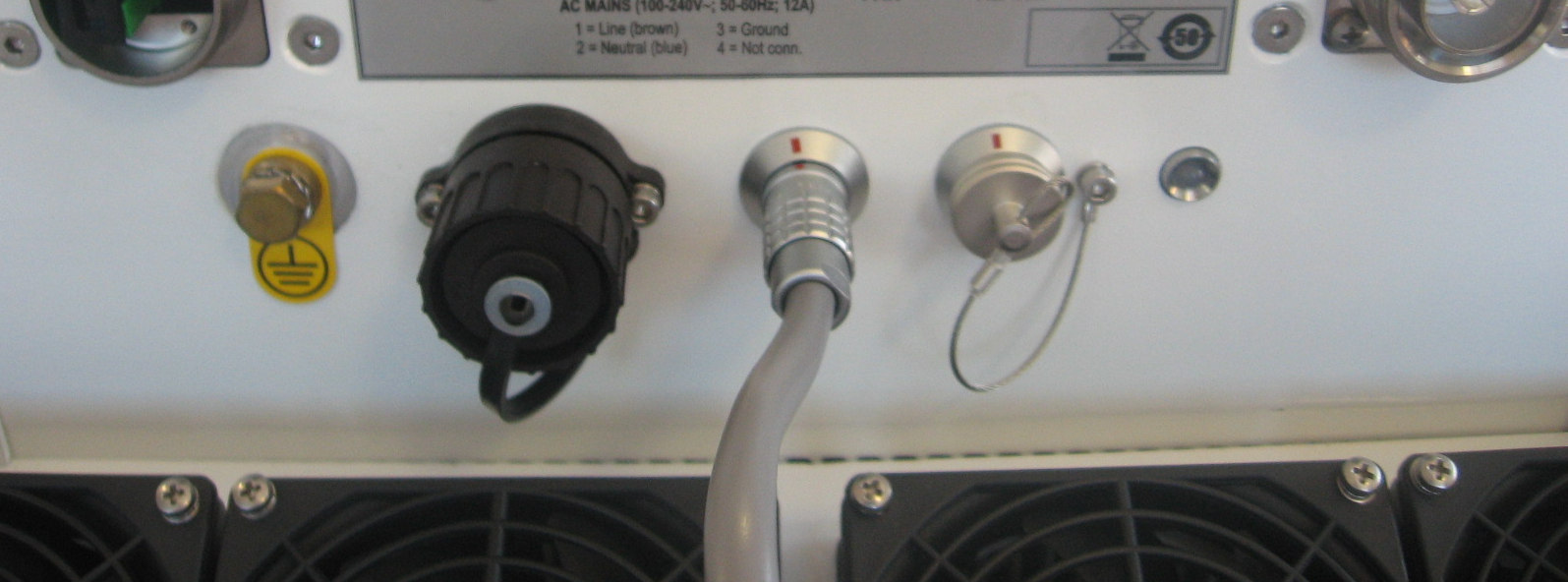

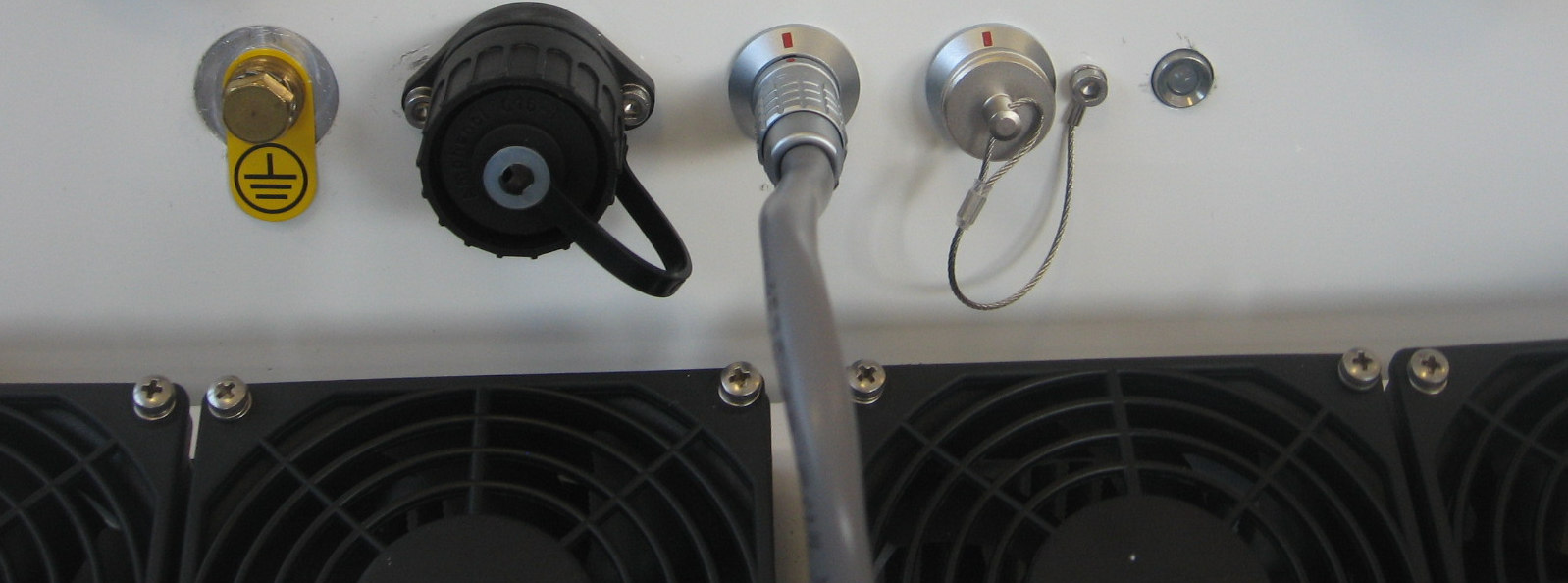

TEKO TELECOM S.p.A. Via dell'industria, n°5 40068 SAN LAZZARO DI SAVENA (BO) ITALY Tel.: +39 051 6256148 - Fax: +39 051 6257670 E-mail: [email protected] EXTERNAL PHOTO REMOTE UNIT VERY HIGH POWER TEKO TELECOM S.p.A. Via dell'industria, n°5 40068 SAN LAZZARO DI SAVENA (BO) ITALY Tel.: +39 051 6256148 - Fax: +39 051 6257670 E-mail: [email protected] TEKO TELECOM S.p.A. Via dell'industria, n°5 40068 SAN LAZZARO DI SAVENA (BO) ITALY Tel.: +39 051 6256148 - Fax: +39 051 6257670 E-mail: [email protected]

svhpadr01amps Wednesday, September 16, 2009 1:55 pm Page 1 # QTY REFDES CODICE MAGAZZINO DESCRIZIONE ----------------------------------------------------------------------------- 1 1 A2 2 1 A3 3 1 A4 4 1 A5 5 1 A7 6 1 A8 7 1 C1 05 075 0360 CONDENS. 10UF/35V 105° SIZE 5X5,4 SMD 8 1 C2 05 075 0360 CONDENS. 10UF/35V 105° SIZE 5X5,4 SMD 9 1 C3 05 040 0285 CHIP 4,7 UF X7R 16V SIZE 1210 10 1 C4 05 041 0185 CHIP 1 NF X7R 50V TOLL.J SIZE 0603 11 1 C5 05 041 0110 CHIP 47 PF COG 50V TOLL.J SIZE 0603 12 1 C6 05 040 0290 CHIP 4,7UF 50V X7R SIZE 1210 13 1 C7 05 051 0195 CHIP 22 PF LOW ESR 0603 250V 14 1 C8 TBD TBD 15 1 C9 05 075 0535 COND.ELETT. 47UF/50V SMD 105°C 6,3X7,7MM 16 1 C10 05 075 0535 COND.ELETT. 47UF/50V SMD 105°C 6,3X7,7MM 17 1 C13 05 075 0360 CONDENS. 10UF/35V 105° SIZE 5X5,4 SMD 18 1 C14 05 075 0535 COND.ELETT. 47UF/50V SMD 105°C 6,3X7,7MM 19 1 C15 05 040 0290 CHIP 4,7UF 50V X7R SIZE 1210 20 1 C18 05 040 0240 CHIP 1UF X7R 16V/25 TOLL.K SIZE 1206 21 1 C19 05 041 0270 CHIP 100 NF 16V TOLL.J X7R SIZE 0603 22 1 C20 05 040 0240 CHIP 1UF X7R 16V/25 TOLL.K SIZE 1206 23 1 C21 05 041 0270 CHIP 100 NF 16V TOLL.J X7R SIZE 0603 24 1 C22 05 050 0005 CHIP PORC A 0,5 PF 150V TOLL.B SIZEC11 25 1 C23 05 041 0220 CHIP 10 NF X7R 50V TOLL.J SIZE 0603 26 1 C24 05 041 0220 CHIP 10 NF X7R 50V TOLL.J SIZE 0603 27 1 C25 05 041 0220 CHIP 10 NF X7R 50V TOLL.J SIZE 0603 28 1 C26 05 075 0535 COND.ELETT. 47UF/50V SMD 105°C 6,3X7,7MM 29 1 C27 05 075 0360 CONDENS. 10UF/35V 105° SIZE 5X5,4 SMD 30 1 C28 05 075 0360 CONDENS. 10UF/35V 105° SIZE 5X5,4 SMD 31 1 C29 05 075 0360 CONDENS. 10UF/35V 105° SIZE 5X5,4 SMD 32 1 C30 05 041 0220 CHIP 10 NF X7R 50V TOLL.J SIZE 0603 33 1 C31 05 041 0270 CHIP 100 NF 16V TOLL.J X7R SIZE 0603 34 1 C32 05 041 0270 CHIP 100 NF 16V TOLL.J X7R SIZE 0603 35 1 C33 05 075 0360 CONDENS. 10UF/35V 105° SIZE 5X5,4 SMD 36 1 C34 05 090 0070 PASSANTE+FERRITE 2200PF NFE31PT222Z1E9L 37 1 C35 05 075 0455 100 UF/50V 105° SMD 8,3X8,3 38 1 C36 05 040 0240 CHIP 1UF X7R 16V/25 TOLL.K SIZE 1206 39 1 C37 05 075 0455 100 UF/50V 105° SMD 8,3X8,3 40 1 C38 05 040 0305 COND 22UF 16V X5R SIZE 1210 *R* 41 1 C40 05 040 0240 CHIP 1UF X7R 16V/25 TOLL.K SIZE 1206 42 1 C41 05 040 0240 CHIP 1UF X7R 16V/25 TOLL.K SIZE 1206 43 1 C42 05 040 0240 CHIP 1UF X7R 16V/25 TOLL.K SIZE 1206 44 1 C43 05 040 0240 CHIP 1UF X7R 16V/25 TOLL.K SIZE 1206 45 1 C44 05 040 0225 CHIP 330NF Y5V 50V TOLL.Z SIZE 1206 46 1 C45 05 040 0240 CHIP 1UF X7R 16V/25 TOLL.K SIZE 1206 47 1 C46 05 041 0130 CHIP 100 PF COG 50V TOLL.J SIZE 0603 48 1 C47 TBD TBD 49 1 C48 TBD TBD 50 1 C49 05 041 0220 CHIP 10 NF X7R 50V TOLL.J SIZE 0603 51 1 C50 05 041 0220 CHIP 10 NF X7R 50V TOLL.J SIZE 0603 52 1 C51 05 040 0240 CHIP 1UF X7R 16V/25 TOLL.K SIZE 1206 53 1 C52 05 050 0155 CHIP PORC A 100 PF 150V TOLL.J SIZEC11 54 1 C53 05 051 0235 CHIP 47 PF LOW ESR 0603 250V 55 1 C54 05 041 0220 CHIP 10 NF X7R 50V TOLL.J SIZE 0603 svhpadr01amps Wednesday, September 16, 2009 1:55 pm Page 2 # QTY REFDES CODICE MAGAZZINO DESCRIZIONE ----------------------------------------------------------------------------- 56 1 C57 05 050 0155 CHIP PORC A 100 PF 150V TOLL.J SIZEC11 57 1 C58 05 050 0155 CHIP PORC A 100 PF 150V TOLL.J SIZEC11 58 1 C61 05 050 0155 CHIP PORC A 100 PF 150V TOLL.J SIZEC11 59 1 C62 05 040 0203 CHIP 0,1 UF X7R 50V SIZE 0805 60 1 C63 05 040 0203 CHIP 0,1 UF X7R 50V SIZE 0805 61 1 C64 05 040 0203 CHIP 0,1 UF X7R 50V SIZE 0805 62 1 C65 05 040 0240 CHIP 1UF X7R 16V/25 TOLL.K SIZE 1206 63 1 C66 05 040 0203 CHIP 0,1 UF X7R 50V SIZE 0805 64 1 C67 05 041 0270 CHIP 100 NF 16V TOLL.J X7R SIZE 0603 65 1 C68 05 041 0220 CHIP 10 NF X7R 50V TOLL.J SIZE 0603 66 1 C69 TBD TBD 67 1 C70 05 041 0130 CHIP 100 PF COG 50V TOLL.J SIZE 0603 68 1 C72 05 041 0220 CHIP 10 NF X7R 50V TOLL.J SIZE 0603 69 1 C73 05 041 0220 CHIP 10 NF X7R 50V TOLL.J SIZE 0603 70 1 C74 05 041 0270 CHIP 100 NF 16V TOLL.J X7R SIZE 0603 71 1 C75 05 041 0130 CHIP 100 PF COG 50V TOLL.J SIZE 0603 72 1 C76 05 051 0195 CHIP 22 PF LOW ESR 0603 250V 73 1 C77 05 051 0195 CHIP 22 PF LOW ESR 0603 250V 74 1 C78 05 051 0195 CHIP 22 PF LOW ESR 0603 250V 75 1 C79 05 051 0105 CHIP 0,5PF LOW ESR 0603 250V 76 1 C80 05 051 0105 CHIP 0,5PF LOW ESR 0603 250V 77 1 C81 05 051 0235 CHIP 47 PF LOW ESR 0603 250V 78 1 C82 05 051 0235 CHIP 47 PF LOW ESR 0603 250V 79 1 C83 05 051 0255 CHIP 100 PF LOW ESR 0603 250V 80 1 C84 05 051 0255 CHIP 100 PF LOW ESR 0603 250V 81 1 C85 05 051 0255 CHIP 100 PF LOW ESR 0603 250V 82 1 C86 05 041 0130 CHIP 100 PF COG 50V TOLL.J SIZE 0603 83 1 C87 TBD TBD 84 1 C88 05 040 0280 CHIP 1 UF X7R 50V SIZE 1210 ROHS 85 1 C89 05 040 0280 CHIP 1 UF X7R 50V SIZE 1210 ROHS 86 1 C90 05 041 0130 CHIP 100 PF COG 50V TOLL.J SIZE 0603 87 1 C91 05 051 0235 CHIP 47 PF LOW ESR 0603 250V 88 1 C93 05 051 0235 CHIP 47 PF LOW ESR 0603 250V 89 1 C94 05 040 0285 CHIP 4,7 UF X7R 16V SIZE 1210 90 1 C95 05 041 0090 CHIP 22 PF COG 50V TOLL.J SIZE 0603 91 1 C96 05 040 0280 CHIP 1 UF X7R 50V SIZE 1210 ROHS 92 1 C97 05 040 0280 CHIP 1 UF X7R 50V SIZE 1210 ROHS 93 1 C98 05 040 0280 CHIP 1 UF X7R 50V SIZE 1210 ROHS 94 1 C99 05 040 0280 CHIP 1 UF X7R 50V SIZE 1210 ROHS 95 1 C100 05 040 0280 CHIP 1 UF X7R 50V SIZE 1210 ROHS 96 1 C101 05 041 0090 CHIP 22 PF COG 50V TOLL.J SIZE 0603 97 1 C102 05 040 0280 CHIP 1 UF X7R 50V SIZE 1210 ROHS 98 1 C103 05 040 0305 COND 22UF 16V X5R SIZE 1210 *R* 99 1 C105 05 051 0105 CHIP 0,5PF LOW ESR 0603 250V 100 1 C106 05 040 0305 COND 22UF 16V X5R SIZE 1210 *R* 101 1 C111 05 041 0220 CHIP 10 NF X7R 50V TOLL.J SIZE 0603 102 1 C112 05 041 0220 CHIP 10 NF X7R 50V TOLL.J SIZE 0603 103 1 C113 05 051 0165 CHIP 8,2PF LOW ESR 0603 250V 104 1 C114 05 051 0235 CHIP 47 PF LOW ESR 0603 250V 105 1 C115 05 051 0235 CHIP 47 PF LOW ESR 0603 250V 106 1 C116 05 051 0255 CHIP 100 PF LOW ESR 0603 250V 107 1 C117 05 051 0255 CHIP 100 PF LOW ESR 0603 250V 108 1 C118 05 051 0255 CHIP 100 PF LOW ESR 0603 250V 109 1 C119 05 051 0255 CHIP 100 PF LOW ESR 0603 250V 110 1 C120 05 040 0240 CHIP 1UF X7R 16V/25 TOLL.K SIZE 1206 111 1 C121 05 041 0220 CHIP 10 N…

Text truncated - open the document above for the full version.

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:43.00(dBm) Maximum peak output power at antenna input terminal:19952.62315(mW) Antenna gain(maximum):14(dBi) Maximum antenna gain:25.11886432(numeric) Time Averaging:100(%) Prediction distance:200(cm) Prediction frequency:1930(MHz) MPE limit for uncontrolled exposure at prediction frequency:1.000(mW/cm^2) Power density at prediction frequency:0.997080(mW/cm^2) Margin of compliance:0.0(dB) This equates to:9.970803206W/m^2 2 4R PG S π = Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:43.00(dBm) Maximum peak output power at antenna input terminal:19952.62315(mW) Antenna gain(maximum):14(dBi) Maximum antenna gain:25.11886432(numeric) Time Averaging:100(%) Prediction distance:200(cm) Prediction frequency:2110(MHz) MPE limit for uncontrolled exposure at prediction frequency:1.000(mW/cm^2) Power density at prediction frequency:0.997080(mW/cm^2) Margin of compliance:0.0(dB) This equates to:9.970803206W/m^2 2 4R PG S π = Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:43.00(dBm) Maximum peak output power at antenna input terminal:19952.62315(mW) Antenna gain(maximum):11(dBi) Maximum antenna gain:12.58925412(numeric) Time Averaging:100(%) Prediction distance:200(cm) Prediction frequency:851(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.567(mW/cm^2) Power density at prediction frequency:0.499724(mW/cm^2) Margin of compliance:-0.6(dB) This equates to:4.997239276W/m^2 2 4R PG S π =

Nemko Test Report: 131640-6 Applicant: TEKO Telecom S.p.A. Via Meucci, 24/a I-40024 Castel S. Pietro Terme (BO) Equipment Under Test: (E.U.T.) TRU8A19AWWV/AC-WS ( + Master Unit composed by: SUB-TRX+TPSU/AC+TPSU/48+TSPV-R+TTRC4W-S) In Accordance With: CFR 47, Part 24, Subpart E Broadband PCS Repeaters Tested By: Nemko Italy S.p.A.. Via Carroccio, 4 I-20046 Biassono (Italy) TESTED BY: G. Curioni DATE: 18-25 September, 2009 APPROVED BY: P. Barbieri DATE: 28 September, 2009 Number of Pages: 79 Nemko Italy S.p.A. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: I TRU8A19AWWV/AC-WS PROJECT NO.: 131640-6 Page 2 of 79 Table of Contents SECTION 1. SUMMARY OF TEST RESULTS 3 SECTION 2. GENERAL EQUIPMENT SPECIFICATION 5 SECTION 3. RF POWER OUTPUT 6 SECTION 4. OCCUPIED BANDWIDTH 13 SECTION 5. SPURIOUS EMISSIONS AT ANTENNA TERMINALS 30 SECTION 6. FIELD STRENGTH OF SPURIOUS 59 SECTION 7. FILTER FREQUENCY RESPONSE 6159 SECTION 8. TEST EQUIPMENT LIST 63 SECTION 9. PHOTOS 655 ANNEX A - TEST DETAILS 70 ANNEX B - TEST DIAGRAMS 766 Nemko Italy S.p.A. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: I TRU8A19AWWV/AC-WS PROJECT NO.: 131640-6 Page 3 of 79 Section 1. Summary of Test Results Manufacturer: TEKO Telecom Model No.: TRU8A19AWWV/AC-WS Serial No.: 090379001 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with CFR 47, Part 24, Subpart E. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Nemko S.p.A. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko S.p.A. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Italy S.p.A. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: I TRU8A19AWWV/AC-WS PROJECT NO.: 131640-6 Page 4 of 79 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. RESULT RF Power Output 24.232 100W Complies Occupied Bandwidth 2.1049 Input/Output Complies Spurious Emissions at Antenna Terminals 24.238(a) -13 dBm Complies Field Strength of Spurious Emissions 24.238(a) -13 dBm erp Complies Frequency Stability 24.235 NA Footnotes For N/A’s: Frequency Stability testing was not performed since the E.U.T. does not contain modulation circuitry. Nemko Italy S.p.A. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: I TRU8A19AWWV/AC-WS PROJECT NO.: 131640-6 Page 5 of 79 Section 2. General Equipment Specification Supply Voltage Input: 120 Vac Frequency Range: Downlink: 1930 to 1995 MHz Frequency Range: Uplink: 1850 to 1915 MHz CDMA GSM EDGE W-CDMA (G7W) (GXW) (G7W) (G7W) Type of Modulation and Designator: Output Impedance: 50 ohms Downlink: 20 W RF Output (Rated): 43 dBm Uplink: 0.0025 W typical 4 dBm typical Gain: Downlink: Uplink: 48 dB 47 dB Frequency Translation: F1-F1 F1-F2 N/A Software Duplexer Change Fullband Coverage Band Selection: Nemko Italy S.p.A. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: I TRU8A19AWWV/AC-WS PROJECT NO.: 131640-6 Page 6 of 79 Description of EUT The EUT is a very high power multi-operator optical Remote Unit. It is used in conjunction with a Master Unit in the optical distribution system. The EUT is a tri-band system; it is able to transport a wide frequency range simultaneously (AMPS, PCS and AWS bands). Single amplifier modules can be combined each other to obtain the following equipment: Commercial name Description REMOTE UNIT VERY HIGH POWER TRU Teko Telecom Remote Unit xxxxx = Operating band: 7S: SMR700 (UL: 698-716+776-787MHz) DL: 728-757MHz) 7P: Public Safety 700 (DL: 763-775MHz; UL: 793-805MHz) 8S: SMR800 (DL: 851-869MHz; UL: 806-824MHz) 8A: AMPS (DL: 869-894MHz; UL: 824-849MHz) 9S: SMR900 (DL: 935-941MHz; UL: 896-902MHz) 19: PCS1900 (DL: 1930-1995MHz; UL: 1850-1915MHz) AW: AWS2100 (DL: 2110-2155MHz; UL: 1710-1755MHz) and combination of these c = RF Connector: W: wideband D: duplexed B: bi duplexed N: no duplexed S: single connector V = Very high power TRUxxxxxcV/zz-kkkj-r zz = Power supply: AC: 85-264Vac, 50-60Hz Nemko Italy S.p.A. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: I TRU8A19AWWV/AC-WS PROJECT NO.: 131640-6 Page 7 of 79 kkk = Laser version: Without option: NO WDM Termocontrolled laser version: W21: λ = 1560,61nm W23: λ = 1558,98nm W25: λ = 1557,36nm W27: λ = 1555,75nm W29: λ = 1554,13nm W31: λ = 1552,52nm W: λ = 1550,92nm W35: λ = 1549,32nm W37: λ = 1547,72nm No termocontrolled laser version: M11: λ = 1470 ± 3 nm M12: λ = 1490 ± 3 nm M13: λ = 1510 ± 3 nm M14: λ = 1530 ± 3 nm W: λ = 1550 ± 3 nm M16: λ = 1570 ± 3 nm M17: λ = 1590 ± 3 nm M18: λ = 1610 ± 3 nm j = Optical connector: S: SC-APC E: E-2000 r = Redundancy: Without option: NO redundancy 1: Power Supply 2: HPA 3: Optical Module 4: Power Supply + HPA 5: Power Supply + Optical Module 6: HPA + Optical Module 7: Power Supply + Optical Module + HPA System Diagram Nemko Italy S.p.A. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: I TRU8A19AWWV/AC-WS PROJECT NO.: 131640-6 Page 8 of 79 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 24.232 TESTED BY: G. Curioni DATE: 23 September 2009 Test Results: Complies. Measurement Data: Direction Modulation Output per Channel (dBm) Output per Channel Power (W) Uplink CDMA 4,40 0.0027 Downlink CDMA 43,59 22 Uplink EDGE 4,33 0.0027 Downlink EDGE 43,30 21 Uplink GSM 4,77 0.0029 Downlink GSM 43,11 20 Uplink W-CDMA 4,43 0.0028 Downlink W-CDMA 43,37 21 Equ…
