P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 Castel San Pietro Terme, 18 November 2019 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: XM2-X19AX35M2B Product Name: XR19AX35WM2/48Y Request for Confidentiality Pursuant to Sections 0.457(d) and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematic diagrams • Block diagram • Tune up information • Parts List • Operational Descriptions • User’s manual (non-consumer device – highly technical) • Internal photos (non-consumer device – professionally installed device) These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 Nonroutine Long-Term Confidentiality Request Pursuant to Sections 0.457(d) and 0.459 of the Commission’s rule, we hereby request that nonroutine confidential treatment of information accompanying this application as outlined below: • User’s manual • Internal photos The EUT is part of our product portfolio consisting exclusively of professional communication devices and periphery designed for and delivered to mobile network operators. These devices are generally installed by well-trained professional installers under the control of the network operators at locations, where the general public has no access; such as mounted at masts, on building roofs or locked inside telecommunication shelters/rooms serviceable only by the licensee or designated technicians. Besides, the internal part of the equipment is protected by warranty seals, to avoid unauthorized access. Only Teko Telecom’s technical personnel is authorized to open the seals to access the equipment. The highly technical installation guides are only handed-out with the ordered devices to the network operator/professional installer. There is an NDA (Non-Disclosure Agreement) between us and our customer that assures that these instructions will never be made available to third parties. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified to its competitors. The applicant understands that pursuant to rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 Dated 18 November 2019 By: ALESSANDRO BRUNELLI Signature Printed Title: CERTIFICATION ENGINEER On behalf of : TEKO TELECOM Telephone: +39 051 6946811 P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 MUTUAL NON-DISCLOSURE AGREEMENT THIS AGREEMENT, made effective as of the [Text] day of [Text], 2014, by and between [Text], having a place of business at [Text] (hereinafter “[Text]”) and John Mezzalingua Associates, LLC d/b/a JMA, having a place of business at 7645 Henry Clay Blvd., Liverpool, NY USA 13088 (hereinafter “JMA”). [Text] and JMA may be both Discloser and Recipient during the exchange of information under this Agreement. This Agreement shall apply to the both party’s Affiliates and subsidiaries. When used herein, the term “Affiliate” shall mean a business entity now or hereafter controlled by, controlling or under common control with JMA or [Text]. Control exists when any entity owns or controls at least 50% of the voting power of the entity. For the avoidance of doubt, “JMA” shall mean John Mezzalingua Associates, LLC and its Affiliates, including, but not limited to Teko Telecom S.r.l., having a place of business at via Meucci, 24/A, Castel San Pietro Terme (BO), Italy (hereinafter “Teko”), and CSS Antenna, Inc., having a place of business at 2206 Lakeside Blvd., Edgewood, MD USA 21040 (hereinafter “CSS”). The parties have a mutual interest in discussing and/or evaluating a potential business relationship (the “Purpose”) at which time the Discloser will disclose proprietary or CONFIDENTIAL INFORMATION to Recipient in the course of discussing or implementing such Purpose. For instance, the Purpose of such disclosure generally may relate to [Text]. In order to facilitate the Purpose and induce the parties to disclose and accept such information, the parties agre…

Text truncated - open the document above for the full version.

P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 Castel San Pietro Terme, 18 November 2019 Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 FCC ID: XM2-X19AX35M2B Product Name: XR19AX35WM2/48Y Subject: CBRS conformance and performance – extension of validity of test results TEKO TELECOM Srl, Via Meucci 24/A – 40024 Castel San Pietro Terme (BO), Italy, herein declares that the documents identified as: - 370566-1TRFWL (WINNF-TS-0122 - CBSD), issued the June 25, 2019 by Nemko Canada Inc. [FCC ID: XM2-X19AX35M2] - 370566-2TRFWL (WINNF-TS-0122 - DP), issued the June 25, 2019 by Nemko Canada Inc. [FCC ID: XM2-X19AX35M2] fully and accurately represent the test results related to the new FCC ID file XM2- X19AX35M2B as no changes in the hardware, firmware, software neither internal setting to the original equipment have been applied. The new filing [FCC ID: XM2-X19AX35M2B] has been requested to demonstrate compliance with CBRS band Class B and because the final installations of that equipment may also use cross-polarized antennas, instead of linear polarized antennas; this change solely implies a different calculation of the allowed maximum gain for the installed antenna, and no re-evaluation of test results reported in the above listed documents shall be done. Detailed information about the re-calculated antenna gain are in the User Guide. P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 Dated 18 November 2019 By: ALESSANDRO BRUNELLI Signature Printed Title: CERTIFICATION ENGINEER On behalf of : TEKO TELECOM Telephone: +39 051 6946811

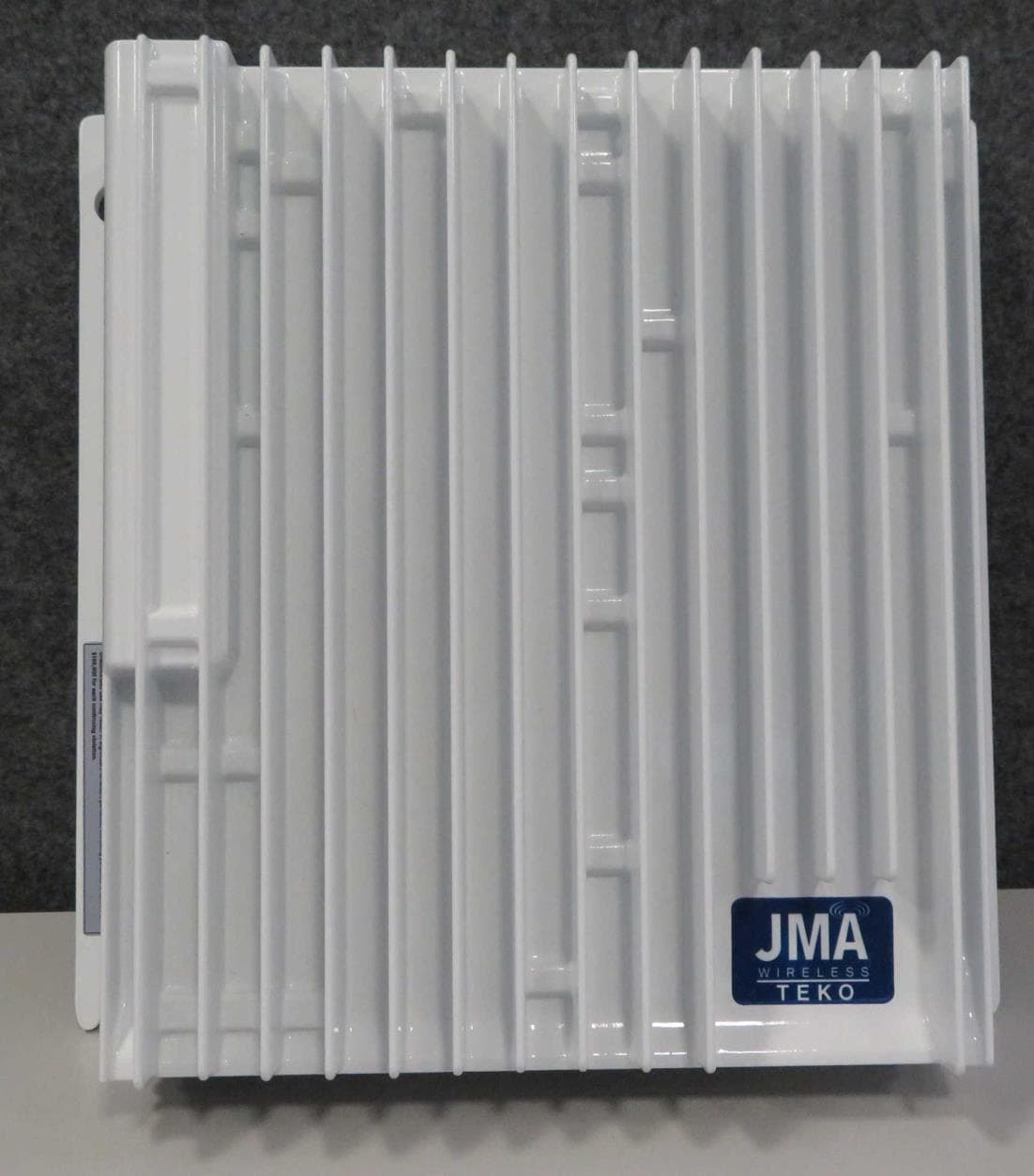

P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 EXTERNAL PHOTOS P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 Cellhub Radio Remote Unit with optional Protection Kit

P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 LABEL LOCATION P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 P.IVA/VAT IT 03272231204 – Reg. Imprese di Bologna n. 03272231204 Capitale sociale Euro 750.000,00 i.v. – PEC [email protected] Società con Sistema di Gestione per la Qualità e l’Ambiente certificato - ISO 9001:2008, ISO 14001:2004 www.jmawireless.com JMA Wireless • Teko Systems Group Teko Telecom S.r.l. a Socio Unico Via Meucci, 24/A 40024 Castel S. Pietro Terme (BO) – Italy Tel +39 051 69 46 811 – Fax +39 051 94 84 73 Cellhub Radio Remote Unit with optional Protection Kit

FCC 1.1310 FCC Equipment FrequencyPower Antenna Gain EIRPEIRP Distance D PDLimit Margin ClassMHzdBmdBidBmmWcmmW/m^2mW/cm^2dBPD/Limit CBD 1 335053.01995261500.70571.001.50.7057 PCB 2 193030.01242.0158491500.05611.0012.50.0561 PCB 2 211030.01242.0158491500.05611.0012.50.0561 PD=EIRP/(4xπxD 2 ) co-location ∑ =0.8178< 1 1 EIRP = EIRP over entire bandwidth per antenna port + 3 dB = 50 + 3 = 53 dBm 2 EIRP = output power per antenna port + 3 dB + antenna gain dBi = 27 + 3 + 12 = 42 dBm

Nemko Spa, 20853 Biassono (MB) - Italy. All rights reserved. This publication may be reproduced in whole for non-commercial purposes as long as Nemko Spa is acknowledged as copyright owner and source of the material. Nemko Spa takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Nemko Spa accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This test report may not be partially reproduced, except with the prior written permission of Nemko Spa. The test report merely corresponds to the test sample. The phase of sampling / collection of equipment under test is carried out by the customer. This Test Report, when bearing the Nemko name and logo is only valid when issued by a Nemko laboratory, or by a laboratory having special agreement with Nemko. Report Reference ID: 387704-5TRFWL Test specification: Title 47 – Telecommunication Chapter I – Federal Communications Commission Subchapter B – Common carrier services Part 96 – CITIZENS BROADBAND RADIO SERVICE Applicant: TEKO Telecom Srl. Via Meucci, 24/a I-40024 Castel S. Pietro Terme (BO) (Italy) Apparatus: Cell hub Mid-power Radio Remote Unit Model: XR19AX35WM2/48Y FCC ID: XM2-X19AX35M2B Testing laboratory: Nemko Italy Spa Via del Carroccio, 4 20853 Biassono (MB) – Italy Telephone: +39 039 2201201 Facsimile: +39 039 2201221 Name and title Date Tested by: P. Barbieri, Wireless/EMC Specialist 12/11/2019 Reviewed by: D. Guarnone, Wireless/EMC Specialist 12/11/2019 Product: XR19AX35WM2/48Y Specification: FCC 96 Report reference 387704-5TRFWL Page 2 of 427 Table of contents Section 1: Report summary ......................................................................................................... 4 1.1 Test specification ...................................................................................................................4 1.2 Statement of compliance .......................................................................................................4 1.3 Exclusions .............................................................................................................................4 1.4 Registration number ..............................................................................................................4 1.5 Test report revision history ....................................................................................................4 1.6 Limits of responsibility............................................................................................................4 Section 2: Summary of test results ............................................................................................. 5 2.1 FCC Part 96, test results .......................................................................................................5 Section 3: Equipment under test (EUT) and application details ................................................ 6 3.1 Applicant details ....................................................................................................................6 3.2 Modular equipment ................................................................................................................6 3.3 Product details .......................................................................................................................6 3.4 Application purpose ...............................................................................................................6 3.5 Composite/related equipment ................................................................................................7 3.6 Sample information ................................................................................................................7 3.7 EUT technical specifications ..................................................................................................7 3.8 Accessories and support equipment ......................................................................................8 3.9 Operation of the EUT during testing .......................................................................................9 3.10 EUT setup diagram ................................................................................................................9 Section 4: Engineering considerations ..................................................................................... 10 4.1 Modifications incorporated in the EUT ................................................................................. 10 4.2 Deviations from laboratory tests procedures ........................................................................ 10 4.3 Technical judgment ............................................................................................................. 10 Section 5: Test conditions ......................................................................................................... 11 5.1 Deviations from laboratory tests procedures ........................................................................ 11 5.2 Test conditions, power source and ambient temperatures ................................................... 11 5.3 Measurement uncertainty .................................................................................................... 12 5.4 Test equipment .................................................................................................................... 13 Appendix A: Test results ......................................................................................................................... 14 Clause 96.41(e)(3) Occupied bandwidth ................................................................................................. 14 Clause 96.41(b)(g) Peak output power at RF antenna connector ............................................................ 39…

Text truncated - open the document above for the full version.

Appendix A: Test results Product: XR19AX35WM2/48Y Specification: FCC 96 Report reference 387704-5TRFWL Page 32 of 427 Channel: TOP, Modulation: QPSK, BW=10MHz Channel: TOP, Modulation: 16QAM, BW=10MHz Channel: TOP, Modulation: 64QAM, BW=10MHz Channel: TOP, Modulation: 256QAM, BW=10MHz Appendix A: Test results Product: XR19AX35WM2/48Y Specification: FCC 96 Report reference 387704-5TRFWL Page 33 of 427 Channel: BOTTOM, Modulation: QPSK, BW=15MHz Channel: BOTTOM, Modulation: 16QAM, BW=15MHz Channel: BOTTOM, Modulation: 64QAM, BW=15MHz Channel: BOTTOM, Modulation: 256QAM, BW=15MHz Appendix A: Test results Product: XR19AX35WM2/48Y Specification: FCC 96 Report reference 387704-5TRFWL Page 34 of 427 Channel: MIDDLE, Modulation: QPSK, BW=15MHz Channel: MIDDLE, Modulation: 16QAM, BW=15MHz Channel: MIDDLE, Modulation: 64QAM, BW=15MHz Channel: MIDDLE, Modulation: 256QAM, BW=15MHz Appendix A: Test results Product: XR19AX35WM2/48Y Specification: FCC 96 Report reference 387704-5TRFWL Page 35 of 427 Channel: TOP, Modulation: QPSK, BW=15MHz Channel: TOP, Modulation: 16QAM, BW=15MHz Channel: TOP, Modulation: 64QAM, BW=15MHz Channel: TOP, Modulation: 256QAM, BW=15MHz Appendix A: Test results Product: XR19AX35WM2/48Y Specification: FCC 96 Report reference 387704-5TRFWL Page 36 of 427 Channel: BOTTOM, Modulation: QPSK, BW=20MHz Channel: BOTTOM, Modulation: 16QAM, BW=20MHz Channel: BOTTOM, Modulation: 64QAM, BW=20MHz Channel: BOTTOM, Modulation: 256QAM, BW=20MHz Appendix A: Test results Product: XR19AX35WM2/48Y Specification: FCC 96 Report reference 387704-5TRFWL Page 37 of 427 Channel: MIDDLE, Modulation: QPSK, BW=20MHz Channel: MIDDLE, Modulation: 16QAM, BW=20MHz Channel: MIDDLE, Modulation: 64QAM, BW=20MHz Channel: MIDDLE, Modulation: 256QAM, BW=20MHz Appendix A: Test results Product: XR19AX35WM2/48Y Specification: FCC 96 Report reference 387704-5TRFWL Page 38 of 427 Channel: TOP, Modulation: QPSK, BW=20MHz Channel: TOP, Modulation: 16QAM, BW=20MHz Channel: TOP, Modulation: 64QAM, BW=20MHz Channel: TOP, Modulation: 256QAM, BW=20MHz Appendix A: Test results Product: XR19AX35WM2/48Y Specification: FCC 96 Report reference 387704-5TRFWL Page 39 of 427 Clause 96.41(b)(g) Peak output power at RF antenna connector (b) Power limits. Unless otherwise specified in this section, the maximum effective isotropic radiated power (EIRP) and maximum Power Spectral Density (PSD) of any CBSD and End User Device must comply with the limits shown in the table in this paragraph (b): (g) Power measurement. The peak-to-average power ratio (PAPR) of any CBSD transmitter output power must not exceed 13 dB. PAPR measurements should be made using either an instrument with complementary cumulative distribution function (CCDF) capabilities or another Commission approved procedure. The measurement must be performed using a signal corresponding to the highest PAPR expected during periods of continuous transmission. Test date: 04/03/2019 to 05/10/2019 Test results: Pass Special notes Appendix A: Test results Product: XR19AX35WM2/48Y Specification: FCC 96 Report reference 387704-5TRFWL Page 40 of 427 Clause 96.41(b)(d) Peak output power at RF antenna connector Test data RF PORT 1 Test data Direction Modulation Frequen cy (MHz) RF output Power (dBm) RF output channel Power (W) PSD (dBm/Hz) PSD (dBm/MHz) PAR (dB) Down-link LTE 5MHz (QPSK) 3552.5 29.51 0.893 -37.48 22.52 9.05 Down-link LTE 5MHz (QPSK) 3625 29.83 0.962 -37.16 22.84 9.43 Down-link LTE 5MHz (QPSK) 3697.5 29.49 0.889 -37.50 22.5 10.23 Down-link LTE 5MHz (16QAM) 3552.5 29.65 0.923 -37.34 22.66 10.29 Down-link LTE 5MHz (16QAM) 3625 29.87 0.971 -37.12 22.88 9.96 Down-link LTE 5MHz (16QAM) 3697.5 29.46 0.883 -37.53 22.47 10.26 Down-link LTE 5MHz (64QAM) 3552.5 28.72 0.745 -38.27 21.73 10 Down-link LTE 5MHz (64QAM) 3625 29.87 0.971 -37.12 22.88 10.07 Down-link LTE 5MHz (64QAM) 3697.5 29.6 0.912 -37.39 22.61 10.06 Down-link LTE 5MHz (256QAM) 3552.5 29.4 0.871 -37.59 22.41 9.7 Down-link LTE 5MHz (256QAM) 3625 29.83 0.962 -37.16 22.84 29.72 Down-link LTE 5MHz (256QAM) 3697.5 29.46 0.883 -37.52 22.48 10.09 Appendix A: Test results Product: XR19AX35WM2/48Y Specification: FCC 96 Report reference 387704-5TRFWL Page 41 of 427 RF PORT 2 Test data Direction Modulation Frequen cy (MHz) RF output Power (dBm) RF output channel Power (W) PSD (dBm/Hz) PSD (dBm/MHz) PAR (dB) Down-link LTE 5MHz (QPSK) 3552.5 29.8 0.955 -37.19 22.81 10.03 Down-link LTE 5MHz (QPSK) 3625 29.99 0.998 -36.99 23.01 9.76 Down-link LTE 5MHz (QPSK) 3697.5 28.86 0.769 -38.13 21.87 10.26 Down-link LTE 5MHz (16QAM) 3552.5 29.84 0.964 -37.15 22.85 10.09 Down-link LTE 5MHz (16QAM) 3625 29.9 0.977 -37.09 22.91 9.76 Down-link LTE 5MHz (16QAM) 3697.5 28.8 0.759 -38.19 21.81 10.61 Down-link LTE 5MHz (64QAM) 3552.5 29.77 0.948 -37.22 22.78 10.03 Down-link LTE 5MHz (64QAM) 3625 29.86 0.968 -37.13 22.87 9.76 Down-link LTE 5MHz (64QAM) 3697.5 28.72 0.745 -38.27 21.73 10.61 Down-link LTE 5MHz (256QAM) 3552.5 29.8 0.955 -37.19 22.81 10.03 Down-link LTE 5MHz (256QAM) 3625 30.13 1.030 -36.86 23.14 9.76 Down-link LTE 5MHz (256QAM) 3697.5 28.65 0.733 -38.34 21.66 10.23 Special notes Maximum EIRP ≤ 47dBm/10MHz Maximum PSD eirp ≤ 37dBm/1MHz PSD eirp (in 1 MHz) = PSD max – N + G max = 23 – N + G max ≤ 37 G max ≤ (37-23+N) = N +14 Where: - PSD max is the maximum PSD value measured on the antenna connector of the equipment and it depends on the LTE bandwidth signal - N is system path loss (in dB) due to cable insertion, splitter, etc.... - G max is the maximum antenna gain (in dBi) Appendix A: Test results Product: XR19AX35WM2/48Y Specification: FCC 96 Report reference 387704-5TRFWL Page 42 of 427 RF PORT 1 plots Channel: BOTTOM, Modulation: QPSK, BW=5MHz, Channel Power Channel: BOTTOM, Modulation: QPSK, BW=5MHz, CCDF Channel: MIDDLE, Modulation: QPSK, BW=5MHz, Channel Power Channel: MIDDLE, Modulation: QPSK, BW=5MHz, CCDF Channel: TOP, Modulation: QPSK, BW=5MHz, Channel Power Channel: TOP, Modulation: QPSK, BW=5MHz, CCDF Appendix A: Test results Pr…

Text truncated - open the document above for the full version.

Appendix A: Test results Product: XR19AX35WM2/48Y Specification: FCC 96 Report reference 387704-5TRFWL Page 49 of 427 Channel: BOTTOM, Modulation: 256QAM, BW=5MHz, Channel Power Channel: BOTTOM, Modulation: 256QAM, BW=5MHz, CCDF Channel: MIDDLE, Modulation: 256QAM, BW=5MHz, Channel Power Channel: MIDDLE, Modulation: 256QAM, BW=5MHz, CCDF Channel: TOP, Modulation: 256QAM, BW=5MHz, Channel Power Channel: TOP, Modulation: 256QAM, BW=5MHz, CCDF Appendix A: Test results Product: XR19AX35WM2/48Y Specification: FCC 96 Report reference 387704-5TRFWL Page 50 of 427 RF PORT 1 Test data Direction Modulation Frequency (MHz) RF output Power (dBm) RF output channel Power (W) PSD (dBm/Hz) PSD (dBm/MHz) PAR (dB) Down-link LTE 10MHz (QPSK) 3555 29.23 0.838 -40.77 19.23 9.41 Down-link LTE 10MHz (QPSK) 3625 29.92 0.980 -40.08 19.92 9.15 Down-link LTE 10MHz (QPSK) 3695 29.33 0.857 -40.67 19.33 9.55 Down-link LTE 10MHz (16QAM) 3555 29.39 0.869 -40.61 19.39 9.46 Down-link LTE 10MHz (16QAM) 3625 29.94 0.986 -40.06 19.94 9.13 Down-link LTE 10MHz (16QAM) 3695 29.92 0.982 -40.08 19.92 9.08 Down-link LTE 10MHz (64QAM) 3555 29.39 0.869 -40.61 19.39 9.41 Down-link LTE 10MHz (64QAM) 3625 29.88 0.973 -40.12 19.88 9.43 Down-link LTE 10MHz (64QAM) 3695 29.91 0.979 -40.09 19.91 9.51 Down-link LTE 10MHz (256QAM) 3555 29.78 0.951 -40.22 19.78 9.09 Down-link LTE 10MHz (256QAM) 3625 29.84 0.963 -40.16 19.84 9.43 Down-link LTE 10MHz (256QAM) 3695 29.49 0.889 -40.51 19.49 9.57 Appendix A: Test results Product: XR19AX35WM2/48Y Specification: FCC 96 Report reference 387704-5TRFWL Page 51 of 427 RF PORT 2 Test data Direction Modulation Frequency (MHz) RF output Power (dBm) RF output channel Power (W) PSD (dBm/Hz) PSD (dBm/MHz) PAR (dB) Down-link LTE 10MHz (QPSK) 3555 29.89 0.975 -40.11 19.89 9.82 Down-link LTE 10MHz (QPSK) 3625 29.85 0.966 -40.15 19.85 9.36 Down-link LTE 10MHz (QPSK) 3695 29.35 0.861 -40.65 19.35 9.37 Down-link LTE 10MHz (16QAM) 3555 29.79 0.953 -40.21 19.79 9.82 Down-link LTE 10MHz (16QAM) 3625 29.99 0.998 -40.01 19.99 9.82 Down-link LTE 10MHz (16QAM) 3695 29.54 0.899 -40.46 19.54 9.37 Down-link LTE 10MHz (64QAM) 3555 29.74 0.942 -40.26 19.74 9.82 Down-link LTE 10MHz (64QAM) 3625 29.83 0.961 -40.17 19.83 9.82 Down-link LTE 10MHz (64QAM) 3695 29.44 0.879 -40.56 19.44 9.37 Down-link LTE 10MHz (256QAM) 3555 29.87 0.971 -40.13 19.87 9.82 Down-link LTE 10MHz (256QAM) 3625 29.96 0.991 -40.04 19.96 9.36 Down-link LTE 10MHz (256QAM) 3695 29.36 0.863 -40.64 19.36 9.37 Special notes Maximum EIRP ≤ 47dBm/10MHz Maximum PSD eirp ≤ 37dBm/1MHz PSD eirp (in 1 MHz) = PSD max – N + G max = 20 – N + G max ≤ 37 G max ≤ (37-20+N) = N +17 Where: - PSD max is the maximum PSD value measured on the antenna connector of the equipment and it depends on the LTE bandwidth signal - N is system path loss (in dB) due to cable insertion, splitter, etc.... - G max is the maximum antenna gain (in dBi) Appendix A: Test results Product: XR19AX35WM2/48Y Specification: FCC 96 Report reference 387704-5TRFWL Page 52 of 427 RF PORT 1 plots Channel: BOTTOM, Modulation: QPSK, BW=10MHz, Channel Power Channel: BOTTOM, Modulation: QPSK, BW=10MHz, CCDF Channel: MIDDLE, Modulation: QPSK, BW=10MHz, Channel Power Channel: MIDDLE, Modulation: QPSK, BW=10MHz, CCDF Channel: TOP, Modulation: QPSK, BW=10MHz, Channel Power Channel: TOP, Modulation: QPSK, BW=10MHz, CCDF Appendix A: Test results Product: XR19AX35WM2/48Y Specification: FCC 96 Report reference 387704-5TRFWL Page 53 of 427 Channel: BOTTOM, Modulation: 16QAM, BW=10MHz, Channel Power Channel: BOTTOM, Modulation: 16QAM, BW=10MHz, CCDF Channel: MIDDLE, Modulation: 16QAM, BW=10MHz, Channel Power Channel: MIDDLE, Modulation: 16QAM, BW=10MHz, CCDF Channel: TOP, Modulation: 16QAM, BW=10MHz, Channel Power Channel: TOP, Modulation: 16QAM, BW=10MHz, CCDF Appendix A: Test results Product: XR19AX35WM2/48Y Specification: FCC 96 Report reference 387704-5TRFWL Page 54 of 427 Channel: BOTTOM, Modulation: 64QAM, BW=10MHz, Channel Power Channel: BOTTOM, Modulation: 64QAM, BW=10MHz, CCDF Channel: MIDDLE, Modulation: 64QAM, BW=10MHz, Channel Power Channel: MIDDLE, Modulation: 64QAM, BW=10MHz, CCDF Channel: TOP, Modulation: 64QAM, BW=10MHz, Channel Power Channel: TOP, Modulation: 64QAM, BW=10MHz, CCDF Appendix A: Test results Product: XR19AX35WM2/48Y Specification: FCC 96 Report reference 387704-5TRFWL Page 55 of 427 Channel: BOTTOM, Modulation: 256QAM, BW=10MHz, Channel Power Channel: BOTTOM, Modulation: 256QAM, BW=10MHz, CCDF Channel: MIDDLE, Modulation: 256QAM, BW=10MHz, Channel Power Channel: MIDDLE, Modulation: 256QAM, BW=10MHz, CCDF Channel: TOP, Modulation: 256QAM, BW=10MHz, Channel Power Channel: TOP, Modulation: 256QAM, BW=10MHz, CCDF Appendix A: Test results Product: XR19AX35WM2/48Y Specification: FCC 96 Report reference 387704-5TRFWL Page 56 of 427 RF PORT 2 plots Channel: BOTTOM, Modulation: QPSK, BW=10MHz, Channel Power Channel: BOTTOM, Modulation: QPSK, BW=10MHz, CCDF Channel: MIDDLE, Modulation: QPSK, BW=10MHz, Channel Power Channel: MIDDLE, Modulation: QPSK, BW=10MHz, CCDF Channel: TOP, Modulation: QPSK, BW=10MHz, Channel Power Channel: TOP, Modulation: QPSK, BW=10MHz, CCDF Appendix A: Test results Product: XR19AX35WM2/48Y Specification: FCC 96 Report reference 387704-5TRFWL Page 57 of 427 Channel: BOTTOM, Modulation: 16QAM, BW=10MHz, Channel Power Channel: BOTTOM, Modulation: 16QAM, BW=10MHz, CCDF Channel: MIDDLE, Modulation: 16QAM, BW=10MHz, Channel Power Channel: MIDDLE, Modulation: 16QAM, BW=10MHz, CCDF Channel: TOP, Modulation: 16QAM, BW=10MHz, Channel Power Channel: TOP, Modulation:…
