XMR-16182010002GPS Locator

3 Precautions and Notices for Safety4 Declaration of Conformity to R&TTE Directive 5 The Safelinq service 6 1Introduction8 2 Features9 3 Components10 4 Name of Each Part11 5 Battery Assembly/Disassembly12 5.1 Battery Assembly12 5.2 Battery Disassembly12 6 Installing the SIM card13 7 Buttons14 7.1 Button overview14 7.2 Button description 15 8 LED’s and Connectors17 9 Operating your SmartLinQ Mobile 18 9.1 Switching your SmartLinQ Mobile on/off 18 9.2 Call/Answer18 9.3 Adjust the volume19 9.4 Make a phone call19 9.5 Emergency20 9.6 Auto Answer 21 10Technical Specification22 11Troubleshooting and Safety info26 Contents 4 Precautions • Turn your phone off in a potentially explosive atmosphere. • Turn your phone off during a flight. • Do not use your phone while driving. • Turn your phone off in a hospital. • Be aware of the details on electromagnetic waves of your phone. • Do not touch your phone or its power plug with a wet hand. • Do not remodel, disassemble, or repair your phone on your own. • Use only approved batteries and accessories • Use the standard charger acquired with a TTA certified mark. • Do not keep your phone in or near a source of heating, like a stove or microwave oven. Precautions and Notices for Safety Please ensure that you use your handset correctly after reading the safety instructions. 1999/5/EC This equipment fulfils the R&TTE directive (Council Directive 1999/5/EC). European States qualified under wireless approvals: EU Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands, Portugal, Spain, Sweden, and the United Kingdom Declaration of Conformity to R&TTE Directive 5 6 The Safelinq service The SmartLinQ Mobile has been exclusively developed by Safelinq. For the full details of the functionality of your SmartLinQ Mobile go to www.safelinq.com. It should be noted that the SmartLinQ Mobile will only operate in combination with a Safelinq subscription. 8 The SmartLinQ Mobile is a powerful GPS location device which is small in size and lightweight. It is designed for personal security and has an inbuilt emergency call button as well as a motion sensor. Both these features ensure direct contact to your chosen control centre or emergency number should you encounter a difficult or threatening situation. As your location will be known, the control centre or emergency contact can deal with the situation efficiently and effectively. The SmartLinQ Mobile is designed to work on any mobile GSM network using 850, 900, 1800 or 1900 frequency (Quad Band). The SmartLinQ Mobile offers controlled dialling allowing you to call four pre-programmed telephone numbers. When you slide the emergency button up, your current position will automatically be sent to the control centre and the four pre-programmed numbers will simultaneously be dialled in sequence. 1. Introduction 9 GPS (Global positioning system) Receiver Emergency button Motion sensor alert Low battery alert Speed sensor alert Four pre-programmable buttons Auto answer 2. Features 10 1SmartLinQ Mobile 2Battery Pack 3Handsfree headset 4AC-power adapter 5This Manual Use an approved Safelinq charger and battery. Do not use non genuine parts as it could damage the battery or cause an explosion. 3. Components 1234 11 4. Name of Each Part Earphone jack Power adapter/connector Button LockVolume GSM LED power LED Emergency button Call/Answer Microphone Speaker GPS LED Power/Hang up Pre-Programmable buttons + - 5.1 BATTERY ASSEMBLY 1Fit the battery pack correctly into the groove 2Slide it all the way as indicated by the arrow, and lock the battery button into place. 5.2 BATTERY DISASSEMBLY Release the battery disassembly button in the direction indicated by the arrow and remove the battery. 12 5. Battery Assembly/Disassembly 13 1Gently move the SIM card holder to the right and open it. Insert the SIM card as shown ensuring the gold contact area of the SIM card is facing downwards. Close the SIM card holder and move it to the left to lock. 2Slide the battery back in at the top of the SmartLinQ Mobile and push it down to lock it into position. 6. Installing the SIM card 7.1 BUTTON OVERVIEW The phone panel consists of nine buttons. • Power/Hang up Button • Call/Answer Button • Emergency Button • Four pre-programmable Buttons • Volume Button • Lock Button 7. Buttons 14 15 7.2 BUTTON DESCRIPTION Power/Hang up • To turn on. Press for 3 seconds until you hear the power- on melody. • To Turn off. Press for 3 seconds until all LED’s are off. • To refuse an incoming call. Press while ringing. • To end a call. Press while in a call. Call/Answer • To make a call. Press this button after pressing one of the pre- programmable buttons and hearing a beep. • To answer an incoming call. Press while ringing. Emergency When you slide the emergency button up, your current position will automatically be sent to the control centre and the four pre-programmed numbers will simultaneously be dialled in sequence. 16 Pre-programmable buttons To call the number programmed behind one of the four pre-programmable buttons, press this button wait for a beep and then press the Call/Answer button. Volume • To increase the volume of a call. Press the upper part of the volume button. • To decrease the volume of a call. Press the lower part of the volume button. Lock Slide the button up to lock all the buttons except the emergency button. 7. Buttons 17 GSM LED • If the SmartLinQ Mobile cannot establish a GSM connection, the LED will flash quickly. • If the SmartLinQ Mobile is connected to the GSM network, the LED will flash slowly. GPS LED While the SmartLinQ Mobileis searching for a GPS connection,the GPS LED will flash quickly. When a connection is established, the LED will light up for 3 seconds before switching off. If a GPS connection cannot be found, the light will switch off straight after the flashing has stopped. Power LED The Power LED will blink while the battery is being charged. Once charged, the Power LED will li…

Text truncated - open the document above for the full version.

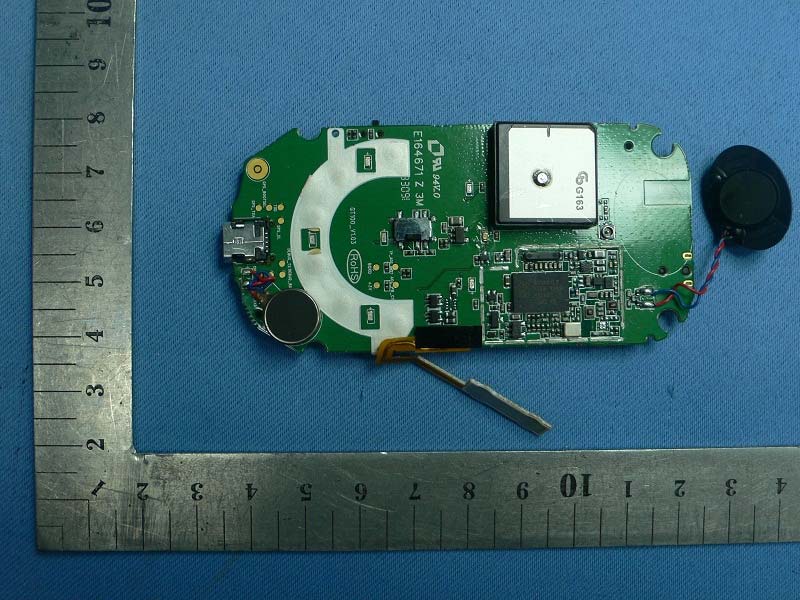

Photos of the GT100 1. Appearance of the GT100 Frontside of GT100: Backside of GT100 2. Inside of GT100: 3. accessories of GT100:

Photos of the GT100 1. Appearance of the GT100 Frontside of GT100: Backside of GT100 2. Inside of GT100: 3. accessories of GT100:

Report No.: SH10010037E01 TABLE OF CONTENTS 1. TEST CERTIFICATION ........................................................................................................... 3 2. GENERAL INFORMATION .................................................................................................... 4 2.1 EUT Description ......................................................................................................................... 4 2.2 Test Standards and Results ........................................................................................................ 5 2.3 Facilities and Accreditations ...................................................................................................... 6 2.3.1 Facilities .................................................................................................................................... 6 2.3.2 Test Environment Conditions .................................................................................................... 6 3. TEST CONDITIONS SETTING............................................................................................... 7 3.1 GSM Test Mode .......................................................................................................................... 7 3.2 Test Setup and Equipments List ................................................................................................ 8 3.2.1 Conducted Emission.................................................................................................................. 8 3.2.2 Radiated Emission ..................................................................................................................... 9 4. 47 CFR Part 15B Requirements .............................................................................................. 10 4.1 Conducted Emission ................................................................................................................. 10 4.1.1 Requirement ............................................................................................................................ 10 4.1.2 Test Description ...................................................................................................................... 10 4.1.3 Test Result ............................................................................................................................... 10 4.2 Radiated Emission .................................................................................................................... 13 4.2.1 Requirement ............................................................................................................................ 13 4.2.2 Test Description ...................................................................................................................... 13 4.2.3 Test Result ............................................................................................................................... 14 ANNEX I : PHOTOGRAPH OF THE TEST SETUP ..................................................................... 16 ANNEX II: PHOTOGRAPH OF THE EUT .................................................................................... 17 Page 2 of 19 Report No.: SH10010037E01 2. GENERAL INFORMATION 2.1 EUT Description EUT Type ............................. : GPS TRACKER Model Name ......................... : GT100 Serial No. .............................. : (n.a., marked #1 by test site) Hardware Version ................. : V1.03 Software Version .................. : B03 Modulation Type................... : GMSK Ancillary Equipment 1 ......... : Battery Model Name: GT100 Brand Name: Jiade Capacitance: 950mAh Rated Voltage: 3.7V Charge Limit: 4.2V Manufacturer: Jiade Energy Technology(ZHUHAI)Co.,Ltd Ancillary Equipment 2 ......... : AC Adapter Model Name: P-051B-050050 Brand Name: SOMETHING Rated Input: 100-240V, 0.2A,50/60Hz Rated Output: 5V, 500mA Manufacturer: SOMETHING HIGH ELECTRIC（XIAMEN） Co.,Ltd. Note 1: A communication link between the EUT and a System Simulator (SS) is established at the start of the test, and maintained during the all test in this report. Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Page 4 of 19 Report No.: SH10010037E01 2.2 Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart B: No. Identity Document Title 1 47 CFR Part 15 (10-1-05 Edition) Radio Frequency Devices Test detailed items/section required by FCC rules and results are as below: No. Section Description Result 1 15.107 Conducted Emission PASS 2 15.109 Radiated Emission PASS Page 5 of 19 Report No.: SH10010037E01 2.3 Facilities and Accreditations 2.3.1 Facilities Shenzhen Electronic Product Quality Testing Center Morlab Laboratory is a testing organization accredited by China National Accreditation Service for Laboratories (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L1659. All measurement facilities used to collect the measurement data are located at Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen 518055 CHINA. The test site is constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22; the FCC registration number is 741109. 2.3.2 Test Environment Conditions During the measurement, the environmental conditions were within the listed ranges: Temperature (°C): 20 - 25 Relative Humidity (%): 40 - 60 Atmospheric Pressure (kPa): 960 Page 6 of 19 Report No.: SH10010037E01 3. TEST CONDITIONS SETTING 3.1 GSM Test Mode 1. During the measurement, the GSM radio is working. The test modes of the EUT are showed as below: (1) Traffic operating mode The EUT configuration of the emission tests is EUT + Battery + Charger. A communication link was established between the EUT and a System Simulator (SS). The EUT operated at GSM 850MHz mid ARFCN (190) an…
