XMR202004BG600LM3LTE Cat M1 & Cat NB2 & EGPRS Module

BG600L-M3 Hardware Design LPWA Module Series Rev. BG600L-M3_Hardware_Design_V1.0 Date: 2020-03-30 Status: Released www.quectel.com LPWA Module Series BG600L-M3 Hardware Design BG600L-M3_Hardware_Design 1 / 83 Our aim is to provide customers with timely and comprehensive service. For any assistance, please contact our company headquarters: Quectel Wireless Solutions Co., Ltd. Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai 200233, China Tel: +86 21 5108 6236 Email: [email protected] Or our local office. For more information, please visit: http://www.quectel.com/support/sales.htm For technical support, or to report documentation errors, please visit: http://www.quectel.com/support/technical.htm Or email to: [email protected] GENERAL NOTES QUECTEL OFFERS THE INFORMATION AS A SERVICE TO ITS CUSTOMERS. THE INFORMATION PROVIDED IS BASED UPON CUSTOMERS’ REQUIREMENTS. QUECTEL MAKES EVERY EFFORT TO ENSURE THE QUALITY OF THE INFORMATION IT MAKES AVAILABLE. QUECTEL DOES NOT MAKE ANY WARRANTY AS TO THE INFORMATION CONTAINED HEREIN, AND DOES NOT ACCEPT ANY LIABILITY FOR ANY INJURY, LOSS OR DAMAGE OF ANY KIND INCURRED BY USE OF OR RELIANCE UPON THE INFORMATION. ALL INFORMATION SUPPLIED HEREIN IS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. COPYRIGHT THE INFORMATION CONTAINED HERE IS PROPRIETARY TECHNICAL INFORMATION OF QUECTEL WIRELESS SOLUTIONS CO., LTD. TRANSMITTING, REPRODUCTION, DISSEMINATION AND EDITING OF THIS DOCUMENT AS WELL AS UTILIZATION OF THE CONTENT WITHOUT PERMISSION ARE FORBIDDEN. OFFENDERS WILL BE HELD LIABLE FOR PAYMENT OF DAMAGES. ALL RIGHTS ARE RESERVED IN THE EVENT OF A PATENT GRANT OR REGISTRATION OF A UTILITY MODEL OR DESIGN. Copyright © Quectel Wireless Solutions Co., Ltd. 2020. All rights reserved. LPWA Module Series BG600L-M3 Hardware Design BG600L-M3_Hardware_Design 2 / 83 About the Document Revision History Version Date Author Description 1.0 2020-03-30 Speed SUN/ Watt ZHU Initial LPWA Module Series BG600L-M3 Hardware Design BG600L-M3_Hardware_Design 3 / 83 Contents About the Document ................................................................................................................................... 2 Contents ....................................................................................................................................................... 3 Table Index ................................................................................................................................................... 5 Figure Index ................................................................................................................................................. 7 1 Introduction .......................................................................................................................................... 8 1.1. Safety Information ....................................................................................................................... 9 2 Product Concept ................................................................................................................................ 14 2.1. General Description .................................................................................................................. 14 2.2. Key Features ............................................................................................................................. 15 2.3. Functional Diagram ................................................................................................................... 17 2.4. Evaluation Board ....................................................................................................................... 18 3 Application Interfaces ....................................................................................................................... 19 3.1. Pin Assignment ......................................................................................................................... 20 3.2. Pin Description .......................................................................................................................... 21 3.3. Operating Modes ....................................................................................................................... 28 3.4. Power Saving ............................................................................................................................ 29 3.4.1. Airplane Mode ................................................................................................................ 29 3.4.2. Power Saving Mode (PSM) ............................................................................................ 29 3.4.3. Extended Idle Mode DRX (e-I-DRX) .............................................................................. 30 3.4.4. Sleep Mode .................................................................................................................... 30 3.4.4.1. UART Application ................................................................................................. 30 3.5. Power Supply ............................................................................................................................ 31 3.5.1. Power Supply Pins ......................................................................................................... 31 3.5.2. Decrease Voltage Drop .................................................................................................. 32 3.5.3. Monitor the Power Supply .............................................................................................. 33 3.6. Turn on and off Scenarios ......................................................................................................... 33 3.6.1. Turn on Module with PWRKEY ...................................................................................... 33 3.6.2. Turn off Module ........................................................…

Text truncated - open the document above for the full version.

ANTENNA SPECIFICATION Project Number: S0691 Rev. 1.0 Saintenna Co. Ltd. Confidential & Proprietary Building 8, No. 611 BaoQI Road, Baoshan District Shanghai 200444, P.R. China Page 1 of 1 Tel. 0086-21-36307272 Fax 0086-21-36307757 SFN01.05A Internal Antenna Product Specification Customer Name: Quectel Wireless Solutions Co., Ltd. Project Name: 4G-LTE External Antenna Part Number: SAA30968A VENDOR NAME: ShanghaiSaintennaElectronic TechnologyCo.,Ltd. Tel: 021- 36307272 Fax: 021- 36307757 Approval Sheet CustomerSaintenna Rev Change Summary Date Author 1.0 Preliminary Release2014-07-26Kevin Cui PREPARED BY 上海圣丹纳电子科技股份有限公司 ShanghaiSaintennaElectronicTechnologyCo.,Ltd. 2005 © COPYRIGHT SAINTENNA CO. LTD. This document is issued by Saintenna Electronic Technology Co. Ltd. (hereinafter called Saintenna) in confidence, and is not to be reproduced in whole or in part without the prior written permission of Saintenna. The information contained herein is the property of Saintenna and is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of Saintenna. Catalog Project / content 1. Cover 1 2. Catalog 2 3. Product chart 3 5. Electrical performance test report 5-7 4. Antenna standard parameters 4 6. RoHS 8 No. Standard parameter 一、Specifications Frequency range 699~960MHz/1710~2700MHz S.W.R ≤3 Gain4.0dBi Connector SMA Plug Impedance 50 Ohm 二、Reliability test Project Test condition Result Storage environment Temperature, humidity, air pressure test are as follows: Normal electrical and mechanical properties 1. Temperature: -30°C～+80°C 2. Humidity: 45%-85% 3. Pressure: 86kpa-106kpa +LJKDQGORZ WHPSHUDWXUH WHVW The 5 cycle is between 70°C and 40°C. Then check the appearance quality Meet the mechanical and electrical properties 5HVLVWDQFHWR FRQVWDQWGDPS KHDWWHVW +XPLGLW\WHPSHUDWXUHGHJUHHV &HOVLXV&RQWLQXRXV+ Meet the mechanical and electrical properties YLEUDWLRQWHVW Vibration frequency 10-55HZ, displacement: 0.35MM, acceleration: 50.0M/S, Frequency sweep frequency: 30 times Normal electrical and mechanical properties Drop test 1m height drop Normal electrical and mechanical properties Drawing force test Push pull tester to test the strength of the instrument：≧10N Normal electrical and mechanical properties Voltage resistance 1. Insulation spark voltage 1.5KV 2. Sheath spark voltage 1.5KV 3. Insulation resistance to sheath voltage 0.5KV Normal electrical and mechanical properties CONFIDENTIAL The information contained in this product is of a proprietary nature. It may not be reproduced without expressed written permission of Shanghai Saintenna Electronic Technology Co., Ltd. Shangh ai Saintenna Electronic TechnologyCo.Ltd. Company / project External antenna Working frequency bandAll Test date 2016/6/22 Test person Victor Peng Version number V1.0 Test sample description Mould F ree space test data of whole machine passive efficiency: Freq Gain Efficiency 700 1.66 41.00% 710 3.26 49.30% 720 3.95 58.30% 730 3.6 58.10% 740 3.85 55.50% 750 4.04 54.40% 760 3.44 53.30% 770 3.98 57.30% 780 4.45 63.50% 790 3.63 66.00% 800 3.47 67.30% 810 3.19 62.40% 820 2.53 59.20% 830 2.13 57.60% 840 1.89 56.30% 850 2.29 57.10% 860 2.64 60.50% 870 3.01 61.20% 880 2.98 60.60% 890 2.46 57.00% 900 2.38 54.80% 910 2.06 52.30% 920 1.91 51.50% 930 2.06 51.30% 940 2.27 55.40% 950 2.04 54.10% 960 1.7 51.90% 970 1.23 47.10% 980 1 44.80% 990 0.82 41.90% 1000 1.17 40.70% 1700 1.67 63.40% 1720 1.94 62.90% 1740 2 64.80% 1760 1.57 60.40% 1780 0.97 56.80% 1800 1.33 55.90% 1820 1.17 56.20% 1840 1.36 55.70% 1860 1.25 51.40% 1880 1.38 49.90% 1900 1.59 51.70% 1920 1.36 52.00% 1940 1.01 49.40% 1960 1.41 51.60% 1980 1.53 53.20% 2000 1.84 52.70% 2020 2.1 50.40% 2040 2.65 54.50% 2060 3.22 56.90% 2080 3.69 56.60% 2100 4.01 59.20% Freq Gain Efficiency C ONFIDENTIAL The information contained in this product is of a proprietary nature. It may not be reproduced without expressed written permission of Shanghai Saintenna Electronic Technology Co., Ltd. Page 2 2120 3.69 59.60% 2140 3.22 56.00% 2160 2.46 52.20% 2180 1.45 47.30% 2300 1.25 46.90% 2320 1.49 50.10% 2340 1.49 50.60% 2360 1.49 49.90% 2380 1.57 51.90% 2400 1.88 54.40% 2420 2.15 57.80% 2440 2.85 60.80% 2460 3.35 64.80% 2480 3.6 69.50% Freq Gain EfficiencyFreq Gain Efficiency 2500 3 67.00% 2520 2.68 68.00% 2540 2.44 68.80% 2560 2.3 66.30% 2580 2 59.90% 2600 2.04 60.30% 2620 2.06 61.10% 2640 2 60.70% 2660 1.71 59.90% 2680 1.71 58.60% 2700 1.78 59.00% LOG MAG: C ONFIDENTIAL The information contained in this product is of a proprietary nature. It may not be reproduced without expressed written permission of Shanghai Saintenna Electronic Technology Co., Ltd. Page 3 VSWR ROHS Product :RF Antenna Assembly Supplier Part No. (供應商料號) ITEM (品名) RAW MATERIAL (部件/原材料/輔助材料 名稱 ) RAW MATERIAL SUPPLIER (供應商名稱) Cd(鎘)含 量 (ppm) Pb(鉛)含 量 (ppm) Cr6+(六價 鉻 ) 含量 (ppm) Hg(汞) 含量 (ppm) PBBS(聚 溴聯苯) 含量 (ppm) PBDES( 溴聯苯 醚 ) 含量 (ppm) 测试机构 測試報告號碼 SGS Report date 1RG-178 Silver plated copper wire JIANGSU YUANDA N.D N.D Negative N.D N.D N.D CTIECL01H051755017 2015.10.23 FEP N.D N.D N.D N.D N.D N.D Tin plated copper wire N.D N.D Negative N.D N.D N.D Brown color N.D N.D N.D N.D N.D N.D 2 Rod sleeve ABS Chemical fiber N.D N.D N.D N.D N.D N.D SGS CE/2016/13616 2016.01.25 3 Fixed PBT+PC 长春人造 N.D N.D N.D N.D N.D N.D SGS CE/2015/C5211 2015.12.30 4 Solid PBT+PC N.D N.D N.D N.D N.D N.D SGS 5 Connector POM Formosa N.D N.D N.D N.D N.D N.D SGSKE/2015/C2285A-01 2015.12.28 NI-Plated LIANFENG N.D N.D Negative N.DSGSCANEC1517911004 2015.10.26 Gold-Plated LIANFENG N.D N.D Negative N.DSGSCANEC1517911006 2015.10.26 PTFE 求真 N.D N.D N.D N.D N.D N.D CTISCL01I013440001C 2016.03.07 Brass SHIYANG 14 31782 Negative N.DSGSCANEC1603095201 2016.03.09 6 Toner Black masterbatch HEN-CHEN N.D N.D N.D N.D N.D N.D SGSCANEC1601390003 2016.01.28 7PCB FR4 Huake N.D N.D N.D N.D N.D N.D SGSSCL01H099132001C 2015.11.23 Test organization Test report No…

Text truncated - open the document above for the full version.

Quectel Wireless Solutions Company Limited Declaration of the Modular Approval Applicant / Grantee Quectel Wireless Solutions Company Limited FCC ID: XMR202004BG600LM3 Model: BG600L-M3 The single module transmitter has been evaluated then tested meeting the requirements under Part 15C Section 212 as below: Modular approval requirement EUT Condition Com ply (a) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The radio elements of the modular transmitter have their own shielding. YES (b) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. The modular has buffered data inputs, it is integrated in chip. Please see schematic.pdf YES (c)The modular transmitter must have its own powersupply regulation. All power lines derived from the host device are regulated before energizing other circuits internal to the BG600L-M3 . Please see schematic.pdf YES Quectel Wireless Solutions Company Limited (d) The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. A permanently attached antenna or unique antenna connector is not a requirement for licensed modules. YES (e)The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i))mustnotbeinsideanotherdeviceduringtesting. The BG600L-M3 was tested in a stand‐ alone configuration via a PCMCIA extender. Please see spurious set‐up YES (f)The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. The label position of BG600L-M3 is clearly indicated. If the FCC ID of the module cannot be seen when it is installed, then the host label must include the text: Contains FCC ID: XMR202004BG600LM3 . Please see the label.pdf YES (g) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any suchrequirements. A copy of these instructions must be included in the application for equipmentauthorizationrequirements,whicharebasedonthei ntendeduse/configurations. The BG600L-M3 is compliant with all applicable FCC rules. Detail instructions are given in the User Manual. YES (h)The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The BG600L-M3 is approved to comply with the applicable RF exposure requirement, please see the MPE evaluation with 20cm as the distance restriction. YES Quectel Wireless Solutions Company Limited Dated 2020/6/21 By: Jean Hu Signature Printed Title: Project Manager On behalf of : Quectel Wireless Solutions Company Limited Telephone: +86-21-51086236 ext 800

Quectel Wireless Solutions Company Limited POWER OF ATTORNEY DATE: June 21, 2020 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 We, the undersigned, hereby authorize TA Technology (Shanghai) Co., Ltd. /Han jinnan on our behalf, to apply to FCC on our equipment for FCC ID: XMR202004BG600LM3. Any and all acts carried out by TA Technology (Shanghai) Co., Ltd. / Han jinnan on our behalf shall have the same effect as acts of our own. Sincerely, Signature: Print name: Jean Hu | Project Manager Company: Quectel Wireless Solutions Company Limited

Quectel Wireless Solutions Company Limited Request for Confidentiality Date: _2020/6/21_ Subject: Confidentiality Request for: _____ FCC ID: XMR202004BG600LM3______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ______ FCC ID: XMR202004BG600LM3 has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TCB in the event information regarding the product or the product is made available to the public. TCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Jean Hu (Signature/Title 2 ) (Print name)

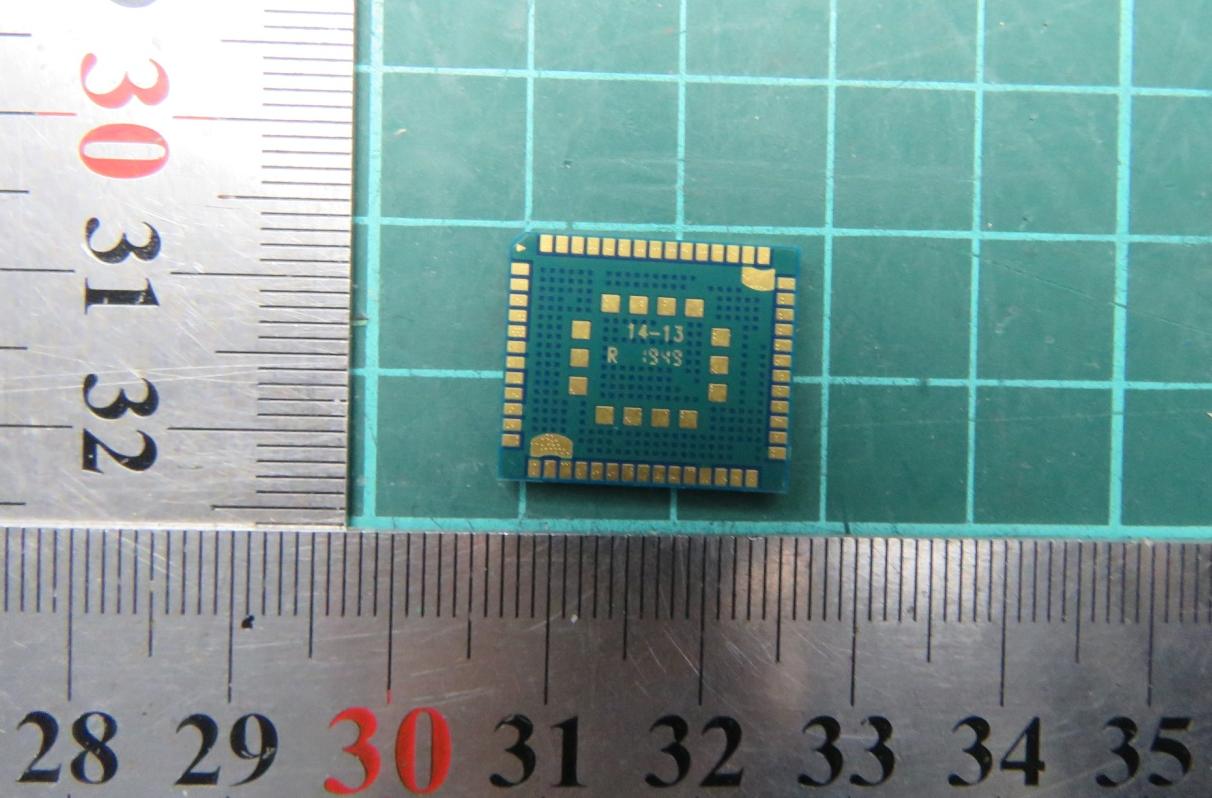

EUT Appearance Report No.: R2003A0168 TA Technology (Shanghai) Co., Ltd. Page 1 of 1 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. EUT Appearance a: EUT Picture 1: Constituents of EUT

MPE TEST REPORT Applicant Quectel Wireless Solutions Co., Ltd FCC ID XMR202004BG600LM3 Product LTE Cat M1 & Cat NB2 & EGPRS Module Brand Quectel Model BG600L-M3 Report No. R2003A0168-M1 Issue Date June 8, 2020 TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in FCC 47 CFR Part 1 1.1310. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Performed by: Yu Wang Approved by: Guangchang Fan TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86-021-50791141/2/3 FAX: +86-021-50791141/2/3-8000 MPE Test Report Report No.: R2003A0168-M1 TA Technology (Shanghai) Co., Ltd. TA-MB-01-013S Page 2 of 11 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Table of Contents 1 Test Laboratory ............................................................................................................................... 3 1.1 Notes of the Test Report ......................................................................................................... 3 1.2. Test facility .............................................................................................................................. 3 1.3 Testing Location ...................................................................................................................... 3 1.4 Laboratory Environment .......................................................................................................... 4 2 Description of Equipment under Test .............................................................................................. 5 3 Maximum conducted output power (measured) and antenna Gain ................................................ 6 4 Test Result ..................................................................................................................................... 8 MPE Test Report Report No.: R2003A0168-M1 TA Technology (Shanghai) Co., Ltd. TA-MB-01-013S Page 3 of 11 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1 Test Laboratory 1.1 Notes of the Test Report This report shall not be reproduced in full or partial, without the written approval of TA technology (shanghai) co., Ltd.The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein .Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. 1.2. Test facility FCC (Designation number: CN1179, Test Firm Registration Number: 446626) TA Technology (Shanghai) Co., Ltd. has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. 1.3 Testing Location Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China City: Shanghai Post code: 201201 Country: P. R. China Contact: Fan Guangchang Telephone: +86-021-50791141/2/3 Fax: +86-021-50791141/2/3-8000 Website: http://www.ta-shanghai.com E-mail: [email protected] MPE Test Report Report No.: R2003A0168-M1 TA Technology (Shanghai) Co., Ltd. TA-MB-01-013S Page 4 of 11 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1.4 Laboratory Environment Temperature Min. = 18C, Max. = 25 C Relative humidity Min. = 30%, Max. = 70% Ground system resistance < 0.5  Ambient noise is checked and found very low and in compliance with requirement of standards. Reflection of surrounding objects is minimized and in compliance with requirement of standards. MPE Test Report Report No.: R2003A0168-M1 TA Technology (Shanghai) Co., Ltd. TA-MB-01-013S Page 5 of 11 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 2 Description of Equipment under Test Client Information Applicant Quectel Wireless Solutions Co., Ltd Applicant address Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Manufacturer Quectel Wireless Solutions Co., Ltd Manufacturer address Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 General Technologies Model BG600L-M3 IMEI 860873040012816 Hardware Version R1.2 Software Version BG600LM3LAR02A03 Date of Testing: April 20, 2020~ May 21, 2020 Note: 1. The EUT is sent from the applicant to TA and the information of the EUT is declared by the applicant. 2. All indications of Pass/Fail in this report are opinions expressed by TA Technology (Shanghai) Co., Ltd. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. MPE Test Report Report No.: R2003A0168-M1 TA Technology (Shanghai) Co., Ltd. TA-MB-01-013S Page 6 of 11 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 3 Maximum conducted output power (measured) and antenna Gain The numeric gain (G) of the antenna with a gain specified in dB is determined by Numeric gain (G)=10^(antenna gain/10) Band Burst Turn up Power(dBm) Division Factors (dB) Time-Averaged Tune up Power (dBm) GSM 850 GSM 35.000 -9.03 25.97 GSM 1900 GSM 32.000 -9.03 22.97 Note: Division Factors To average the power, the division factor is as follows: 1Txslot = 1 transmit time slot out of 8 time slots => conducted power divided by (8/1) => -9.03 dB 2Txslots = 2 transmit time slots out of 8 time slots => conducted power divided by (8/2) => -6.02 dB 3Txslots = 3 transmit time s…

Text truncated - open the document above for the full version.

RF TEST REPORT Applicant Quectel Wireless Solutions Co., Ltd FCC ID XMR202004BG600LM3 Product LTE Cat M1 & Cat NB2 & EGPRS Module Brand Quectel Model BG600L-M3 Report No. R2003A0168-R1 Issue Date June 18, 2020 TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in FCC CFR47 Part 2 (2019)/ FCC CFR 47 Part 22H (2019). The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Performed by: Peng Tao Approved by: Kai Xu TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86‐021‐50791141/2/3 FAX: +86‐021‐50791141/2/3‐8000 RF Test Report Report No.: R2003A0168-R1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-001R Page 2 of 50 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENT 1. Test Laboratory ...................................................................................................................................... 4 1.1. Notes of the Test Report ............................................................................................................... 4 1.2. Test facility ..................................................................................................................................... 4 1.3. Testing Location ............................................................................................................................ 4 2. General Description of Equipment under Test ....................................................................................... 5 2.3. Applicant and Manufacturer Information ....................................................................................... 5 2.4. General Information ....................................................................................................................... 5 3. Applied Standards .................................................................................................................................. 6 4. Test Configuration .................................................................................................................................. 7 5. Test Case Results .................................................................................................................................. 9 5.1. RF Power Output and Effective Radiated Power .......................................................................... 9 5.2. Occupied Bandwidth ................................................................................................................... 13 5.3. Band Edge Compliance ............................................................................................................... 19 5.4. Peak-to-Average Power Ratio (PAPR) ....................................................................................... 28 5.5. Frequency Stability ...................................................................................................................... 30 5.6. Spurious Emissions at Antenna Terminals ................................................................................. 36 5.7. Radiates Spurious Emission ....................................................................................................... 45 6. Main Test Instruments ......................................................................................................................... 50 RF Test Report Report No.: R2003A0168-R1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-001R Page 3 of 50 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Summary of measurement results No. Test Case Clause in FCC rules Verdict 1 RF Power Output and Effective Radiated Power 2.1046 22.913(a)(5) PASS 2 Occupied Bandwidth 2.1049 PASS 3 Band Edge Compliance 2.1051 / 22.917(a) PASS 4 Peak-to-Average Power Ratio 22.913(d)/ KDB 971168 D01(5.7) PASS 5 Frequency Stability 2.1055 / 22.355 PASS 6 Spurious Emissions at Antenna Terminals 2.1051 / 22.917(a) PASS 7 Radiates Spurious Emission 2.1053 / 22.917 (a) PASS Date of Testing: April 20, 2020~ May 21, 2020 Note: All indications of Pass/Fail in this report are opinions expressed by TA Technology (Shanghai) Co., Ltd. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. RF Test Report Report No.: R2003A0168-R1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-001R Page 4 of 50 This …
