XMR2020EM120RGL2LTE-A Cat 12 M.2 Module

EM120R-GL&EM160R-GL Hardware Design LTE-A Module Series Rev. EM120R-GL&EM160R-GL_Hardware_Design_V1.0 Date: 2020-07-02 Status: Preliminary www.quectel.com LTE-A Module Series EM120R-GL&EM160R-GL Hardware Design EM120R-GL&EM160R-GL_Hardware_Design 1 / 79 Our aim is to provide customers with timely and comprehensive service. For any assistance, please contact our company headquarters: Quectel Wireless Solutions Co., Ltd. Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai 200233, China Tel: +86 21 5108 6236 Email: [email protected] Or our local office. For more information, please visit: http://www.quectel.com/support/sales.htm For technical support, or to report documentation errors, please visit: http://www.quectel.com/support/technical.htm Or email to: [email protected] GENERAL NOTES QUECTEL OFFERS THE INFORMATION AS A SERVICE TO ITS CUSTOMERS. THE INFORMATION PROVIDED IS BASED UPON CUSTOMERS’ REQUIREMENTS. QUECTEL MAKES EVERY EFFORT TO ENSURE THE QUALITY OF THE INFORMATION IT MAKES AVAILABLE. QUECTEL DOES NOT MAKE ANY WARRANTY AS TO THE INFORMATION CONTAINED HEREIN, AND DOES NOT ACCEPT ANY LIABILITY FOR ANY INJURY, LOSS OR DAMAGE OF ANY KIND INCURRED BY USE OF OR RELIANCE UPON THE INFORMATION. ALL INFORMATION SUPPLIED HEREIN IS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. COPYRIGHT THE INFORMATION CONTAINED HERE IS PROPRIETARY TECHNICAL INFORMATION OF QUECTEL WIRELESS SOLUTIONS CO., LTD. TRANSMITTING, REPRODUCTION, DISSEMINATION AND EDITING OF THIS DOCUMENT AS WELL AS UTILIZATION OF THE CONTENT WITHOUT PERMISSION ARE FORBIDDEN. OFFENDERS WILL BE HELD LIABLE FOR PAYMENT OF DAMAGES. ALL RIGHTS ARE RESERVED IN THE EVENT OF A PATENT GRANT OR REGISTRATION OF A UTILITY MODEL OR DESIGN. Copyright © Quectel Wireless Solutions Co., Ltd. 2020. All rights reserved. LTE-A Module Series EM120R-GL&EM160R-GL Hardware Design EM120R-GL&EM160R-GL_Hardware_Design 2 / 79 About the Document Revision History Version Date Author Description 1.0 2020-07-02 Jim HAN/ Charls SHENG Initial LTE-A Module Series EM120R-GL&EM160R-GL Hardware Design EM120R-GL&EM160R-GL_Hardware_Design 3 / 79 Contents About the Document ................................................................................................................................... 2 Contents ....................................................................................................................................................... 3 Table Index ................................................................................................................................................... 5 Figure Index ................................................................................................................................................. 7 1 Introduction .......................................................................................................................................... 9 1.1. Safety Information ..................................................................................................................... 10 2 Product Concept ................................................................................................................................ 11 2.1. General Description .................................................................................................................. 11 2.2. Key Features ............................................................................................................................. 12 2.3. Functional Diagram ................................................................................................................... 14 2.4. Evaluation Board ....................................................................................................................... 15 3 Application Interfaces........................................................................................................................ 16 3.1. Pin Assignment ......................................................................................................................... 17 3.2. Pin Description .......................................................................................................................... 18 3.3. Power Supply ............................................................................................................................ 23 3.3.1. Decrease Voltage Drop .................................................................................................. 23 3.3.2. Reference Design for Power Supply.............................................................................. 24 3.4. Turn-on and Turn-off Scenarios ................................................................................................ 25 3.4.1. Turn on the Module ........................................................................................................ 25 3.4.1.1. Turn on the Module with a Host GPIO ................................................................ 25 3.4.1.2. Turn on the Module Automatically ....................................................................... 26 3.4.1.3. Turn on the Module with Compatible Design ...................................................... 26 3.4.2. Turn off the Module ........................................................................................................ 28 3.4.2.1. Turn off the Module through FULL_CARD_POWER_OFF#............................... 28 3.4.2.2. Turn off the Module through AT Command ......................................................... 28 3.5. Reset ......................................................................................................................................... 30 3.6. (U)SIM Interfaces ...................................................................................................................... 32 3.7. USB Interface .............................................................................…

Text truncated - open the document above for the full version.

Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Declaration of authorization Date: 2020.09.02 Product Name: LTE-A Cat 12 M.2 Module Model No.: EM120R-GL FCC ID: XMR2020EM120RGL2 We, the undersigned, hereby authorize MRT Technology (Suzhou) Co., Ltd to act on our behalf, to act on our behalf in all manners relating to FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by MRT Technology (Suzhou) Co., Ltd within the scope of this authorization shall have the same effects as our own. Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, City: Suzhou Country: China If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, Jean Hu Quectel Wireless Solutions Company Limited. TEL: +86-21-51086236 ext 6511

Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Confidentiality Letter Date: 2020.09.02 Federal Communications Commission Authorization and Evaluation Division FCC ID: XMR2020EM120RGL2 Confidentiality Request Pursuant to FCC 47 CRF 0.457(d) and 0.459, we request that a part of the subject FCC application listed below be held permanently confidential and permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public.  Operational Description  Parts List  Tune up procedure  Block Diagram  Schematics Further, the Applicant has spent substantial effort in developing this product, some aspects of which are deemed to be trade secret and proprietary. Having the subject information easily available to our competitors in this market would negate the advantage we have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Sincerely yours, Jean Hu Quectel Wireless Solutions Company Limited. TEL: +86-21-51086236 ext 6511

Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Modular Approval Request Letter Applicant: Quectel Wireless Solutions Company Limited, Product Name: LTE-A Cat 12 M.2 Module Model No.: EM120R-GL FCC ID: XMR2020EM120RGL2 The single module transmitter has been evaluated then tested meeting the requirements under Part 15C Section 212 as below: Modular approval requirement EUT Condition Comply The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The radio elements of the modular transmitter have their own shielding. Yes The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. The modular has buffered data inputs, it is integrated in chip. Please see schematic.pdf Yes The modular transmitter must have its own power supply regulation. All power lines derived from the host device are regulated before energizing other circuits internal to the EM120R-GL. Please see schematic.pdf Yes The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. A permanently attached antenna or unique antenna connector is not a requirement for licensed modules. Yes Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)) must not be inside another device during testing. The EM120R-GL was tested in a stand‐ alone configuration via a PCMCIA extender. Please see spurious set‐up Yes The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. The label position of EM120R-GL is clearly indicated. If the FCC ID of the module cannot be seen when it is installed, then the host label must include the text: Contains FCC ID: XMR2020EM120RGL2. Please see the label.pdf Yes The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization requirements, which are based on the intended use/configurations The EM120R-GL is compliant with all applicable FCC rules. Detail instructions are given in the User Manual. Yes The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The EM120R-GL is approved to comply with the applicable RF exposure requirement, please see the MPE evaluation with 20cm as the distance restriction. Yes Jean Hu Quectel Wireless Solutions Company Limited. TEL: +86-21-51086236 ext 6511

Quectel Wireless Solutions Co., Ltd Statement We Quectel Wireless Solutions Co., Ltd declare the following models. Product: LTE-A Cat 12 M.2 Module Model Number: EM120R-GL FCC ID: XMR2020EM120RGL, XMR2020EM120RGL2 Hardware Version: R1.0 We required to get two FCC IDs with one product, so test report of FCC ID “XMR2020EM120RGL2” refer to test report of “XMR2020EM120RGL”. Your assistance on this matter is highly appreciated. Jean Hu Quectel Wireless Solutions Company Limited. TEL: +86-21-51086236 ext 6511

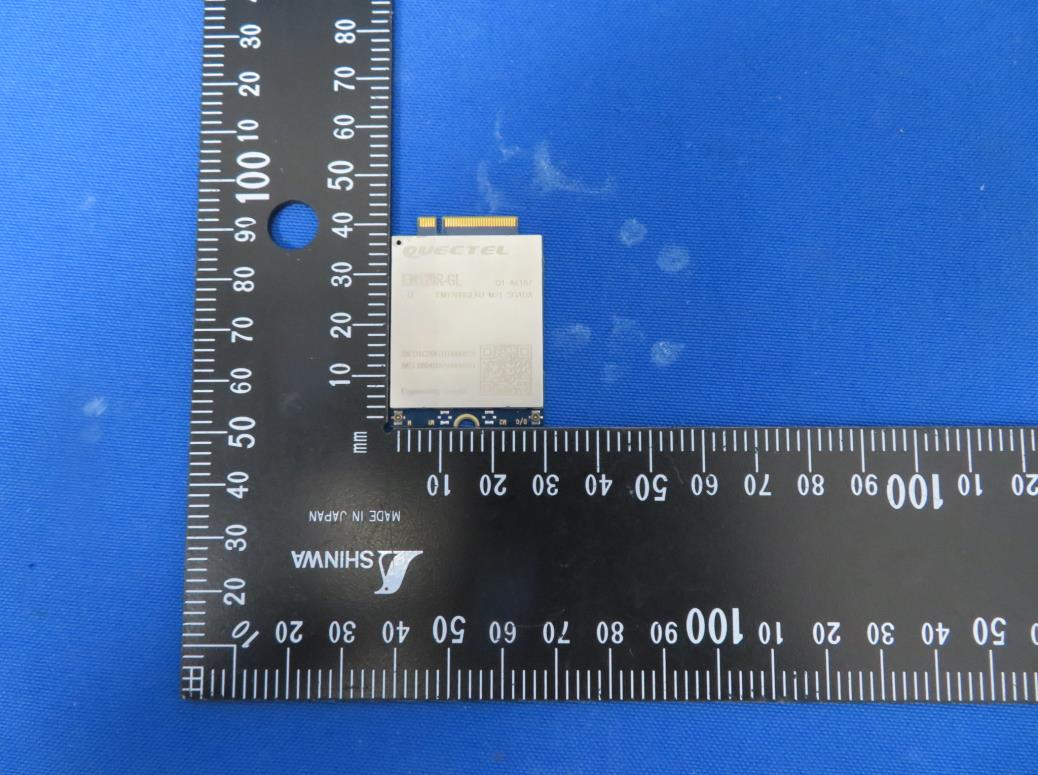

Report No.: 2009RSU019-UE 1 of 1 EUT Photograph (1) EUT Photo (2) EUT Photo

Label Location

Report No.: 2009RSU019-UE 1 of 2 EUT Photograph (1) EUT Photo (2) EUT Photo Report No.: 2009RSU019-UE 2 of 2 (3) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2009RSU019-U7 Phone: +886-3-3288388 Report Version: V01 Web: www.mrt-cert.com Issue Date: 09-02-2020 Page Number: 1 of 7 RF Exposure Evaluation Declaration FCC ID: XMR2020EM120RGL2 Application: Quectel Wireless Solutions Company Limited Application Type: Certification Product: LTE-A Cat 12 M.2 Module Model No.: EM120R-GL Brand Name: Test Procedure(s): KDB 447498 D01v06 Test Date: June 12 ~ August 17, 2020 Reviewed By: ( Sunny Sun ) Approved By: ( Robin Wu ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2009RSU019-U7 Page Number: 2 of 7 Revision History Report No. Version Description Issue Date Note 2009RSU019-U7 Rev. 01 Initial Report 09-02-2020 Valid Report No.: 2009RSU019-U7 Page Number: 3 of 7 General Information Applicant: Quectel Wireless Solutions Company Limited Applicant Address: Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Manufacturer: Quectel Wireless Solutions Company Limited Manufacturer Address: Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Test Site: MRT Technology (Suzhou) Co., Ltd Test Site Address: D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Test Facility / Accreditations Measurements were performed at MRT Laboratory located in Tian’edang Rd., Suzhou, China.  MRT facility is an FCC accredited testing laboratory (MRT Designation No. CN1166) on the FCC website.  MRT facility is an ISED recognized testing laboratory (MRT Reg. No. CN0001) on the ISED website.  MRT facility is a VCCI registered (R-20025, G-20034, C-20020, T-20020) test laboratory with the site description on file at VCCI Council.  MRT Lab is accredited to ISO 17025 by the A2LA under the A2LA Program (Cert. No. 3628.01) and CNAS under the CNAS Program (Cert. No. L10551) in EMC, Safety, Radio, Telecommunications and SAR testing. Report No.: 2009RSU019-U7 Page Number: 4 of 7 1. PRODUCT INFORMATION 1.1. Equipment Description 1.2. Description of Available Antennas Technology Frequency Range (MHz) Antenna Type Max Peak Gain (dBi) WCDMA & LTE Band 2 1850 ~ 1910 Dipole 1.15 WCDMA & LTE Band 4 1710 ~ 1755 -0.50 WCDMA & LTE Band 5 824 ~ 849 1.85 LTE Band 7 2500 ~ 2570 1.32 LTE Band 12 699 ~ 716 -2.43 LTE Band 13 777 ~ 787 -0.10 LTE Band 14 788 ~ 798 2.40 LTE Band 25 1850 ~ 1915 1.15 LTE Band 26 814 ~ 849 1.85 LTE Band 30 2305 ~ 2315 -3.64 LTE Band 38 2570 ~ 2620 0.93 LTE Band 41 2496 ~ 2690 0.93 LTE Band 48 3550 ~ 3700 -3.37 LTE Band 66 1710 ~ 1780 -0.50 Note: All antenna information (Antenna type and Peak Gain) is provided by the manufacturer. Product Name: LTE-A Cat 12 M.2 Module Model No.: EM120R-GL Brand Name: LTE Specification Single Band: Band 2, 4, 5, 7, 12, 13, 14, 25, 26, 30, 38, 41, 48, 66 Intra-Band: CA_41C Category: Category 12 UMTS Specification Single Band: Band 2, 5 Category: Category 6 Operating Temperature: -25 ~ 75 °C Power Type: 3.1 ~ 4.4Vdc, typical 3.7Vdc Report No.: 2009RSU019-U7 Page Number: 5 of 7 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 2009RSU019-U7 Page Number: 6 of 7 2.2. Test Result of RF Exposure Evaluation Product LTE-A Cat 12 M.2 Module Test Item RF Exposure Evaluation Test Mode Frequency Band (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) ERP (EIRP) (dBm) ERP (EIRP) Limit (dBm) Power Density at 20cm (mW/ cm 2 ) Limit (mW/ cm 2 ) Gain according to EIRP (dBi) Gain according to Pd (dBi) Max Gain Allowed (dBi) Result WCDMA B2 1850 ~ 1910 25.00 1.15 26.15 33.00 0.0820 1.0000 6.85 10.86 6.85 Pass WCDMA B4 1710 ~ 1755 25.00 -0.50 24.50 30.00 0.0561 1.0000 5.50 12.51 5.50 Pass WCDMA B5 824 ~ 849 25.00 1.85 24.70 38.45 0.0587 0.5493 13.75 12.76 12.76 Pass LTE B2 1850 ~ 1910 25.00 1.15 26.15 33.00 0.0820 1.0000 6.85 10.86 6.85 Pass LTE B4 1710 ~ 1755 25.00 -0.50 24.50 30.00 0.0561 1.0000 5.50 12.51 5.50 Pass LTE B5 824 ~ 849 25.00 1.85 24.70 38.45 0.0587 0.5493 13.75 12.76 12.76 Pass LTE B7 2500 ~ 2570 25.00 1.32 26.32 33.00 0.0853 1.0000 6.68 10.69 6.68 Pass LTE B12 699 ~ 716 25.00 -2.43 20.42 44.77 0.0219 0.4660 24.35 17.76 17.76 Pass LTE B13 777 ~ 787 25.00 -0.10 22.75 44.77 0.0375 0.5180 22.02 14.97 14.97 Pass LTE B14 788 ~ 798 25.00 2.40 25.25 44.77 0.0666 0.5253 19.52 12.41 12.41 Pass LTE B25 1850 ~ 1915 25.00 1.15 26.15 33.00 0.0820 1.0000 6.85 10.86 6.85 Pass LTE B26 814 ~ 849 25.00 1.85 24.70 38.45 0.0587 0.5427 13.75 12.82 12.82 Pass LTE B30 2305 ~ 2315 25.00 -3.64 21.36 23.98 0.0272 1.0000 2.62 15.65 2.62 Pass LTE B38 2570 ~ 2620 25.00 0.93 25.93 33.00 0.0779 1.0000 7.07 11.08 7.07 Pass LTE B41 2496 ~ 2690 26.5…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 2009RSU019-U2 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 09-02-2020 1 of 258 FCC ID: XMR2020EM120RGL2 Application: Quectel Wireless Solutions Company Limited Application Type: Certification Product: LTE-A Cat 12 M.2 Module Model No.: EM120R-GL Brand Name: FCC Rule Part(s): Part 22 Subpart H, Part 24 Subpart E, Part 27 Subpart L & H & F & M & N Test Procedure(s): ANSI C63.26-2015, KDB 971168 D01v03r01 Test Date: June 12 ~ August 17, 2020 Reviewed By: ( Sunny Sun ) Approved By: ( Robin Wu ) MEASUREMENT REPORT FCC PART 22 & 24 & 27 The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.26-2015. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2009RSU019-U2 2 of 258 Revision History Report No. Version Description Issue Date Note 2009RSU019-U2 Rev. 01 Initial Report 09-02-2020 Valid Report No.: 2009RSU019-U2 3 of 258 CONTENTS Description Page 1. INTRODUCTION ............................................................................................................................... 6 1.1. Scope ...................................................................................................................................... 6 1.2. MRT Test Location ................................................................................................................ 6 2. PRODUCT INFORMATION .............................................................................................................. 7 2.1. Equipment Description .......................................................................................................... 7 2.2. Product Specification Subjective to this Report .................................................................. 7 2.3. Description of Available Antennas ........................................................................................ 8 2.4. Device Capabilities ................................................................................................................ 8 2.5. EMI Suppression Device(s)/M odifications ........................................................................... 8 2.6. Maximum Power, Frequency Toleranc e, and Emission Designator ................................. 9 2.7. Configuration of Tested System ......................................................................................... 12 2.8. Test Environment Condition ................................................................................................ 12 3. TEST EQUIPMENT CALIBRATION DATE ................................................................................... 13 4. MEASUREMENT UNCERTAINTY................................................................................................. 15 5. TEST RESULT ................................................................................................................................. 16 5.1. Summary .............................................................................................................................. 16 5.2. Occupied Bandwidth............................................................................................................ 18 5.2.1. Test Limit .......................................................................................................................... 18 5.2.2. Test Procedure................................................................................................................. 18 5.2.3. Test Setting ...................................................................................................................... 18 5.2.4. Test Setup ........................................................................................................................ 18 5.2.5. Test Result ....................................................................................................................... 19 5.3. Frequency Stability Measurement...................................................................................... 53 5.3.1. Test Limit .......................................................................................................................... 53 5.3.2. Test Procedures Used ..................................................................................................... 53 5.3.3. Test Setting ...................................................................................................................... 53 5.3.4. Test Setup ........................................................................................................................ 54 5.3.5. Test Result ....................................................................................................................... 55 5.4. Equivalent Isotropically Radiated Power M easurement ................................................... 63 5.4.1. Test Limit .......................................................................................................................... 63 5.4.2. Test Procedures Used ..................................................................................................... 63 5.4.3. Test Setting ...................................................................................................................... 63 5.4.4. Test Setup ........................................................................................................................ 64 5.4.5. Test Result ....................................................................................................................... 65 Report No.: 2009RSU019-U2 4 of 258 5.5. Band Edge Measurement ................................…

Text truncated - open the document above for the full version.

Report No.: 2009RSU019-U2 37 of 258 99% Bandwidth - 64QAM 1.4MHz Channel Bandwidth 3MHz Channel Bandwidth 5MHz Channel Bandwidth 10MHz Channel Bandwidth Report No.: 2009RSU019-U2 38 of 258 Product LTE-A Cat 12 M.2 Module Test Engineer Candy Luo Test Date 2020/06/22 Test Site SR6 Test Band LTE Band 13 Modulation Frequency (MHz) Bandwidth (MHz) 99% Bandwidth (MHz) QPSK 782 5 4.47 10 8.94 16QAM 782 5 4.47 10 8.93 64QAM 782 5 4.47 10 8.94 Report No.: 2009RSU019-U2 39 of 258 99% Bandwidth - QPSK 5MHz Channel Bandwidth 10MHz Channel Bandwidth 99% Bandwidth - 16QAM 5MHz Channel Bandwidth 10MHz Channel Bandwidth 99% Bandwidth - 64QAM 5MHz Channel Bandwidth 10MHz Channel Bandwidth Report No.: 2009RSU019-U2 40 of 258 Product LTE-A Cat 12 M.2 Module Test Engineer Candy Luo Test Date 2020/06/26 Test Site SR6 Test Band LTE Band 38/41 Modulation Frequency (MHz) Bandwidth (MHz) 99% Bandwidth (MHz) QPSK 2595.0 5 4.48 10 8.93 15 13.40 20 17.86 16QAM 2595.0 5 4.46 10 8.93 15 13.41 20 17.83 64QAM 2595.0 5 4.46 10 8.93 15 13.42 20 17.90 Report No.: 2009RSU019-U2 41 of 258 99% Bandwidth - QPSK 5MHz Channel Bandwidth 10MHz Channel Bandwidth 15MHz Channel Bandwidth 20MHz Channel Bandwidth 99% Bandwidth - 16QAM 5MHz Channel Bandwidth 10MHz Channel Bandwidth 15MHz Channel Bandwidth 20MHz Channel Bandwidth Report No.: 2009RSU019-U2 42 of 258 99% Bandwidth - 64QAM 5MHz Channel Bandwidth 10MHz Channel Bandwidth 15MHz Channel Bandwidth 20MHz Channel Bandwidth Report No.: 2009RSU019-U2 43 of 258 Product LTE-A Cat 12 M.2 Module Test Engineer Candy Luo Test Date 2020/06/29 Test Site SR6 Test Band Intra-Band CA_41C Modulation Frequency (MHz) Bandwidth (MHz) 99% Bandwidth (MHz) QPSK 2593.025 5+20 22.58 2593.025 10+15 22.90 2593.050 10+20 27.53 2592.975 15+10 22.90 2593.000 15+15 28.07 2592.975 15+20 32.35 2592.975 20+5 22.79 2593.050 20+10 27.58 2593.025 20+15 32.40 2593.000 20+20 37.37 16QAM 2593.025 5+20 22.51 2593.025 10+15 22.92 2593.050 10+20 27.51 2592.975 15+10 22.93 2593.000 15+15 28.08 2592.975 15+20 32.29 2592.975 20+5 22.77 2593.050 20+10 27.57 2593.025 20+15 32.40 2593.000 20+20 37.24 64QAM 2593.025 5+20 22.53 2593.025 10+15 22.86 2593.050 10+20 27.41 2592.975 15+10 23.07 2593.000 15+15 28.11 2592.975 15+20 32.37 2592.975 20+5 22.76 2593.050 20+10 27.54 2593.025 20+15 32.43 2593.000 20+20 37.17 Report No.: 2009RSU019-U2 44 of 258 99% Bandwidth - QPSK 5+20MHz Channel Bandwidth 10+15MHz Channel Bandwidth 10+20MHz Channel Bandwidth 15+10MHz Channel Bandwidth 15+15MHz Channel Bandwidth 15+20MHz Channel Bandwidth 20+5MHz Channel Bandwidth 20+10MHz Channel Bandwidth Report No.: 2009RSU019-U2 45 of 258 99% Bandwidth - QPSK 20+15MHz Channel Bandwidth 20+20MHz Channel Bandwidth Report No.: 2009RSU019-U2 46 of 258 99% Bandwidth - 16QAM 5+20MHz Channel Bandwidth 10+15MHz Channel Bandwidth 10+20MHz Channel Bandwidth 15+10MHz Channel Bandwidth 15+15MHz Channel Bandwidth 15+20MHz Channel Bandwidth 20+5MHz Channel Bandwidth 20+10MHz Channel Bandwidth Report No.: 2009RSU019-U2 47 of 258 99% Bandwidth - 16QAM 20+15MHz Channel Bandwidth 20+20MHz Channel Bandwidth Report No.: 2009RSU019-U2 48 of 258 99% Bandwidth - 64QAM 5+20MHz Channel Bandwidth 10+15MHz Channel Bandwidth 10+20MHz Channel Bandwidth 15+10MHz Channel Bandwidth 15+15MHz Channel Bandwidth 15+20MHz Channel Bandwidth 20+5MHz Channel Bandwidth 20+10MHz Channel Bandwidth Report No.: 2009RSU019-U2 49 of 258 99% Bandwidth - 64QAM 20+15MHz Channel Bandwidth 20+20MHz Channel Bandwidth Report No.: 2009RSU019-U2 50 of 258 Product LTE-A Cat 12 M.2 Module Test Engineer Candy Luo Test Date 2020/07/16 Test Site SR6 Test Band LTE Band 41 For HPUE Modulation Frequency (MHz) Bandwidth (MHz) 99% Bandwidth (MHz) QPSK 2595.0 5 4.47 10 8.95 15 13.41 20 17.86 16QAM 2595.0 5 4.46 10 8.95 15 13.43 20 17.88 64QAM 2595.0 5 4.48 10 8.94 15 13.41 20 17.85 Report No.: 2009RSU019-U2 51 of 258 99% Bandwidth - QPSK 5MHz Channel Bandwidth 10MHz Channel Bandwidth 15MHz Channel Bandwidth 20MHz Channel Bandwidth 99% Bandwidth - 16QAM 5MHz Channel Bandwidth 10MHz Channel Bandwidth 15MHz Channel Bandwidth 20MHz Channel Bandwidth Report No.: 2009RSU019-U2 52 of 258 99% Bandwidth - 64QAM 5MHz Channel Bandwidth 10MHz Channel Bandwidth 15MHz Channel Bandwidth 20MHz Channel Bandwidth Report No.: 2009RSU019-U2 53 of 258 5.3. Frequency Stability Measurement 5.3.1.Test Limit The frequency stability shall be measured by variation of ambient temperature and variation of primary supply voltage to ensure that the fundamental emission stays within the authorized frequency block. The frequency stability of the transmitter shall be maintained within ±0.00025% (±2.5ppm) of…

Text truncated - open the document above for the full version.
