XMR2020RM505QAE5G Sub-6 GHz M.2 Module

RM505Q-AE Hardware Design 5G Module Series Version: 1.0.0 Date: 2020-12-14 Status: Preliminary www.quectel.com 5G Module Series RM505Q-AE Hardware Design RM505Q-AE_Hardware_Design 1 / 79 Our aim is to provide customers with timely and comprehensive service. For any assistance, please contact our company headquarters: Quectel Wireless Solutions Co., Ltd. Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai 200233, China Tel: +86 21 5108 6236 Email: [email protected] Or our local office. For more information, please visit: http://www.quectel.com/support/sales.htm. For technical support, or to report documentation errors, please visit: http://www.quectel.com/support/technical.htm Or email to [email protected]. General Notes Quectel offers the information as a service to its customers. The information provided is based upon customers’ requirements. Quectel makes every effort to ensure the quality of the information it makes available. Quectel does not make any warranty as to the information contained herein, and does not accept any liability for any injury, loss or damage of any kind incurred by use of or reliance upon the information. All information supplied herein is subject to change without prior notice. Disclaimer While Quectel has made efforts to ensure that the functions and features under development are free from errors, it is possible that these functions and features could contain errors, inaccuracies and omissions. Unless otherwise provided by valid agreement, Quectel makes no warranties of any kind, implied or express, with respect to the use of features and functions under development. To the maximum extent permitted by law, Quectel excludes all liability for any loss or damage suffered in connection with the use of the functions and features under development, regardless of whether such loss or damage may have been foreseeable. Duty of Confidentiality The Receiving Party shall keep confidential all documentation and information provided by Quectel, except when the specific permission has been granted by Quectel. The Receiving Party shall not access or use Quectel’s documentation and information for any purpose except as expressly provided herein. Furthermore, the Receiving Party shall not disclose any of the Quectel's documentation and information to any third party without the prior written consent by Quectel. For any noncompliance to the above requirements, unauthorized use, or other illegal or malicious use of the documentation and information, Quectel will reserve the right to take legal action. 5G Module Series RM505Q-AE Hardware Design RM505Q-AE_Hardware_Design 2 / 79 Copyright The information contained here is proprietary technical information of Quectel. Transmitting, reproducing, disseminating and editing this document as well as using the content without permission are forbidden. Offenders will be held liable for payment of damages. All rights are reserved in the event of a patent grant or registration of a utility model or design. Copyright © Quectel Wireless Solutions Co., Ltd. 2020. All rights reserved. 5G Module Series RM505Q-AE Hardware Design RM505Q-AE_Hardware_Design 3 / 79 About the Document Revision History Version Date Author Description - 2020-10-20 Jared WANG Hank LIU Creation of the document 1.0.0 2020-12-14 Jared WANG/ Simon WANG/ Hank LIU Preliminary 5G Module Series RM505Q-AE Hardware Design RM505Q-AE_Hardware_Design 4 / 79 Contents About the Document ................................................................................................................................... 3 Contents ....................................................................................................................................................... 4 Table Index ................................................................................................................................................... 6 Figure Index ................................................................................................................................................. 7 1 Introduction .......................................................................................................................................... 9 1.1. Safety Information ..................................................................................................................... 10 2 Product Concept ................................................................................................................................ 11 2.1. General Description .................................................................................................................. 11 2.2. Key Features ............................................................................................................................. 12 2.3. Functional Diagram ................................................................................................................... 15 2.4. Evaluation Board ....................................................................................................................... 15 3 Application Interfaces ....................................................................................................................... 16 3.1. Pin Assignment ......................................................................................................................... 17 3.2. Pin Description .......................................................................................................................... 18 3.3. Operating Modes ....................................................................................................................... 22 3.4. Power Supply ............................................................................................................................ 23 3.4.1. Decrease Voltage Drop ........................................................................................…

Text truncated - open the document above for the full version.

Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Test Data Reuse Letter This application is intended to reuse previous test data (from FCC ID: XMR2020RM502QAE, certified on 12/03/2020 of initial application), due to the fact that the two models of products are hardware-wise identical and only the following changes have been made: RM502Q-AE (FCC ID: XMR2020RM502QAE), RM500Q-AE (FCC ID: XMR2020RM505QAE), all use Qualcomm SDx55 series chipset, share the same chipset baseline, same software and hardware design, support same bands, the difference is on software enable or disable modem features like Lx GNSS, some DL ENDC/CA combs, and the related compartments of disable features are removed physically. So, we have performed spot checks on the following items to verify that if any unexpected RF conducted power or emission changes can be noted. The test results show that all spot check data are within the instrument measurement uncertainty and data reuse is justifiable. Verification test items with 1 sample: ⚫ Conducted Power ⚫ Radiated Emission Test (choose worse case) For the test result please refers to included exhibit “Test Reports.pdf” for detail Reuse data test items ⚫ Conducted Power / EIRP/ ERP / PAPR / OBW / Modulation characteristics / Frequency stability ⚫ Radiated Emission / Conducted emission / Band edge ⚫ SAS protocol (Part 96.47 End user device additional requirements), the software remain the same. Also, both the referenced application and this new application are all subject to the same FCC rule and there is no new rule update for related rules. Accordingly, we believe that the reuse data from previous certified filing is justifiable. Thank you for your attention and please feel free to contact us, if you should have any questions. Sincerely yours, Jean Hu Quectel Wireless Solutions Company Limited. TEL: +86-21-51086236 ext 6511

Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Declaration of authorization Date: 2021.02.28 Product Name: 5G Sub-6 GHz M.2 Module Model No.: RM505Q-AE FCC ID: XMR2020RM505QAE We, the undersigned, hereby authorize MRT Technology (Suzhou) Co., Ltd to act on our behalf, to act on our behalf in all manners relating to FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by MRT Technology (Suzhou) Co., Ltd within the scope of this authorization shall have the same effects as our own. Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, City: Suzhou Country: China If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, Jean Hu Quectel Wireless Solutions Company Limited. TEL: +86-21-51086236 ext 6511

Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Confidentiality Letter Date: 2021.02.28 Federal Communications Commission Authorization and Evaluation Division FCC ID: XMR2020RM505QAE Confidentiality Request Pursuant to FCC 47 CRF 0.457(d) and 0.459, we request that a part of the subject FCC application listed below be held permanently confidential and permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. ⚫ Operational Description ⚫ Parts List ⚫ Tune up procedure ⚫ Block Diagram ⚫ Schematics Further, the Applicant has spent substantial effort in developing this product, some aspects of which are deemed to be trade secret and proprietary. Having the subject information easily available to our competitors in this market would negate the advantage we have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Sincerely yours, Jean Hu Quectel Wireless Solutions Company Limited. TEL: +86-21-51086236 ext 6511

Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Confidentiality Letter Date: 2021.03.20 Federal Communications Commission Authorization and Evaluation Division FCC ID: XMR2020RM505QAE Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short‐term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: ⚫ Test Setup Photos ⚫ External Photos Sincerely yours, Jean Hu Quectel Wireless Solutions Company Limited. TEL: +86-21-51086236 ext 6511 ⚫ Internal Photos User Manual ⚫

Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Request for Modular/Limited Modular Approval Date: March 1, 2021 Subject: Manufacturer’s Declaration for ☒ - Modular Approval ☐ - Split Modular Approval ☐ - Limited Modular Approval ☐ - Limited Split Modular Approval Confidentiality Request for: XMR2020RM505QAE 8 Basic Requirements – FCC Part 15.212(a)(1) For Items Marked “NO(*)”, the Limited Module Description Must be Filled Out on the Following Pages Modular Approval Requirement Requirement Met 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with FCC limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The physical crystal and tuning capacitors may be located external to the shielded radio elements. 15.212(a)(1)(i) ☒ - YES ☐ - NO(*) Details: <example – The module contains a metal shield which covers all RF components and circuitry. The shield is located on the top of the board next to antenna connector> 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with FCC requirements under conditions of excessive data rates or over-modulation. 15.212(a)(1)(ii) ☒ - YES ☐ - NO(*) Details: <example – Data to the modulation circuit is buffered as described in the operational description provided with the application> 3. The modular transmitter must have its own power supply regulation on the module. This is intended to ensure that the module will comply with FCC requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. 15.212(a)(1)(iii) ☒ - YES ☐ - NO(*) Details: <example – The module contains its own power supply regulation. Please refer to schematic filed with this application> 4. The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b), 15.204(c), 15.212(a), and 2.929(b). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph 15.212(b). 15.212(a)(1)(iv) ☒ - YES ☐ - NO(*) Details: <example – The module connects to its antenna using an UFL connector which is considered a non- standard connector. A list of antennas tested and approved with this device may be found in users manual provided with the application> 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). 15.212(a)(1)(v) ☒ - YES ☐ - NO(*) Details: <example – The module was tested stand-alone as shown in test setup photographs filed with this application> 070920-02b Modular Approval Requirement Requirement Met 6. The modular transmitter must be labeled with its own FCC ID number, or use an electron display (see KDB Publication 784748). If using a permanently affixed label with its own FCC ID number, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XMR2020RM505QAE” or “Contains FCC ID: XMR2020RM505QAE” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 15.212(a)(1)(vi) ☒ - YES ☐ - NO(*) Details: <example – There is a label on the module as shown in the labeling exhibit filed with this application. Host s…

Text truncated - open the document above for the full version.

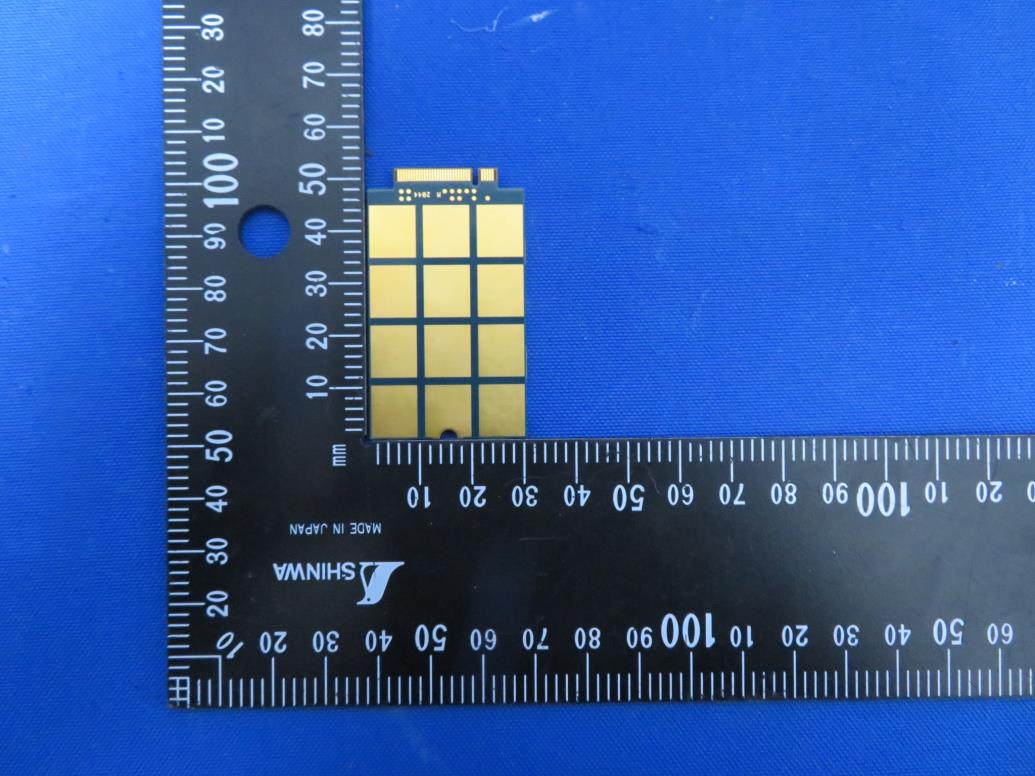

Report No.: 2101RSU006-UE 1 of 1 EUT Photograph (1) EUT Photo (2) EUT Photo

Label Location

Report No.: 2101RSU006-UE 1 of 1 EUT Photograph (1) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2101RSU006-U8 Phone: +886-3-3288388 Report Version: V01 Web: www.mrt-cert.com Issue Date: 03-07-2021 Page Number: 1 of 10 RF Exposure Evaluation Declaration FCC ID: XMR2020RM505QAE Application: Quectel Wireless Solutions Company Limited Application Type: Certification Product: 5G Sub-6 GHz M.2 Module Model No.: RM505Q-AE Brand Name: Quectel Test Procedure(s): KDB 447498 D01v06 Test Date: January 13, 2021 ~ February 23, 2021 Reviewed By: Sunny Sun Approved By: Robin Wu The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2101RSU006-U8 Page Number: 2 of 10 Revision History Report No. Version Description Issue Date Note 2101RSU006-U8 Rev. 01 Initial Report 03-07-2021 Valid Report No.: 2101RSU006-U8 Page Number: 3 of 10 1. GENERAL INFORMATION 1.1. Applicant Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 1.2. Manufacturer Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 1.3. Testing Facility Test Site - MRT Suzhou Laboratory Laboratory Location (Suzhou - Wuzhong) D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Laboratory Location (Suzhou - SIP) 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 VCCI: R-20025, G-20034, C-20020, T-20020 Test Site - MRT Shenzhen Laboratory Laboratory Location (Shenzhen) 1G, Building A, Junxiangda Building, Zhongshanyuan Road West, Nanshan District, Shenzhen, China Laboratory Accreditations A2LA: 3628.02 CNAS: L10551 FCC: CN1284 ISED: CN0105 Test Site - MRT Taiwan Laboratory Laboratory Location (Taiwan) No. 38, Fuxing 2 nd Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Laboratory Accreditations TAF: L3261-190725 FCC: 291082, TW3261 ISED: TW3261 Report No.: 2101RSU006-U8 Page Number: 4 of 10 2. PRODUCT INFORMATION 2.1. Equipment Description Product Name: 5G Sub-6 GHz M.2 Module Model No.: RM505Q-AE Brand Name: Quectel Operating Temperature: -20 ~ 60 °C Power Type: 3.135 ~ 4.4Vdc, typical 3.7Vdc UMTS Specification Single Band: Band 2, 4, 5 Modulation: UL up to 16QAM, DL up to 64QAM E-UTRA Specification Single Band: Band 2, 4, 5, 7, 12, 13, 14, 17, 25, 26, 30, 38, 41, 48, 66, 71 Intra-Band: CA_2C, CA_5B, CA_7C, CA_38C, CA_41C, CA_66C Modulation: UL & DL up to 256QAM 5G NR Specification SA Band: n2, n5, n7, n12, n25, n41, n66, n71, n77 SA UL MIMO Band: n41 EN-DC Band: DC_5A_n2A, DC_12A_n2, DC_13A_n2A, DC_2A_n5A DC_30A_n5A, DC_66A_n5A, DC_5A_n7A, DC_12A_n7A DC_2A_n12A, DC_12A_n25A, DC_2A_n41A, DC_25A_n41A DC_26A_n41A, DC_66A_n41A, DC_5A_n66A, DC_12A_n66A DC_13A_n66A, DC_14A_n66A, DC_71A_n66A, DC_2A_n71A DC_7A_n71A, DC_66A_n71A HPUE Band: n41, n77 (SA & UL MIMO) SCS for NR cell: FDD Band: 15kHz; TDD Band: 30kHz Modulation: UL & DL up to 256QAM Report No.: 2101RSU006-U8 Page Number: 5 of 10 3. RF Exposure Evaluation 3.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 2101RSU006-U8 Page Number: 6 of 10 3.2. Test Result of RF Exposure Evaluation Product 5G Sub-6 GHz M.2 Module Test Item RF Exposure Evaluation Test Mode Frequency Band (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) ERP (EIRP) (dBm) Power Density at 20cm (mW/cm 2 ) Limit (mW/ cm 2 ) WCDMA B2 1850 ~ 1910 25.00 8.00 33.00 0.3969 1.0000 WCDMA B4 1710 ~ 1755 25.00 5.00 30.00 0.1989 1.0000 WCDMA B5 824 ~ 849 25.00 5.00 30.00 0.1989 0.5493 LTE B2 1850 ~ 1910 25.00 8.00 33.00 0.3969 1.0000 LTE B4 1710 ~ 1755 25.00 5.00 30.00 0.1989 1.0000 LTE B5 824 ~ 849 25.00 5.00 30.00 0.1989 0.5493 LTE B7 2500 ~ 2570 25.00 8.00 33.00 0.3969 1.0000 LTE B12 699 ~ 716 25.00 5.00 30.00 0.1989 0.4660 LTE B13 777 ~ 787 25.00 5.00 30.00 0.1989 0.5180 LTE B14 788 ~ 798 25.00 5.00 30.00 0.1989 0.5253 LTE B17 704 ~ 716 25.00 5.00 30.00 0.1989 0.4693 LTE B25 1850 ~ 1915 25.00 8.00 33.00 0.3969 1.0000 LTE B26 814 ~ 849 25.00 5.00 30.00 0.1989 0.5427 LTE B30 2305 ~ 2315 25.00 -1.02 23.98 0.0497 1.0000 LTE B38 2570 ~ 2620 28.00 5.00 33.00 0.3969 1.0000 LTE B41 2496 ~ 2690 28.00 5.00 33.00 0.3969 1.0000 LTE B48 3550 ~ 3700 25.00 -2.00 23.00 0.0397 0.6988 LTE B66 1710 ~ 1780 25.00 5.00 30.00 0.1989 1.0000 LTE B71 663 ~ 698 25.00 5.00 30.00 0.1989 0.4420 Report No.: 2101RSU006-U8 Page Number: 7 of 10 Test Mode Frequency Band (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) ERP (EIRP) (dBm) Power Density at 20cm (mW/cm 2 ) Limit (mW/ cm 2 ) n2 1850 ~ 1910 25.00 8.00 33.00 0.3969 1.0000 n5 824 ~ 849 25.00 5.00 30…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 2101RSU006-U2 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 03-07-2021 1 of 73 FCC ID: XMR2020RM505QAE Application: Quectel Wireless Solutions Company Limited Application Type: Certification Product: 5G Sub-6 GHz M.2 Module Model No.: RM505Q-AE Brand Name: Quectel FCC Rule Part(s): Part 2, 22 (H), 24 (E), 27 Test Procedure(s): ANSI C63.26: 2015 Test Date: January 13, 2021 ~ February 20, 2021 Reviewed By: Sunny Sun Approved By: Robin Wu SPOT CHECK REPORT FCC PART 2 & 22 & 24 & 27 The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.26-2015. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2101RSU006-U2 2 of 73 Revision History Report No. Version Description Issue Date Note 2101RSU006-U2 Rev. 01 Initial Report 03-07-2021 Valid Note: This application for certification is leveraging the data reuse procedures from KDB 484596 based on reference FCC ID: XMR2020RM502QAE to cover variant FCC ID: XMR2020RM505QAE. Report No.: 2101RSU006-U2 3 of 73 CONTENTS Description Page 1. GENERAL INFORMATION ...................................................................................................... 5 1.1. Applicant ...................................................................................................................... 5 1.2. Manufacturer ................................................................................................................ 5 1.3. Testing Facility .............................................................................................................. 5 2. PRODUCT INFORMATION ...................................................................................................... 6 2.1. Equipment Description ................................................................................................. 6 2.2. Product Specification Subjective to this Report ............................................................ 7 2.3. Description of Available Antennas ................................................................................. 8 2.4. Test Methodology ......................................................................................................... 8 2.5. Device Capabilities ....................................................................................................... 9 2.6. EMI Suppression Device(s)/Modifications ..................................................................... 9 2.7. Configuration of Tested System ................................................................................. 10 2.8. Test Environment Condition ........................................................................................ 10 3. TEST EQUIPMENT CALIBRATION DATE ............................................................................. 11 4. MEASUREMENT UNCERTAINTY ......................................................................................... 12 5. TEST RESULT ....................................................................................................................... 13 5.1. Summary .................................................................................................................... 13 5.2. Equivalent Isotropically Radiated Power Measurement .............................................. 14 5.2.1. Test Limit ................................................................................................................ 14 5.2.2. Test Procedures Used ............................................................................................ 14 5.2.3. Test Setting ............................................................................................................. 14 5.2.4. Test Setup .............................................................................................................. 15 5.2.5. Test Result .............................................................................................................. 16 5.3. Conducted Spurious Emissions .................................................................................. 59 5.3.1. Test Limit ................................................................................................................ 59 5.3.2. Test Procedure Used .............................................................................................. 59 5.3.3. Test Setting ............................................................................................................. 59 5.3.4. Test Setup .............................................................................................................. 60 5.3.5. Test Result .............................................................................................................. 61 6. CONCLUSION ....................................................................................................................... 70 Appendix A - Test Setup Photograph .......................................................................................... 71 Appendix B - EUT Photograph..................................................................................................... 72 Appendix C - Reference Test Report ........................................................................................... 73 Report No.: 2101RSU006-U2 4 of 73 Report No.: 2101RSU006-U2 5 of 73 1. GENERAL INFORMATION 1.1. Applicant Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 1.2. Manufacturer Quectel Wireless Solutions Company Limited Building 5, Shanghai Busine…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 2101RSU006-U3 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 03-07-2021 1of19 FCC ID: XMR2020RM505QAE Application: Quectel Wireless Solutions Company Limited Application Type: Certification Product: 5G Sub-6 GHz M.2 Module Model No.: RM505Q-AE Brand Name: Quectel FCC Rule Part(s): Part90 Subpart R Test Procedure(s): ANSI C63.26: 2015 Test Date: January 13, 2021 ~ February 20, 2021 Reviewed By: Sunny Sun Approved By: Robin Wu SPOT CHECK REPORT FCC PART 90 The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in…

Text truncated - open the document above for the full version.
