BC660K-GL HardwareDesign NB-IoTModuleSeries Version:1.0.0 Date:2020-11-20 Status:Preliminary www.quectel.com NB-IoTModuleSeries BC660K-GLHardwareDesign BC660K-GL_Hardware_Design 1 /59 Ouraimistoprovidecustomerswithtimelyandcomprehensiveservice.Foranyassistance, pleasecontactourcompanyheadquarters: QuectelWirelessSolutionsCo.,Ltd. Building5,ShanghaiBusinessParkPhaseIII(AreaB),No.1016TianlinRoad,MinhangDistrict,Shanghai 200233,China Tel:+862151086236 Email:[email protected] Orourlocaloffice.Formoreinformation,pleasevisit: http://www.quectel.com/support/sales.htm. Fortechnicalsupport,ortoreportdocumentationerrors,pleasevisit: http://www.quectel.com/support/technical.htm [email protected]. GeneralNotes Quectelofferstheinformationasaservicetoitscustomers.Theinformationprovidedisbasedupon customers’requirements.Quectelmakeseveryefforttoensurethequalityoftheinformationitmakes available.Quecteldoesnotmakeanywarrantyastotheinformationcontainedherein,anddoesnot acceptanyliabilityforanyinjury,lossordamageofanykindincurredbyuseoforrelianceuponthe information.Allinformationsuppliedhereinissubjecttochangewithoutpriornotice. Disclaimer WhileQuectelhasmadeeffortstoensurethatthefunctionsandfeaturesunderdevelopmentarefreefrom errors,itispossiblethatthesefunctionsandfeaturescouldcontainerrors,inaccuraciesandomissions. Unlessotherwiseprovidedbyvalidagreement,Quectelmakesnowarrantiesofanykind,impliedor express,withrespecttotheuseoffeaturesandfunctionsunderdevelopment.Tothemaximumextent permittedbylaw,Quectelexcludesallliabilityforanylossordamagesufferedinconnectionwiththeuseof thefunctionsandfeaturesunderdevelopment,regardlessofwhethersuchlossordamagemayhavebeen foreseeable. DutyofConfidentiality TheReceivingPartyshallkeepconfidentialalldocumentationandinformationprovidedbyQuectel,except whenthespecificpermissionhasbeengrantedbyQuectel.TheReceivingPartyshallnotaccessoruse Quectel’sdocumentationandinformationforanypurposeexceptasexpresslyprovidedherein. Furthermore,theReceivingPartyshallnotdiscloseanyoftheQuectel'sdocumentationandinformationto anythirdpartywithoutthepriorwrittenconsentbyQuectel.Foranynoncompliancetotheabove requirements,unauthorizeduse,orotherillegalormalicioususeofthedocumentationandinformation, Quectelwillreservetherighttotakelegalaction. NB-IoTModuleSeries BC660K-GLHardwareDesign BC660K-GL_Hardware_Design 2 /59 Copyright TheinformationcontainedhereisproprietarytechnicalinformationofQuectelwirelesssolutionsco.,ltd. Transmitting,reproducing,disseminatingandeditingthisdocumentaswellasusingthecontentwithout permissionareforbidden.Offenderswillbeheldliableforpaymentofdamages.Allrightsarereservedin theeventofapatentgrantorregistrationofautilitymodelordesign. Copyright©QuectelWirelessSolutionsCo.,Ltd.2020.Allrightsreserved. NB-IoTModuleSeries BC660K-GLHardwareDesign BC660K-GL_Hardware_Design 3 /59 AbouttheDocument RevisionHistory VersionDateAuthorDescription -2020-09-30 CliftonHE/ EllisonWANG/ RandyLI Creationofthedocument 1.0.02020-11-20 CliftonHE/ EllisonWANG/ RandyLI Preliminary NB-IoTModuleSeries BC660K-GLHardwareDesign BC660K-GL_Hardware_Design 4 /59 Contents AbouttheDocument.................................................................................................................................................3 Contents.......................................................................................................................................................................4 TableIndex..................................................................................................................................................................6 FigureIndex.................................................................................................................................................................7 1Introduction.........................................................................................................................................................8 1.1.SafetyInformation....................................................................................................................................9 2ProductConcept..............................................................................................................................................10 2.1.GeneralDescription...............................................................................................................................10 2.2.KeyFeatures..........................................................................................................................................11 2.3.FunctionalDiagram...............................................................................................................................12 2.4.EvaluationBoard....................................................................................................................................13 3ApplicationInterfaces....................................................................................................................................14 3.1.PinAssignment......................................................................................................................................15 3.2.PinDescription.......................................................................................................................................16 3.3.OperatingModes...................................................................................................................................20 3.4.PowerSaving.........................................................................................................................................21 3.4.1.LightSleep..................................................................................................................................21 3.4.2.DeepSleep.................................................................................................................................21 3.5.PowerSupply.........…

Text truncated - open the document above for the full version.

Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Declaration of authorization Date: 2021.01.15 Product Name: NB-IoT Module Model No.: BC660K-GL FCC ID: XMR2021BC660KGL We, the undersigned, hereby authorize MRT Technology (Suzhou) Co., Ltd to act on our behalf, to act on our behalf in all manners relating to FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by MRT Technology (Suzhou) Co., Ltd within the scope of this authorization shall have the same effects as our own. Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, City: Suzhou Country: China If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, Jean Hu Quectel Wireless Solutions Company Limited. TEL: +86-21-51086236 ext 6511

Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Confidentiality Letter Date: 2021.01.15 Federal Communications Commission Authorization and Evaluation Division FCC ID: XMR2021BC660KGL Confidentiality Request Pursuant to FCC 47 CRF 0.457(d) and 0.459, we request that a part of the subject FCC application listed below be held permanently confidential and permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. ⚫ Operational Description ⚫ Parts List ⚫ Tune up procedure ⚫ Block Diagram ⚫ Schematics Further, the Applicant has spent substantial effort in developing this product, some aspects of which are deemed to be trade secret and proprietary. Having the subject information easily available to our competitors in this market would negate the advantage we have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Sincerely yours, Jean Hu Quectel Wireless Solutions Company Limited. TEL: +86-21-51086236 ext 6511

Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Request for Modular/Limited Modular Approval Date: January 23, 2021 Subject: Manufacturer’s Declaration for ☒ - Modular Approval ☐ - Split Modular Approval ☐ - Limited Modular Approval ☐ - Limited Split Modular Approval Confidentiality Request for: XMR2021BC660KGL 8 Basic Requirements – FCC Part 15.212(a)(1) For Items Marked “NO(*)”, the Limited Module Description Must be Filled Out on the Following Pages Modular Approval Requirement Requirement Met 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with FCC limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The physical crystal and tuning capacitors may be located external to the shielded radio elements. 15.212(a)(1)(i) ☒ - YES ☐ - NO(*) Details: <example – The module contains a metal shield which covers all RF components and circuitry. The shield is located on the top of the board next to antenna connector> 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with FCC requirements under conditions of excessive data rates or over-modulation. 15.212(a)(1)(ii) ☒ - YES ☐ - NO(*) Details: <example – Data to the modulation circuit is buffered as described in the operational description provided with the application> 3. The modular transmitter must have its own power supply regulation on the module. This is intended to ensure that the module will comply with FCC requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. 15.212(a)(1)(iii) ☒ - YES ☐ - NO(*) Details: <example – The module contains its own power supply regulation. Please refer to schematic filed with this application> 4. The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b), 15.204(c), 15.212(a), and 2.929(b). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph 15.212(b). 15.212(a)(1)(iv) ☒ - YES ☐ - NO(*) Details: <example – The module connects to its antenna using an UFL connector which is considered a non- standard connector. A list of antennas tested and approved with this device may be found in users manual provided with the application> 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). 15.212(a)(1)(v) ☒ - YES ☐ - NO(*) Details: <example – The module was tested stand-alone as shown in test setup photographs filed with this application> 070920-02b Modular Approval Requirement Requirement Met 6. The modular transmitter must be labeled with its own FCC ID number, or use an electron display (see KDB Publication 784748). If using a permanently affixed label with its own FCC ID number, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XMR2021BC660KGL” or “Contains FCC ID: XMR2021BC660KGL” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 15.212(a)(1)(vi) ☒ - YES ☐ - NO(*) Details: <example – There is a label on the module as shown in the labeling exhibit filed with this application. Hos…

Text truncated - open the document above for the full version.

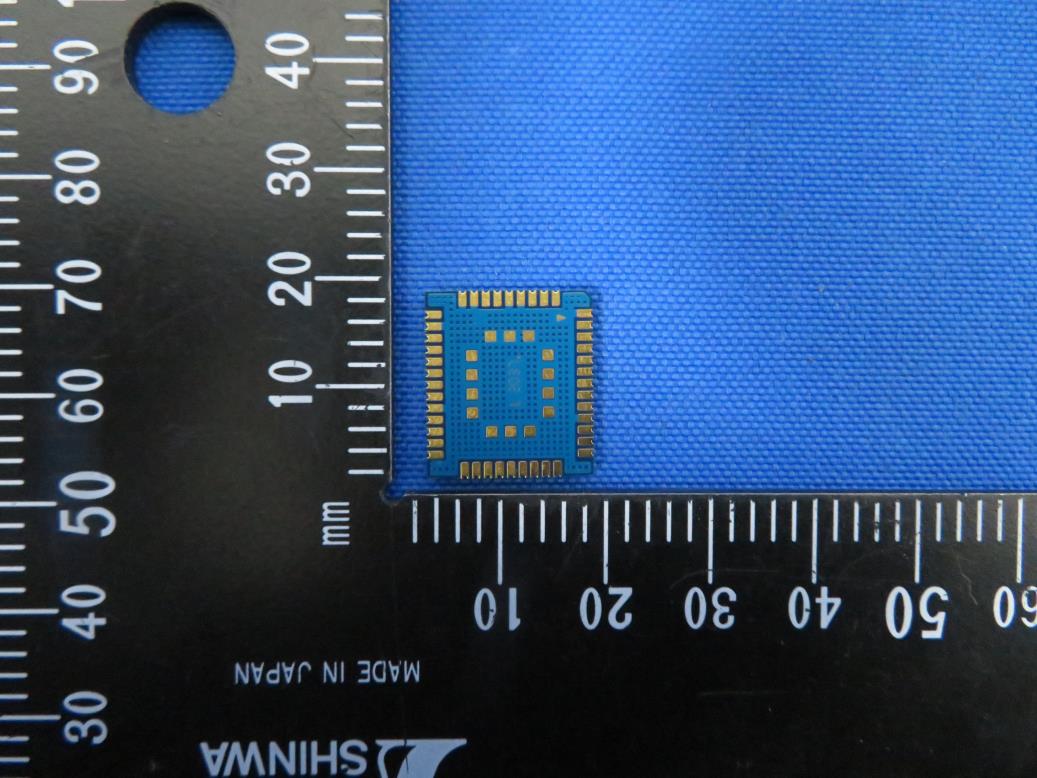

Report No.: 2012RSU022-EE 1 of 1 EUT Photograph (1) EUT Photo (2) EUT Photo

Report No.: 2012RSU022-EE 1 of 1 EUT Photograph (1) EUT Photo (2) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2012RSU022-U4 Phone: +886-3-3288388 Report Version: V01 Web: www.mrt-cert.com Issue Date: 01-15-2021 1 of 7 RF Exposure Evaluation Declaration FCC ID: XMR2021BC660KGL Application: Quectel Wireless Solutions Company Limited Application Type: Certification Product: NB-IoT Module Model No.: BC660K-GL Brand Name: Quectel Test Procedure(s): KDB 447498 D01v06 Test Date: December 08 ~ 27, 2020 Reviewed By: Sunny Sun Approved By: Robin Wu The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2012RSU022-U4 2 of 7 Revision History Report No. Version Description Issue Date Note 2012RSU022-U4 Rev. 01 Initial Report 01-15-2021 Valid Report No.: 2012RSU022-U4 3 of 7 1. GENERAL INFORMATION 1.1. Applicant Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 1.2. Manufacturer Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 1.3. Testing Facility Test Site - MRT Suzhou Laboratory Laboratory Location (Suzhou - Wuzhong) D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Laboratory Location (Suzhou - SIP) 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 VCCI: R-20025, G-20034, C-20020, T-20020 Test Site - MRT Shenzhen Laboratory Laboratory Location (Shenzhen) 1G, Building A, Junxiangda Building, Zhongshanyuan Road West, Nanshan District, Shenzhen, China Laboratory Accreditations A2LA: 3628.02 CNAS: L10551 FCC: CN1284 ISED: CN0105 Test Site - MRT Taiwan Laboratory Laboratory Location (Taiwan) No. 38, Fuxing 2 nd Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Laboratory Accreditations TAF: L3261-190725 FCC: 291082, TW3261 ISED: TW3261 Report No.: 2012RSU022-U4 4 of 7 2. PRODUCT INFORMATION 2.1. Equipment Description Product Name: NB-IoT Module Model No.: BC660K-GL Brand Name: Quectel Hardware Version: R1.0 Software Version: BC660KGLAAR01A02 IMEI.: 866207050001894; 866207050001886 Operating Temp.: -35 ~ 75 °C Supply Voltage: 2.2 ~ 4.3Vdc, typical 3.3Vdc NB-IoT Specification Single Band: NB-IoT Band 2, 4, 5, 12, 13, 14, 17, 25, 66, 85 Modulation: BPSK, QPSK Category: Category 14 (Cat NB2) Deployment: Stand-alone Sub-carrier Spacing: 3.75kHz, 15kHz Report No.: 2012RSU022-U4 5 of 7 3. RF Exposure Evaluation 3.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 2012RSU022-U4 6 of 7 3.2. Test Result of RF Exposure Evaluation Product NB-IoT Module Test Item RF Exposure Evaluation Test Mode Frequency Band (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) ERP (EIRP) (dBm) Power Density at 20cm (mW/cm 2 ) Limit (mW/ cm 2 ) NB-IoT Band 2 1850 ~ 1910 25.00 8.00 33.00 0.3969 1.0000 NB-IoT Band 4 1710 ~ 1755 25.00 8.00 33.00 0.3969 1.0000 NB-IoT Band 5 824 ~ 849 25.00 5.00 30.00 0.1989 0.5493 NB-IoT Band 12 699 ~ 716 25.00 5.00 30.00 0.1989 0.4660 NB-IoT Band 13 777 ~ 787 25.00 5.00 30.00 0.1989 0.5180 NB-IoT Band 14 788 ~ 798 25.00 5.00 30.00 0.1989 0.5253 NB-IoT Band 17 704 ~ 716 25.00 5.00 30.00 0.1989 0.4693 NB-IoT Band 25 1850 ~ 1915 25.00 8.00 33.00 0.3969 1.0000 NB-IoT Band 66 1710 ~ 1780 25.00 8.00 33.00 0.3969 1.0000 NB-IoT Band 85 698 ~ 716 25.00 5.00 30.00 0.1989 0.4653 The End Report No.: 2012RSU022-U4 7 of 7 Appendix A - EUT Photograph Refer to “2012RSU022-UE” file.

MRT Technology (Suzhou) Co., Ltd Report No.: 2012RSU022-U1 Phone: +86-512-66308358 Report Version: V02 Web: www.mrt-cert.com Issue Date: 01-26-2021 1 of 88 FCC ID: XMR2021BC660KGL Application: Quectel Wireless Solutions Company Limited Application Type: Certification Product: NB-IoT Module Model No.: BC660K-GL Brand Name: Quectel FCC Rule Part(s): Part 2, 22 (H), 24 (E), 27 Test Procedure(s): ANSI C63.26-2015 Test Date: December 08, 2020 ~ January 11, 2021 Reviewed By: Sunny Sun Approved By: Robin Wu MEASUREMENT REPORT FCC PART 22 & 24 & 27 The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.26-2015. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2012RSU022-U1 2 of 88 Revision History Report No. Version Description Issue Date Note 2012RSU022-U1 Rev. 01 Initial Report 01-15-2021 Invalid 2012RSU022-U1 Rev. 02 Updated with TCB’s comment 01-26-2021 Valid Report No.: 2012RSU022-U1 3 of 88 CONTENTS Description Page 1. GENERAL INFORMATION ...................................................................................................... 5 1.1. Applicant ...................................................................................................................... 5 1.2. Manufacturer ................................................................................................................ 5 1.3. Testing Facility .............................................................................................................. 5 2. PRODUCT INFORMATION ...................................................................................................... 6 2.1. Equipment Description ................................................................................................. 6 2.2. Product Specification Subjective to this Report ............................................................ 6 2.3. Description of Available Antennas ................................................................................. 7 2.4. Device Capabilities ....................................................................................................... 8 2.5. EMI Suppression Device(s)/Modifications ..................................................................... 8 2.6. Maximum Power, Frequency Tolerance, and Emission Designator .............................. 9 2.7. Configuration of Tested System ................................................................................. 10 2.8. Test Environment Condition ........................................................................................ 10 3. TEST EQUIPMENT CALIBRATION DATE ............................................................................. 11 4. MEASUREMENT UNCERTAINTY ......................................................................................... 13 5. TEST RESULT ....................................................................................................................... 14 5.1. Summary .................................................................................................................... 14 5.2. Occupied Bandwidth .................................................................................................. 15 5.2.1. Test Limit ................................................................................................................ 15 5.2.2. Test Procedure ....................................................................................................... 15 5.2.3. Test Setting ............................................................................................................. 15 5.2.4. Test Setup .............................................................................................................. 15 5.2.5. Test Result .............................................................................................................. 16 5.3. Frequency Stability Measurement .............................................................................. 21 5.3.1. Test Limit ................................................................................................................ 21 5.3.2. Test Procedures Used ............................................................................................ 21 5.3.3. Test Setting ............................................................................................................. 21 5.3.4. Test Setup .............................................................................................................. 22 5.3.5. Test Result .............................................................................................................. 23 5.4. Equivalent Isotropically Radiated Power Measurement .............................................. 28 5.4.1. Test Limit ................................................................................................................ 28 5.4.2. Test Procedures Used ............................................................................................ 28 5.4.3. Test Setting ............................................................................................................. 28 5.4.4. Test Setup .............................................................................................................. 29 Report No.: 2012RSU022-U1 4 of 88 5.4.5. Test Result .............................................................................................................. 30 5.5. Band Edge Measurement ........................................................................................... 35 5.5.1. Test Limit ....................................................................................…

Text truncated - open the document above for the full version.

Report No.: 2012RSU022-U1 47 of 88 Product NB-IoT Module Test Site WZ-SR6 Test Engineer Caitlin Chen Test Date 2020/12/18 Test Band Band 12 Test Result Pass BPSK 3.75kHz 1@0 CH-Low 15kHz 1@0 CH-Low QPSK 3.75kHz 1@0 CH-Low 15kHz 1@0 CH-Low 15 kHz 12@0 CH-Low Report No.: 2012RSU022-U1 48 of 88 Product NB-IoT Module Test Site WZ-SR6 Test Engineer Caitlin Chen Test Date 2020/12/18 Test Band Band 17 Test Result Pass BPSK 3.75kHz 1@0 CH-Low 15kHz 1@0 CH-Low QPSK 3.75kHz 1@0 CH-Low 15kHz 1@0 CH-Low 15 kHz 12@0 CH-Low Report No.: 2012RSU022-U1 49 of 88 Product NB-IoT Module Test Site WZ-SR6 Test Engineer Caitlin Chen Test Date 2020/12/18 Test Band Band 13 Test Result Pass BPSK 3.75kHz 1@0 CH-Low 3.75kHz 1@47 CH-High 15kHz 1@0 CH-Low 15kHz 1@11 CH-High Report No.: 2012RSU022-U1 50 of 88 QPSK 3.75kHz 1@0 CH-Low 3.75kHz 1@47 CH-High 15kHz 1@0 CH-Low 15kHz 1@11 CH-High 15 kHz 12@0 CH-Low 15kHz 12@0 CH-High Report No.: 2012RSU022-U1 51 of 88 5.6. Peak to Average Ratio 5.6.1.Test Limit A peak to average ratio measurement is performed at the conducted port of the EUT. The spectrum analyzers Complementary Cumulative Distribution Function (CCDF) measurement profile is used to determine the largest deviation between the average and the peak power of the EUT in a given bandwidth. The CCDF curve shows how much time the peak waveform spends at or above a given average power level. The percent of time the signal spends at or above the level defines the probability for that particular power level. 5.6.2.Test Procedure Used ANSI C63.26-2015 - Section 5.2.3.4 (CCDF). 5.6.3.Test Setting 1. Set the resolution / measurement bandwidth ≥ signal’s occupied bandwidth 2. Set the number of counts to a value that stabilizes the measured CCDF curve 3. Record the maximum PARR level associated with a probability of 0.1% 5.6.4.Test Setup Report No.: 2012RSU022-U1 52 of 88 5.6.5.Test Result Product NB-IoT Module Test Site WZ-SR6 Test Engineer Caitlin Chen Test Date 2020/12/16 Test Band Band 2/25 Channel No. Frequency (MHz) Sub-carrier spacing (kHz) N tones Peak to Average Ratio (dB) Limit (dB) Result 26365 1882.5 15 12@0 4.30 ≤ 13.00 Pass QPSK 15kHz 12@0 Report No.: 2012RSU022-U1 53 of 88 Product NB-IoT Module Test Site WZ-SR6 Test Engineer Caitlin Chen Test Date 2020/12/16 Test Band Band 4/66 Channel No. Frequency (MHz) Sub-carrier spacing (kHz) N tones Peak to Average Ratio (dB) Limit (dB) Result 132322 1745.0 15 12@0 4.19 ≤ 13.00 Pass QPSK 15kHz 12@0 Report No.: 2012RSU022-U1 54 of 88 Product NB-IoT Module Test Site WZ-SR6 Test Engineer Caitlin Chen Test Date 2020/12/16 Test Band Band 5 Channel No. Frequency (MHz) Sub-carrier spacing (kHz) N tones Peak to Average Ratio (dB) Limit (dB) Result 20525 836.5 15 12@0 4.74 ≤ 13.00 Pass QPSK 15kHz 12@0 Report No.: 2012RSU022-U1 55 of 88 Product NB-IoT Module Test Site WZ-SR6 Test Engineer Caitlin Chen Test Date 2020/12/16 Test Band Band 12&17/85 Channel No. Frequency (MHz) Sub-carrier spacing (kHz) N tones Peak to Average Ratio (dB) Limit (dB) Result 134082 706.0 15 12@0 4.47 ≤ 13.00 Pass QPSK 15kHz 12@0 Report No.: 2012RSU022-U1 56 of 88 Product NB-IoT Module Test Site WZ-SR6 Test Engineer Caitlin Chen Test Date 2020/12/16 Test Band Band 13 Channel No. Frequency (MHz) Sub-carrier spacing (kHz) N tones Peak to Average Ratio (dB) Limit (dB) Result 23230 782.0 15 12@0 4.71 ≤ 13.00 Pass QPSK 15kHz 12@0 Report No.: 2012RSU022-U1 57 of 88 5.7. Conducted Spurious Emissions 5.7.1.Test Limit The level of the carrier and the various conducted spurious and harmonic frequencies is measured by means of a calibrated spectrum analyzer. The spectrum is scanned from the lowest frequency generated in the equipment up to a frequency including its 10 th harmonic. All out of band emissions are measured with a spectrum analyzer connected to the antenna terminal of the EUT while the EUT is operating at its maximum duty cycle, at maximum power, and at the appropriate frequencies. All data rates were investigated to determine the worst-case configuration. All modes of operation were investigated and the worst-case configuration results are reported in this section. The power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10 log(P) dB. For Band 7, 38/41 the power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 55 + 10 log(P) dB. 5.7.2.Test Procedure Used ANSI C63.26-2015 - Section 5.7 5.7.3.Test Setting 1. Set the analyzer frequency to low, mid, high channel. 2. RBW = 1MHz 3. VBW ≥ 3*R…
