SC20-AD Manual LTE Module Series Rev: SC20-AD_Manual_R1.0 Date: 2021-12-14 www.quectel.com SC20-A_Manual_R1.0 Confidential / Released 1 / 57 Our aim is to provide customers with timely and comprehensive service. For any assistance, please contact our company headquarters: Quectel Wireless Solutions Co., Ltd. Office 501, Building 13, No.99, Tianzhou Road, Shanghai, China, 200233 Tel: +86 21 5108 6236 Email: [email protected] Or our local office. For more information, please visit: http://www.quectel.com/support/salesupport.aspx For technical support, or to report documentation errors, please visit: http://www.quectel.com/support/techsupport.aspx Or email to: [email protected] GENERAL NOTES QUECTEL OFFERS THE INFORMATION AS A SERVICE TO ITS CUSTOMERS. THE INFORMATION PROVIDED IS BASED UPON CUSTOMERS’ REQUIREMENTS. QUECTEL MAKES EVERY EFFORT TO ENSURE THE QUALITY OF THE INFORMATION IT MAKES AVAILABLE. QUECTEL DOES NOT MAKE ANY WARRANTY AS TO THE INFORMATION CONTAINED HEREIN, AND DOES NOT ACCEPT ANY LIABILITY FOR ANY INJURY, LOSS OR DAMAGE OF ANY KIND INCURRED BY USE OF OR RELIANCE UPON THE INFORMATION. THE INFORMATION SUPPLIED HEREIN IS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. COPYRIGHT THE INFORMATION CONTAINED HERE IS PROPRIETARY TECHNICAL INFORMATION OF QUECTEL CO., LTD. TRANSMITTING, REPRODUCTION, DISSEMINATION AND EDITING OF THIS DOCUMENT AS WELL AS UTILIZATION OF THE CONTENT ARE FORBIDDEN WITHOUT PERMISSION. OFFENDERS WILL BE HELD LIABLE FOR PAYMENT OF DAMAGES. ALL RIGHTS ARE RESERVED IN THE EVENT OF A PATENT GRANT OR REGISTRATION OF A UTILITY MODEL OR DESIGN. Copyright © Quectel Wireless Solutions Co., Ltd. 2017. All rights reserved. SC20-A_Manual_R1.0 Confidential / Released 2 / 57 About the Document History Revision Date Author Description 1.0 2021-12-14 Winston SC20-AD_Manual_R1.0 SC20-A_Manual_R1.0 Confidential / Released 3 / 57 Contents About the Document ................................................................................................................................... 2 Contents ....................................................................................................................................................... 3 1 Introduction .......................................................................................................................................... 5 1.1. Safety Information...................................................................................................................... 7 2 Product Concept .................................................................................................................................. 9 2.1. General Description ................................................................................................................... 9 2.2. Key Features ........................................................................................................................... 10 2.3. Functional Diagram ................................................................................................................. 12 2.4. Evaluation Board ..................................................................................................................... 13 3 Application Interfaces ....................................................................................................................... 14 3.1. General Description ................................................................................................................. 14 3.2. Pin Assignment ........................................................................................................................ 15 4 Wi-Fi and BT ....................................................................................................................................... 16 4.1. Wi-Fi Overview ........................................................................................................................ 16 4.1.1. Wi-Fi Performance ......................................................................................................... 16 4.2. BT Overview ............................................................................................................................ 17 4.2.1. BT Performance ............................................................................................................. 17 5 GNSS ................................................................................................................................................... 19 5.1. GNSS Performance ................................................................................................................. 19 6 Antenna Interface ............................................................................................................................... 20 6.1. Main/Rx-diversity Antenna Interface ........................................................................................ 20 6.1.1. Pin Definition .................................................................................................................. 20 6.1.2. Operating Frequency ..................................................................................................... 20 6.2. Wi-Fi/BT Antenna Interface ..................................................................................................... 22 6.3. GNSS Antenna Interface ......................................................................................................... 22 6.4. Antenna Installation ................................................................................................................. 23 6.4.1. Antenna Requirement .................................................................................................... 23 7 Electrical, Reliability and Radio Characteristics ............................................................................ 25 7.1. Absolute Maximum Ratings ..........................................................................…

Text truncated - open the document above for the full version.

Quectel Wireless Solutions Company Limited Attestation Letter Federal Communications Commission Authorization and Evaluation Division We Name: Quectel Wireless Solutions Company Limited Address: Building 5, Shanghai Business Park PhaseIII (Area B),No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. Product: LTE Module FCC ID: XMR2021SC20AD Model No.: SC20-AD Sincerely, _________________ Name: Jean Hu Title: Engineer Email: [email protected] Date: 2022-1-6

Quectel Wireless Solutions Company Limited Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: XMR2021SC20AD Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________ Name: Jean Hu Title: Engineer Email: [email protected] Date: 2022-1-6 4. Tune up Procedure 5. BOM List 6. PCB Layout

Quectel Wireless Solutions Company Limited Declaration of Authorization We Name: Quectel Wireless Solutions Company Limited Address: Building 5, Shanghai Business Park PhaseIII (Area B),No.1016 Tianlin Road, Minhang District, China 200233 Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: LTE Module FCC ID: XMR2021SC20AD Model No.: SC20-AD Sincerely, ________________ Name: Jean Hu Title: Engineer Email: [email protected] Date: 2022-1-6

Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Request for Modular/Limited Modular Approval Date: February 7, 2022 Subject: Manufacturer’s Declaration for ☒- Modular Approval☐- Split Modular Approval ☐- Limited Modular Approval ☐ - Limited Split Modular Approval Confidentiality Request for: XMR2021SC20AD 8 Basic Requirements – FCC Part 15.212(a)(1) For Items Marked “NO(*)”, the Limited Module Description Must be Filled Out on the Following Pages Modular Approval Requirement Requirement Met 1.The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with FCC limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The physical crystal and tuning capacitors may be located external to the shielded radio elements. 15.212(a)(1)(i) ☒- YES ☐- NO(*) Details: <example – The module contains a metal shield which covers all RF components and circuitry. The shield is located on the top of the board next to antenna connector> 2.The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with FCC requirements under conditions of excessive data rates or over-modulation. 15.212(a)(1)(ii) ☒- YES ☐- NO(*) Details: <example – Data to the modulation circuit is buffered as described in the operational description provided with the application> 3.The modular transmitter must have its own power supply regulation on the module. This is intended to ensure that the module will comply with FCC requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. 15.212(a)(1)(iii) ☒- YES ☐- NO(*) Details: <example – The module contains its own power supply regulation. Please refer to schematic filed with this application> 4.The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b), 15.204(c), 15.212(a), and 2.929(b). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph 15.212(b). 15.212(a)(1)(iv) ☒- YES ☐- NO(*) Details: <example – The module connects to its antenna using an UFL connector which is considered a non- standard connector. A list of antennas tested and approved with this device may be found in users manual provided with the application> 5.The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). 15.212(a)(1)(v) ☒- YES ☐- NO(*) Details: <example – The module was tested stand-alone as shown in test setup photographs filed with this application> 070920-02b Modular Approval Requirement Requirement Met 6. The modular transmitter must be labeled with its own FCC ID number, or use an electron display (see KDB Publication 784748). If using a permanently affixed label with its own FCC ID number, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XMR2021SC20AD” or “Contains FCC ID: XMR2021SC20AD” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 15.212(a)(1)(vi) ☒ - YES ☐ - NO(*) Details: <example – There is a label on the module as shown in the labeling exhibit filed with this application. Host specific labeling instr…

Text truncated - open the document above for the full version.

Quectel Wireless Solutions Co., Ltd Test Data Reuse Letter This application is intended to reuse previous test data (from SC20-A, FCC ID: XMR201706SC20A 2017/08/14 initial application), due to the fact that the two models of products are hardware-wise identical and only the following changes have been made: SC20-AD, FCC ID: XMR2021SC20AD is the variant of certified SC20-A module. SC20-A and SC20-AD are both LTE modules. They use the same Qualcomm platform MSM8909. SC20-A supports LTE, WCDMA and GSM. SC20-AD supports LTE only. The main change of software is disabled WCDMA, GSM and voice part. Here we remove some small RF components which used in WCDMA and GSM. Main RF components changes as follow table The position of the different components in the PCB is shown in the follow picture Quectel Wireless Solutions Co., Ltd We hereby state that the above change won’t affect the RF portions and there is no any other change between them except the software. So, we have performed spot checks on the following items to verify that if any unexpected RF conducted power or emission changes can be noted. The test results show that all spot check data are within the instrument measurement uncertainty and data reuse is justifiable. Verification test items with 1 sample: ⚫Conducted Power ⚫Radiated Spurious Emission Test (choose worse case) For the test result please refers to included exhibit “Test Reports.pdf” for detail Reuse data test items ⚫Conducted Power / EIRP/ ERP / PAPR / OBW / Modulation characteristics / Frequency stability / DFS ⚫Band edge Also, both the referenced application and this new application are all subject to the same ISED rule and there is no new rule update for related rules. Accordingly, we believe that the reuse data from previous certified filing is justifiable. Thank you for your attention and please feel free to contact us, if you should have any questions. Sincerely yours, Jean Hu Quectel Wireless Solutions Company Limited. TEL: +86-21-51086236 ext 6511

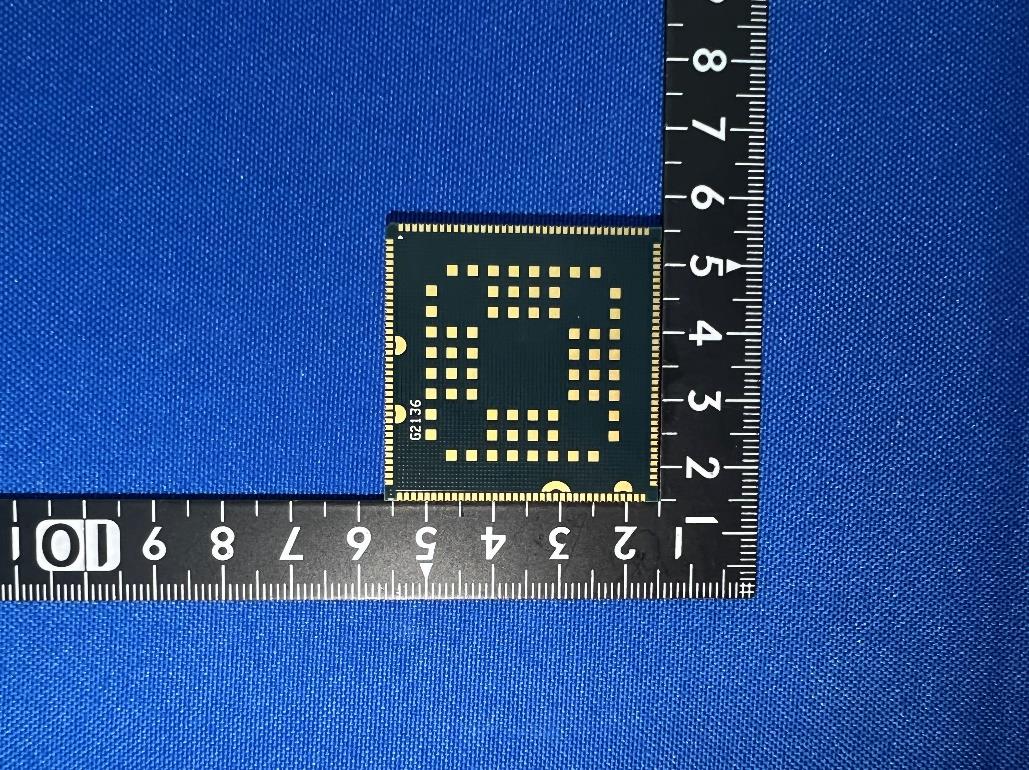

Report No.: 2112RSU024-UE 1 of 1 EUT Photograph (1) EUT Photo (2) EUT Photo

Label Location

Report No.: 2112RSU024-UE 1 of 1 EUT Photograph (1) EUT Photo (2) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2112RSU024-U6 Phone: +886-3-3288388 Report Version: V01 Web: www.mrt-cert.com Issue Date: 01-13-2022 1 of 7 RF Exposure Evaluation Declaration FCC ID: XMR2021SC20AD Application: Quectel Wireless Solutions Co., Ltd Application Type: Certification Product: LTE Module Model No.: SC20-AD Brand Name: Quectel Test Procedure(s): KDB 447498 D01v06 Test Date: December 21 ~ 27, 2021 Reviewed By: Sunny Sun Approved By: Robin Wu The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2112RSU024-U6 2 of 7 Revision History Report No. Version Description Issue Date Note 2112RSU024-U6 Rev. 01 Initial Report 01-13-2022 Valid Report No.: 2112RSU024-U6 3 of 7 1. GENERAL INFORMATION 1.1. Applicant Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 1.2. Manufacturer Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 1.3. Testing Facility Test Site - MRT Suzhou Laboratory Laboratory Location (Suzhou - Wuzhong) D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Laboratory Location (Suzhou - SIP) 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 VCCI: R-20025 G-20034 C-20020 T-20020 R-20141 G-20134 C-20103 T-20104 Test Site - MRT Shenzhen Laboratory Laboratory Location (Shenzhen) 1G, Building A, Junxiangda Building, Zhongshanyuan Road West, Nanshan District, Shenzhen, China Laboratory Accreditations A2LA: 3628.02 CNAS: L10551 FCC: CN1284 ISED: CN0105 Test Site - MRT Taiwan Laboratory Laboratory Location (Taiwan) No. 38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Laboratory Accreditations TAF: L3261-190725 FCC: 291082, TW3261 ISED: TW3261 Report No.: 2112RSU024-U6 4 of 7 1.4. Product Information Product Name LTE Module Model No. SC20-AD Serial No. D1Y21L22E000063 Brand Name Quectel Operating Temperature -35 ~ 75°C Wi-Fi Specification 802.11a/b/g/n Bluetooth Specification V4.1 dual mode E-UTRA Band Band 2, 4, 5, 7, 12, 13, 25, 26 Note: The information of EUT was provided by the manufacturer, and the accuracy of the information shall be the responsibility of the manufacturer. Report No.: 2112RSU024-U6 5 of 7 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 2112RSU024-U6 6 of 7 2.2. Test Result of RF Exposure Evaluation Product LTE Module Test Item RF Exposure Evaluation Test Mode Frequency Band (MHz) Tune-up Power (dBm) Antenna Gain (dBi) EIRP or ERP (dBm) Power Density at 20cm (mW/cm 2 ) Limit (mW/cm 2 ) LTE B2 1850 ~ 1910 25.00 2.00 27.00 0.0997 1.0000 LTE B4 1710 ~ 1755 25.00 2.00 27.00 0.0997 1.0000 LTE B5 824 ~ 849 25.00 2.00 24.85 0.0608 0.5493 LTE B7 2500 ~ 2570 25.00 3.00 28.00 0.1255 1.0000 LTE B12 699 ~ 716 25.00 3.00 25.85 0.0765 0.4660 LTE B13 777 ~ 787 25.00 4.00 26.85 0.0963 0.5180 LTE B25 1850 ~ 1915 25.00 2.00 27.00 0.0997 1.0000 LTE B26 814 ~ 849 25.00 2.00 24.85 0.0608 0.5427 Bluetooth 2402 ~ 2480 7.32 3.0 10.32 0.0021 1.0000 2.4G Wi-Fi 2412 ~ 2462 21.81 3.0 24.81 0.0602 1.0000 5G Wi-Fi 5180 ~ 5825 11.96 4.0 15.96 0.0078 1.0000 WWAN Power Density / Limit Bluetooth Power Density / Limit Wi-Fi Power Density / Limit Σ(Power Density / Limit) 0.1255 0.0021 0.0602 + 0.0078 0.1956 Note: 1. For colocation analysis, LTE Band 7 is chosen for summation due to the highest (power density / limit) among all WWAN wireless modes. 2. Σ(Power Density / Limit): This is a summation of [(power density for each transmitter / antenna included in the simultaneous transmission) / (corresponding MPE limit)], for WWAN + Bluetooth + Wi-Fi Report No.: 2112RSU024-U6 7 of 7 Appendix A – EUT Photograph Refer to “2112RSU024-UE” file. The End

MRT Technology (Suzhou) Co., Ltd Report No.: 2112RSU024-U4 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 01-13-2022 1 of 30 FCC ID: XMR2021SC20AD Applicant: Quectel Wireless Solutions Co., Ltd Application Type: Certification Product: LTE Module Model No.: SC20-AD Brand Name: Quectel FCC Classification: Unlicensed National Information Infrastructure (NII) FCC Rule Part(s): Part15 Subpart E (Section 15.407) Test Procedure(s): ANSI C63.10-2013, KDB 789033 D02v02r01 Test Date: December 21 ~ 27, 2021 Reviewed By: Sunny Sun Approved By: Robin Wu MEASUREMENT REPORT FCC PART 15.407/ WLAN 802.11a/n The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurementreport and was tested in accordance with the measurement procedures specified in KDB 789033 D02v02r01. Test results reported hereinrelate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2112RSU024-U4 2 of 30 Revision History Report No. Version Description Issue Date Note 2112RSU024-U4 Rev. 01 Initial Report 01-13-2022 Valid Note: For the difference between FCC IDs “XMR2021SC20AD” and “XMR201706SC20A”, “XMR2021SC20AD” disabled WCDMA, GSM and voice part via software and removed some small RF components which are used in WCDMA and GSM. This report is based on “XMR201706SC20A” original report to supplement the spot check related test items with worst mode. Report No.: 2112RSU024-U4 3 of 30 CONTENTS Description Page 1. General Information ............................................................................................................... 5 1.1. Applicant ....................................................................................................................... 5 1.2. Manufacturer ................................................................................................................ 5 1.3. Testing Facility .............................................................................................................. 5 1.4. Product Information ...................................................................................................... 6 1.5. Radio Specification ....................................................................................................... 6 1.6. Working Frequencies for this Report ............................................................................. 7 2. TEST CONFIGURATION ......................................................................................................... 8 2.1. Test Mode .................................................................................................................... 8 2.2. Configuration of Test System ........................................................................................ 8 2.3. Description of Test Software ......................................................................................... 8 2.4. Test Environment Condition .......................................................................................... 8 3. ANTENNA REQUIREMENTS .................................................................................................. 9 4. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 10 5. MEASUREMENT UNCERTAINTY ......................................................................................... 12 6. TEST RESULT ...................................................................................................................... 13 6.1. Summary .................................................................................................................... 13 6.2. Output Power Measurement ....................................................................................... 14 6.2.1. Test Limit .................................................................................................................... 14 6.2.2. Test Procedure Used .................................................................................................. 14 6.2.3. Test Setting ................................................................................................................. 14 6.2.4. Test Setup .................................................................................................................. 14 6.2.5. Test Result .................................................................................................................. 15 6.3. Radiated Spurious Emission Measurement ................................................................ 16 6.3.1. Test Limit .................................................................................................................... 16 6.3.2. Test Procedure Used .................................................................................................. 16 6.3.3. Test Setting ................................................................................................................. 16 6.3.4. Test Setup .................................................................................................................. 18 6.3.5. Test Result .................................................................................................................. 19 6.4. Radiated RestrictedBand Edge Measurement ............................................................ 22 6.4.1. Test Limit .................................................................................................................... 22 6.4.2. Test Procedure Used .................................................................................................. 23 6.4.3. Test Setting ................................................................................................................. 23 6.4.4. Test Setup ...........................................…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 2112RSU024-U7 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 02-21-2022 1 of 23 DFS SPOT CHECK REPORT FCC PART 15 Subpart E / WLAN 802.11a/n FCC ID: XMR2021SC20AD Applicant: Quectel Wireless Solutions Co., Ltd Product: LTE Module Model No.: SC20-AD Brand Name: Quectel FCC Classification: FCC Part 15 Spread Spectrum Transmitter (DFS) FCC Rule Part(s): Part 15 Subpart E - 15.407 Section (h)(2) Test Date: February 18 ~ 20, 2022 Reviewed By: Sunny Sun Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 905462 D02v02. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2112RSU024-U7 2 of 23 Revision History Report No. Version Description Issue Date Note 2112RSU024-U7 Rev. 01 Initial Report 02-21-2022 Valid Note: For the difference between FCC IDs “XMR2021SC20AD” and “XMR201706SC20A”, “XMR2021SC20AD” disabled WCDMA, GSM and voice part via software and removed some small RF components which are used in WCDMA and GSM. This report is based on “XMR201706SC20A” original report to supplement the spot check related test items. Report No.: 2112RSU024-U7 3 of 23 CONTENTS Description Page 1. General Information ................................................................................................................................ 4 1.1. Applicant ..................................................................................................................................... 4 1.2. Manufacturer ............................................................................................................................... 4 1.3. Testing Facility ............................................................................................................................ 4 1.4. Equipment Description ..............................................................................................................…
