XMR202208FC64EWi-Fi&Bluetooth Module

FC64E HardwareDesign Wi-Fi&BluetoothModuleSeries Version:1.0.1 Date:2021-09-08 Status:Preliminary Wi-Fi&BluetoothModuleSeries FC64E_Hardware_Design1 / 53 At Quectel,our aim is to providetimelyand comprehensiveservicesto our customers.If you requireany assistance,pleasecontactour headquarters: QuectelWirelessSolutionsCo., Ltd. Building5, ShanghaiBusinessPark PhaseIII (AreaB), No.1016TianlinRoad,MinhangDistrict,Shanghai 200233,China Tel: +86 21 51086236 Email:[email protected] Or our local offices.For more information,pleasevisit: http://www.quectel.com/support/sales.htm . For technicalsupport,or to reportdocumentationerrors,pleasevisit: http://www.quectel.com/support/technical.htm. Or emailus at: [email protected]. Legal Notices We offer informationas a serviceto you. The providedinformationis basedon your requirementsand we makeeveryeffortto ensureits quality.You agreethat you are responsiblefor usingindependentanalysis and evaluationin designingintendedproducts,and we providereferencedesignsfor illustrativepurposes only.Beforeusingany hardware,softwareor serviceguidedby this document,pleasereadthis notice carefully.Eventhoughwe employcommerciallyreasonableeffortsto providethe bestpossible experience,you herebyacknowledgeand agreethat this documentand relatedserviceshereunderare providedto you on an “as available” basis.We may reviseor restatethis documentfromtime to time at our sole discretionwithoutany prior noticeto you. Copyright Our and third-partyproductshereundermaycontaincopyrightedmaterial.Suchcopyrightedmaterial shallnot be copied,reproduced,distributed,merged,published,translated,or modifiedwithoutprior writtenconsent.We and the third partyhaveexclusiverightsover copyrightedmaterial.No licenseshall be grantedor conveyedunderany patents,copyrights,trademarks,or servicemarkrights.To avoid ambiguities,purchasingin any formcannotbe deemedas grantinga licenseotherthanthe normal non-exclusive,royalty-freelicenseto use the material.We reservethe rightto takelegalactionfor noncompliancewith abovementionedrequirements,unauthorizeduse, or otherillegalor malicioususe of the material. Trademarks Exceptas otherwiseset forth herein,nothingin this documentshallbe construedas conferringany rights to use any trademark,tradenameor name,abbreviation,or counterfeitproductthereofownedby Quectel or any third partyin advertising,publicity,or otheraspects. Third-PartyRights Quectel Confidential Wi-Fi&BluetoothModuleSeries FC64E_Hardware_Design 2 / 53 This documentmay refer to hardware,softwareand/ordocumentationownedby one or morethird parties (“third-partymaterials”). Use of suchthird-partymaterialsshallbe governedby all restrictionsand obligationsapplicablethereto. We makeno warrantyor representation,eitherexpressor implied,regardingthe third-partymaterials, includingbut not limitedto any impliedor statutory,warrantiesof merchantabilityor fitnessfor a particular purpose,quietenjoyment,systemintegration,informationaccuracy,and non-infringementof any third-partyintellectualpropertyrightswith regardto the licensedtechnologyor use thereof.Nothingherein constitutesa representationor warrantyby us to eitherdevelop,enhance,modify,distribute,market,sell, offerfor sale,or otherwisemaintainproductionof any our productsor any otherhardware,software, device,tool, information,or product.We moreoverdisclaimany and all warrantiesarisingfrom the course of dealingor usageof trade. Disclaimer a) We acknowledgeno liabilityfor any injuryor damagearisingfrom the relianceuponthe information. b) We shallbearno liabilityresultingfromany inaccuraciesor omissions,or fromthe use of the informationcontainedherein. c) Whilewe havemadeeveryeffortto ensurethat the functionsand featuresunderdevelopmentare free fromerrors,it is possiblethat they couldcontainerrors,inaccuracies,and omissions.Unless otherwiseprovidedby valid agreement,we makeno warrantiesof any kind,eitherimpliedor express, and excludeall liabilityfor any loss or damagesufferedin connectionwith the use of featuresand functionsunderdevelopment,to the maximumextentpermittedby law, regardlessof whethersuch loss or damagemay havebeenforeseeable. d) We are not responsiblefor the accessibility,safety,accuracy,availability,legality,or completenessof information,advertising,commercialoffers,products,services,and materialson third-partywebsites and third-partyresources. Copyright© QuectelWirelessSolutionsCo., Ltd. 2021. All rightsreserved. Quectel Confidential Wi-Fi&BluetoothModuleSeries FC64E_Hardware_Design 3 / 53 SafetyInformation The followingsafetyprecautionsmustbe observedduringall phasesof operation,suchas usage,service or repairof any cellularterminalor mobileincorporatingthe module.Manufacturersof the cellularterminal shouldnotifyusersand operatingpersonnelof the followingsafetyinformationby incorporatingthese guidelinesinto all manualsof the product.Otherwise,Quectelassumesno liabilityfor customers’ failureto complywith theseprecautions. Full attentionmustbe paid to drivingat all timesin orderto reducethe risk of an accident.Usinga mobilewhiledriving(evenwitha handsfreekit) causes distractionand can lead to an accident.Pleasecomplywith lawsand regulations restrictingthe use of wirelessdeviceswhiledriving. Switchoff the cellularterminalor mobilebeforeboardingan aircraft.The operation of wirelessappliancesin an aircraftis forbiddento preventinterferencewith communicationsystems.If thereis an AirplaneMode,it shouldbe enabledprior to boardingan aircraft.Pleaseconsultthe airlinestaff for morerestrictionson the use of wirelessdeviceson an aircraft. Wirelessdevicesmaycauseinterferenceon sensitivemedicalequipment,so pleasebe awareof the restrictionson the use of wirelessdeviceswhenin hospitals,clinicsor otherhealthcarefacilities. Cellularterminalsor mobilesoperatingoverradiosignaland cellularnetwork cannotbe guaranteedto connectin certainconditions,suchas whenthe mobilebill is unpaidor the (U)SIMcard is invalid.Whenemergencyhelp is neededin such conditions,use emergencyca…

Text truncated - open the document above for the full version.

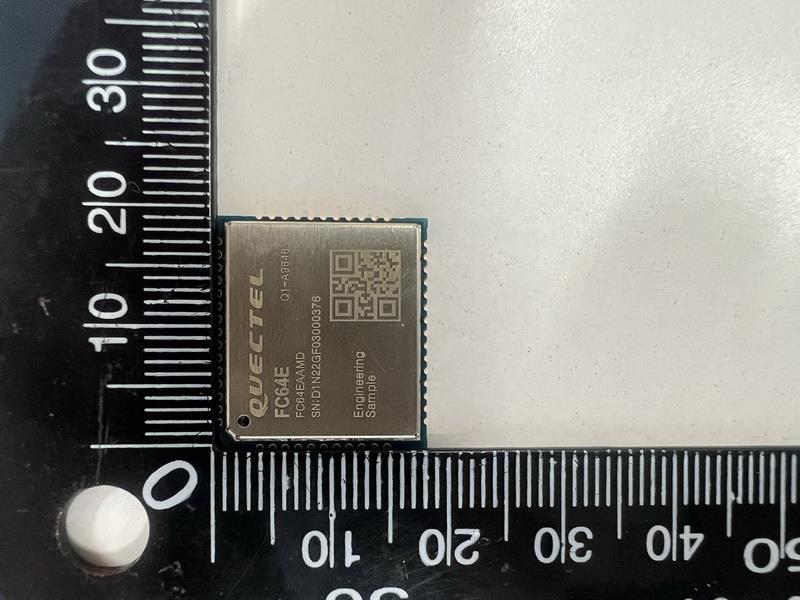

Page 1 of 1 FCC ID: XMR202208FC64E IC: 10224A-202208FC64E APPENDIX PHOTOS OF EUT EXTERNAL PHOTOS EUT Photo EUT Photo

Lable Lable location

Page 1 of 1 FCC ID: XMR202208FC64E IC: 10224A-202208FC64E APPENDIX PHOTOS OF EUT INTERNAL PHOTOS EUT Photo

Report No.: FCC022022-06260RF14 Page 1 of 7 Product Name: Wi-Fi&Bluetooth Module Report No: FCC022022-06260RF14 Product Model: FC64E Security Classification: Open Version: V1.0 Total Page: 7 TIRT Testing Report Prepared By: Checked By: Approved By: Stone Tang Randy Lv Daniel Chen Report No.: FCC022022-06260RF14 Page 2 of 7 FCC RF EXPOSURE REPORT FCC ID: XMR202208FC64E Project No. : 2022-06260 Equipment : Wi-Fi&Bluetooth Module Brand Name : Quectel Test Model : FC64E Series Model : N/A Applicant : Quectel Wireless Solutions Co., Ltd Address : Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Manufacturer : Quectel Wireless Solutions Co., Ltd Address : Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Issued Date : Dec. 08, 2022 Report Version : V1.0 Test Sample : Engineering Sample No.: 20221207021267 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091 KDB 447498 D01 General RF Exposure Guidance v06 • The test result referred exclusively to the presented test model /sample. • Without written approval of TIRT Inc. the test report shall not reproduced except in full. Lab: Beijing TIRT Technology Service Co.,Ltd Shenzhen Add: 101, 3 # Factory Building, Gongjin Electronics Shatin Community, Kengzi Street, Pingshan District, Shenzhen, China TEL: +86-0755-27087573 Report No.: FCC022022-06260RF14 Page 3 of 7 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note FCC022022-06260RF14 V1.0 Original Report 2022.12.08 Valid Report No.: FCC022022-06260RF14 Page 4 of 7 1. TEST FACILITY Company: Beijing TIRT Technology Service Co.,Ltd Shenzhen Address: 101, 3 # Factory Building, Gongjin Electronics Shatin Community, Kengzi Street, Pingshan District, Shenzhen, China CNAS Registration Number: CNAS L14158 A2LA Registration Number: 6049.01 FCC Accredited Lab. Designation Number: CN1309 FCC Test Firm Registration Number: 825524 Telephone: +86-0755-27087573 Report No.: FCC022022-06260RF14 Page 5 of 7 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna For BT: Antenna Specification: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A Dipole N/A 0.73 Note: 1) The antenna gain is provided by the manufacturer. 2) The antenna is for testing purposes only. For 2.4GHz: Antenna Specification: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A Dipole N/A 0.73 2 N/A N/A Dipole N/A 0.73 Note: 1) This EUT supports CDD, and all antenna gains are not equal, Directional gain = G ANT +Array Gain. For power measurements, Array Gain=0dB (N ANT ≤4), so the Directional gain=0.73dBi. For power spectral density measurements, N ANT =2, N SS = 1. So the Directional gain=G ANT +Array Gain=G ANT +10log(N ANT / N SS )dBi=0.73+10log(2/1)dBi=3.74dBi. 2) The antenna gain is provided by the manufacturer. 3) The antenna is for testing purposes only. Table for Antenna Configuration: Operating Mode TX Mode 1TX 1TX 2TX IEEE 802.11b V (Ant. 1) V(Ant. 2) V(Ant. 1 + Ant. 2) IEEE 802.11g V (Ant. 1) V(Ant. 2) V(Ant. 1 + Ant. 2) IEEE 802.11n(HT20) V (Ant. 1) V(Ant. 2) V(Ant. 1 + Ant. 2) IEEE 802.11n(HT40) V (Ant. 1) V(Ant. 2) V(Ant. 1 + Ant. 2) IEEE 802.11ax(HE20) V (Ant. 1) V(Ant. 2) V(Ant. 1 + Ant. 2) IEEE 802.11ax(HE40) V (Ant. 1) V(Ant. 2) V(Ant. 1 + Ant. 2) Report No.: FCC022022-06260RF14 Page 6 of 7 For 5GHz: Antenna Specification: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A Dipole N/A 1.14 2 N/A N/A Dipole N/A 1.14 Note: 1) This EUT supports CDD, and all antenna gains are not equal, Directional gain = G ANT +Array Gain. For power measurements, Array Gain=0dB (N ANT ≤4), so the Directional gain=1.14dBi. For power spectral density measurements, N ANT =2, N SS = 1. Then the Directional gain=G ANT +Array Gain=G ANT +10log(N ANT / N SS )dBi=1.14+10log(2/1)dBi=4.15dBi. 2) The antenna gain is provided by the manufacturer. 3) The antenna is for testing purposes only. Table for Antenna Configuration: Operating Mode TX Mode 1TX 1TX 2TX IEEE 802.11a V (Ant. 1) V(Ant. 2) V(Ant. 1 + Ant. 2) IEEE 802.11n(HT20) V (Ant. 1) V(Ant. 2) V(Ant. 1 + Ant. 2) IEEE 802.11n(HT40) V(Ant. 1) V(Ant. 2) V(Ant. 1 + Ant. 2) IEEE 802.11ac(VHT20) V(Ant. 1) V(Ant. 2) V(Ant. 1 + Ant. 2) IEEE 802.11ac(VHT40) V(Ant. 1) V(Ant. 2) V(Ant. 1 + Ant. 2) IEEE 802.11ac(VHT80) V(Ant. 1) V(Ant. 2) V(Ant. 1 + Ant. 2) IEEE 802.11ax(HE20) V (Ant. 1) V(Ant. 2) V(Ant. 1 + Ant. 2) IEEE 802.11ax(HE40) V (Ant. 1) V(Ant. 2) V(Ant. 1 + Ant. 2) IEEE 802.11ax(HE80) V(Ant. 1) V(Ant. 2) V(Ant. 1 + Ant. 2) Report No.: FCC022022-06260RF14 Page 7 of 7 3. TEST RESULTS For BT: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 0.73 1.1830 5.86 3.8548 0.00091 1 Complies For 2.4GHz: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 0.73 1.1830 26.88 487.5285 0.11474 1 Complies For 5GHz: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.14 1.3002 19.07 80.7235 0.02088 1 Complies Note: The calculated distance is 20 cm. End of Test Report

Report No.: FCC022022-06260RF5 Page 1 of 72 Product Name: Wi-Fi&Bluetooth Module Report No: FCC022022-06260RF5 Product Model: FC64E Security Classification: Open Version: V1.0 Total Page: 72 TIRT Testing Report Prepared By: Checked By: Approved By: Stone Tang Randy Lv Daniel Chen Report No.: FCC022022-06260RF5 Page 2 of 72 FCC Radio Test Report FCC ID: XMR202208FC64E This report concerns: Original Grant Project No. : 2022-06260 Equipment : Wi-Fi&Bluetooth Module Brand Name : Quectel Test Model : FC64E Series Model : NA Applicant : Quectel Wireless Solutions Co., Ltd Address : Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Manufacturer : Quectel Wireless Solutions Co., Ltd Address : Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Date of Receipt : Sep. 14, 2022 Date of Test : Sep. 14, 2022~Sep. 28, 2022 Issued Date : Dec. 07, 2022 Report Version : V1.0 Test Sample : Engineering Sample No.: 20221207021267 Standard(s) : FCC CFR Title 47, Part 15, Subpart C FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10-2013 • The test result referred exclusively to the presented test model /sample. • Without written approval of TIRT Inc. the test report shall not reproduced except in full. Lab: Beijing TIRT Technology Service Co.,Ltd Shenzhen Add: 101, 3 # Factory Building, Gongjin Electronics Shatin Community, Kengzi Street, Pingshan District, Shenzhen, China TEL: +86-0755-27087573 Report No.: FCC022022-06260RF5 Page 3 of 72 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 12 2.3 PARAMETERS OF TEST SOFTWARE 13 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 14 2.5 SUPPORT UNITS 14 3 . AC POWER LINE CONDUCTED EMISSIONS 15 3.1 LIMIT 15 3.2 TEST PROCEDURE 15 3.3 DEVIATION FROM TEST STANDARD 15 3.4 TEST SETUP 16 3.5 EUT OPERATING CONDITIONS 16 3.6 TEST RESULTS 16 4 . RADIATED EMISSIONS 17 4.1 LIMIT 17 4.2 TEST PROCEDURE 19 4.3 DEVIATION FROM TEST STANDARD 20 4.4 TEST SETUP 20 4.5 EUT OPERATING CONDITIONS 22 4.6 TEST RESULT - 9 KHZ TO 30 MHZ 22 4.7 TEST RESULT - 30 MHZ TO 1000 MHZ 22 4.8 TEST RESULT - ABOVE 1000 MHZ 22 5 . BANDWIDTH 23 5.1 LIMIT 23 5.2 TEST PROCEDURE 23 5.3 DEVIATION FROM STANDARD 23 5.4 TEST SETUP 23 Report No.: FCC022022-06260RF5 Page 4 of 72 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 23 5.6 TEST RESULTS 23 6 . MAXIMUM OUTPUT POWER 24 6.1 LIMIT 24 6.2 TEST PROCEDURE 24 6.3 DEVIATION FROM STANDARD 24 6.4 TEST SETUP 24 6.5 EUT OPERATION CONDITIONS 24 6.6 TEST RESULTS 24 7 . CONDUCTED SPURIOUS EMISSION 25 7.1 LIMIT 25 7.2 TEST PROCEDURE 25 7.3 DEVIATION FROM STANDARD 25 7.4 TEST SETUP 25 7.5 EUT OPERATION CONDITIONS 25 7.6 TEST RESULTS 25 8 . POWER SPECTRAL DENSITY 26 8.1 LIMIT 26 8.2 TEST PROCEDURE 26 8.3 DEVIATION FROM STANDARD 26 8.4 TEST SETUP 26 8.5 EUT OPERATION CONDITIONS 26 8.6 TEST RESULTS 26 9 . MEASUREMENT INSTRUMENTS LIST 27 10 . EUT TEST PHOTO 28 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 33 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 36 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 38 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 41 APPENDIX E - BANDWIDTH 62 APPENDIX F - MAXIMUM OUTPUT POWER 65 Report No.: FCC022022-06260RF5 Page 5 of 72 Table of Contents Page APPENDIX G - CONDUCTED SPURIOUS EMISSION 68 APPENDIX H - POWER SPECTRAL DENSITY 71 Report No.: FCC022022-06260RF5 Page 6 of 72 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note FCC022022-06260RF5 V1.0 Original Report. 2022.12.07 Valid Report No.: FCC022022-06260RF5 Page 7 of 72 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth APPENDIX E PASS ------ 15.247(b)(3) Maximum Output Power APPENDIX F PASS ------ 15.247(d) Conducted Spurious Emission APPENDIX G PASS ------ 15.247(e) Power Spectral Density APPENDIX H PASS ------ 15.203 Antenna Requirement ------ PASS Note(2) Note: (1) “N/A” denotes test is not applicable to this device. (2) The device what use a permanently attached antenna were considered sufficient to comply with the provisions of 15.203. Report No.: FCC022022-06260RF5 Page 8 of 72 1.1 TEST FACILITY Company: Beijing TIRT Technology Service Co.,Ltd Shenzhen Address: 101, 3 # Factory Building, Gongjin Electronics Shatin Community, Kengzi Street, Pingshan District, Shenzhen, China CNAS Registration Number: CNAS L14158 A2LA Registration Number: 6049.01 FCC Accredited Lab. Designation Number: CN1309 FCC Test Firm Registration Number: 825524 Telephone: +86-0755-27087573 1.2 MEASUREMENT UNCERTAINTY ISO/IEC 17025 requires that an estimate of the measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)) The BTL measurement uncertainty as below table: Uncertainty Parameter Uncertainty Occupied Channel Bandwidth ±142.12 KHz RF power conducted ±0.74 dB RF power radiated ±3.25dB Spurious emissions, conducted ±1.78dB Spurious emissions, radiated (30MHz～1GHz) ±4.6dB Spurious emissions, radiated (1GHz ~ 18GHz) ±4.9dB Conduction Emissions(150kHz~30MHz) ±3.1 dB Humidity ±4.6% Temprature ±0.7°C Time ±1.25% Note: Unless specifically mentioned, the uncertainty of measurement has not been taken into account to declare the compliance or non-compliance to the specification. Report No.: FCC022022-06260RF5 Page 9 of 72 1.3 TEST ENVIRONMENT CONDITIONS Test Item Temperature Humidity Te…

Text truncated - open the document above for the full version.

Report No.: FCC022022-06260RF1 Page 1 of 137 Product Name: Wi-Fi&Bluetooth Module Report No: FCC022022-06260RF1 Product Model: FC64E Security Classification: Open Version: V1.0 Total Page: 137 TIRT Testing Report Prepared By: Checked By: Approved By: Stone Tang Randy Lv Daniel Chen Report No.: FCC022022-06260RF1 Page 2 of 137 FCC Radio Test Report FCC ID: XMR202208FC64E This report concerns: Original Grant Project No. : 2022-06260 Equipment : Wi-Fi&Bluetooth Module Brand Name : Quectel Test Model : FC64E Series Model : N/A Applicant : Quectel Wireless Solutions Co., Ltd Address : Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Manufacturer : Quectel Wireless Solutions Co., Ltd Address : Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Date of Receipt : Sep. 14, 2022 Date of Test : Sep. 14, 2022~Nov. 14, 2022 Issued Date : Dec. 07, 2022 Report Version : V1.0 Test Sample : Engineering Sample No.: 20221207021267 Standard(s) : FCC CFR Title 47, Part 15, Subpart C FCC KDB 558074 D01 15.247 Meas Guidance v05r02 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 ANSI C63.10-2013 • The test result referred exclusively to the presented test model /sample. • Without written approval of TIRT Inc. the test report shall not reproduced except in full. Lab: Beijing TIRT Technology Service Co.,Ltd Shenzhen Add: 101, 3 # Factory Building, Gongjin Electronics Shatin Community, Kengzi Street, Pingshan District, Shenzhen, China TEL: +86-0755-27087573 Report No.: FCC022022-06260RF1 Page 3 of 137 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 12 2.3 PARAMETERS OF TEST SOFTWARE 14 2.4 DUTY CYCLE 15 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 17 2.6 SUPPORT UNITS 17 3 . AC POWER LINE CONDUCTED EMISSIONS 18 3.1 LIMIT 18 3.2 TEST PROCEDURE 18 3.3 DEVIATION FROM TEST STANDARD 18 3.4 TEST SETUP 19 3.5 EUT OPERATION CONDITIONS 19 3.6 TEST RESULTS 19 4 . RADIATED EMISSIONS 20 4.1 LIMIT 20 4.2 TEST PROCEDURE 21 4.3 DEVIATION FROM TEST STANDARD 22 4.4 TEST SETUP 22 4.5 EUT OPERATION CONDITIONS 24 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 24 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 24 4.8 TEST RESULTS - ABOVE 1000 MHZ 24 5 . BANDWIDTH 25 5.1 LIMIT 25 5.2 TEST PROCEDURE 25 5.3 DEVIATION FROM STANDARD 25 5.4 TEST SETUP 25 Report No.: FCC022022-06260RF1 Page 4 of 137 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 25 5.6 TEST RESULTS 25 6 . MAXIMUM OUTPUT POWER 26 6.1 LIMIT 26 6.2 TEST PROCEDURE 26 6.3 DEVIATION FROM STANDARD 26 6.4 TEST SETUP 26 6.5 EUT OPERATION CONDITIONS 26 6.6 TEST RESULTS 26 7 . CONDUCTED SPURIOUS EMISSIONS 27 7.1 LIMIT 27 7.2 TEST PROCEDURE 27 7.3 DEVIATION FROM STANDARD 27 7.4 TEST SETUP 27 7.5 EUT OPERATION CONDITIONS 27 7.6 TEST RESULTS 27 8 . POWER SPECTRAL DENSITY 28 8.1 LIMIT 28 8.2 TEST PROCEDURE 28 8.3 DEVIATION FROM STANDARD 28 8.4 TEST SETUP 28 8.5 EUT OPERATION CONDITIONS 28 8.6 TEST RESULTS 28 9 . MEASUREMENT INSTRUMENTS LIST 29 10 . EUT TEST PHOTO 30 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 35 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 38 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 40 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 43 APPENDIX E - BANDWIDTH 104 APPENDIX F - MAXIMUM OUTPUT POWER 111 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 118 Report No.: FCC022022-06260RF1 Page 5 of 137 Table of Contents Page APPENDIX H - POWER SPECTRAL DENSITY 131 Report No.: FCC022022-06260RF1 Page 6 of 137 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note FCC022022-06260RF1 V1.0 Original Report. 2022.12.07 Valid Report No.: FCC022022-06260RF1 Page 7 of 137 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth APPENDIX E PASS ------ 15.247(b)(3) Maximum Output Power APPENDIX F PASS ------ 15.247(d) Conducted Spurious Emissions APPENDIX G PASS ------ 15.247(e) Power Spectral Density APPENDIX H PASS ------ 15.203 Antenna Requirement ------ PASS Note(2) Note: (1) “N/A” denotes test is not applicable in this test report. (2) The device what use a permanently attached antenna were considered sufficient to comply with the provisions of 15.203. Report No.: FCC022022-06260RF1 Page 8 of 137 1.1 TEST FACILITY Company: Beijing TIRT Technology Service Co.,Ltd Shenzhen Address: 101, 3 # Factory Building, Gongjin Electronics Shatin Community, Kengzi Street, Pingshan District, Shenzhen, China CNAS Registration Number: CNAS L14158 A2LA Registration Number: 6049.01 FCC Accredited Lab. Designation Number: CN1309 FCC Test Firm Registration Number: 825524 Telephone: +86-0755-27087573 1.2 MEASUREMENT UNCERTAINTY ISO/IEC 17025 requires that an estimate of the measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)) The TIRT measurement uncertainty as below table: Uncertainty Parameter Uncertainty Occupied Channel Bandwidth ±142.12 KHz RF power conducted ±0.74 dB RF power radiated ±3.25dB Spurious emissions, conducted ±1.78dB Spurious emissions, radiated (30MHz~1GHz) ±4.6dB Spurious emissions, radiated (1GHz~18GHz) ±4.9dB Conduction Emissions(150kHz~30MHz) ±3.1 dB Humidity ±4.6% Temprature ±0.7°C Time ±1.2% Note: Unless specifically mentioned, the uncertainty of measurement has not been taken into account to declare the compliance or non-compliance to the specification. Report No.: FCC…

Text truncated - open the document above for the full version.

Report No.: FCC022022-06260RF1 Page 127 of 137 Test Mode TX AX(HE20) Mode_Ant. 1 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: FCC022022-06260RF1 Page 128 of 137 Test Mode TX AX(HE20) Mode_Ant. 2 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: FCC022022-06260RF1 Page 129 of 137 Test Mode TX AX(HE40) Mode_Ant. 1 Bandedge-CH03 Bandedge-CH09 CH03 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH09 – 10th Harmonic of the fundamental frequency Report No.: FCC022022-06260RF1 Page 130 of 137 Test Mode TX AX(HE40) Mode_Ant. 2 Bandedge-CH03 Bandedge-CH09 CH03 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH09 – 10th Harmonic of the fundamental frequency Report No.: FCC022022-06260RF1 Page 131 of 137 APPENDIX H - POWER SPECTRAL DENSITY Report No.: FCC022022-06260RF1 Page 132 of 137 Test Mode TX B Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -5.10 8.00 Complies 06 2437 -6.23 8.00 Complies 11 2462 -6.20 8.00 Complies CH01 CH06 CH11 Test Mode TX B Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -7.79 8.00 Complies 06 2437 -3.50 8.00 Complies 11 2462 -6.68 8.00 Complies CH01 CH06 CH11 Test Mode TX B Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -3.23 8.00 Complies 06 2437 -1.64 8.00 Complies 11 2462 -3.42 8.00 Complies Report No.: FCC022022-06260RF1 Page 133 of 137 Test Mode TX G Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -11.58 8.00 Complies 06 2437 -10.13 8.00 Complies 11 2462 -10.92 8.00 Complies CH01 CH06 CH11 Test Mode TX G Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -11.55 8.00 Complies 06 2437 -12.37 8.00 Complies 11 2462 -12.58 8.00 Complies CH01 CH06 CH11 Test Mode TX G Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -8.55 8.00 Complies 06 2437 -8.10 8.00 Complies 11 2462 -8.66 8.00 Complies Report No.: FCC022022-06260RF1 Page 134 of 137 Test Mode TX N(HT20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -10.12 8.00 Complies 06 2437 -10.70 8.00 Complies 11 2462 -10.07 8.00 Complies CH01 CH06 CH11 Test Mode TX N(HT20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -10.57 8.00 Complies 06 2437 -10.83 8.00 Complies 11 2462 -11.81 8.00 Complies CH01 CH06 CH11 Test Mode TX N(HT20) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -7.33 8.00 Complies 06 2437 -7.75 8.00 Complies 11 2462 -7.84 8.00 Complies Report No.: FCC022022-06260RF1 Page 135 of 137 Test Mode TX N(HT40) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -12.83 8.00 Complies 06 2437 -12.24 8.00 Complies 09 2452 -15.27 8.00 Complies CH03 CH06 CH09 Test Mode TX N(HT40) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -13.31 8.00 Complies 06 2437 -13.80 8.00 Complies 09 2452 -15.50 8.00 Complies CH03 CH06 CH09 Test Mode TX N(HT40) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -10.05 8.00 Complies 06 2437 -9.94 8.00 Complies 09 2452 -12.37 8.00 Complies Report No.: FCC022022-06260RF1 Page 136 of 137 Test Mode TX AX(HE20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -11.23 8.00 Complies 06 2437 -11.82 8.00 Complies 11 2462 -10.17 8.00 Complies CH01 CH06 CH11 Test Mode TX AX(HE20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -10.79 8.00 Complies 06 2437 -12.47 8.00 Complies 11 2462 -12.28 8.00 Complies CH01 CH06 CH11 Test Mode TX AX(HE20) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -7.99 8.00 Complies 06 2437 -9.12 8.00 Complies 11 2462 -8.09 8.00 Complies Report No.: FCC022022-06260RF1 Page 137 of 137 Test Mode TX AX(HE40) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -13.55 8.00 Complies 06 2437 -14.43 8.00 Complies 09 2452 -14.00 8.00 Complies CH03 CH06 CH09 Test Mode TX AX(HE40) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -15.23 8.00 Complies 06 2437 -14.88 8.00 Complies 09 2452 -13.14 8.00 Complies CH03 CH06 CH09 Test Mode TX AX(HE40) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -11.30 8.00 Complies 06 2437 -11.64 8.00 Complies 09 2452 -10.54 8.00 Complies End of Test Report

Page 1 of 5 FCC ID: XMR202208FC64E IC: 10224A-202208FC64E APPENDIX PHOTOS OF TEST SETUP AC Power Line Conducted Emissions Test Photos Page 2 of 5 FCC ID: XMR202208FC64E IC: 10224A-202208FC64E Radiated Emissions Test Photos 9 kHz to 30 MHz Page 3 of 5 FCC ID: XMR202208FC64E IC: 10224A-202208FC64E Radiated Emissions Test Photos 30 MHz to 1 GHz Page 4 of 5 FCC ID: XMR202208FC64E IC: 10224A-202208FC64E Radiated Emissions Test Photos Above 1 GHz Page 5 of 5 FCC ID: XMR202208FC64E IC: 10224A-202208FC64E Conducted Test Photos
