XMR202210FC900EWi-Fi&Bluetooth Module

FC900E Hardware Design Wi-Fi&Bluetooth Module Series Version: 1.0.2 Date: 2022-09-01 Status: Preliminary Wi-Fi&Bluetooth Module Series FC900E_Hardware_Design 1 / 49 At Quectel, our aim is to provide timely and comprehensive services to our customers. If you require any assistance, please contact our headquarters: Quectel Wireless Solutions Co., Ltd. Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai 200233, China Tel: +86 21 5108 6236 Email: [email protected] Or our local offices. For more information, please visit: http://www.quectel.com/support/sales.htm. For technical support, or to report documentation errors, please visit: http://www.quectel.com/support/technical.htm. Or email us at: [email protected]. Legal Notices We offer information as a service to you. The provided information is based on your requirements and we make every effort to ensure its quality. You agree that you are responsible for using independent analysis and evaluation in designing intended products, and we provide reference designs for illustrative purposes only. Before using any hardware, software or service guided by this document, please read this notice carefully. Even though we employ commercially reasonable efforts to provide the best possible experience, you hereby acknowledge and agree that this document and related services hereunder are provided to you on an “as available” basis. We may revise or restate this document from time to time at our sole discretion without any prior notice to you. Use and Disclosure Restrictions License Agreements Documents and information provided by us shall be kept confidential, unless specific permission is granted. They shall not be accessed or used for any purpose except as expressly provided herein. Copyright Our and third-party products hereunder may contain copyrighted material. Such copyrighted material shall not be copied, reproduced, distributed, merged, published, translated, or modified without prior written consent. We and the third party have exclusive rights over copyrighted material. No license shall be granted or conveyed under any patents, copyrights, trademarks, or service mark rights. To avoid ambiguities, purchasing in any form cannot be deemed as granting a license other than the normal non-exclusive, royalty-free license to use the material. We reserve the right to take legal action for noncompliance with abovementioned requirements, unauthorized use, or other illegal or malicious use of the material. Wi-Fi&Bluetooth Module Series FC900E_Hardware_Design 2 / 49 Trademarks Except as otherwise set forth herein, nothing in this document shall be construed as conferring any rights to use any trademark, trade name or name, abbreviation, or counterfeit product thereof owned by Quectel or any third party in advertising, publicity, or other aspects. Third-Party Rights This document may refer to hardware, software and/or documentation owned by one or more third parties (“third-party materials”). Use of such third-party materials shall be governed by all restrictions and obligations applicable thereto. We make no warranty or representation, either express or implied, regarding the third-party materials, including but not limited to any implied or statutory, warranties of merchantability or fitness for a particular purpose, quiet enjoyment, system integration, information accuracy, and non-infringement of any third-party intellectual property rights with regard to the licensed technology or use thereof. Nothing herein constitutes a representation or warranty by us to either develop, enhance, modify, distribute, market, sell, offer for sale, or otherwise maintain production of any our products or any other hardware, software, device, tool, information, or product. We moreover disclaim any and all warranties arising from the course of dealing or usage of trade. Privacy Policy To implement module functionality, certain device data are uploaded to Quectel’s or third-party’s servers, including carriers, chipset suppliers or customer-designated servers. Quectel, strictly abiding by the relevant laws and regulations, shall retain, use, disclose or otherwise process relevant data for the purpose of performing the service only or as permitted by applicable laws. Before data interaction with third parties, please be informed of their privacy and data security policy. Disclaimer a) We acknowledge no liability for any injury or damage arising from the reliance upon the information. b) We shall bear no liability resulting from any inaccuracies or omissions, or from the use of the information contained herein. c) While we have made every effort to ensure that the functions and features under development are free from errors, it is possible that they could contain errors, inaccuracies, and omissions. Unless otherwise provided by valid agreement, we make no warranties of any kind, either implied or express, and exclude all liability for any loss or damage suffered in connection with the use of features and functions under development, to the maximum extent permitted by law, regardless of whether such loss or damage may have been foreseeable. d) We are not responsible for the accessibility, safety, accuracy, availability, legality, or completeness of information, advertising, commercial offers, products, services, and materials on third-party websites and third-party resources. Copyright©QuectelWirelessSolutionsCo.,Ltd.2022. Allrightsreserved. Wi-Fi&Bluetooth Module Series FC900E_Hardware_Design 3 / 49 Safety Information The following safety precautions must be observed during all phases of operation, such as usage, service or repair of any cellular terminal or mobile incorporating the module. Manufacturers of the cellular terminal should notify users and operating personnel of the following safety information by incorporating these guidelines into all manuals of the product. Otherwise, Quectel assumes no liability for customer…

Text truncated - open the document above for the full version.

RF_734_02 04 April 16 Modular Approval Request FCC (KDB 996369 D01 & Part 15.212) FCC ID: XMR202210FC900E Items to be covered by Single modular transmitters. Answer from applicant 1. The modular transmitter must have its own RF shielding. Yes, please see exhibition external photos 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Yes, the modular has buffer modulation /data inputs 3. The modular transmitter must have its own power supply regulation. Yes, please see the SCH.pdf 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(b)(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Yes, the requirements of antenna connector and spurious emission have been fulfilled. Please refer to the test report exhibition. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Yes, please refer to the setup photo exhibition for the stand-alone configuration 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number in accordance with 15.212 (a)(1)(vi)(A) / (B). Yes, the module will be label with its own FCC ID, and the instruction on the labelling rule of the end product has been stated in the user manual of this module. Please refer to the label and user manual exhibition. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. Yes, the required FCC rule has been fulfilled and all the instruction for maintaining compliance have been clearly stated in the user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 1.1310, 2.1091, 2.1093, and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance. Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. Yes, please refer exhibition RF exposure for the compliance of MPE RF exposure rule. Note: A limited modular approval (LMA) may be granted for single modular transmitters that comply partially with the requirements above. RF_734_02 04 April 16 Name and surname of applicant (or authorized representative): Signature: Date: 2022/12/16.. City:  Shanghai .. Name:  Jean hu .. Email: [email protected]....... Signature: .

FEDERAL COMMUNICATIONS COMMISSION Supplier’s Declaration of Conformity (SDoC) Equipment: Wi-Fi&Bluetooth Module Trademark(s) and Model(s): Quectel / FC900E Manufacturer: Quectel Wireless Solutions Co., Ltd. FCC ID in case other parts of this equipment are subject to certification: XMR202210FC900E This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number: SEWA2210000062RG06 Issue date: 2022-12-15 The following manufacturer/importer/entity (located in the USA) is responsible for this declaration: Date: 2022/12/16.. City:  Shanghai .. Name:  Jean hu .. Email: [email protected]....... Signature: . FCC

Quectel Wireless Solutions Co., Ltd Statement We Quectel Wireless Solutions Co., Ltd declare the following models. Product Name: Wi-Fi&Bluetooth Module Model Number: FC900E Hardware version: Refer to below table Model QCA1023-0 version QCA9377-3 version FC900E V1.0 V2.0 V1.0 and V2.0 share the similar HW and SW design, the difference is just as follow: 1. FC900E V1.0 version is QCA1023-0 version, FC900E V2.0 version is QCA9377-3 version 2.The RF chip is different, RF chip changed from QCA1023-0 to QCA9377- 3.for further description We hereby state that QCA9377-3 and QCA1023-0 are exactly pin to pin products derived from same silicon design but with different function set. QCA9377-3 is superset of Tufello contains all features it can support but QCA1023 is subset of Tufello to disable MU-MIMO and TxBF client mode for differentiation by silicon integrated OTP programming. As a result, there is no design difference from schematic and layout to other BOM related to the design. It is guaranteed the functionality other than difference mentioned above and performance both throughput and RF output/input are identical between QCA9377-3 and QCA1023-0. QCA1023-0 version full test，QCA9377-3 version Spot check QCA1023-0 worse mode, The test plan reference is as follows： Standard Remark Part 15B QCA1023-0 version full test QCA9377-3 version check worse Part15C/15E QCA1023-0 version full test QCA9377-3 version check power & rse worse mode Sincerely, Name:Jean Hu Date:2022/12/16 Title: Certification Manager Email: [email protected]

RF_160, Issue 04 Quectel Wireless Solutions Co., Ltd. Declaration of Authorization We Name: Quectel Wireless Solutions Co., Ltd. Address: Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China, 200233 City: Shanghai Country: China Declare that: Name Representative of agent: Well Wei Agent Company name: SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd Address: South of No. 6 Plant, No. 1, Runsheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: Wi-Fi&Bluetooth Module Type designation: FC900E Trademark: Quectel on our behalf. Date: 2022/12/16.. City:  Shanghai .. Name:  Jean hu .. (2) Email: [email protected]....... Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Rev 11/20/07 Quectel Wireless Solutions Co., Ltd. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: XMR202210FC900E Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name (1. Block Diagram.pdf; 2.SCH.pdf; 3. Operation Description.pdf; 4.BOM.pdf; 5. Tune up.pdf;) (Block Diagram, SCH, Operation Description, BOM, Tune Up Procedure) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 45 days after the grant as outlined in Public Notice DA 04-1705. Exhibit Type File Name (External Photos, Internal Photos, Test Setup Photos, Manual) (Appendix A.4-External Photos.pdf; Appendix A.5-Internal Photos.pdf; Appendix A.2 - DSS_DTS_NII Setup Photos; Appendix A.3 - PCB Setup Photos; Manual;) Sincerely, Name: Jean Hu Title: Certification Manager

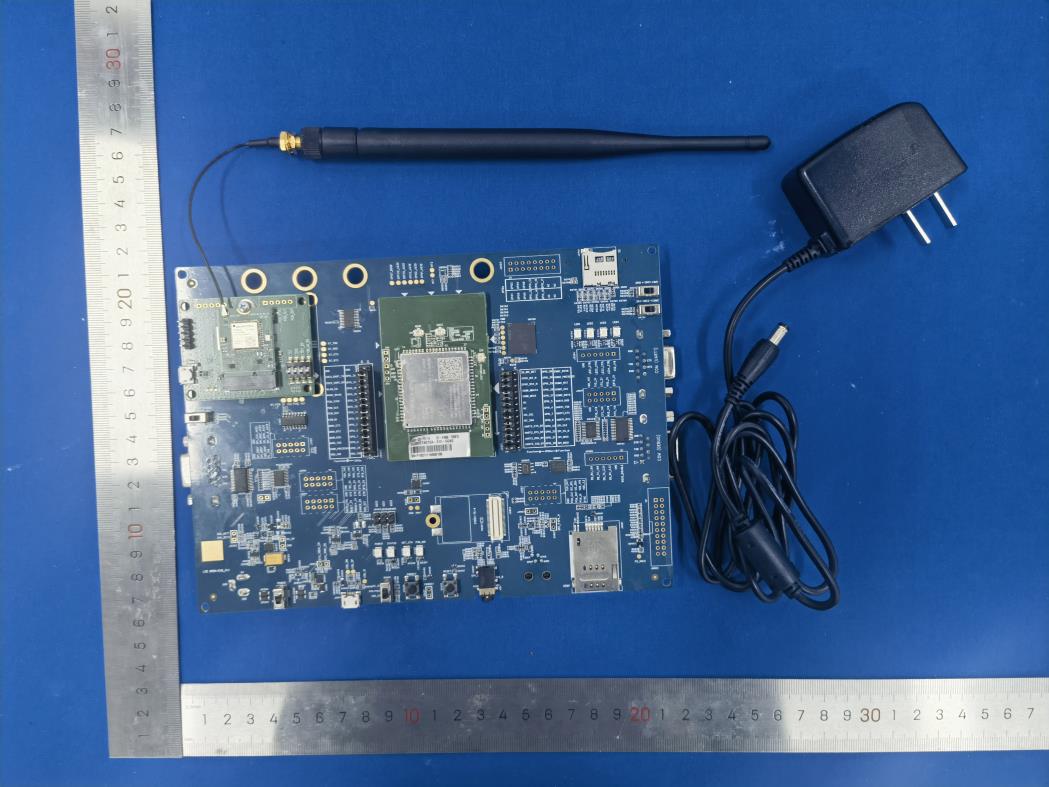

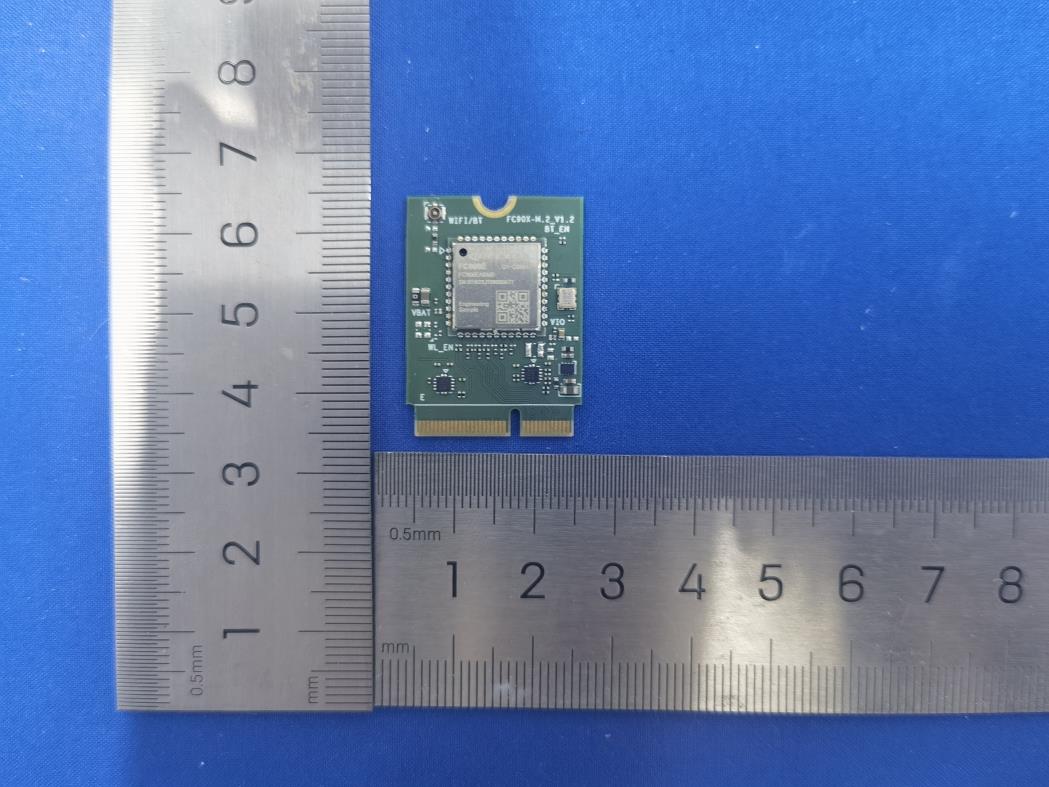

Page 1 of 6 1 Photographs - EUT Constructional Details Test auxiliary PCB board and surrounding photos Page 2 of 6 Page 3 of 6 Page 4 of 6 Page 5 of 6 Model No.:FC900E(QCA1023-0 version V1.0) Page 6 of 6 Model No.:FC900E(QCA9377-3 version V2.0)

Label Location

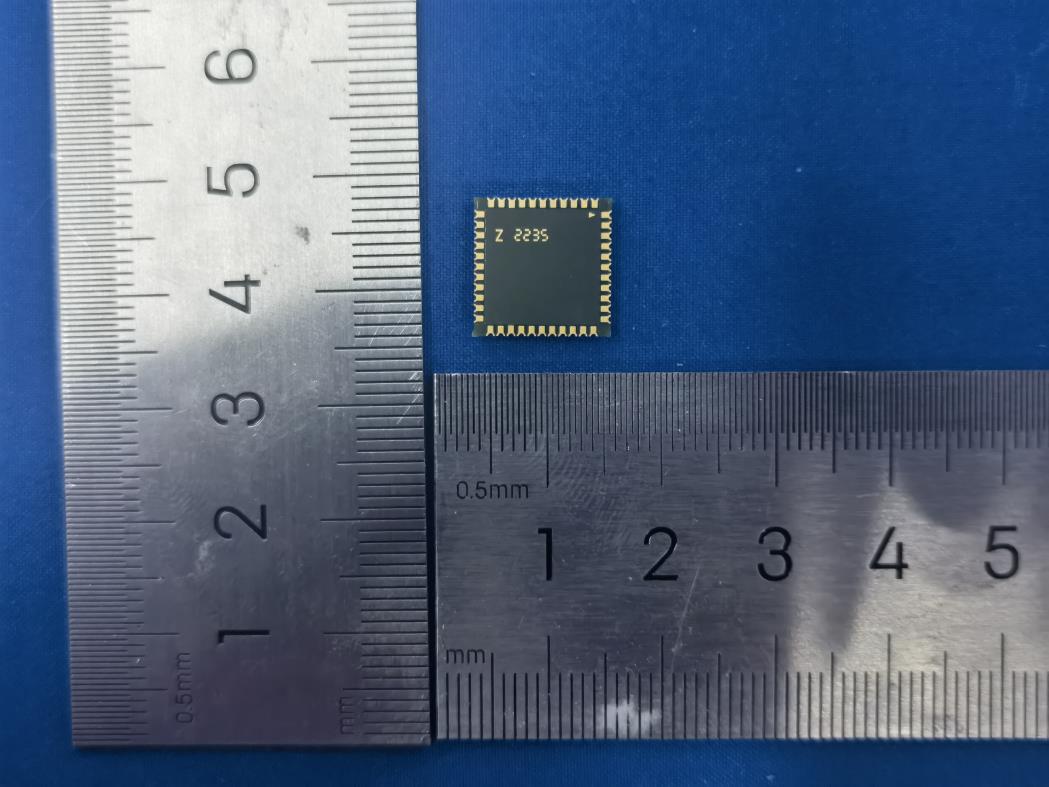

Page 1 of 1 1 Photographs - EUT Constructional Details Model No.:FC900E(QCA1023-0 version V1.0) Model No.:FC900E(QCA9377-3 version V2.0)

` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWA2210000062RG07 Rev.: 01 Page: 1 of 7 Authorized Signature: Panta Sun Wireless Laboratory Manager TEST REPORT Application No.: SEWA2210000062RG Applicant: Quectel Wireless Solutions Co., Ltd. Address of Applicant: Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Manufacturer: Quectel Wireless Solutions Co., Ltd. Address of Manufacturer: Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 EUT Description: Wi-Fi&Bluetooth Module Model No.: FC900E Trade Mark: Quectel FCC ID: XMR202210FC900E Standards: 47 CFR Part 2.1091 FCC KDB 447498 D01 v06 Date of Receipt: 2022/11/06 Date of Issue: 2022/12/15 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWA2210000062RG07 Rev.: 01 Page: 2 of 7 1 Version Revision Record Version Chapter Date Modifier Remark 01 2022/12/15 Original Prepared By (Nick Hu) / Test Engineer Checked By (Well Wei) / Reviewer ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWA2210000062RG07 Rev.: 01 Page: 3 of 7 Contents 1 Version ......................................................................................................................... 2 2 General Information ...................................................................................................... 4 2.1 Client Information .................................................................................................. 4 2.2 Test Facility ........................................................................................................... 4 2.3 General Description of EUT ................................................................................... 5 3 RF Exposure Evaluation ............................................................................................... 6 3.1 RF Exposure Compliance Requirement ................................................................ 6 3.1.1 Limits ................................................................................................................. 6 3.1.2 Test Procedure .................................................................................................. 7 3.1.3 EUT RF Exposure Evaluation ............................................................................ 7 ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWA2210000062RG07 Rev.: 01 Page: 4 of 7 2 General Information 2.1 Client Information Applicant: Quectel Wireless Solutions Co., Ltd. Address of Applicant: Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Manufacturer: Quectel Wireless Solutions Co., Ltd. Address of Manufacturer: Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 2.2 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 6336.01) SGS-CSTC STANDARDS TECHNICAL SERVICES (SUZHOU) CO., LTD. is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 6336.01. • Innovation, Science and Economic Development Canada SGS-CSTC STANDARDS TECHNICAL SERVICES (SUZHOU) CO., LTD. has been recognized by ISED as an accredited testing laboratory. CAB identifier: CN0120. IC#: 27594. • FCC –Designation Number: CN1312 SGS-CSTC STANDARDS TECHNICAL SERVICES (SUZHOU) CO., LTD. has been recognized as an accredited testing laboratory. Designation Number: CN1312. Test Firm Registration Number: 717327 ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWA2210000062RG07 Rev.: 01 Page: 5 of 7 2.3 General Description of EUT EUT Description: Wi-Fi&Bluetooth Module Model No.: FC900E Trade Mark: Quectel Hardware Version: QCA1023-0: R1.0 QCA9377-3: R2.0 Software Version: FC900E Antenna Type: External Antenna Antenna Gain: BT/BLE: 0.73dBi 2.4G WIFI: 0.73dBi 5150MHz to 5250MHz: 1.14dBi 5250MHz to 5350MHz: 1.00dBi 5470MHz to 5725MHz: 0.60dBi 5725MHz to 5850MHz: 0.90dBi Note: The antenna gain are derived from the gain information report provided by the manufacturer. Remark: As above information is provided and confirmed by the applicant. SGS is not liable to the accuracy, suitability, reliability or/and integrity of the information. ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWA2210000062RG07 Rev.: 01 Page: 6 of 7 3 RF Exposure Evaluation 3.1 RF Exposure Compliance Requirement 3.1.1 Limits Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm2) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f2) 6 30-300 61.4 0.163 1.0 6 300-1500 / / f/300 6 1500-100,000 / / 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f2) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 F=frequency in MHz *=Plane-wave equivalent power density RF exposure compliance will need to be determined with respect to 1.1307(c) and (d) of the FCC rules. The emissions should be within the limits at 300kHz in Table 1 of 1.1310(use the 300kHz limits for 150kHz:614V/m,1.63A/m). Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2 ) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. ` SGS-CSTC Standards T…

Text truncated - open the document above for the full version.

` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWA2210000062RG04 Rev.: 01 Page: 172 of 234 802.11ac80_Channel 42 Data List NO. Frequency [MHz] Reading [dBμV] AF [dB/m] Factor [dB] Level [dBμV/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 6946.5833 55.42 36.02 -43.48 47.96 68.30 20.34 251 292 Vertical 2 7404.6667 40.33 36.49 -42.81 34.01 54.00 19.99 142 355 Vertical 3 10420.0000 42.56 38.88 -38.73 42.71 68.30 25.59 156 49 Vertical 4 11484.2917 31.76 39.02 -36.67 34.11 54.00 19.89 136 146 Vertical 5 15630.0000 34.02 38.40 -34.04 38.39 74.00 35.61 259 146 Vertical 6 15630.0000 25.51 38.40 -34.04 29.88 54.00 24.12 155 341 Vertical ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWA2210000062RG04 Rev.: 01 Page: 173 of 234 802.11ac80_Channel 58 Data List NO. Frequency [MHz] Reading [dBμV] AF [dB/m] Factor [dB] Level [dBμV/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 7053.4375 60.74 36.22 -43.35 53.61 68.30 14.69 245 123 Horizontal 2 8390.3125 39.13 37.32 -41.42 35.03 54.00 18.97 152 149 Horizontal 3 10580.0000 39.33 39.04 -38.16 40.21 68.30 28.09 166 197 Horizontal 4 11412.8958 33.02 39.10 -37.38 34.73 54.00 19.27 169 296 Horizontal 5 15870.0000 36.25 38.08 -33.81 40.52 74.00 33.48 148 360 Horizontal 6 15870.0000 27.46 38.08 -33.81 31.73 54.00 22.27 175 4 Horizontal ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWA2210000062RG04 Rev.: 01 Page: 174 of 234 802.11ac80_Channel 58 Data List NO. Frequency [MHz] Reading [dBμV] AF [dB/m] Factor [dB] Level [dBμV/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 7053.4375 54.99 36.22 -43.35 47.86 68.30 20.44 248 122 Vertical 2 7378.7917 40.51 36.50 -42.90 34.11 54.00 19.89 156 360 Vertical 3 10580.0000 39.89 39.04 -38.16 40.77 68.30 27.53 199 74 Vertical 4 11170.4375 32.42 39.10 -36.94 34.58 54.00 19.42 187 3 Vertical 5 15870.0000 35.80 38.08 -33.81 40.07 74.00 33.93 149 360 Vertical 6 15870.0000 27.90 38.08 -33.81 32.17 54.00 21.83 173 196 Vertical ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWA2210000062RG04 Rev.: 01 Page: 175 of 234 802.11ac80_Channel 106 Data List NO. Frequency [MHz] Reading [dBμV] AF [dB/m] Factor [dB] Level [dBμV/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 7373.5208 55.86 36.50 -42.93 49.43 74.00 24.57 245 49 Horizontal 2 7373.5208 53.04 36.50 -42.93 46.61 54.00 7.39 184 49 Horizontal 3 11060.0000 30.35 39.08 -37.69 31.75 54.00 22.25 253 318 Horizontal 4 11060.0000 39.42 39.08 -37.69 40.82 74.00 33.18 162 196 Horizontal 5 15815.4792 27.55 38.17 -33.23 32.50 54.00 21.50 174 122 Horizontal 6 16590.0000 38.01 38.11 -34.50 41.62 68.30 26.68 190 73 Horizontal ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWA2210000062RG04 Rev.: 01 Page: 176 of 234 802.11ac80_Channel 106 Data List NO. Frequency [MHz] Reading [dBμV] AF [dB/m] Factor [dB] Level [dBμV/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 7373.5208 54.40 36.50 -42.93 47.97 74.00 26.03 244 296 Vertical 2 7374 51.17 36.50 -42.93 44.74 54.00 9.26 187 272 Vertical 3 11060.0000 39.08 39.08 -37.69 40.48 74.00 33.52 184 360 Vertical 4 11060.0000 30.18 39.08 -37.69 31.58 54.00 22.42 196 360 Vertical 5 15787.6875 27.66 38.21 -33.08 32.79 54.00 21.21 175 296 Vertical 6 16590.0000 38.78 38.11 -34.50 42.39 68.30 25.91 126 272 Vertical ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWA2210000062RG04 Rev.: 01 Page: 177 of 234 802.11ac80_Channel 155 Data List NO. Frequency [MHz] Reading [dBμV] AF [dB/m] Factor [dB] Level [dBμV/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 7699.8333 55.35 36.58 -42.95 48.99 74.00 25.01 215 245 Horizontal 2 7700.3125 52.40 36.59 -42.95 46.04 54.00 7.96 132 245 Horizontal 3 11550.0000 36.57 38.94 -36.75 38.77 74.00 35.23 145 25 Horizontal 4 11550.0000 30.41 38.94 -36.75 32.61 54.00 21.39 156 197 Horizontal 5 15805.8958 28.08 38.19 -33.12 33.15 54.00 20.85 192 356 Horizontal 6 17325.0000 38.16 38.77 -35.15 41.78 68.30 26.52 142 319 Horizontal ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWA2210000062RG04 Rev.: 01 Page: 178 of 234 802.11ac80_Channel 155 Data List NO. Frequency [MHz] Reading [dBμV] AF [dB/m] Factor [dB] Level [dBμV/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 7699.8333 55.06 36.58 -42.95 48.70 74.00 25.30 125 296 Vertical 2 7700.3125 52.11 36.59 -42.95 45.75 54.00 8.25 144 342 Vertical 3 11550.0000 37.37 38.94 -36.75 39.57 74.00 34.43 136 296 Vertical 4 11550.0000 29.55 38.94 -36.75 31.75 54.00 22.25 269 97 Vertical 5 16190.6667 29.23 37.63 -34.42 32.44 54.00 21.56 192 73 Vertical 6 17325.0000 38.65 38.77 -35.15 42.27 68.30 26.03 154 172 Vertical ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWA2210000062RG04 Rev.: 01 Page: 179 of 234 802.11a_Channel 136 Data List NO. Frequency [MHz] Reading [dBμV] AF [dB/m] Factor [dB] Level [dBμV/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 7573.3333 54.40 36.40 -42.85 47.95 74.00 26.05 136 113 Horizontal 2 7573.8125 52.54 36.40 -42.85 46.09 54.00 7.91 259 234 Horizontal 3 11425.8333 36.75 39.08 -37.25 38.58 74.00 35.42 148 5 Horizontal 4 11440.2083 27.25 39.07 -37.11 29.21 54.00 24.79 175 215 Horizontal 5 15810.2083 24.21 38.18 -33.17 29.22 54.00 24.78 126 260 Horizontal 6 15828.8958 35.26 38.15 -33.37 40.04 74.00 33.96 166 88 Horizontal ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWA2210000062RG04 Rev.: 01 Page: 180 of 234 802.11a_Channel 136 Data List NO. Frequency [MHz] Reading [dBμV] AF [dB/m] Factor [dB] Level [dBμV/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 7573.3333 54.05 36.40 -42.85 47.60 74.00 26.40 156 263 Vertical 2 7573.8125 51.38 36.40 -42.85 44.93 54.00 9.07 263 123 Vertical 3 11246.625 27.47 39.11 -36.89 29.69 54.00 24.31 251 142 Vertical 4 11254.2917 36.52 39.11 -36.94 38.69 74.00 35.31 148 0 Vertical 5 15825.0625 …

Text truncated - open the document above for the full version.

` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWA2210000062RG04 Rev.: 01 Page: 111 of 234 802.11a_Channel 52 Data List NO. Frequency [MHz] Reading [dBμV] AF [dB/m] Factor [dB] Level [dBμV/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 7013.1875 59.83 36.11 -43.08 52.87 68.30 15.43 211 147 Horizontal 2 7392.2083 40.14 36.49 -42.83 33.80 54.00 20.20 154 319 Horizontal 3 10520.0000 40.08 38.98 -38.61 40.45 68.30 27.85 126 245 Horizontal 4 11472.7917 31.47 39.03 -36.78 33.72 54.00 20.28 195 295 Horizontal 5 15780.0000 33.46 38.22 -33.10 38.58 74.00 35.42 175 4 Horizontal 6 15780.0000 25.78 38.22 -33.10 30.90 54.00 23.10 143 245 Horizontal ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWA2210000062RG04 Rev.: 01 Page: 112 of 234 802.11a_Channel 52 Data List NO. Frequency [MHz] Reading [dBμV] AF [dB/m] Factor [dB] Level [dBμV/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 7013.1875 54.68 36.11 -43.08 47.72 68.30 20.58 245 25 Vertical 2 7398.9167 39.91 36.49 -42.80 33.60 54.00 20.40 159 359 Vertical 3 10520.0000 39.15 38.98 -38.61 39.52 68.30 28.78 152 245 Vertical 4 11168.0417 31.43 39.10 -36.97 33.57 54.00 20.43 136 343 Vertical 5 15780.0000 34.20 38.22 -33.10 39.32 74.00 34.68 259 221 Vertical 6 15780.0000 25.95 38.22 -33.10 31.07 54.00 22.93 172 50 Vertical ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWA2210000062RG04 Rev.: 01 Page: 113 of 234 802.11a_Channel 60 Data List NO. Frequency [MHz] Reading [dBμV] AF [dB/m] Factor [dB] Level [dBμV/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 7066.375 58.43 36.25 -43.43 51.25 68.30 17.05 248 49 Horizontal 2 7427.6667 40.38 36.48 -42.90 33.96 54.00 20.04 156 73 Horizontal 3 10600.0000 38.85 39.06 -38.01 39.90 74.00 34.10 129 359 Horizontal 4 10600.0000 31.45 39.06 -38.01 32.50 54.00 21.50 144 222 Horizontal 5 15900.0000 25.91 38.03 -34.13 29.81 54.00 24.19 175 360 Horizontal 6 15900.0000 34.11 38.03 -34.13 38.01 74.00 35.99 153 343 Horizontal ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWA2210000062RG04 Rev.: 01 Page: 114 of 234 802.11a_Channel 60 Data List NO. Frequency [MHz] Reading [dBμV] AF [dB/m] Factor [dB] Level [dBμV/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 7066.375 54.68 36.25 -43.43 47.50 68.30 20.80 248 24 Vertical 2 8408.5208 39.01 37.35 -41.41 34.95 54.00 19.05 159 74 Vertical 3 10600.0000 39.83 39.06 -38.01 40.88 74.00 33.12 196 271 Vertical 4 10600.0000 31.79 39.06 -38.01 32.84 54.00 21.16 147 24 Vertical 5 15900.0000 25.55 38.03 -34.13 29.45 54.00 24.55 123 74 Vertical 6 15900.0000 33.41 38.03 -34…

Text truncated - open the document above for the full version.
