XMR2022EM120KGLLTE-A Cat 12 M.2 Module

EM060K-GL&EM120K-GL Hardware Design LTE-A Module Series Version: 1.0.0 Date: 2021-0 4-15 Status: Preliminary LTE-A Module Series EM060K-GL&EM120K-GL_Hardware_Design 1 / 78 At Quectel, our aim is to provide timely and comprehensive services to our customers. If you require any assistance, please contact our headquarters: Quectel Wireless Solutions Co., Ltd. Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai 200233, China Tel: +86 21 5108 6236 Email: [email protected] Or our local offices. For more information, please visit: http://www.quectel.com/support/sales.htm . For technical support, or to report documentation errors, please visit: http://www.quectel.com/support/technical.htm . Or email us at: [email protected]. Legal Notices We offer information as a service to you. The provided information is based on your requirements and we make every effort to ensure its quality. You agree that you are responsible for using independent analysis and evaluation in designing intended products, and we provide reference designs for illustrative purposes only. Before using any hardware, software or service guided by this document, please read this notice carefully. Even though we employ commercially reasonable efforts to provide the best possible experience, you hereby acknowledge and agree that this document and related services hereunder are provided to you on an “as available” basis. We may revise or restate this document from time to time at our sole discretion without any prior notice to you. Use and Disclosure Restrictions License Agreements Documents and information provided by us shall be kept confidential, unless specific permission is granted. They shall not be accessed or used for any purpose except as expressly provided herein. Copyright Our and third-party products hereunder may contain copyrighted material. Such copyrighted material shall not be copied, reproduced, distributed, merged, published, translated, or modified without prior written consent. We and the third party have exclusive rights over copyrighted material. No license shall be granted or conveyed under any patents, copyrights, trademarks, or service mark rights. To avoid ambiguities, purchasing in any form cannot be deemed as granting a license other than the normal non-exclusive, royalty-free license to use the material. We reserve the right to take legal action for noncompliance with abovementioned requirements, unauthorized use, or other illegal or malicious use of the material. LTE-A Module Series EM060K-GL&EM120K-GL_Hardware_Design 2 / 78 Trademarks Except as otherwise set forth herein, nothing in this document shall be construed as conferring any rights to use any trademark, trade name or name, abbreviation, or counterfeit product thereof owned by Quectel or any third party in advertising, publicity, or other aspects. Third-Party Rights This document may refer to hardware, software and/or documentation owned by one or more third parties (“third-party materials”). Use of such third-party materials shall be governed by all restrictions and obligations applicable thereto. We make no warranty or representation, either express or implied, regarding the third-party materials, including but not limited to any implied or statutory, warranties of merchantability or fitness for a particular purpose, quiet enjoyment, system integration, information accuracy, and non-infringement of any third-party intellectual property rights with regard to the licensed technology or use thereof. Nothing herein constitutes a representation or warranty by us to either develop, enhance, modify, distribute, market, sell, offer for sale, or otherwise maintain production of any our products or any other hardware, software, device, tool, information, or product. We moreover disclaim any and all warranties arising from the course of dealing or usage of trade. Privacy Policy To implement module functionality, certain device data are uploaded to Quectel’s or third-party’s servers, including carriers, chipset suppliers or customer-designated servers. Quectel, strictly abiding by the relevant laws and regulations, shall retain, use, disclose or otherwise process relevant data for the purpose of performing the service only or as permitted by applicable laws. Before data interaction with third parties, please be informed of their privacy and data security policy. Disclaimer a) We acknowledge no liability for any injury or damage arising from the reliance upon the information. b) We shall bear no liability resulting from any inaccuracies or omissions, or from the use of the information contained herein. c) While we have made every effort to ensure that the functions and features under development are free from errors, it is possible that they could contain errors, inaccuracies, and omissions. Unless otherwise provided by valid agreement, we make no warranties of any kind, either implied or express, and exclude all liability for any loss or damage suffered in connection with the use of features and functions under development, to the maximum extent permitted by law, regardless of whether such loss or damage may have been foreseeable. d) We are not responsible for the accessibility, safety, accuracy, availability, legality, or completeness of information, advertising, commercial offers, products, services, and materials on third-party websites and third-party resources. Copyright © Quectel Wireless Solutions Co., Ltd. 2022. All rights reserved. LTE-A Module Series EM060K-GL&EM120K-GL_Hardware_Design 3 / 78 Safety Information The following safety precautions must be observed during all phases of operation, such as usage, service or repair of any cellular terminal or mobile incorporating the module. Manufacturers of the cellular terminal should notify users and operating personnel of the following safety information by incorporating these guidelines into all manuals of the product. Otherwise, Quectel assumes n…

Text truncated - open the document above for the full version.

Quectel Wireless Solutions Company Limited Declaration of Conformity Federal Communications Commission Authorization and Evaluation Division FCC ID: XMR2022EM120KGL Please be notified that we, the undersigned, Quectel Wireless Solutions Company Limited declares that the product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, _ _________________ Name: Jean Hu Email: [email protected] Date: 2022-05-27

Quectel Wireless Solutions Company Limited Declaration of Authorization We Name: Quectel Wireless Solutions Company Limited Address: Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: LTE-A Cat 12 M.2 Module FCC ID: XMR2022EM120KGL Model No.: EM120K-GL Sincerely, _ ________________ Name: Jean Hu Email: [email protected] Date: 2022-05-27

Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Request for Modular/Limited Modular Approval Date: May 31, 2022 Subject: Manufacturer’s Declaration for ☒ - Modular Approval ☐ - Split Modular Approval ☐ - Limited Modular Approval ☐ - Limited Split Modular Approval Confidentiality Request for: XMR2022EM120KGL 8 Basic Requirements – FCC Part 15.212(a)(1) For Items Marked “NO(*)”, the Limited Module Description Must be Filled Out on the Following Pages Modular Approval Requirement Requirement Met 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with FCC limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The physical crystal and tuning capacitors may be located external to the shielded radio elements. 15.212(a)(1)(i) ☒ - YES ☐ - NO(*) Details: <example – The module contains a metal shield which covers all RF components and circuitry. The shield is located on the top of the board next to antenna connector> 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with FCC requirements under conditions of excessive data rates or over-modulation. 15.212(a)(1)(ii) ☒ - YES ☐ - NO(*) Details: <example – Data to the modulation circuit is buffered as described in the operational description provided with the application> 3. The modular transmitter must have its own power supply regulation on the module. This is intended to ensure that the module will comply with FCC requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. 15.212(a)(1)(iii) ☒ - YES ☐ - NO(*) Details: <example – The module contains its own power supply regulation. Please refer to schematic filed with this application> 4. The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b), 15.204(c), 15.212(a), and 2.929(b). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph 15.212(b). 15.212(a)(1)(iv) ☒ - YES ☐ - NO(*) Details: <example – The module connects to its antenna using an UFL connector which is considered a non- standard connector. A list of antennas tested and approved with this device may be found in users manual provided with the application> 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). 15.212(a)(1)(v) ☒ - YES ☐ - NO(*) Details: <example – The module was tested stand-alone as shown in test setup photographs filed with this application> 070920-02b Modular Approval Requirement Requirement Met 6. The modular transmitter must be labeled with its own FCC ID number, or use an electron display (see KDB Publication 784748). If using a permanently affixed label with its own FCC ID number, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XMR2022EM120KGL” or “Contains FCC ID: XMR2022EM120KGL” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 15.212(a)(1)(vi) ☒ - YES ☐ - NO(*) Details: <example – There is a label on the module as shown in the labeling exhibit filed with this application. Host sp…

Text truncated - open the document above for the full version.

Quectel Wireless Solutions Company Limited Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: XMR2022EM120KGL Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description 4. BOM List 5. Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _ _________________ Name: Jean Hu Email: [email protected] Date: 2022-05-27

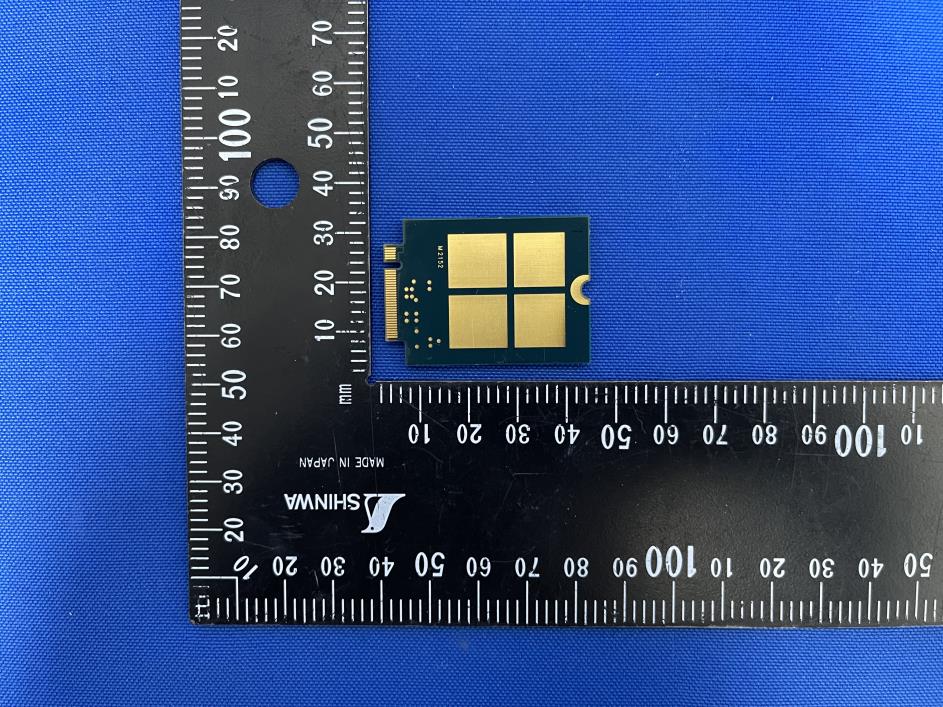

Report No.: 2203RSU046-UE 1 of 1 EUT Photograph (1) EUT Photo (2) EUT Photo

1 of 1 Label Location

Report No.: 2203RSU046-UE 1 of 1 EUT Photograph (1) EUT Photo (2) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2203RSU046-U7 Phone: +886-3-3288388 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2022-05-28 1 of 8 RF Exposure Evaluation Declaration FCC ID: XMR2022EM120KGL Applicant: Quectel Wireless Solutions Company Limited Product: LTE-A Cat 12 M.2 Module Model No.: EM120K-GL Brand Name: Quectel FCC Rule Part(s) FCC Part 2.1091 Reviewed By: Sunny Sun Approved By: Robin Wu The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2203RSU046-U7 2 of 8 Revision History Report No. Version Description Issue Date Note 2203RSU046-U7 Rev. 01 Initial Report 2022-05-28 Valid Report No.: 2203RSU046-U7 3 of 8 CONTENTS Description Page 1. GENERAL INFORMATION ..................................................................................................................... 4 1.1. Applicant ...................................................................................................................................... 4 1.2. Manufacturer ................................................................................................................................ 4 1.3. Testing Facility ............................................................................................................................. 4 1.4. Product Information ...................................................................................................................... 5 2. RF Exposure Evaluation ....................................................................................................................... 6 2.1. Limits ............................................................................................................................................ 6 2.2. Test Result of RF Exposure Evaluation ....................................................................................... 7 Appendix A – EUT Photograph ..................................................................................................................... 8 Report No.: 2203RSU046-U7 4 of 8 1. GENERAL INFORMATION 1.1. Applicant Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 1.2. Manufacturer Quectel Wireless Solutions Company Limited Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 1.3. Testing Facility Test Site - MRT Suzhou Laboratory Laboratory Location (Suzhou - Wuzhong) D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Laboratory Location (Suzhou - SIP) 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 VCCI: R-20025 G-20034 C-20020 T-20020 R-20141 G-20134 C-20103 T-20104 Test Site - MRT Shenzhen Laboratory Laboratory Location (Shenzhen) 1G, Building A, Junxiangda Building, Zhongshanyuan Road West, Nanshan District, Shenzhen, China Laboratory Accreditations A2LA: 3628.02 CNAS: L10551 FCC: CN1284 ISED: CN0105 Test Site - MRT Taiwan Laboratory Laboratory Location (Taiwan) No. 38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Laboratory Accreditations TAF: L3261-190725 FCC: 291082, TW3261 ISED: TW3261 Report No.: 2203RSU046-U7 5 of 8 1.4. Product Information Product Name LTE-A Cat 12 M.2 Module Model No. EM120K-GL Brand Name Quectel IMEI 861293060003570 UTRA Specification Band 2, 4, 5 E-UTRA Specification FDD Band: 2, 4, 5, 7, 12, 13, 14, 17, 25, 26, 30, 66, 71 TDD Band: 38, 41, 46 GNSS Specification GPS, GLONASS, Bei Dou, Galileo Supply Voltage 3.135 ~ 4.4Vdc, typical 3.7Vdc Operating Temperature: -25 ~ 75 °C Remark: The information of EUT was provided by the manufacturer, and the accuracy of the information shall be the responsibility of the manufacturer. Report No.: 2203RSU046-U7 6 of 8 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 2203RSU046-U7 7 of 8 2.2. Test Result of RF Exposure Evaluation Product LTE-A Cat 12 M.2 Module Test Item RF Exposure Evaluation Test Mode Frequency Band (MHz) Tune-up Power (dBm) Antenna Gain (dBi) ERP (dBm) Power Density at 20cm (mW/cm 2 ) Limit (mW/cm 2 ) LTE Band 2 1850 ~ 1910 25.00 8.00 30.85 0.2420 1.0000 LTE Band 4 1710 ~ 1755 25.00 8.00 30.85 0.1213 1.0000 LTE Band 5 824 ~ 849 25.00 5.00 27.85 0.2420 0.5493 LTE Band 7 2500 ~ 2570 25.00 8.00 30.85 0.1213 1.0000 LTE Band 12 699 ~ 716 25.00 5.00 27.85 0.1213 0.4660 LTE Band 13 777 ~ 787 25.00 5.00 27.85 0.1213 0.5180 LTE Band 14 788 ~ 798 25.00 5.00 27.85 0.1213 0.5253 LTE Band 17 704~ 716 25.00 5.00 27.85 0.2420 0.4693 LTE Ba…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 2203RSU046-U2 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2022-05-28 Template Version:0.0 1 of 261 RF MEASUREMENT REPORT FCC ID: XMR2022EM120KGL Application: Quectel Wireless Solutions Company Limited Product: LTE-A Cat 12 M.2 Module Model No.: EM120K-GL Brand Name: Quectel FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): Part 2, 22 (H), 24 (E), 27 Result: Complies Test Date: 2022-03-22 ~ 2022-05-12 Reviewed By: Sunny Sun Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.26-2015. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2203RSU046-U2 2 of 261 Revision History Report No. Version Description Issue Date Note 2203RSU046-U2 Rev. 01 Initial Report 2022-05-28 Valid Report No.: 2203RSU046-U2 3 of 261 CONTENTS Description Page 1. General Information .................................................................................................................................. 5 1.1. Applicant ........................................................................................................................................ 5 1.2. Manufacturer ................................................................................................................................. 5 1.3. Testing Facility ............................................................................................................................... 5 1.4. Product Information ....................................................................................................................... 6 1.5. Product Specification under Test ................................................................................................... 6 1.6. Description of Available Antennas ................................................................................................. 7 1.7. Test Methodology .......................................................................................................................... 7 1.8. Device Capabilities ........................................................................................................................ 8 1.9. Configuration of Tested System .................................................................................................... 8 1.10. Test Environment Condition .......................................................................................................... 9 2. Test Equipment Calibration Dtae ...........................................................................................................10 3. Measurement Uncertainty ......................................................................................................................12 4. Test Result ...............................................................................................................................................13 4.1. Summary ..................................................................................................................................... 13 4.2. Occupied Bandwidth Measurement ............................................................................................ 14 4.2.1. Test Limit ..................................................................................................................................... 14 4.2.2. Test Procedure ............................................................................................................................ 14 4.2.3. Test Setting .................................................................................................................................. 14 4.2.4. Test Setup.................................................................................................................................... 14 4.2.5. Test Result ................................................................................................................................... 14 4.3. Frequency Stability Measurement ............................................................................................... 15 4.3.1. Test Limit ..................................................................................................................................... 15 4.3.2. Test Procedure ............................................................................................................................ 15 4.3.3. Test Setting .................................................................................................................................. 15 4.3.4. Test Setup.................................................................................................................................... 16 4.3.5. Test Result ................................................................................................................................... 16 4.4. Equivalent Isotropically Radiated Power Measurement .............................................................. 17 4.4.1. Test Limit ..................................................................................................................................... 17 4.4.2. Test Procedure ............................................................................................................................ 17 4.4.3. Test Setting .................................................................................................................................. 17 4.4.4. Test Setup.................................................................................................................................... 18 4.4.5. Test Result .…

Text truncated - open the document above for the full version.

Report No.: 2203RSU046-U2 45 of 261 99% Bandwidth - QPSK 5MHz Channel Bandwidth 10MHz Channel Bandwidth 99% Bandwidth - 16QAM 5MHz Channel Bandwidth 10MHz Channel Bandwidth 99% Bandwidth - 64QAM 5MHz Channel Bandwidth 10MHz Channel Bandwidth Report No.: 2203RSU046-U2 46 of 261 Test Site WZ-SR6 Test Engineer Cloud Guo Test Date 2022/04/02 Test Band LTE Band 38/41 Frequency (MHz) Bandwidth (MHz) 99% Bandwidth (MHz) QPSK 2593.0 5 4.47 10 8.93 15 13.38 20 17.82 16QAM 2593.0 5 4.47 10 8.91 15 13.39 20 17.82 64QAM 2593.0 5 4.48 10 8.92 15 13.36 20 17.84 Report No.: 2203RSU046-U2 47 of 261 99% Bandwidth - QPSK 5MHz Channel Bandwidth 10MHz Channel Bandwidth 15MHz Channel Bandwidth 20MHz Channel Bandwidth 99% Bandwidth - 16QAM 5MHz Channel Bandwidth 10MHz Channel Bandwidth 15MHz Channel Bandwidth 20MHz Channel Bandwidth Report No.: 2203RSU046-U2 48 of 261 99% Bandwidth - 64QAM 5MHz Channel Bandwidth 10MHz Channel Bandwidth 15MHz Channel Bandwidth 20MHz Channel Bandwidth Report No.: 2203RSU046-U2 49 of 261 Test Site WZ-SR6 Test Engineer Cloud Guo Test Date 2022/04/02 Test Band LTE Band 71 Frequency (MHz) Bandwidth (MHz) 99% Bandwidth (MHz) QPSK 680.5 5 4.47 10 8.92 15 13.35 20 17.80 16QAM 680.5 5 4.47 10 8.90 15 13.35 20 17.82 64QAM 680.5 5 4.47 10 8.92 15 13.35 20 17.81 Report No.: 2203RSU046-U2 50 of 261 99% Bandwidth - QPSK 5MHz Channel Bandwidth 10MHz Channel Bandwidth 15MHz Channel Bandwidth 20MHz Channel Bandwidth 99% Bandwidth - 16QAM 5MHz Channel Bandwidth 10MHz Channel Bandwidth 15MHz Channel Bandwidth 20MHz Channel Bandwidth Report No.: 2203RSU046-U2 51 of 261 99% Bandwidth - 64QAM 5MHz Channel Bandwidth 10MHz Channel Bandwidth 15MHz Channel Bandwidth 20MHz Channel Bandwidth Report No.: 2203RSU046-U2 52 of 261 Test Site WZ-SR6 Test Engineer Cloud Guo Test Date 2022/04/01 Test Band Intra-Band CA_7C Modulation Frequency (MHz) Bandwidth (MHz) 99% Bandwidth (MHz) QPSK 2525.6 + 2540.0 10+20 27.65 2530.1 + 2542.1 15+10 23.07 2527.5 + 2542.5 15+15 28.21 2525.3 + 2542.4 15+20 32.59 2530.1 + 2544.5 20+10 27.68 2527.6 + 2544.7 20+15 32.49 2525.1 + 2544.9 20+20 37.46 16QAM 2525.6 + 2540.0 10+20 27.57 2530.1 + 2542.1 15+10 23.05 2527.5 + 2542.5 15+15 28.28 2525.3 + 2542.4 15+20 32.51 2530.1 + 2544.5 20+10 27.63 2527.6 + 2544.7 20+15 32.51 2525.1 + 2544.9 20+20 37.44 64QAM 2525.6 + 2540.0 10+20 27.50 2530.1 + 2542.1 15+10 23.07 2527.5 + 2542.5 15+15 28.19 2525.3 + 2542.4 15+20 32.42 2530.1 + 2544.5 20+10 27.70 2527.6 + 2544.7 20+15 32.61 2525.1 + 2544.9 20+20 37.44 Report No.: 2203RSU046-U2 53 of 261 99% Bandwidth - QPSK 10+20MHz Channel Bandwidth 15+10MHz Channel Bandwidth 15+15MHz Channel Bandwidth 15+20MHz Channel Bandwidth 20+10MHz Channel Bandwidth 20+15MHz Channel Bandwidth 20+20MHz Channel Bandwidth Report No.: 2203RSU046-U2 54 of 261 99% Bandwidth - 16QAM 10+20MHz Channel Bandwidth 15+10MHz Channel Bandwidth 15+15MHz Channel Bandwidth 15+20MHz Channel Bandwidth 20+10MHz Channel Bandwidth 20+15MHz Channel Bandwidth 20+20MHz Channel Bandwidth Report No.: 2203RSU046-U2 55 of 261 99% Bandwidth - 64QAM 10+20MHz Channel Bandwidth 15+10MHz Channel Bandwidth 15+15MHz Channel Bandwidth 15+20MHz Channel Bandwidth 20+10MHz Channel Bandwidth 20+15MHz Channel Bandwidth 20+20MHz Channel Bandwidth Report No.: 2203RSU046-U2 56 of 261 Test Site WZ-SR6 Test Engineer Cloud Guo Test Date 2022/04/01 Test Band Intra-Band CA_41C Modulation Frequency (MHz) Bandwidth (MHz) 99% Bandwidth (MHz) QPSK 2583.8 + 2595.5 5+20 22.53 2585.9 + 2597.9 10+15 22.87 2583.6 + 2598.0 10+20 27.43 2588.1 + 2600.1 15+10 22.96 2585.5 + 2600.5 15+15 28.12 2583.3 + 2600.4 15+20 32.34 2590.5 + 2602.2 20+5 22.72 25…

Text truncated - open the document above for the full version.
