CC660D-LS Hardware Design Satellite Communication Module Series Version: 1.0.0 Date: 2023-10-12 Status: Preliminary Satellite Communication Module Series CC660D-LS_Hardware_Design 1 / 64 At Quectel, our aim is to provide timely and comprehensive services to our customers. If you require any assistance, please contact our headquarters: Quectel Wireless Solutions Co., Ltd. Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai 200233, China Tel: +86 21 5108 6236 Email: [email protected] Or our local offices. For more information, please visit: http://www.quectel.com/support/sales.htm. For technical support, or to report documentation errors, please visit: http://www.quectel.com/support/technical.htm. Or email us at: [email protected]. Legal Notices We offer information as a service to you. The provided information is based on your requirements and we make every effort to ensure its quality. You agree that you are responsible for using independent analysis and evaluation in designing intended products, and we provide reference designs for illustrative purposes only. Before using any hardware, software or service guided by this document, please read this notice carefully. Even though we employ commercially reasonable efforts to provide the best possible experience, you hereby acknowledge and agree that this document and related services hereunder are provided to you on an “as available” basis. We may revise or restate this document from time to time at our sole discretion without any prior notice to you. Use and Disclosure Restrictions License Agreements Documents and information provided by us shall be kept confidential, unless specific permission is granted. They shall not be accessed or used for any purpose except as expressly provided herein. Copyright Our and third-party products hereunder may contain copyrighted material. Such copyrighted material shall not be copied, reproduced, distributed, merged, published, translated, or modified without prior written consent. We and the third party have exclusive rights over copyrighted material. No license shall be granted or conveyed under any patents, copyrights, trademarks, or service mark rights. To avoid ambiguities, purchasing in any form cannot be deemed as granting a license other than the normal non- exclusive, royalty-free license to use the material. We reserve the right to take legal action for noncompliance with abovementioned requirements, unauthorized use, or other illegal or malicious use of the material. Satellite Communication Module Series CC660D-LS_Hardware_Design 2 / 64 Trademarks Except as otherwise set forth herein, nothing in this document shall be construed as conferring any rights to use any trademark, trade name or name, abbreviation, or counterfeit product thereof owned by Quectel or any third party in advertising, publicity, or other aspects. Third-Party Rights This document may refer to hardware, software and/or documentation owned by one or more third parties (“third-party materials”). Use of such third-party materials shall be governed by all restrictions and obligations applicable thereto. We make no warranty or representation, either express or implied, regarding the third-party materials, including but not limited to any implied or statutory, warranties of merchantability or fitness for a particular purpose, quiet enjoyment, system integration, information accuracy, and non-infringement of any third- party intellectual property rights with regard to the licensed technology or use thereof. Nothing herein constitutes a representation or warranty by us to either develop, enhance, modify, distribute, market, sell, offer for sale, or otherwise maintain production of any our products or any other hardware, software, device, tool, information, or product. We moreover disclaim any and all warranties arising from the course of dealing or usage of trade. Privacy Policy To implement module functionality, certain device data are uploaded to Quectel’s or third-party’s servers, including carriers, chipset suppliers or customer-designated servers. Quectel, strictly abiding by the relevant laws and regulations, shall retain, use, disclose or otherwise process relevant data for the purpose of performing the service only or as permitted by applicable laws. Before data interaction with third parties, please be informed of their privacy and data security policy. Disclaimer a) We acknowledge no liability for any injury or damage arising from the reliance upon the information. b) We shall bear no liability resulting from any inaccuracies or omissions, or from the use of the information contained herein. c) While we have made every effort to ensure that the functions and features under development are free from errors, it is possible that they could contain errors, inaccuracies, and omissions. Unless otherwise provided by valid agreement, we make no warranties of any kind, either implied or express, and exclude all liability for any loss or damage suffered in connection with the use of features and functions under development, to the maximum extent permitted by law, regardless of whether such loss or damage may have been foreseeable. d) We are not responsible for the accessibility, safety, accuracy, availability, legality, or completeness of information, advertising, commercial offers, products, services, and materials on third-party websites and third-party resources. Copyright © Quectel Wireless Solutions Co., Ltd. 2023. All rights reserved. Satellite Communication Module Series CC660D-LS_Hardware_Design 3 / 64 Safety Information The following safety precautions must be observed during all phases of operation, such as usage, service or repair of any terminal or mobile incorporating the module. Manufacturers of the terminal should notify users and operating personnel of the following safety information by incorporating these guidelines into all manuals of the product. Quectel assumes…

Text truncated - open the document above for the full version.

Quectel Wireless Solutions Company Limited Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: October 25, 2023 Subject: Certifications concerning “covered” equipment pursuant to Part 2.911(d)(5)(i) and (ii) To whom it may concern, Quectel Wireless Solutions Company Limited certifies that the equipment FCC ID: XMR2023CC660DLS for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Quectel Wireless Solutions Company Limited certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, ________________________ Name: Jean Hu E-mail: [email protected]

Applicant/Grantee Quectel Wireless Solutions Co., Ltd. FCC ID: XMR2023CC660DLS Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The radio portion of this module is shielded, please see exhibition external photos. Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The module has buffer modulation/data inputs. Y 3 The modular transmitter must have its own power supply regulation. The module has its own power supply regulation. Please see the schematic. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The requirements of antenna connector and spurious emission have been fulfilled. Please refer to the Test Report exhibition. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). Please refer to the Setup Photo exhibition for the stand-alone test configuration. Y 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The Module will be labeled with its own FCC ID, and the instruction on the labeling rule of the end product has been stated in the User Manual of this module. Please refer to the Label and User Manual exhibition. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The required FCC rule has been fulfilled and all the instructions for maintaining compliance have been clearly stated in the User Manual. Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Y _________________________________ Contact Person: Jean Hu E-mail: [email protected]

Rev. 1/1/03 Quectel Wireless Solutions Company Limited Date: October 25, 2023 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: XMR2023CC660DLS Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Part List Schematics Block Diagram Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Contact Person: Jean Hu E-mail: [email protected]

Quectel Wireless Solutions Company Limited Date: October 25, 2023 Power of Attorney To whom it may concern, Please be notified that I, Jean Hu, have designated Jim Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jim Tsai in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C 862. This authorization is limited to the product of as following: FCC ID: XMR2023CC660DLS If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, ____ Contact Person: Jean Hu E-mail: [email protected]

1/1 Quectel Wireless Solutions Company Limited Date: October 25, 2023 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID: XMR2023CC660DLS To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, Public Notice DA 04-1705 of the Commission’s policy and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days: ⚫ External Photos ⚫ Internal Photos ⚫ Test set-up photos ⚫ Users Manual The application contains technical information, which Quectel Wireless Solutions Company Limited deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, ____ Contact Person: Jean Hu E-mail: [email protected]

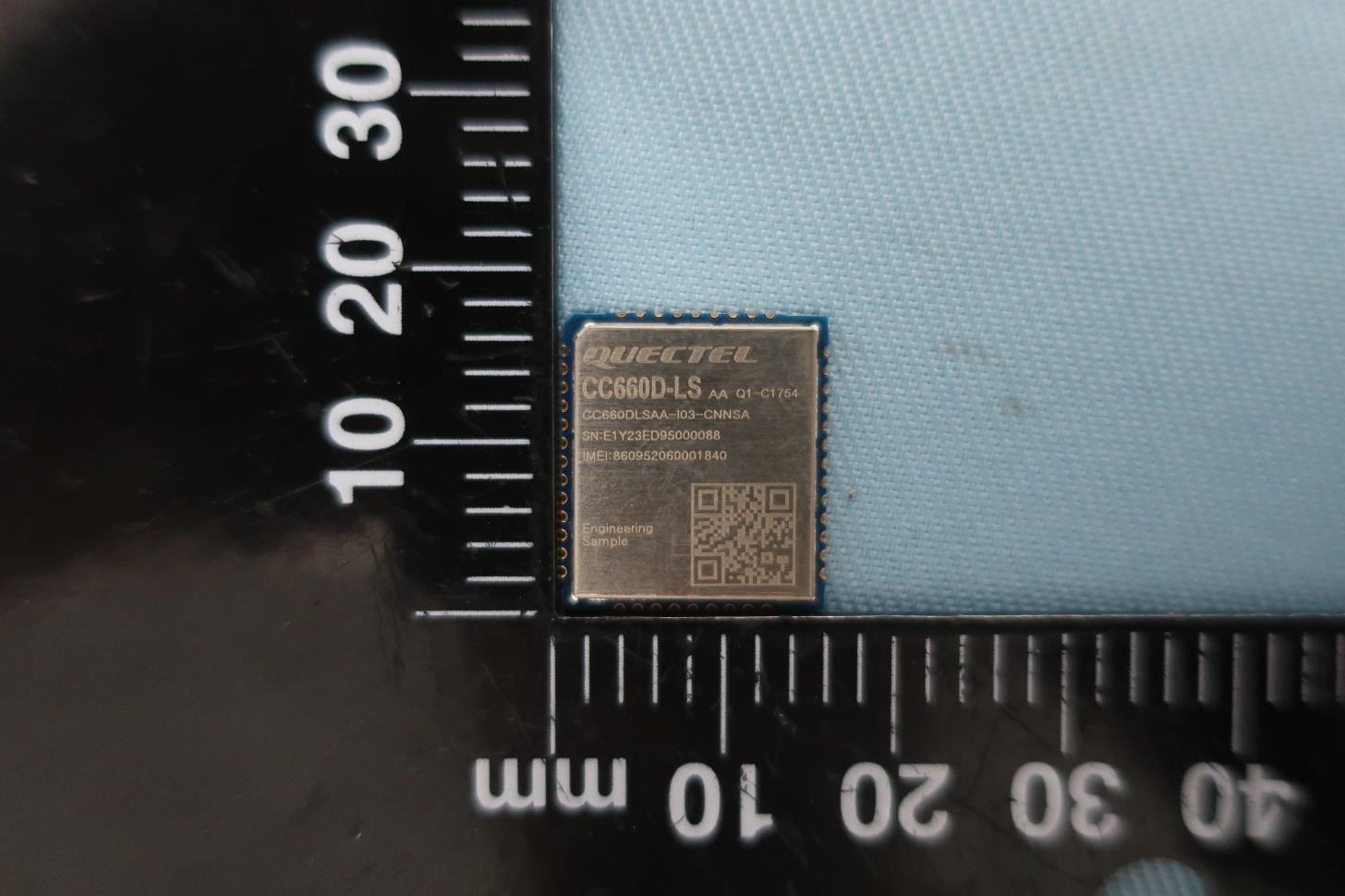

Photographs of EUT Report No.: EP380410C Brand Name: Quectel; HVIN: CC660D-LS; PMN: Quectel CC660D-LS Sporton International Inc. (Kunshan) Page Number : 1 of 6 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 26, 2023 IC : 10224A-023CC660DLS Report Version : Rev. 01 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP380410C Brand Name: Quectel; HVIN: CC660D-LS; PMN: Quectel CC660D-LS Sporton International Inc. (Kunshan) Page Number : 2 of 6 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 26, 2023 IC : 10224A-023CC660DLS Report Version : Rev. 01 Photographs of EUT Report No.: EP380410C Brand Name: Quectel; HVIN: CC660D-LS; PMN: Quectel CC660D-LS Sporton International Inc. (Kunshan) Page Number : 3 of 6 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 26, 2023 IC : 10224A-023CC660DLS Report Version : Rev. 01 2. Photograph of Accessory 720510 EUT Photographs of EUT Report No.: EP380410C Brand Name: Quectel; HVIN: CC660D-LS; PMN: Quectel CC660D-LS Sporton International Inc. (Kunshan) Page Number : 4 of 6 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 26, 2023 IC : 10224A-023CC660DLS Report Version : Rev. 01

Label location: It’s on the shield

Photographs of EUT Report No.: EP380410A Brand Name: Quectel; Model Name: CC660D-LS Sporton International Inc. (Kunshan) Page Number : 5 of 6 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 26, 2023 FCC ID : XMR2023CC660DLS Report Version : Rev. 01 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP380410A Brand Name: Quectel; Model Name: CC660D-LS Sporton International Inc. (Kunshan) Page Number : 6 of 6 TEL : 86-0512-5790-0158 Report Issued Date : Oct. 26, 2023 FCC ID : XMR2023CC660DLS Report Version : Rev. 01

Sporton International Inc. (Kunshan) Page Number : 1 of 18 TEL : +86-512-57900158 Report Issued Date : Oct. 20, 2023 FCC ID : XMR2023CC660DLS Report Version : Rev. 01 Report Template No.: BU5-FC15B Version 3.0 FCC Test Report Report No. : FC380410 FCC Test Report APPLICANT : Quectel Wireless Solutions Co., Ltd. EQUIPMENT : NTN Satellite Communication Module BRAND NAME : Quectel MODEL NAME : CC660D-LS FCC ID : XMR2023CC660DLS STANDARD : 47 CFR Part 15 Subpart B CLASSIFICATION : Certification TEST DATE(S) : Aug. 28, 2023 ~ Sep. 06, 2023 We, Sporton International Inc. (Kunshan), would like to declare that the tested sample has been evaluated in accordance with the test procedures given in ANSI C63.4-2014 and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International Inc. (Kunshan), the test report shall not be reproduced except in full. Approved by: Jason Jia Sporton International Inc. (Kunshan) No. 1098, Pengxi North Road, Kunshan Economic Development Zone Jiangsu Province 215300 People’s Republic of China Sporton International Inc. (Kunshan) Page Number : 2 of 18 TEL : +86-512-57900158 Report Issued Date : Oct. 20, 2023 FCC ID : XMR2023CC660DLS Report Version : Rev. 01 Report Template No.: BU5-FC15B Version 3.0 FCC Test Report Report No. : FC380410 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1. GENERAL DESCRIPTION .......................................................................................................................... 5 1.1. Applicant ............................................................................................................................................ 5 1.2. Manufacturer ..................................................................................................................................... 5 1.3. Product Feature of Equipment Under Test ....................................................................................... 5 1.4. Product Specification of Equipment Under Test ............................................................................... 5 1.5. Modification of EUT ........................................................................................................................... 5 1.6. Test Location ..................................................................................................................................... 6 1.7. Test Software .................................................................................................................................... 6 1.8. Applicable Standards ........................................................................................................................ 6 2. TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1. Test Mode ......................................................................................................................................... 7 2.2. Connection Diagram of Test System ................................................................................................ 7 2.3. Support Unit used in test configuration and system .......................................................................... 8 2.4. EUT Operation Test Setup ................................................................................................................ 8 3. TEST RESULT ............................................................................................................................................. 9 3.1. Test of AC Conducted Emission Measurement ................................................................................ 9 3.2. Test of Radiated Emission Measurement ....................................................................................... 13 4. LIST OF MEASURING EQUIPMENT ........................................................................................................ 17 5. MEASUREMENT UNCERTAINTY ............................................................................................................ 18 APPENDIX A. SETUP PHOTOGRAPHS Sporton International Inc. (Kunshan) Page Number : 3 of 18 TEL : +86-512-57900158 Report Issued Date : Oct. 20, 2023 FCC ID : XMR2023CC660DLS Report Version : Rev. 01 Report Template No.: BU5-FC15B Version 3.0 FCC Test Report Report No. : FC380410 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FC380410 Rev. 01 Initial issue of report Oct. 20, 2023 Sporton International Inc. (Kunshan) Page Number : 4 of 18 TEL : +86-512-57900158 Report Issued Date : Oct. 20, 2023 FCC ID : XMR2023CC660DLS Report Version : Rev. 01 Report Template No.: BU5-FC15B Version 3.0 FCC Test Report Report No. : FC380410 SUMMARY OF TEST RESULT Report Section FCC Rule Description Limit Result Remark 3.1 15.107 AC Conducted Emission < 15.107 limits PASS Under limit 11.02 dB at 0.156 MHz 3.2 15.109 Radiated Emission < 15.109 limits PASS Under limit 7.07 dB at 43.580 MHz Conformity Assessment Condition: The test results (PASS/FAIL) with all measurement uncertainty excluded are presented against the regulation limits or in accordance with the requirements stipulated by the applicant/manufacturer who shall bear all the risks of non-compliance that may potentially occur if measurement uncertainty is taken into account. Please refer to each test results in the section “Measurement Uncertainty”. Disclaimer: The product specifications of the EUT presented in the test report that may affect the test assessments are declared by the manufacturer who shall take full responsibility for the authenticity. Sporton Internatio…

Text truncated - open the document above for the full version.

Sporton International Inc. (Kunshan) Page Number : A1 of A2 TEL : +86-512-57900158 FCC ID : XMR2023CC660DLS FCC Test Report Report No. : FC380410 Appendix A. Setup Photographs <AC Conducted Emission> Mode 2 Sporton International Inc. (Kunshan) Page Number : A2 of A2 TEL : +86-512-57900158 FCC ID : XMR2023CC660DLS FCC Test Report Report No. : FC380410 <Radiated Emission> Mode 1 LF HF
