FC06E_Hardware_Design1 / 56 FC06E Hardware Design Wi-Fi&Bluetooth Module Series Version: 1.0.3 Date: 2022-12-26 Status: Preliminary Wi-Fi&Bluetooth Module Series FC06E_Hardware_Design1 / 53 At Quectel, our aim is to provide timely and comprehensive services to our customers. If you require any assistance, please contact our headquarters: Quectel Wireless Solutions Co., Ltd. Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai 200233, China Tel: +86 21 5108 6236 Email: [email protected] Or our local offices. For more information, please visit: http://www.quectel.com/support/sales.htm. For technical support, or to report documentation errors, please visit: http://www.quectel.com/support/technical.htm. Or email us at: [email protected]. Legal Notices We offer information as a service to you. The provided information is based on your requirements and we make every effort to ensure its quality. You agree that you are responsible for using independent analysis and evaluation in designing intended products, and we provide reference designs for illustrative purposes only. Before using any hardware, software or service guided by this document, please read this notice carefully. Even though we employ commercially reasonable efforts to provide the best possible experience, you hereby acknowledge and agree that this document and related services hereunder are provided to you on an “as available” basis. We may revise or restate this document from time to time at our sole discretion without any prior notice to you. Use and Disclosure Restrictions License Agreements Documents and information provided by us shall be kept confidential, unless specific permission is granted. They shall not be accessed or used for any purpose except as expressly provided herein. Copyright Our and third-party products hereunder may contain copyrighted material. Such copyrighted material shall not be copied, reproduced, distributed, merged, published, translated, or modified without prior written consent. We and the third party have exclusive rights over copyrighted material. No license shall be granted or conveyed under any patents, copyrights, trademarks, or service mark rights. To avoid ambiguities, purchasing in any form cannot be deemed as granting a license other than the normal non-exclusive, royalty-free license to use the material. We reserve the right to take legal action for noncompliance with abovementioned requirements, unauthorized use, or other illegal or malicious use of the material. Wi-Fi&Bluetooth Module Series FC06E_Hardware_Design2 / 53 Trademarks Except as otherwise set forth herein, nothing in this document shall be construed as conferring any rights to use any trademark, trade name or name, abbreviation, or counterfeit product thereof owned by Quectel or any third party in advertising, publicity, or other aspects. Third-Party Rights This document may refer to hardware, software and/or documentation owned by one or more third parties (“third-party materials”). Use of such third-party materials shall be governed by all restrictions and obligations applicable thereto. We make no warranty or representation, either express or implied, regarding the third-party materials, including but not limited to any implied or statutory, warranties of merchantability or fitness for a particular purpose, quiet enjoyment, system integration, information accuracy, and non-infringement of any third-party intellectual property rights with regard to the licensed technology or use thereof. Nothing herein constitutes a representation or warranty by us to either develop, enhance, modify, distribute, market, sell, offer for sale, or otherwise maintain production of any our products or any other hardware, software, device, tool, information, or product. We moreover disclaim any and all warranties arising from the course of dealing or usage of trade. Privacy Policy To implement module functionality, certain device data are uploaded to Quectel’s or third-party’s servers, including carriers, chipset suppliers or customer-designated servers. Quectel, strictly abiding by the relevant laws and regulations, shall retain, use, disclose or otherwise process relevant data for the purpose of performing the service only or as permitted by applicable laws. Before data interaction with third parties, please be informed of their privacy and data security policy. Disclaimer a)We acknowledge no liability for any injury or damage arising from the reliance upon the information. b)We shall bear no liability resulting from any inaccuracies or omissions, or from the use of the information contained herein. c)While we have made every effort to ensure that the functions and features under development are free from errors, it is possible that they could contain errors, inaccuracies, and omissions. Unless otherwise provided by valid agreement, we make no warranties of any kind, either implied or express, and exclude all liability for any loss or damage suffered in connection with the use of features and functions under development, to the maximum extent permitted by law, regardless of whether such loss or damage may have been foreseeable. d)We are not responsible for the accessibility, safety, accuracy, availability, legality, or completeness of information, advertising, commercial offers, products, services, and materials on third-party websites and third-party resources. Copyright © Quectel Wireless Solutions Co., Ltd. 2022. All rights reserved. Wi-Fi&Bluetooth Module Series FC06E_Hardware_Design3 / 53 Safety Information The following safety precautions must be observed during all phases of operation, such as usage, service or repair of any cellular terminal or mobile incorporating the module. Manufacturers of the cellular terminal should notify users and operating personnel of the following safety information by incorporating these guidelines into all manuals of the product. Otherwise, Quectel assumes…

Text truncated - open the document above for the full version.

Federal Communications Commission 7435 Oakland MiUs Road Colum创aMD 21046 在lUECTE4ι Subject: Certifi田t10ndøsignating a U.8. agent for servJce of pro佣目pursuantto Part 2.911(d)(7) Towhom忧may∞ncem， Quectel Wireless Solutlons Company limited, Grantee Code: XMR ("the appllcant可回而霄esthat, as of the date 01 the filing of app四tion，lk。国kUSA，I时IFRN: 003335033唱('theagent可isdesignated as the U.S. agent fOf the pu巾。seofa∞epting service of process on behalf of the appli四川 The phys也alU.5 . address and email 10r the designaled agent are Physical U .8. addr&幽9920Pac而cHeights Blvd., Ste. 150, #7025, San四吨。，CA92121 Email: ∞mpliance@ikotek..∞m The appticant ac回回sto maintain an agent fOf service of process in the United States for no les$ than one year after either the grantee has permane川Iyterminaled all ma毗etìngand阳p。由tion01 the appl四bleequipment 恻thinthe U.S., or the conclusion 01 any Commission.related administrative or judicial proceeding involving the eqUlpmen忧，whichever Is later. The agent ac国ptsthe designation by (the applicant) as the U.S. agent to accept service 01 pr田essincludes, oot Is not limited to, d创i晴ryof any∞rresponden出，notices, orders, decisions, and陪quirements01 administrative , legal, or judicial process related to Commission pro晤时Ings Signed by the Applicant Email: [email protected] Date: 16 Februa叩2023 Signed by the Agent (i1 d汗1erentfrom the Applicant) rF二7"""'::可-、 、、J一-' ~町百二酬M.Peterson Trtle: President and CE。 Email; joe.pete陌[email protected] Date: Feb阳ary17 th , 2023

Quectel Wireless Solutions Co., Ltd. To: Federal Communications Commission Date: 2023/06/14 7435 Oakland Mills Road Columbia, MD 21046 USA Attestation Section 2.911(d)(5)(i) and Section 2.911(d)(5)(ii) (KDB 986446 D01 Covered Equipment) Section 2.911(d)(5)(i) [Quectel Wireless Solutions Co., Ltd.] (Jean Hu) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Section 2.911(d)(5)(ii) [Quectel Wireless Solutions Co., Ltd.] (Jean Hu) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Type of Equipment subject to FCC Certification: FCC ID:XMR2023FC06E If you have any questions, please feel free to contact me Contact Person: Jean hu Position in the Company: Certification Manager Date of Signature: 2023/06/14 ___________________________

Quectel Wireless Solutions Co., Ltd. Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Date: June 5, 2023 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: XMR2023FC06E To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. ⚫ Schematic Diagram ⚫ Block Diagram ⚫ Part List ⚫ Operational Description ⚫ Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. ⚫ External Photos ⚫ Internal Photos ⚫ Test Setup Photos ⚫ User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ____ Jean hu [email protected]

RF_160, Issue 04 Quectel Wireless Solutions Co., Ltd. Declaration of Authorization We Name: Quectel Wireless Solutions Co., Ltd. Address: Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China, 200233 City: Shanghai Country: China Declare that: Name Representative of agent: Well Wei Agent Company name: SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd Address: South of No. 6 Plant, No. 1, Runsheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: Wi-Fi & Bluetooth Module Type designation: FC06E Trademark: Quectel FCC ID: XMR2023FC06E on our behalf. Date: 2023/06/05.. City:  Shanghai.. Name: Jean hu .. Email: [email protected]............ Signature: .

RF_734_02 04 April 16 Quectel Wireless Solutions Co., Ltd. Modular Approval Request FCC (KDB 996369 D01 & Part 15.212) FCC ID: XMR2023FC06E Items to be covered by Single modular transmitters. Answer from applicant 1. The modular transmitter must have its own RF shielding. Yes, please see exhibition external photos 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Yes, The modular has buffer modulation /data inputs 3. The modular transmitter must have its own power supply regulation. Yes, please see the schem.pdf 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(b)(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Yes, The requirements of antenna connector and spurious emission have been fulfilled. Please refer to the test report exhibition. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Yes, Please refer to the setup photo exhibition for the stand-alone configuration 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number in accordance with 15.212 (a)(1)(vi)(A) / (B). Yes, The Module will be label with its own FCC ID ,and the instruction on the labelling rule of the end product has been stated in the user manual of this module .please refer to the label and user manual exhibition. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. Yes, The required FCC rule has been fulfilled and all the instruction for maintaining compliance have been clearly stated in the user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 1.1310, 2.1091, 2.1093, and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance. Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. Yes, Please refer exhibition RF exposure for the compliance of MPE RF exposure rule. RF_734_02 04 April 16 Note: A limited modular approval (LMA) may be granted for single modular transmitters that comply partially with the requirements above. Name and surname of applicant (or authorized representative):_ Signature: Date: 2023/06/05  City:  Shanghai .. Name: Jean hu .. Email: [email protected]......... Signature: 

Quectel Wireless Solutions Co., Ltd. Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 UNII Declaration Letter We have declared below featured for FCC equipment authorization, device FCC ID: XMR2023FC06E (1) DFS Device -- Master, Client with Radar detection capability , Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412 – 2462 MHz Yes, No Yes, No Yes, No Yes, No 2422 – 2452 MHz Yes, No Yes, No Yes, No Yes, No 5745 – 5825 MHz Yes, No Yes, No Yes, No Yes, No 5755 – 5795 MHz Yes, No Yes, No Yes, No Yes, No 5180 – 5240 MHz Yes, No Yes, No Yes, No Yes, No 5190 – 5230 MHz Yes, No Yes, No Yes, No Yes, No 5260 – 5320 MHz Yes, No Yes, No Yes, No Yes, No 5270 – 5310 MHz Yes, No Yes, No Yes, No Yes, No 5500 – 5700 MHz Yes, No Yes, No Yes, No Yes, No 5510 – 5670 MHz Yes, No Yes, No Yes, No Yes, No (3) Country code selection ability - Yes , No If no, pls explain how was implemented : use Microsoft network utility (4) Meet 15.202 requirement - Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , No Apply , (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Quectel Wireless Solutions Co., Ltd. Printed Name:Jean hu

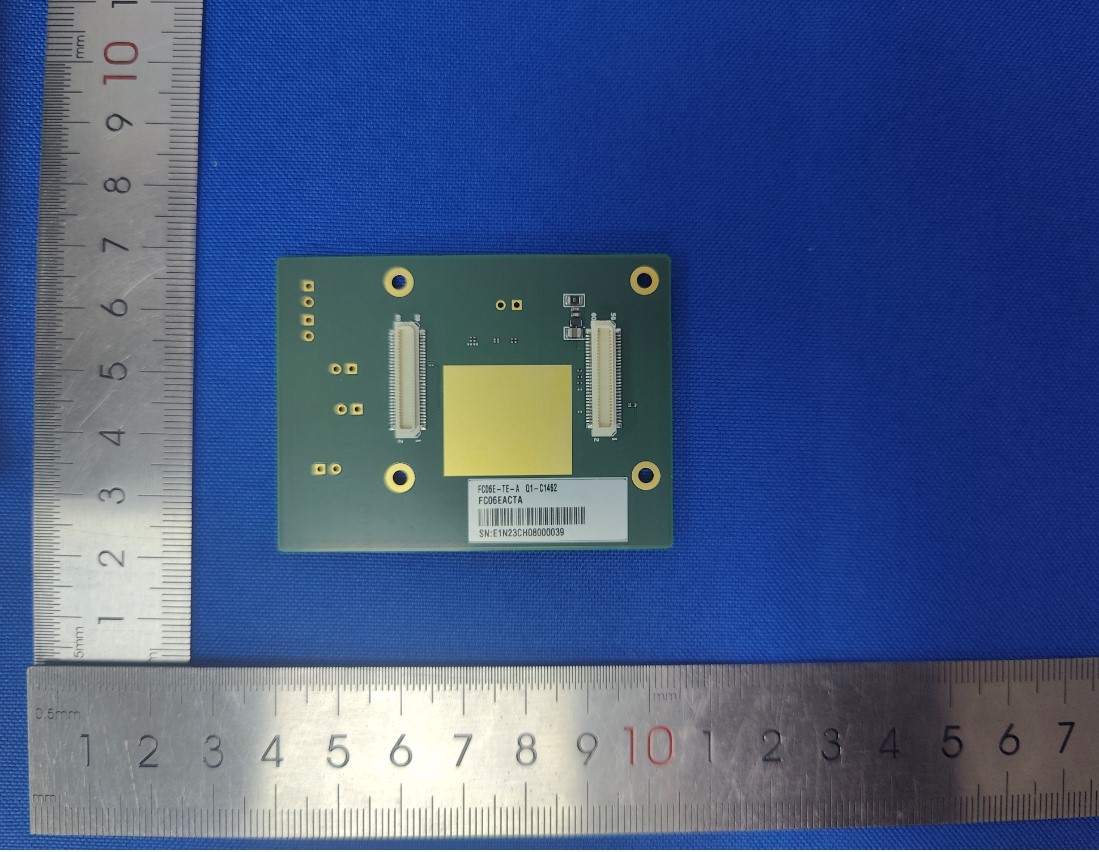

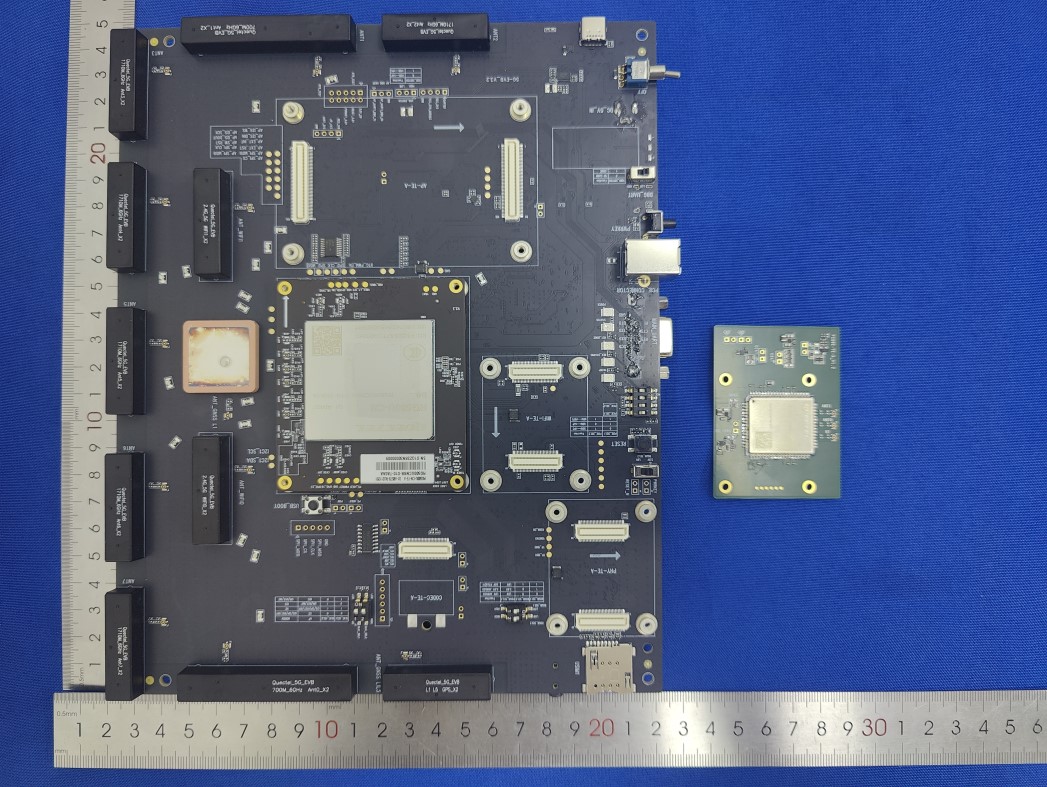

Page 1 of 3 1 Photographs - EUT Constructional Details Test auxiliary PCB board and surrounding photos Page 2 of 3 Page 3 of 3 Model No.: FC06E

Label Location

1 Photographs - EUT Constructional Details Model No.: FC06E

` SGS-CSTC Standards Technical Services (Xi'an) Co., Ltd. Report No.: XEWM2304000191RG06 Rev.: 01 Page: 1 of 8 Authorized Signature: Peter Tan Regulatory Technical Manager TEST REPORT Application No.: XEWM2304000191RG Applicant: Quectel Wireless Solutions Co., Ltd. Address of Applicant: Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Manufacturer: Quectel Wireless Solutions Co., Ltd. Address of Manufacturer: Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 EUT Description: Wi-Fi & Bluetooth Module Model No.: FC06E Trade Mark: Quectel FCC ID: XMR2023FC06E Standards: 47 CFR Part 2.1091 FCC KDB 447498 D01 v06 Date of Receipt: 2023/04/20 Date of Issue: 2023/05/31 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. ` SGS-CSTC Standards Technical Services (Xi'an) Co., Ltd. Report No.: XEWM2304000191RG06 Rev.: 01 Page: 2 of 8 1 Version Revision Record Version Chapter Date Modifier Remark 01 2023/05/31 Original Prepared By (Leah Chen) / Test Engineer Checked By (Andy Yao) /Reviewer ` SGS-CSTC Standards Technical Services (Xi'an) Co., Ltd. Report No.: XEWM2304000191RG06 Rev.: 01 Page: 3 of 8 Contents 1 Version ......................................................................................................................... 2 2 General Information ...................................................................................................... 4 2.1 Client Information .................................................................................................. 4 2.2 Test Facility ........................................................................................................... 4 2.3 General Description of EUT ................................................................................... 5 3 RF Exposure Evaluation ............................................................................................... 6 3.1 RF Exposure Compliance Requirement ................................................................ 6 3.1.1 Limits ................................................................................................................. 6 3.1.2 Test Procedure .................................................................................................. 7 3.1.3 EUT RF Exposure Evaluation ............................................................................ 7 3.1.4 Exposure calculations for multiple sources ........................................................ 8 ` SGS-CSTC Standards Technical Services (Xi'an) Co., Ltd. Report No.: XEWM2304000191RG06 Rev.: 01 Page: 4 of 8 2 General Information 2.1 Client Information Applicant: Quectel Wireless Solutions Co., Ltd. Address of Applicant: Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Manufacturer: Quectel Wireless Solutions Co., Ltd. Address of Manufacturer: Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 2.2 Test Facility The test facility is recognized, certified, or accredited by the following organizations: •A2LA (Certificate No. 4854.01) SGS-CSTC Standards Technical Services (Xi'an) Co., Ltd. is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 4854.01. • Innovation, Science and Economic Development Canada SGS-CSTC Standards Technical Services (Xi'an) Co., Ltd. has been recognized by ISED as an accredited testing laboratory. CAB identifier: CN0095. IC#: 25613. • FCC –Designation Number: CN1337 SGS-CSTC Standards Technical Services (Xi'an) Co., Ltd. has been recognized as an accredited testing laboratory. Designation Number: CN1337. Test Firm Registration Number: 917410 ` SGS-CSTC Standards Technical Services (Xi'an) Co., Ltd. Report No.: XEWM2304000191RG06 Rev.: 01 Page: 5 of 8 2.3 General Description of EUT EUT Description: Wi-Fi & Bluetooth Module Model No.: FC06E Trade Mark: Quectel Hardware Version: R1.2 Software Version: NA Antenna Type: External, Integrated Antenna Gain: BlueTooth: 0.5dBi(Ant0) WIFI 2.4G: 0.5dBi(Ant0); 0.5dBi(Ant1) 5G WIFI(U-NII-I): 1dBi(Ant0); 1dBi(Ant1) 5G WIFI(U-NII-IIA): 1dBi(Ant0); 1dBi(Ant1) 5G WIFI(U-NII-IIC): 1dBi(Ant0); 1dBi(Ant1) 5G WIFI(U-NII-III); 1dBi(Ant0); 1dBi(Ant1) Note: The antenna gain are derived from the gain information report provided by the manufacturer. Remark: As above information is provided and confirmed by the applicant. SGS is not liable to the accuracy, suitability, reliability or/and integrity of the information. ` SGS-CSTC Standards Technical Services (Xi'an) Co., Ltd. Report No.: XEWM2304000191RG06 Rev.: 01 Page: 6 of 8 3 RF Exposure Evaluation 3.1 RF Exposure Compliance Requirement 3.1.1 Limits Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm2) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f2) 6 30-300 61.4 0.163 1.0 6 300-1500 / / f/300 6 1500-100,000 / / 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f2) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 F=frequency in MHz *=Plane-wave equivalent power density RF exposure compliance will need to be determined with respect to 1.1307(c) and (d) of the FCC rules. The emissions should be within the limits at 300kHz in Table 1 of 1.1310(use the 300kHz limits for 150kHz:614V/m,1.63A/m). Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2 ) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the …
