V-Series ™ 5.1.4 User Manual Scan to learn more. Model: V514x-K6 Please read this guide before using the product. ENG - ii ENG - iii Accessibility Contact VIZIO for accessibility support at: Email: [email protected] Phone: 1-877-698-4746 Binding Arbitration Agreement and Class Action Waiver This purchase is subject to full VIZIO Terms and Conditions, including Binding Arbitration Agreement and Class Action Waiver, which may be viewed at vizio.com/en/terms/terms-of-service. By using this device, you accept those Terms and Conditions. You have the right to opt out of the Binding Arbitration Agreement and Class Action Waiver within 60 calendar days of your purchase. Please refer to the Limited Warranty section of this User Manual or view the full VIZIO Terms and Conditions for opt-out instructions. ENG - iv IMPORTANT SAFETY INSTRUCTIONS Your Unit is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent your Unit from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Unit. Keep these instructions in a safe place for future reference. • Heed all warnings. • Follow all instructions. • Do not use this Unit near water. • Clean only with a dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other Unit (including amplifiers) that produce heat. • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. • Protect the power cord from being walked on or pinched particularly at the ends where the plug is located, near convenience receptacles, or where they exit from the Unit. • Only use attachments/accessories specified by the manufacturer. • Use only with the stand, tripod, or bracket specified by the manufacturer, or sold with the Unit. When a cart is used, use caution when moving the cart/Unit combination to avoid injury from tip-over. • Unplug this Unit during lightning storms or when unused for long periods of time. • Refer all servicing to qualified service personnel. Servicing is required when the Unit has been damaged in any way, such as when the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the Unit, the Unit has been exposed to rain or moisture, does not operate normally, or has been dropped. • To reduce the risk of electric shock or component damage, switch off the power before connecting other components to your Unit. • Unplug the power cord before cleaning your Unit. A damp cloth is sufficient for cleaning. Do not use a liquid or a spray cleaner on your Unit. Do not use abrasive cleaners. • Always use the accessories recommended by the manufacturer to ensure compatibility. • When moving your Unit from an area of low temperature to an area of high temperature, condensation may form in the housing. Wait before turning on your Unit to avoid causing fire, electric shock, or component damage. • Slots and openings in the back and bottom of the Unit are provided for ventilation. To ensure reliable operation of your Unit and to protect it from overheating, be sure these openings are not blocked or covered. Do not place your Unit in a bookcase or cabinet unless proper ventilation is provided. • Never push any object into the slots and openings on your Unit. Do not place any objects on the top of your Unit. Doing so could short circuit parts causing a fire or electric shock. Never spill liquids on your Unit. • Do not block the subwoofer ports. Allow for 1-2 inches of space around all sides for ventilation. • WARNING: Exposure to loud sounds can damage your hearing causing hearing loss and tinnitus (ringing or buzzing in the ears). With continued exposure to loud noises, ears may become accustomed to the sound level, which may result in permanent damage to hearing without any noticeable discomfort. • When connected to a power outlet, power is always flowing into your Unit. To totally disconnect power, unplug the power cord. • Do not overload power strips and extension cords. Overloading can result in fire or electric shock. • The wall socket should be located near your Unit and be easily accessible. • Keep your Unit away from moisture. Do not expose your Unit to rain or moisture. If water penetrates into your Unit, unplug the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock. ENG - v IMPORTANT SAFETY INSTRUCTIONS • Do not use your Unit if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your Unit yourself. • Avoid using dropped or damaged appliances. If your Unit is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of your Unit may cause fire or electric shock. • Do not install your Unit in an area with heavy dust or high humidity. Operating your Unit in environments with heavy dust or high humidity may cause fire or electric shock. • Ensure that the power cord and any other cables are unplugged before moving your Unit. • When unplugging your Unit, hold the power plug, not the cord. Pulling on the power cord may damage the wires inside the cord and cause fire or electric shock. When your Unit will not be used for an extended period of time, unplug the power cord. • To reduce risk of electric shock, do not touch the connector with wet hands. • Ins…

Text truncated - open the document above for the full version.

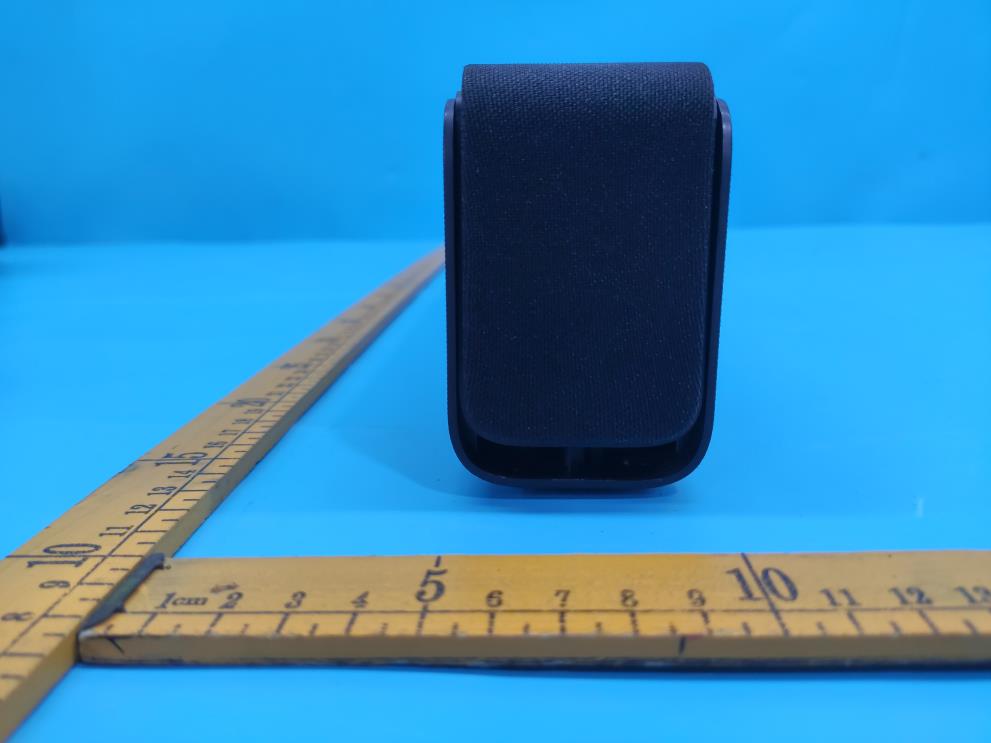

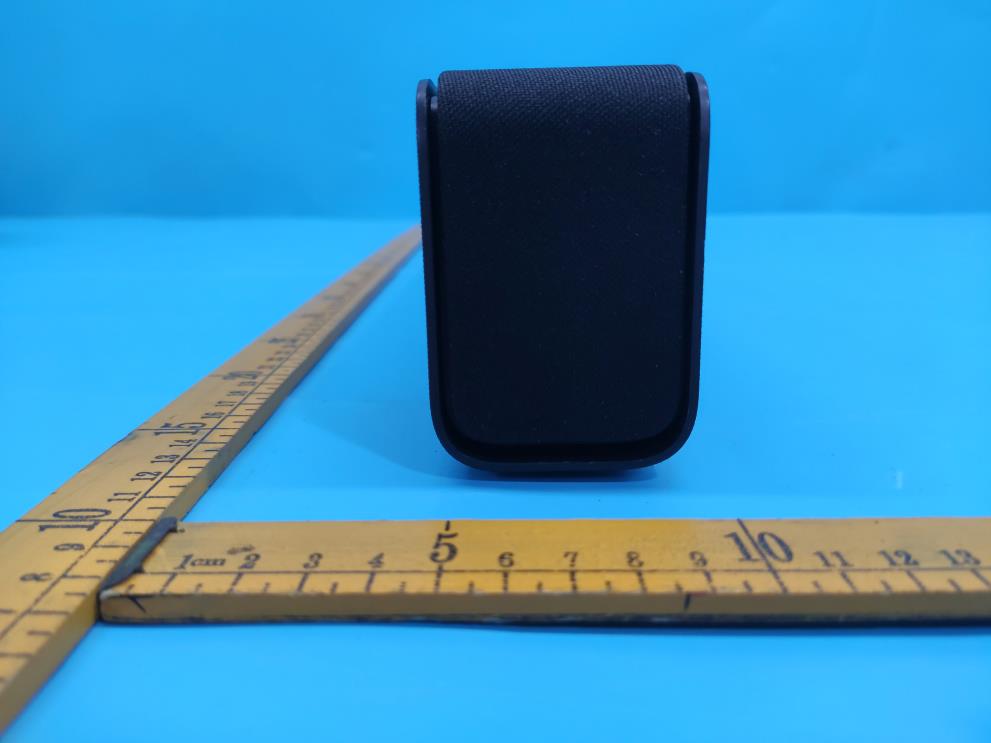

Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 1 of 5 Project No.: 220426KH01-01 External EUT Photo Test Model(s): V514x-K6 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 2 of 5 Project No.: 220426KH01-01 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 3 of 5 Project No.: 220426KH01-01 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 4 of 5 Project No.: 220426KH01-01 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 5 of 5 Project No.: 220426KH01-01

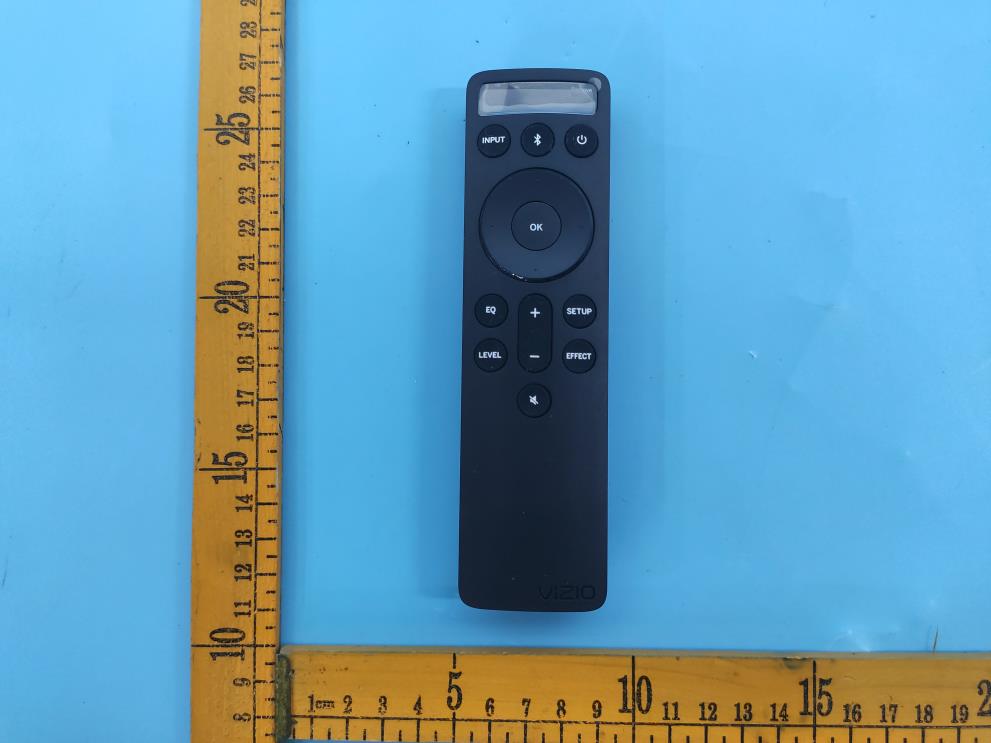

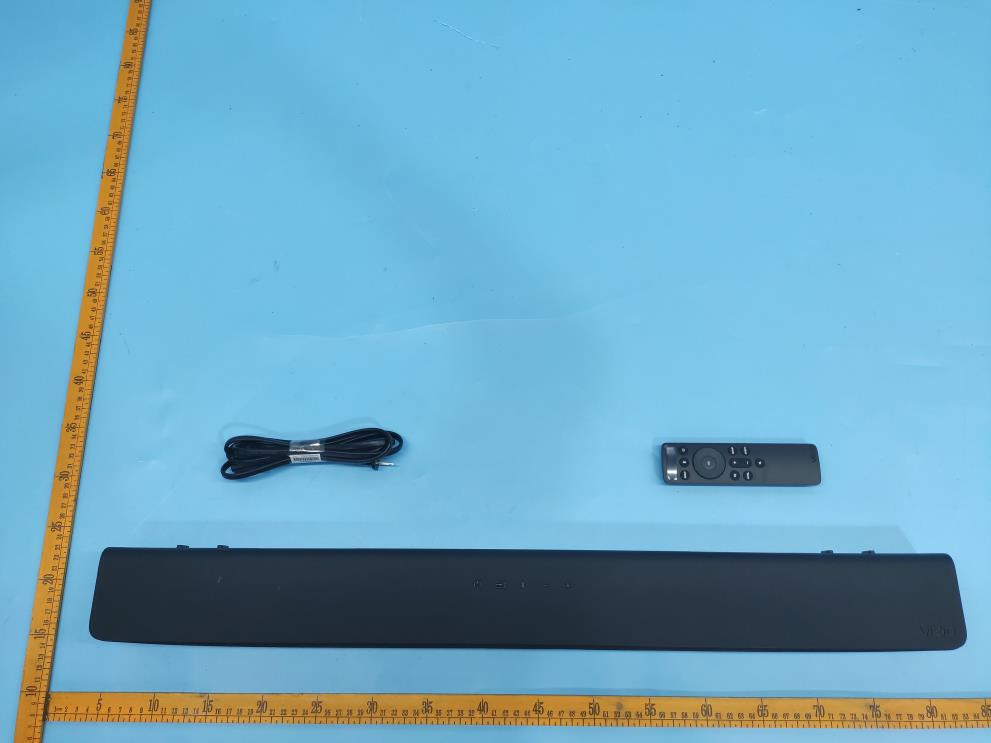

Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 1 of 16 Project No.: 220426KH01-02 EUT Photos V514x-K6 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 2 of 16 Project No.: 220426KH01-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 3 of 16 Project No.: 220426KH01-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 4 of 16 Project No.: 220426KH01-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 5 of 16 Project No.: 220426KH01-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 6 of 16 Project No.: 220426KH01-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 7 of 16 Project No.: 220426KH01-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 8 of 16 Project No.: 220426KH01-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 9 of 16 Project No.: 220426KH01-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 10 of 16 Project No.: 220426KH01-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 11 of 16 Project No.: 220426KH01-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 12 of 16 Project No.: 220426KH01-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 13 of 16 Project No.: 220426KH01-02 BT ANT Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 14 of 16 Project No.: 220426KH01-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 15 of 16 Project No.: 220426KH01-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 16 of 16 Project No.: 220426KH01-02

Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 1 of 61 Test Report No.:220426KH01-RF-US-01 FCC Part 15, Subpart C Test Report FCC ID: XN6-V514XK6 Applicant: Zylux Acoustic Corporation Address: 7F, 70, Rui Guang Road, Neihu District, Taipei 114, Taiwan Manufacturer: Vizio Inc Address: 39 Tesla, Irvine, CA 92618, USA Product(s): 30-Inch Sound Bar 5.1 System Brand(s): Test Model(s): V514x-K6 Series Model(s): N/A Test Date: Jun. 21, 2022~ Jul. 05, 2022 Issued Date: Jul. 12, 2022 Issued By: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Test Firm Registration No.: 915896 Designation No.: CN1255 Standards: 47 CFR FCC Part 15, Subpart C (Section 15.247) ANSI C63.10:2013 The above equipment has been tested by Hwa-Hsing (Dongguan) Testing Co., Ltd., and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. Prepared by : Reviewed by : Tank Tan Scott He Approved by : Harry Li This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into the account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the federal government. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 2 of 61 Test Report No.:220426KH01-RF-US-01 Table of Contents Release Control Record .................................................................................................................................. 4 1 Summary of Test Results ........................................................................................................................... 5 1.1 Measurement Uncertainty ..................................................................................................................... 5 1.2 Modification Record .............................................................................................................................. 5 2 General Information ................................................................................................................................... 6 2.1 General Description of EUT .................................................................................................................. 6 2.2 Description of Test Modes ..................................................................................................................... 7 2.3 Test Mode Applicability and Tested Channel Detail .............................................................................. 8 2.4 Description of Support Units ............................................................................................................... 10 2.4.1 Configuration of System under Test ......................................................................................... 10 3 Test Types and Results ............................................................................................................................. 11 3.1 Radiated Emission and Band-edge Measurement .............................................................................. 11 3.1.1 Limits of Radiated Emission and Band-edge Measurement ..................................................... 11 3.1.2 Test Instruments ....................................................................................................................... 12 3.1.3 Test Procedures ........................................................................................................................ 13 3.1.4 Deviation from Test Standard ................................................................................................... 14 3.1.5 Test Setup ................................................................................................................................. 15 3.1.6 EUT Operating Conditions ........................................................................................................ 16 3.1.7 Test Results ...........................................................................................................................…

Text truncated - open the document above for the full version.

Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 1 of 7 Test Report No.: 220426KH01-SE-US-01 RF Exposure Report FCC ID: XN6-V514XK6 Applicant: Zylux Acoustic Corporation Address: 7F, 70, Rui Guang Road, Neihu District, Taipei 114, Taiwan Manufacturer: Vizio Inc Address: 39 Tesla, Irvine, CA 92618, USA Product: 30-Inch Sound Bar 5.1 System Brand(s): Test Model(s): V514x-K6 Series Model(s): N/A Test Date: Jun. 21, 2022~ Jul. 05, 2022 Issued Date: Jul. 18, 2022 Issued By: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Test Firm Registration No.: 915896 Designation No.: CN1255 Standards: FCC Part 2 (Section 2.1091) KDB 447498 D01 v06 IEEE C95.1 The above equipment has been tested by Hwa-Hsing (Dongguan) Testing Co., Ltd., and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. Prepared by : Reviewed by : Tank Tan Scott He Approved by : Harry Li This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the federal government.The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 2 of 7 Test Report No.: 220426KH01-SE-US-01 Table of contents Release control record ............................................................................................... 3 1 General Information ......................................................................................... 4 1.1 General Description of EUT ............................................................................. 4 2 RF exposure limit ............................................................................................. 5 2.1 MPE calculation formula .................................................................................. 5 3 Calculation result of maximum conducted power ............................................. 6 Appendix – Information on the Testing Laboratories .................................................... 7 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 3 of 7 Test Report No.: 220426KH01-SE-US-01 Release control record Issue No. Reason for change Date issued 220426KH01-SE-US-01 Original Release Jul. 18, 2022 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 4 of 7 Test Report No.: 220426KH01-SE-US-01 1 General Information 1.1 General Description of EUT Product(s) 30-Inch Sound Bar 5.1 System Test Model(s) V514x-K6 Serial No. SZZOQ5AY0030053 / SZZOQ5AY0030059 Series Model(s) N/A Status of EUT Engineering Prototype Power Supply Rating 100-240V~, 50/60Hz, 34W Modulation Type GFSK, π/4DQPSK,8DPSK Transfer Rate 1/2/3Mbps Operating Frequency 2402 ~ 2480MHz Output Power (AVG) 0.861dBm Antenna Type PCB Antenna Antenna Gain 4.1dBi Antenna Connector N/A Accessory Device Infrared remote control Cable Supplied AC cable: Unshieled, Detachable, 160cm Note: 1. Please refer to the EUT photo document (Reference No.: 220426KH01-01&02) for detailed product photo. 2. The above EUT information is declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 5 of 7 Test Report No.: 220426KH01-SE-US-01 2 RF exposure limit Limits for maximum permissible exposure (MPE) Limits for general population / uncontrolled exposure Frequency range (MHz) Electric field strength (V/m) Magnetic field stre…

Text truncated - open the document above for the full version.

Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 1 of 3 Project No.: 220426KH01-03 Set-Up for Conducted Emission Test Frequency Range< 0.15MHz~30MHz > Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 2 of 3 Project No.: 220426KH01-03 Set-Up for Radiated Emission Test Frequency Range< 30MHz~1GHz > Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 3 of 3 Project No.: 220426KH01-03 Frequency Range< Above 1GHz >
