XNA-WS-50Smart Body Analyzer

Smart Body Analyzer WS-50 Quick Installation Guide FR DE Guide d’installation Installationsanleitung ES IT Guía de instalación Guida all’installazione NEED hElp BESoIN D’aIDE | BRauchEN SIE hIlFE | NEcESITaS ayuDa | TI SERvE aIuTo http://support.withings.com 2 INSTallaTIoN oF caRpET FEET Smart Body analyzer WS-50 carpet feetalkaline cells already installed FRPieds moquette DEFüße für Teppich ESPies para moqueta ITPiedini per moquette FRPiles déjà installées DEBatterien eingesetzt ESPilas ya instaladas ITPile già inserite Box coNTENTS coNTENu DE la BoÎTE | INhalT | coNTENIDo DE la caja | coNTENuTo DElla coNFEzIoNE INSTallaTIoN DES pIEDS pouR moQuETTE | moNTaGE DER FüSSE FüR EIN auFSTEllEN DER WaaGE auF TEppIch INSTalacIóN DE loS pIES paRa moQuETa | INSTallazIoNE DEI pIEDINI pER moQuETTE 12 Utilisation optionnelle Optionale Verwendung Uso opcional Uso opzionale FR DE ES I T optional use 3 AAAAAAAAAAAA Avant de commencer, vous devez avoir à disposition : Bevor Sie beginnen, müssen Sie bereitlegen : Antes de comenzar, debes disponer de : Prima di iniziare, è necessario avere a disposizione : FR DE ES IT Before starting, you need: Installation depuis votre smartphone / tablette uniquement. Pas d’ordinateur. Installation nur mit Ihrem Smartphone / Tablet. Kein Computer. Instalación desde tu smartphone / tableta únicamente. No se necesita ordenador. Installazione solo da smartphone / tablet. Senza computer. FR DE ES I T Installation using your smartphone / tablet only. computer-free. INSTallaTIoN Android iPhone, iPad & iPod touch INSTallaTIoN | INSTallaTIoN INSTalacIóN | INSTallazIoNE 4 1 Retirez la languette à l’arrière du pèse-personne Ziehen Sie die Lasche unter der Waage ab Retira la lengüeta de la parte inferior de la báscula Rimuovere la linguetta sotto la bilancia FR DE ES I T pull the tab underneath the scale Appuyez 2 secondes sur le bouton d’appairage Drücken Sie 2 Sekunden lang die Pairing-Taste Pulsa durante 2 segundos el botón de aparejar Premere 2 secondi il tasto di accoppiamento FR DE ES I T press the pairing button for two seconds Installation depuis votre smartphone / tablette uniquement. Pas d’ordinateur. Installation nur mit Ihrem Smartphone / Tablet. Kein Computer. Instalación desde tu smartphone / tableta únicamente. No se necesita ordenador. Installazione solo da smartphone / tablet. Senza computer. Installation using your smartphone / tablet only. computer-free. 2 ThE ScalE 2 s. lE pÈSE-pERSoNNE | pERSoNENWaaGE la BáScula | la BIlaNcIa p. 6p. 7 5 Withings 4 Installez et lancez l’appli Withings, puis suivez les instructions Installieren und starten Sie die Withings-App und folgen Sie dann den Anweisungen Instala y abre la aplicación Withings y sigue las instrucciones Installare e lanciare l’app Withings, poi seguire le istruzioni FR DE ES I T Install and launch the Withings app from the app Store then follow the instructions iphoNE ipaD, i poD T ouch 6 3 Réglages / Bluetooth / ON “ Withings WS50” Einstellungen / Bluetooth / ON “ Withings WS50” Ajustes / Bluetooth / ON “ Withings WS50” Regolazioni / Bluetooth / ON “ Withings WS50” FR DE ES IT Settings / Bluetooth / oN “ Withings WS50” Settings Withings aNDRoID Settings 3 Réglages / Bluetooth / ON “ Withings WS50” Einstellungen / Bluetooth / ON “ Withings WS50” Ajustes / Bluetooth / ON “ Withings WS50” Regolazioni / Bluetooth / ON “ Withings WS50” FR DE ES IT Settings / Bluetooth / oN “ Withings WS50” 4 Installez et lancez l’appli Withings, puis suivez les instructions Installieren und starten Sie die Withings-App und folgen Sie dann den Anweisungen Instala y abre la aplicación Withings y sigue las instrucciones Installare e lanciare l’app Withings, poi seguire le istruzioni FR DE ES I T Install and launch the Withings app from the Google play Store then follow the instructions Withings 7 - This product is not suitable for people wearing a pacemaker or other internal medical device. - The Withings scale data must be considered purely as reference values and not as a medical opinion. - N’utilisez pas ce produit si vous portez un stimulateur cardiaque ou autre appareil médical. - Les données du pèse-personne Withings sont à utiliser comme valeurs de référence et ne doivent pas être considérées comme des avis médicaux. - Benutzen Sie dieses Produkt nicht, wenn Sie einen Herzschrittmacher oder ein anderes medizinisches Gerät tragen. - Die Werte, die Withings-Waage angibt, sind lediglich Richtwerte und dürfen nicht als ärztliche Meinung betrachtet werden. - Este producto no es adecuado para personas que llevan un marcapasos u otro aparato médico implantado. - Los datos de la báscula Withings deben considerarse como valores de referencia y no como opiniones médicas. - Non utilizzare questo prodotto se porti uno stimolatore cardiaco o un altro apparecchio medico. - I dati della bilancia Withings devono essere considerati valori di riferimento e non come consigli medici. DEIT FR ES ImpoRTaNT aDvIcES coNSEIlS ImpoRTaNTS | WIchTIGE hINWEISE | coNSEjoS ImpoRTaNTES | SuGGERImENTI ImpoRTaNTI 8 - Never use detergents to clean your scale. You may irreversibly damage the coating that protects the electrodes used to measure your body analysis. DEIT FR ES - N’utilisez jamais de détergents pour nettoyer votre balance, vous pourriez altérer le fonctionnement des électrodes permettant de faire votre analyse corporelle. - Verwenden Sie für die Reinigung Ihrer Waage niemals ein Reinigungsmittel, denn dadurch könnte die Funktionsfähigkeit der Elektroden, die für die Ausführung der Körperanalyse nötig sind, beeinträchtigt werden. - No utilices detergentes para limpiar la báscula, podrían alterar el funcionamiento de los electrodos utilizados en la medición de tu análisis corporal. - Non utilizzare mai detergenti per pulire la bilancia ; potrebbe alterarsi il funzionamento degli elettrodi che servono per la tua analisi del corpo. 9 DEScRIpTIoN Écran Display Pantalla Schermo ScreenElectrodesFeetpairing buttonkg, st, lbBattery cover Pieds Füße Pies Pi…

Text truncated - open the document above for the full version.

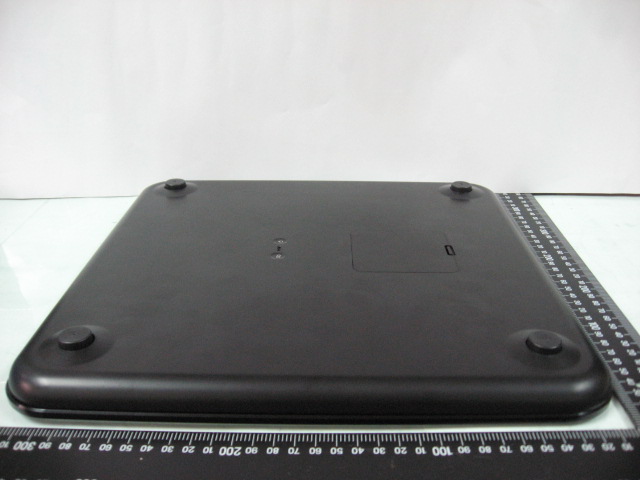

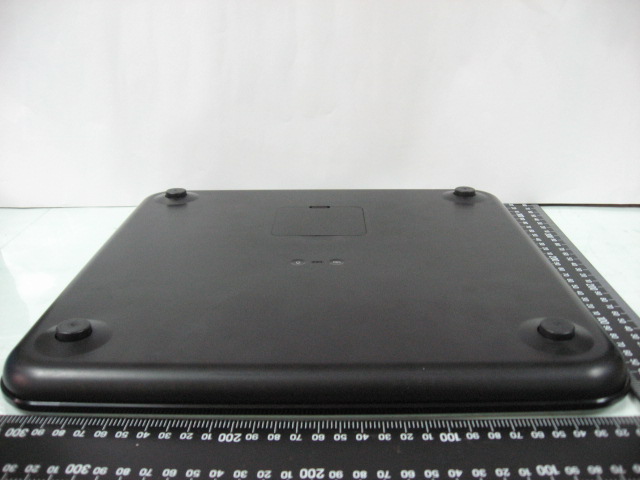

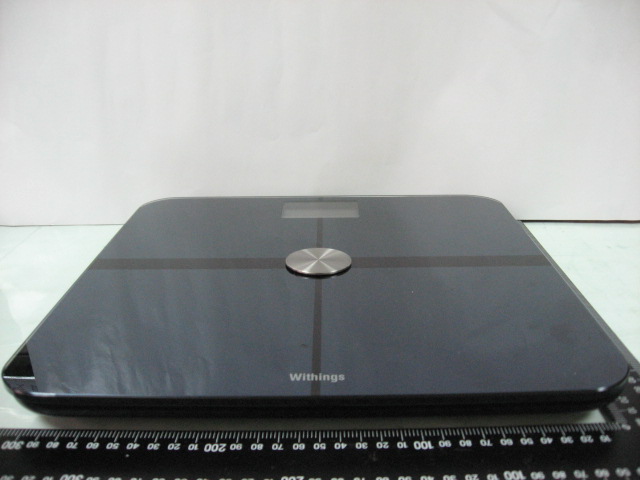

ETC Report No. : 13-02-RBF-015-05 FCC ID: XNA-WS-50 Sheet 1 of 5 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 1. 2. ETC Report No. : 13-02-RBF-015-05 FCC ID: XNA-WS-50 Sheet 2 of 5 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 3. 4. ETC Report No. : 13-02-RBF-015-05 FCC ID: XNA-WS-50 Sheet 3 of 5 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 5. 6.

ETC Report No. : 13-02-RBF-015-05 FCC ID: XNA-WS-50 Sheet 4 of 5 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 7. 8. ETC Report No. : 13-02-RBF-015-05 FCC ID: XNA-WS-50 Sheet 5 of 5 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 9. 10.

FCC ID: XNA-WS-50 RF Exposure Evaluation of E.U.T. : Smart Body Analyzer FCC ID. : XNA-WS-50 MODEL : WS-50 for APPLICANT : Withings ADDRESS : 20, rue Rouget de Lisle, 92130 Issy les Moulineaux, FRANCE Prepared by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5, DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 13-02-RBF-015-MPE FCC ID: XNA-WS-50 Product Information: Type of EUT: Smart Body Analyzer FCC ID: XNA-WS-50 Manufacturer: Withings Model: WS-50 Description: Smart Body Analyzer with 802.11b/g/n and Bluetooth Maximum conducted output power (measured): 14.9 dBm or 30.903mW The following table lists the provided authorized antennas: Antenna Gain Model Antenna Type (dBi) Numeric N/A 2.4 GHz Inverted F Antenna 3.3 2.14 Below is an example of the RF Exposure Statement: IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. FCC ID: XNA-WS-50 Relative Requirement for Compliance According to section 1.1310 of FCC 47 CFR Part 1, limits for maximum permissible exposure (MPE) are as following: TABLE 1 – LIMITS FOR MAXIMUN PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 .................. 6141.63*(100) 6 3-30 ..................... 1842/f4.89/f *(900/f 2 ) 6 30-300 .................. 61.40.1631.0 6 300-1500 ............... ...................... ......................f/300 6 1500-100,000 ......... ...................... ......................5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 ............... 6141.63*(100) 30 1.34-30 ............... 824/f2.19/f*(180/f2) 30 30-300 .................. 27.50.0730.2 30 300-1500 ............... ...................... ......................f/1500 30 1500-100,000 ......... ...................... ......................1.0 30 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 TO TABLE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 TO TABLE 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. FCC ID: XNA-WS-50 RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0 mW/cm 2 uncontrolled exposure limit. The formula shown in OET Bulletin 65 is used in the calculation. Equation from page 19 of OET Bulletin 65, Edition 97-01 is: S= PG / 4πR 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) hence R= (PG / 4πS) 1/2 For our device P = 30.903mW G = 2.14 R = 20 cm S = (30.903 * 2.14) / (4*π*20 2 ) = 0.0131 mW/cm 2 < 1.0 mW/cm 2 For complying the FCC limits for general population/uncontrolled exposure, the power density limit is 1.0 mW/cm 2 . The calculation result of the power density at a distance of 20 cm of our device is less than the limit. This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247 (b)(5).

Rev. No 2.0 FCC Part 15 EMI TEST REPORT (Part 1 – 802.11b/g/n) of E.U.T. : Smart Body Analyzer Model No. : WS-50 FCC ID. : XNA-WS-50 for APPLICANT : Withings ADDRESS : 20, rue Rouget de Lisle, 92130 Issy les Moulineaux, FRANCE Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5, DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 12-10-RBF-028-05 ETC Report No. : 13-02-RBF-015-05 FCC ID: XNA-WS-50 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Withings 20, rue Rouget de Lisle, 92130 Issy les Moulineaux, FRANCE Manufacturer : Withings 20, rue Rouget de Lisle, 92130 Issy les Moulineaux, FRANCE Description of EUT a) Type of EUT Smart Body Analyzer b) Trade Name Withings c) Model No. WS-50 d) Power Supply : : : : DC1.5V Battery*4 Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Summary of Tests Test Results Radiated Emission Pass Conducted Emission N/A Emission Bandwidth Pass Output Power Pass 100 kHz Bandwidth of Band Edges Pass Power Density Pass Out-of-Band Conducted Emission Pass ETC Report No. : 13-02-RBF-015-05 FCC ID: XNA-WS-50 Rev. No 1.0 Date Test Item Received : Oct. 17, 2012 Date Test Campaign Completed : Feb. 27, 2013 Date of Issue : Feb. 27, 2013 Test Engineer : ( Vincent Chang, Engineer ) Approve & Authorized : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 13-02-RBF-015-05 FCC ID: XNA-WS-50 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ....................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Characteristics of Device ............................................................................................................. 1 1.3 Test Methodology ........................................................................................................................ 1 1.4 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE...................................................................................................... 2 2.1 Definition ..................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 5 2.5 User Information .......................................................................................................................... 6 3. SYSTEM TEST CONFIGURATION .......................................................................................... 7 3.1 Justification .................................................................................................................................. 7 3.2 Devices for Tested System........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT .............................................................................. 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure............................................................................................................... 8 4.3 Measuring Instrument ................................................................................................................ 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.5 Field Strength Calculation ......................................................................................................... 27 4.6 Photos of Radiation Measuring Setup........................................................................................ 28 5 CONDUCTED EMISSION MEASUREMENT ........................................................................ 29 5.1 Description ................................................................................................................................. 29 6 ANTENNA REQUIREMENT .................................................................................................... 30 6.1 Standard Applicable ................................................................................................................... 30 6.2 Antenna Construction and Directional Gain .............................................................................. 30 7 EMISSION BANDWIDTH MEASUREMENT ......................................................................... 31 7.1 Standard Applicable ................................................................................................................... 31 7.2 Measurement Procedure............................................................................................................. 31 7.3 Measurement Equipment .............…

Text truncated - open the document above for the full version.

ETC Report No. : 13-02-RBF-015-05 FCC ID: XNA-WS-50 Sheet 28 of 81 Sheets Rev. No 2.0 4.6 Photos of Radiation Measuring Setup
