XNAWPM06Withings BPM Connect Pro

Regulatory information Public ©2021 Withings Regulatory information Regulatory information Public ©2021 Withings Regulatory information PROBLEMSOLUTIONS The inflation action cannot be perfor- med or the air pres- sure cannot rise 1. Check the cuff position, fasten the cuff correctly and remeasure blood pressure again. If the issue persists, please contact the customer service number of your health program in which you are enrolled. Under normal circumstances, the measurement taken at home may differ from the measure- ment taken in a medical setting 1. The variation is due to the different environments 2. The blood pressure is changing according to the physiological or psychologi- cal status of the person being measured Regulatory information Public ©2021 Withings Product descriptionDigital automatic blood pressure monitor ModelWPM06 Blood pressure measurement method Cuff oscillometric method Cuff inflationAutomatic inflation with air pump at 6 mmHg/s Pressure sensorGauge sensor Measurement range (pressure)Rated range of cuff pressure. 0 to 285 mmHg, DIA 40 to 130 mmHg, SYS 60 to 230 mmHg Measurement range (pulse)40 to 180 beats/min Pressure sensor accuracyWithin +- 3 mmHg or 2% of reading Accuracy (pulse)Within +-5% of reading SensorSemiconductor pressure sensor Operating conditions5 to 40°C, 15 to 90% RH, atmospheric 86Kpa~106kpa, altitude: 2000m Storage and transport conditions -20 to 60°C, 10 to 95% RH, atmospheric 86Kpa~106kpa, altitude: 2000m Arm typeUse on left arm Power source5V 1A WeightApprox. 245g AccessoriesUSB cable, Onboarding guide, Regulatory information leaflet Product life3 years Wireless transmissionWi-Fi, BLE, LTE Cat-m1 Typical operation time6 months and 1000 cycles under normal use and good network coverage SYMBOLSDESCRIPTION Complies with FCC regulations Upper and lower limits of relative humidity Upper and lower limits of pressure Temperature range Regulatory information SYMBOLSDESCRIPTION Do not dispose of this product as unsorted municipal waste; take it to electronic recycling Follow instructions for use Direct current The CE labelling certifies thet the product complies with the essential requirements of Directive 2014/53/ EU. RCM marking Regulatory information Public ©2021 Withings Regulatory information 8-9 Industry Canada statement This device contains licence-exempt transmit- ter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: Regulatory information Public ©2021 Withings (1) This device may not cause interference (2) This device must accept any interference, including interference that may cause unde- sired operation of the device L’émetteur/récepteur exempt de licence conte- nu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) L’appareil ne doit pas produire de brouil- lage; (2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionne- ment. Caution: The device for operation in the band 5150– 5250 MHz is only for indoor use to reduce the potential for harmful interference to co-chan- nel mobile satellite systems; Avertissement: les dispositifs fonctionnant dans la bande de 5150 à 5250MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux sys- tèmes de satellites mobiles utilisant les mêmes canaux; Radiation Exposure Statement: The product comply with the Canada portable RF exposure limit set forth for an uncontrolled environment and are safe for intended opera- tion as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. Regulatory information 10-11 This equipment should be installed and ope- rated with minimum distance 5mm between the radiator & your body. Déclaration d’exposition aux radiations: Le produit est conforme aux limites d’expo- sition pour les appareils portables RF pour les Etats-Unis et le Canada établies pour un environnement non contrôlé. Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La réduction aux expositions RF peut être augmentée si l’appareil peut être conservé aussi loin que possible du corps de l’utilisateur ou que le dispositif est réglé sur la puissance de sortie la plus faible si une telle fonction est disponible. Cet équipement doit être installé et utilisé avec un minimum de 5mm de distance entre le radiateur et votre corps. Regulatory information Guidance and manufacturer’s declaration-electromagnetic emissions This cellular Smart Blood Pressure Monitor is intended for use in the electromagnetic environment specified below. The customer or the user of the cellular Smart Blood Pressure Monitor should ensure that it is used in such an environment. Emissions testCompliance Electromagnetic environ- ment — guidance CE emissions CISPR11 Group 1 The cellular Smart Blood Pressure Monitor uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment. RE emissions CISPR11 Class B Harmonic emissions IEC 61000-3-2 Not applicable This cellular Smart Blood Pressure Monitor is suitable for use in all establishments, including domestic establishments and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes. Voltage fluctuations/ Flicker emissions IEC 61000-3-3 Not applicable Regulatory information Guidance and manufacturer’s declaration-electromagnetic emissions This cellular Smart Blood Pressure Monitor is intended for use in the electromagnetic environment specified …

Text truncated - open the document above for the full version.

Date: 2021/4/21 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: XNAWPM06 Product name: Withings BPM Connect Pro To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model WPM06 to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Dist., TaoYuan City 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. -------------------------------------------------------------------------------------- Withings SA 2 rue Maurice Hartmann 92130 Issy-Les-Moulineaux France Xavier Debreuil / Product Director [email protected] +33608979794

Date: April 21, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: XNAWPM06 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180 days from the day of the grant. ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics ☒ Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. -------------------------------------------------------------------------------------- Withings SA 2 rue Maurice Hartmann 92130 Issy-Les-Moulineaux France Xavier Debreuil / Product Director [email protected] +33608979794

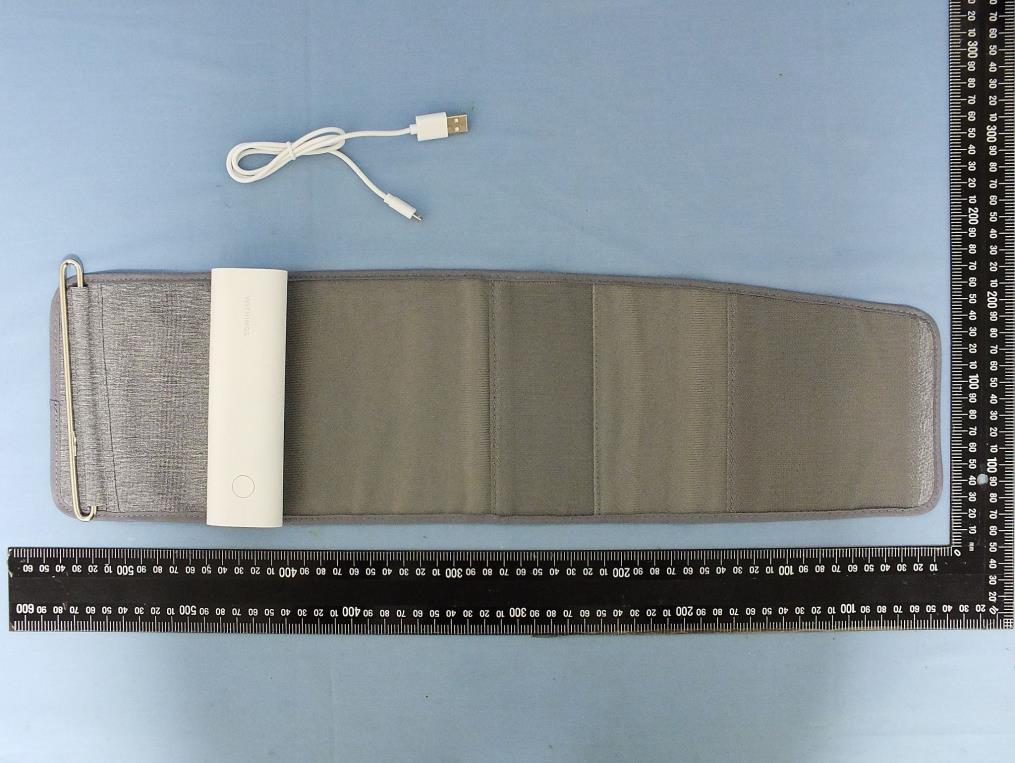

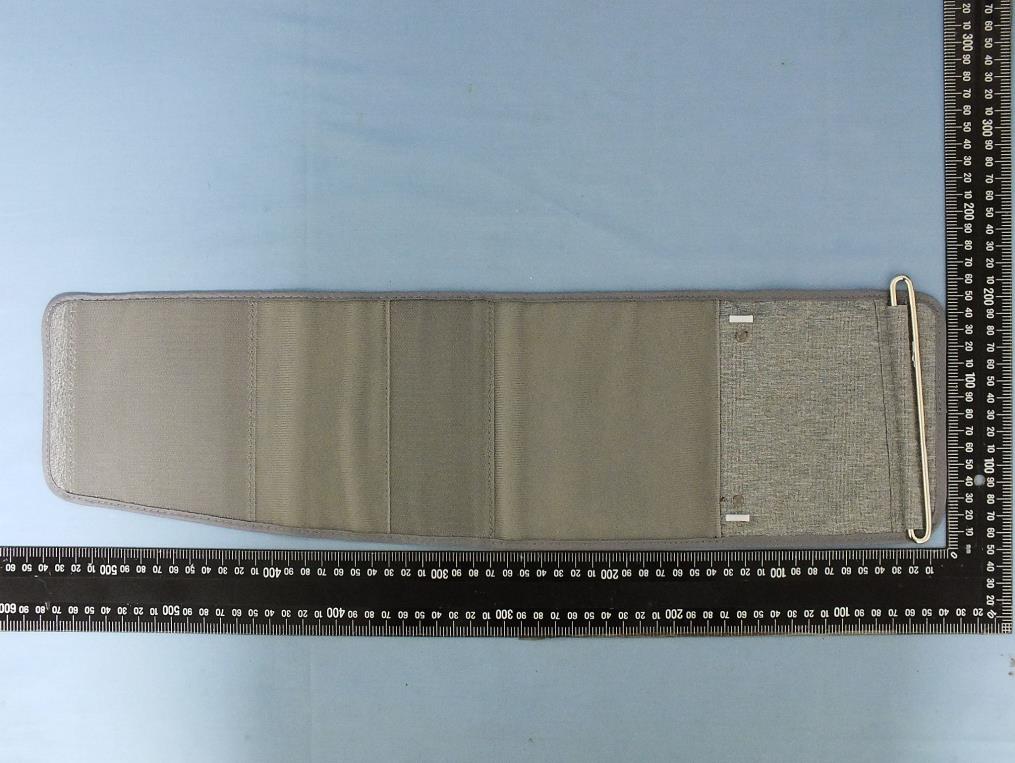

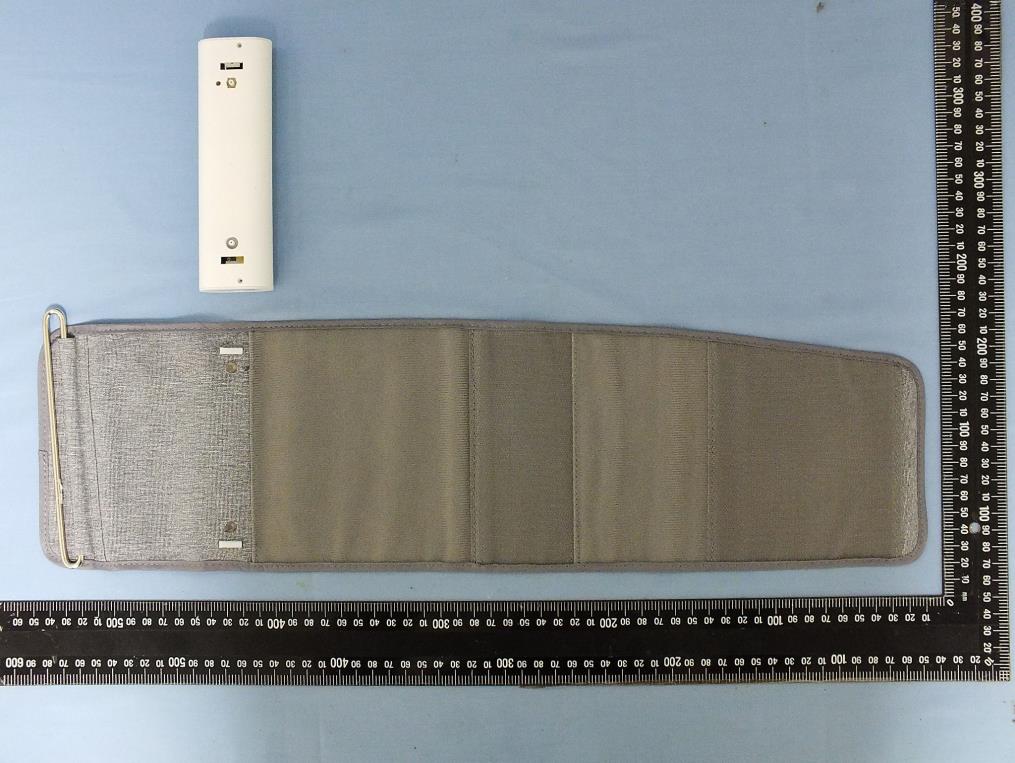

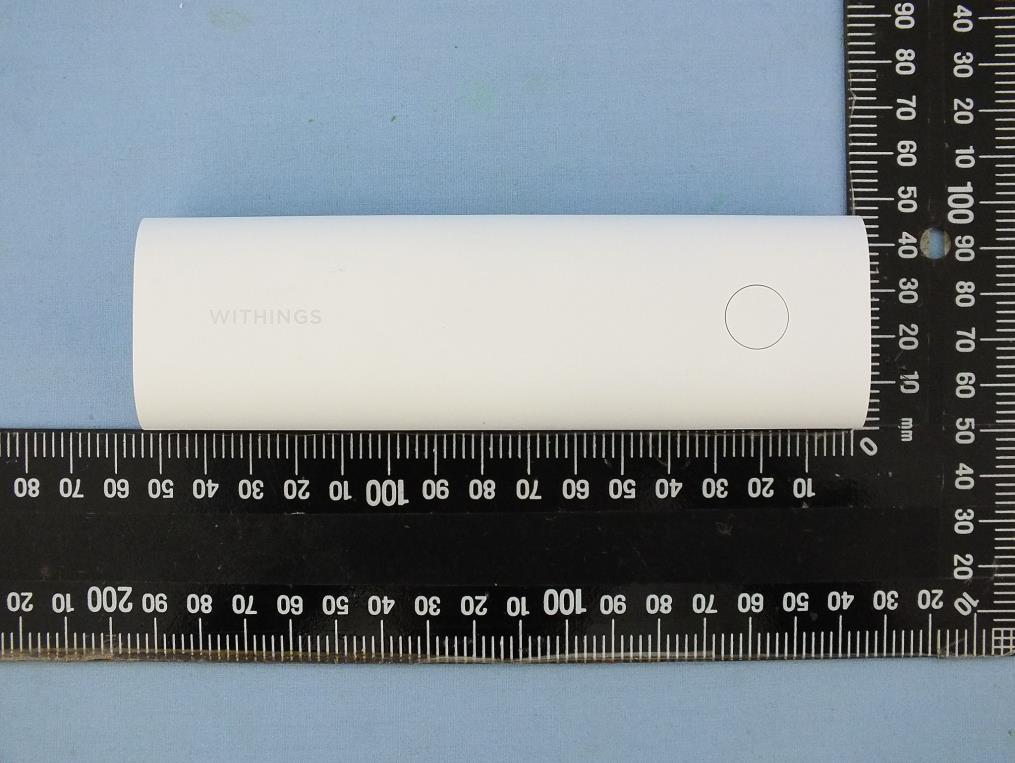

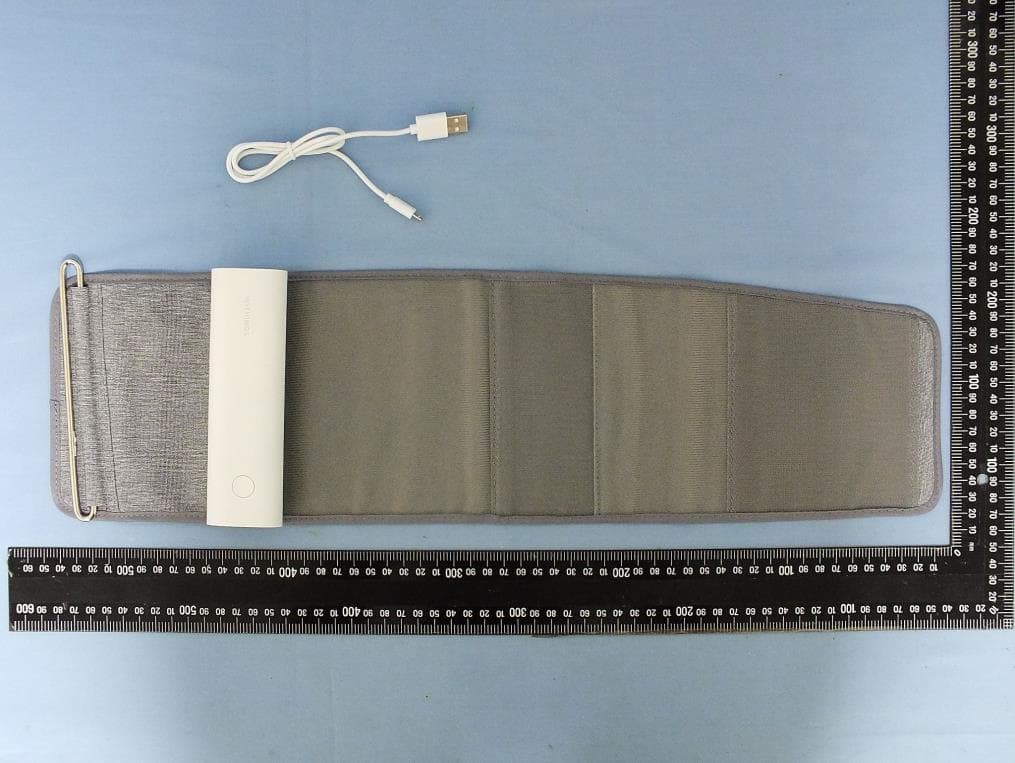

Project No.: EP133101 Page No. : 1 of 18 Photographs of EUT Project No.: EP133101 Page No. : 2 of 18 Project No.: EP133101 Page No. : 3 of 18 Project No.: EP133101 Page No. : 4 of 18 Project No.: EP133101 Page No. : 5 of 18 Project No.: EP133101 Page No. : 6 of 18 Project No.: EP133101 Page No. : 7 of 18 Project No.: EP133101 Page No. : 8 of 18

Arm circumfer ence: 22-42cm Rating: 5Vdc 1A Batt ery: Lithium-ion FCC ID: XNAWPM06 Contains FCC ID: 2AAGMGM02S A IC: 11411A-WPM06 Contains IC: 12732A-GM02S A Withings, 2 rue Maurice Hartmann 92130 Issy -les-Moulineaux, France Distributed by Withings Inc, 222 Thir d Str eet, Cambridge, MA 02142, United Sta tes Aus tr alian sponsor: Emergo Aus tr alia Level 20, T ower II, Farling Park, 201 Susse x Str eet, Sydney, NSW 2000, Aus tr alia Designed in France. Made in China. FCC ID: XNAWPM06 IC : 11411A-WPM06

Project No.: EP133101 Page No. : 9 of 18 Project No.: EP133101 Page No. : 10 of 18 Project No.: EP133101 Page No. : 11 of 18 Project No.: EP133101 Page No. : 12 of 18 Project No.: EP133101 Page No. : 13 of 18 Project No.: EP133101 Page No. : 14 of 18 Project No.: EP133101 Page No. : 15 of 18 Project No.: EP133101 Page No. : 16 of 18 Project No.: EP133101 Page No. : 17 of 18 Project No.: EP133101 Page No. : 18 of 18

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/4/24 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW ; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_210424 Medium parameters used: f = 750 MHz; σ = 0.893 S/m; ε r = 42.549; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306; ConvF(9.92, 9.92, 9.92) @ 750 MHz; Calibrated: 2020/7/24 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn699; Calibrated: 2021/2/16 - Phantom: SAM_Right; Type: SAM; Serial: TP:1446 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.92 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 58.68 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 3.31 W/kg SAR(1 g) = 2.22 W/kg; SAR(10 g) = 1.49 W/kg Maximum value of SAR (measured) = 2.93 W/kg 0 dB = 2.93 W/kg = 4.67 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/4/24 System Check_Head_1750MHz DUT: D1750V2-1112 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_210424 Medium parameters used: f = 1750 MHz; σ = 1.401 S/m; ε r = 40.155; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306; ConvF(8.35, 8.35, 8.35) @ 1750 MHz; Calibrated: 2020/7/24 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn699; Calibrated: 2021/2/16 - Phantom: SAM_Right; Type: SAM; Serial: TP:1446 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.93 W/kg Pin=50mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 48.48 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 3.73 W/kg SAR(1 g) = 1.83 W/kg; SAR(10 g) = 0.949 W/kg Maximum value of SAR (measured) = 2.95 W/kg 0 dB = 2.95 W/kg = 4.70 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/4/24 System Check_Head_1900MHz DUT: D1900V2-5d041 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_210424 Medium parameters used: f = 1900 MHz; σ = 1.404 S/m; ε r = 39.891; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306; ConvF(8.06, 8.06, 8.06) @ 1900 MHz; Calibrated: 2020/7/24 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn699; Calibrated: 2021/2/16 - Phantom: SAM_Right; Type: SAM; Serial: TP:1446 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.28 W/kg Pin=50mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 49.73 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 4.09 W/kg SAR(1 g) = 1.98 W/kg; SAR(10 g) = 0.988 W/kg Maximum value of SAR (measured) = 3.16 W/kg 0 dB = 3.16 W/kg = 5.00 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/4/27 System Check_Head_2450MHz DUT: D2450V2-929 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_210427 Medium parameters used: f = 2450 MHz; σ = 1.825 S/m; ε r = 40.225; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3169;ConvF(4.52, 4.52, 4.52) @ 2450 MHz;Calibrated: 2020/5/27 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2020/9/16 - Phantom: SAM_Left; Type: SAM; Serial: 1796 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 16.8 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 99.72 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 24.7 W/kg SAR(1 g) = 12.6 W/kg; SAR(10 g) = 6.01 W/kg Maximum value of SAR (measured) = 16.4 W/kg 0 dB = 16.4 W/kg = 12.15 dBW/kg

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/4/24 #01_CAT M1 LTE Band 2_20M_QPSK_3_3_Right Side_5mm_Ch18700 Communication System: LTE; Frequency: 1860 MHz;Duty Cycle: 1:1 Medium: HSL_1900_210424 Medium parameters used: f = 1860 MHz; σ = 1.361 S/m; ε r = 39.852; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306; ConvF(8.06, 8.06, 8.06) @ 1860 MHz; Calibrated: 2020/7/24 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn699; Calibrated: 2021/2/16 - Phantom: SAM_Right; Type: SAM; Serial: TP:1446 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (41x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.052 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.839 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.084 W/kg SAR(1 g) = 0.032 W/kg; SAR(10 g) = 0.015 W/kg Maximum value of SAR (measured) = 0.057 W/kg 0 dB = 0.057 W/kg = -12.44 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/4/24 #02_CAT M1 LTE Band 4_20M_QPSK_3_3_Right Side_5mm_Ch20050 Communication System: LTE; Frequency: 1720 MHz;Duty Cycle: 1:1 Medium: HSL_1750_210424 Medium parameters used: f = 1720 MHz; σ = 1.337 S/m; ε r = 40.452; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306; ConvF(8.35, 8.35, 8.35) @ 1720 MHz; Calibrated: 2020/7/24 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn699; Calibrated: 2021/2/16 - Phantom: SAM_Right; Type: SAM; Serial: TP:1446 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (41x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.037 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.38 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.06 W/kg SAR(1 g) = 0.024 W/kg; SAR(10 g) = 0.011 W/kg Maximum value of SAR (measured) = 0.041 W/kg 0 dB = 0.041 W/kg = -13.87 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/4/24 #03_CAT M1 LTE Band 12_5M_QPSK_3_3_Right Side_5mm_Ch23155 Communication System: LTE; Frequency: 713.5 MHz;Duty Cycle: 1:1 Medium: HSL_750_210424 Medium parameters used: f = 713.5 MHz; σ = 0.858 S/m; ε r = 43.08; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306;ConvF(9.92, 9.92, 9.92) @ 713.5 MHz;Calibrated: 2020/7/24 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn699; Calibrated: 2021/2/16 - Phantom: SAM_Right; Type: SAM; Serial: TP:1446 - Measurement SW: DASY52, Version 52.10 (1);SEMCAD X Version 14.6.14 (7483) Area Scan (41x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.103 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.279 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 0.202 W/kg SAR(1 g) = 0.059 W/kg; SAR(10 g) = 0.023 W/kg Maximum value of SAR (measured) = 0.107 W/kg 0 dB = 0.107 W/kg = -9.71 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/4/27 #04_WLAN2.4GHz_802.11b 1Mbps_Front_5mm_Ch1 Communication System: 802.11b ; Frequency: 2412 MHz;Duty Cycle: 1:1.012 Medium: HSL_2450_210427 Medium parameters used: f = 2412 MHz; σ = 1.777 S/m; ε r = 40.365; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3169;ConvF(4.52, 4.52, 4.52) @ 2412 MHz;Calibrated: 2020/5/27 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2020/9/16 - Phantom: SAM_Left; Type: SAM; Serial: 1796 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (51x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.107 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.823 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 0.153 W/kg SAR(1 g) = 0.079 W/kg; SAR(10 g) = 0.036 W/kg Maximum value of SAR (measured) = 0.0988 W/kg 0 dB = 0.0988 W/kg = -10.05 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/4/27 #05_Bluetooth_LE-1Mbps_Front_5mm_Ch00 Communication System: Bluetooth; Frequency: 2402 MHz;Duty Cycle: 1:1.316 Medium: HSL_2450_210427 Medium parameters used: f = 2402 MHz; σ = 1.767 S/m; ε r = 40.402; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3169;ConvF(4.52, 4.52, 4.52) @ 2402 MHz;Calibrated: 2020/5/27 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2020/9/16 - Phantom: SAM_Left; Type: SAM; Serial: 1796 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (61x91x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.00588 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 0 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 0.0170 W/kg SAR(1 g) = 0.00293 W/kg; SAR(10 g) = 0.000704 W/kg Maximum value of SAR (measured) = 0.00395 W/kg 0 dB = 0.00395 W/kg = -24.03 dBW/kg

~ .. : In Collaboratio wi -TTL s P e a g CALIBRATION 11.ABORATORY Add: No.SI Xueyuan Road, Haidian District, Beijing, 100191, China Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Client Sporton Certificate No: 219-60054 CALIBRATION CERTIFICATE Object D750V3 - SN: 1107 Calibration Procedure(s) FF-211-003-01 Calibration Procedures for dipole validation kits Calibration date: March 8, 2019 This calibration Certificate documents the traceability to national standards, which realize the physical units of measurements(SI). The measurements and the uncertainties with confidence probability are given on the following pages and are part of the certificate. All calibrations have been conducted in the closed laboratory facility: environment temperature(22±3)'C and humidity<70%. Calibration Equipment used (M&TE critical for calibration) Primary Standards Power Meter NRP2 Power sensor NRP8S Reference Probe EX3DV4 DAE4 Secondary Standards Signal Generator E4438C NetworkAnalyzer E5071 C Calibrated by: Reviewed by: Approved by: ID# Cal Date(Calibrated by, Certificate No.) Scheduled Calibration 106277 20-Aug-18 (CTTL, No.J18X06862) Aug-19 104291 20-Aug-18 (CTIL, No.J18X06862) Aug-19 SN 3617 31-Jan-19(SPEAG,No.EX3-3617 _Jan19) Jan-20 SN 1331 06-Feb-19(SPEAG,No.DAE4-1331_Feb19) Feb-20 ID# Cal Date(Calibrated by, Certificate No.) MY49071430 23-Jan-19 (CTTL, No.J19X00336) MY46110673 24-Jan-19 (CTTL, No.J19X00547) Name Function Zhao Jing SAR Test Engineer Yu Zongying SAR Test Engineer Qi Dianyuan SAR Project Leader Scheduled Calibration Jan-20 Jan-20 Sigrn:iture T/,-· - --£-' - -:4-~;., - ~ Issued: March 10, 2019 This calibration certificate shall not be reproduced except in full without written approval of the laboratory. Certificate No: Z19-60054 Page I of8 ~ -TTL In Col aboratio wi s p e a g CALIBRATION lABORA.TOln' Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mail: [email protected] http: //www.chinattl.cn Glossary: TSL ConvF N/A tissue simulating liquid sensitivity in TSL / NORMx,y,z not applicable or not measured Calibration is Performed According to the Following Standards: a) IEEE Std 1528-2013, "IEEE Recommended Practice for Determining the Peak Spatial-Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques", June 2013 b) IEC 62209-1, "Measurement procedure for assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices-Part 1: Device used next to the ear (Frequency range of 300MHz to 6GHz)", July 2016 c) IEC 62209-2, "Procedure to measure the Specific Absorption Rate (SAR) For wireless communication devices used in close proximity to the human body (frequency range of 30MHz to 6GHz)", March 2010 d) KDB865664, SAR Measurement Requirements for 100 MHz to 6 GHz Additional Documentation: e) DASY4/5 System Handbook Methods Applied and Interpretation of Parameters: • Measurement Conditions: Further details are available from the Validation Report at the end of the certificate. All figures stated in the certificate are valid at the frequency indicated. • Antenna Parameters with TSL: The dipole is mounted with the spacer to position its feed point exactly below the center marking of the flat phantom section, with the arms oriented parallel to the body axis. • Feed Point Impedance and Return Loss: These parameters are measured with the dipole positioned under the liquid filled phantom. The impedance stated is transformed from the measurement at the SMA connector to the feed point. The Return Loss ensures low reflected power. No uncertainty required. • Electrical Delay: One-way delay between the SMA connector and the antenna feed point. No uncertainty required. • SAR measured: SAR measured at the stated antenna input power. • SAR normalized: SAR as measured, normalized to an input power of 1 Wat the antenna connector. • SAR for nominal TSL parameters: The measured TSL parameters are used to calculate the nominal SAR result. The reported uncertainty of measurement is stated as the standard uncertainty of Measurement multiplied by the coverage factor k=2, which for a normal distribution Corresponds to a coverage probability of approximately 95%. Certificate No: Z 19-60054 Page 2 of8 In Col aboratio wi s p e a g CAUBRA: ON LABORATORY Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mail: [email protected] http: //www.chinattl.cn Measurement Conditions D S f f A Y system con iguration, as ar as no a1ven on oaae t . DASY Version DASY52 52.10.2.1495 Extrapolation Advanced Extrapolation Phantom Triple Flat Phantom 5.1 C Distance Dipole Center -TSL 15 mm with Spacer Zoom Scan Resolution dx, dy, dz = 5 mm Frequency 750 MHz ± 1 MHz Head TSL parameters Th ill. t d I If e o owmq parame ers an ca cu a ions were app 1e . r d Temperature Permittivity Conductivity Nominal Head TSL parameters 22.0 °C 41.9 0.89 mho/m Measured Head TSL parameters (22.0 ± 0.2) °C 43.1 ± 6 % 0.86 mho/m ± 6 % Head TSL temperature change during test <1.0 °C ---- ---- SAR result with Head TSL SAR averaged over 1 cm 3 (1 g) of Head TSL Condition SAR measured 250 mW input power 2.02 W/kg SAR for nominal Head TSL parameters normalized to 1W 8.32 W/kg ± 18.8 % (k=2) SAR averaged over 10 cm 3 (10 g) of Head TSL Condition SAR measured 250 mW input power 1.37 W/kg SAR for nominal Head TSL parameters normalized to 1 W 5.61 W/kg ± 18.7 % (k=2) Body TSL parameters Thfll' t dllf e o owmq parame ers an ca cu a ions were aoo11e . r d Temperature Permittivity Conductivity Nominal Body TSL parameters 22.0 °C 55.5 0.96 mho/m Measured Body TSL parameters (22.0 ± 0.2) °C 54.8 ±6 % 0.94 mho/m ± 6 % Body TSL temperature change during test <1.0 °C -------- SAR It "th B d TSL resu WI O IY SAR averaged over 1 cm 3 (1 g) of Body …

Text truncated - open the document above for the full version.

TEL : 886-3-327-3456 Page 1 of 27 FAX : 886-3-328-4978 Issued Date : May 11, 2021 Template version: 200414 FCC SAR TEST REPORT Report No. : FA133133 FCC SAR TEST REPORT FCC ID : XNAWPM06 Equipment : Withings BPM Connect Pro Brand Name : Withings Model Name : WPM06 Applicant : Withings SA 2 rue Maurice Hartmann 92130 Issy-Les-Moulineaux France Manufacturer : Withings SA 2 rue Maurice Hartmann 92130 Issy-Les-Moulineaux France Standard : FCC 47 CFR Part 2 (2.1093) The product was received on Apr. 16, 2021 and testing was started from Apr. 24, 2021 and completed on Apr. 27, 2021. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample provide by manufacturer and the test data has been evaluated in accordance with the test procedures given in 47 CFR Part 2.1093 and FCC KDB and has been pass the FCC requirement. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. Sporton International Inc. EMC & Wireless Communications Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page 2 of 27 FAX : 886-3-328-4978 Issued Date : May 11, 2021 Template version: 200414 FCC SAR TEST REPORT Report No. : FA133133 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Guidance Applied .......................................................................................................................................................... 4 3. Equipment Under Test (EUT) Information ................................................................................................................... 5 3.1 General Information ............................................................................................................................................... 5 3.2 General LTE SAR Test and Reporting Considerations ........................................................................................... 6 4. RF Exposure Limits....................................................................................................................................................... 7 4.1 Uncontrolled Environment ...................................................................................................................................... 7 4.2 Controlled Environment .......................................................................................................................................... 7 5. Specific Absorption Rate (SAR) ................................................................................................................................... 8 5.1 Introduction ............................................................................................................................................................ 8 5.2 SAR Definition ........................................................................................................................................................ 8 6. System Description and Setup .................................................................................................................................... 9 6.1 Test Site Location ................................................................................................................................................... 9 6.2 E-Field Probe ........................................................................................................................................................10 6.3 Data Acquisition Electronics (DAE) .........................................…

Text truncated - open the document above for the full version.
