XNAWUP01Data Hub

EN Plug the data hub into an outlet using the provided power supply. After the LED turns green (after max. 10 minutes), you can use your Withings devices normally. FR Branchez le boitier à une prise murale en utilisant l’adaptateur fourni. Après que la lumière est devenue verte (max. 10 minutes), utilisez vos produits Withings normalement. DE Verbinden Sie die Box anhand des mitgelieferten Netzteils mit einer Steckdose. Nachdem das Licht grün geworden ist (max. 10 Minuten), verwenden Sie Ihre Withings-Produkte normal. IT Collegare la scatola a una presa usando l’alimentatore fornito. Dopo che la luce è diventata verde (max. 10 minuti), usa normalmente i suoi prodotti Withings. ES Utiliza el adaptador suministrado para enchufar el sensor a una toma de corriente. Después de que la luz se haya puesto verde (máx. 10 minutos), use sus productos Withings normalmente. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Important note: Radiation Exposure Statement The product comply with the US portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Country Code selection feature to be disabled for products marketed to the US. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Federal Communication Commission Interference Statement EN Withings SA, hereby declares that the device Withings Data Hub is in conformity with the essential require- ments and other relevant requirements of Directive 2014/53/EU. The declaration of conformity can be found at: Withings.com/compliance FR Par la présente, Withings SA, déclare que l’appareil Withings Data Hub est conforme aux exigences essentielles et aux autres dispositions pertinentes de la Directive 2014/53/EU. La déclaration de conformité peut être consultée sur le site : Withings.com/compliance DE Hiermit erklärt Withings SA, dass sich das Gerät Withings Data Hub den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 2014/53/EU entspricht. Die EG-Konformitätserklärung können Sie über das Internet herunterladen: Withings.com/compliance ES Por la presente, Withings SA, declara que el Withings Data Hub cumple con los requisitos esenciales y otras disposiciones relevantes de la Directiva 2014/53/EU. La declaración de conformidad se puede encontrar en: Withings.com/compliance IT Con la presente Withings SA, dichiara che questo Withings Data Hub è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 2014/53/EU. La dichiarazione di conformità è disponibile all’indirizzo: Withings.com/compliance PT Withings SA, declara que este Withings Data Hub está conforme com os requisitos essenciais e outras disposições da Directiva 2014/53/EU. A Declaração de Conformidade pode ser encontrada em: Withings.com/ compliance Mode 802.11 b/g/n BT-LE BT EDR Frequency Band (MHz) 2400-2483.5 2402-2480 2402-2480 Maximum Output Power (dBm) 24.38 7.99 -6.47 Withings Data Hub - Model: WUP01 - V 1.0 © 2020 Withings SA. All rights reserved. 2 rue Maurice Hartmann, 92130 Issy-les-Moulineaux, FRANCE QIG_WUP01_002 This guide is available in additional languages at: www.withings.com/guides Warranty information is available at: www.withings.com/legal/warranty Need help? www.withings.com/support/datahub

Withings SA 2 rue Maurice Hartmann 92130 Issy-les-Moulineaux France Date: 2020/4/23 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: XNAWUP01 To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model WUP01 to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Dist., TaoYuan City 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Withings SA Address : 2 rue Maurice Hartmann 92130 Issy-les-Moulineaux France Signature : _________________________________ Name and Job Title. : Xavier Debreuil / Product Director E-mail : [email protected] Tel. : +33141460460

Date: May 28, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: XNAWUP01 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180 days from the day of the grant. ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics ☒ Operational Description ☒ Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter.

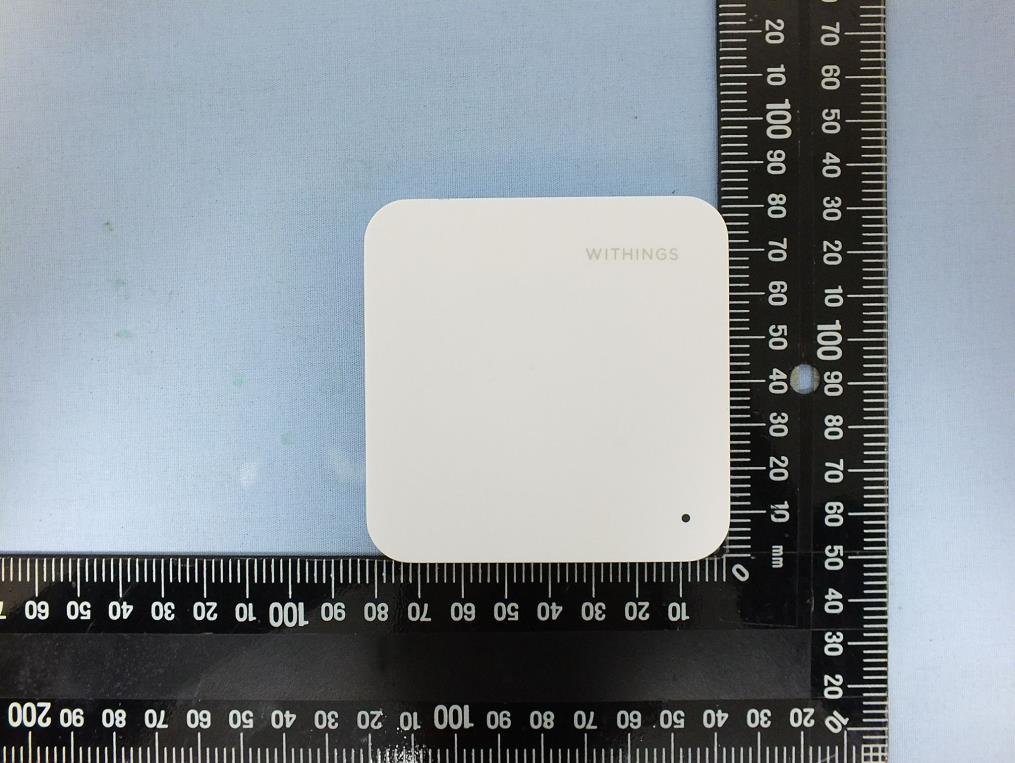

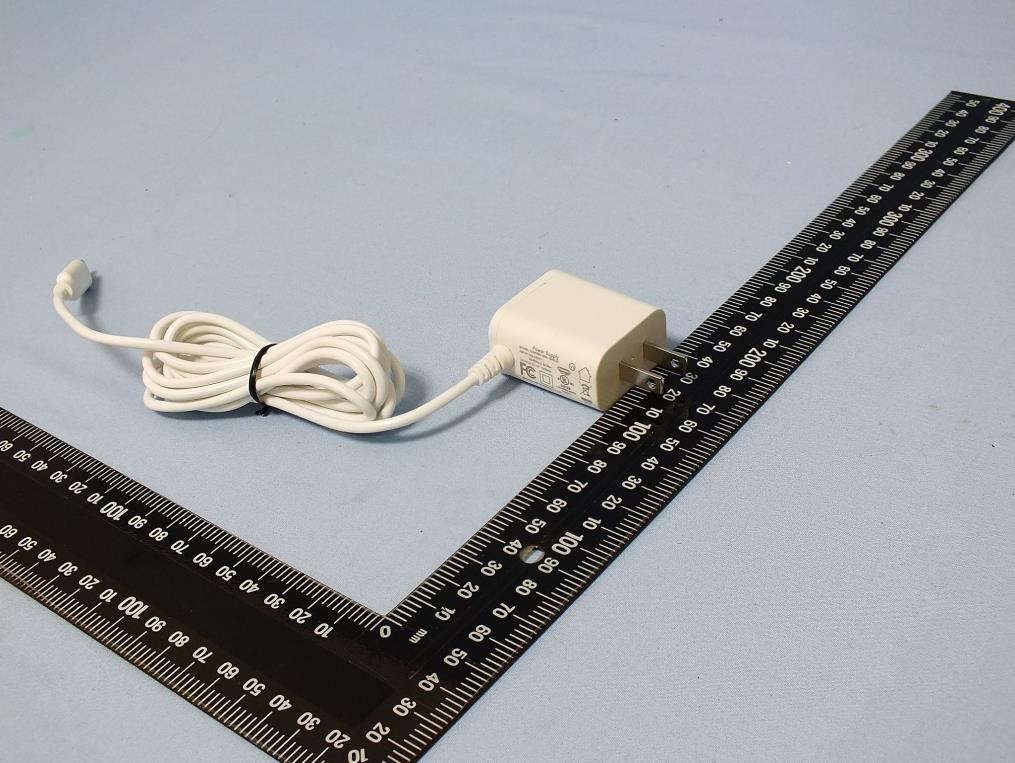

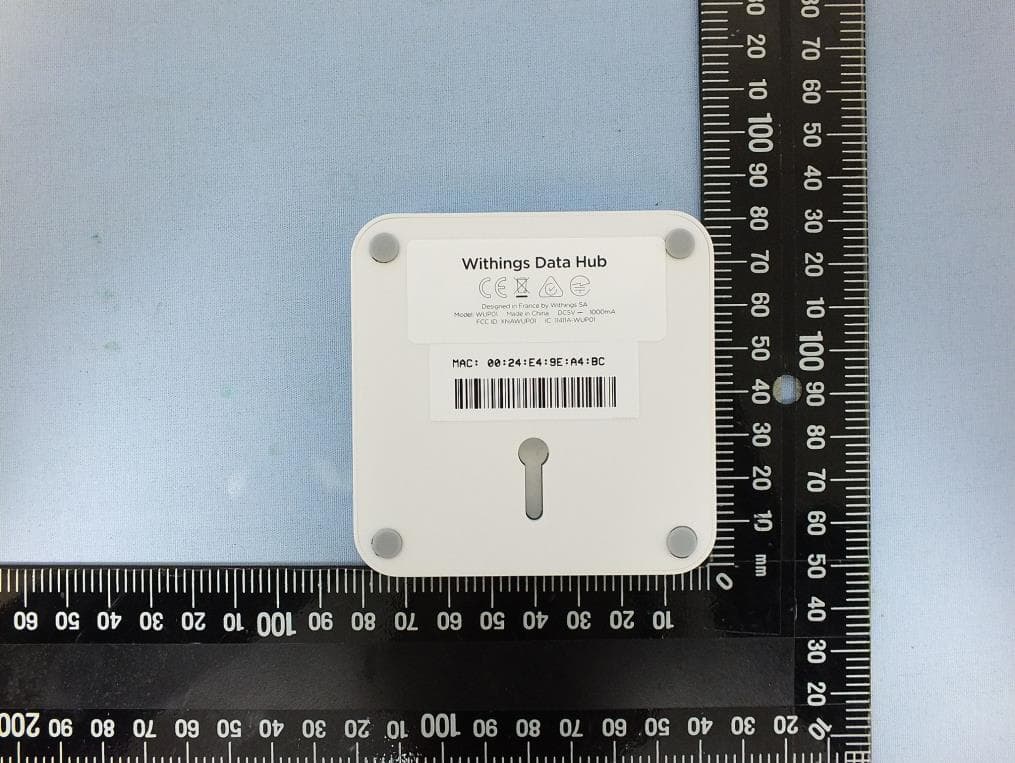

Project No.: 9D2301-01 Page No. : 1 of 11 Photographs of EUT Project No.: 9D2301-01 Page No. : 2 of 11 Project No.: 9D2301-01 Page No. : 3 of 11 Project No.: 9D2301-01 Page No. : 4 of 11 Project No.: 9D2301-01 Page No. : 5 of 11 Project No.: 9D2301-01 Page No. : 6 of 11

FCC ID: XNAWUP01 IC: 11411A-WUP01

Project No.: 9D2301-01 Page No. : 7 of 11 Project No.: 9D2301-01 Page No. : 8 of 11 Project No.: 9D2301-01 Page No. : 9 of 11 Project No.: 9D2301-01 Page No. : 10 of 11 Project No.: 9D2301-01 Page No. : 11 of 11

TEL : 886-3-327-3456 Page 1 of 91 FAX : 886-3-328-4978 Issued Date : May 27, 2020 Template version: 200414 FCC SAR TEST REPORT Report No. : FA031828 FCC SAR TEST REPORT FCC ID : XNAWUP01 Equipment : Data Hub Brand Name : Withings Model Name : WUP01 Applicant : Withings SA 2 rue Maurice Hartmann 92130 Issy-Les-Moulineaux France Manufacturer : Withings SA 2 rue Maurice Hartmann 92130 Issy-Les-Moulineaux France Standard : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2013 The product was received on Apr. 27, 2020 and testing was started from Apr. 30, 2020 and completed on May 08, 2020. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of government. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page 2 of 91 FAX : 886-3-328-4978 Issued Date : May 27, 2020 Template version: 200414 FCC SAR TEST REPORT Report No. : FA031828 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Guidance Applied .......................................................................................................................................................... 4 3. Equipment Under Test (EUT) Information ................................................................................................................... 5 3.1 General Information ............................................................................................................................................... 5 4. RF Exposure Limits....................................................................................................................................................... 6 4.1 Uncontrolled Environment ...................................................................................................................................... 6 4.2 Controlled Environment .......................................................................................................................................... 6 5. Specific Absorption Rate (SAR) ................................................................................................................................... 7 5.1 Introduction ............................................................................................................................................................ 7 5.2 SAR Definition ........................................................................................................................................................ 7 6. System Description and Setup .................................................................................................................................... 8 6.1 E-Field Probe ......................................................................................................................................................... 9 6.2 Data Acquisition Electronics (DAE) ........................................................................................................................ 9 6.3 Phantom ................................................................................................................................................................10 6.4 Device Holder........................................................................................................................................................ 11 7. Measurement Procedures ...........................................................................................................................................12 7.1 Spatial Peak SAR Evaluation ................................................................................................................................12 7.2 Power Reference Measurement............................................................................................................................13 7.3 Area Scan .............................................................................................................................................................13 7.4 Zoom Scan ............................................................................................................................................................14 7.5 Volume Scan Procedures ......................................................................................................................................14 7.6 Power Drift Monitoring ...........................................................................................................................................14 8. Test Equipment List .....................................................................................................................................................15 9. System Verification ......................................................................................................................................................16 9.1 Tissue Simulating Liquids ......................................................................................................................................16 9.2 Tissue Verification .................................................................................................................................................17 9.3 System Performance Check Results ...............................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/4/30 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW ; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_200430 Medium parameters used: f = 750 MHz; σ = 0.887 S/m; ε r = 40.616; ρ = 1000 kg/m 3 Ambient Temperature：23.8 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: ES3DV3 - SN3184; ConvF(6.61, 6.61, 6.61) @ 750 MHz; Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn916; Calibrated: 2019/12/17 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1684 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.31 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 52.28 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 2.72 W/kg SAR(1 g) = 1.99 W/kg; SAR(10 g) = 1.36 W/kg Maximum value of SAR (measured) = 2.27 W/kg 0 dB = 2.27 W/kg = 3.56 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/3 System Check_Head_835MHz DUT: D835V2-4d167 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_200503 Medium parameters used: f = 835 MHz; σ = 0.933 S/m; ε r = 42.602; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: ES3DV3 - SN3184; ConvF(6.41, 6.41, 6.41) @ 835 MHz; Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn916; Calibrated: 2019/12/17 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1684 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.68 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.58 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 3.21 W/kg SAR(1 g) = 2.29 W/kg; SAR(10 g) = 1.54 W/kg Maximum value of SAR (measured) = 2.64 W/kg 0 dB = 2.64 W/kg = 4.22 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/4 System Check_Head_1750MHz DUT: D1750V2-1112 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_200504 Medium parameters used: f = 1750 MHz; σ = 1.385 S/m; ε r = 41.221; ρ = 1000 kg/m 3 23.2 22.2 DASY5 Configuration: - Probe: ES3DV3 - SN3169; ConvF(5.34, 5.34, 5.34) @ 1750 MHz; Calibrated: 2019/5/24 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn699; Calibrated: 2020/2/26 - Phantom: SAM_Left; Type: SAM; Serial: 1796 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 10.8 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 91.19 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 15.0 W/kg SAR(1 g) = 8.55 W/kg; SAR(10 g) = 4.6 W/kg Maximum value of SAR (measured) = 10.7 W/kg 0 dB = 10.7 W/kg = 10.29 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/8 System Check_Head_1750MHz DUT: D1750V2-1112 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_200508 Medium parameters used: f = 1750 MHz; σ = 1.378 S/m; ε r = 41.929; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(8.55, 8.55, 8.55) @ 1750 MHz; Calibrated: 2019/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn853; Calibrated: 2019/7/18 - Phantom: SAM-Middle; Type: SAM; Serial: TP-1503 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 13.2 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 101.7 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 15.4 W/kg SAR(1 g) = 8.81 W/kg; SAR(10 g) = 4.77 W/kg Maximum value of SAR (measured) = 13.2 W/kg 0 dB = 13.2 W/kg = 11.21 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/4 System Check_Head_1900MHz DUT: D1900V2-5d185 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_200504 Medium parameters used: f = 1900 MHz; σ = 1.438 S/m; ε r = 41.026; ρ = 1000 kg/m 3 23.2 22.2 DASY5 Configuration: - Probe: ES3DV3 - SN3169; ConvF(5.14, 5.14, 5.14) @ 1900 MHz; Calibrated: 2019/5/24 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn699; Calibrated: 2020/2/26 - Phantom: SAM_Left; Type: SAM; Serial: 1796 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 12.4 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 95.73 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 17.5 W/kg SAR(1 g) = 9.77 W/kg; SAR(10 g) = 5.13 W/kg Maximum value of SAR (measured) = 12.2 W/kg 0 dB = 12.2 W/kg = 10.86 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/8 System Check_Head_1900MHz DUT: D1900V2-5d041 Communication System: CW ; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_200508 Medium parameters used: f = 1900 MHz; σ = 1.433 S/m; ε r = 40.08; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(8.18, 8.18, 8.18) @ 1900 MHz; Calibrated: 2019/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn853; Calibrated: 2019/7/18 - Phantom: SAM-Middle; Type: SAM; Serial: TP-1503 - Measurement SW: DASY52, Version 52.10 (4);S…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/4/30 #01_LTE Band 12_10M_QPSK_1_0_Front_15mm_Ch23095 Communication System: LTE; Frequency: 707.5 MHz;Duty Cycle: 1:1 Medium: HSL_750_200430 Medium parameters used: f = 707.5 MHz; σ = 0.874 S/m; ε r = 40.706; ρ = 1000 kg/m 3 Ambient Temperature：23.8 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: ES3DV3 - SN3184; ConvF(6.61, 6.61, 6.61) @ 707.5 MHz; Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn916; Calibrated: 2019/12/17 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1684 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0262 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.867 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 0.0280 W/kg SAR(1 g) = 0.022 W/kg; SAR(10 g) = 0.016 W/kg Maximum value of SAR (measured) = 0.0249 W/kg 0 dB = 0.0249 W/kg = -16.04 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/4/30 #02_LTE Band 13_10M_QPSK_1_0_Front_15mm_Ch23230 Communication System: LTE; Frequency: 782 MHz;Duty Cycle: 1:1 Medium: HSL_750_200430 Medium parameters used: f = 782 MHz; σ = 0.897 S/m; ε r = 40.556; ρ = 1000 kg/m 3 Ambient Temperature：23.8 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: ES3DV3 - SN3184; ConvF(6.61, 6.61, 6.61) @ 782 MHz; Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn916; Calibrated: 2019/12/17 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1684 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0278 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.904 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 0.0300 W/kg SAR(1 g) = 0.023 W/kg; SAR(10 g) = 0.016 W/kg Maximum value of SAR (measured) = 0.0261 W/kg 0 dB = 0.0261 W/kg = -15.83 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/4/30 #03_LTE Band 14_10M_QPSK_1_0_Front_15mm_Ch23330 Communication System: LTE; Frequency: 793 MHz;Duty Cycle: 1:1 Medium: HSL_750_200430 Medium parameters used: f = 793 MHz; σ = 0.901 S/m; ε r = 40.511; ρ = 1000 kg/m 3 Ambient Temperature：23.8 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: ES3DV3 - SN3184; ConvF(6.61, 6.61, 6.61) @ 793 MHz; Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn916; Calibrated: 2019/12/17 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1684 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0275 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.975 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.0300 W/kg SAR(1 g) = 0.024 W/kg; SAR(10 g) = 0.017 W/kg Maximum value of SAR (measured) = 0.0262 W/kg 0 dB = 0.0262 W/kg = -15.82 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/4 #04_LTE Band 25_20M_QPSK_3_0_Front_15mm_Ch26140 Communication System: LTE; Frequency: 1860 MHz;Duty Cycle: 1:1 Medium: HSL_1900_200504 Medium parameters used: f = 1860 MHz; σ = 1.397 S/m; ε r = 41.187; ρ = 1000 kg/m 3 23.2 22.2 DASY5 Configuration: - Probe: ES3DV3 - SN3169; ConvF(5.14, 5.14, 5.14) @ 1860 MHz; Calibrated: 2019/5/24 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn699; Calibrated: 2020/2/26 - Phantom: SAM_Left; Type: SAM; Serial: 1796 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.192 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 0.9400 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.356 W/kg SAR(1 g) = 0.217 W/kg; SAR(10 g) = 0.122 W/kg Maximum value of SAR (measured) = 0.262 W/kg 0 dB = 0.262 W/kg = -5.82 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/3 #05_LTE Band 26_10M_QPSK_4_2_Front_15mm_Ch26740 Communication System: LTE; Frequency: 819 MHz;Duty Cycle: 1:1 Medium: HSL_850_200503 Medium parameters used: f = 819 MHz; σ = 0.922 S/m; ε r = 42.699; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: ES3DV3 - SN3184; ConvF(6.41, 6.41, 6.41) @ 819 MHz; Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn916; Calibrated: 2019/12/17 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1684 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0331 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.437 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.0370 W/kg SAR(1 g) = 0.029 W/kg; SAR(10 g) = 0.020 W/kg Maximum value of SAR (measured) = 0.0320 W/kg 0 dB = 0.0320 W/kg = -14.95 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/3 #06_LTE Band 26_15M_QPSK_1_0_Front_15mm_Ch26915 Communication System: LTE; Frequency: 836.5 MHz;Duty Cycle: 1:1 Medium: HSL_850_200503 Medium parameters used: f = 836.5 MHz; σ = 0.934 S/m; ε r = 42.594; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: ES3DV3 - SN3184; ConvF(6.41, 6.41, 6.41) @ 836.5 MHz; Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn916; Calibrated: 2019/12/17 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:168…

Text truncated - open the document above for the full version.

~ .. : In Collaboratio wi -TTL s P e a g CALIBRATION 11.ABORATORY Add: No.SI Xueyuan Road, Haidian District, Beijing, 100191, China Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Client Sporton Certificate No: 219-60054 CALIBRATION CERTIFICATE Object D750V3 -SN: 1107 Calibration Procedure(s) FF-211-003-01 Calibration Procedures for dipole validation kits Calibration date: March 8, 2019 This calibration Certificate documents the traceability to national standards, which realize the physical units of measurements(SI). The measurements and the uncertainties with confidence probability are given on the following pages and are part of the certificate. All calibrations have been conducted in the closed laboratory facility: environment temperature(22±3)'C and humidity<70%. Calibration Equipment used (M&TE critical for calibration) Primary Standards Power Meter NRP2 Power sensor NRP8S Reference Probe EX3DV4 DAE4 Secondary Standards Signal Generator E4438C NetworkAnalyzer E5071 C Calibrated by: Reviewed by: Approved by: ID# Cal Date(Calibrated by, Certificate No.) Scheduled Calibration 106277 20-Aug-18 (CTTL, No.J18X06862) Aug-19 104291 20-Aug-18 (CTIL, No.J18X06862) Aug-19 SN 3617 31-Jan-19(SPEAG,No.EX3-3617 _Jan19) Jan-20 SN 1331 06-Feb-19(SPEAG,No.DAE4-1331_Feb19) Feb-20 ID# Cal Date(Calibrated by, Certificate No.) MY49071430 23-Jan-19 (CTTL, No.J19X00336) MY46110673 24-Jan-19 (CTTL, No.J19X00547) Name Function Zhao Jing SAR Test Engineer Yu Zongying SAR Test Engineer Qi Dianyuan SAR Project Leader Scheduled Calibration Jan-20 Jan-20 Sigrn:iture T/,-· ---£-' - -:4-~;., - ~ Issued: March 10, 2019 This calibration certificate shall not be reproduced except in full without written approval of the laboratory. Certificate No: Z19-60054 Page I of8 ~ -TTL In Col aboratio wi s p e a g CALIBRATION lABORA.TOln' Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 E-mail: [email protected] http: //www.chinattl.cn Glossary: TSL ConvF N/A tissue simulating liquid sensitivity in TSL / NORMx,y,z not applicable or not measured Calibration is Performed According to the Following Standards: a) IEEE Std 1528-2013, "IEEE Recommended Practice for Determining the Peak Spatial-Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques", June 2013 b) IEC 62209-1, "Measurement procedure for assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices-Part 1: Device used next to the ear (Frequency range of 300MHz to 6GHz)", July 2016 c) IEC 62209-2, "Procedure to measure the Specific Absorption Rate (SAR) For wireless communication devices used in close proximity to the human body (frequency range of 30MHz to 6GHz)", March 2010 d) KDB865664, SAR Measurement Requirements for 100 MHz to 6 GHz Additional Documentation: e) DASY4/5 System Handbook Methods Applied and Interpretation of Parameters: • Measurement Conditions: Further details are available from the Validation Report at the end of the certificate. All figures stated in the certificate are valid at the frequency indicated. • Antenna Parameters with TSL: The dipole is mounted with the spacer to position its feed point exactly below the center marking of the flat phantom section, with the arms oriented parallel to the body axis. • Feed Point Impedance and R…
