XNBTX7Digital Clock(TX)

1/3 User manual I. Features When power is on, please do not operate it at the first three minutes for its initialization phase. 1. 11 function keys: MODE, SET, UP ,C/F, DOWN, ZONE, ▼,HIS, MEM, CH, and SNOOZE/ LIGHT. 2. Indoor temperature range: 0 o C----50 o C; Indoor humidity range: 20%-----99% 3. Outdoor temperature range: -20 o C----60 o C; Outdoor humidity range: 20%-----99% 4. Indoor/outdoor half round graph display shows the status of temperature/humidity measurement. 5. Indoor/outdoor trend indication of temperature/humidity. 6. Weather forecast: sunny, semi-sunny, cloudy, rainy, rainstorm. 7. Air pressure record of last 12 hours. 8. Max/min value record of indoor/outdoor temperature and humidity. 9. Indoor comfort index: dry, comfort, wet 10. Temperature display format selectable o C/ o F. 11. Single alarm II. Start-up and reset 1. When first start-up or reset, all of the icons and digits of the LCD will display for 3 seconds. It will then beep once and enter standard display mode. The clock will automatically detect the temperature and humidity afterwards for 3 minutes. Remark: Setting the air pressure: When batteries are first fitted or renewed the air pressure is shown at sea level value. Input your current local Air pressure value (you may be able to get this from your local weather TV channel, broadcast or geographic Data ). The weather icon will change accordingly to forecast the weather for the next six to twelve hours. III. Button functions Function Operation MODE SET UP or C/F DOWN, ▼ or ZONE HIS SNOOZE/ LIGHT MEM Click Check alarm time Check month/day; Switch on/off alarm °C/°F switchable Zone switchable +1, +2 -1 View air pressure record Back light /Enter snooze state Display max/ min records standard mode Hold -------- Enter time and alarm setting --------- --------- Enter pressure setting --------- Clear max/ min records Click -------- Confirm setting One step advance One step backward --------- --------- --------- Time setting Hold -------- --------- 8 steps advance per second 8 steps backward per second --------- --------- --------- 2/3 Click -------- Confirm setting, turn on alarm One step advance One step backward --------- --------- --------- Alarm setting Hold -------- --------- 8 steps advance per second 8 steps backward per second --------- --------- --------- Click -------- --------- One step advance One step backward Confirm setting --------- --------- Pressure setting Hold -------- --------- 8 steps advance per second 8 steps backward per second ---------- --------- --------- IV. Operations 1. Button function 1) MODE: Click “MODE” key to check alarm. 2) SET: a. Click “SET” key to check month, day, date and week. b. Under time or alarm mode, hold “SET” key for 2 seconds to enter into time or alarm setting mode, the sections being set will flash in the frequency of 1 Hz/second, press “UP” or “DOWN” to choose the value needed, then press “SET” key to confirm the setting. 3) UP or C/F a. Under setting mode, click “UP” key to adjust one step (forward). b. Under standard mode, press “C/F” key to switch °C and °F. 4) DOWN, ▼ or ZONE a. Under setting mode, click “DOWN or ▼” key to adjust one step (backward). b. Under standard mode, press “ZONE” key to switch four time zone: current—--zone+1—--zone+2—--zone-1 5) HIS: Under standard mode, clicking to check the air pressure record of past 12 hours. 6) SNOOZE.LIGHT: a. Under standard mode, press it for 30 seconds backlight. b. When the alarm is ringing, click it to pause the alarm, and enter 5 minutes of snooze function. 7) MEM: a. Click it to display MAX value of indoor/outdoor temperature and humidity for 5 seconds. Click once again to display the Min values for 5 seconds, click again to return to standard mode. b. When it displays the Max or Min values, hold it key for 2 seconds to clear out the memory of the Max/Min values, then return to normal standard state. 2. Time settings 1) Under time mode, hold “SET” key for 2 seconds to enter into time setting. The setting sequence is hour ---- minute ---- year ---- the order of Day/Month ---- Month ---- 12/24 format ---- exit. 2) It will exit setting if no key was operated within 20 seconds. 3. Alarm settings 1) Under alarm mode, hold “SET” for 2 seconds to enter into alarm setting. The sequence is hour----minute----exit. 2) It will exit setting if no key was operated within 20 second. 3) Enter into alarm setting, the alarm turns on automatically. 3/3 4) BUZZER alarm format: 2 minutes totally: 0 ~ 20 seconds: 2 beeps per second 21 ~ 40 seconds: 4 beeps per second 41 ~ 120 seconds: beeps continuously. 5) When alarm rings, press SNOOZE/LIGHT key to pause the alarm, and enter 5 minutes of snooze function. Press other key to exit alarm. 4. Air pressure setting 1) Hold “HIS” for 2 seconds to enter into air pressure setting mode. Select unit between mb hpa or inHg With UP/DOWN key----press HIS to set altitude----exit. 2) It will exit setting if no key was operated within 20 seconds. V. RF Receiving mode 1. After inserting the battery and detecting temperature and humidity, it will enter into RF receiving for 3 minutes. 2. Under standard mode, hold CH for 2 seconds, forcibly clean current display channel’s register and a new register. 3. If registered CH temperature didn’t receive valid signal from same ID code within 60 minutes, this CH temperature will be deleted, and show “--.-’. 4. When temperature is lost, when receive the signal again, it will resume temperature display. FCC warnings This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limit…

Text truncated - open the document above for the full version.

FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Fuzhou Rise Electronic Co., Ltd. Addresss Bldg 15, Zone C, Pushang Industial Area, No.6, Hongjiang RD, Fuzhou City Fujian Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: XNB TX7 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Turn up produrce Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Fujian 2014 -5-25 MARK WANG Manager

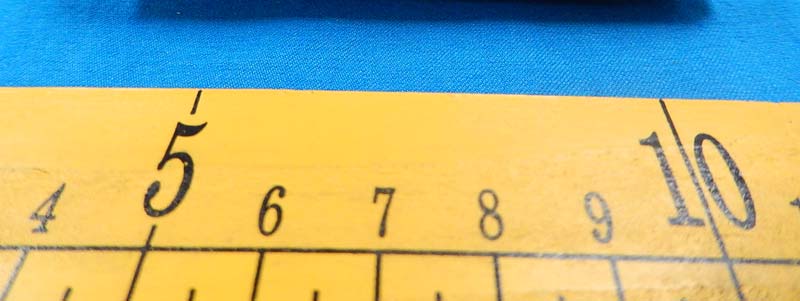

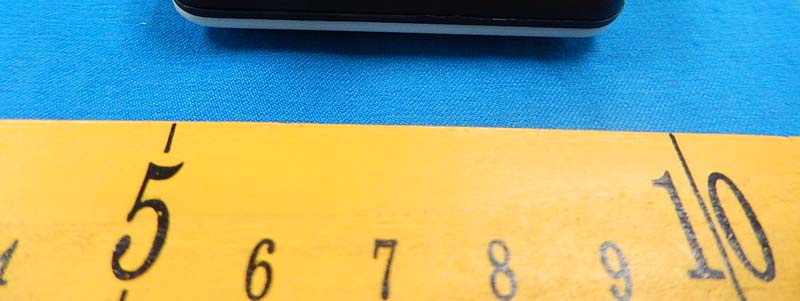

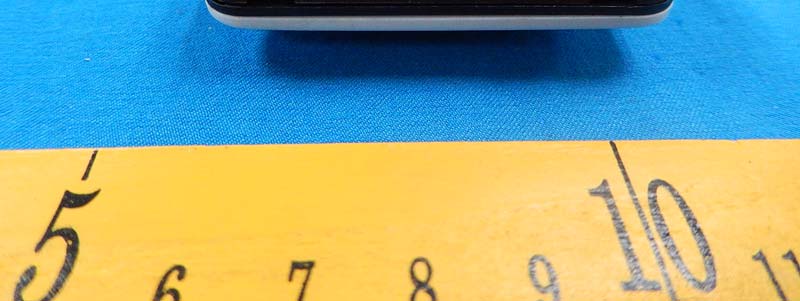

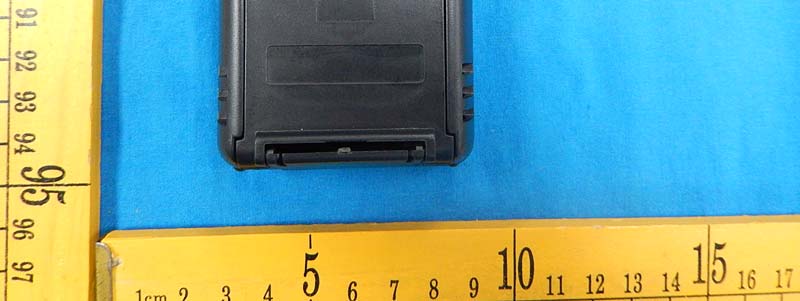

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

FCC ID LABELING AND LOCATION FCC ID Label Digital Clock(TX) Model NO.: TX7 Input Rating: DC 3V FCC ID: XNBTX7 Fuzhou Rise Electronic Co., Ltd.. Made in China FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13

FCC RADIO TEST REPORT FCC ID: XNBTX7 Product： Digital Clock(TX) Trade Name： N/A Model Name： TX7 Serial Model： N/A Prepared for Fuzhou Rise Electronic Co., Ltd. Bldg 15, Zone C, Pushang Industial Area, No.6, Hongjiang RD, Fuzhou, Fujian, China Prepared by DongGuan Precise Testing Service Co.,Ltd. Room 203-204, 2F, Xinye Building, No.67 Shijing, Guanzhang Road, Dongguan, China Page 2 of 26 Report No.: PT1401064005E ` TEST RESULT CERTIFICATION Applicant’s name................. : Fuzhou Rise Electronic Co., Ltd. Address ................................. : Bldg 15, Zone C, Pushang Industial Area, No.6, Hongjiang RD, Fuzhou, Fujian, China Manufacture's Name............ : Fuzhou Rise Electronic Co., Ltd. Address ................................. : Bldg 15, Zone C, Pushang Industial Area, No.6, Hongjiang RD, Fuzhou, Fujian, China Product description Product name ........................... : Digital Clock(TX) Model and/or type reference : TX7 Rating(s) ................................ : DC 3V Standards............................. : FCC Part15.231 Test procedure .............................. ANSI C63.4-2003 This device described above has been tested by PTS, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of PTS, this document may be altered or revised by PTS, personal only, and shall be noted in the revision of the document. Date of Test............................................: Date (s) of performance of tests .............: 20 May 2014 ~13 Jun. 2014 Date of Issue...........................................: 13 Jun. 2014 Test Result...............................................: Pass Testing Engineer : Assistant Technical Manager : Supervisor Authorized Signatory : Jacky Ou / Manager Page 3 of 26 Report No.: PT1401064005E ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . ANTENNA REQUIREMENT 11 3.1 STANDARD REQUIREMENT 11 3.2 EUT ANTENNA 11 3.3 CONDUCTED EMISSION MEASUREMENT 12 3.3.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.3.2 TEST PROCEDURE 13 3.3.3 DEVIATION FROM TEST STANDARD 13 3.3.4 TEST SETUP 13 3.2.5 TEST RESULT 14 3.4 RADIATED EMISSION MEASUREMENT 15 3.4.1 RADIATED EMISSION LIMITS 15 3.4.2 TEST PROCEDURE 16 3.4.3 DEVIATION FROM TEST STANDARD 16 3.4.4 TEST SETUP 17 3.4.5 TEST RESULTS (BLOW 30MHZ) 19 3.4.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 20 4 . BANDWIDTH TEST 22 4.1 TEST PROCEDURE 22 4.2 DEVIATION FROM STANDARD 22 4.3 TEST SETUP 22 4.4 TEST RESULTS 23 5 . TRANSMITTER TIMEOUT 24 5.1 REQUIREMENTS 24 6 . EUT TEST PHOTO 26 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 26 Report No.: PT1401064005E ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.231) Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A Note(1) 15.203 Antenna Requirement Pass 15.231 Radiated Spurious Emission Pass 15.231 Occupied Bandwidth Pass 15.231 Transmitter Timeout Pass NOTE: (1) ” N/A” denotes test is not applicable in this Test Report. Page 5 of 26 Report No.: PT1401064005E ` 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 26 Report No.: PT1401064005E ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Digital Clock(TX) Model Name TX7 Serial Model N/A Model Difference N/A Product Description The EUT is a Digital Clock(TX) Product Type Remote Control Operation Frequency: 433.92MHz Modulation Type: ASK Antenna Designation: extension wire antenna Antenna Gain(Peak) 0 dBi Output Power: 67.75 dBuV/m (AV Max.) Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List N/A Adapter N/A Battery DC 3.0V Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A extension wire Antenna NA 0 Antenna Page 7 of 26 Report No.: PT1401064005E ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 TX For Conducted Emission Final Test Mode Description / / For Radiated Emission Final Test Mode Description Mode 1 TX Note: (1) The EUT use new battery. Page 8 of 26 Report No.: PT1401064005E ` 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED Radiated Spurious Emission Test E-1 EUT Page 9 of 26 Report No.: PT1401064005E ` 2.4 DESCRIPTION OF SUPPORT UNITS(CON…

Text truncated - open the document above for the full version.

Page 26 of 26 Report No.: PT1401064005E ` 6. EUT TEST PHOTO Radiated Measurement Photos
