XNI-ID214162Router Gen2 Hotspot with Telematics

Cellular Router Gen2 Hotspot with Telematics Assembly User’s Manual Cellular Router Gen2 Hotspot with Telematics Assembly There are three Option Kits that are available for assembling the Cellular Router Gen2 Hotspot with Telematics. Each Option can be assembled by the Original Equipment Manager (OEM) or by the Customer/End User. OEM Assembly Option Kit #1 - Low Cost: FM Antenna/TV and Preparation for Hotspot/Telematics Step 1: Locate the area on the roof of the RV where the Antenna and Prep Plate will be placed. The placement must make wiring accessible from the interior of the RV. Step 2: On the roof of the RV, cut a large enough hole for the cables to fit all the way through into the interior ceiling of the RV. Step 3: Screw the Prep Plate onto the roof and place a rubber gasket inside the plate. Step 4: Feed the cables through the roof into the interior of the RV. Step 5: Provide enough slack on the cables to allow the customer to connect them to the appropriate source. Step 6: Inside the RV, secure the cables to the white prep cover. Step 7: Screw the white prep cover onto the ceiling of the RV with the #8 screws. Step 8: Using #8 screws, finish by screwing the “top hat” Antenna to the black plate already mounted to the roof of the RV. Option Kit #2 – Antenna/Wall Plate and Preparation for Hotspot/Telematics Step 1: Locate the area on the roof of the RV where the Antenna and Prep Plate will be placed. The placement must make wiring accessible from the interior of the RV. Step 2: On the roof of the RV, cut a large enough hole for the cables to fit all the way through into the interior ceiling of the RV. Step 3: Screw the Prep Plate onto the roof and place a rubber gasket inside the plate. Step 4: Feed the cables through the roof into the interior of the RV. Step 5: Provide enough slack on the cables to allow the customer to connect them to the appropriate source. Step 6: Inside the RV, secure the cables to the white prep cover. Step 7: Screw the white prep cover onto the ceiling of the RV with the #8 screws. Step 8: Using #8 screws, finish by screwing the black lid cover, labeled “LCI WIFI Hotspot Prep”, to the black plate already mounted to the roof of the RV. Option Kit #3 - All in One: AM/FM/TV/Hotspot/Preparation for Hotspot/Telematics Step 1: Locate the area on the roof where the Antenna will be placed. The placement must make wiring accessible from the interior of the RV. Step 2: On the roof of the RV, cut a large enough hole for the cables to fit all the way through into the interior ceiling of the RV. Step 4: Place a rubber gasket on the outside perimeter of the Antenna. Step 6: Feed cables through the roof into the interior of the RV. Step 7: Provide enough slack on the cables to allow the customer to connect them to the appropriate source. Step 8: Inside the RV, secure the cables to the white prep cover. Step 9: Screw the white prep cover onto the ceiling of the RV with the #8 screws. Step 10: Using #8 screws, finish by screwing the “top hat” Antenna to the black plate already mounted to the roof of the RV. End User Assembly Option Kit #1 - Low Cost: FM Antenna/TV and Preparation for Hotspot/Telematics Tools needed to upgrade your antenna: • Screwdriver or drill with a #8 screwdriver bit REMINDER: When removing screws, please keep them in a safe area. You will be reusing them to mount your upgraded antenna to your RV. Step 1: Inside your RV, locate a white dome cover, labeled “LCI”, on the ceiling. Remove the two screws. • Keep the screws. You will use these to mount the router. Step 2: Upon removal of the dome, you will find two cables attached to the inner part of the dome. Carefully disconnect the cables from the dome. Step 3: Grab your router (white box). There are two parts: a mounting plate and the router itself. Step 4: Using the screws that you saved earlier, screw the mounting plate to the ceiling. Step 5: With the mounting plate secured, look on the bottom of your router for two ports that you will use to connect the cables. Step 6: Bring the router closer to the cables and connect them. Make sure to gently tuck the remaining cable slack into the hole in the ceiling. Step 7: Slide the router onto the plate until safely secured. Enjoy your new hotspot! Option Kit #2 – Antenna/Wall Plate and Preparation for Hotspot/Telematics Tools needed to upgrade your antenna: • Screwdriver or drill with a #8 screwdriver bit REMINDER: When removing screws, please keep them in a safe area. You will be reusing them to mount your upgraded antenna to your RV. Step 1: Inside your RV, locate a white dome cover, labeled “LCI”, on the ceiling. Remove the two screws. • Keep the screws. You will use these to mount the router. Step 2: Upon removal of the dome, you will find two cables attached to the inner part of the dome. Carefully disconnect the cables from the dome. Step 3: Grab your router (white box). There are two parts: a mounting plate and the router itself. Step 4: Using the screws that you saved earlier, screw the mounting plate to the ceiling. Step 5: With the mounting plate secured, look on the bottom of your router for two ports that you will use to connect the cables. Step 6: Bring the router closer to the cables and connect them. Make sure to gently tuck the remaining cable slack into the hole in the ceiling. Step 7: Slide the router onto the plate until safely secured. Enjoy your new hotspot! Option Kit #3 – All-In-One: AM/FM/TV/Hotspot/Prep for Hotspot/Telematics Tools needed to upgrade your antenna: • Screwdriver or drill with a #8 screwdriver bit REMINDER: When removing screws, please keep them in a safe area. You will be reusing them to mount your upgraded antenna to your RV. Step 1: Inside your RV, locate a white dome cover, labeled “LCI”, on the ceiling. Remove the two screws. • Keep the screws. You will use these to mount the router. Step 2: Upon removal of the dome, you will find two cables attached to the inner part of the dome. Carefully disconnect the cables from…

Text truncated - open the document above for the full version.

OneControl Hotspot plus telematics User onboarding Journey Obtain your claim code from the router or from the owner tag Go to the OneControl Hotspot community page to login or register for an account Social login can be used, as well as using email for login. The user will click on the "create account" button to register and create a OneControl account. Registration asks for Name, email address, and password. We ask for vehicle make, model, y e a r, floorplan, country and state City, street address, phone number and vin number are asked f o r. Terms and conditions have implicit consent. After registration, the user is taken to the OneControl Community home page. Choose the "Data Plans" tab to continue onboarding. The onboarding for a router begins. After clicking on the "claim your device" button, a claim code is added Available data plans are now shown to the user The customer chooses a data plan with both hotspot and telematics An account is created for the telematic s portion of the plan that is managed by Lippert. Credit card information for the telematics portion of the plan is added and verified by Lippert Sign up for telematics portion of the plan is confirmed Telematics portion of the plan is added The router is power cycled to prepare for first usage The router is now usable for telematics and the account reflects current telematics plan and account information. The user will now set up wifi portion of their plan by clicking the "next" button We redirect the user to the Zipit Portal to set up their wifi account with LCI. The user will click on the "Get Started" button to register. Need Zipit Portal screenshot with a “Get Started” button (similar to the ATT screenshot). For this user journey, the user needs to set up a new LCI account using the Zip it Portal. The user clicks on the "Get your pass" button to set up their account Need LCI/Zipit Portal screenshot with a “Get your pass” button (similar to the ATT screenshot). The user will input the router details and register the wifi hotspot with LCI Need LCI/Zipit Screen shot for registering The user will finish registration with LCI The user will now log into their router and will be able to use wifi

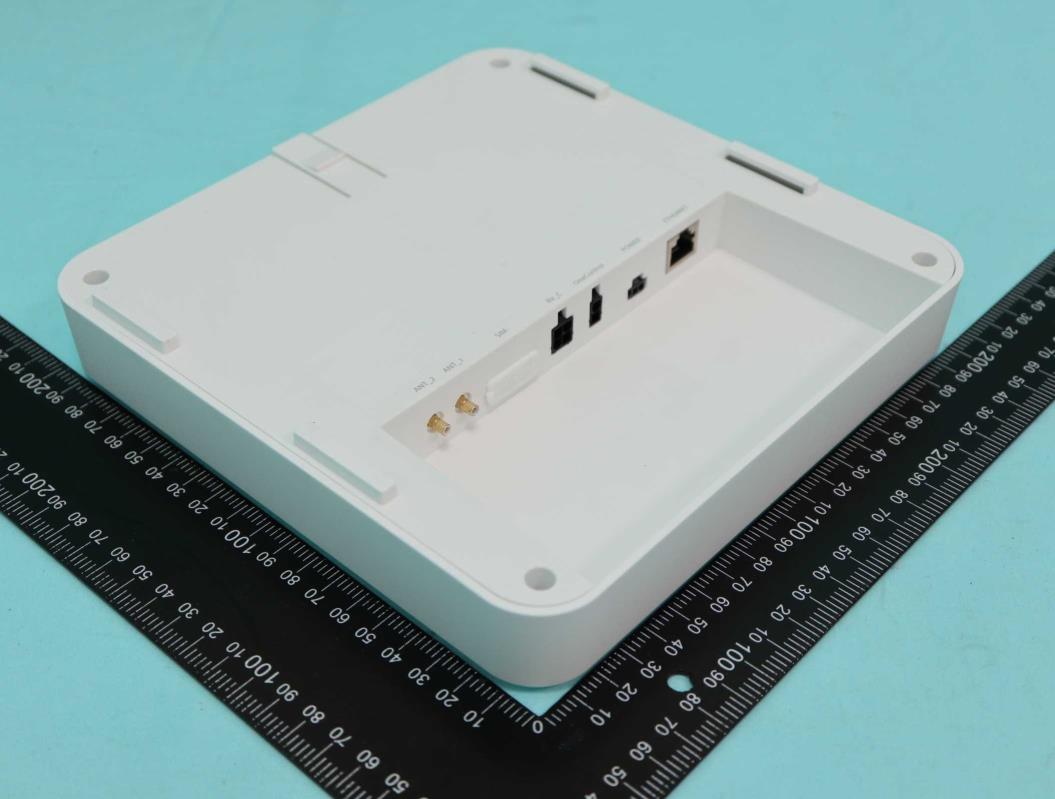

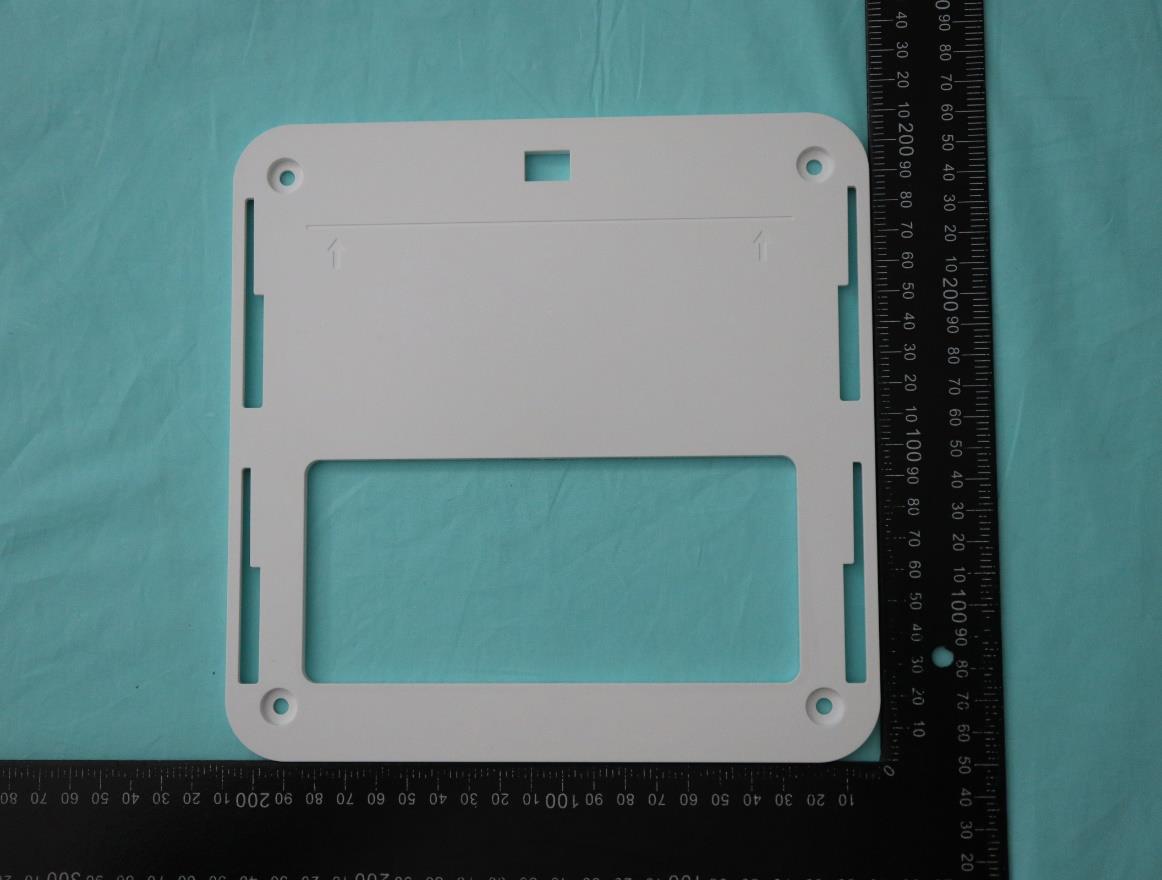

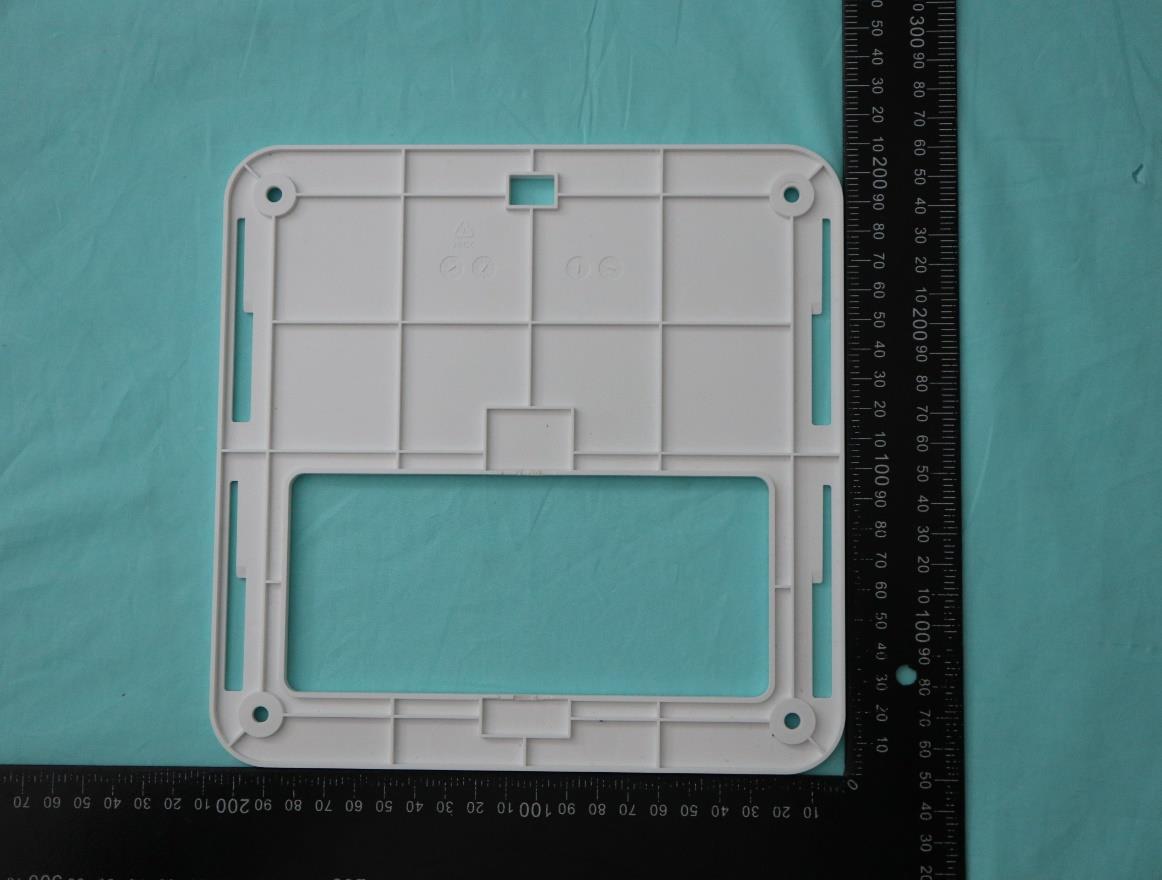

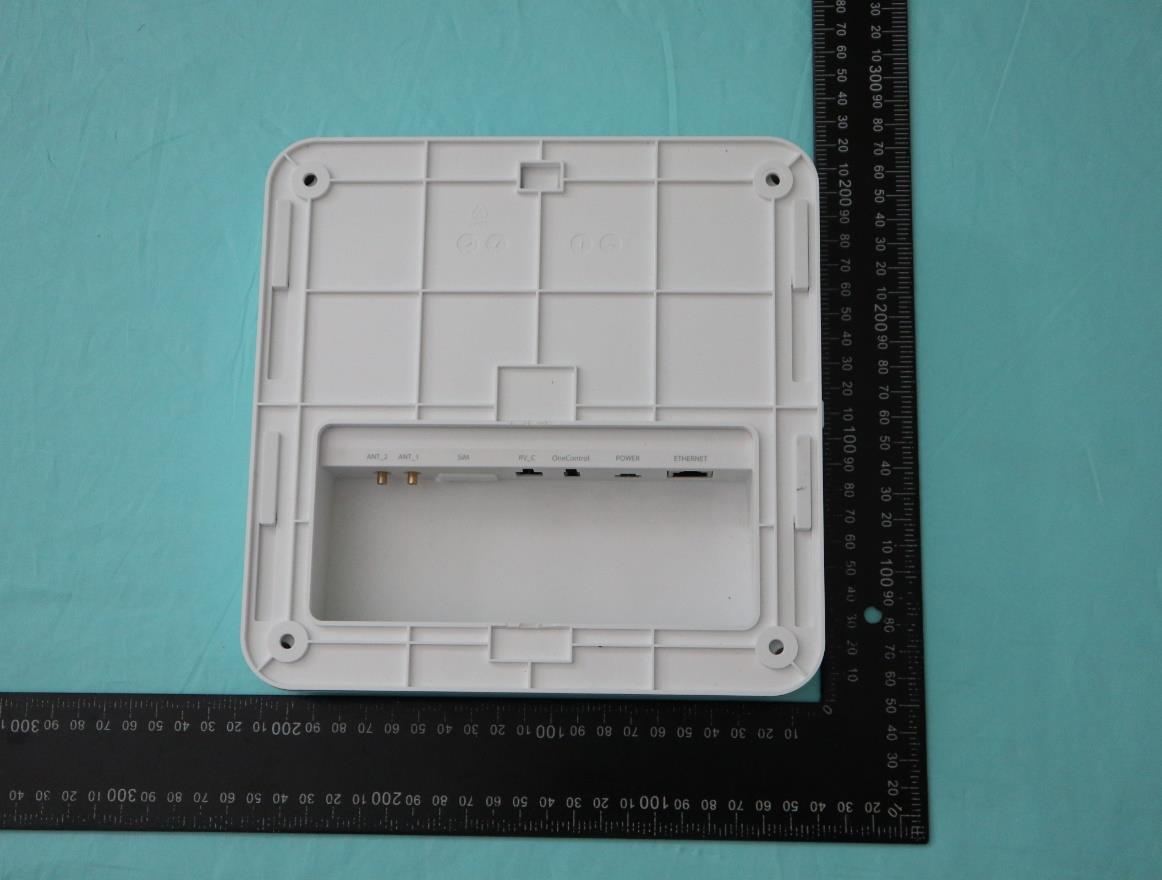

Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 1 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 2 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 3 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 4 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 5 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 21 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 WWAN Antenna

Label Location Information EUT (Bottom View) Label Location

Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 6 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 7 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 8 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 9 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 10 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 11 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 12 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 13 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 14 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 15 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 16 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 17 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 18 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 19 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 20 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 22 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 23 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 24 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 25 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Wi-Fi Antenna Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 26 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 27 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 GPS Antenna Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 28 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 29 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 WWAN Module Contain FCC ID: XMR201807EG95NA Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 30 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 31 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 32 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 33 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 Photographs of EUT Report No. : EP071337 SPORTON International Inc. Page No. : 34 of 34 EP Report Version : Rev. 01 Issued Date : Aug. 24, 2021 ─────THE END────

Radio Exposure Evaluation Report Report No. : FA071337-01 TEL : 886-3-327-3456 Page Number : 1 of 9 FAX : 886-3-327-0973 Issued Date : Aug. 24, 2021 Report Template No.: HE1-A1 Ver4.0 Report Version : 01 FCC ID: XNI-ID214162 Radio Exposure Evaluation Report FCC ID : XNI-ID214162 Contain FCC ID : XMR201807EG95NA Equipment : Router Gen2 Hotspot with Telematics Brand Name : LCI Model Name : 2021015320 Applicant : Lippert Components 6801 15 Mile Road Sterling Heights Michigan United States 48312 Manufacturer : Lippert Components 6801 15 Mile Road Sterling Heights Michigan United States 48312 Standard : 47 CFR FCC Part 2 Subpart J, section 2.1091 The product was received on Dec. 21, 2020, and testing was started from Jan. 28, 2021 and completed on May 19, 2021. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in 47 CFR FCC Part 2 Subpart J, section 2.1091 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Hsinhua Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) Radio Exposure Evaluation Report Report No. : FA071337-01 TEL : 886-3-327-3456 Page Number : 2 of 9 FAX : 886-3-327-0973 Issued Date : Aug. 24, 2021 Report Template No.: HE1-A1 Ver4.0 Report Version : 01 FCC ID: XNI-ID214162 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Location ..................................................................................................................................... 5 2 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................... 7 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 7 2.2 MPE Calculation Method ........................................................................................................................ 7 2.3 Calculated Result and Limit .................................................................................................................... 8 Photographs of EUT V01 Radio Exposure Evaluation Report Report No. : FA071337-01 TEL : 886-3-327-3456 Page Number : 3 of 9 FAX : 886-3-327-0973 Issued Date : Aug. 24, 2021 Report Template No.: HE1-A1 Ver4.0 Report Version : 01 FCC ID: XNI-ID214162 History of this test report Report No. Version Description Issued Date FA071337-01 01 Initial issue of report Aug. 24, 2021 Radio Exposure Evaluation Report Report No. : FA071337-01 TEL : 886-3-327-3456 Page Number : 4 of 9 FAX : 886-3-327-0973 Issued Date : Aug. 24, 2021 Report Template No.: HE1-A1 Ver4.0 Report Version : 01 FCC ID: XNI-ID214162 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The EUT supports beamforming and CDD modes, and the CDD mode is the worse case. Therefore, all test items are evaluated in the report. The beamforming mode only evaluateds the output power. Reviewed by: Sam Tsai Report Producer: Debby Hung Radio Exposure Evaluation Report Report No. : FA071337-01 TEL : 886-3-327-3456 Page Number : 5 of 9 FAX : 886-3-327-0973 Issued Date : Aug. 24, 2021 Report Template No.: HE1-A1 Ver4.0 Report Version : 01 FCC ID: XNI-ID214162 1 General Description 1.1 Information 1.1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n/VHT: OFDM (BPSK, QPSK, 16QAM, 64QAM) 5GHz WLAN 5150-5250 5725-5850 5180-5240 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) Bluetooth 2400-2483.5 2402-2480 LE: DSSS (GFSK) 1.1.2 Antenna Information Ant. Brand Model Name Antenna Type Connector 1 Lynwave ALX20P-222AA1-00 PCB antenna I-PEX 2 Lynwave ALX20P-222AA1-00 PCB antenna I-PEX 3 - - PCB monopole antenna I-PEX Ant. Port Gain (dBi) 2.4G 5G BT 1 1 3.7 5 - 2 2 3.7 5 - 3 1 - - 1.85 For 2.4GHz function: For IEEE 802.11 b/g/n/VHT mode (2TX/2RX) Ant. 1 (port 1) and Ant. 2 (port 2) could transmit/receive simultaneously. For 5GHz function: For IEEE 802.11 a/n/ac mode (2TX/2RX) Ant. 1 (port 1) and Ant. 2 (port 2) could transmit/receive simultaneously. For BT function: For IEEE 802.15.1 Bluetooth mode (1TX/1RX) Ant. 3 (port 1) could transmit/receive. Radio Exposure Evaluation Report Report No. : FA071337-01 TEL : 886-3-327-3456 Page Number : 6 of 9 FAX : 886-3-327-0973 Issued Date : Aug. 24, 2021 Report Template No.: HE1-A1 Ver4.0 Report Version : 01 FCC ID: XNI-ID214162 1.2 Testing Location Test Lab.：Sporton International Inc. Hsinhua Laboratory Hsinhua ADD: No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) (TAF: 3785) TEL: 886-3-327-3456 FAX: 886-3-327-0973 Test site Designation No. TW3785 with FCC. Radio Exposure Evaluation Report Report No. : FA071337-01 TEL : 886-3-327-3456 Page Number : 7 of 9 FAX : 886…

Text truncated - open the document above for the full version.

FCC Radio Test Report Report No. :FR071337AC TEL : 886-3-3273456 Page Number : 1 of 25 FAX : 886-3-3270973 Issued Date : Aug. 24, 2021 Report Template No.: HE1-C8 Ver4.1 Report Version : 01 FCC ID: XNI-ID214162 FCC Radio Test Report FCC ID : XNI-ID214162 Contain FCC ID : XMR201807EG95NA Equipment : Router Gen2 Hotspot with Telematics Brand Name : LCI Model Name : 2021015320 Applicant : Lippert Components 6801 15 Mile Road Sterling Heights Michigan United States 48312 Manufacturer : Lippert Components 6801 15 Mile Road Sterling Heights Michigan United States 48312 Standard : 47 CFR FCC Part 15.247 The product was received on Dec. 21, 2020, and testing was started from Jan. 28, 2021 and completed on Jul. 23, 2021. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Hsinhua Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) FCC Radio Test Report Report No. :FR071337AC TEL : 886-3-3273456 Page Number : 2 of 25 FAX : 886-3-3270973 Issued Date : Aug. 24, 2021 Report Template No.: HE1-C8 Ver4.1 Report Version : 01 FCC ID: XNI-ID214162 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Applied Standards ..................................................................................................................... 7 1.3 Testing Location Information .................................................................................................................. 7 1.4 Measurement Uncertainty ...................................................................................................................... 7 2 TEST CONFIGURATION OF EUT......................................................................................................... 8 2.1 Test Condition ........................................................................................................................................ 8 2.2 Test Channel Mode ................................................................................................................................ 8 2.3 The Worst Case Measurement Configuration ........................................................................................ 9 2.4 Support Equipment ............................................................................................................................... 10 2.5 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 DTS Bandwidth..................................................................................................................................... 15 3.3 Maximum Conducted Output Power .................................................................................................... 16 3.4 Power Spectral Density ........................................................................................................................ 18 3.5 Emissions in Non-restricted Frequency Bands .................................................................................... 19 3.6 Emissions in Restricted Frequency Bands ........................................................................................... 20 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 24 APPENDIX A. TEST RESULTS OF AC POWER-LINE CONDUCTED EMISSIONS APPENDIX B. TEST RESULTS OF DTS BANDWIDTH APPENDIX C. TEST RESULTS OF MAXIMUM CONDUCTED OUTPUT POWER APPENDIX D. TEST RESULTS OF POWER SPECTRAL DENSITY APPENDIX E. TEST RESULTS OF EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS APPENDIX F. TEST RESULTS OF EMISSIONS IN RESTRICTED FREQUENCY BANDS APPENDIX G. TEST RESULTS OF RADIATED EMISSION CO-LOCATION APPENDIX H. TEST PHOTOS PHOTOGRAPHS OF EUT V01 FCC Radio Test Report Report No. :FR071337AC TEL : 886-3-3273456 Page Number : 3 of 25 FAX : 886-3-3270973 Issued Date : Aug. 24, 2021 Report Template No.: HE1-C8 Ver4.1 Report Version : 01 FCC ID: XNI-ID214162 History of this test report Report No. Version Description Issued Date FR071337AC 01 Initial issue of report Aug. 24, 2021 FCC Radio Test Report Report No. :FR071337AC TEL : 886-3-3273456 Page Number : 4 of 25 FAX : 886-3-3270973 Issued Date : Aug. 24, 2021 Report Template No.: HE1-C8 Ver4.1 Report Version : 01 FCC ID: XNI-ID214162 Summary of Test Result Report Clause Ref. Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 3.1 15.207 AC Power-line Conducted Emissions PASS - 3.2 15.247(a) DTS Bandwidth PASS - 3.3 15.247(b) Maximum Conducted Output Power PASS - 3.4 15.247(e) Power Spectral Density PASS - 3.5 15.247(d) Emissions in Non-restricted Frequen…

Text truncated - open the document above for the full version.

FCC Radio Test Report Report No. : FR071337-01AL TEL : 886-3-3273456 Page Number : 1 of 25 FAX : 886-3-3270973 Issued Date : Aug. 24, 2021 Report Template No.: HE1-C10 Ver4.1 Report Version : 01 FCC ID: XNI-ID214162 FCC Radio Test Report FCC ID : XNI-ID214162 Contain FCC ID : XMR201807EG95NA Equipment : Router Gen2 Hotspot with Telematics Brand Name : LCI Model Name : 2021015320 Applicant : Lippert Components 6801 15 Mile Road Sterling Heights Michigan United States 48312 Manufacturer : Lippert Components 6801 15 Mile Road Sterling Heights Michigan United States 48312 Standard : 47 CFR FCC Part 15.247 The product was received on Apr. 27, 2021, and testing was started from May 05, 2021 and completed on Jul. 06, 2021. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Hsinhua Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) FCC Radio Test Report Report No. : FR071337-01AL TEL : 886-3-3273456 Page Number : 2 of 25 FAX : 886-3-3270973 Issued Date : Aug. 24, 2021 Report Template No.: HE1-C10 Ver4.1 Report Version : 01 FCC ID: XNI-ID214162 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Applied Standards ..................................................................................................................... 6 1.3 Testing Location Information .................................................................................................................. 6 1.4 Measurement Uncertainty ...................................................................................................................... 7 2 TEST CONFIGURATION OF EUT......................................................................................................... 8 2.1 Test Channel Mode ................................................................................................................................ 8 2.2 The Worst Case Measurement Configuration ........................................................................................ 9 2.3 Support Equipment ............................................................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 DTS Bandwidth..................................................................................................................................... 15 3.3 Maximum Conducted Output Power .................................................................................................... 16 3.4 Power Spectral Density ........................................................................................................................ 18 3.5 Emissions in Non-restricted Frequency Bands .................................................................................... 19 3.6 Emissions in Restricted Frequency Bands ........................................................................................... 20 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 24 APPENDIX A. TEST RESULTS OF AC POWER-LINE CONDUCTED EMISSIONS APPENDIX B. TEST RESULTS OF DTS BANDWIDTH APPENDIX C. TEST RESULTS OF MAXIMUM CONDUCTED OUTPUT POWER APPENDIX D. TEST RESULTS OF POWER SPECTRAL DENSITY APPE…

Text truncated - open the document above for the full version.
