XNO-HKRAT-RT02EMPRESS 2.4GHz Wireless Active RFID Tag

1 Hong Kong RFID Limited Address: Unit 11, 9/F, Wah Wai Centre,38-40 Au Pui Wan Street,Fotan, Shatin, N.T., Hong Kong Tel: (852) 3426 9136 Fax: (852) 3426 9519 Email: [email protected] By Hong Kong RFID Ltd. New Product Development Team Tel: 3426 2135 © 2006 Hong Kong RFID Ltd. All rights reserve Garrison Rugged 2.4GHz RFID Active Tag (Model: HKRAT-RT02) User Manual Update 2 Copyright© Hong Kong RFID Ltd., All rights reserved. Reproduction of any part is strictly prohibited.Page | 2 Disclaimer The information and know-how included in this document are the exclusive property of Hong Kong RFID Limited and are intended for the use of the addressee or the user alone. The addressees shall not forward to another their right of using the information, know-how or document forwarded herewith, in whole or in part in all matters relating or stemming from or involved therein, where for consideration or with consideration, and shall not permit any third party to utilize the information, know-how or the documents forwarded herewith or copies or duplicated thereof, unless at the company’s consent in advance and in writing. Enterprise License No part of this document may be reproduced, distributed, publicized or made publicly available in part or in total without prior written consent of Hong Kong RFID Ltd. All content herein is solely owned by Hong Kong RFID Ltd. All inquiries should be directed to [email protected]. Important Notice All statements, technical information, and recommendations related to Hong Kong RFID’s products are based on information believed to be reliable, but the accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated with such use. Any statements related to products which are not contained in HK-RFID’s current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of Hong Kong RFID. 3 Copyright© Hong Kong RFID Ltd., All rights reserved. Reproduction of any part is strictly prohibited.Page | 3 FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. 4 Copyright© Hong Kong RFID Ltd., All rights reserved. Reproduction of any part is strictly prohibited.Page | 4 CE Compliance CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Disposal: All electrical and electronic products including batteries should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. 5 Hong Kong RFID Limited Contents Disclaimer .................................................................................................................................................. 2 Enterprise License ..................................................................................................................................... 2 Important Notice ...................................................................................................................................... 2 FCC Compliance ........................................................................................................................................ 3 CE Compliance .......................................................................................................................................... 4 Introduction .............................................................................................................................................. 7 Feature ...................................................................................................................................................... 7 Applications ............................................................................................................................................... 8 Vehicle management ....................................................................................................................... 8 Warehouse management ................................................................................................................ 8 Heavy dusty, harsh environment applications ............................................................................... 8 Battery Installation and Power On ......................................................................................…

Text truncated - open the document above for the full version.

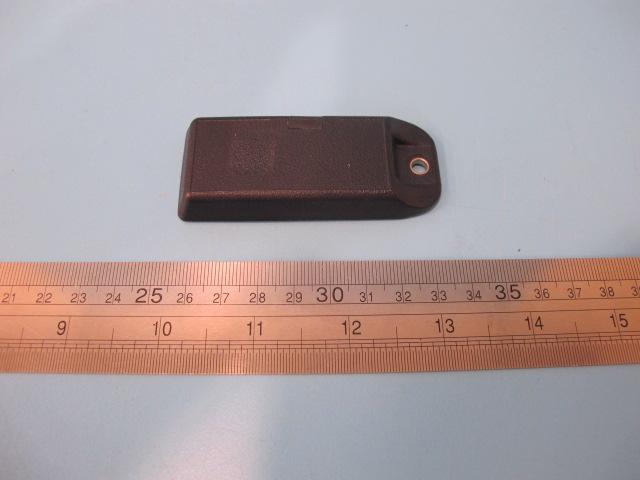

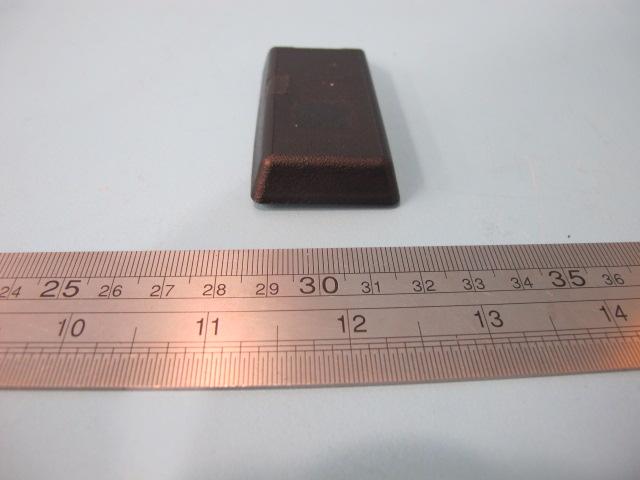

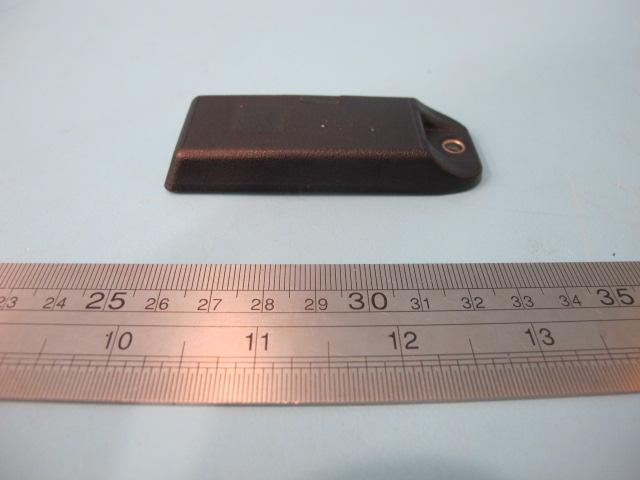

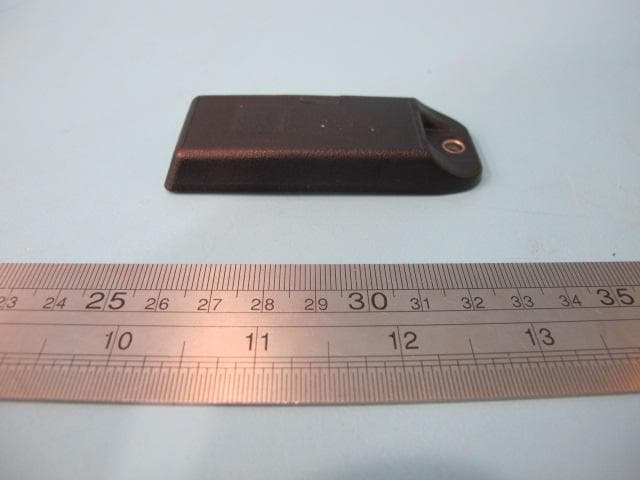

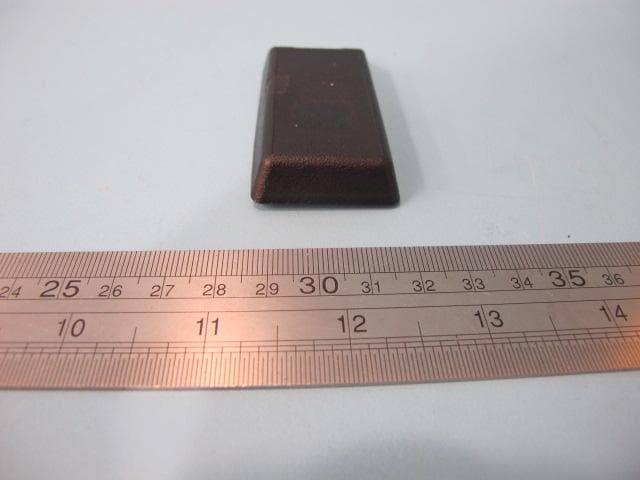

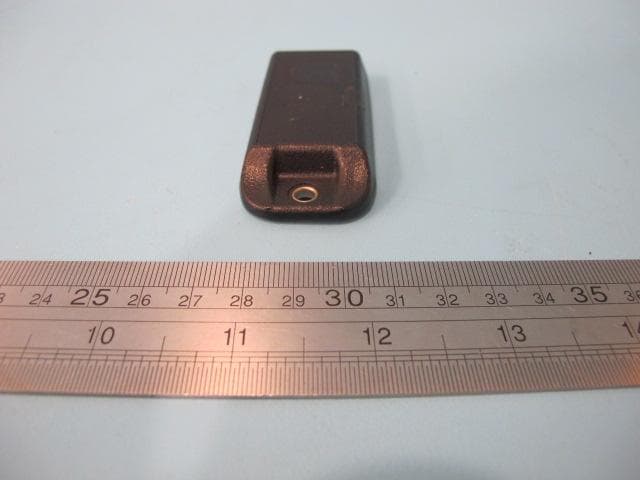

TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin Hong Kong Page 1 of 3 External Photos TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin Hong Kong Page 2 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin Hong Kong Page 3 of 3

Garrison Tag Label Design_2015 Version_V1.0 B. Garrison Rugged Tag Series i. RT02 Fig. 2 - RT02 Tag Label Fig. 1 - RT02 Tag Fig. 3 - RT02 Tag Label Design A 5.80 33.57 78.78 55.73 24 FCC ID : XNO-HKRAT-RT02 Input : 3V CR2450 Model : HKRAT-RT02 9263 36Y6 2942 Rugged 2.4GHz RFID Tag Do not disassemble or put into fire Designed in HK Assembled in China FCC ID : XNO-HKRAT-RT02 Input : 3V CR2450 Model : HKRAT-RT02 9263 36Y6 2942 Rugged 2.4GHz RFID Tag Do not disassemble or put into fire Designed in HK Assembled in China Fig. 4 - RT02 Tag Label Design B FCC ID : XNO-HKRAT-RT02 Input : 3V CR2450 Model : HKRAT-RT02 9263 36Y6 2942 Rugged 2.4GHz RFID Tag Do not disassemble or put into fire Designed in HK Assembled in China 55 23.5 Brand Name Tag Series Name FCC ID P/N (RT02/RT02-Z) Tag ID Barcode CE Mark

Label Location

Label Location

TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin Hong Kong Page 1 of 2 Internal Photos TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin Hong Kong Page 2 of 2

Page 1 of 1 SAR Evaluation Exemption Compliance Information The device has a standalone transmission. According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distances ” 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[¥f(GHz)] ” 3.0 The maximum tune-up limit power is 3.229 mW @ 2.402 GHz For the head and body SAR, use 5mm as the conservative minimum test separation distance, [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[¥f(GHz)] = 1.0 ” 3.0 So standalone SAR measurements are not required for both head and body

TEST REPORT Date: 2015-03-24 Report No.: 60.870.14.022.06F Page 1 of 21 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Applicant: Hong Kong RFID Ltd. Unit 11, 9/F, Wah Wai Centre, 38-40 Au Pui Wan Street, Fotan, Shatin, N.T., Hong Kong Description of Samples: Model name: EMPRESS ACTIVE RFID TAG Model no.: HKRAT-RT02, HKRAT-RT02-Z FCCID:XNO-HKRAT-RT02 Date Samples Received: 2015-03-02 Date Tested: 2015-03-03 to 2015-03-23 Investigation Requested: FCC Part 15 Subpart C, Section 15.249 Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- Checked by:Approved by:- Ray CheungJohn Zhi Project EngineerProject Manager Wireless & Telecom departmentWireless & Telecom department Report No.: 60.870.14.022.06F Page 2 of 19 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. CONTENT: Cover Page 1 of 19 Content Page 2 of 19 1.0General Details 1.1Test Laboratory Page 3 of 19 1.2Applicant Details Page 3 of 19 1.3Equipment Under Test [EUT] Page 4 of 19 1.4 Equipment Modification Page 4 of 19 1.5 Related Submittal(s) Grants Page 4 of 19 2.0Technical Details 2.1Investigations Requested Page 5 of 19 2.2Test Standards and Results Summary Page 5 of 19 3.0Test Methodology 3.1Radiated Emission Page 6 of 19 3.2Field Strength Calculation Page 6 of 19 3.3Conducted Emission Page 6 of 19 4.0Test Results 4.1Field Strength of Fundamental and Harmonics Page 7-9 of 19 4.2Spurious Radiated Emission Page 10-12 of 19 4.3Out of Band Emissions Page 13-14 of 19 4.4Bandwidth Measurement Page 15-17 of 19 4.5Conducted Emission Page 18 of 19 5.0List of Measurement Equipments Page 19 of 19 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos Report No.: 60.870.14.022.06F Page 3 of 19 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 1.0General Details 1.1Test Laboratory TUV SUD Certification and Testing (China) Co., Ltd Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, 518052 Registration Number: 502708 Tested by: Ray Cheung 1.2Applicant Details Applicant Hong Kong RFID Ltd. Unit 11, 9/F, Wah Wai Centre, 38-40 Au Pui Wan Street, Fotan, Shatin, N.T., Hong Kong Manufacturer Hong Kong RFID Ltd. Unit 11, 9/F, Wah Wai Centre, 38-40 Au Pui Wan Street, Fotan, Shatin, N.T., Hong Kong Report No.: 60.870.14.022.06F Page 4 of 19 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 1.3Equipment Under Test [EUT] Description of EUT Model Name:EMPRESS ACTIVE RFID TAG Model Number:HKRAT-RT02, HKRAT-RT02-Z FCCID:XNO-HKRAT-RT02 Rating:DC 3V (CR2450 battery) Antenna Type:Integral Antenna Gain:0 dBi Operated Frequency:2402MHz to 2480MHz No. of Channel:79 Accessories and Auxiliary Equipment:ThinkPad Notebook EUT Exercising Software:None General Operation of EUT The Equipment Under Test (EUT) is a RFID Tag. As per Client Declaration, the circuit design, PCB Layout, shielding and interfaces of HKRAT-RT02 are identical for HKRAT-RT02-Z, only the Cosmetic are different. So we use the HKRAT-RT02 as a representative model. 1.4Equipment Modification No modification was made to the tested unit by TÜV SÜD Hong Kong Ltd. 1.5Related Submittal(s) Grants This is a single application of certification for this transmitter. Report No.: 60.870.14.022.06F Page 5 of 19 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2009. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionFCC TestTest Result RequirementPassFailedN/A Field Strength of Fundamental and Harmonics Part 15.249 (a),(e) Spurious Radiated Emission Part 15.249 (d) Part 15.209 Part 15.205 Out of Band EmissionsPart 15.249 (d) Bandwidth Measurement Part 15.215 (c) Conducted EmissionPart 15.207 Note: N/A - Not Applicable Report No.: 60.870.14.022.06F Page 6 of 19 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. 3.2Field Strength Calculation The field strength at 3 m was established by adding the meter reading of the spectrum analyzer to the factors associated with antenna correction factor, cable loss, preamplifiers and filter attenuation. The equation is expressed as follow: FS = R + System Factor System Factor = AF + CF + FA – PA Where FS = Net Field Strength in dBuV/m at 3 meters. R = Reading of Spectrum Analyzer / Test Receiver in dBuV. AF = Antenna Factor in dB. CF = Cable Attenuation Factor in dB. FA = Filter Attenuation Factor in dB. PA = Preamplifier Factor in dB. FA and PA are only be used for the measuring frequency above 1 GHz. 3.3Conducted Emissions The EUT was placed on a non-metallic table 0.8m above the horizontal metal reference place and 0.4m from a vertical ground plane which is connected to the horizontal metal ground plane. Meanwhile, the AC main of EUT was connected to the distance of 0.8m line impedance sta…

Text truncated - open the document above for the full version.

TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin Hong Kong Page 1 of 1 Test Setup Photos
