XNOHKRAT001WIRELESS 2.4GHz ACTIVE RFID TRANSPONDER

Copyright© Hong Kong RFID Ltd. 2008, All rights reserved. Reproduction of any part is strictly prohibited. Hong Kong RFID Limited Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: [email protected] P.1 User Manual for Hussar™ 2.4GHz Active RFID Tag (Model: HKRAT-NT02) Revision: 1 Before use, please read these instructions completely Copyright© Hong Kong RFID Ltd. 2008, All rights reserved. Reproduction of any part is strictly prohibited. Hong Kong RFID Limited Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: [email protected] P.2 Components 1. Tag 2. Battery Cover Operation 1. The tag operates automatically with the presence of battery, in predefined mode and settings. 2. The working temperature of the tag is -20°C to 60°C. 3. Remove the Battery Insulation Strip for first time. 4. Battery Life based on default factory setting; Battery Life is 1.5 years for signaling at 1Hz. (Depends on battery capacity and settings) Maintenance 1. The tag operates automatically and continuously until battery is low. 2. Replace battery when the tag is not functioning 3. Prepare a new CR2325 Lithium Manganese Dioxide Coin Battery. (Contact your supplier if you have doubt or you cannot find the battery in your region) 4. Install new battery with right polarity. 5. The tag re-operates automatically and continuously with new battery. Negative Positive FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for and radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

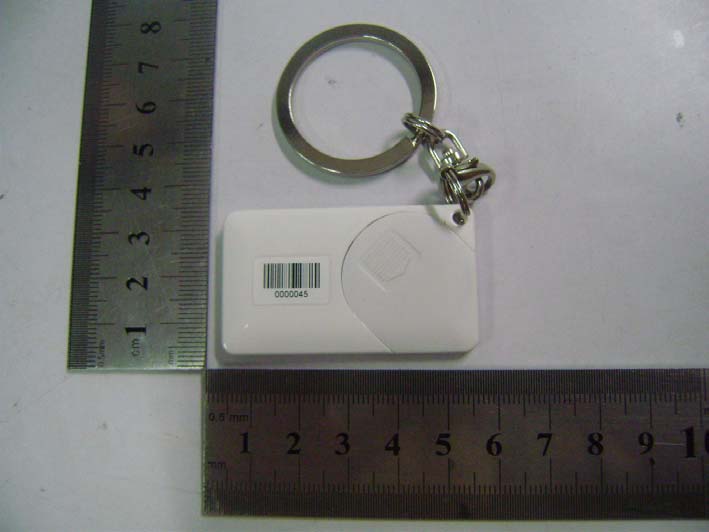

Hong Kong RFID Ltd. Model: HKRAT REPORT NO.: STR10078139I FCC PART 15.249 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

Hong Kong RFID Ltd. Model: HKRAT REPORT NO.: STR10078139I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: XNOHKRAT001 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Hong Kong RFID Ltd. Model: HKRAT REPORT NO.: STR10078139I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: XNOHKRAT001 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Hong Kong RFID Ltd. Model: HKRAT REPORT NO.: STR10078139I FCC PART 15.249 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Hong Kong RFID Ltd. Model: HKRAT REPORT NO.: STR10078139I FCC PART 15.249 Solder Board-Component View 2

Circuit Description The single IC chip consists of both MCU and 2.4GHz RF tranceiver. External components are filtering capacitors and matching components for antenna. Matching components consist of capacitors and inductors. Antenna is routed on the same PCB. The transmitter will send a signal to the other RFID device in GFSK modulation, and the transmitting frequency is 2448 MHz. The circuit is power by 3V battery. Two way communication can be performed between this device and the RFID reader.

1 1 2 2 3 3 4 4 DD CC BB AA Title SizeProject Number Date: File: Sheet of Drawn By: Revision n 1.3 15/9/2009 11 C P i m 2 15pF C1 15pF C216MHz X1 GND 100nF C11 VCC_nRF GND 100nF C9 33nF C8 GND GND VCC_nRF GND VCC_nRF GND P1.4P1.3 P1.1P1.0 P0.2 P0.3 P0.4P0.5P0.6 PROG P0.7 100nF C7 GND 33nF C10 RESET 22k R1 1% 6.8n L1 2.2nF C3 NA C4 4.7n L3 6.8n L2 1.5p C5 1.0p C6 GND GNDGND Antenna 1.0p C14 GND nRF24LE1F16Q32 P0.1 1 VDD 2 VSS 8 P0.3 7 P0.4 10 DEC1 3 DEC2 4 P0.5 11 P0.6 12 PROG 6 P0.7 13 VDD 9 P1.0 14 P1.1 15 P1.2 16 P1.3 17 P1.4 18 P1.5 28 P1.6 29 RESET 19 VDD_PA 20 ANT1 21 ANT2 22 VSS 23 VDD 24 IREF 25 VSS 26 VDD 27 XC1 30 XC2 31 P0.0 32 C f P C o nRF24LE1 P0.2 5 U1 P1.5P1.6 P1.2 100k R6 GND 100K R14 VCC_nRF P0.5 P1.0 GND RESET VCC_nRF P1.1 P0.7 PROG P0.1 P0.0 1 2 3 4 5 6 7 8 P1 Header 8 P0C101 P0C102 P0C201 P0C202 P0C301 P0C302 P0C401 P0C402 P0C501 P0C502 P0C601 P0C602 P0C701 P0C702 P0C801 P0C802 P0C901 P0C902 P0C1001 P0C1002 P0C1101 P0C1102 P0C1401 P0C1402 P0L101 P0L102 P0L201 P0L202 P0L301 P0L302 P0P101 P0P102 P0P103 P0P104 P0P105 P0P106 P0P107 P0P108 P0R101 P0R102 P0R601 P0R602 P0R1401 P0R1402 P0U101 P0U102 P0U103 P0U104 P0U105 P0U106 P0U107 P0U108 P0U109 P0U1010 P0U1011 P0U1012 P0U1013 P0U1014 P0U1015 P0U1016 P0U1017 P0U1018 P0U1019 P0U1020 P0U1021 P0U1022 P0U1023 P0U1024 P0U1025 P0U1026 P0U1027 P0U1028 P0U1029 P0U1030 P0U1031 P0U1032 P0X101 P0X103 P0C101 P0C201 P0C301 P0C401 P0C602 P0C701 P0C801 P0C901 P0C1001 P0C1102 P0C1402 P0P102 P0R102 P0R601 P0U108 P0U1023 P0U1026 P0X102 P0X104 N0GND P0C102 P0U1030 P0X103 P0C202 P0U1031 P0X101 P0C302 P0C402 P0L201 P0U1020 P0C501 P0C601 P0C1401 P0C502 P0L302 P0C702 P0U103 P0C802 P0U104 P0L101 P0L202 P0U1021 P0L102 P0L301 P0U1022 P0R101 P0U1025 P0U1032 N0P000 P0U101 N0P001 P0U105 N0P002 P0U107 N0P003 P0U1010 N0P004 P0P107 P0U1011 N0P005 N0P005 P0U1012 N0P006 P0P106 P0U1013 N0P007 N0P007 P0P105 P0U1014 N0P100 N0P100 P0P104 P0U1015 N0P101 N0P101 P0U1016 N0P102 P0U1017 N0P103 P0U1018 N0P104 P0U1028 N0P105 P0U1029 N0P106 P0P108 P0R602 P0U106 N0PROG N0PROG P0P101 P0R1401 P0U1019 N0RESET N0RESET P0C902 P0C1002 P0C1101 P0P103 P0R1402 P0U102 P0U109 P0U1024 P0U1027 N0VCC0NRF N0GND P0C101 P0C201 P0C301 P0C401 P0C602 P0C701 P0C801 P0C901 P0C1001 P0C1102 P0C1402 P0P102 P0R102 P0R601 P0U108 P0U1023 P0U1026 P0X102 P0X104 P0C102 P0U1030 P0X103 P0C202 P0U1031 P0X101 P0C302 P0C402 P0L201 P0U1020 P0C501 P0C601 P0C1401 P0C502 P0L302 P0C702 P0U103 P0C802 P0U104 P0L101 P0L202 P0U1021 P0L102 P0L301 P0U1022 P0R101 P0U1025 N0P000 P0U1032 N0P001 P0U101 N0P002 P0U105 N0P003 P0U107 N0P004 P0U1010 N0P005 P0P107 P0U1011 N0P006 P0U1012 N0P007 P0P106 P0U1013 N0P100 P0P105 P0U1014 N0P101 P0P104 P0U1015 N0P102 P0U1016 N0P103 P0U1017 N0P104 P0U1018 N0P105 P0U1028 N0P106 P0U1029 N0PROG P0P108 P0R602 P0U106 N0RESET P0P101 P0R1401 P0U1019 N0VCC0NRF P0C902 P0C1002 P0C1101 P0P103 P0R1402 P0U102 P0U109 P0U1024 P0U1027

Hong Kong RFID Ltd. Model: HKRAT REPORT NO.: STR10078139I PAGE 1 OF 14 FCC PART 15.249 FCC PART 15.249 MEASUREMENT AND TEST REPORT FOR Hong Kong RFID Ltd. Unit 207A, 2/F, Building 9, No. 5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong FCC ID: XNOHKRAT001 Report Concerns: Original Report Equipment Type: Wireless 2.4GHz Active RFID Transpoinder Model: HKRAT Report No.: STR10078139I Test Date: 2010-08-02 to 2010-08-12 Issue Date: 2010-08-20 Test Engineer: Susan Su Reviewed By: Lahm Peng Approved & Authorized By: Jandy so/PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Hong Kong RFID Ltd. Model: HKRAT REPORT NO.: STR10078139I PAGE 2 OF 14 FCC PART 15.249 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................4 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.205, §15.209, §15.249 (A)- RADIATED EMISSION........................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.4 TEST PROCEDURE...................................................................................................................................................8 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................8 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 5. §15.249(B) OUT OF BAND EMISSIONS .............................................................................................................12 5.1 STANDARD APPLICABLE.......................................................................................................................................12 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................12 5.3 TEST PROCEDURE.................................................................................................................................................12 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................12 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................12 Hong Kong RFID Ltd. Model: HKRAT REPORT NO.: STR10078139I PAGE 3 OF 14 FCC PART 15.249 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: Hong Kong RFID Ltd. Address of applicant: Unit 207A, 2/F, Building 9, No. 5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong Manufacturer: Hong Kong RFID Ltd. Address of manufacturer: Unit 207A, 2/F, Building 9, No. 5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong General Description of E.U.T Items Description EUT Description: Wireless 2.4GHz Active RFID Transponder Trade Name: Hussar TM Model No.: HKRAT Adding Models: HKRAT-NT01, HKRAT-NT02, HKRAT-RT01 Rated Voltage: DC 3V R…

Text truncated - open the document above for the full version.

Hong Kong RFID Ltd. Model: HKRAT REPORT NO.: STR10078139I FCC PART 15.249 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup Below 1GHz Above 1GHz
