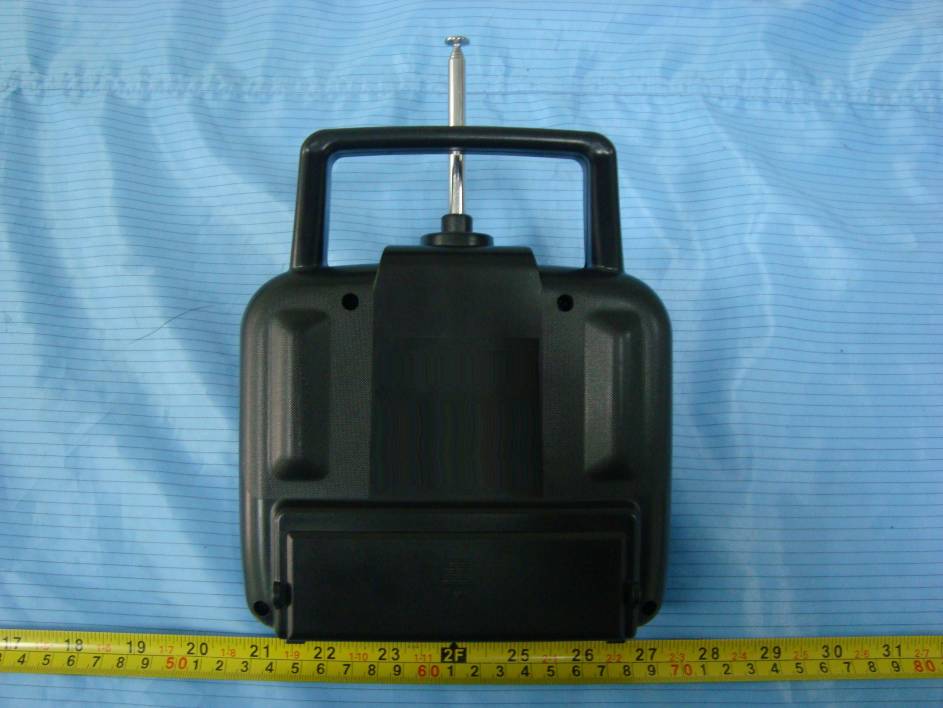

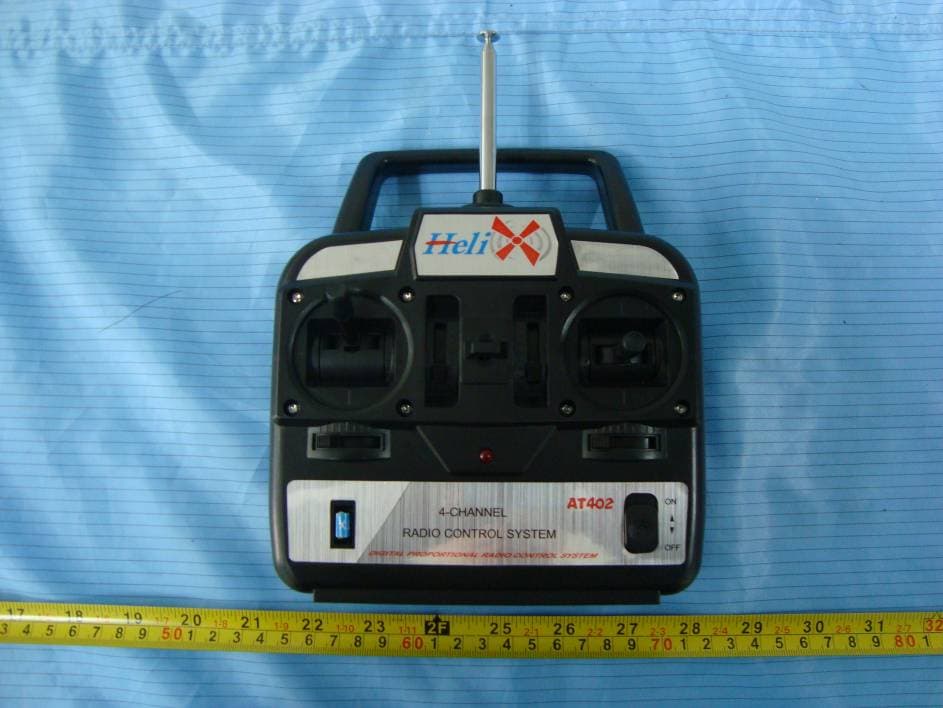

Radio Control Transmitter AT402 INSTRUCTION MANUAL Digital Proportional Radio Control System Taizhou Best Team Technology Limited www.rcmodel.net SAFETY NOTES Please read through the instructions carefully before using this radio. Pay much attention to all precautions and warnings to ensure the safest operation. WARNINGS Do not fly in the rain or at night. Water can permanently damage many of the components in the radio system, possibly causing loss of the control and a crash. Only fly at designated R/C flying fields. Fly at safe distances away from other people, objects in the air, buildings, electrical lines, or any other object which could possible impede safe flying. Failure to do so could cause a crash and possibly bodily harm and physical damage to other property. Always test the radio system before use. Make sure the operation of each channel in the radio is in the proper direction. If a channel does not accurately respond according to the transmitter input, do not fly the model. Check for and correct improperly functioning equipment before use. Failure to ensure proper radio operation before flight could result in a crash. During flight preparations, be certain to place the transmitter on its back when on the ground, to prevent it from accidentally falling over and inadvertently moving the throttle stick to high speed. Do not allow fuel or oil on the plastic parts. Some plastics may melt when exposed to such material. Before turning on the transmitter, adjust the throttle stick to minimum speed position. After stopping the engine turn “OFF”, the transmitter power switch, then turn “Off” the transmitter power switch. Failure to follow this order could cause the engine to go to full throttle and cause an injury. Do not make adjustments to the radio system while the engine is running unless absolutely necessary. Failure to do so could cause the engine to accidentally go to high speed and cause an injury. The transmitter is designed for use with 8 dry cell (Non-rechargeable) AA size alkaline batteries or rechargeable NiMh cells (available separately). If using rechargeable batteries, please follow the charging instructions supplied by the manufacturer of the batteries. Never attempt to charge non-chargeable alkaline dry cell batteries as there is a risk of fire, damage and personal injury. Always full charge the transmitter and receiver battery before each flight. Failure to do so could cause an inadvertent power failure and a crash. Use the charger supplied with this supplied with this radio. If using another charger, do not overcharge the battery, as it could cause burns, fire, injury or other equipment damage. Do not short circuit the battery terminals, as arcing, overheating or fire could result. Do not leave the radio system, batteries, model helicopter or other equipment within the reach of children. Do not overheat or throw the batteries into a fire. Leaking electrolyte from the battery could cause injury, such as burns or blindness. In case of emergency, immediately flush you eyes, skin or cloths with plenty of water and see a doctor. Recycle the battery when no longer in usable condition. Store the radio with all NiMh batteries in the discharged state and be certain to full charge the batteries just prior to use. Do not store the radio system in extreme heat or cold, in direct sunlight, in high humidity, in high vibration environments or in dusty areas. NAME AND HANDLING OF EACH PART Elevator trim lever (model 1) Throttle trim lever (model 2) Throttle trim lever (model 1) Elevator trim lever (model 2) Carrying bar Elevator (model 1) Throttle (model 2) /rudder stick Throttle (model 1) Elevator (model 2) /Aileron stick Rudder trim lever Aileron trim lever Hook LED Power on Power switch in the upper position, the power is turned on. Crystal Jack Battery Box Cover Use when replacing the battery Battery Box Charging Jack Charging jack when the transmitter was converted to NiMh battery system. Aileron Control (CH1): When the aileron stick is mover to the right, the right aileron is raised and the left aileron is raised and the left aileron is lowered and the helicopter banks to the right. When the aileron stick is moved to the left, the ailerons move in the opposite direction and the helicopter banks left. To level the helicopter, the aileron stick must be move in the opposite direction and back to center. Elevator Control (CH2): When the elevator stick is pulled back, the tail elevator is raised and the tail of the helicopter is forced down, thus causing the model to climb (Up Operation), When the elevator stick is pushed forward, the elevator is lowered, the tail of the model is forced up, thus causing the model to descend (Down Operation). Throttle Control (CH3): When the throttle stick is pulled back, the engine throttle lever arm moves to the slow (Low Speed) side. When the throttle stick is pushed forward, the throttle lever arm moves to the High (High Speed) side. Rudder Control (CH4): When the rudder stick is moved to the right, the rudder moves to the right and nose points to the right, thus causing the model to turn right. When the rudder stick is moved to the left, the rudder moves to the left， and the nose points to the left, thus causing the model to turn left. SERVO INSTRLLATION All servos should be mounted as shown in the model’s instructions. Use the rubber grommets, screws and brass eyelets supplied when mounting your servos. Do not over-tighten the mounding screws. The servos should be able to move slightly to compensate for engine vibration. For each servo, use a servo horn long enough to accommodate the entire range of movement for that particular control. When mounting the servos, make sure the pushrods are not too loose or bind in anyway. Pushrods should be capable of operating the full range of the servo. This can be tested by moving the transmitter sticks to maximum positions several times while observing the movement of the control services. If a servo is …
