XOMIPD58B24058in LED LCD FULL HD SMART TV

LED LCD SMART TV User's MANUAL English Part No.: AN0031226 MA DE FOR TOD AY SLD58G45RQ MODEL Date of Purchase Please register your product at Please keep your sales receipt and keep the record of the serial number and the date of purchase in order to receive warranty parts and service. The serial number is located at the back of the TV. www.rca.com Serial Number Table of Contents Preparation for Your New TV Child Safety Guide FCC Notice Safety Precautions Wall Mount Unit Specication Product Specication Limited Warranty for USA Limitation of Warranty United States Patents Technical Support Front Page Preparation for Your New TV Back Page Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind : The IssueTune Into Safety The home theater entertainment experience is a growing trend and larger at panel displays are popular purchases. However, at panel displays are not always supported on the proper stands of installed according to the manufacturer’s recommendations. Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests or cats may fall over and cause injury. The consumer electronics industry is committed to making home entertainment enjoyable and safe. Use a mount that has been recommended by the display manufacturer and/or listed by an independent laboratory (such as UL, CSA,ETL ). This Manufacturer Cares! Wall Mounting IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS Caution and Warning One size does NOT t all. follow the manufacturer's recommandation for the safe installation and use of your at panel display. Carefully read and understand all enclosed instructions for proper use of this product. Don' t allow children to climb on or play with furniture and television sets. Don't place at panel displays on furniture that can easily be used as steps, such as a chest of drawers. Remember that children can become excited while watching a program, especially on a "larger than life" at panel display. Care should be taken to place or install the display where it cannot be pushed, pulled over, or knocked down. Care should be taken to route all cords and cables connected to the panel display so that they cannot be pulled or grabbed by curious children. Child Safety Guide Safety Precautions FCC Notice 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. For example, do not use near a laundry tub, in a wet basement, or near a swimming pool, and the like. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Slots and openings in the cabinet back or bottom are provided for ventilation, to ensure reliable operation of the TV and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the TV on a bed, sofa, rug, or other similar surface. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio Communications. However, there is no Guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning theequipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and the receiver. - Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Device complies with FDA radiation performance standards, 21 CFR subchapter. Caution: (Invisible) Laser Radiation when open. Do not stare into beam. Note: If there any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specied by the manufacturer. 12. Use only with cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. A TV and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the TV and cart combination to overturn. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. For added protection for this TV receiver during a lightning storm, or when it is left unused for long periods of time, unplug it from the wall outlet and disconnect antenna or cable system. This will prevent damage to the TV due to lightning and power line surges. 14. Refer all servicing to qualied service personnel. Servicing is required w…

Text truncated - open the document above for the full version.

[SHENZHEN QIYUE OPTRONICS COMPANY LIMITED] FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name SHENZHEN QIYUE OPTRONICS COMPANY LIMITED Address Flat3,Tower 3, Excellence Meilin Center Plaza, Zhongkang Road 128, Shangmeilin, Futian District, City Shenzhen Country China declare that the following representative (agent): Name (person) Tony Wu Company name Shenzhen Hongcai Testing Technology Co., Ltd. Address 1st-3rd Floor,Building C,Shuanghuan Xin Yi Dai Hi-Tech Industrial Park,No.8 Baoqing Road, Baolong Industrial Zone,Longgang District City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description 58”LED LCD FULL HD SMART TV Type or Model(s) SLD58G45RQ ,SLD58XXXXXXXXXXXXXX, D58RWB340-F-A-I, D58XXXXXXXXXXXXXX, (Where "X" can be any alphanumeric of a-z, A-Z or 0-9 or blank or - ) Tradename or Brand(s) RCA Validity/ expiry date: 2015-7-30 We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen, China 2015-7-13 Hellen Xiang Customer Service Manager

SHENZHEN QIYUE OPTRONICS COMPANY LIMITED Flat3,Tower 3, Excellence Meilin Center Plaza, Zhongkang Road 128, Shangmeilin, Futian District,Shenzhen, China FCC Confidentiality Request Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company nameSHENZHEN QIYUE OPTRONICS COMPANY LIMITED AddressFlat3,Tower 3, Excellence Meilin Center Plaza, Zhongkang Road 128, Shangmeilin, Futian District, CityShenzhen CountryChina request for this certification filing under: Grantee CodeProduct Number FCC ID:XOM IPD58B240 to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) ExhibitFile NameDescription xOperational DescriptionFucntion description.pdf explaining the functioning of the block diagram xBlock DiagramsBlock diagram.pdf showing the systematic building blocks of the EUT xSchematics DiagramsSchematic circuit diagram.pdf Wifi module specification showing components, their values and interconnection xBill of MaterialsBOM.pdfList of components used on the PCB’s of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Shenzhen, China 2015-7-13 Hellen Xiang Customer Service Manager

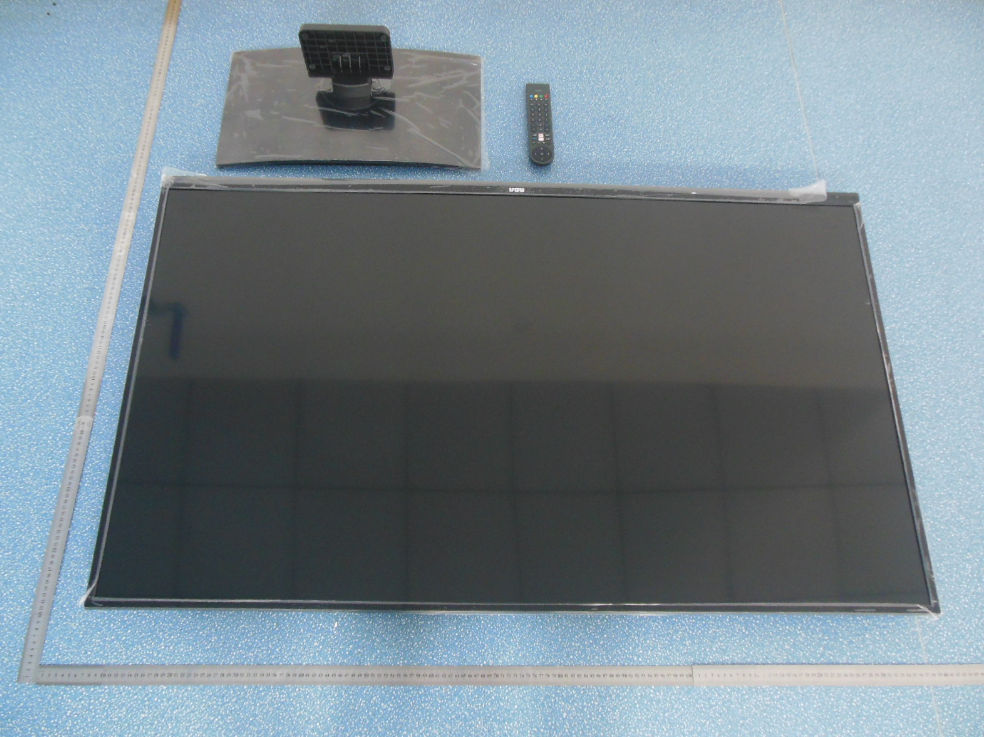

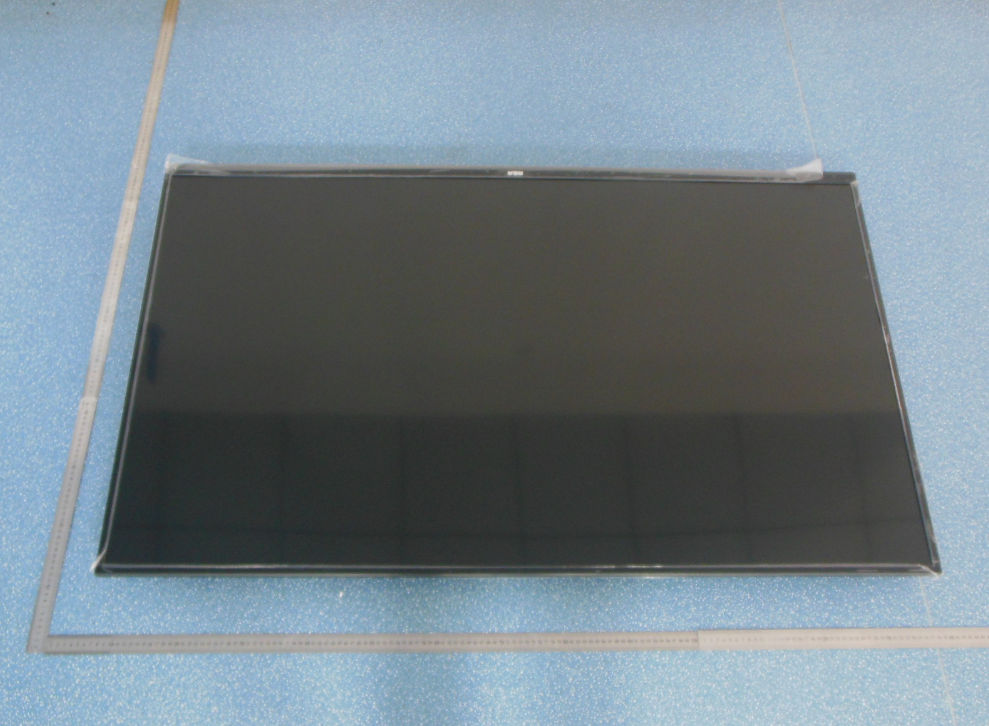

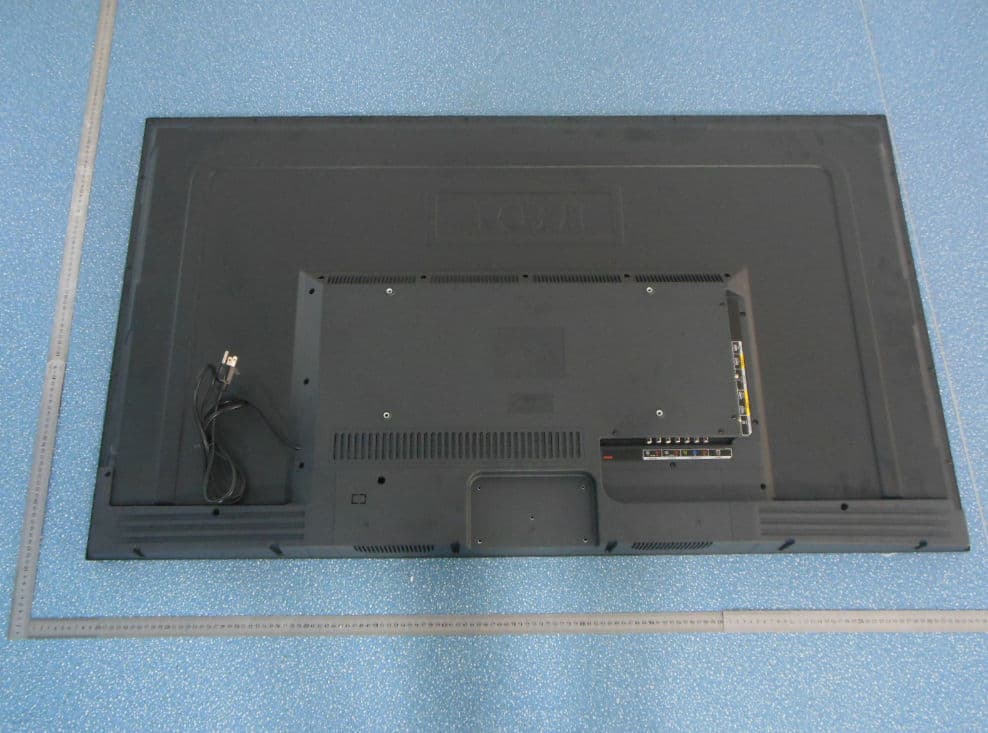

External Photographs EUT –View EUT –Front View EUT – Rear View EUT – Port View EUT – Port View

104.5mm 81mm 58” LED LCD FULL HD SMART TV 94W SLD58G45RQ 58B240

FCC-ID MARK Location FCC-ID MARK Location

Internal Photographs EUT - Open View EUT – PCB Top View EUT –PCB Rear View EUT –PCB Top View EUT –PCB Rear View EUT –PCB WIFI View EUT –PCB WIFI View

MPE Calculation FCC ID: XOMIPD58B240 Remark: Average ≤ Peak, which means that calculating the power density applying Peak power is worst case. The worst case operation mode generating the highest power in each frequency range is taken for calculation. For WiFi 11b/g/n(HT20): Frequency range:2412-2462MHzTypical use distance: d ≥20cm Power density limit for mobile devices at 2.4 GHz: S ≤1mW/cm 2 Maximum measured conducted power (Peak): Pconducted =19.89dBm =97.5mW Antenna Gain: G = 2.2dBi =1.66on the linear scale Calculation: P radiated = P conducted + G linear =19.89dBm +2.2dBi =22.09dBm =161.81mW Power density S = (P radiated ) / (4π x d 2 ) =161.81/5026 =0.0322mW/cm 2 <1=> below limit For WiFi 11n(HT40): Frequency range:2452-2452MHzTypical use distance: d ≥20cm Power density limit for mobile devices at 2.4 GHz: S ≤1mW/cm 2 Maximum measured conducted power (Peak): Pconducted =19.90 dBm =97.72mW Antenna Gain: G = 2.2dBi =1.66on the linear scale Calculation: P radiated = P conducted + G linear =19.9dBm +2.2dBi =22.1dBm =162.18mW Power density S = (P radiated ) / (4π x d 2 ) =162.18/5026 =0.0323mW/cm 2 <1=> below limit

Test Report of FCC CFR 47 Part 15 Subpart C On Behalf of SHENZHEN QIYUE OPTRONICS COMPANY LIMITED FCC ID: XOMIPD58B240 Product Description: 58 ” LED LCD FULL HD SMART TV Model No.: SLD58G45RQ Supplementary Model: SLD58XXXXXXXXXXXXXX, D58RWB340-F-A-I, D58XXXXXXXXXXXXXX, (Where "X" can be any alphanumeric of a-z, A-Z or 0-9 or blank or - ) Brand Name: RCA Prepared for: SHENZHEN QIYUE OPTRONICS COMPANY LIMITED Flat3,Tower 3, Excellence Meilin Center Plaza, Zhongkang Road 128, Shangmeilin, Futian District, Shenzhen, China Prepared by: Shenzhen Hongcai Testing Technology Co., Ltd. 1st-3rd Floor,Building C,Shuanghuan Xin Yi Dai Hi-Tech Industrial Park,No.8 Baoqing Road,Baolong Industrial Zone,Longgang District, Shenzhen, Guangdong, China Tel: 86-755-86337020 Fax: 86-755-86337028 Report No.: HCT15GR034E Issue Date: July 20, 2015 Test Date: July 10~17, 2015 Tested by: Reviewed by: Jiankuai.Li Owen Yang Approved by: Tony Wu Report No.: HCT15GR034E Page 2 of 76 FCC ID: XOMIPD58B240 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................... 4 1.2 TEST STANDARDS .............................................................................................................................. 5 1.3 TEST FACILITY ................................................................................................................................... 5 2. SYSTEM TEST CONFIGURATION ....................................................................................................... 6 2.1 EUT CONFIGURATION ........................................................................................................................ 6 2.2 EUT EXERCISE ................................................................................................................................. 6 2.3 GENERAL TEST PROCEDURES............................................................................................................. 6 2.4 MEASUREMENT UNCERTAINTY ............................................................................................................ 6 2.5 LIST OF MEASURING EQUIPMENTS USED .............................................................................................. 7 3. SUMMARY OF TEST RESULTS .......................................................................................................... 8 4. TEST OF AC POWER LINE CONDUCTED EMISSION ........................................................................ 9 4.1 APPLICABLE STANDARD...................................................................................................................... 9 4.2 TEST SETUP DIAGRAM ....................................................................................................................... 9 4.3 TEST RESULT .................................................................................................................................... 9 5. TEST OF MAXIMUM PEAK OUTPUT POWER................................................................................... 12 5.1 APPLICABLE STANDARD.................................................................................................................... 12 5.2 EUT SETUP .................................................................................................................................... 12 5.3 TEST EQUIPMENT LIST AND DETAILS .................................................................................................. 12 5.4 TEST PROCEDURE ........................................................................................................................... 12 5.5 TEST RESULT .................................................................................................................................. 13 6. TEST OF PEAK POWER SPECTRAL DENSITY ................................................................................ 23 6.1 APPLICABLE STANDARD.................................................................................................................... 23 6.2 EUT SETUP .................................................................................................................................... 23 6.3 TEST EQUIPMENT LIST AND DETAILS .................................................................................................. 23 6.4 TEST PROCEDURE ........................................................................................................................... 23 6.5 TEST RESULT .................................................................................................................................. 23 7. TEST OF 6DB BANDWIDTH .............................................................................................................. 33 7.1 APPLICABLE STANDARD.................................................................................................................... 33 7.2 EUT SETUP .................................................................................................................................... 33 7.3 TEST EQUIPMENT LIST AND DETAILS .................................................................................................. 33 7.4 TEST PROCEDURE ........................................................................................................................... 33 7.5 TEST RESULT .................................................................................................................................. 33 8. TEST OF CONDUCTED SPURIOUS EMISSION ................................................................................ 43 8.1 APPLICABLE STANDARD.................................................................................................................... 43 8.2 EUT SETUP ..................................................…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS Radiated Emission Radiated Emission Conduction Emission
