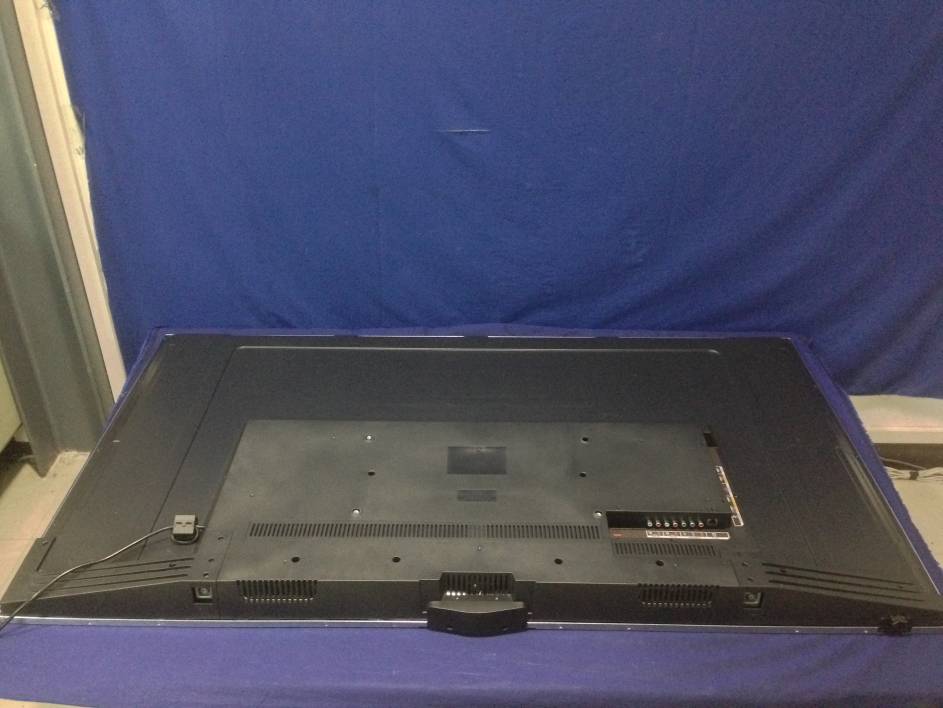

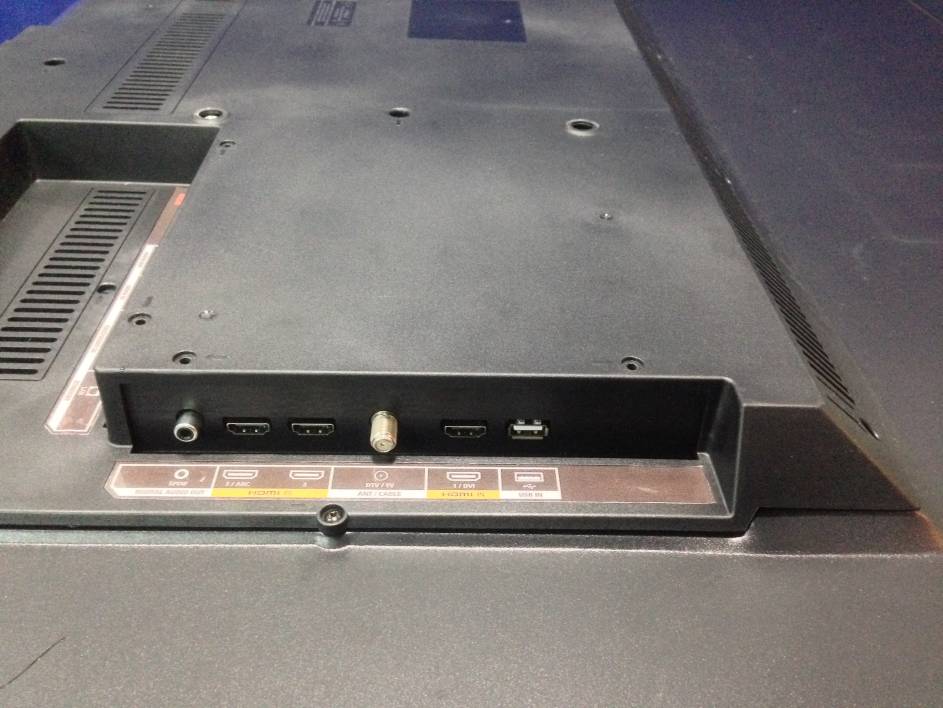

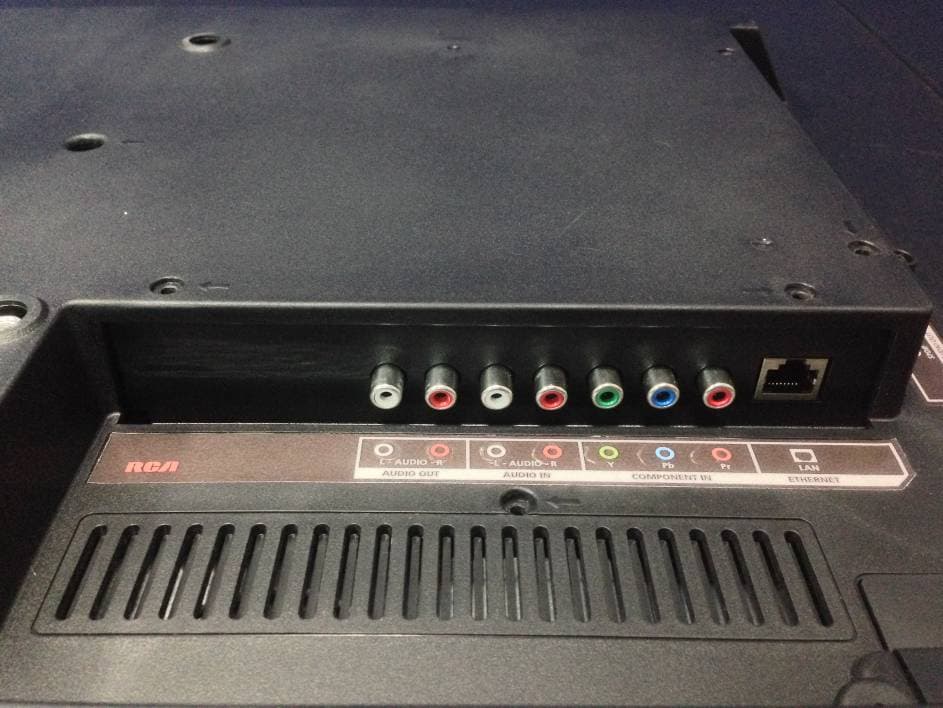

XOMIPD65P60665 INCH LED LCD FULL HD SMART TV

LED LCD SMART TV User's MANUAL English Part No.: RN0365R60611 MADE FOR TODAY SLD65A55RQ MODEL Date of Purchase Please register your product at Please keep your sales receipt and keep the record of the serial number and the date of purchase in order to receive warranty parts and service. The serial number is located at the back of the TV. www.rca.com Serial Number Table of Contents Preparation for Your New TV Child Safety Guide FCC Notice Safety Precautions Wall Mount Unit Specication Product Specication Limited Warranty for USA Limitation of Warranty United States Patents Technical Support Front Page Preparation for Your New TV Back Page Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind : The IssueTune Into Safety The home theater entertainment experience is a growing trend and larger at panel displays are popular purchases. However, at panel displays are not always supported on the proper stands of installed according to the manufacturer’s recommendations. Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests or cats may fall over and cause injury. The consumer electronics industry is committed to making home entertainment enjoyable and safe. Use a mount that has been recommended by the display manufacturer and/or listed by an independent laboratory (such as UL, CSA,ETL ). This Manufacturer Cares! Wall Mounting IF YOU DICIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS Caution and Warning One size does NOT t all. follow the manufacturer's recommandation for the safe installation and use of your at panel display. Carefully read and understand all enclosed instructions for proper use of this product. Don' t allow children to climb on or play with furniture and television sets. Don't place at panel displays on furniture that can easily be used as steps, such as a chest of drawers. Remember that children can become excited while watching a program, especially on a "larger than life" at panel display. Care should be taken to place or install the display where it cannot be pushed, pulled over, or knocked down. Care should be taken to route all cords and cables connected to the panel display so that they cannot be pulled or grabbed by curious children. Child Safety Guide Safety Precautions FCC Notice 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. For example, do not use near a laundry tub, in a wet basement, or near a swimming pool, and the like. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Slots and openings in the cabinet back or bottom are provided for ventilation, to ensure reliable operation of the TV and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the TV on a bed, sofa, rug, or other similar surface. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio Communications. However, there is no Guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning theequipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and the receiver. - Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Device complies with FDA radiation performance standards, 21 CFR subchapter. Caution: (Invisible) Laser Radiation when open. Do not stare into beam. Note: If there any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specied by the manufacturer. 12. Use only with cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. A TV and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the TV and cart combination to overturn. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. For added protection for this TV receiver during a lightning storm, or when it is left unused for long periods of time, unplug it from the wall outlet and disconnect antenna or cable system. This will prevent damage to the TV due to lightning and power line surges. 14. Refer all servicing to qualied service personnel. Servicing is required …

Text truncated - open the document above for the full version.

Rev 11/20/07 Shenzhen Qiyue Optronics Company Limited Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: XOMIPD65P606. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, XOMIPD65P606_Block Diagram.pdf, Schematics, XOMIPD65P606_ Schematics.pdf, Operational Description XOMIPD65P606_ Operational Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Shenzhen Qiyue Optronics Company Limited Na Liu/General Manager

Shenzhen Qiyue Optronics Company Limited Date: 2015-2-27 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: XOMIPD65P606 To Whom It May Concern: This letter is to ascertain that Shenzhen Qiyue Optronics Company Limited 6 5’’ LED LCD FULL HD SMART TV Model No.: SLD65A55RQ, D65RWP606-F55-A-I, SLD65XXXXXXXXXX, D65XXXXXXXXXX, 65XXXXXXXXXXX, 65XXXXXXXXXX ( "X"can be any alphanumeric of a-z, A-Z or 0-9 or blank.) has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Na Li u/General Manager E-mail: [email protected] Phone: +86-755-26504659 Fax: +86-755-26954282 Address: Room 501, Zhongxin Technology Building, Bagua Road, Futian District, Shenzhen, GuangDong, China

Family models declaration letter. 2015-2-27 We Shenzhen Qiyue Optronics Company Limited Of Room 501, Zhongxin Technology Building, Bagua Road, Futian District, Shenzhen, GuangDong, China (address) Declare under our sole responsibility that the product Product Name: 65’’ LED LCD FULL HD SMART TV Model Number : SLD65A55RQ, D65RWP606-F55-A-I, SLD65XXXXXXXXXX, D65XXXXXXXXXX, 65XXXXXXXXXXX, 65XXXXXXXXXX ( "X"can be any alphanumeric of a-z, A-Z or 0-9 or blank.) All models have the same constructions, circuit diagram and PCB layout. Only colour, appearance and model name are different. Unless otherwise stated Sincerely, Shenzhen Qiyue Optronics Company Limited Na Liu/General Manager

Shenzhen Qiyue Optronics Company Limited Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2015-2-27 SUBJECT: FCC Application for XOMIPD65P606 To Whom It May Concern: We, the undersigned, hereby authorize SHENZHEN EMTEK CO., LTD (MR. David Lee, Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SHENZHEN EMTEK CO., LTD (MR. David Lee, Manager) on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, Shenzhen Qiyue Optronics Company Limited, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Shenzhen Qiyue Optronics Company Limited Na Liu/General Manager

105.5mm 81mm 65” LED LCD FULL HD SMART TV 102W SLD65A55RQ 65P606

Label Location

Antenna Module

FCC ID : XOMIPD65P606 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 11.2 Measurement Result Antenna gain: 3.0dBi 802.11b: Channel Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 1 2412 19.02 19.0±1 20.0 1.9953 0.0397 1 6 2437 19.41 19.0±1 20.0 1.9953 0.0397 1 11 2462 18.03 19.0±1 20.0 1.9953 0.0397 1 802.11g: Channel Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 1 2412 17.25 17.0±1 18.0 1.9953 0.0250 1 6 2437 16.44 17.0±1 18.0 1.9953 0.0250 1 11 2462 17.27 17.0±1 18.0 1.9953 0.0250 1 802.11n HT20: Channel Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 1 2412 17.90 17.0±1 18.0 1.9953 0.0250 1 6 2437 18.00 17.0±1 18.0 1.9953 0.0250 1 11 2462 17.17 17.0±1 18.0 1.9953 0.0250 1 802.11n HT40: Channel Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 3 2422 16.86 16.0±1 17.0 1.9953 0.0199 1 6 2437 16.70 16.0±1 17.0 1.9953 0.0199 1 9 2452 16.55 16.0±1 17.0 1.9953 0.0199 1

TRF No：FCC 15.247/A Page 1 of 65 Report No.: ES150205062E Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For 65’’ LED LCD FULL HD SMART TV MODEL No.: SLD65A55RQ, D65RWP606-F55-A-I, SLD65XXXXXXXXXX, D65XXXXXXXXXX, 65XXXXXXXXXXX, X65XXXXXXXXXX ( "X"can be any alphanumeric of a-z, A-Z or 0-9 or blank.) FCC ID:XOMIPD65P606 Trade Mark: RCA REPORT NO.: ES150205062E ISSUE DATE: February 27, 2015 Prepared for Shenzhen Qiyue Optronics Company Limited Room 501, Zhongxin Technology Building, Bagua Road, Futian District, Shenzhen, GuangDong, China Prepared by SHENZHEN EMTEK CO., LTD Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No：FCC 15.247/A Page 2 of 65 Report No.: ES150205062E Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION ........................................................................................................... 4 3 SUMMARY OF TEST RESULT ................................................................................................................ 5 4 TEST METHODOLOGY ........................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................................................... 6 4.2 MEASUREMENT EQUIPMENT USED ............................................................................................. 6 4.3 DESCRIPTION OF TEST MODES .................................................................................................... 7 5 FACILITIES AND ACCREDITATIONS ..................................................................................................... 8 5.1 FACILITIES ....................................................................................................................................... 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ........................................................................ 8 6 TEST SYSTEM UNCERTAINTY .............................................................................................................. 9 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................... 10 7.1 RADIO FREQUENCY TEST SETUP 1 ............................................................................................ 10 7.2 RADIO FREQUENCY TEST SETUP 2 ............................................................................................ 10 7.3 CONDUCTED EMISSION TEST SETUP ........................................................................................ 11 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ............................................................ 12 7.5 SUPPORT EQUIPMENT ................................................................................................................ 12 8 TEST REQUIREMENTS ........................................................................................................................ 13 8.1 DTS (6DB) BANDWIDTH ................................................................................................................ 13 8.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER ...................................................................... 22 8.3 MAXIMUM POWER SPECTRAL DENSITY .................................................................................... 23 8.4 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS .................................... 32 8.5 RADIATED SPURIOUS EMISSION ................................................................................................ 38 8.6 CONDUCTED EMISSIONS TEST .................................................................................................. 50 8.7 ANTENNA APPLICATION ............................................................................................................... 53 8.8 EUT PHOTO ................................................................................................................................... 54 TRF No：FCC 15.247/A Page 3 of 65 Report No.: ES150205062E Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World 1 TEST RESULT CERTIFICATION Applicant: Shenzhen Qiyue Optronics Company Limited Room 501, Zhongxin Technology Building, Bagua Road, Futian District, Shenzhen, GuangDong, China Manufacturer: Shenzhen Qiyue Optronics Company Limited Room 501, Zhongxin Technology Building, Bagua Road, Futian District, Shenzhen, GuangDong, China EUT Description: 65’’ LED LCD FULL HD SMART TV Model Number: SLD65A55RQ, D65RWP606-F55-A-I, SLD65XXXXXXXXXX, D65XXXXXXXXXX, 65XXXXXXXXXXX, X65XXXXXXXXXX ( "X"can be any alphanumeric of a-z, A-Z or 0-9 or blank.) Trade Mark: RCA File Number: ES150205062E Date of Test: February 7, 2015 to February 27, 2015 Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2014) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test…

Text truncated - open the document above for the full version.

CONDUCTED EMISSIONS TEST RADIATED SPURIOUS EMISSION
