XPB-COMAD400V2Allegion AD 900 MHz Module V2

User’s Manual -COMAD400V2 900 MHz Communications Board The communications module is a 900 MHz transceiver for electronic locks and non-lock devices. The communications module links the access device to the Access Control Management System, with feedback control to the Access Device via a wireless means. The module contains the embedded firmware implementing the radio physical and data layers. There are 5 antennas associated with this module: 1. PCB trace antenna with a 5.7dBi maximum gain (measured over a conducting ground plane). 2. MA-CC60-60 Dual Beam Antenna with a 3.5dBi gain (Data sheet) 3. MA-CL67-15 multi band Directional Panel antenna with 8.5dBi gain (Data sheet) 4. MA-CL92-5 Quasi-Omni Panel antenna with 4.5dBi gain (Data sheet) 5. MA-CM36-15 multi band Omni Antenna with 2dBi gain (Data sheet. Specifications of the radio module: Power Output: 19.6 dBm Operating Frequency: 906 - 924 MHz Modulation: BPSK NOTE:The intended use of this module is not for the general public. It is generally for industry/commercial use only. This transceiver is to be professionally installed in the end product by Schlage Lock Company, and not by a third party. The Schlage Lock Company COMAD400V2 900 MHz Communications Board Module will not be sold to third parties via retail, general public or mail order. In the case of a repair, the transceiver will be replaced by a professional Installer. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC/IC Caution:Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. To comply with FCC/IC RF exposure limits for general population/uncontrolled exposure, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. INDUSTRY CANADA STATEMENTS This Device complies with Industry Canada License-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. This radio transmitter, 8053B-COMAD400V2, has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. This device has been designed to operate with the antennas listed below, and having a maximum gain of 8.5 dBi. Antennas not included in this list or having a gain greater than 8.5 dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. Approved antenna list Model Number 235305531Remote antenna, Omni, wall/post, indoors/outdoors 235305611Remote antenna, Omni, ceiling, indoors 235305791Remote antenna, Directional, wall/post, indoors/outdoors 235205871Remote antenna, Bi-directional, ceiling, indoors To comply with IC RF exposure limits for general population/uncontrolled exposure, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. DÉCLARATIONS DE INDUSTRIE Canada Cet appareil est conforme norme Industrie Canada RSS exempts de licence (s). Son fonctionnement est soumis aux deux conditions suivantes: 1) cet appareil ne doit pas provoquer d’interférences, et 2) cet appareil doit accepter toute interférence, y compris les interférences pouvant provoquer un fonctionnement indésirable de l’appareil. Conformément aux normes d’Industrie Canada, ce transmetteur radio ne peut fonctionner qu’avec une antenne dont le type et le gain maximum sont approuvés par Industrie Canada. Pour réduire les risques d’interférences radio encourus par d’autres utilisateurs, le type et le gain de l’antenne doivent être choisis de façon à ce que la puissance rayonnée isotrope équivalente (PIRE) ne soit pas supérieur…

Text truncated - open the document above for the full version.

Mars Antennas & RF Systems proprietary information MARS reserves the right to make technical changes or modifications to any of its products and specifications without prior notice and without implementing such changes to prior supplied products. Product images are representative and indicative only. Warranty terms and general conditions of sale are applicable on any purchase of any product, available on MARS website. MA-CC60-60 Dual Beam GSM Wi-Fi Antenna MARS Dual Beam GSM Antenna is ideal for deployment in tunnels or long building corridors ceiling. It features small and unobtrusive profile that blends easily with any environment. Applicable Applications: • Tunnel coverage. • Indoor cell extender. Specifications Electrical Frequency range 870-960 MHz 2.4-2.5 GHz GAIN, min. 3.5 dBi 4.5 dBi 3 dB Beam-Width, H-Plane, typ. 290° 2 xx85° 3 dB Beam-Width, E-Plane, typ. 66° 60° VSWR, max. 1.8 :1 Polarization Linear, Vertical Input power, max 50 Watt Input Impedance 50 Ohm Mechanical Dimensions (HxWxD) 184 x 100 x 125 mm. Weight 240 gr. Connector N-Type Female/Side Pigtail Optional Back Plane Aluminum, Conversion Coated Radome ABS, UV Protected Mount Ceiling Mountable Environmental Operating Temperature Range -10°°C to +65C Vibration According to IEC 60721-3-4 Wind Load Survival: Indoor use. Flammability UL94 Water Proofing IP-65 Humidity ETS 300 019-1-4, EN 302 085 (annex A.1.1) Salt Fog According to IEC 68-2-11 Ice and Snow 25mm Radial 3 Hamanor st. Holon 58861, P.O.Box 5 AZOR 58008, Israel Tel: +972-3-5599661 • Fax: +972-3-5599677 • e-mail: [email protected] • web: www.mars-antennas.com

Mars Antennas & RF Systems proprietary information MARS reserves the right to make technical changes or modifications to any of its products and specifications without prior notice and without implementing such changes to prior supplied products. Product images are representative and indicative only. Warranty terms and general conditions of sale are applicable on any purchase of any product, available on MARS website. MA-CM36-15 Multi Band Omni Antenna MARS Multi Band Omni Antenna covers all the bands for 2G, 2.5G and 3G cellular, as well as ISM, WLAN and Bluetooth. The antenna is aesthetic, small and has unobtrusive profile that blends easily with any environment. The antenna is easy-installed and is highly recommended as an outstanding logistic solution for In-Building Installations. Specifications Electrical Standard SMR, AMPS, CDMA, TDMA, GSM 900 PCS, DECT, GSM 1900, UMTS Bluetooth, ISM, WLAN Frequency range 806-960 MHz 1.71-2.17 GHz 2.3-2.7 GHz GAIN, typ. 2 dBi 3-4 dBi 5 dBi VSWR, max. 2 : 1 1.5 : 1 1.6 : 1 Polarization Linear, Vertical Input power, max. 50 Watt Input Impedance 50 Ohm Lightning Protection DC Grounded Mechanical Dimensions (HxWxD) Base Diameter - 205 mm, Height - 89 mm Weight 220 gr. Connector N-Type, Female Back Plane Aluminum; protected through chemical passivation Radome UV Protected Polycarbonate Mount Ceiling Mounting Environmental Operating Temperature Range -40°C to +65°C Vibration According to IEC 60721-3-4 Flammability UL94 Humidity ETS 300 019-1-4, EN 302 085 (annex A.1.1) Ordering Options MA-CM36-15 Antenna Indoor MA-CM36-15R Antenna Outdoor MA-CM36-15T Antenna Indoor with DC Return Option Patterns are available on our website Patent Pending 3 Hamanor st. Holon 58861, P.O.Box 5 AZOR 58008, Israel Tel: +972-3-5599661 • Fax: +972-3-5599677 • e-mail: [email protected] • web: www.mars-antennas.com

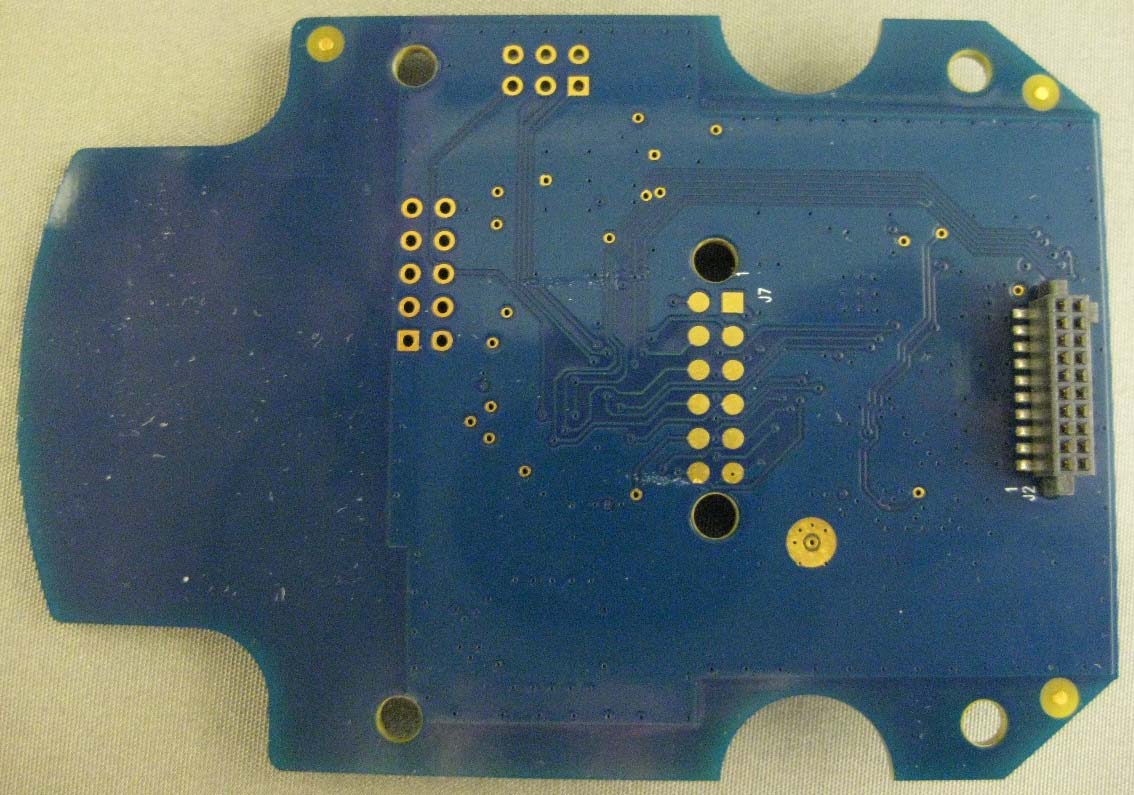

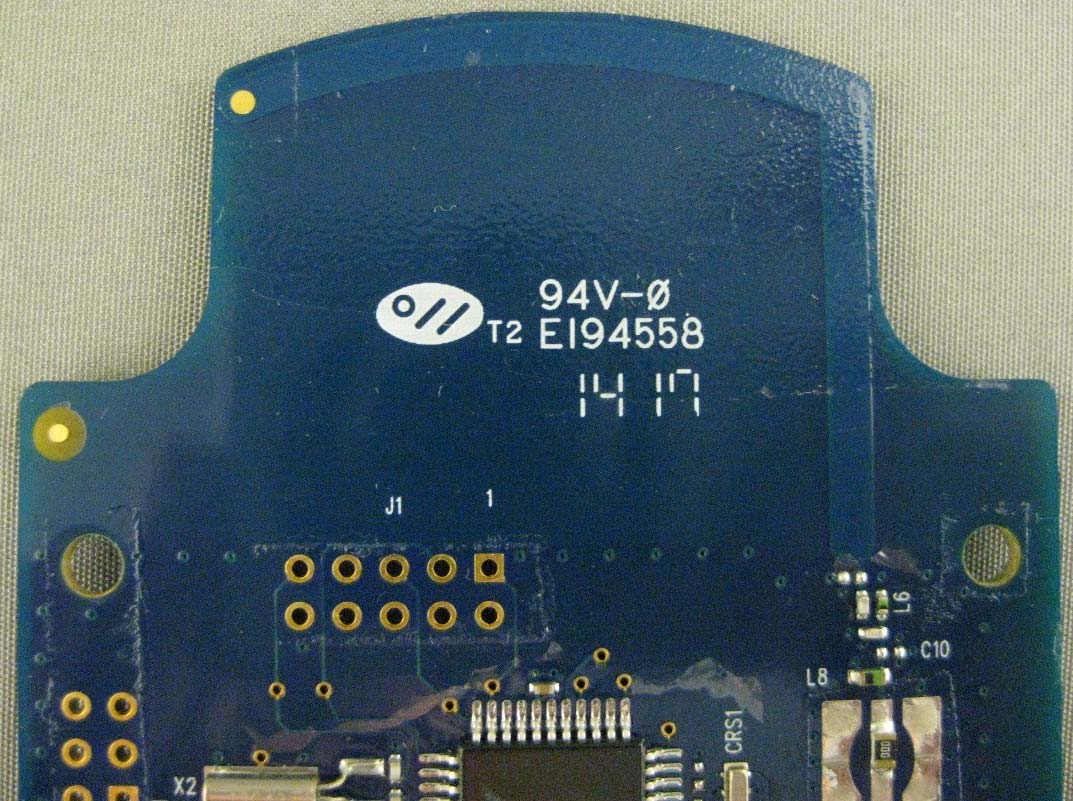

EXTERNAL PHOTOS Company Name Allegion Model # COMAD400V2 FCC ID # XPB‐COMAD400V2 IC # 8053B‐COMAD400V2 Page 1 of 7 Trace Antenna Close‐up of trace antenna EXTERNAL PHOTOS Company Name Allegion Model # COMAD400V2 FCC ID # XPB‐COMAD400V2 IC # 8053B‐COMAD400V2 Page 2 of 7 Backside Board with Cable connection EXTERNAL PHOTOS Company Name Allegion Model # COMAD400V2 FCC ID # XPB‐COMAD400V2 IC # 8053B‐COMAD400V2 Page 3 of 7 Close‐up of cable to module connection MA‐CL92‐5 Quasi‐Omni Panel Antenna EXTERNAL PHOTOS Company Name Allegion Model # COMAD400V2 FCC ID # XPB‐COMAD400V2 IC # 8053B‐COMAD400V2 Page 4 of 7 EXTERNAL PHOTOS Company Name Allegion Model # COMAD400V2 FCC ID # XPB‐COMAD400V2 IC # 8053B‐COMAD400V2 Page 5 of 7 MA‐CM36‐15 Multi‐band Omni Directional Antenna EXTERNAL PHOTOS Company Name Allegion Model # COMAD400V2 FCC ID # XPB‐COMAD400V2 IC # 8053B‐COMAD400V2 Page 6 of 7 MA‐CC60‐60 Dual Beam Antenna EXTERNAL PHOTOS Company Name Allegion Model # COMAD400V2 FCC ID # XPB‐COMAD400V2 IC # 8053B‐COMAD400V2 Page 7 of 7 MA‐CL67‐15 Multi band Directional Panel Antenna

POLYONICS TRIBOGARD® XF-781 Thermal Transfer Printable Polyimide 1 mil STATIC DISSIPATIVE, WHITE 1 91136 REV G 7/22/2011 Description: POLYONICS XF-781 is a special 1 mil (25μ) polyimide film with a high-temperature permanent pressure sensitive acrylic adhesive and a high opacity, gloss white topcoat specifically designed for thermal transfer printing. Using a 1 mil vs. a 2 mil polyimide film base offers polyimide thermal performance at less cost. Properties: The XF-781 topcoat, in combination with the appropriate thermal transfer ribbon, passes the requirements of MIL-STD-202G, Notice 12, Method 215K and MIL-STD-883E, Notice 4, Method 2015.13. The print resists smearing, even when the board and label are directly removed from a reflow or wave solder environment. Preheating the labeled product can further enhance print permanence in the case of extreme solvent and/or abrasion exposure, although this is not typically required for board processing applications. Moreover, when the label is peeled from its release liner, less than 100 volts per square inch of electrostatic charge is generated, making it safe to use in a static free work environment, per EIA 625 and 541. Applications : ƒ POLYONICS XF-781 is specifically designed for high-temperature-lead-free solder applications. ƒ It is the ideal label to withstand surface mount board processes, on either the top or bottom side of the board. It can also be used on the top side of the board in mixed processes, and is recommended for the bottom side which is directly exposed to the wave solder environment. ƒ 1 mil polyimide is perfect in applications where low profile labeling is required such as silk screening or stacking. ƒ XF-781 is particularly useful in manufacturing processes where dimensional stability of the label is critical. ƒ IC labeling for work in process, permanent ID & warrantee labeling ƒ Product ID, asset tracking ƒ Anywhere a label will be exposed to extreme temperature resistance Special Considerations : ƒ The surface that you want to label should be clean, dry and free of any surface contamination, such as dust, oil or rust. Isopropyl alcohol would be a recommend solvent to clean the surface. ƒ When you apply the label, you must use firm pressure to increase the physical contact of the adhesive with the surface of the product. ƒ Pressure sensitive adhesives will provide stronger bonds to a warm surface, as compared to a colder one. The adhesive will ‘flow’ more readily, increasing the surface area and increasing the adhesion peel strength. ƒ The XF-781 top coat & print should not be contacted while exposed to elevated temperature. ƒ All values shown are averages and should not be used for specification purposes. Adhesion and tack values have a 15% tolerance allotted to the above values stated. ƒ Test data and test results contained in this document are for general information only and shall not be relied upon by POLYONICS customers for designs and specifications, or be relied on as meeting specified performance criteria. ƒ Customers desiring to develop specifications or performance criteria for specific product applications should contact Polyonics for further information POLYONICS TRIBOGARD® XF-781 Thermal Transfer Printable Polyimide 1 mil STATIC DISSIPATIVE, WHITE 2 91136 REV G 7/22/2011 Technical Data Properties Test Method Average Results USA Units SI Units Thickness ASTM D1000 -Substrate 0.0015 inch 0.038 mm -Adhesive 0.0010 inch 0.025 mm -Total 0.0025 inch 0.064 mm Adhesion Polyonics 80313 Stainless Steel 20 minute dwell > 27 oz/in 30N/100 mm 24 hour dwell > 30 oz/in 33N/100 mm Tack Polyonics 80155 > 1000g Label Surface Resistance EOS/ESD S.11.11 > 10 8 Ω and < 10 11 Ω Peel Value (Volts/sq.in.) Polyonics 80331 < 100 volts Static Decay Label Surface EIA 541 To 1% of initial charge- 0.02 seconds Temperature Rating: Long term 100 hours at 302ºF (125ºC) Operating 5 minutes at 500ºF (260ºC) Short term 90 seconds at 572ºF (300ºC) Shelf Life 1 year below 80°F (27°C) and 60% R.H. UL File # PGJI2.MH19503 UL Tested Ribbons Ricoh B110CR, C, Armor AXR7+, 8, Sony 4070, JPP1, Union Chemicar US300, DNP 510 Durability Testing Properties Test Method Test Environment PCS¹ Read Rate² Heat/Chemical Polyonics 80386 Control 70°C, 5 min. 99% 100% Alpha Metals Inc. 2110 Saponifier 6%, aqueous, 70°C, 5 min. 97% 100% Isopropanol 99% 70°C, 5 min 99% 100% Kyzen XJN+, 30%, 70°C, 5 min. 99% 100% Chemical Testing Properties Test Method Test Fluid Results Chemical Resistance MIL-STD-202G, Notice 12, Method 215K MIL-STD-883E, Notice 4, Method 2015.13 Solvent A –1 part IPA, 3 parts mineral spirits No visible effect Solvent B – 1 ,1,1 Trichloroethane Solvent deleted per notice 12 Solvent C –Terpene Defluxer No visible effect Solvent D –Saponifier No visible effect POLYONICS TRIBOGARD® XF-781 Thermal Transfer Printable Polyimide 1 mil STATIC DISSIPATIVE, WHITE 3 91136 REV G 7/22/2011 Polyonics Material Compliance RoHS- Restriction of Hazardous Substances (EU Directive 2002/95/EC) Limits set forth in Directive 2005/618/EC amending Directive 2002/95/EC REACH- Registration Evaluation and Authorization of Chemicals (EU Directive 1907/2006/EC) Limits set forth in Directive 1907/2006/EC Article 7 (2) Halogens- Restriction use of Halogen (IEC 61249-2-21) Limits set forth in International Electrochemical Commission Key for Tables on page 2 ƒ All Sl units are mathematically derived from U.S. conventional units. ƒ Labels printed with a recommended thermal transfer ribbon. Labels printed with 6.7 mil X dimension bars at 2:5 ratio. Labels exposed to indicated environments: ƒ 1 PCS - Print Contrast Signal. PCS determined with Quick Check 650, 0.005" aperture, 660 nm wavelength. ƒ Quick Check 650 manufactured by : Photographic Sciences Corp. ƒ 2 Read rate determined using a PSC Quick Check 850 laser scanner Trademarks: Aquanox SSA-™ is a trademark of Kyzen Corporation. EC-7R™ is a trademark of Petroferm Inc. RE-ENTRY™ is a registered trademark of Environsolv Inc Refe…

Text truncated - open the document above for the full version.

INTERNAL PHOTOS Company Name Allegion Model # COMAD400V2 FCC ID # XPB‐COMAD400V2 IC # 8053B‐COMAD400V2 Page 1 of 1 Shield Removed Close Up of RF Section

MPE CALCULATIONS The following MPE calculations are based on a measured conducted RF power of +18.6 dBm as presented to the antenna. The gain of this antenna, based on the data sheet is 8.5dBi. Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:18.60 (dBm) Maximum peak output power at antenna input terminal:72.444 (mW) Antenna gain(typical):8.5 (dBi) Maximum antenna gain:7.079 (numeric) Prediction distance:20 (cm) Prediction frequency:906 (MHz) MPE limit for uncontrolled exposure at prediction frequency:0.6 (mW/cm^2) Power density at prediction frequency:0.102031 (mW/cm^2) Maximum allowable antenna gain:16.2 (dBi) 20cm =7.7 dBMargin of Compliance at 2 4R PG S  

W66 N220 Commerce Court ● Cedarburg, WI 53012 Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com TEST REPORT #: TR 314167 A LSR Job #: C- 1964 Compliance Testing of: Allegion AD 900MHz module V2 Test Date(s): June 3 rd to 17 th 2014 Prepared For: Attn: Mike Henney 11819 North Pennsylvania street, Carmel, IN 46032 This Test Report is issued under the Authority of: Khairul Aidi Zainal, Senior EMC Engineer Signature: Date: 7/8/14 Test Report Reviewed by: Adam Alger, EMC Engineer Signature: Date: 7-7-14 Project Engineer: Khairul Aidi Zainal, Senior EMC Engineer. Signature: Date: 7/1/14 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. Prepared For:Allegion EUT: AD 900MHz Module V2 LS Research, LLC Report #: TR 314167 A Model #: COMAD400V2 Template: 15.247 LSR Job #: C-1964 Serial #: LSR905141900033A (Trace antenna) LSR906141900046A (Antenna connector) LSR906141900037A (Antenna connector) Page 2 of 48 TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ........................................................................................................... 4 1.1 - Scope ............................................................................................................................... 4 1.2 – Normative References ..................................................................................................... 4 1.3 - LS Research, LLC Test Facility ........................................................................................ 5 1.4 – Location of Testing .......................................................................................................... 5 1.5 – Test Equipment Utilized ................................................................................................... 5 EXHIBIT 2. PERFORMANCE ASSESSMENT ................................................................................. 6 2.1 – Client Information ............................................................................................................ 6 2.2 - Equipment Under Test (EUT) Information ........................................................................ 6 2.3 - Associated Antenna Description ....................................................................................... 7 2.4 - EUT’S Technical Specifications ........................................................................................ 8 2.5 - Product Description .......................................................................................................... 9 EXHIBIT 3. EUT OPERATING CONDITIONS & CONFIGURATIONS DURING TESTS ................ 10 3.1 - Climate Test Conditions ................................................................................................. 10 3.2 - Applicability & Summary Of EMC Emission Test Results ............................................... 10 3.3 - Modifications Incorporated In The EUT For Compliance Purposes ................................. 10 3.4 - Deviations & Exclusions From Test Specifications ......................................................... 10 EXHIBIT 4. DECLARATION OF CONFORMITY ............................................................................ 11 EXHIBIT 5. RADIATED EMISSIONS TEST ................................................................................... 12 5.1 - Test Setup ...................................................................................................................... 12 5.2 - Test Procedure ............................................................................................................... 12 5.3 - Test Equipment Utilized ................................................................................................. 13 5.4 - Test Results ................................................................................................................... 13 5.5 - Calculation of Radiated Emissions Limits and reported data. ......................................... 14 5.6 - Radiated Emissions Test Data Chart .............................................................................. 15 5.7 - Test Setup Photo(s) – Radiated Emissions Test ............................................................ 20 5.8 – Screen Captures. .......................................................................................................... 23 EXHIBIT 6. CONDUCTED EMISSIONS TEST, AC POWER LINE ................................................. 27 6.1 Test Setup .................................................................................................................... 27 6.2 Test Procedure ............................................................................................................. 27 6.3 Test Equipment Utilized ................................................................................................. 27 Prepared For:Allegion EUT: AD 900MHz Module V2 LS Research, LLC Report #: TR 314167 A Model #: COMAD400V2 Template: 15.247 LSR Job #: C-1964 Serial #: LSR905141900033A (Trace antenna) LSR906141900046A (Antenna connector) LSR906141900037A (Antenna connector) Page 3 of 48 6.4 Test Results ................................................................................................................. 27 6.5 FCC Limits of Conducted Emissions at the AC Mains Ports ......................................... 28 6.6 CONDUCTED EMISSIONS TEST DATA CHART ...................................... 29 6.7 Test Setup Photo(s) – Conducted Emissions Test ........................................................ 30 6.8 Screen Captures – Conducted Emissions Test............................................................. 31 EXHIBIT 7. OCCUPIED BANDWIDTH ........................................................................................... 32 7.1 - Limits.............................................................................................................................. 32 7.2 - Method of Measurements .............................…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS Company Name Allegion Model # COMAD400V2 FCC ID # XPB‐COMAD400V2 IC # 8053B‐COMAD400V2 Page 1 of 5 Trace Antenna TEST SETUP PHOTOS Company Name Allegion Model # COMAD400V2 FCC ID # XPB‐COMAD400V2 IC # 8053B‐COMAD400V2 Page 2 of 5 50 ohm Terminated TEST SETUP PHOTOS Company Name Allegion Model # COMAD400V2 FCC ID # XPB‐COMAD400V2 IC # 8053B‐COMAD400V2 Page 3 of 5 8 dBi Panel Antenna TEST SETUP PHOTOS Company Name Allegion Model # COMAD400V2 FCC ID # XPB‐COMAD400V2 IC # 8053B‐COMAD400V2 Page 4 of 5 Dome Antenna Vee Antenna TEST SETUP PHOTOS Company Name Allegion Model # COMAD400V2 FCC ID # XPB‐COMAD400V2 IC # 8053B‐COMAD400V2 Page 5 of 5 Omni Panel Antenna
