CO-200 OFFLINE LOCK USER GUIDE INSTRUCTIONS FOR CORE SERIES OFFLINE LOCKS Para el idioma español, navegue hacia www.schlage.com/support. Pour la portion française, veuillez consulter le site www.schlage.com/support. P516-271 2 CO-200 Offl ine Lock User Guide CONTENTS Overview ........................................................................................................................................ 3 Getting Started .............................................................................................................................. 4 Handheld Device (HHD) ................................................................................................................ 4 Add or Change a Master Programming Credential ................................................................... 4 Construction Access Mode ........................................................................................................... 5 Create the Master Construction Credential - Locks with Card Readers .................................... 5 Add User Credentials - Locks with Card Readers ..................................................................... 5 Cancel Construction Access Mode ........................................................................................... 5 Locks with Keypads ................................................................................................................... 5 Manual Lock Programming ............................................................................................................ 6 Credential Types ........................................................................................................................ 6 Programming Legend ................................................................................................................ 6 Add or Change a Master Programming Credential ................................................................... 6 Manual Programming Commands ............................................................................................. 7 Using the Lock ............................................................................................................................... 9 Error Codes ................................................................................................................................... 9 Testing ......................................................................................................................................... 10 Mechanical Testing .................................................................................................................. 10 Electronic Testing .................................................................................................................... 10 Resetting To Factory Defaults ...................................................................................................... 10 Batteries ..................................................................................................................................... 11 Installing or Replacing Alkaline Batteries ................................................................................ 11 Low Battery Indications ........................................................................................................... 11 Battery Failure Modes ............................................................................................................. 11 LED Reference ............................................................................................................................ 12 Schlage Button ........................................................................................................................ 12 Optional Inside Push Button (IPB) ........................................................................................... 12 Troubleshooting ........................................................................................................................... 12 FCC Statements .......................................................................................................................... 12 www.schlage.com/support 877.671.7011 3 CO-200 Offl ine Lock User Guide OVERVIEW The Schlage CO-200 is an off-line electronic lock in the CO-Series product line. • The lock is confi gured to operate as Classroom/Storeroom function. Optional Offi ce or Privacy functions are available. • The lock is powered by four (4) AA batteries. See Batteries on page 11 for more information. • Outside lever is normally locked. • Inside lever always allows egress. • The lock maintains an audit trail of events in the normal operating mode. • The lock is confi gured using the Handheld Device (HHD). See Handheld Device (HHD) on page 4 for more information. Outside Schlage Button Outside Lever Keyway Inside Thumbturn Battery Compartment Inside Push Button Inside Lever Keypad Keypad /Prox Reader Prox Reader CO-200-CY CO-200-MS CO-200-MDCO-200-993 4 CO-200 Offl ine Lock User Guide GETTING STARTED Follow these steps when setting up a new lock. 1. Install the lock. See the installation guide that came with the lock, or visit www.schlage.com/support, for more information. 2. Make sure the batteries are installed properly. See Batteries on page 11 for more information. 3. Before programming, the lock may be used in Construction Access Mode. See Construction Access Mode on page 5 for more information. The lock should remain in Construction Access Mode until you are ready to set up the rest of the system. 4. Test the lock for proper mechanical and electronic operation. See Testing on page 10 for more information. 5. When ready to set up for normal use, remove factory default security settings, then program the user credentials. See Manual Lock Programming on page 6 for more information. 6. Consult the Schlage Utility Software (SUS) User Guide for information about confi guring the lock. 7. Familiarize yourself with the i…

Text truncated - open the document above for the full version.

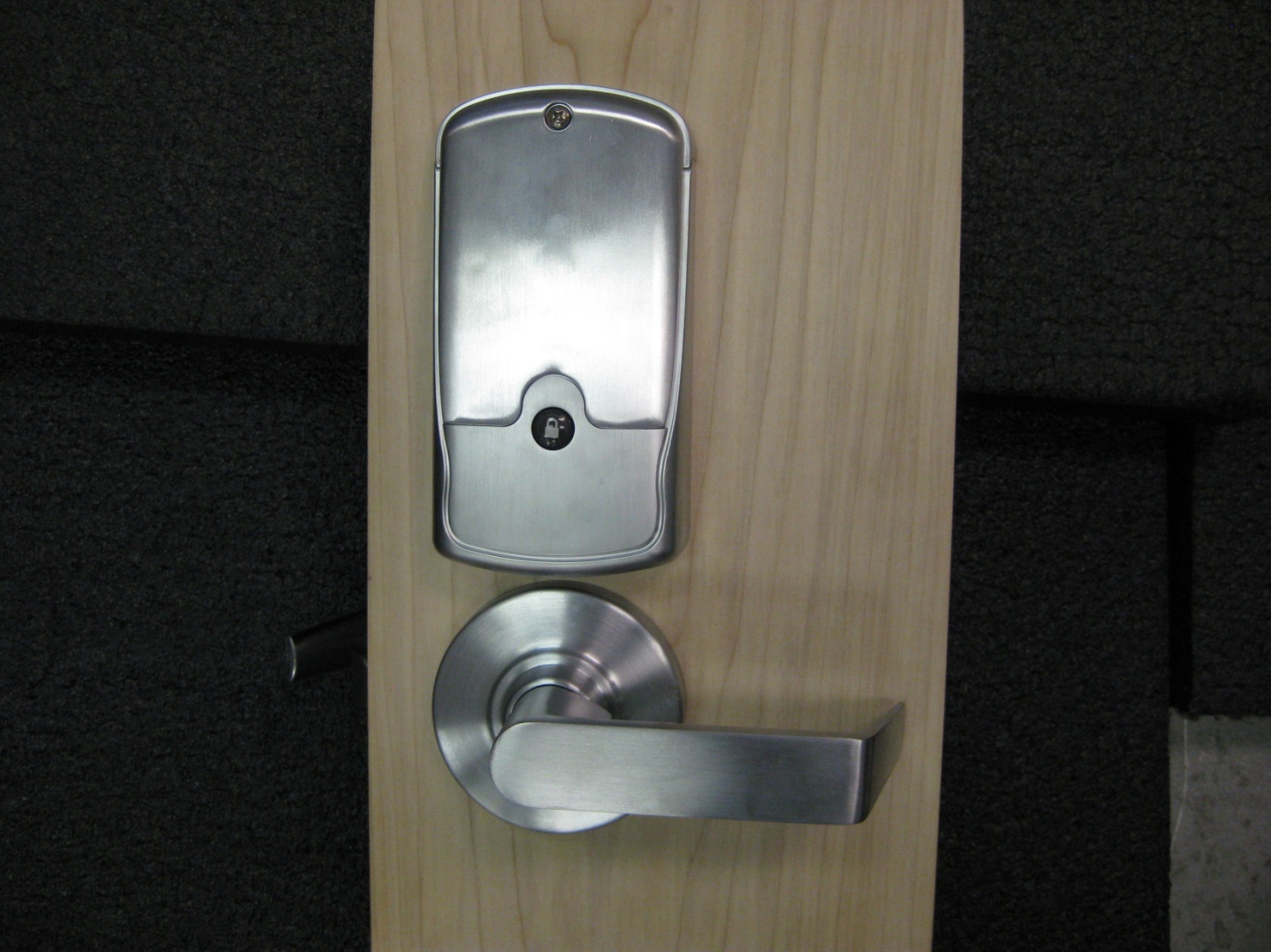

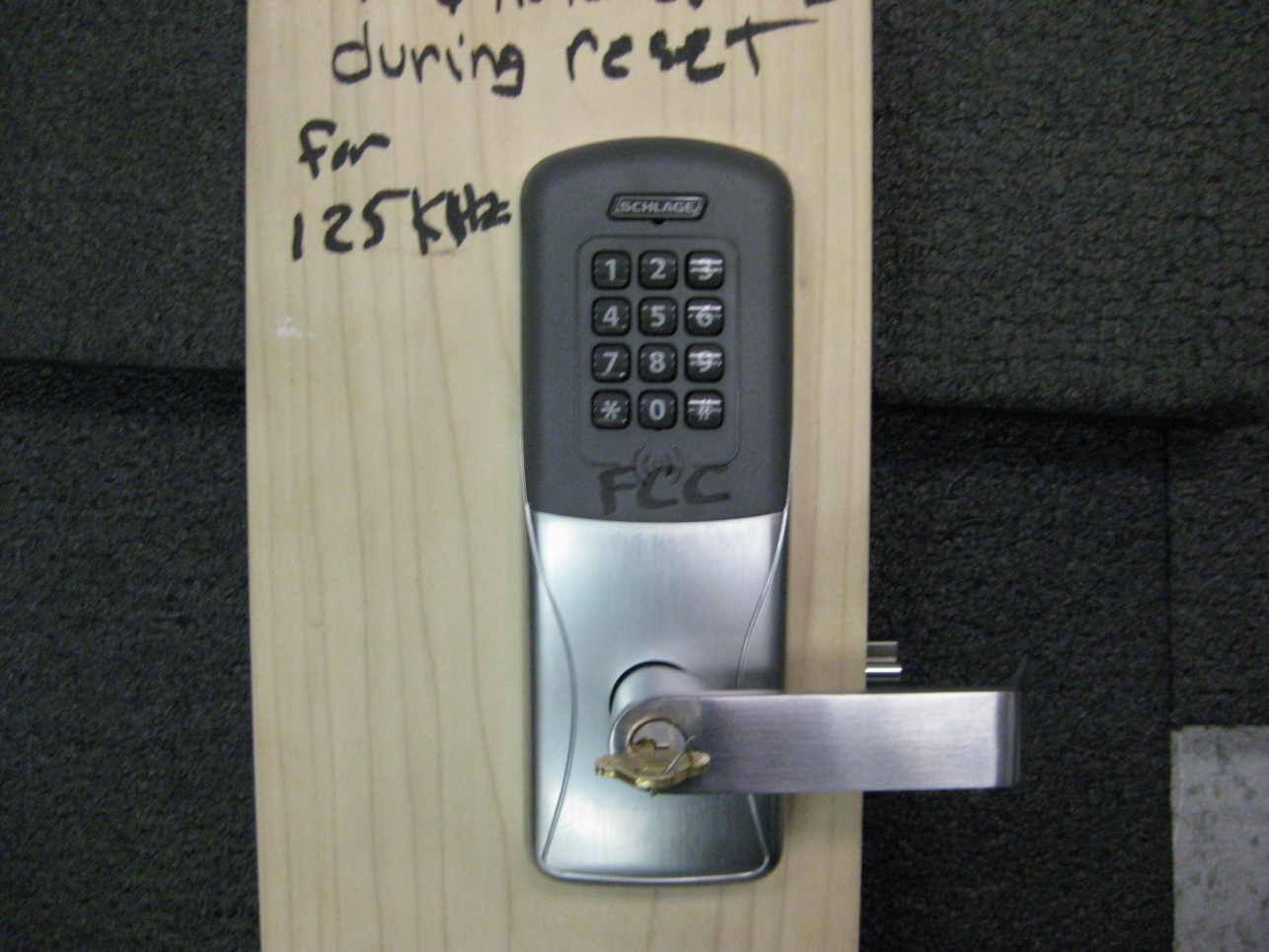

EXTERNAL PHOTOS Company Name Ingersoll Rand Security Technologies Model # 23518350 FCC ID # XPB‐COPROX IC # 8053B‐COPROX Page 1 of 3 External Photos of Door Lock‐ 125kHz Radio Side on Front of Door EXTERNAL PHOTOS Company Name Ingersoll Rand Security Technologies Model # 23518350 FCC ID # XPB‐COPROX IC # 8053B‐COPROX Page 2 of 3 Battery Compartment Side on backside of door EXTERNAL PHOTOS Company Name Ingersoll Rand Security Technologies Model # 23518350 FCC ID # XPB‐COPROX IC # 8053B‐COPROX Page 3 of 3 Backside of Door Cover removed

INTERNAL PHOTOS Company Name Ingersoll Rand Security Technologies Model # 23518350 FCC ID # XPB‐COPROX IC # 8053B‐COPROX Page 1 of 4 Backside of 125KHz Radio Board with Antenna INTERNAL PHOTOS Company Name Ingersoll Rand Security Technologies Model # 23518350 FCC ID # XPB‐COPROX IC # 8053B‐COPROX Page 2 of 4 Close‐up of Backside of RF Board INTERNAL PHOTOS Company Name Ingersoll Rand Security Technologies Model # 23518350 FCC ID # XPB‐COPROX IC # 8053B‐COPROX Page 3 of 4 Close‐up of RF Section INTERNAL PHOTOS Company Name Ingersoll Rand Security Technologies Model # 23518350 FCC ID # XPB‐COPROX IC # 8053B‐COPROX Page 4 of 4 Front Side of Board Showing Keypad

LS Research, LLC Testing Cert. # 1255.01 W66 N220 Commerce Court ● Cedarburg, WI 53012 ● USA Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com ------------------------------------------------------------------------------------------------------------------------- ENGINEERING TEST REPORT # 310092-05 LSR Job #: C-896 Compliance Testing of: Electrified Locking Device with RF Proximity Detector Model Number: 23518350 Test Date(s): May 4 th and August 22 nd -24 th , 2010 Prepared For: Ingersoll-Rand Company 11819 N. Pennsylvania St. Carmel, IN 46032. In accordance with: Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.209, and 15.109 Industry Canada (IC) RSS 210 Annex 2 and section 2.7 General Operating Requirements for Low-Power License-Exempt Transceivers This Test Report is issued under the Authority of: Signature: Date: 08.25.10 Test Report Reviewed by: Thomas T. Smith, Manager EMC Test Services Signature: Date: 08.25.10 Tested by: Khairul Aidi Zainal, Senior EMC Engineer Signature: Date: 08.25.10 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. Prepared For: Ingersoll Rand Model #: 23518350 LS Research, LLC EUT: Schlage Core 200 Locks IC: 8053B-COPROX Template: 15.209 - v1 10-22-09 Report #: 310092-05 FCC ID #: XPB-COPROX Page 2 of 25 TABLE OF CONTENTS (page 1 of 2) Description Page EXHIBIT 1: INTRODUCTION 1.1 Scope 4 1.2 Normative References 5 1.3 LS Research, LLC Test Facility 6 1.4 Location of Testing 6 1.5 Test Equipment Utilized 6 EXHIBIT 2: PERFORMANCE ASSESSMENT 2.1 Client Information 7 2.2 Equipment Under Test (EUT) Information 7 2.3 Associated Antenna Description 7 2.4 EUT’s Technical Specifications 8 2.5 Product Description 9 EXHIBIT 3: EUT OPERATING CONDITIONS & CONFIGURATIONS DURING TESTS 3.1 Climate Test Conditions 10 3.2 Applicability & Summary of EMC Emission Test Results 10 3.3 Modifications Incorporated in the EUT for Compliance Purposes 10 3.4 Deviations & Exclusions from Test Specifications 10 EXHIBIT 4: DECLARATION OF CONFORMITY 11 EXHIBIT 5: RADIATED EMISSIONS TESTING Note: Items 5.1 through 5.8 are for TRANSMIT MODE Item 5.9 is for RECEIVE MODE 5.1 Test Setup 12 5.2 Test Procedure 12 5.3 Test Equipment Utilized 13 5.4 Test Results 13 5.5 Calculation of Radiated Emissions Limits 14 5.6 Radiated Emissions Test Data Chart 15 5.7 Test Setup Photo(s) – Radiated Emissions Test 16 5.8 Screen Captures – Radiated Emissions Test 17-19 Prepared For: Ingersoll Rand Model #: 23518350 LS Research, LLC EUT: Schlage Core 200 Locks IC: 8053B-COPROX Template: 15.209 - v1 10-22-09 Report #: 310092-05 FCC ID #: XPB-COPROX Page 3 of 25 TABLE OF CONTENTS (Page 2 of 2) Description Page EXHIBIT 6: OCCUPIED BANDWIDTH 7.1 Limits 20 7.2 Method of Measurements 20 7.3 Test Equipment List 20 7.4 Test Data 20 7.5 Screen Captures – Occupied Bandwidth 21 EXHIBIT 8: BAND-EDGE MEASUREMENT 7.1 Test Criterion 22 7.2 Screen Captures 22 APPENDICES APPENDIX A: TEST EQUIPMENT LIST 23 APPENDIX B: TEST STANDARDS – RADIO 24 APPENDIX C: UNCERTAINTY STATEMENT 25 Prepared For: Ingersoll Rand Model #: 23518350 LS Research, LLC EUT: Schlage Core 200 Locks IC: 8053B-COPROX Template: 15.209 - v1 10-22-09 Report #: 310092-05 FCC ID #: XPB-COPROX Page 4 of 25 EXHIBIT 1. INTRODUCTION 1.1 SCOPE References: FCC Part 15, Subpart C, Section 15.209 Title: Telecommunication – Code of Federal Regulations, CFR 47, Part 15 Purpose of Test: To gain FCC Certification Authorization for Low-Power License-Exempt Transmitters. References: FCC Part 15, Subpart B, Section 15.109 Title: Telecommunication – Code of Federal Regulations, CFR 47, Part 15 Purpose of Test: To gain FCC Certification Authorization for a Digital Device or a Non-Intentional Radiator. References: RSS 210 Annex 2 Title: Low-power License-exempt Radiocommunication Devices (All Frequency Bands): Category I equipment. Purpose of Test: To gain IC Certification Authorization for Low-Power License-Exempt Transmitters. References: RSS GEN Title: General requirements and Information for the Certification of Radiocommunication Equipment. Purpose of Test: To gain IC Certification Authorization for Low-Power License-Exempt Transmitters. Test Procedures: Both conducted and radiated emissions measurements were conducted in accordance with American National Standards Institute ANSI C63.4 – American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. Environmental Classification: • Commercial, Industrial or Business • Residential Prepared For: Ingersoll Rand Model #: 23518350 LS Research, LLC EUT: Schlage Core 200 Locks IC: 8053B-COPROX Template: 15.209 - v1 10-22-09 Report #: 310092-05 FCC ID #: XPB-COPROX Page 5 of 25 1.2 NORMATIVE REFERENCES Publication Year Title 47 CFR, Parts 0-15 (FCC) 2008 Code of Federal Regulations - Telecommunications RSS 210 Annex 2 2007 Low-power License-exempt Radiocommunication Devices (All Frequency Bands): Category I equipment. RSS GEN 2007 General requirements and information for the certification of Radiocommunication Equipment. ANSI C63.4 2009 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. CISPR 16-1-1 2006-03 A1: 2006-09 A2: 2007-07 Specification for radio disturbance and immunity measuring apparatus and methods. Part 1-1: Measuring Apparatus. CISPR 16-2-1 2003 A1: 2004-04 A2: 2007-07 Specification for radio disturbance and immunity measuring apparatus and methods. Part 201: Conducted disturbance measurement. Prepared For: Ingersoll Rand Model #: 23518350 LS Research, LLC EUT: Schlage Core 200 Locks IC: 8053B-COPROX Template: 15.209 - v1 10-22-09 Report #: 310092-05 FCC ID #: XPB-COPROX Page 6 of 25 1.3 LS Research, LLC TEST FACILITY LS Research, LLC is accredited by A2LA (American Association for Laboratory Accreditation) to conform to ISO/IEC 1702…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS Company Name Ingersoll Rand Security Technologies Model # 23518350 FCC ID # XPB‐COPROX IC # 8053B‐COPROX Page 1 of 1 Close‐up of EUT on Test Pedestal on the OATS Setup of EUT on the 10m OATS
