XPB-JAGUARDoor Lock

Schlage Lock Company
Door Lock - FCC ID XPB-JAGUAR - Schlage Lock Company
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Jun 07, 2015
Application Purpose
Original Equipment
Date of Application
Jun 07, 2015
Equipment Note
Door Lock
Frequency Range
13.56000000 - 13.56000000
Company
Schlage Lock Company
Country
United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

↗
↗
↗

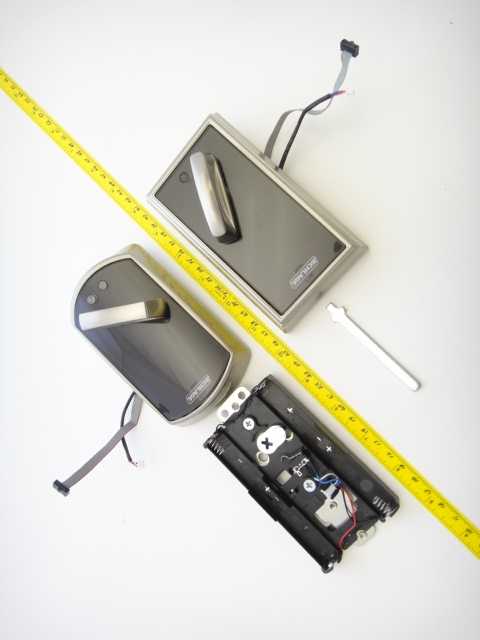

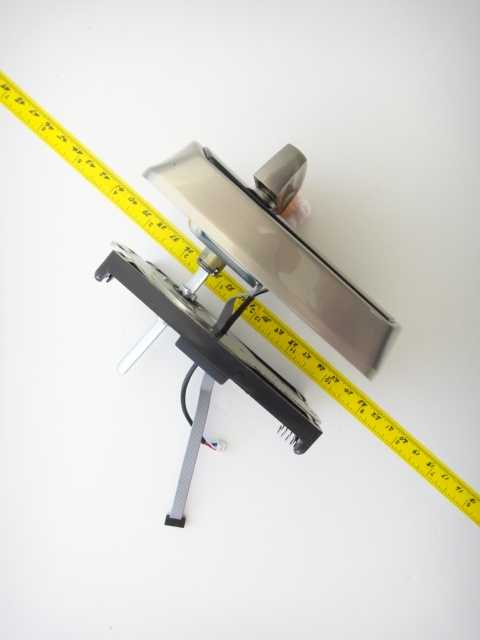

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

Willow Run Test Labs, LLC 8501 Beck Road, Building 2227 Belleville, Michigan 48111 USA Tel: (734) 252-9785 Fax: (734) 926-9785 e-mail: [email protected] Re: Certification for Schlage Lock Company / Allegion FCC ID: XPB-JAGUAR IC: 8053B-JAGUAR REQUEST FOR CONFIDENTIALITY Pursuant to USA FCC 47 CFR 0.457(d) and 0.459 and Canada IC RSP-100, Section 10, Schlage Lock Company / Allegionrequests that a part of the subject application be held confidential. Schlage Lock Company / Allegion has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to ”competition” would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Exhibit Conf. TypeRational Exh 04 - Block DiagramPermanentIncludes proprietary internal oscillator frequency information. Exh 05 - SchematicsPermanentIncludes proprietary design information Exh 10 - BOM + PlacementPermanentIncludes proprietary design information Permanent Confidentiality:Schlage Lock Company / Allegion requests that any exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only):Schlage Lock Company / Allegion requests that any exhibits selected above as short term confidential be withheld from public view for a period of days (noted above) from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run Test Labs, LLC 9

Cover Letter(s)

Willow Run Test Labs, LLC 8501 Beck Road, Building 2227 Belleville, Michigan 48111 USA Tel: (734) 252-9785 Fax: (734) 926-9785 e-mail: [email protected] Attn.:Certification and Engineering Bureau, Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Schlage Lock Company / Allegion BE467F and FE410F IC: 8053B-JAGUAR Please find enclosed application materials for certification of Schlage Lock Company / Allegion BE467F and FE410F. We tested it and found it to comply with RSS-210/GEN. Current Variants: There is only a single electrical version of the EUT, but there are two variants of the external housing (escutcheon). Model BE467F employs the rounded escutcheon, model FE410F employs the square cornered escutcheon. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run Test Labs, LLC 11 Willow Run Test Labs, LLC 8501 Beck Road, Building 2227 Belleville, Michigan 48111 USA Tel: (734) 252-9785 Fax: (734) 926-9785 e-mail: [email protected] Attn.:Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Schlage Lock Company / Allegion BE467F and FE410F FCC ID: XPB-JAGUAR Please find enclosed application materials for certification of Schlage Lock Company / Allegion BE467F and FE410F. We tested it and found it to comply with CFR Title 47, Part 15.209. Current Variants: There is only a single electrical version of the EUT, but there are two variants of the external housing (escutcheon). Model BE467F employs the rounded escutcheon, model FE410F employs the square cornered escutcheon. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run Test Labs, LLC 10

Operational Description

Multifamily locks with Engage technology User guide 2 • Schlage • Multifamily Locks User Guide Multifamily Locks ™ User Guide Contents 3 Warranty 4 Standard Operation 4 Operation from the Inside 4 Operation from the Outside 5 Lock Indicator Guide 6 Changing the Batteries 6 BE467 Deadbolt 6 FE410 Interconnect 7 Battery Jump 8 Construction Mode 8 Factory Default Reset 9 Getting Started with the ENGAGE™ Mobile Application 10 Troubleshooting Schlage • Multifamily Locks User Guide • 3 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement To comply with FCC/IC RF exposure requirements for mobile transmitting devices, this transmitter should only be used or installed at locations where there is at least 20 cm separation distance between the antenna and all persons. Industry Canada Statement Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. Industrie Canada Déclaration Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante. Industry Canada Radiation Exposure Statement This Device complies with Industry Canada License-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Industrie Canada l’exposition aux radiations Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Warranty Lifetime Limited Mechanical and Finish Warranty and 3-Year Limited Electronics Warranty Subject to the terms and conditions of the warranty, Schlage extends a lifetime limited mechanical and finish warranty and a three-year limited electronics warranty to the original consumer user (“Original User”) of our Schlage brand product (“Product”) against defects in material and workmanship, as long as the Original User occupies the residential premises upon which the Product was originally installed. See answers.schlage.com for specific warranty details and limitations, or contact Schlage Customer Service at (888) 805-9837 in the U.S., 800-997-4734 in Canada or 018005067866 in Mexico for assistance. Need Help? U.S.A.: 1-888-805-9837 www.allegion.com/us 4 • Schlage • Multifamily Locks User Guide Standard Operation Standard Operation Operation from the Inside Locking All Locks Rotate the bolt throw toward the door edge. Unlocking the BE467 Rotate the bolt throw away from the door edge. Unlocking FE210 Rotate the lever. Both the latch and bolt will retract at the same time. Operation from the Outside Locking All Locks 1. Present credential (phone or card). 2. Wait for the green light and a beep. 3. Rotate the bolt throw toward the door edge. Unlocking All Locks 1. Present credential (phone or card). 2. Wait for the green light and a beep. 3. Rotate the bolt throw away from the door edge. Lock Indicator Guide Schlage • Multifamily Locks User Guide • 5 Lock Indicator Guide FeatureActionsLightsBeeps Factory Default Reset (FDR)Successful initiation2 Green2 Failed to start after successful initiation2 Red, Long2 Long Complete2 Green, Long1 Long Failed2 Red, Long2 Long Low BatteryDelay before unlock9 Battery — CredentialNormal access granted1 Green, Long1 Freeze Success3 Red/Green Alternating1 Un-freeze Success3 Green1 Access denied, invalid credential2 Red1 Access denied, outside timezone4 Red1 Access denied, lock in freeze state12 Red1 BLE and CouplingHHD connected through B…

Text truncated - open the document above for the full version.

RF Exposure Info

Willow Run Test Labs, LLC 8501 Beck Road, Building 2227 Belleville, MI 48111 Phone: (734) 252-9785, Fax (734) 926-9785 e-mail:[email protected] RF EXPOSURE CALCULATIONS Requirement: According to USA CFR 15 §1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. For Canada, RSS-102 sets out the requirements and measurement techniques used to evaluate radio frequency (RF) exposure compliance of radiocommunication apparatus designed to be used within the vicinity of the human body. Maximum Permissible Exposure Calculation: The General Population / Uncontrolled Exposure limit for mobile devices is1 mW/cm^2 at 20 cm separation distance for the US. For Canada, the Exposure Evaluation EIRP Limit in the 2.4 GHz band is computed to be 1.31*10^(-2))*2402^0.6834=2.68W and is fixed at1W for emitters below 20 MHz. Cumulative power density at the 20 cm separation distance and total EIRP rating are computed below and compared to the respective limits. Freq. (MHz) E30m Pk (dBuV/m) E20cm Pk* (dBuV/m) S20cm** (mW/cm^2) TOTAL S20cm (mW/cm^2) TOTAL EIRP**** (mW) 13.5623.091.40.000004 0.0247703.084100 Freq. (MHz) BLE EIRP (dBm) BLE EIRP (mW) S20cm*** (mW/cm^2) 2400- 2483.5 4.893.080.024767 FCC 20cmPower Density Limit (mW) 20 IC EIRP Evaluation Limit (mW) 13.56 MHz1000 2400-2483.5 MHz2680 CompliesYesYes * E20cm PK computed from E30m Pk using 20 dB/decade Far Field, 40 dB/decade Near-Field: CF = 20*log10(30/3.5) + 40*log10(3.5/0.2) = 68.4 dB. ** Power Density (S) = E^2/377. S(mW/cm^2) = S (W/m^2) /10 = ( 10^(E(dBuV/m)/20 / 1000 )^2 / 377 *** Power Density (S) = EIRP / ( 4 x PI x 20cm^2) **** EIRP (mW) = S (mW/cm^2) ^2 x 4 x PI x 20cm^2 Summary: The EUT with both transmitters is compliant with both the FCC power density limit and the IC Exposure Evaluation EIRP limit.

Test Report

Issue Date: June 3, 2015Prepared For: Schlage Lock Company / Allegion Report No.: 20150603-TRPALEG10004r0 Willow Run Test Labs, LLC 8501 Beck Road, Building 2227 Belleville, Michigan 48111 USA Tel: (734) 252-9785 Fax: (734) 926-9785 e-mail: [email protected] Testing of Electromagnetic Emissions per USA: CFR Title 47, Part 15.209 Canada: RSS-210/GEN are herein reported for Schlage Lock Company / Allegion BE467F and FE410F Test Report No.: 20150603-TRPALEG10004r0 Copyright c ©2015 Applicant/Provider: Schlage Lock Company / Allegion 11819 North Pennsylvania Street, Carmel Indiana 46032 USA Phone: +1 (317) 810-3700, Fax: +1 (317) 810-3051 Contact Person: Frank Nardelli; [email protected] Measured by: Report Approved by: Dr. Joseph Brunett, EMC-002790-NEDr. Joseph Brunett, EMC-002790-NE Report by: Report Date of Issue:June 3, 2015 Dr. Joseph Brunett, EMC-002790-NE Results of testing completed on (or before) June 3, 2015 are as follows. Emissions:The transmitter intentional emissionsCOMPLYwith the regulatory limit(s) by no less than 6.5 dB. Transmit chain spurious harmonic emissionsCOMPLYby no less than 26.4 dB. Unintentional spurious emissions from digital circuitryCOMPLYwith radiated emission limit(s) by more than 23 dB. Willow Run Test Labs, LLC, 8501 Beck Road, Building 2227, Belleville, Michigan 48111 USAPage 1 of 16 Issue Date: June 3, 2015Prepared For: Schlage Lock Company / Allegion Report No.: 20150603-TRPALEG10004r0 Contents 1 Test Specifications, General Procedures, and Location4 1.1 Test Specification and General Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.2 Test Location and Equipment Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2 Configuration and Identification of the Equipment Under Test6 2.1 Description and Declarations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.1EUT Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.2Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.3Variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.4Test Samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.5Functional Exerciser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.6Modifications Made . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.7Production Intent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.8Declared Exemptions and Additional Product Notes . . . . . . . . . . . . . . . . . . . . . . . .7 3 Emissions8 3.1 General Test Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.1Radiated Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.2Conducted Emissions Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.1.3Power Supply Variation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.1.4Thermal Variation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.2 Intentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2.1Fundamental Emission Pulsed Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2.2Fundamental Emission Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3.2.3Fundamental Emission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 3.3 Unintentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 3.3.1Transmit Chain Spurious Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 3.3.2Radiated Digital Spurious . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Willow Run Test Labs, LLC, 8501 Beck Road, Building 2227, Belleville, Michigan 48111 USAPage 2 of 16 Issue Date: June 3, 2015Prepared For: Schlage Lock Company / Allegion Report No.: 20150603-TRPALEG10004r0 List of Tables 1Willow Run Test Labs, LLC Equipment List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2EUT Declarations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 3Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 4Intentional Emission Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 5Fundamental Radiated Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 6Transmit Chain Spurious Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 7Radiated Digital Spurious Emissions.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 List of Figures 1Photos of EUT.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2EUT Test Configuration Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 3Radiated Emissions Diagram of the EUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 4Radiated Emissions Test Setup Photograph(s). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 5Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 6Intentional Emission Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Willow Run Test Labs, LLC, 8501 Beck Road, Building 2227, Belleville, Michigan 48111 USAPage 3 of 16 Issue Date: June 3, 2015Prepared For: Schlage Lock Company / A…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Frank Nardelli(Lead Hardware Engineer)
[email protected]317-810-3193Fax: 317-810-3051

Technical Contact

Willow Run Test Labs, LLCJoseph Brunett
[email protected]7342529785

8501 Beck Road, Bldg 2227 · Belleville, Michigan · United States

Test Firm

Willow Run Test Labs, LLCJoseph Brunett
[email protected]7342529785Fax: 734 926 9785

Technical Specifications

#Rule PartsFrequency RangePower Output
115C13.56 MHz - 13.56 MHz-
Confidentiality
Long Term
Grant Notes
The antenna(s) used for this transmitter must be used in accordance with FCC multi-transmitter product procedures.
