Ingersoll Rand Agency Statements Compliance Statement (Part 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Warning (Part 15.21) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Interference Statement (Part 15.105 (b)) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. RF Exposure Statement To comply with FCC/IC RF exposure requirements for mobile transmitting devices, this transmitter should only be used or installed at locations where there is at least 20cm separation distance between the antenna and all persons. Section 7.1.5 of RSS-GEN Operation is subject to the following two conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device. “Contains Transmitter Module FCC ID: XPB-COMAD400” “Contains Transmitter Module IC: 8053B-COMAD400”

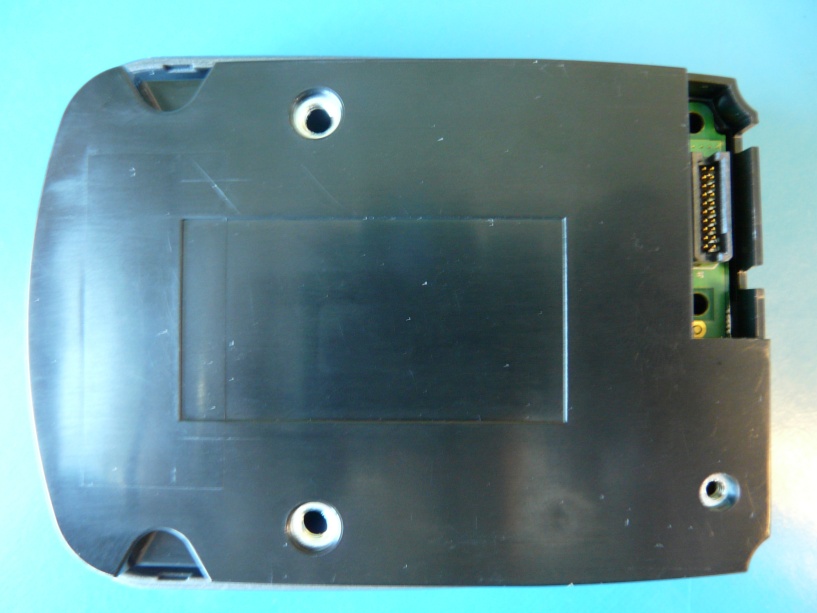

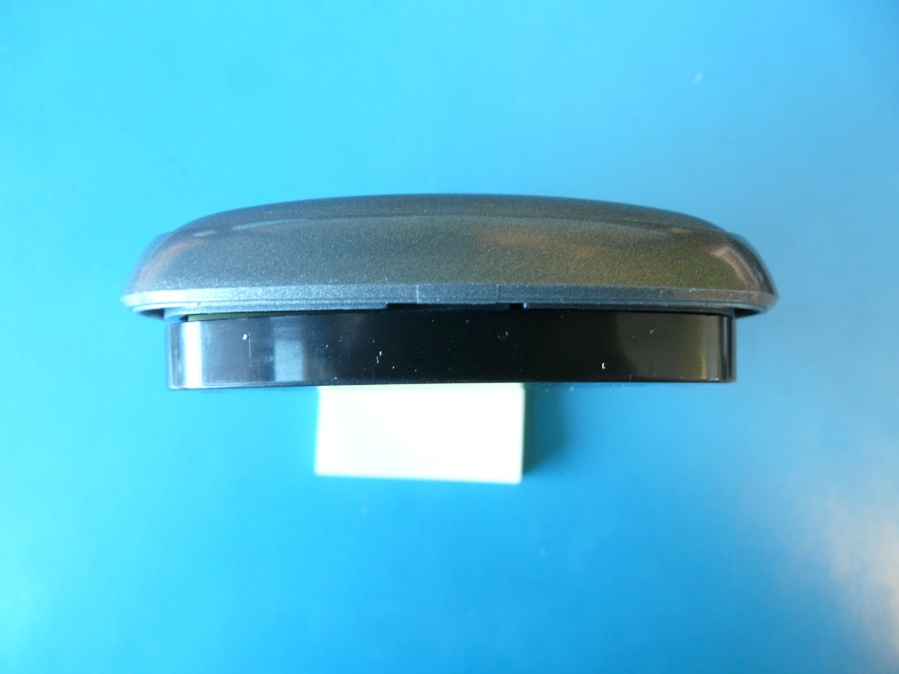

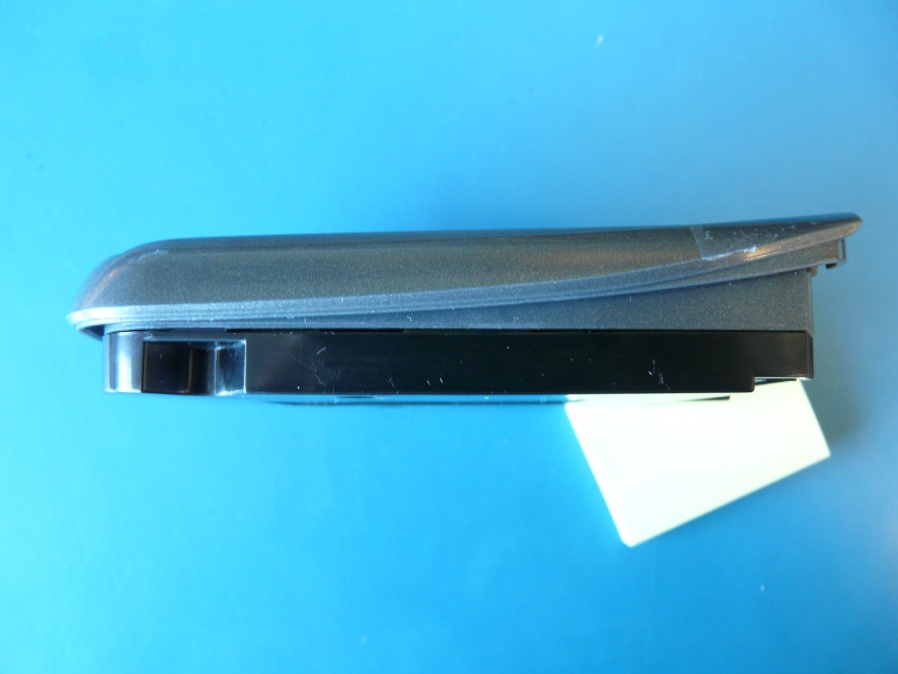

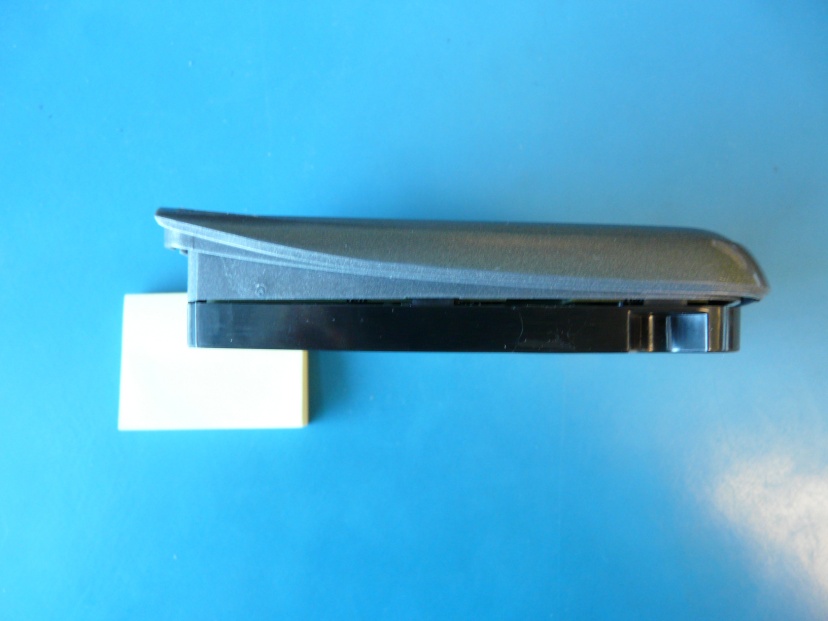

EXTERNAL PHOTOS Company Name Ingersoll Rand Model # 23391667 and 23391642 FCC ID # XPB‐PRXADCRED IC # 8053B‐PRXADCRED Page 1 of 3 Front of Unit Side View #1 EXTERNAL PHOTOS Company Name Ingersoll Rand Model # 23391667 and 23391642 FCC ID # XPB‐PRXADCRED IC # 8053B‐PRXADCRED Page 2 of 3 Side View #2 Side View #3 EXTERNAL PHOTOS Company Name Ingersoll Rand Model # 23391667 and 23391642 FCC ID # XPB‐PRXADCRED IC # 8053B‐PRXADCRED Page 3 of 3 Side View #4 Bottom View

1 of 2 Ingersoll Rand Response to Issue 2 FCC ID: XPB‐PRXADCRED IC: 8053B‐PRXADCRED 2 of 2

Ingersoll Rand ID Label Photos ‐ MultiTech Ingersoll Rand ID Label Photos ‐ MultiTech

INTERNAL PHOTOS Company Name Ingersoll Rand Model # 23391667 and 23391642 FCC ID # XPB‐PRXADCRED IC # 8053B‐PRXADCRED Page 1 of 2 Open for Inspection‐Backside of RF Section, View #1 Open for Inspection‐Backside of RF Section, View #2 INTERNAL PHOTOS Company Name Ingersoll Rand Model # 23391667 and 23391642 FCC ID # XPB‐PRXADCRED IC # 8053B‐PRXADCRED Page 2 of 2 Close Up of RF Section Close‐Up, Partial RF Section

LS Research, LLC Testing Cert. # 1255.01 W66 N220 Commerce Court ● Cedarburg, WI 53012 ● USA Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com ------------------------------------------------------------------------------------------------------------------------- ENGINEERING TEST REPORT # 309380 LSR Job #: C-772 Compliance Testing of: Schlage AD-300 Wired Door Lock with Multi-tech plus keypad Test Date(s): December 2 nd and 3 rd 2009 Prepared For: Ingersoll-Rand Company 11819 N. Pennsylvania St. Carmel, IN 46074. In accordance with: Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.209 Industry Canada (IC) RSS 210 Annex 2 and section 2.7 General Operating Requirements for Low-Power License-Exempt Transceivers Test Report Reviewed by: Teresa A. White, Quality Manager Signature: Date: December 23, 2009 Approved/Tested by: Khairul Aidi Zainal, Senior EMC Engineer Signature: Date: December 23, 2009 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. Prepared For: Ingersoll-Rand Company Model #: 23507296 and 23507262 LS Research, LLC EUT: AD300 with Multitech IC: 8053B-MTADCRED Template: 15.209 - v1 10-22-09 Report #:309380 FCC ID #: XPB-MTADCRED Page 2 of 30 TABLE OF CONTENTS (page 1 of 2) Description Page EXHIBIT 1: INTRODUCTION 1.1 Scope 4 1.2 Normative References 5 1.3 LS Research, LLC Test Facility 6 1.4 Location of Testing 6 1.5 Test Equipment Utilized 6 EXHIBIT 2: PERFORMANCE ASSESSMENT 2.1 Client Information 7 2.2 Equipment Under Test (EUT) Information 7 2.3 Associated Antenna Description 7 2.4 EUT’s Technical Specifications 8 2.5 Product Description 9 EXHIBIT 3: EUT OPERATING CONDITIONS & CONFIGURATIONS DURING TESTS 3.1 Climate Test Conditions 10 3.2 Applicability & Summary of EMC Emission Test Results 10 3.3 Modifications Incorporated in the EUT for Compliance Purposes 10 3.4 Deviations & Exclusions from Test Specifications 10 EXHIBIT 4: DECLARATION OF CONFORMITY 11 EXHIBIT 5: RADIATED EMISSIONS TESTING 5.1 Test Setup 12 5.2 Test Procedure 12 5.3 Test Equipment Utilized 13 5.4 Test Results 13 5.5 Calculation of Radiated Emissions Limits 14 5.6 Radiated Emissions Test Data Chart 15-16 5.7 Test Setup Photo(s) – Radiated Emissions Test 17 5.8 Screen Captures – Radiated Emissions Test 18-20 EXHIBIT 6: CONDUCTED EMISSIONS TEST, AC POWER LINE 6.1 Test Setup 21 6.2 Test Procedure 21 6.3 Test Equipment Utilized 21 6.4 Test Results 21 6.5 FCC Limits of Conducted Emissions at the AC Mains Ports 22 6.6 Conducted Emissions Test Data Chart 22 6.7 Test Setup Photo(s) – Conducted Emissions Test 23 6.8 Screen Captures – Conducted Emissions Test 24 Prepared For: Ingersoll-Rand Company Model #: 23507296 and 23507262 LS Research, LLC EUT: AD300 with Multitech IC: 8053B-MTADCRED Template: 15.209 - v1 10-22-09 Report #:309380 FCC ID #: XPB-MTADCRED Page 3 of 30 TABLE OF CONTENTS (Page 2 of 2) Description Page EXHIBIT 7: OCCUPIED BANDWIDTH 7.1 Limits 25 7.2 Method of Measurements 25 7.3 Test Data 25 7.4 Screen Captures – Occupied Bandwidth 26 EXHIBIT 8: BAND-EDGE MEASUREMENT 8.1 Test Criterion 27 8.2 Screen Captures 27 APPENDICES APPENDIX A: TEST EQUIPMENT LIST 28 APPENDIX B: TEST STANDARDS – RADIO 29 APPENDIX C: UNCERTAINTY STATEMENT 30 Prepared For: Ingersoll-Rand Company Model #: 23507296 and 23507262 LS Research, LLC EUT: AD300 with Multitech IC: 8053B-MTADCRED Template: 15.209 - v1 10-22-09 Report #:309380 FCC ID #: XPB-MTADCRED Page 4 of 30 EXHIBIT 1. INTRODUCTION 1.1 SCOPE References: FCC Part 15, Subpart C, Section 15.209 Title: Telecommunication – Code of Federal Regulations, CFR 47, Part 15 Purpose of Test: To gain FCC Certification Authorization for Low-Power License-Exempt Transmitters. References: RSS 210 Annex 2 Title: Low-power License-exempt Radiocommunication Devices (All Frequency Bands): Category I equipment. Purpose of Test: To gain IC Certification Authorization for Low-Power License-Exempt Transmitters. References: RSS GEN Title: General requirements and Information for the Certification of Radiocommunication Equipment. Purpose of Test: To gain IC Certification Authorization for Low-Power License-Exempt Transmitters. Test Procedures: Both conducted and radiated emissions measurements were conducted in accordance with American National Standards Institute ANSI C63.4 – American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. Environmental Classification:  Commercial, Industrial or Business  Residential Prepared For: Ingersoll-Rand Company Model #: 23507296 and 23507262 LS Research, LLC EUT: AD300 with Multitech IC: 8053B-MTADCRED Template: 15.209 - v1 10-22-09 Report #:309380 FCC ID #: XPB-MTADCRED Page 5 of 30 1.2 NORMATIVE REFERENCES Publication Year Title 47 CFR, Parts 0-15 (FCC) 2008 Code of Federal Regulations - Telecommunications RSS 210 Annex 2 2007 Low-power License-exempt Radiocommunication Devices (All Frequency Bands): Category I equipment. RSS GEN 2007 General requirements and information for the certification of Radiocommunication Equipment. ANSI C63.4 2009 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. CISPR 16-1-1 2006-03 A1: 2006-09 A2: 2007-07 Specification for radio disturbance and immunity measuring apparatus and methods. Part 1-1: Measuring Apparatus. CISPR 16-2-1 2003 A1: 2004-04 A2: 2007-07 Specification for radio disturbance and immunity measuring apparatus and methods. Part 201: Conducted disturbance measurement. Prepared For: Ingersoll-Rand Company Model #: 23507296 and 23507262 LS Research, LLC EUT: AD300 with Multitech IC: 8053B-MTADCRED Template: 15.209 - v1 10-22-09 Report #:309380 FCC ID #: XPB-MTADCRED Page 6 of 30 1.3 LS Research, LLC TEST FACILITY LS Research, LLC is accredited by A2LA (American Association for Laboratory Accreditation) to conform to ISO/I…

Text truncated - open the document above for the full version.

W66 N220 Commerce Court ● Cedarburg, WI 53012 ● USA Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com ------------------------------------------------------------------------------------------------------------------------- ENGINEERING TEST REPORT # 309112M LSR Job #: C-772 Compliance Testing of: Schlage AD-300 Wired Door Lock with MultiTech reader Test Date(s): June 17 th to June 19 th 2009 and December 3 rd 2009 Prepared For: Ingersoll-Rand Company Schlage Wyreless Access 245 W. Roosevelt Road Building 7, Suite 48 West Chicago, IL 60185 In accordance with: Federal Communications Commission (FCC) Part 15, Subpart B, Section 15.109 (Class B) Unintentional Radiators Test Report Reviewed by: Teresa A. White, Quality Manager Signature: Date: December 23, 2009 Authorized/Tested by: Khairul Aidi Zainal, Senior EMC Engineer. Signature: Date: December 23, 2009 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. Prepared For: Ingersoll Rand EUT:AD300 with MultiTech reader LS Research, LLC Report #: 309112M Model #: 23507262 (With Keypad) 23507296 (Without Keypad) Template: 15.109 Class B RX (8-21-08) LSR Job #: C-772 Serial #: n/a Page 2 of 21 TABLE OF CONTENTS EXHIBIT 1: INTRODUCTION 1.1 Scope 3 1.2 Normative References 3 1.3 LS Research, LLC Test Facility 4 1.4 Location of Testing 4 1.5 Test Equipment Utilized 4 EXHIBIT 2: PERFORMANCE ASSESSMENT 2.1 Client Information 5 2.2 Equipment Under Test (EUT) Information 5 2.3 Associated Antenna Description 5 2.4 EUT’s Technical Specifications 6 2.5 Product Description 6-7 EXHIBIT 3: EUT OPERATING CONDITIONS & CONFIGURATIONS DURING TESTS 3.1 Climate Test Conditions 7 3.2 Applicability & Summary of EMC Emission Test Results 7 3.3 Modifications Incorporated in the EUT for Compliance Purposes 7 3.4 Deviations & Exclusions from Test Specifications 7 EXHIBIT 4: DECLARATION OF CONFORMITY 8 EXHIBIT 5: RADIATED EMISSIONS TESTING 5.1 Test Setup 9 5.2 Test Procedure 9 5.3 Test Equipment Utilized 10 5.4 Test Results 10 5.5 Calculation of Radiated Emissions Limits 11 5.6 Radiated Emissions Test Data Chart 12 5.7 Test Setup Photo(s) – Radiated Emissions Test 13 5.8 Screen Captures – Radiated Emissions Test 14 EXHIBIT 6: CONDUCTED EMISSIONS TEST, AC POWER LINE 15.107 6.1 Test Setup 15 6.2 Test Procedure 15 6.3 Test Equipment Utilized 15 6.4 Test Results 15 6.5 FCC Limits of Conducted Emissions at the AC Mains Ports 16 6.6 Conducted Emissions Test Data Chart 16 6.7 Test Setup Photo(s) – Conducted Emissions Test 17 6.8 Screen Captures – Conducted Emissions Test 18 APPENDICES: APPENDIX A: TEST EQUIPMENT LIST 19 APPENDIX B: TEST STANDARDS RADIO 20 APPENDIX C: UNCERTAINTY STATEMENT 21 Prepared For: Ingersoll Rand EUT:AD300 with MultiTech reader LS Research, LLC Report #: 309112M Model #: 23507262 (With Keypad) 23507296 (Without Keypad) Template: 15.109 Class B RX (8-21-08) LSR Job #: C-772 Serial #: n/a Page 3 of 21 EXHIBIT 1. INTRODUCTION 1.1 SCOPE References: FCC Part 15, Subpart B, Section 15.109 Title: Telecommunication – Code of Federal Regulations, CFR 47, Part 15 Purpose of Test: To gain FCC Certification Authorization for a Digital Device or a Non-Intentional Radiator Test Procedures: Both conducted and radiated emissions measurements were conducted in accordance with American National Standards Institute ANSI C63.4 – American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. Environmental Classification:  Commercial, Industrial or Business  Residential 1.2 NORMATIVE REFERENCES Publication Year Title FCC CFR Parts 0-15 2008 Code of Federal Regulations – Telecommunications ANSI C63.4 2003 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. CISPR 16-1-1 2006-03 A1: 2006-09 A2: 2007-07 Specification for radio disturbance and immunity measuring apparatus and methods. Part 1-1: Measuring Apparatus. CISPR 16-2-1 2003 A1: 2004-04 A2: 2007-07 Specification for radio disturbance and immunity measuring apparatus and methods. Part 201: Conducted disturbance measurement. Prepared For: Ingersoll Rand EUT:AD300 with MultiTech reader LS Research, LLC Report #: 309112M Model #: 23507262 (With Keypad) 23507296 (Without Keypad) Template: 15.109 Class B RX (8-21-08) LSR Job #: C-772 Serial #: n/a Page 4 of 21 1.3 LS Research, LLC TEST FACILITY LS Research, LLC is accredited by A2LA (American Association for Laboratory Accreditation) to conform to ISO/IEC 17025, 2005 “General Requirements for the Competence of Calibration and Testing Laboratories”. LS Research, LLC’s scope of accreditation includes all test methods listed herein, unless otherwise noted. A copy of the accreditation may be accessed on our web site: www.lsr.com . Accreditation status can be verified at A2LA’s web site: www.a2la2.net . 1.4 LOCATION OF TESTING All testing was performed at LS Research, LLC, W66 N220 Commerce Court, Cedarburg, Wisconsin, 53012 USA, utilizing the facilities listed below, unless otherwise noted. List of Facilities Located at LS Research, LLC:  Compact Chamber  Semi-Anechoic Chamber  Open Area Test Site (OATS) 1.5 TEST EQUIPMENT UTILIZED A complete list of equipment utilized in testing is provided in Appendix A of this test report. Calibration dates are indicated in Appendix A. All test equipment is calibrated in accordance with A2LA standards. Prepared For: Ingersoll Rand EUT:AD300 with MultiTech reader LS Research, LLC Report #: 309112M Model #: 23507262 (With Keypad) 23507296 (Without Keypad) Template: 15.109 Class B RX (8-21-08) LSR Job #: C-772 Serial #: n/a Page 5 of 21 EXHIBIT 2. PERFORMANCE ASSESSMENT 2.1 CLIENT INFORMATION Manufacturer Name: Ingersoll-Rand Company Address: 11819 N. Pennsylvania St. Carmel, IN 46074 Contact Person: Sheldon White Contact Phone: 317.810.3166 Contact Email: [email protected] 2.2…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS Company Name Ingersoll Rand Model # 23507296 and 235072625 FCC ID # XPB-MTADCRED IC # 8053B-MTADCRED Page 1 of 2 Test Setup Photo(s) – Radiated Emissions Test From left to right: Setup ID card for setting different transmit modes, 13.56MHz ID card and 125kHz ID card. These cards were used to set EUT in test mode and test for functionality of the PROX reader. TEST SETUP PHOTOS Company Name Ingersoll Rand Model # 23507296 and 235072625 FCC ID # XPB-MTADCRED IC # 8053B-MTADCRED Page 2 of 2 Test Setup Photo(s) – Conducted Emissions Test
