XPB-ZWBRIDGEG2Z-Wave to Ethernet Bridge

Bridge User Guide Model BR100 23957509 ©2013 Ingersoll Rand Printed in U.S.A. 23957509 Rev. 01/13-d Bridge MAC ID twelve (12) characters 1 Locate bridge MAC ID. Write MAC ID in box at top of this page. You will need it to register your account. MAC ID: XXXXXXXXXXXX 2 Gather information. To create your account, you will need your credit card and billing address. Battery Compartment MAC ID - + Server Light Z-Wave™ Light Minus (-) Button Plus (+) Button A/C Input Ethernet Port and Lights USE Enroll Z-Wave Devices a. Install a fresh, high-quality battery into bridge. b. Hold bridge within 6 ft. (1.8 m) of device you want to enroll throughout entire enrollment process. c. Press and release plus (+) button on bridge. d. Within 30 seconds, press proper button(s) for enrollment on device. See the instructions that came with device for more information. e. Observe lights on bridge. The orange light will blink slowly then quickly while enrollment is taking place. Enrollment is complete when orange light becomes solid. f. Remove battery from bridge. Exclude Devices a. Install a fresh, high-quality battery into bridge. b. Hold bridge within 6 ft. (1.8 m) of device being excluded throughout entire exclusion process. c. Press minus (-) button on bridge. d. Within 30 seconds, press proper button(s) for exclusion on device. See device instructions for more information. e. Observe lights on bridge. Orange light will blink slowly then quickly while exclusion is taking place. Exclusion is complete when orange light becomes solid. f. Remove battery from bridge. Bridge Reset All enrolled devices and account information will be removed! Call us if you are unsure whether to proceed. a. Plug bridge into A/C power. b. Press and hold plus (+) and minus (-) buttons simultaneously for 10 seconds. c. Release both buttons. d. Orange light on bridge will continue to fl ash for 10 - 15 seconds. This procedure can be used to initialize bridge at any time. See “System Reset” at www.nexiahome.com for more information. LIGHTS LightCondition Orange (Z-Wave) slow blinkWaiting for enrollment or exclusion to begin fast blinkEnrollment or exclusion is taking place solidAt least one Z-Wave device was enrolled or excluded fl ickerZ-Wave activity is detected on local network Green (Server) solidConnected to the server fl ickerInformation is being exchanged with server 2 blinksBridge does not have an IP address. Verify that bridge is connected to router and that router DHCP is enabled 3 blinksBridge has contacted server but connection was denied. Unplug bridge for 10 seconds. If problem persists, call us. no light (but orange light is solid) Ethernet cable not connected Blue NexiasolidBridge is powered by A/C slow blinkBridge is powered by battery Blue, Green and Orange solidLow battery, when bridge not connected to A/C and battery is installed no lightNo A/C or battery Green and Orange blink for 5 seconds Occurs during reset. After reset, orange light will continue to blink for 5 seconds. Ethernet Lights solid or blinking Internet connected 3 Set up online account. a. Browse to www.mynexia.com. b. Find “Just purchased a Nexia Home Intelligence System? Click here” and click the link. c. Follow on-screen instructions to create your account. d. Your bridge will be automatically updated. Battery The 9V battery is used only to enroll and exclude devices. It does not provide data backup. Bridge will retain data even when power is completely removed. SETUP www.nexiahome.com (877) 288-7707 FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/television technician for help. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: Any modifi cations made to this device that are not approved by Ingersoll Rand Security Technologies may void the authority granted to the user by the FCC to operate this equipment. Industry Canada Statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Declaración de Interferencia de la CCF Este equipo ha sido probado y se ha encontrado que cumple con los límites para los dispositivos digitales Clase B, de conformidad con la Parte 15 de las Reglas de la CCF. Estos límites están diseñados para proporcionar una protección razonable contra interferencia dañina en una instalación residencial. Este equipo genera, usa y puede radiar energía de radio frecuencia y, si no se instala y utiliza de conformidad con las instrucciones, puede causar interferencia dañina a las comunicaciones por radio. Sin embargo, no existe garantía de que no ocurrirá interferenc…

Text truncated - open the document above for the full version.

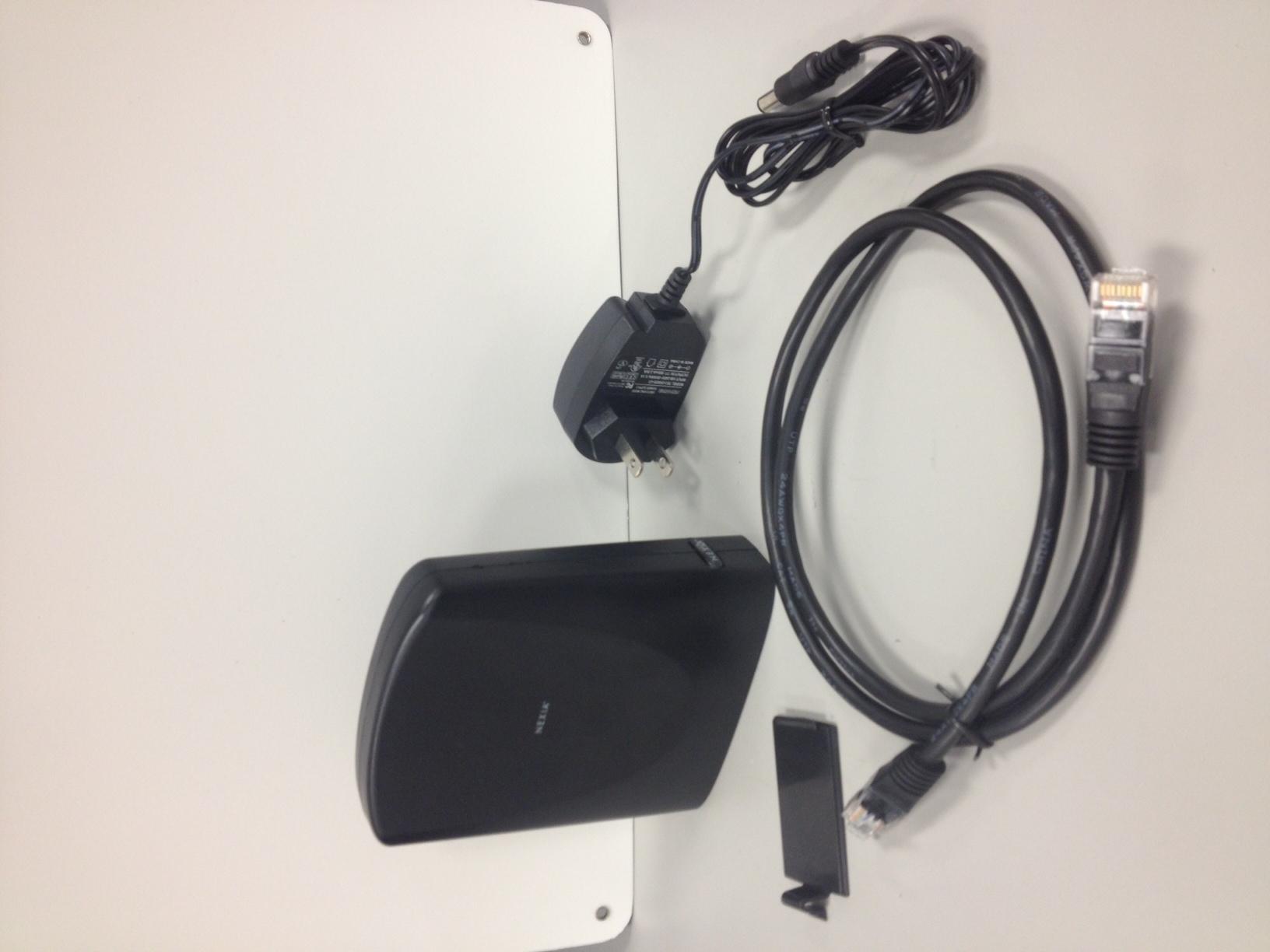

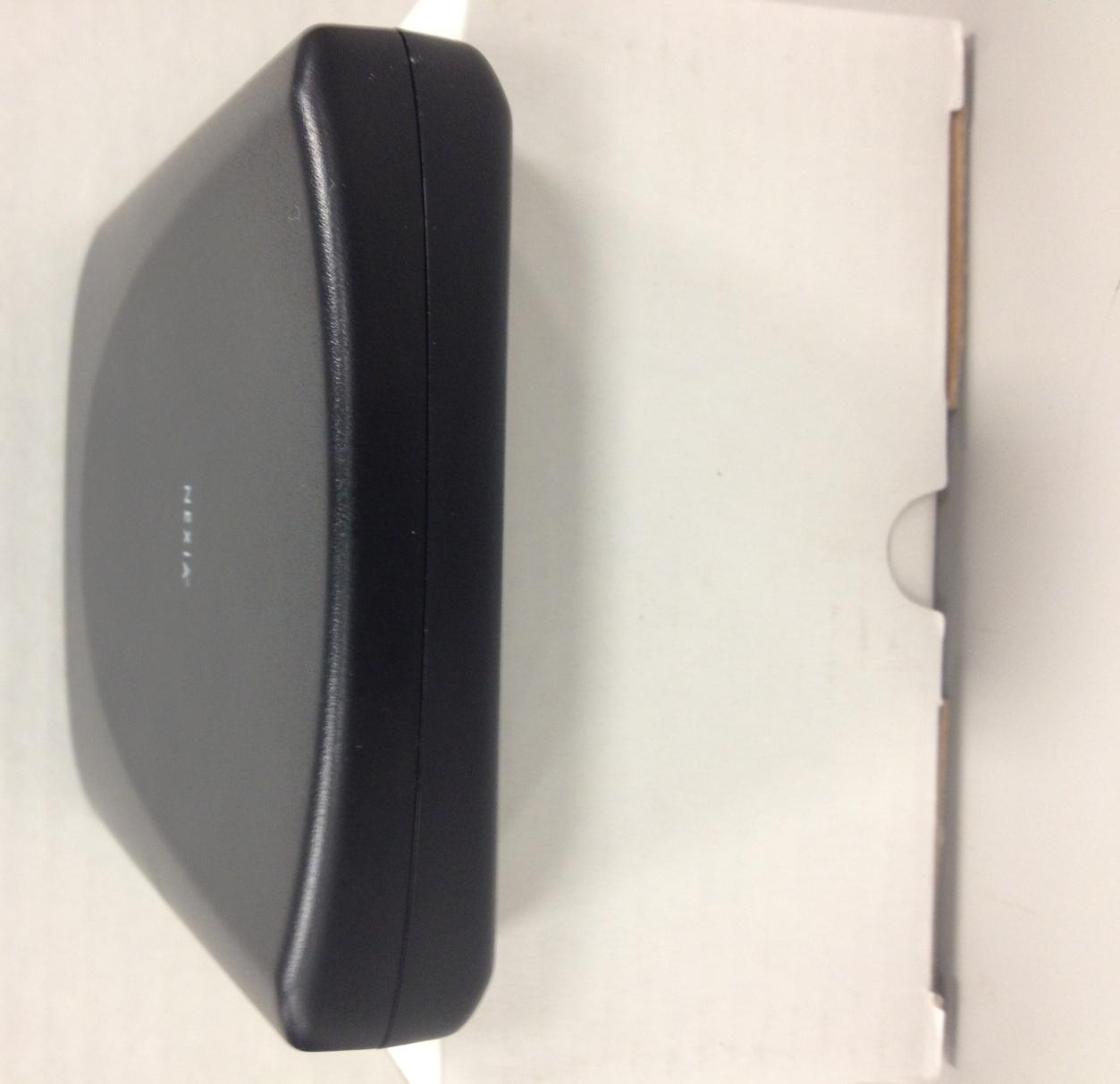

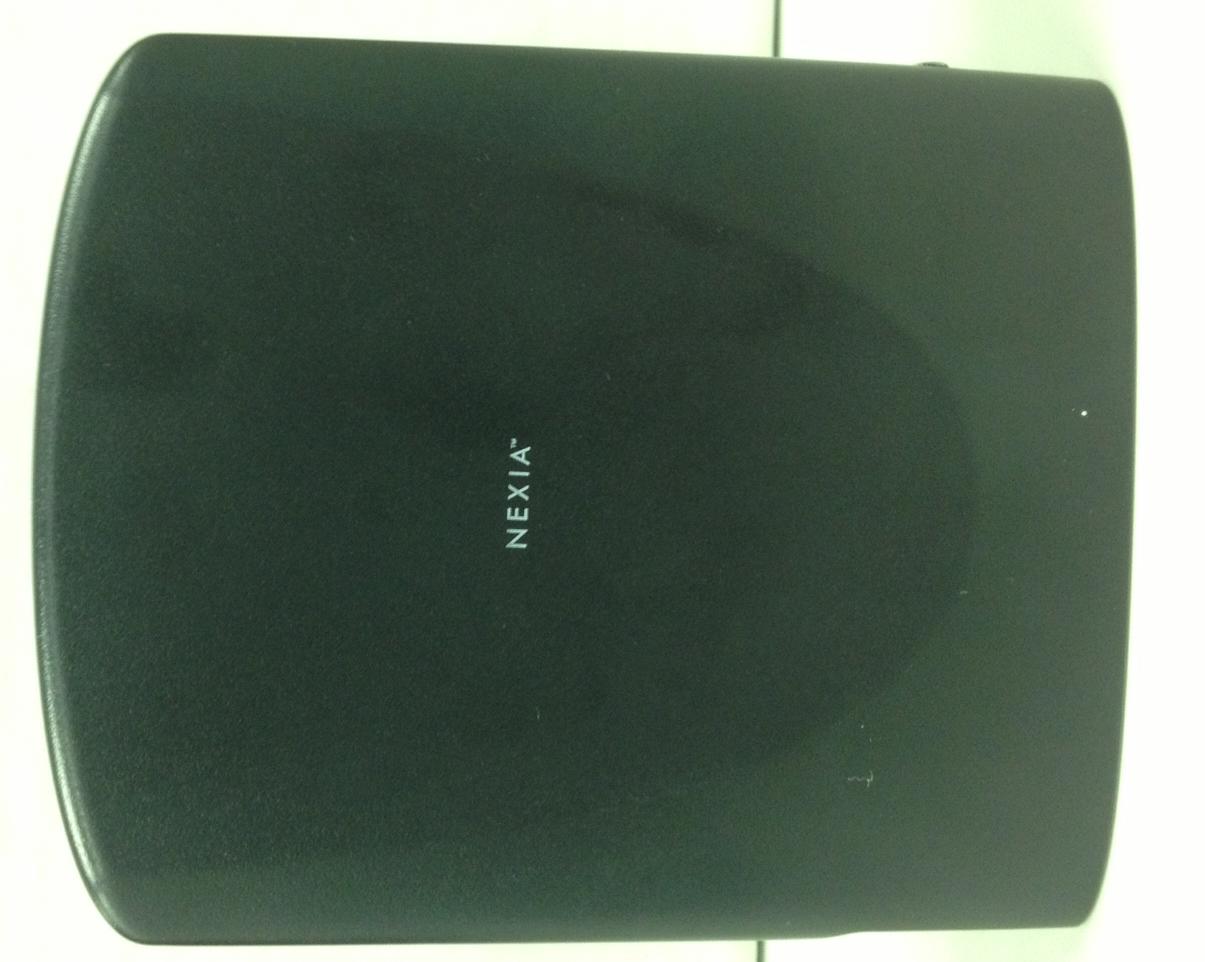

FCC Certification ITEM 14: External Photos IMAGE 1: Gen2 Bridge (Equipment under test) with all outside connection equipment. Included: Ethernet cable, 5V power supply, and battery cover. IMAGE 2: View from underside of EUT displaying FCC label information including FCC ID. Mock-up of decal displayed. Battery cover not shown. IMAGE 3: Side view of EUT. IMAGE 4: Side view of EUT. Image 5: Angled View of EUT for depth reference. Image 6: Rear of EUT displaying silicone light display points at top, two buttons with negative and positive labels, 5V power supply input point, Ethernet Connection point. Image 7: EUT being viewed from the top. Image 8: Front of EUT with light pipe labeled NEXIA.

FCC Certification ITEM 15: Internal Photos Image 1: Gen2 Bridge (Equipment Under Test) as it appears upon opening of plastic Clamshell. Image includes two halves of outer shell, PCB mounted to one shell half by two mounting screws, battery foam, Plastic light Tube, battery connector, silicone LED covers, silicone positive and negative button covers. Image 3: PCB removed from clamshell. This is the reversed side. Images 2: The PCB is completely removed from clamshell. This is the front.

Engineering Test Report No. 1203622-01 Measurement of RF Emissions from a Rev. C Gen 2 Wireless Bridge For Ingersoll Rand 6200 Troup Highway Tyler, TX 75707 P.O. Number R1249319 Date Tested November 11 th , 14 th and 15 th , 2012 Test Personnel Ian F. Carnegie Test Specification FCC "Code of Federal Regulations” Title 47 Part15, Subpart C Industry Canada RSS-GEN Industry Canada RSS-210 Test Report By: Ian F. Carnegie EMC Engineer Requested By: Kit Klein Ingersoll Rand Approved By: Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Elite Electronic Engineering, Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 1203622-01 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 41 1. Introduction ................................................................................................................................................... 5 1.1. Scope of Tests ..................................................................................................................................... 5 1.2. Purpose ............................................................................................................................................... 5 1.3. Deviations, Additions and Exclusions .................................................................................................. 5 1.4. EMC Laboratory Identification ............................................................................................................. 5 1.5. Laboratory Conditions.......................................................................................................................... 5 2. Applicable Documents .................................................................................................................................. 5 3. EUT Setup and Operation ............................................................................................................................ 6 3.1. General Description ............................................................................................................................. 6 3.1.1. Power Input ................................................................................................................................. 6 3.1.1. Peripheral Equipment ................................................................................................................. 6 3.1.2. Interconnect Cables .................................................................................................................... 6 3.1.3. Grounding ................................................................................................................................... 6 3.2. Operational Mode ................................................................................................................................ 6 3.3. EUT Modifications ................................................................................................................................ 6 4. Test Facility and Test Instrumentation ......................................................................................................... 6 4.1. Shielded Enclosure .............................................................................................................................. 6 4.2. Test Instrumentation ............................................................................................................................ 6 4.3. Calibration Traceability ........................................................................................................................ 6 4.4. Measurement Uncertainty ................................................................................................................... 7 5. Test Procedures ........................................................................................................................................... 7 5.1. Powerline Conducted Emissions ......................................................................................................... 7 5.1.1. Transmitter .................................................................................................................................. 7 5.1.1.1 Requirements ......................................................................................................................... 8 5.1.1.2 Procedures ............................................................................................................................. 8 5.1.1.3 Results .................................................................................................................................... 9 5.1.2. Receiver ...................................................................................................................................... 7 5.1.2.1 Requirements ......................................................................................................................... 7 5.1.2.2 Procedures ............................................................................................................................. 7 5.1.2.3 Results .................................................................................................................................... 8 5.2. Radiated Measurements ..................................................................................................................... 9 5.2.1. Transmitter .................................................................................................................................. 9 5.2.1.1 Requirements ....................................................................................................................... 10 5.2.1.2 Procedures ...................................................................…

Text truncated - open the document above for the full version.

Engineering Test Report No. 1203622-01 Page 18 of 41 Figure 4 Test Setup for Radiated Emissions – 1 GHz to 10 GHz, Horizontal Polarization Test Setup for Radiated Emissions – 1 GHz to 10 GHz, Vertical Polarization

Engineering Test Report No. 1203622-01 Page 17 of 41 Figure 3 Test Setup for Radiated Emissions – 30 MHz to 1 GHz, Horizontal Polarization Test Setup for Radiated Emissions – 30 MHz to 1 GHz, Vertical Polarization
