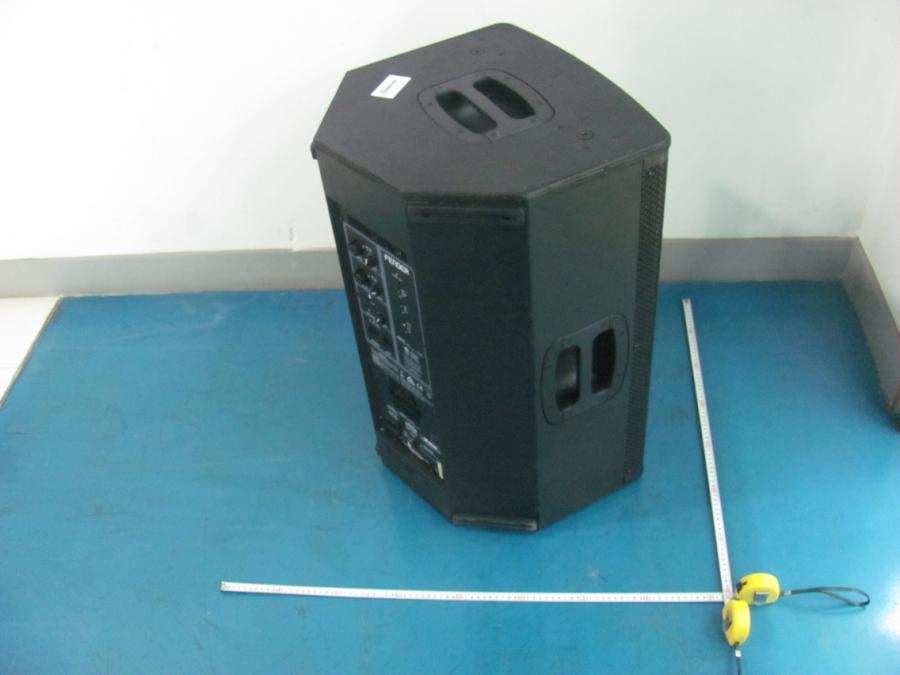

XQW-FORPR4575Power Amplifier

READ ME FIRST IMPORTANT SAFETY INSTRUCTIONS INSTRUCCIONES DE SEGURIDAD IMPORTANTES CONSIGNES DE SÉCURITÉ IMPORTANTES INSTRUÇÕES DE SEGURANÇA IMPORTANTES IMPORTANTI NORME DI SICUREZZA WICHTIGE ANWEISUNGEN ZU IHRER SICHERHEIT WAŻNE INSTRUKCJE DOTYCZĄCE BEZPIECZEŃSTWA BEZPEČNOSTNÍ POKYNY DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY POMEMBNA VARNOSTNA NAVODILA 重 要 安 全 说 明 IMPORTANT SAFETY INSTRUCTIONS The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suf ficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15) To completely disconnect this apparatus from the AC mains, disconnect the power supply cord plug from the AC receptacle. 16) The mains plug of the power supply cord shall remain readily operable. 17) WARNING – To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. 18) Do not expose this equipment to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the equipment. 19) Maintain at least 6 inches (15.25 cm) of unobstructed air space behind the unit to allow for proper ventilation and cooling of the unit. 20) CAUTION – For rack mounted power amplifiers, keep all wiring and materials away from the sides of the unit and allow the unit to cool down for 2 minutes before pulling from a rack enclosure. 21) Amplifiers and loudspeaker systems, and ear/headphones (if equipped) are capable of producing very high sound pressure levels which may cause temporary or permanent hearing damage. Use care when setting and adjusting volume levels during use. 22) FCC COMPLIANCE NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not used in accordance with the instructions, may cause harmful interference to radio communications and there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment of f and on, the user is encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna, increase the separation between the equipment and receiver, connect the equipment into an outlet on a circuit dif ferent from that of the receiver. Consult the dealer or an experienced radio/ TV technician if help is needed with interference. NOTE: FMIC will not be responsible for unauthorized equipment modifications that could violate FCC rules, and/ or void product safety certifications. For certain Intentional Radiators: This device complies with Part 15 of the FCC Rules/Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 23) WARNING – To maintain product safety, products with internal or external (battery pack) batteries: •Batteries and/or the product in which they are installed, shall not be exposed to excessive heat such as sunshine, fire or the like. •There may be a danger of explosion if the battery is incorrectly connected/ replaced. Replace only with the same or equivalent type battery specified in the instructions or on the product. 24) CAUTION – Unplug unit and allow it to cool before touching/ replacing vacuum tubes. 25) WARNING – Provide an earthing connection before the mains plug is connected to the mains. And, when disconnecting the earthing connection, be sure to disconnect after pulling out the mains plug from the mains. 26) Apparatus with CLASS I construction (grounded type with a three-prong plug) must …

Text truncated - open the document above for the full version.

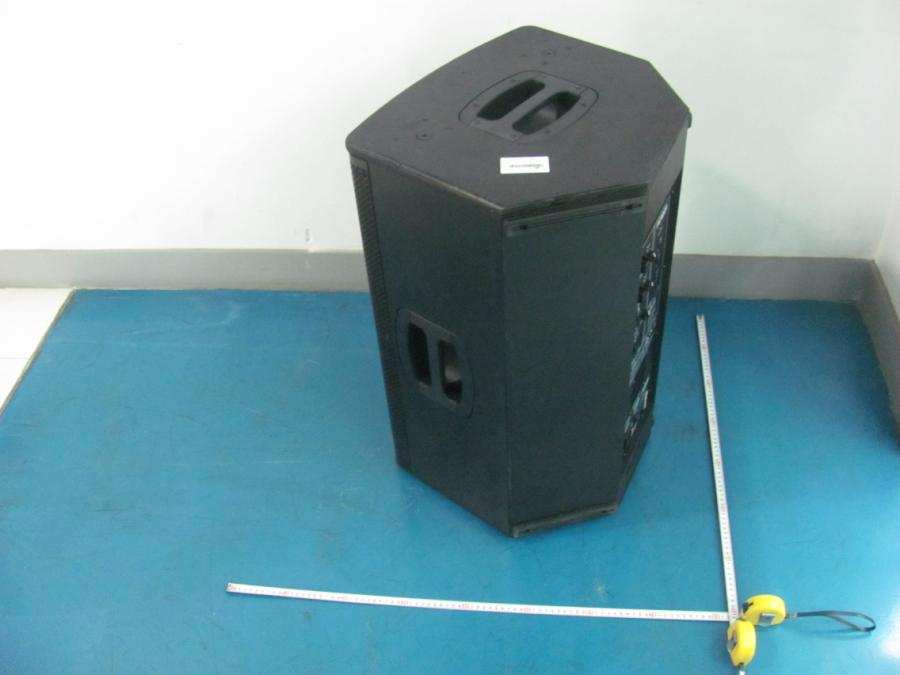

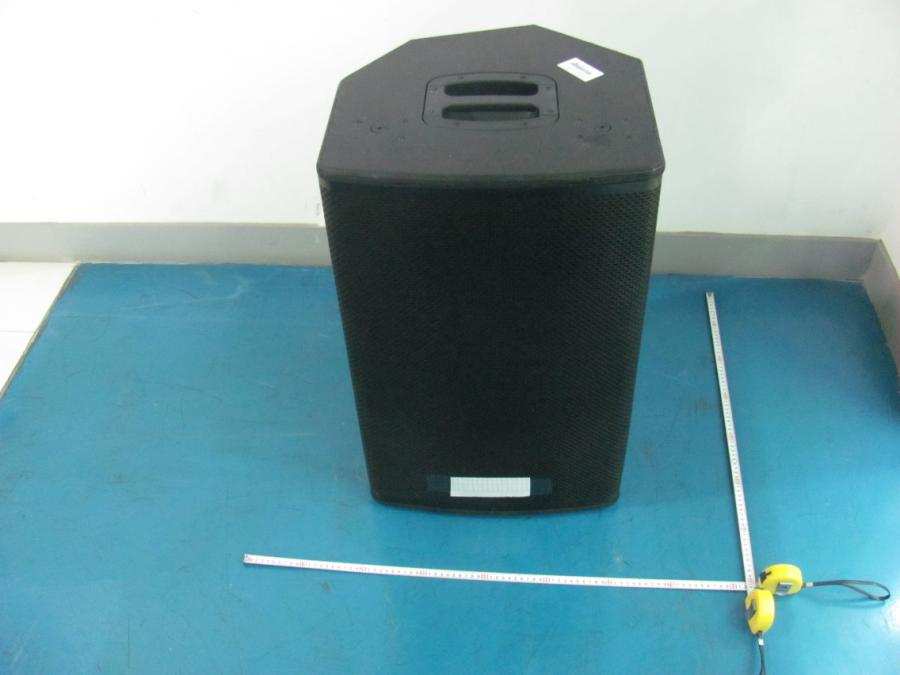

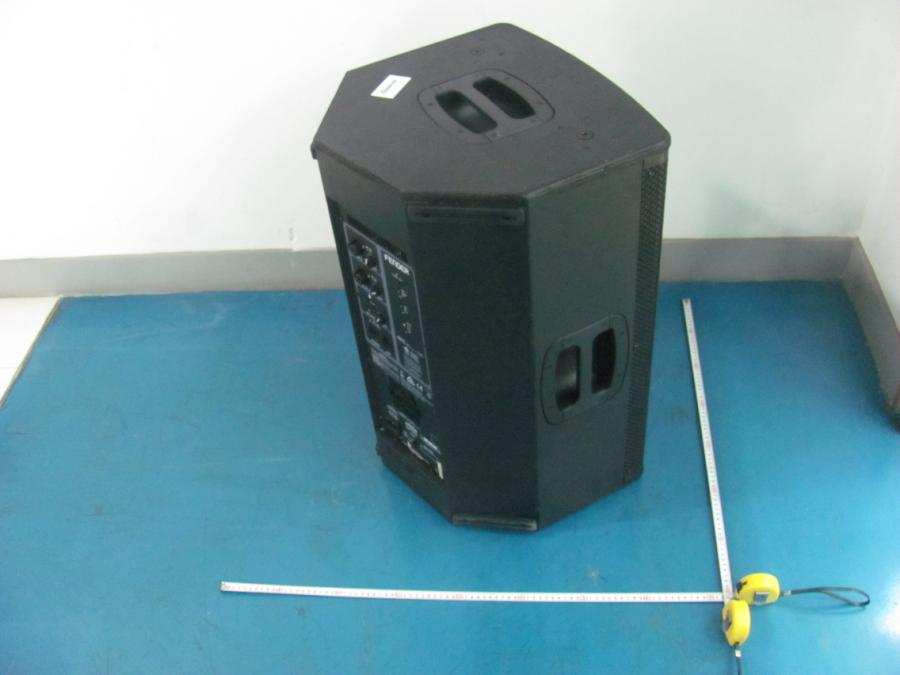

BLUETOOTH ENABLED | 1300 WATTS | 2-WAY POWERED LOUDSPEAKERS FORTIS F-12BT and F-15BT POWERED SPEAKERS ™ OWNER'S MANUAL | MANUAL DE INS TRUCCIONES | MODE D'EMPLOI | MANUAL DO PROPRIE TÁRIO 0$18$/(87(17(_%('Ζ(181*6+$1'%8&+_Ζ16758.&-$2%6ă8*Ζ_1ƒ92'.328L·Ζ7Θ 1ƒ92'1$328L·Ζ7Ζ(_8325$%1ΖĢ.Ζ35Ζ52Î1Ζ._ | ⩕ᝤ᝸ڹ Fender Fortis F-12BT andF-15BT Powered Speakers Fender’s Fortis F-12BT and F-15BT powered speakers are active two- way PA speakers with 12” and 15” woofers, respectively, designed to o"er excellent #delity, features, reliability, durability and ease of setup and use. Powerful and versatile, they also o"er high-quality Bluetooth compatibility for easy audio streaming, with special audio routing for true stereo when using two enclosures, and switchable EQ tailored to speci#c applications. Along with user-friendly rear-panel controls and features, three input channels and remarkably light weight, Fortis also o"ers: • 1.75” titanium horn-loaded high-frequency compression driver • Dual built-in power ampli#ers with active crossover and temperature-controlled fan cooling • Universal power for 100V to 240V operation • Front-facing bi-color Power/Limit LED • Dual-angle enclosure design with 30-degree and 60-degree tilt options when used as a $oor wedge monitor • Dual 35mm pole-mount sockets for vertical mounting when stage is at audience level and and 7.5-degree downward angle when stage is above audience level • Built-in M10 suspension hardware • Top and side handles • Rugged perforated steel grille • Void-free plywood enclosure construction for superior solidity, ruggedness and durability Rear Panel Controls and Features A. CHANNEL1: Balanced line input with combination XLR/TRS input connector, volume control and “High Level/Low Level” pushbut- ton switch. B. CHANNEL 2: Balanced line/mic input with combination XLR/ TRS input connector, volume control and “Line/Mic” pushbutton switch. C. CHANNEL 3: Stereo Bluetooth and auxiliary input with volume control, Bluetooth pairing button and blue status LED, and 3.5mm auxiliary input (interrupts Bluetooth signal when in use). D. EXTENSION AND LOOP OUTPUTS: Balanced extension output (right) with XLR-3M male connector sends signal to opposite side of stage for stereo sound. Balanced loop output (left) with XLR-3M male connector duplicates internal mixer output and sends signal to additional Fortis speakers or subwoofers on same side of stage. In “Mono” (up) position, “Mono/Stereo” pushbut- ton switch mixes left and right inputs and provides mono mix to line output; in “Stereo” (down) position, it routes left channel to internal ampli#er and right channel to line output. Note that Bal- anced Extension Output (right) follows operation of “Mono/Stereo” pushbutton switch. E. LIMIT LED: Activity indicator for driver/ampli#er protection lim- iter. Illuminates when system is nearing its upper performance speci#cations. F. FRONT LED SWITCH: Three-position switch con#gures bi-color LED on the front of the enclosure to indicate power only (“power” position) or power and limiting (“limit” position), or deactivates it entirely (“o"” position). G. EQ SWITCH: Three-position switch provides speci#c EQ pro#les, including mild high-frequency boost for increased sparkle and chime (“High” position), slight midrange boost for greater voice clarity (“Mid” position) and $attest speaker response (“Flat” posi- tion). H. LF SWITCH: Four-position EQ switch provides speci#c low-end tone shaping. Includes low-frequency boost ideal, for example, for DJs who want to provide increased bass (“Boost” position); $attest speaker response (“Flat” position); low-frequency shelving cut that compensates for naturally occurring bass boost when enclosure is placed on its side and “coupled” to the $oor (“Monitor” position); and built-in high-pass #lter that removes low frequencies such that an external subwoofer can be added to the system to achieve greater volume with overall balanced response (“Sub” position). I. POWER CORD: Connect to a grounded outlet in accordance with the voltage and frequency speci#cations noted on the ampli#er information label, which is located inside the cabinet on the left when viewing from the rear. J. POWER SWITCH: Turns unit on and o". ENGLISH 2 5002603 FCC ID: XQW-FORPR4575 IC: 8690A-FORPR4575 100-240V 50/60Hz 150W Fuse: T4 A L 250V TYPE: PR 4575 Specifications TYPE PR 4575 OUTPUT POWER (BOTH MODELS) Continuous: 500 watts low frequency 150 watts high frequency Peak: 1,000 watts low frequency 300 watts high frequency FREQUENCY RESPONSE F-12BT: 50 Hz–20 kHz F-15BT: 38 Hz–20 kHz MAXIMUM SPL (BOTH MODELS) 135 dB SPEAKERS F-12BT: One 12” F-15BT: One 15” Both models: One 1.75” titanium horn-loaded high-frequency compression driver NOMINAL COVERAGE F-12BT: 90 degrees horizontal, 40 degrees vertical F-15BT: 90 degrees horizontal, 50 degrees vertical FUSE T4A L 250V DIMENSIONS (F-12BT) Width: 15” (38.1 cm) Height: 26” (66 cm) Depth: 14” (35.56 cm) DIMENSIONS (F-15BT) Width: 17” (43.18 cm) Height: 28” (71.12 cm) Depth: 16” (40.64 cm) WEIGHT F-12BT: 42.2 lbs. (19.14 kg) F-15BT: 52.9 lbs. (24 kg) Product specifications subject to change without notice. ENGLISH Fortis F-15BT rear panel shown; Fortis F-12BT shares same control features and layout. 3 Fender Fortis F-12BT y F-15BT Altavoces Autoampli"cados Los altavoces autoampli#cados Fortis F-12BT y F-15BT de Fender son altavoces para PA activos de dos vías con woofers de 12” y 15”, respectivamente, que han sido diseñados para ofrecer una #delidad, características, #abilidad, resistencia y facilidad de con#guración y uso incomparables. Potentes y versátiles, estos altavoces ofrecen también una compatibilidad Bluetooth de alta calidad para un envío de datos audio sencillo y directo, con un ruteo audio especial para aplicaciones de stereo real cuando utilice dos recintos y EQ personalizada y conmutable para aplicaciones concretas. Junto con sus manejables controles y funciones del panel trasero, sus tres c…
