XQWPV2PR846Portable Audio Amplifier System

Fender Musical Instruments
Portable Audio Amplifier System - FCC ID XQWPV2PR846 - Fender Musical Instruments
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jan 09, 2020
Application Purpose
Original Equipment
Date of Application
Jan 09, 2020
Equipment Note
Portable Audio Amplifier System
Frequency Range
2402.00000000 - 2480.00000000
Company
Fender Musical Instruments
Country
United States

Documents & Files

Select a file to view

Users Manual

↗
↗

Cover Letter(s)

↗
↗

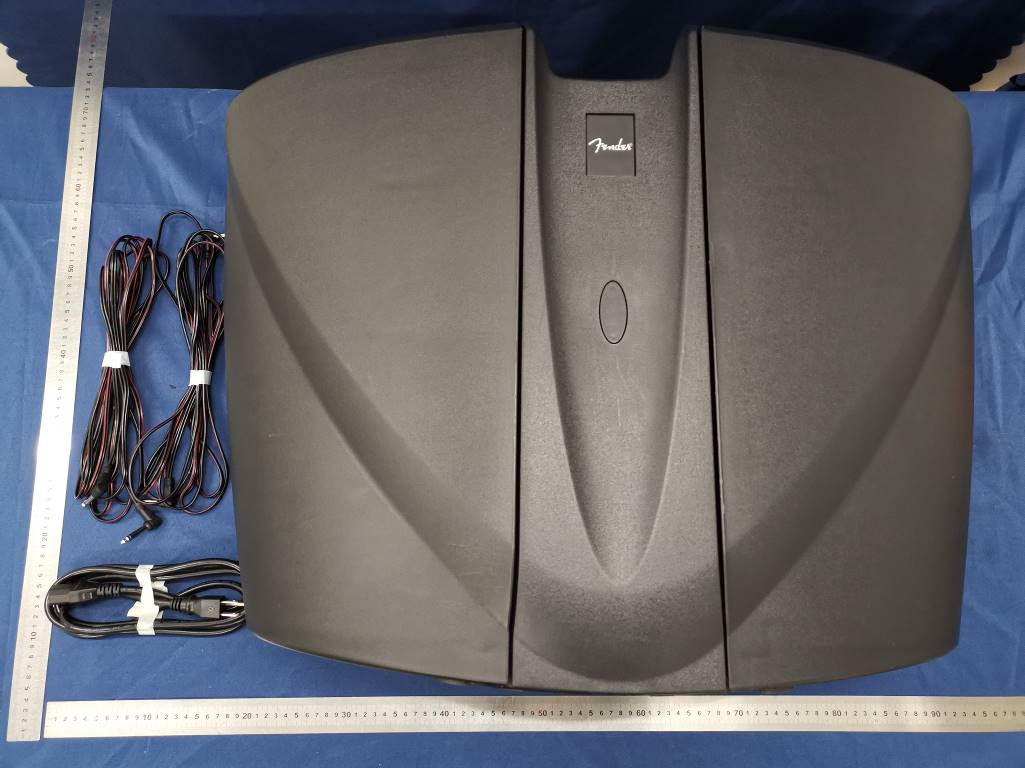

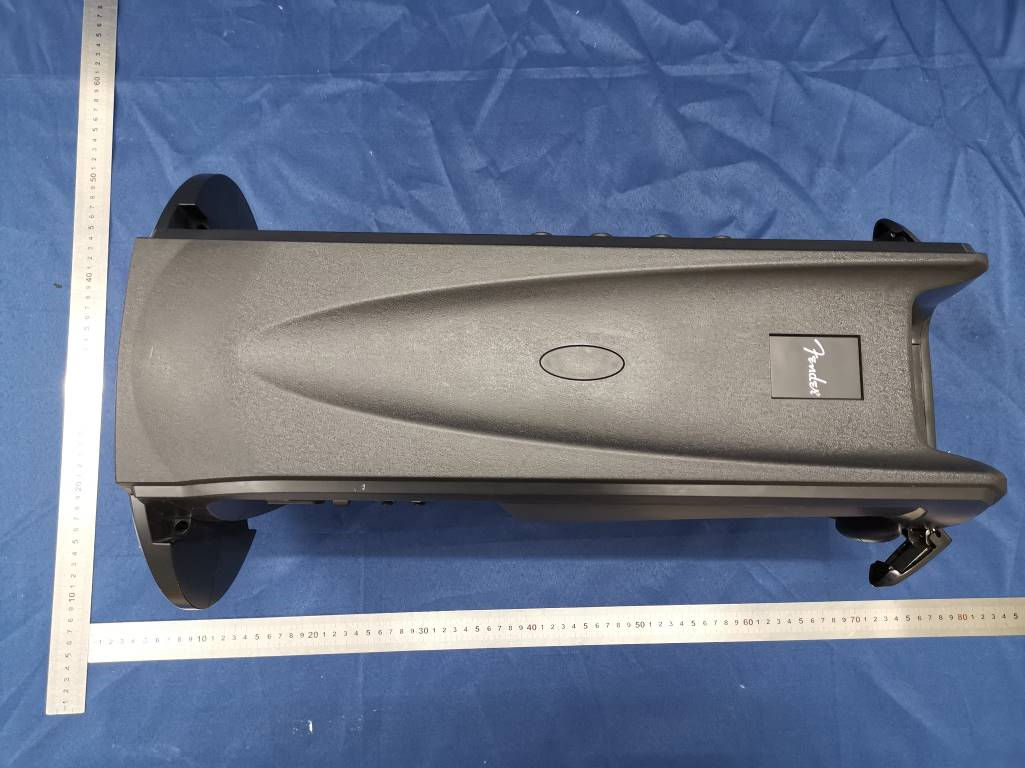

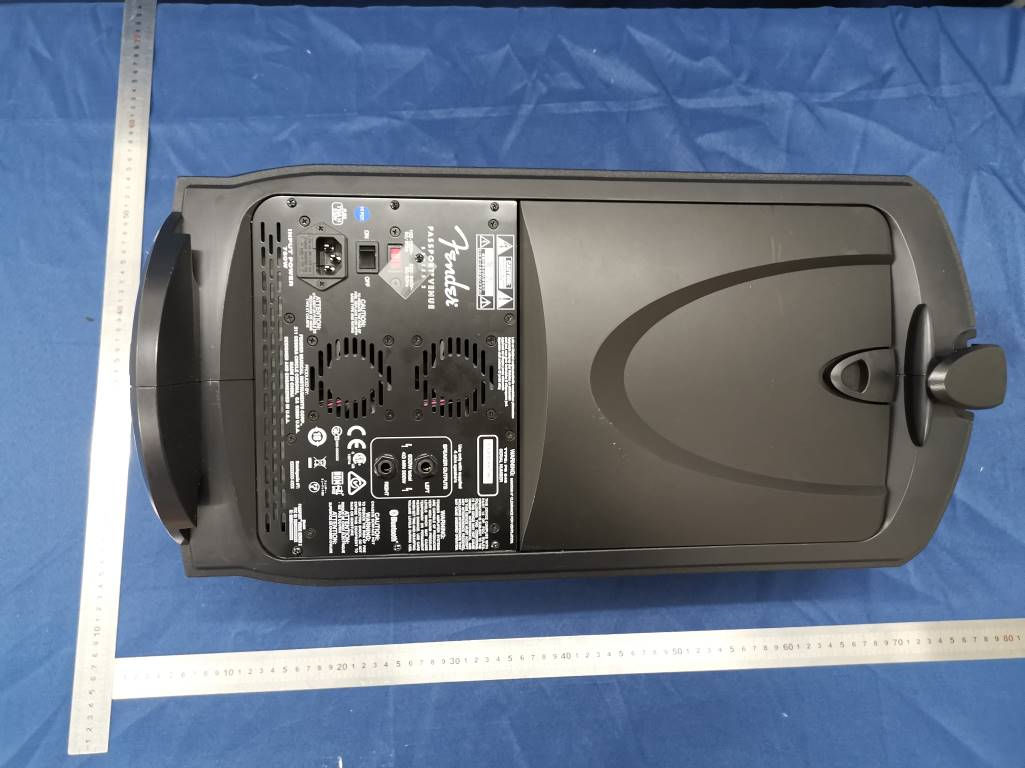

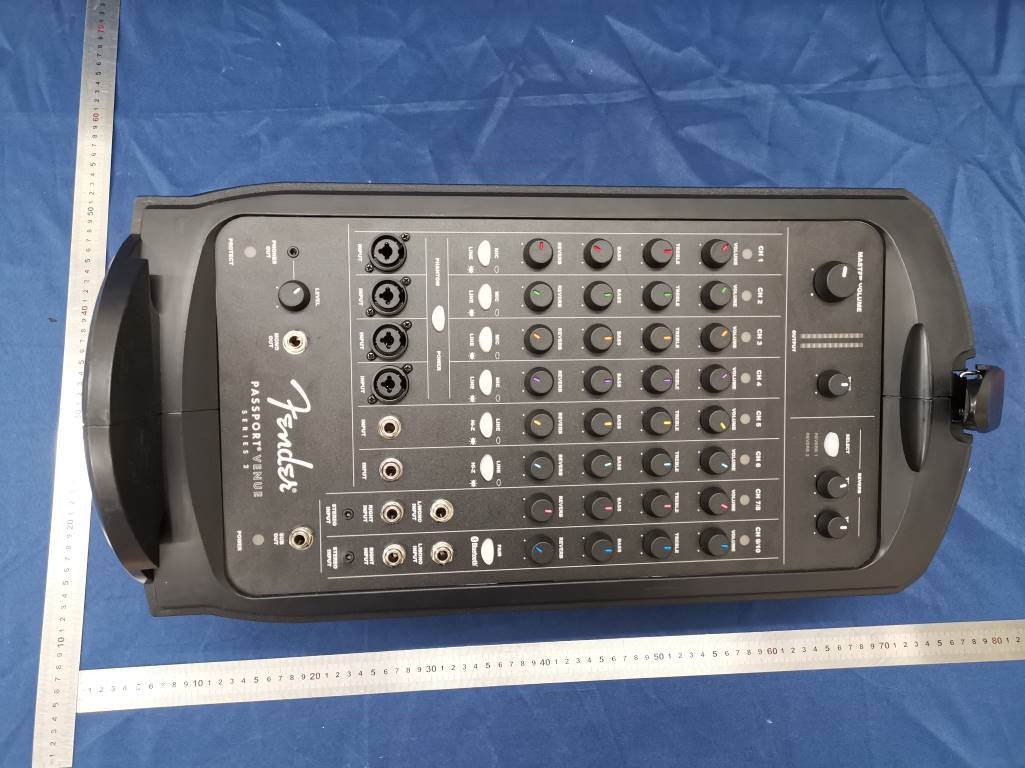

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
