XR3-TAPPYWireless Page Turner, Bluetooth remote controller

FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. ISED Warning This device complies with Innovation, Science, and Economic Development Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d' Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The device is compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance. Le présent appareil est conforme Après examen de ce matériel aux conformité ou aux limites d’intensité de champ RF, les utilisateurs peuvent sur l’exposition aux radiofréquences et la conformité and compliance d’acquérir les informations correspondantes.

ONYX INTERNATIONAL INC. Address: Room 101, Building 4, No. 202 Shiyu Road, Nansha District, Guangzhou City, Guangdong Province, China Tel: (86)0755-86966884 Fax:(86)0755-86966884 Email: [email protected] Attestation letter Date: 2026-05-07 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, ONYX INTERNATIONAL INC., have a product Wireless Page Turner, Bluetooth remote controller, Model name: BOOX Tappy, FCC ID: XR3-TAPPY, for the purpose of marketing, this product only supports BLE 1M&BLE 2M. The other functions were disabled to use by manufacturer in the software, the end user has no capability to activate it. Sincerely Yours, Signature: Printed name: Lifen Yu Title: R&D Assistant

ONYX INTERNATIONAL INC. Address: Room 101, Building 4, No. 202 Shiyu Road, Nansha District, Guangzhou City, Guangdong Province, China Tel: (86)0755-86966884 Fax:(86)0755-86966884 Email: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 2026-05-07 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: XR3-TAPPY ONYX INTERNATIONAL INC. certifies that the equipment for which authorization is sought, is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely Yours, Signature: Printed name:Lifen Yu Title: R&D Assistant

ONYX INTERNATIONAL INC. Address: Room 101, Building 4, No. 202 Shiyu Road, Nansha District, Guangzhou City, Guangdong Province, China Tel: (86)0755-86966884 Fax:(86)0755-86966884 Email: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter Attestation Letter Date: 2026-05-07 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: XR3-TAPPY ONYX INTERNATIONAL INC. certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely Yours, Signature: Printed name: Lifen Yu Title: R&D Assistant

U.S. AGENT LETTER OF ATTESTATION Date: 2026-05-07 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: XR3-TAPPY ONYX INTERNATIONAL INC. certifies that, as of the date of the filing of the application, Iconsigh is our designated U.S. agent for service of process for the above referenced FCC ID. ONYX INTERNATIONAL INC. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, United States FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: ONYX INTERNATIONAL INC. Address: Room 101, Building 4, No. 202 Shiyu Road, Nansha District, Guangzhou City, Guangdong Province, China FRN: 0019135441 Tel: (86)0755-86966884 Email: [email protected] Signed by (printed name): Lifen Yu Signature:

QA-FR-170-B ONYX INTERNATIONAL INC. Address: Room 101, Building 4, No. 202 Shiyu Road, Nansha District, Guangzhou City, Guangdong Province, China Tel: (86)0755-86966884 Fax:(86)0755-86966884 Email: [email protected] FCC Authorization Date: 2026-05-07 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We (ONYX INTERNATIONAL INC.), the undersigned, hereby authorize Bay Area Compliance Laboratories Corp. (Shenzhen) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. (Shenzhen) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed name:Lifen Yu Title: R&D Assistant

ONYX INTERNATIONAL INC. Address: Room 101, Building 4, No. 202 Shiyu Road, Nansha District, Guangzhou City, Guangdong Province, China Tel: (86)0755-86966884 Fax:(86)0755-86966884 Email: [email protected] FCC Confidential Authorization Date: 2026-05-07 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: XR3-TAPPY In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, ONYX INTERNATIONAL INC. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Printed name:Lifen Yu Title: R&D Assistant

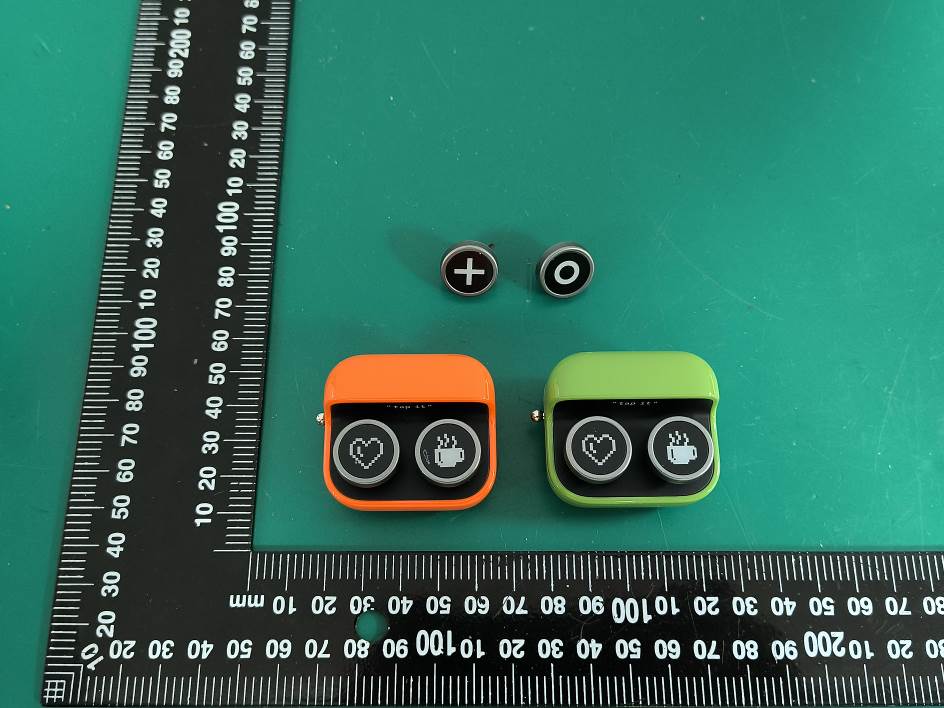

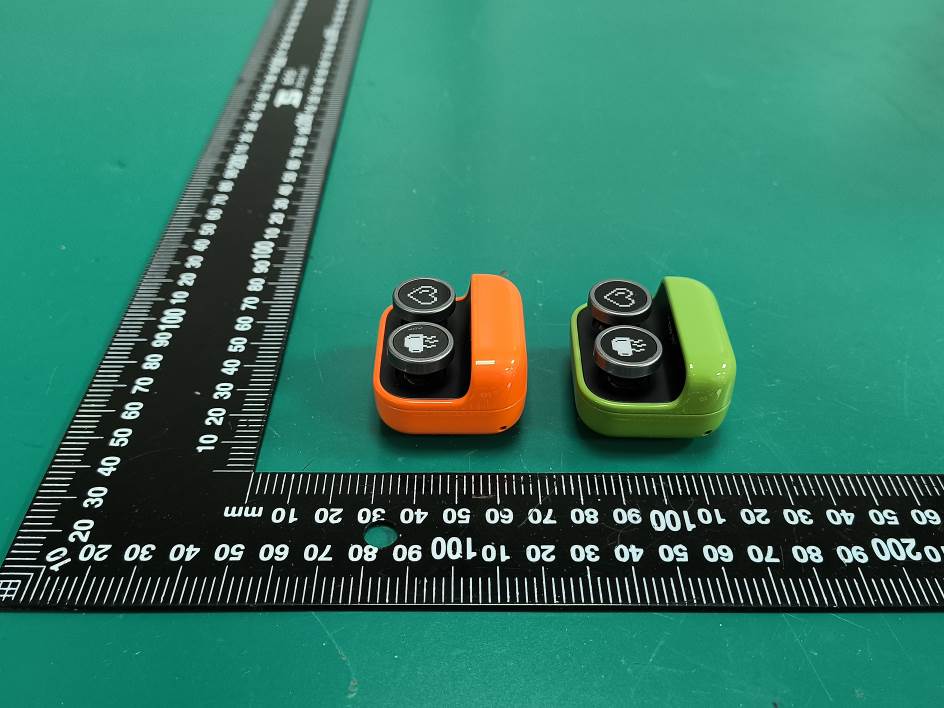

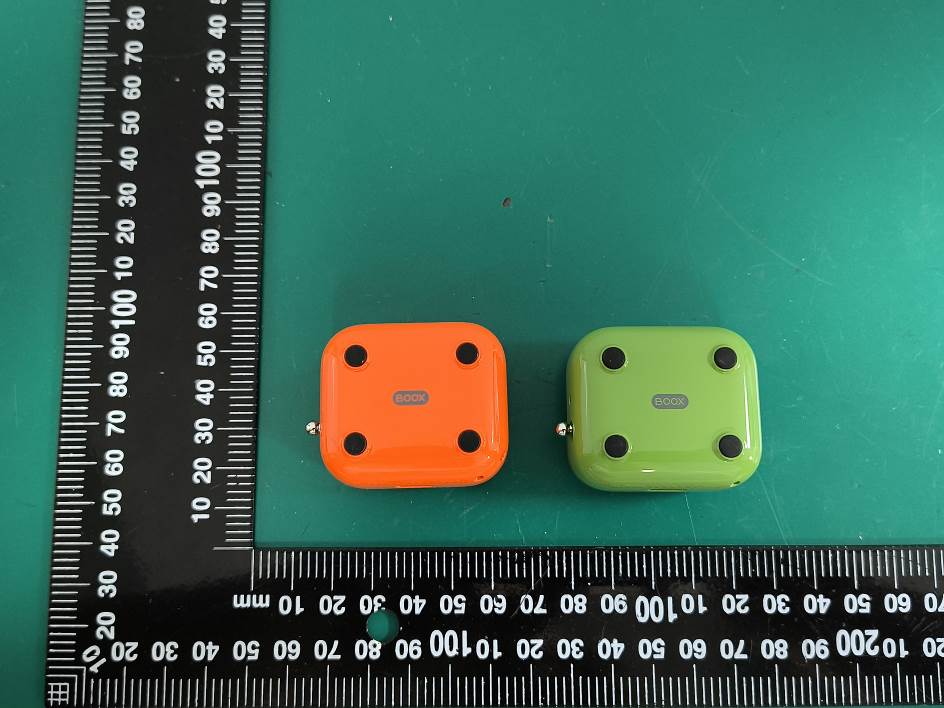

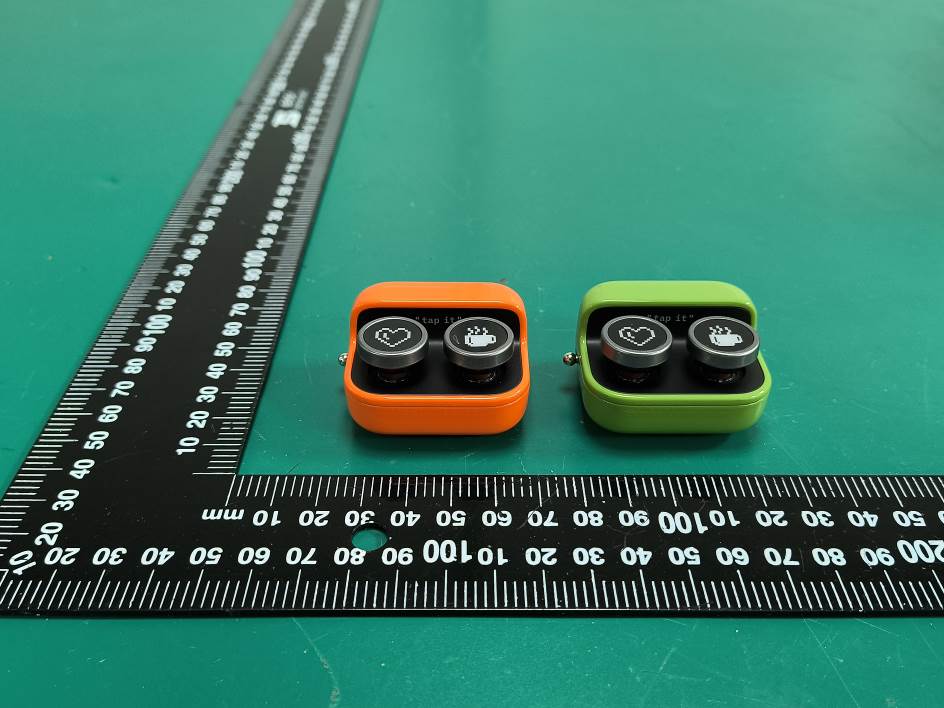

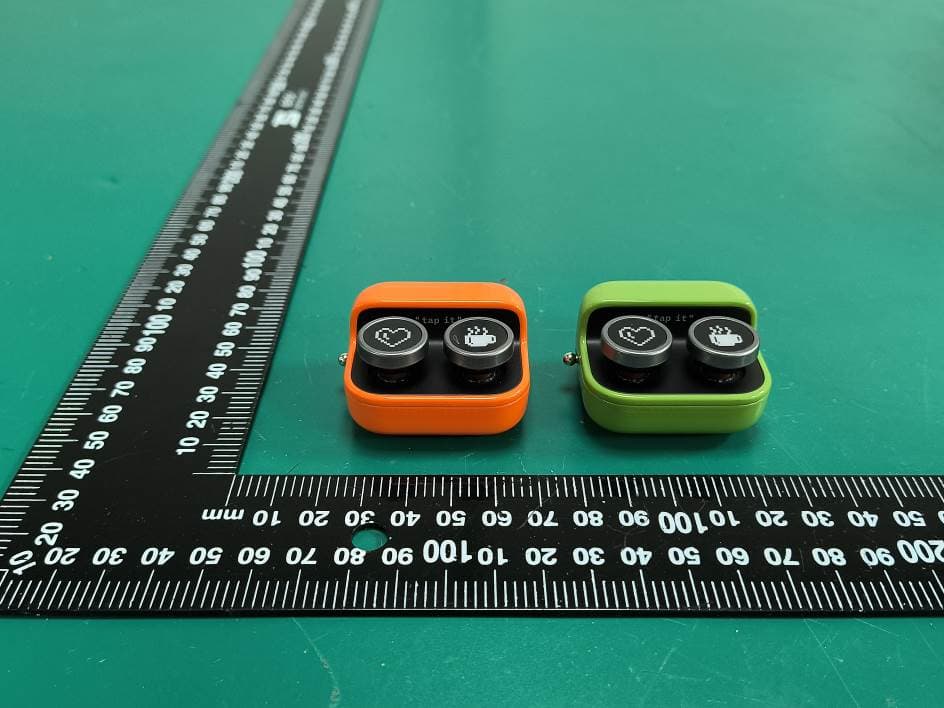

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R48628E-RF-EXP Page 1 of 4 EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R48628E-RF-EXP Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R48628E-RF-EXP Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R48628E-RF-EXP Page 4 of 4

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2601R48628E-RF FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R48628E-RF-INP Page 1 of 3 EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R48628E-RF-INP Page 2 of 3 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R48628E-RF-INP Page 3 of 3 Ant

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R48628E-RF-00A TR-EM-RF003 Page 24 of 78 Version 4.1 RF EXPOSURE EVALUATION RF EXPOSURE EVALUATION Applicable Standard According to FCC §2.1093 and §1.1307(b) (1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 General RF Exposure Guidance v06. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where 1. f(GHz) is the RF channel transmit frequency in GHz. 2. Power and distance are rounded to the nearest mW and mm before calculation. 3. The result is rounded to one decimal place for comparison. 4. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test Exclusion. Measurement Result For worst case: Mode Frequency (MHz) Max tune-up conducted power # (dBm) Max tune-up conducted power # (mW) Distance (mm) Calculated value Threshold (1-g SAR) SAR Test Exclusion BLE2402-2480-10.7950.23Yes Result: Compliant

DATA SHEET WIRELESS COMPONENTS Ceramic Chip Antenna ANT3216LL00R2400A 2.4 - 2.5 GH Z 3216 Series Product Specification – March 27, 2013 V.0 www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 2 6 Product specification Ceramic Chip Antenna FEATURES z Compact size z Omni-directional radiation z Tape & reel automatic mountin g z Reflow process compatible z RoHS compliant APPLICATIO NS z 2.4 GHz WiFi device z Bluetooth gadget z Zigbee device z ISM band equipment ORDE RING INFORMATION All part numbers are identified by the series, packing type, material, size, antenna type, working frequency and packing quantity. PART NUMBER ANT 3216 L L00 R 2400A (1)(2) (3) (4) (5) (6) ( 1 ) PRODUCT ANT = Antenna ( 2 ) SI ZE 3216 = 3.2 × 1.6 mm ( 3 ) A NTENNA TYPE L,F,A = Chip Antenna ( 4 ) SE RIAL NO. L00 ( 5 ) P ACKING TYPE R = Tape and Reel ( 6 ) WOR KING FREQUENCY 2400 = 2.4GHz PHYCOMP CTC CAN4311712002453K 12NC 431171200245 YAGEO Corporation Room 1308-1310, Phase I, Zhuoyue Times Square, No. 4068, Yitian Road, Futian District, Shenzhen City, Guangdong Province, China www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 3 6 Product specification Ceramic Chip Antenna SPECIFICATION DESCRIPTION VALUE Working Frequency 2.4 - 2.5 GHz Bandwidth 160 MHz Polarization Linear Azimuth Beamwidth Omni-directional Peak Gain 5.05 dBi (Typ.) Impedance 50Ω Operating Temperature -40 ~105°C Maximum Power 1W Termination Ni / Sn (Environmentally-Friendly Leadless) Resistance to Soldering Heats 260°C , 10sec. NOTE 1. The specification is defined on Yageo evaluation board Ta b l e 1 O O U U T T L L I I N N E E S S YNH0010 Side ViewTop View Bot t om View T W L C S1S2 Fig. 1 Antenna outlines DIMENSIONS DIMENSION L (mm) 3.20 ±0.15 W (mm) 1.60 ±0.15 T (mm) 1.20 ±0.15 C (mm) 0.40 ±0.20 Table 2 Machinical Dimension TERMINAL NAME FUNCTION S1 Feeding Point S2 Soldering Point Table 3 Termination configuration www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 4 6 Product specification Ceramic Chip Antenna YNH0011 Bottom Layer Top Layer 2.5 2.0 3.5 0.4 Matching Circuit 1.8 Unit : mm Unit : mm 1030 18 Fig. 2 Outlook and dimension of evaluation board REFERENCE DESIGN OF EVALUATION BOARD Fig. 3 Details of soldering Pad www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 5 6 Product specification Ceramic Chip Antenna 2.0 2.13.0 f (GHz) Return loss (dB) −50 −30 −10 10 30 50 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 YNH0012 1 2 3 Fig. 4 Return loss ELECTRICAL PERFORMANCES YNH0013 Y X Z Z axle X axleY axle Gain (dBi) 5.00 − 0.00 − − 5.00 − − 10.00 − − 15.00 − − 20.00 − − 25.00 − − 30.00 − − 35.00 − Fig. 5 Radiation pattern Max gain = 5.05 dBi, at (180, 60) MEG (mean effective gain)= 0.45dBi Directivity (dB) = 7.15 Efficiency = -1.50dB, 70.74% Evaluation board and XYZ direction Marker data 1.2.37GHz, -10dB 2.2.45GHz, -27.3dB 3.2.53GHz, -10dB www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 6 6 Product specification Ceramic Chip Antenna REVISION HISTORY REVISION DATE CHANGE NOTIFICATION DESCRIPTION Version 0 Mar. 27, 2013 - - New datasheet for Ceramic Chip Antenna, 2.4-2.5 GHz application, size 3216 series

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF003 Page 1 of 78 Version 4.1 TEST REPORT Applicant Name:ONYX INTERNATIONAL INC. Address:Room 101, Building 4, No. 202 Shiyu Road, Nansha District, Guangzhou City, Guangdong Province,China Report Number:2601R48628E-RF-00A FCC ID:XR3-TAPPY Test Standard (s) FCC PART 15.247 Sample Description Product Type:Wireless Page Turner, Bluetooth remote controller Model No.:BOOX Tappy Multiple Model(s) No.:N/A Trade Mark:BOOX Date Received:2026-03-18 Issue Date:2026-05-20 Test Result:Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By:Approved By: Bruce LinNancy Wang RF EngineerRF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R48628E-RF-00A TR-EM-RF003 Page 2 of 78 Version 4.1 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ..........................................................................................................................3 GENERAL INFORMATION ........................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)......................................................................................4 OBJECTIVE ....................................................................................................................................................................4 TEST METHODOLOGY....................................................................................................................................................4 MEASUREMENT UNCERTAINTY .....................................................................................................................................5 TEST FACILITY ..............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ...........................................................................................................................6 SUMMARY OF TEST RESULTS ................................................................................................................................9 TEST EQUIPMENT LIST ..........................................................................................................................................10 REQUIREMENTS AND TEST PROCEDURES ......................................................................................................12 AC LINE CONDUCTED EMISSIONS...............................................................................................................................12 UNWANTED EMISSION FREQUENCIES AND RESTRICTED BANDS .................................................................................14 6 DB EMISSION BANDWIDTH & 99% OCCUPIED BANDWIDTH....................................................................................17 PEAK OUTPUT POWER MEASUREMENT .......................................................................................................................19 POWER SPECTRAL DENSITY ........................................................................................................................................20 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE....................................................................................................21 CONDUCTED SPURIOUS EMISSION...............................................................................................................................22 DUTY CYCLE ...............................................................................................................................................................23 RF EXPOSURE EVALUATION ................................................................................................................................24 ANTENNA REQUIREMENT .....................................................................................................................................25 TEST DATA AND RESULTS .....................................................................................................................................26 AC LINE CONDUCTED EMISSIONS...............................................................................................................................26 UNWANTED EMISSION FREQUENCIES AND RESTRICTED BANDS .................................................................................29 RF CONDUCTED DATA ................................................................................................................................................65 6dB Emission Bandwidth.......................................................................................................................................66 99% Occupied Bandwidth ......................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R48628E-RF-TSPA Page 1 of 4 TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R48628E-RF-TSPA Page 2 of 4 Radiated Emissions View (Below 30MHz) Radiated Emissions View (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R48628E-RF-TSPA Page 3 of 4 Radiated Emissions View (1-18 GHz) Radiated Emissions View (18-25 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R48628E-RF-TSPA Page 4 of 4 RF Conducted View
