XRAFB405Wearable Fitness Tracker

Product Manual Version 1.0 Table of Contents Getting Started ............................................................................................................................................ 1 Welcome ................................................................................................................................................... 1 What’s included ........................................................................................................................................ 1 Setting up Charge HR Using a Computer ................................................................................................ 2 Mac & PC requirements ............................................................................................................................ 2 Installing Fitbit Connect on a computer .................................................................................................... 2 Mac installation ..................................................................................................................................... 2 PC installation ....................................................................................................................................... 2 Pairing to a computer ................................................................................................................................ 3 Wireless sync to a computer ..................................................................................................................... 3 Setting up Charge HR Using a Mobile Device ......................................................................................... 4 Mobile device requirements ...................................................................................................................... 4 Installing the Fitbit app ............................................................................................................................. 4 iOS pairing ................................................................................................................................................ 4 iOS syncing ............................................................................................................................................... 5 Manual sync .......................................................................................................................................... 5 Real-time dashboard ............................................................................................................................. 5 All-day sync .......................................................................................................................................... 5 Android pairing ......................................................................................................................................... 6 Android syncing ........................................................................................................................................ 6 Tap to open app using Near-Field Communication (NFC) ................................................................... 7 Manual sync .......................................................................................................................................... 7 Background sync ................................................................................................................................... 7 Tracking with Fitbit Charge HR ............................................................................................................... 8 Tracking sleep ........................................................................................................................................... 8 Tracking goals ........................................................................................................................................... 8 Tracking heart rate .................................................................................................................................... 9 Tracking activities ..................................................................................................................................... 9 Wearing your Fitbit Charge HR .............................................................................................................. 11 Wearing on your dominant vs. non-dominant wrist ................................................................................ 11 Using your Charge HR in wet conditions ............................................................................................... 11 Silent Alarms ............................................................................................................................................. 12 Setting silent alarms from a computer .................................................................................................... 12 Setting silent alarms from an iOS device ................................................................................................ 12 Setting silent alarms from an Android device ......................................................................................... 13 Dismissing silent alarms ......................................................................................................................... 13 Call Notifications ....................................................................................................................................... 14 Battery Life and Power ............................................................................................................................ 15 Battery life .............................................................................................................................................. 15 Charging your Charge HR ..............................................................................................…

Text truncated - open the document above for the full version.

Fitbit, Inc. 405 Howard Street, Suite 550 | San Francisco, CA 94105 www.fitbit.com Request for Confidentiality June 23, 2014 Subject: Confidentiality Request for: XRAFB405 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and/or RSP-­‐100, the applicant requests that a part of the subject FCC and/or IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-­‐Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ___________________________ Fitbit, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” IC: 8542A-FB405 Fitbit, Inc. 405 Howard Street, Suite 550 | San Francisco, CA 94105 www.fitbit.com Short-­‐Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify FCC in the event information regarding the product or the product is made available to the public. FCC will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-­‐1705. The applicant understands that until such time that Industry Canada distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: , Director, Manufacturing and Quality, Richard Rasor (Signature/Title 2 ) (Printed name) 2 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Page 1 of 1 National Technical Systems TCB 41039 Boyce Road Fremont, CA, 94538 RE: FCC ID: XRAFB405; IC: 8542A-FB405 To whom it may concern: The enclosed documents constitute a formal submittal and application for Equipment Authorization for a wearable fitness tracker using Bluetooth Low Energy pursuant to the following rules: Subpart C of Part 15 of FCC Rules (CFR 47) RSS-Gen Issue 3, December 2010, “General Requirements and Information for the Certification of Radiocommunication Equipment” RSS-210, Issue 8, December 2010, “Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment” National Technical Systems, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is included with the application. If there are any questions or if further information is needed, please contact National Technical Systems for assistance. Sincerely, Mark Hill Staff Engineer

Fitbit, Inc. 405 Howard Street, Suite 550 | San Francisco, CA 94105 www.fitbit.com Letter of Authorization August 8, 2014 To Whom it may concern: This letter servers as authorization to accept our appointment of Richard Rasor, Director Manufacturing and Quality, to sign applications for Fitbit, Inc, 405 Howard Street, Suite 550, San Francisco, CA, 94105, and to make representations regarding regulatory affairs to you on our behalf. Yours sincerely, James Park President & CEO

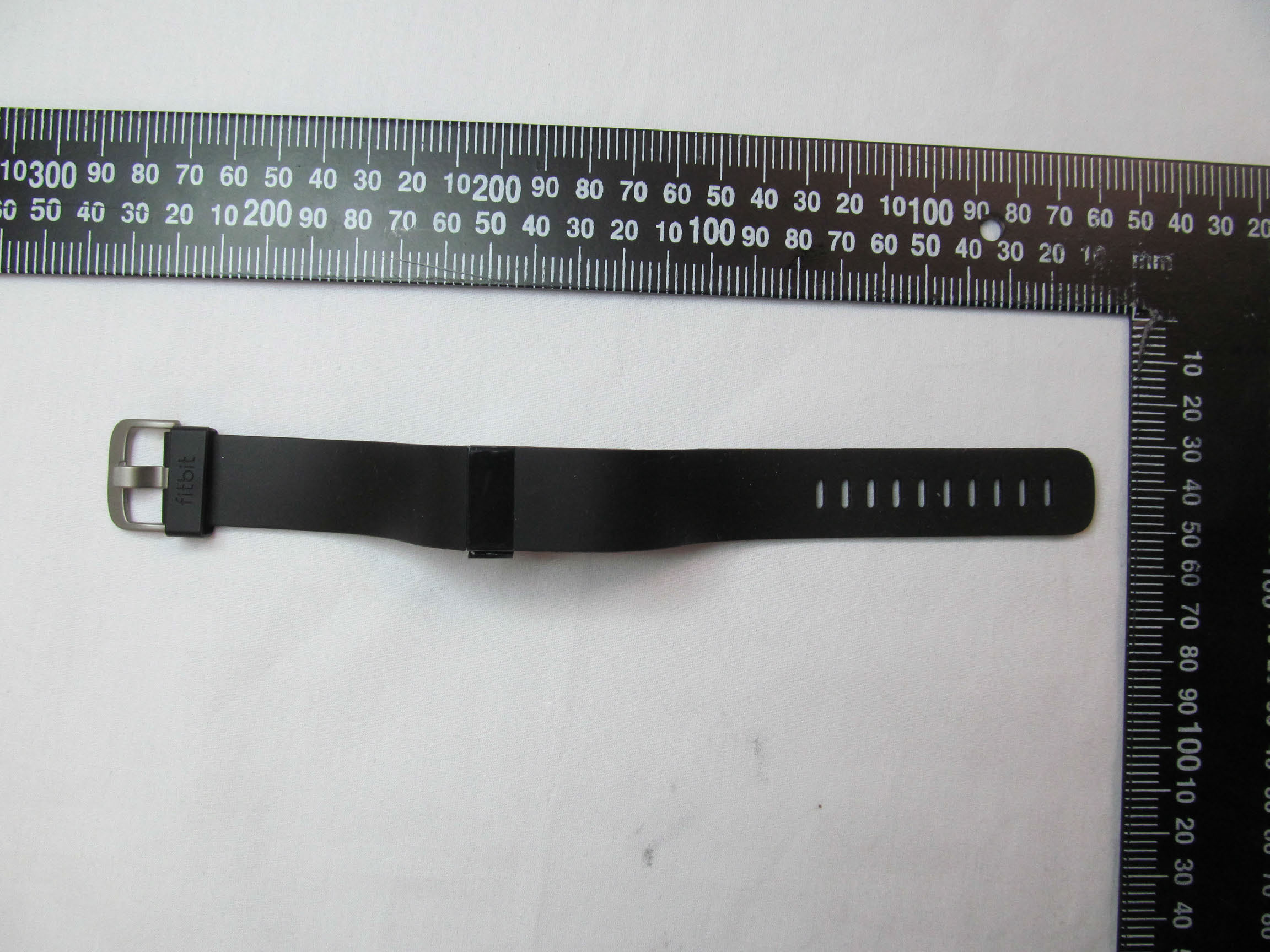

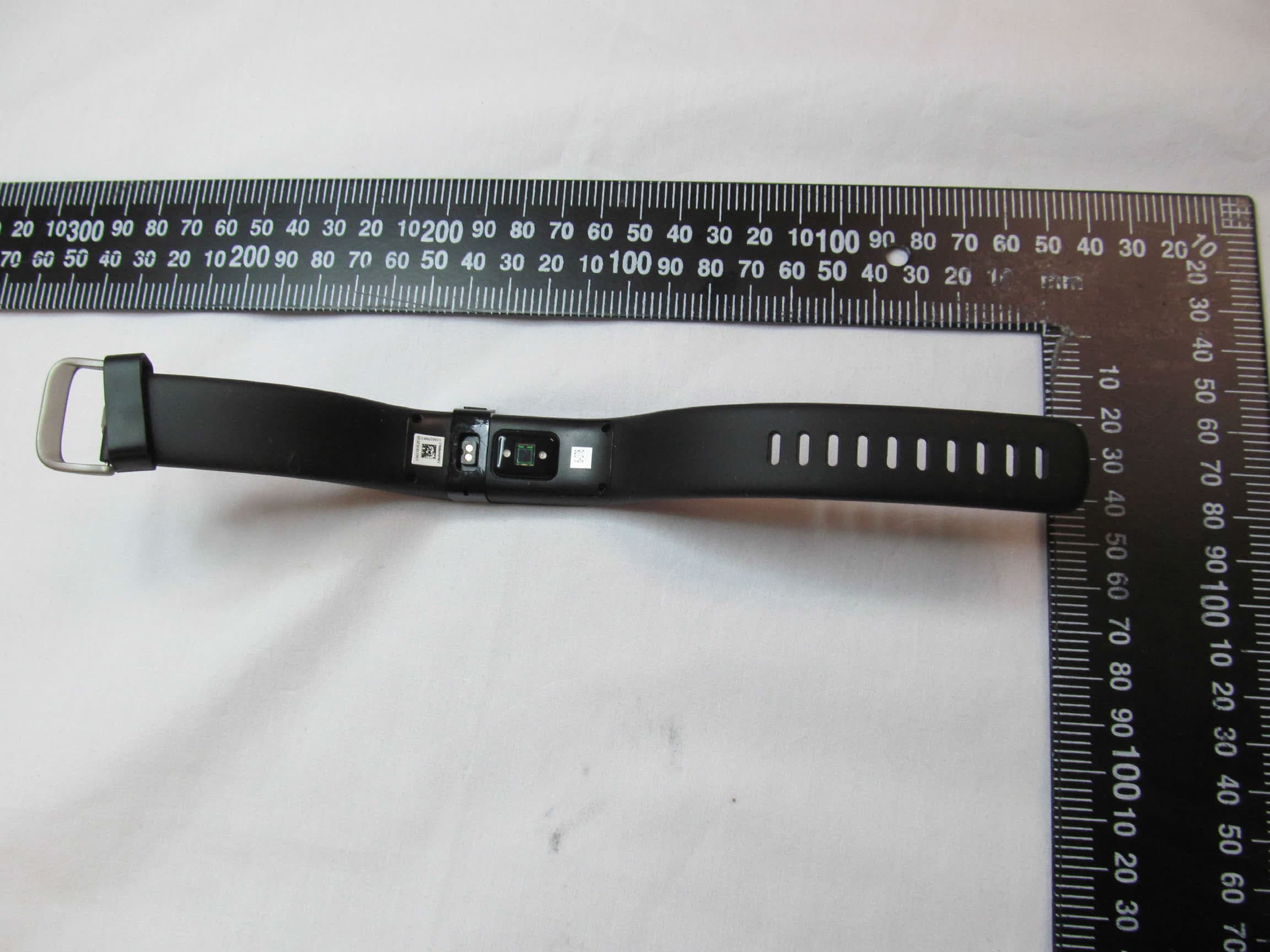

Regulatory content to be molded onto the wristband T

Antenna connectors

PCB broken during dis- assembly for photographs

EMC Test Data Client: Contact: Standard: Test Specific Details General Test Configuration Yes Fitbit, Inc.Job Number: J95442 Model: FB405 (CHARGE HR) T-Log Number: T95582 Project Manager: Deepa Shetty Arndt HufenbachProject Coordinator: Irene Rademacher FCC 15.247/RSS-210/LP 00002Class: N/A Test Engineer: Mark Hill Summary of Results SAR Exclusion Calculation Objective: The objective of this test session is to perform final qualification testing of the EUT with respect to the specification listed above. Date of Test: 7/21/2014 Per KDB 447498 D01, Section 4.3.1 - The 1-g and 10-g SAR test exclusion thresholds for 100MHz to 6GHz at a test separation distance ≤ 50mm is determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]*[(freq in GHz) 0.5 ] ≤ 3 (for 1-g) or 7 (10-g) Device complies with SAR exclusion at 5mm separation: Yes SAR Exclusion Calculation Cable Loss AntPower Freq.LossGainat AntEIRP GHzdBmmW*dBdBidBmmW 2.4020.51.101.70.51.6650.353 2.4410.91.201.70.91.8250.383 2.480.71.201.70.71.7450.373 EUT Powe r Separation Distance (mm) SAR Exclusion Calc. SAR Exclusion Limit Device complies with SAR exclusion at 5mm separation: T95582 (FCC Radio)SAR ExclusionPage 1 of 1

EMC Test Report Application for Grant of Equipment Authorization Industry Canada RSS-Gen Issue 3 / RSS 210 Issue 8 FCC Part 15 Subpart C Model: FB405 IC CERTIFICATION #: XRAFB405 FCC ID: 8542A-FB405 APPLICANT: Fitbit, Inc. 405 Howard Street San Francisco, CA 94105 TEST SITE(S): National Technical Systems - Silicon Valley 41039 Boyce Road. Fremont, CA. 94538-2435 IC SITE REGISTRATION #: 2845B-3, 2845B-7 REPORT DATE: August 4, 2014 REISSUE DATE: September 3, 2014 FINAL TEST DATES: June 25, July 2 and 7, 2014 TOTAL NUMBER OF PAGES: 49 PROGRAM MGR / QUALITY ASSURANCE DELEGATE / TECHNICAL REVIEWER: FINAL REPORT PREPARER: ______________________________ ______________________________ Mark Hill David Guidotti Staff Engineer Senior Technical Writer National Technical Systems - Silicon Valley is accredited by the A2LA, certificate number 0214.26, to perform the test(s) listed in this report, except where noted otherwise. This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full File: R95811 Rev 1 Page 1 National Technical Systems - Silicon Valley -- EMC Department Test Report Report Date: August 4, 2014 Reissue Date: September 3, 2014 REVISION HISTORY Rev# Date Comments Modified By August 4, 2014 First release 1.0 September 3, 2014 Updated notes regarding output power measurement MEH File: R95811 Rev 1 Page 2 National Technical Systems - Silicon Valley -- EMC Department Test Report Report Date: August 4, 2014 Reissue Date: September 3, 2014 TABLE OF CONTENTS REVISION HISTORY ................................................................................................................................................ 2 TABLE OF CONTENTS ............................................................................................................................................ 3 SCOPE .......................................................................................................................................................................... 4 OBJECTIVE ................................................................................................................................................................ 4 STATEMENT OF COMPLIANCE ........................................................................................................................... 5 DEVIATIONS FROM THE STANDARDS .............................................................................................................. 5 TEST RESULTS SUMMARY ................................................................................................................................... 6 DIGITAL TRANSMISSION SYSTEMS (2400 – 2483.5MHZ) .............................................................................. 6 GENERAL REQUIREMENTS APPLICABLE TO ALL BANDS .......................................................................... 6 MEASUREMENT UNCERTAINTIES .................................................................................................................... 7 EQUIPMENT UNDER TEST (EUT) DETAILS ...................................................................................................... 8 GENERAL ................................................................................................................................................................ 8 OTHER EUT DETAILS ........................................................................................................................................... 8 ANTENNA SYSTEM .............................................................................................................................................. 8 ENCLOSURE ........................................................................................................................................................... 8 MODIFICATIONS ................................................................................................................................................... 8 SUPPORT EQUIPMENT ......................................................................................................................................... 8 EUT INTERFACE PORTS ...................................................................................................................................... 8 EUT OPERATION ................................................................................................................................................... 8 TEST SITE ................................................................................................................................................................... 9 GENERAL INFORMATION ................................................................................................................................... 9 CONDUCTED EMISSIONS CONSIDERATIONS ................................................................................................ 9 RADIATED EMISSIONS CONSIDERATIONS .................................................................................................... 9 MEASUREMENT INSTRUMENTATION ............................................................................................................ 10 RECEIVER SYSTEM ..............................................................................................…

Text truncated - open the document above for the full version.
