XS9HSK-200ZIR Control Station

User's manual of HSK-200Z 1. Introduction The HSK-200Z often work with the HSD-400Z, HSM-300Z and HSK-100Z as the above picture. The HSK-200Z is the bridge lights through HSC-50Z as the above picture. These devices provides functionalities required by a typical home theater or meeting room integration. In this starter kit, we include One HSK-200Z scenario hub Two HSD-400Z power meter One HSK-100Z Universal IR remote controller with Z_Wave repeater. One HSM-300Z projector screen cotnroller In addition, it can work with other window shade device or switch/dimmer as well. In this document, we assume that we use HSK-100Z as the primary controller. The HSK-200Z can work with any Z-Wave compatible primary controller, which support ASSOCIATION and CONFIGURATION command classes. Please refer to the manual of your controller for the details. 2. Specifications 3. Supported command class The HSK-200Z is AV controller which supports the following command classes BASIC Simple AV Control Version Manufacturer Specific Association Configuration 3.1. BASIC command class The basic command class is mapped to the scene activation command classes. The value will be mapped into 3. ofit is the scene ID. If the value is higher than 3, it The basic get will return the last invoked scene. 3.2. Simple AV control The simple AV control can be used to send IR signals from the internal database. Pleaserefer to the table in the appendix. 3.3. Association The HSK-200 supports the following groups. 3.4. Configuration This configuration command classes allow us to fine tune the behaviour of th eHSK-200Z. 4. Installation 4.1. Inclusion Put the HSK-100Z into add node mode by using ADD/DEVICE. Press and release the program button in the bottom of the device by using a needle. Thedevice will broadcast node information and enter learning mode. The HSK-100Z will add the HSK-200Z from the network and show dolid OK LED. If there is any error, the Error LED will be turn on instead. 4.3. Install the IR cable Put the HSK-10 or HSK-15 to plug in the socket of HSK-200Z. The LED in front will blink when emit the IR keys successfully. 4.4. Power meter Add power meter The HSK200Z support up to three power meter to control three AV devices. They areassociated to the following IR codes. Projector Power (key xxx) AV power (key xxx) AVR power (key xxx) W e can use the ASSOC key of HSK-500Z to include a power meter. Please use the following table to select the group to associate. When the HSK-200Z starts, it will query the associated power meter to get the currentsetup. Auto scene activator This function enable us to start the scenario when the power meter detect that the associated device is turned on. Usually, the power meter notify the HSK-200Z for its status only. However, it can be used to trigger the scenario as well. For example, if the projector power meter detects the projector is on, the HSK-200 will execute the whole scene 1 if the configuration xxx is non-zero. In this way, we can use the power button of the projector to start the presentation mode.In addition, the AV power meter can be used to trigger the normal mode and the AVR power meter can be used to start the meeting mode. This function is disabled by default. In order to start this function, please use the CONF key of HSK-100 to setup the configuration 7&8. 4.5. Device calibration The HSD-400Z will send SCENE ID 1 to all devices listed in the group 1 when the current exceed the value specified in Configuration 1. In addition, it will send SCENE ID 2 to all evices listed in the group 2. d However, these values may not be able to detect the current sonsumption of your devices.We may need to determine a good high threshold and a low threshold. We can use the HSK-100Z to adjust these configurations. This is inconvienent since we need to adjust thevalue and verify it. If it does not work, we need to retry again. The device calibration is a special mode of the HSK-200Z. The procedure is Use HSK-100Z to add power meter into the HSK-200Z. Press and hold the program button of the HSK-200Z. The LED of HSK-200Z will start to blinking. Press the power button of the device attached to the power meter. Wait the device is completely on or off. • Repeat press the power button until the LED stop blinking. The calibrated values will be saved at configuration 1 & 2 of the power meter. 4.6. Add IR keys The AV starter kit provides 20 IR keys which will be sent in pre-defined scenarios. 4.7. Define key for power off For most projectors, we need to press power key twice in order to turn off the projector. 4.8. Curtain The curtain can be added into the curtain group. Actually, any motor device can beadded into group 3. 4.9. Projector screen The projector screen will be lower only in the presentation mode. Please associate the HSM-300Z or other projector motor controller into the group #4. 4.10. Lights In order to add lights into different scenarios, you can use the following procedure at HSK-100Z. Press Press Scene Press the number 1-8 Press the the device button, which can send a Z-Wave Node Information frame. Adjust the device to the desired setup. Press the Scene button Devices can be added into different scene key by using different values so that we can define the status of devices in different scenes. However, light defined in the above procedure can be activated from the HSK-100Z only. If you want to use other devices, such as HSK-50 or any scene controller, you need to add a HSC-50Z light scenario controller by using HSK-100Z so that the HSK-200Z can relay the scene activation commands to the HSC-50Z. 5. WARRANTY This warranty does not cover or apply to: Limited One (1) Year Warranty (a) damage to the product due to misuse, mishanding, and abuse, (b) products not used inaccordance with manufacturer's instructions or recommendations, (c) product not assembled or installed according to manufacturer's instructions, (d) normal wear and tear,(e) wearing of the cover do to improper installation…

Text truncated - open the document above for the full version.

HomeScenario Type: Monopole Gain: 1.48dBi 990115--908M-E CCS WUGU Antenna Pattern Job No.:990115--908M-E Date:2010-01-15 Time:11:09 Temp.()/Hum.(%):25/80% Tested by: Mark.Y Center freq.(MHz): 908 Polarization : E Plane Max gain(dBi):1.48 Min gain(dBi):-18.62 Avg gain(dBi):-2.36 990115--908M-H CCS WUGU Antenna Pattern Job No.:990115--908M-H Date:2010-01-15 Time:11:11 Temp.()/Hum.(%):25/80% Tested by: Mark.Y Center freq.(MHz): 908 Polarization : H Plane Max gain(dBi):-14.51 Min gain(dBi):-32.39 Avg gain(dBi):-18.06

2010/3/8 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No. 11, Wugong 6 th Rd., Wugu Towership, Taipei County 24891, Taiwan Mr. Steven Wang Job Title: Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: Model Name: HSK-210Z FCC ID: XS9HSK-200Z Product Name: IR Control Station Signature Name/Title: Beth Tsai / PM Company Name: Address: TEL: FAX (02) 2351-6989 Email:

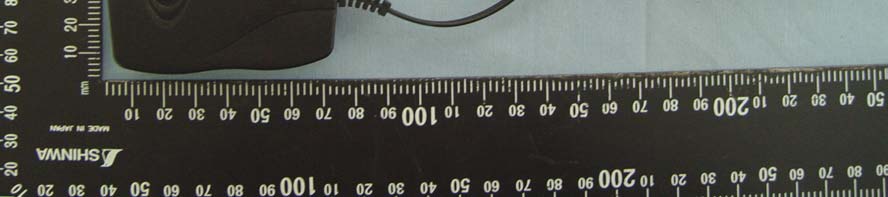

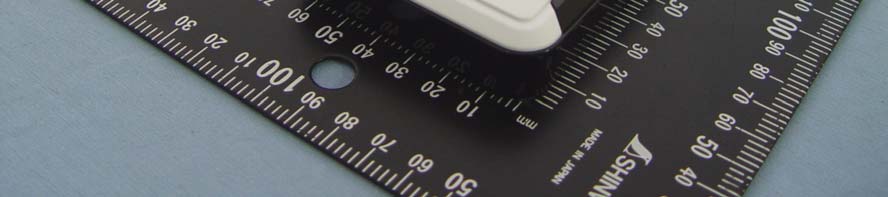

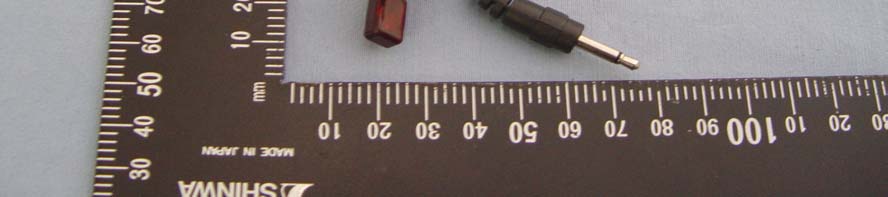

Compliance Certification Services Inc. Report No.: T100301003 Date of Issue: April 7, 2010 Page 1 Total Page: 11 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT For HSK-200Z Compliance Certification Services Inc. Report No.: T100301003 Date of Issue: April 7, 2010 Page 2 Total Page: 11 Rev. 00 Compliance Certification Services Inc. Report No.: T100301003 Date of Issue: April 7, 2010 Page 3 Total Page: 11 Rev. 00 For HSK-210Z Compliance Certification Services Inc. Report No.: T100301003 Date of Issue: April 7, 2010 Page 4 Total Page: 11 Rev. 00 Compliance Certification Services Inc. Report No.: T100301003 Date of Issue: April 7, 2010 Page 5 Rev. 00 Compliance Certification Services Inc. Report No.: T100301003 Date of Issue: April 7, 2010 Page 6 Rev. 00

Compliance Certification Services Inc. Report No.: T100301003 Date of Issue: April 7, 2010 Page 7 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT For HSK-200Z Compliance Certification Services Inc. Report No.: T100301003 Date of Issue: April 7, 2010 Page 8 Rev. 00 Compliance Certification Services Inc. Report No.: T100301003 Date of Issue: April 7, 2010 Page 9 Rev. 00 Compliance Certification Services Inc. Report No.: T100301003 Date of Issue: April 7, 2010 Page 10 Rev. 00 For HSK-210Z Compliance Certification Services Inc. Report No.: T100301003 Date of Issue: April 7, 2010 Page 11 Rev. 00 Compliance Certification Services Inc. Report No.: T100301003 Date of Issue: April 7, 2010 Page 12 Rev. 00

Compliance Certification Services Inc. Report No.: T100301003-RP1 FCC ID: XS9HSK-200Z Date of Issue: April 7, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 24 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For IR Control Station Model Number: HSK-200Z, HSK-210Z Trade Name: HomeScenario Issued to HomeScenario, Inc. 12F No. 17 Sec. 3 Chongcing S. Rd. Taipei 100, TAIWAN, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T100301003-RP1 FCC ID: XS9HSK-200Z Date of Issue: April 7, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION................................................................................................. 3 2. EUT DESCRIPTION....................................................................................................................... 4 3. TEST METHODOLOGY................................................................................................................ 5 3.1 EUT CONFIGURATION................................................................................................................. 5 3.2 EUT EXERCISE............................................................................................................................. 5 3.3 GENERAL TEST PROCEDURES...................................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.................................................. 6 3.5 DESCRIPTION OF TEST MODES.................................................................................................... 6 4. INSTRUMENT CALIBRATION.................................................................................................... 7 4.1 MEASURING INSTRUMENT CALIBRATION............................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .................................................................................. 7 4.3 MEASUREMENT UNCERTAINTY ........................................................................................ 8 5. FACILITIES AND ACCREDITATIONS ....................................................................................... 9 5.1 FACILITIES .................................................................................................................................. 9 5.2 EQUIPMENT................................................................................................................................. 9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.............................................................................. 10 6. SETUP OF EQUIPMENT UNDER TEST.................................................................................... 11 6.1 SETUP CONFIGURATION OF EUT................................................................................................ 11 6.2 SUPPORT EQUIPMENT ........................................................................................................ 11 7. FCC PART 15.249 REQUIREMENTS ......................................................................................... 12 7.1 20 DB BANDWIDTH.............................................................................................................. 12 7.2 SPURIOUS EMISSION .......................................................................................................... 14 7.3 POWERLINE CONDUCTED EMISSIONS ........................................................................... 20 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................ 23 Compliance Certification Services Inc. Report No.: T100301003-RP1 FCC ID: XS9HSK-200Z Date of Issue: April 7, 2010 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: HomeScenario, Inc. 12F No. 17 Sec. 3 Chongcing S. Rd. Taipei 100, TAIWAN, R.O.C. Equipment Under Test: IR Control Station Tr a d e N a m e : HomeScenario Model Number: HSK-200Z, HSK-210Z Date of Test: March 2 ~ 16, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Rex Lai Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: T100301003-RP1 FCC ID: XS9HSK-200Z Date of Issue: April 7, 2010 Page 4 Rev. 00 2. EUT DESCRIPTION Product IR Control Station Trade Name HomeScenario Model Number HSK-200Z, HSK-210Z Model Discrepancy Model Difference HSK-200Z DC Cable Only HSK-210Z DC + RS485 Y Cable Power Adapter Trade Name: xingtel Model: AD-101UA I/P: 100-240VAC, 50-60Hz, 150mA O/P: 7.5VDC, 500mA Frequency Spacing 908.42 MHz Frequency Number 1 Channels Modulation Technique FSK Antenna Gain 1.48 dBi Antenna Designation Printed Antenna Remark: 1. The sample selected for test was production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: XS9HSK-200Z filing to comply with Section 15.107, 15.109, 15.207, 15.209, 15.249 (…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100301003-RP1 FCC ID: XS9HSK-200Z Date of Issue: April 7, 2010 Page 22 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION SET UP PHOTOS Compliance Certification Services Inc. Report No.: T100301003-RP1 FCC ID: XS9HSK-200Z Date of Issue: April 7, 2010 Page 23 Rev. 00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
