XUIRL712SRemote controller
KONGTOP Industrial (Shenzhen) Co., Ltd.
Click to zoom
Application Details
- Equipment Class
- DSC - Part 15 Security/Remote Control Transmitter
- Date of Grant
- Nov 15, 2015
- Application Purpose
- Original Equipment
- Date of Application
- Nov 15, 2015
- Equipment Note
- Remote controller
- Frequency Range
- 433.97250000 - 433.97250000
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
External Photos

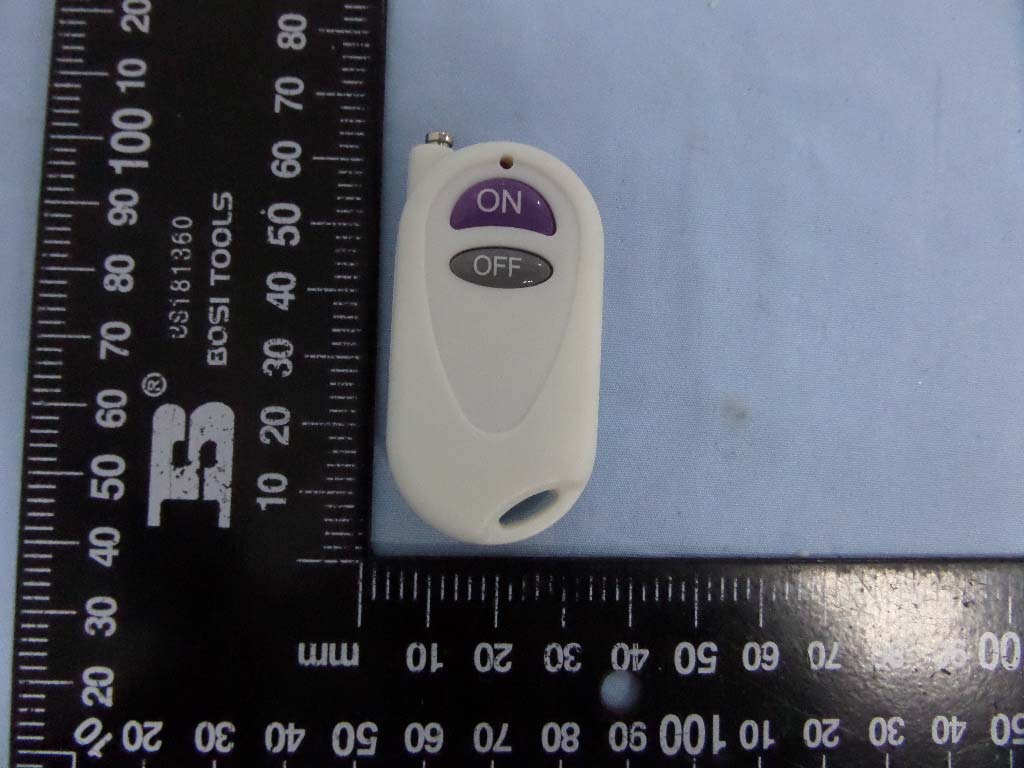

Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1510128I FCC PART 15.231 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1510128I FCC PART 15.231 EUT View 3 EUT View 4 Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1510128I FCC PART 15.231 EUT View 5 EUT View 6
ID Label/Location Info
Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1510128I FCC PART 15.231 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: XUIRL712S Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location
Internal Photos
Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1510128I FCC PART 15.231 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Antenna Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1510128I FCC PART 15.231 Solder Board-Component View 2
Test Setup Photos
Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1510128I FCC PART 15.231 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1510128I FCC PART 15.231 Radiation Emission Test Setup (Above 1GHz)
Contact Information
Applicant
Awa Cheung(Manager)
Test Firm
Shenzhen SEM.Test Technology Co., Ltd.Jandy So
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15.231 | 433.9725 MHz - 433.9725 MHz | - |
