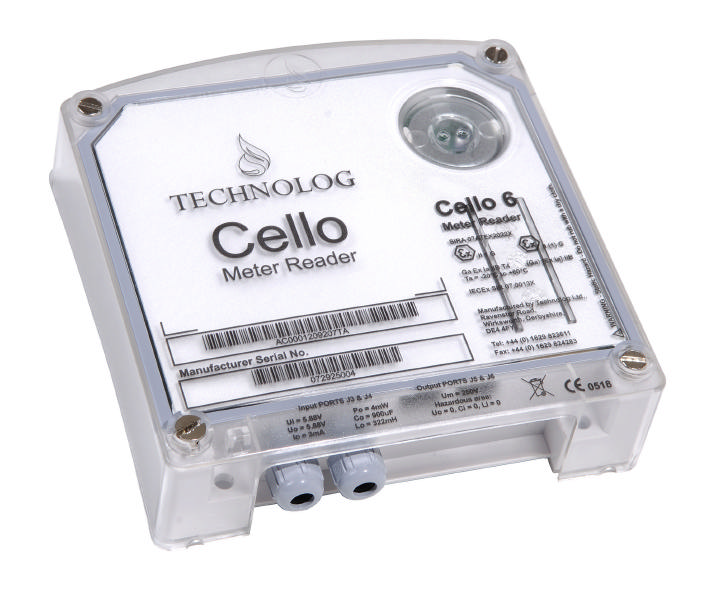

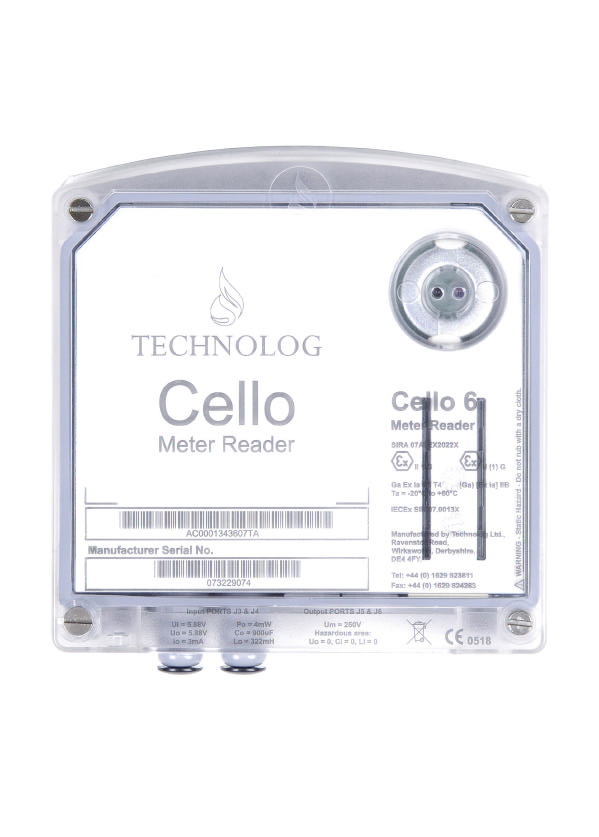

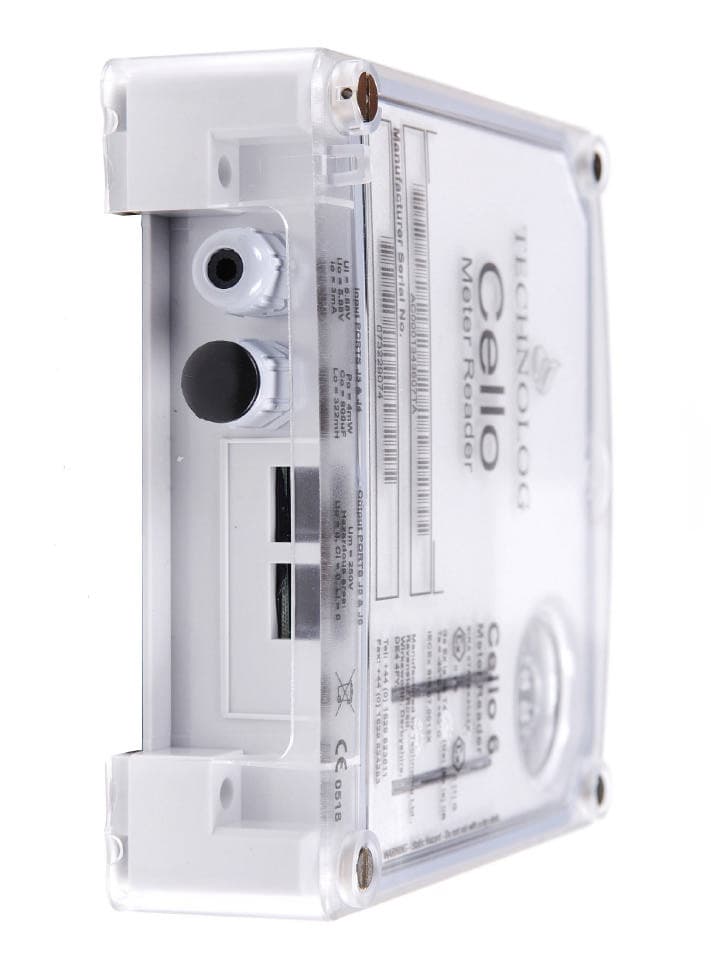

XUVC6V2DGSM Meter Reader

\ fL -.'t v' HNOTEC LOG 30.03.1 0 Telecommunication Certification Body RFI Global Services Ltd Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom To whom it may concern This is to certify that Technolog Ltd authorises RFI Global Services to act on our behalf for the application of the Cello 6 v2 to RFI Global Services Ltd. Telecommunication Certification Body. We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuantto Section 5301 of theAnti-Drug AbuseAct of 1988, 21 U.S.C. S 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Design and Development Engineer Technolog Ltd Technolog Limited Ravenstor Road ' Wirksworth ' Matlock ' Derbyshire DE4 4FY TEL +44 (0)1629 823611 FAX +44 (0)1529 824283 ' E-MAIL [email protected] Registered Ofice: Fifth Floor, 9/lO )llarket Place, London, WIW 8AQ Regxterecl in England No. 1574170 Yours sincerely, Joseph Sawyer (Mr)

TEC LOG N HNO Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Ref: JS/CB/js0410 9th April 2010 Dear Sir/Madam, Subject: Confidentiality Request; Gertification Application FGG lD: XUVG6V2D Pursuant to Sections 0.457 and 0.459 of CFR 47 Technolog.Ltd request that the following information, provided to support the FCC application for the Cello 6 v2, FCC lD: XUVC6V2D, be held permanently confidential: Cello 6(v2) l.S Circuit Diagram File C5Q1000.pdf 2 pages Cello 6(v2) - Radio Operational Desciption TLOG_FCC1_A.doI 8 pages Cello 6 (v2) Block Diagram - FCC C5Q4004A.pdt 1 page. Cello 6 (v2), Component List-FCC C5Q7004A.pdf 1 page The above material contains trade secrets not customarily released to public that are judged to have the potential to cause detriment to the applicant and provide unjustified benefits to its competitors. This information should not be available for public disclosure for an indefinite period of time. Design and Development Engineer Technolog Ltd Gchnolog Limited Ravenstor Road ' Wirksworth ' Madock ' Derbyshire ' DE4 4FY TEL+44 (0)1529 823611 FAx +44 (0)1629 824283 [email protected] Aeg*teted Ofice: FiJth Flooa 9/ I O Ma*et ?loce, London, W I W 8Aq AeBistercd in England No. I 57 4 17 0 Yours sincerely F ,4 */ .**- jtrWre.' Joseph Sawyer (Mr)

ICl)' ICINTERION " WlRElESS MODULES Cinterion Wireless Modules GmbH· Siemensdamm 50 • 13629 Bertin • Germany relecommunication Certification Body Name Thorsten Liebig RFI Global Services Ud. Department Research and Innovation Pavilion A Ashwood Park Phone +49 30 31102-8241 Basingstoke Fax +493031102-8305 Hampshire E-Mail [email protected] RG238BG United Kingdom Your letter of Our reference Date 2009-11-06 Authority to use FCC exhibits supplied for FCCIO: Technolog Cello 6 V2 FCC 10 XUVC6V20 Dear Sir or Madam, We, Cinterion Wireless Modules G.mb.H, St.-Martin-Straße 53 81669 München Germany hereby authorise Technolog in support of their application reference FCCID: XUVC6V2D for which RFI Global Services, Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG, UK is the appointed TCB. ~ ~ Thorsten liebig Uwe Dummann Manager Approval Head of Research and Innovation Sincerely yours, Registered office: Chairman of Ihe supervisory : Commercial register, Reg. no.: Cinterion Wireless Modules GmbH Alexander Sator Amtsgericht Munchen, HRB 172715 Sl.-Martin-Straße 53 Managing directors: WEEE-Reg .-Nr. OE 58893809 81669 München Norbert Muhrer, BriUa Huebner Germany

IC)~ICJNTERION 'IJ WlRELESS MOOUlES Cinterion Wir"ess Modules GmbH· Si emensdamm 50 • 13629 Bertin • Germany Telecommunication Certification Body Name Thorsten Liebig Department Research and Innovation RFI Global Services Ltd. Pavilion A Ashwood Park Phone +493031102-8241 Basingstoke Fax +493031102-8305 Hampshire E-Mail [email protected] RG238BG United Kingdom Your letter of Our reference Date 2009-11-06 Confidentiality Request; Certification Application FCC grant application for the Technolog Cello 6 V2 FCC 10 XUVC6V20 Dear Sir or Madam, Pursuant to Sections 0.457 and 0.459 of CFR 47 TC65i, Cinterion request that the following information, provided to support the FCC application for the Technolog Cello 6 V2 FCC ID XUVC6V2D, be held permanently confidential on behalf of Cinterion fTechnolog: Block diagram TC65Lblock_diagram/1 fHe 1/ per file TC65i H. 1. D. TC65i hd v0031a/1 file 127/ per file Parts List TC65i bom/1 file 12/ per fi'le Tune Up Info TC65Ltune-up_pro/1 file 1/ file Schematics TC65i schematics/1 file 7/ per file The above material contains trade secrets not customarily released to public that are judged to have the potential to cause detriment to the applicant and provide unjustified benefits to its competitors. This information should not be avai.lable for public disclosure for an indefinite period of time. Sincerely yours, (:'~L:; 0~' Uwe Dummann Manager Approval Head of Research and Innovation Registered office: Chairman of the supervisory: Commercial register. Reg. no.: Cinterion Wir..ess Modules GmbH Alexander Sator Amtsgericht München, HRB 172715 St.-Martin-Straße 53 Managing directors: WEEE-Reg.-Nr. DE 58893809 81669 München Norbert Muhrer. BriUa Huebner Germany

I -.'I -/ v HNOTECLOG 31 .03.1 0 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Declaration of Non-Adjustability of RF Characteristics of the Cello 6 v2 datalogger FCC lD: XUVCOV2D. This statement confirms that there is no user-adjustability of the RF characteristics of the Celfo 6 v2. All frequencies, transmit power levels (etc) are factory preset and cannot be adjusted in the field. There is no 'tune-up' procedure. Yours sincerely Joseph Sawyer (Mr) Design and Development Engineer Technolog Ltd Technolog Limited Ravenstor Road ' Wirksworth ' Madock ' Derbyshire DE4 4FY TEL +44 (0)1629 823611 ' FAX +44 (0)1629 824283 ' E-MAIL [email protected] Registered Olfice: FiJth Floor, 9/lO Market ?|ace, London, WIW 8AQ Aegistered in England No. I574l7O

Cello 6 V2 MPE Calculation - OET Bulletin 65 The FCC requires that the calculated MPE be equal to or less than a given limit dependent on frequency at a distance of 20 cm from a device to the body of a user. The MPE calculation as given in FCC OET Bulletin 65, page 19 is used to calculate the safe operating distance for the user. The transmitter operation for the Cello 6 V2 covers GSM850 and PCS1900 operating bands. The following FCC Rule Parts are applicable: Part 2.1091(c) Part 22 GSM850 devices operating at frequencies at or below 1.5GHz with effective radiated power (ERP) of 1.5 watts or more are subject to routine RF exposure evaluation, otherwise they are categorically excluded. Part 24 PCS1900 devices operating at frequencies above 1.5GHz with effective radiated power (ERP) of 3 watts or more are subject to routine RF exposure evaluation, otherwise they are categorically excluded. CALCULATION From OET Bulletin 65 the following far field power density equation is applicable: S = EIRP/4 π R 2 Where S = Power density EIRP = Effective Isotropically Radiated Power R = distance to the centre of radiation of the antenna For the Cello 6 V2 @ GSM850 Transmitter frequency range = 824 MHz to 849 MHz Maximum Measured Transmitter Power ERP = 2.51 W Requirement From table 1 (b) - Limits for General Population/ Uncontrolled Exposure of FCC Rule Part 1.1310 for GSM850 S = f/1500 mW/cm 2 (f = operating frequency) S = 824/1500 = 0.55 mW/cm 2 (worst case) Calculation for GSM850 20cm safe distance Values: P ave = 2510 mW; R = 20cm S = EIRP/4 π R 2 S = 2510/(12.56 x 20 2 ) = 2510/5024 S = 0.50 mW/cm 2 For the Cello 6 V2 @ PCS1900 Transmitter frequency range = 1850 MHz to 1910 MHz Maximum Measured Transmitter Power EIRP = 1.05 W (30.2 dBm) ERP = EIRP - 2.15 dB (half wave dipole gain) ERP = 28.05 dBm = 0.64 W Note: The maximum ERP is < 3.0W, so from Part 2.1091(c), routine RF exposure evaluation is categorically excluded. Conclusion The Cello 6 V2 at 20 cm meets the required OET Bulletin 65 RF exposure requirements. At PCS1900, routine RF exposure evaluation is categorically excluded from FCC Part 2.1091(c).

TEST REPORT FROM RFI GLOBAL SERVICES LTD Partial Test of: Cello 6 V2 To: FCC Part 22: 2009 Subpart H and FCC Part 24: 2009 Subpart E Test Report Serial No: RFI/RPT2/RP75861JD02A Supersedes Test Report Serial No: RFI/RPT1/RP75861JD02A This Test Report Is Issued Under The Authority Of Brian Watson, COO Payments and Consultancy: pp Checked By: R. Graham Signature: Date of Issue: 30 March 2010 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI/RPT2/RP75861JD02A ISSUE DATE: 30 MARCH 2010 Page 2 of 13 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI/RPT2/RP75861JD02A ISSUE DATE: 30 MARCH 2010 RFI Global Services Ltd Page 3 of 13 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 3. Equipment Under Test (EUT) ....................................................................................................... 6 4. Operation and Monitoring of the EUT during Testing ............................................................... 8 5. Measurements, Examinations and Derived Results .................................................................. 9 6. Measurement Uncertainty .......................................................................................................... 12 Appendix 1. Test Equipment Used ................................................................................................13 TEST REPORT SERIAL NO: RFI/RPT2/RP75861JD02A ISSUE DATE: 30 MARCH 2010 Page 4 of 13 RFI Global Services Ltd 1. Customer Information Company Name: Technolog Ltd Address: Technolog House, Ravenstor Road Wirksworth, Matlock Derbyshire DE4 4FY TEST REPORT SERIAL NO: RFI/RPT2/RP75861JD02A ISSUE DATE: 30 MARCH 2010 RFI Global Services Ltd Page 5 of 13 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR22 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2009: Part 22 Subpart H (Public Mobile Services) Specification Reference: 47CFR24 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2009: Part 24 Subpart E (Personal Communication Services) Site Registration: FCC: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 01 October 2009 to 04 March 2010 2.2. Summary of Test Results FCC Reference (47CFR ) Measurement Port Type Result Part 22.913(a) Transmitter Effective Radiated Power (ERP) Antenna Part 24.232 Transmitter Equivalent Isotropic Radiated Power (EIRP) Antenna Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI/TIA-603-C-2004 Title: Land Mobile Communications Equipment, Measurements and performance Standards 2.4. Deviations from the Test Specification Only the testing of transmitter ERP in the GSM850 band and EIRP in the PCS1900 band was performed. TEST REPORT SERIAL NO: RFI/RPT2/RP75861JD02A ISSUE DATE: 30 MARCH 2010 Page 6 of 13 RFI Global Services Ltd 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: Cello 6 V2 Model Name or Number: v2 TC65i T5H2000D Serial Number: 092101019 IMEI Number: 353234020013361 Hardware Version Number: Rev.D Software Version Number: F.E.P = 2.17; Modem = 2.10 FCC ID: XUVC6V2D 3.2. Description of EUT The equipment under test was a lower power, Intrinsically Safe, fully integrated wireless data logger designed for the remote monitoring & analysis of flow within the gas distribution system. The EUT incorporates a GSM module operating in the GSM850 and PCS1900 bands. 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. TEST REPORT SERIAL NO: RFI/RPT2/RP75861JD02A ISSUE DATE: 30 MARCH 2010 RFI Global Services Ltd Page 7 of 13 3.4. Additional Information Related to Testing Technology Tested: GSM850 and PCS1900 Type of Radio Device: Transceiver Mode: GSM/GPRS Power Supply Requirement(s): Nominal 3.8 V GSM 34.0 dBm Maximum Output Power (ERP): GPRS 33.8 dBm Transmit Frequency Range GSM850: 824 to 849 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 128 824.2 Middle 190 836.4 Transmit Channels Tested: Top 251 848.8 GSM 30.2 dBm Maximum Output Power (EIRP): GPRS 29.2 dBm Transmit Frequency Range PCS1900: 1850 to 1910 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 512 1850.2 Middle 660 1879.8 Transmit Channels Tested: Top 810 1909.8 3.5. Support Equipment No support equipment was used to exercise the EUT during testing: TEST REPORT SERIAL NO: RFI/RPT2/RP75861JD02A ISSUE DATE: 30 MARCH 2010 Page 8 of 13 RFI Global Services Ltd 4. Operation and Monitoring of the EUT during Testing 4.1. Operating Modes The EUT was tested in the following operating mode(s): • EUT was tested in GSM single timeslot circuit switched and GPRS Multislot Class 8 transmitting on one timeslot in the uplink. • Constantly transmitting at full power on bottom, centre and top channels as required. 4.2. Configuration and Peripherals The EUT was tested in the following configuration(s): • Connected to a GSM/GPRS system simulator, operating in transceiver mode TEST REPORT SERIAL NO: RFI/RPT2/RP75861JD02A ISSUE DATE: 30 MARCH 2010 RFI Global Services Ltd Page 9 of 13 5. Measurements, Examinations and Derived Results 5.1. General Comments Measurement uncertainties are evaluated in accordance …
