XV4-WCB-100AIEEE 802.11BGN module

WIPCG-106GN User’s Guide IEEE 802.11BGN module Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Pa rt 15 of the FCC Rules. These limits are designed to provide reason able protection against harmful interference in a reside ntial installation. This equipment generates, uses and ca n radiate radio frequency energy and, if not installed and us ed in accordance with the instructions, may cause harmful interference to radio communications. However, the re is no guarantee that interference will not occur in a par ticular installation. If this equipment does cause harmful interference to radio or television reception, which can be dete rmined by turning the equipment off and on, the user is encou raged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV tec hnician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance co uld void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) thi s device may not cause harmful interference, and (2) this device mus t accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipme nt should be installed and operated with minimum distance 20cm b etween the radiator & your body. This transmitter must not be co-located or operatin g in conjunction with any other antenna or transmitter. IEEE 802.11b or 802.11g operation of this product i n the U.S.A. is firmware-limited to channels 1 through 11. This device is intended only for OEM integrators un der the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located wit h any other transmitter or antenna, 3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied firmware programming tool. OEM shall not supply any tool or info to the end-user regarding t o Regulatory Domain change. As long as 3 conditions above are met, further tran smitter test will not be required. However, the OEM integrator i s still responsible for testing their end-product for any a dditional compliance requirements required with this module i nstalled. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-l ocation with another transmitter), then the FCC authorizati on is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM inte grator will be responsible for re-evaluating the end product (incl uding the transmitter) and obtaining a separate FCC authoriza tion. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “ Contains FCC ID: XV4-WCB-100A ”. Manual Information To the End User The OEM integrator has to be aware not to provide i nformation to the end user regarding how to install or remove this RF module in the user ’ s manual of the end product which integrates this module. The end user manual shall include all required regu latory information/warning as show in this manual. Table of Contents Introduction.....................................................1 Hardware Installation........................................2 Introduction While Orthogonal Frequency Division Multiplexing (O FDM) is adopted by 802.11bgn for the high-speed transfer ra te in a 2.4GHz range. Gemtek’s WIPCG-106GN fully utilizes t he benefits of 802.11bg and 802.11n-draft standard on the proven compatibility between two transfer modes and the hi gh speed bit transfer that is desirable for multimedia appli cation in Wireless environment. The internal Wireless LAN module allows your system (for example, your notebook) to connect wirelessly to ot her 802.11-enabled systems, devices, or network. Features The WIPCG-106GN has the following features:
Wireless LAN Data rates of 1Mbps to 54Mbps for 802 .11g , 1Mbps to 11Mbps for 802.11b, and 150Mbps for 802.11 n draft.
Wireless security using WPA with TKIP encryption, 802.1X with EAP-type Authentication Hardware Installation Please follow the instruction to install your 11BGN WiFi module on your system : Your computer comes with a unique pin holes, which allows the system to add wireless LAN (IEEE802.11bg, IEEE802.1 1n draft ). Step 1 Insert the WiFi module to the pin holes. Step 2 Connect the antenna. Congratulations! You have just completed the Wirele ss LAN hardware installation. When you boot up the compute r, you should expect to see the wireless LAN connection ca pacity. IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or o perating in conjunction with any other antenna or transmitter.

FCC ID: XV4-WCB-100A Report No.: RF981029L03 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Dec. 29, 2009 Dear Application Examiner, Brickcom Corporation, It’s IEEE 802.11BGN module, FCC ID: XV4-WCB-100A would like to have your authorization as a modular approval specific to the mobile device. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip RT3070. 3. “The modular transmitter must have its own power supply regulation part no.: RT3070. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration”. The EUT is tested in a stand-alone configuration via a extender. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: XV4-WCB-100A Report No.: RF981029L03 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Gary Chang Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

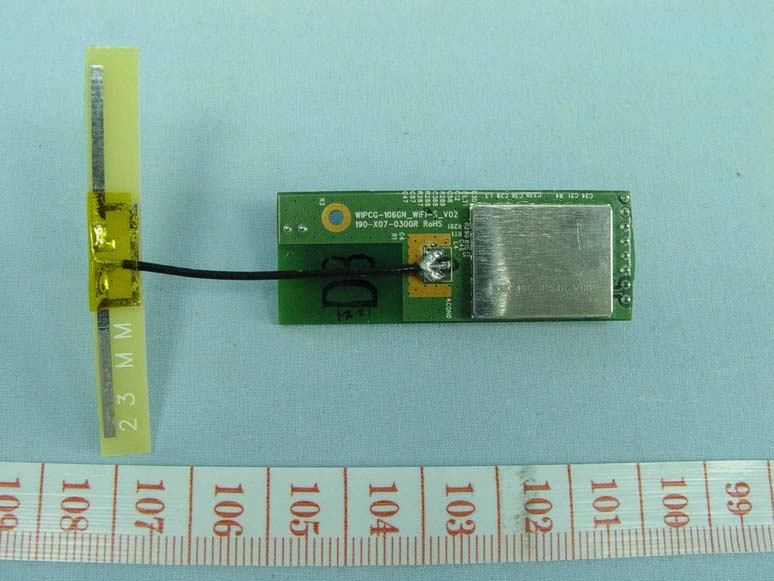

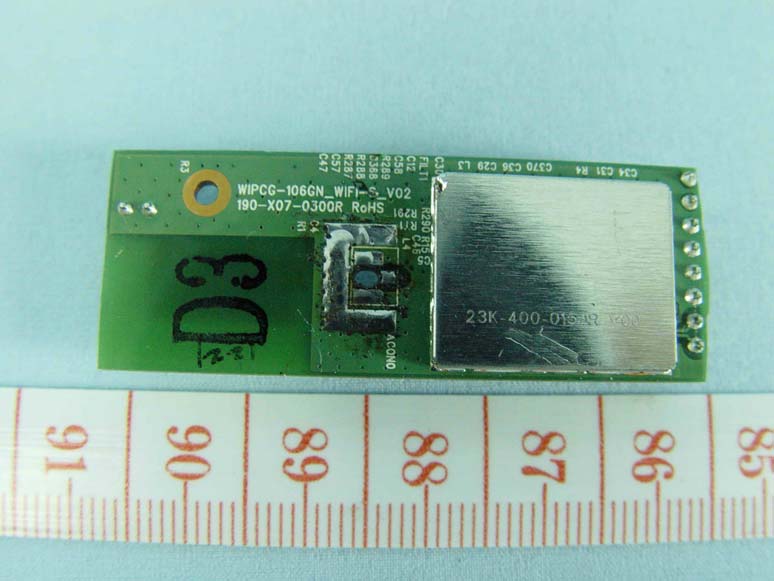

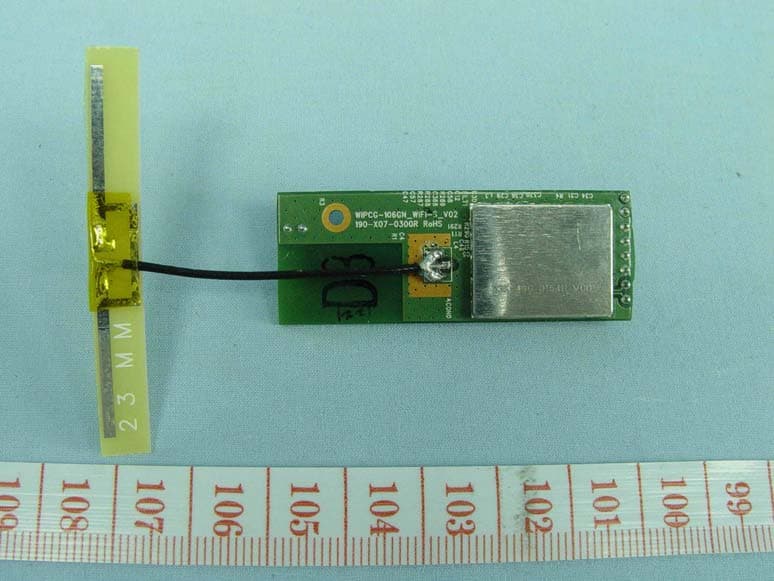

Page 1 CONSTRUCTION PHOTOS OF EUT EUT with PCB antenna Page 2 EUT with dipole antenna

Page 3 Page 4

FCC ID: XV4-WCB-100A Report No.: RF981029L03 Operational Description This device is an IEEE 802.11BGN module, which operates in the 2.4GHz frequency spectrum with throughput of up to 150Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antennas used in this EUT are PCB antenna without connector and dipole antenna with UFL connector. The other instruction, please have a look at the users manual.

Report No.: SA981029L03 Report Format Version 3.0.0. 1 RF EXPOSURE REPORT REPORT NO.: SA981029L03 MODEL NO.: WIPCG-106GN FCC ID: XV4-WCB-100A ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Brickcom Corporation ADDRESS: No. 1 Jen Ai Rd, Hsinchu Industrial Park, Hukou, Hsinchu, Taiwan, R.O.C. 303 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Report No.: SA981029L03 Report Format Version 3.0.0. 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) MAXIMUM ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 23.5 1.37 20 0.061 1.00

Report No.: RF981029L03 1 Report Format Version 3.0.0 FCC TEST REPORT REPORT NO.: RF981029L03 MODEL NO.: WIPCG-106GN RECEIVED: Oct. 29, 2009 TESTED: Dec. 01 ~ Dec. 10, 2009 ISSUED: Dec. 14, 2009 APPLICANT: Brickcom Corporation ADDRESS: No. 1 Jen Ai Rd, Hsinchu Industrial Park, Hukou, Hsinchu, Taiwan, R.O.C. 303 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 86 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF981029L03 2 Report Format Version 3.0.0 TABLE OF CONTENTS 1. CERTIFICATION......................................................................................... 4 2. SUMMARY OF TEST RESULTS ................................................................ 5 2.1 MEASUREMENT UNCERTAINTY.............................................................. 5 3. GENERAL INFORMATION ......................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ........................................................... 6 3.2 DESCRIPTION OF TEST MODES ............................................................. 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST......................................... 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.............. 8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS........................... 10 3.4 DESCRIPTION OF SUPPORT UNITS ..................................................... 10 4. TEST TYPES AND RESULTS .................................................................. 11 4.1 RADIATED EMISSION MEASUREMENT................................................. 11 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT .............................. 11 4.1.2 TEST INSTRUMENTS.............................................................................. 12 4.1.3 TEST PROCEDURES .............................................................................. 13 4.1.4 DEVIATION FROM TEST STANDARD..................................................... 13 4.1.5 TEST SETUP............................................................................................ 14 4.1.6 EUT OPERATING CONDITIONS ............................................................. 14 4.1.7 TEST RESULTS ....................................................................................... 15 4.2 CONDUCTED EMISSION MEASUREMENT............................................ 41 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ......................... 41 4.2.2 TEST INSTRUMENTS.............................................................................. 41 4.2.3 TEST PROCEDURES .............................................................................. 42 4.2.4 DEVIATION FROM TEST STANDARD..................................................... 42 4.2.5 TEST SETUP............................................................................................ 43 4.2.6 EUT OPERATING CONDITIONS ............................................................. 43 4.2.7 TEST RESULTS ....................................................................................... 44 4.3 6dB BANDWIDTH MEASUREMENT ........................................................ 48 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ..................................... 48 4.3.2 TEST INSTRUMENTS.............................................................................. 48 4.3.3 TEST PROCEDURE................................................................................. 48 4.3.4 DEVIATION FROM TEST STANDARD..................................................... 48 4.3.5 TEST SETUP............................................................................................ 49 4.3.6 EUT OPERATING CONDITIONS ............................................................. 49 4.3.7 TEST RESULTS ....................................................................................... 50 Report No.: RF981029L03 3 Report Format Version 3.0.0 4.4 MAXIMUM OUTPUT POWER .................................................................. 54 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT ................... 54 4.4.2 INSTRUMENTS........................................................................................ 54 4.4.3 TEST PROCEDURES .............................................................................. 54 4.4.4 DEVIATION FROM TEST STANDARD..................................................... 54 4.4.5 TEST SETUP............................................................................................ 55 4.4.6 EUT OPERATING CONDITIONS ............................................................. 55 4.4.7 TEST RESULTS ....................................................................................... 56 4.5 POWER SPECTRAL DENSITY MEASUREMENT ................................... 57 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT................. 57 4.5.2 TEST INSTRUMENTS.............................................................................. 57 4.5.3 TEST PROCEDURE................................................................................. 57 4.5.4 DEVIATION FROM TEST STANDARD..................................................... 57 4.5.5 TEST SETUP............................................................................................ 58 4.5.6 EUT OPERATING CONDITION................................................................ 58 4.5.7 TEST RESULTS .......................................................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST TEST MODE A 2 3 CONDUCTED EMISSION TEST TEST MODE B 4 5 RADIATED EMISSION TEST TEST MODE A 6 7 RADIATED EMISSION TEST TEST MODE B 8
