XVBG1C01TPMS

WARNING Read and review all instructions, illustrations and warnings if included or follow manufacturer recommended service and replacement procedures before installing. Professional Installation Only. Improper installation may result in the failure of the motor vehicle Tire Pressure Monitoring System (“TPMS”) Sensor to operate properly. Removal 1) The tire and wheel assembly removal must be followed as outlined in the vehicle manufacturer’s Service Manual. Installation 1) Inspect the sensor band and cradle and replace as needed. 2) Position the sensor into the cradle by inserting hinge end of the sensor into the hook end of the cradle and pushing the opposite end of the sensor down onto the cradle. Ensure sensor is fully seated into cradle ( a “click” noise will be heard). 3) Insert a new locking clip into the sensor. 4) Position Sensor 180 degrees from valve stem and tighten band. 5) The tire and wheel assembly installation must be followed as outlined in the vehicle manufacturer’s Service Manual. FCC and IC Notice This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 1- Band 2- Sensor 3- Clip 4- Cradle 1 2 3 4 BG1-001

Registration number: W6M21201-12182-C-1 FCC ID: XVBG1C01 IC: 9368A-G1C01 Worldwide Testing Services (Taiwan) Co., Ltd. Appendix Page 8 of 16 External Photos Registration number: W6M21201-12182-C-1 FCC ID: XVBG1C01 IC: 9368A-G1C01 Worldwide Testing Services (Taiwan) Co., Ltd. Appendix Page 9 of 16

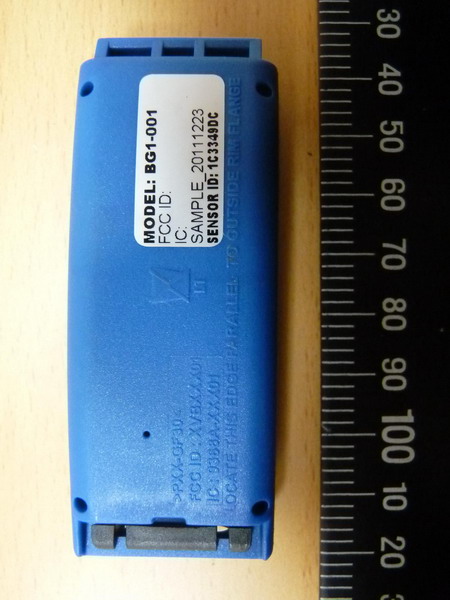

Label Model : BG1-001 FCC ID : XVBG1C01 IC :9368A -G1C01 Standard Motor Products, Inc. FCC and IC ID is molded into the housing.

of Applicant: Standard Motor Products, Inc. Address: 37-18 Northern Boulevard, Long Island City, New York 11101, United States Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21201-12182-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C / IC RSS-210 TEST REPORT for TPMS Model No.: BG1-001 FCC ID: XVBG1C01 IC: 9368A-G1C01 Registration number: W6M21201-12182-C-1 FCC ID: XVBG1C01 IC: 9368A-G1C01 Worldwide Testing Services (Taiwan) Co., Ltd. Page 1 of 21 TABLE OF CONTENTS 1 G ENERAL INFORMATION..............................................................................................................................2 1.1 NOTES......................................................................................................................................................2 1.2 TESTING LABORATORY............................................................................................................................3 1.2.1 Location ...............................................................................................................................................3 1.2.2 Details of accreditation status .............................................................................................................3 1.3 D ETAILS OF APPROVAL HOLDER..............................................................................................................3 1.4 A PPLICATION DETAILS.............................................................................................................................4 1.5 T EST ITEM.................................................................................................................................................4 1.6 T EST STANDARDS.....................................................................................................................................4 2 T ECHNICAL TEST..........................................................................................................................................5 2.1 S UMMARY OF TEST RESULTS....................................................................................................................5 2.2 T EST ENVIRONMENT.................................................................................................................................5 2.3 T EST MODE..............................................................................................................................................5 2.4 T EST EQUIPMENT UTILIZED......................................................................................................................6 2.5 G ENERAL TEST PROCEDURE..................................................................................................................10 3 T EST RESULTS (ENCLOSURE) ......................................................................................................................11 3.1 T RANSMISSION REQUIREMENTS.............................................................................................................12 3.1.1 Limit of Transmission Time ...............................................................................................................12 3.1.2 Results for the duration and silent period measurement ...................................................................12 3.2 O UTPUT POWER (FIELD STRENGTH) ......................................................................................................13 3.3 O UT OF BAND RADIATED EMISSIONS....................................................................................................14 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS...............................................................15 3.5 S PURIOUS EMISSION RADIATED, TRANSMITTER....................................................................................16 3.6 C HANNEL BANDWIDTH..........................................................................................................................18 3.7 A NTENNA REQUIREMENT.......................................................................................................................19 3.8 D UTY CYCLE..........................................................................................................................................20 3.9 C ONDUCTED MEASUREMENT AT (AC) POWER LINE.............................................................................21 Appendix: Diagrams and photos Registration number: W6M21201-12182-C-1 FCC ID: XVBG1C01 IC: 9368A-G1C01 Worldwide Testing Services (Taiwan) Co., Ltd. Page 2 of 21 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services (Taiwan) Co., Ltd. Tester: March 16, 2012 Kevin Wang Date WTS-Lab. Name Signature…
