XVBPR1001TOOL

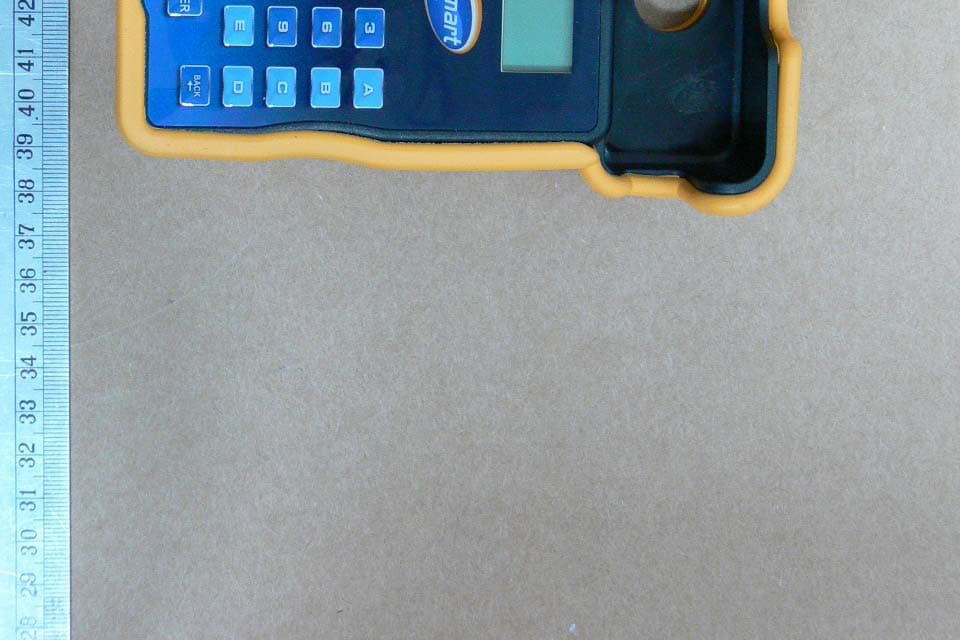

IDENTIFICATION CLONING TOOL MANUAL IDENTIFICATION CLONING TOOL USE The Identification Cloning Tool interacts with the tire pressure sensor through wireless (radio frequency) communication to write the sensor identification number onto replacement sensors. IDENTIFICATION CLONING TOOL INTRODUCTION LCD Display Sensor Input BACK Key ENTER Key Keypad ON Key 9-volt battery: Remove rubber cover and install battery in back of tool prior to operation. KEYPAD SUMMARY FUNCTION KEY Power unit on Press to turn the unit on, press and hold to turn unit off. ENTER key, to write identification number Power off unitBACK key Keypad, key in sensor identification number KEYFUNCTION ON KEY: Press and hold the ON key to power the unit off KEYPAD: Key in sensor identification number to be written on blank sensor ENTER KEY: After keying in the sensor identification number and loading sensor, pressing the Enter key will write sensor ID number onto blank sensor. BACK KEY: Delete undesired inputs ID WRITING PROCEDURE (Cont’d) STEP 4: Press the ENTER key . The tool will begin to write the identification number onto the new sensor. STEP 5: The screen will indicate that the OE sensor ID number has been written to new sensor by ‘OK!’. STEP 6: Place the included sticker on the new sensor and write the ID number for future reference. STEP 7: Properly dispose of old sensor. NOTE: Old sensors will transmit signals and may interfere with new replacement sensors and the vehicle’s TPMS light may trigger. To avoid this, place old sensors in aluminum foil or remove from TPMS staging area. 018834F0 TX OK!_h 018834F0 ENTER...._h To ensure correct operation and service, read the following instructions before operating the Identification Cloning Tool. IDENTIFICATION CLONING TOOL SPECIFICATIONS Dimensions: 143mm x 88mm x 35mm Battery: 9V Display: 2 line LCD, 30mm x 15 mm Weight: 255g Temperatures: Operational: 5°C to 45°C/41°F to 113°F Storage: 0°C to 60°C/32°F to 140°F Relative humidity: 70-80% TYPICAL OE SENSOR ID NUMBER LOCATION ID WRITING PROCEDURE IMPORTANT: After removing sensor from the tire, use TPMS Application and Illustrated Parts Guide to determine appropriate sensor needed to replace OE sensor. STEP 1: Determine OE sensor identification number by reading the sensor or using a scan tool. STEP 2: Press the ON key to turn tool on. NOTE: Tool shuts off automatically if left inactive for 7 seconds. STEP 3: Place replacement sensor into Identification Cloning Tool and input OE sensor identification number. The ‘h’ or ‘d’ below ID number represents input format: h = hexadecimal (letters and numbers) d = decimal (numbers only) To change from ‘d’ (decimal) to ‘h’ (hexadecimal), or vice versa, press the ON key . 018834F0 h Enter Valve ID FIRST FUNCTION At power on, the tool displays the software revision number. SECOND FUNCTION While the unit is on, press and hold ‘ON’ to turn the power off. ID Code Ver: 1.00 Bye-Bye ^0^/_ Schrader Style SensorPacific Style Sensor Snap-In Style Sensor Continental Style Sensor Schrader Style Sensor Seimens/Continental Style Sensor WHEN...NOTE... Removing old sensor from vehicle Remove from area or wrap in aluminum foil, damaged sensors will continue to transmit signals. Vehicle does not recognize sensors May require over-inflating tire and then reducing psi to proper level to activate sensor. Checking if spare tire is equipped with TPMS Ensure proper air pressure and functioning sensor. No sensor is detected Ensure correct sensor is being used via the TPMS Application and Illustrated Parts Guide. Verify that the OE part number in the TPMS Application and Illustrated Parts Guide matches the OE part number of the sensor on the vehicle. SWITCH ON SAFELY: Do not switch on the device when wireless tool is prohibited or when it may cause interference or danger. SWITCH OFF WHEN REFUELING: Do not use the device when filling vehicle with gasoline. Do not use near fuel or chemicals. SWITCH OFF NEAR BLASTING: Adhere to any restrictions. Do not use the tool when blasting is in progress. USE SENSIBLY: Use only in normal conditions as indicated in product instructions. Do not touch the antenna unnecessarily. QUALIFIED SERVICE: Only qualified personnel may install or repair this device. ENHANCEMENTS AND BATTERIES: Use only approved enhancements and batteries for the Identification Cloning Tool. Do not connect incompatible products. WATER RESISTANCE: This tool is not water resistant – keep it dry. CONNECTING TO OTHER DEVICES: When connecting to any other device, read user guide for detailed safety instructions. Do not connect incompatible products. TROUBLESHOOTING GUIDEAPPENDIX The Identification Cloning Tool is a product of superior design and craftsmanship and should be treated with care. Follow the suggestions below to help maintain warranty coverage: • Keep the device dry. Precipitation, humidity and all types of moisture may contain minerals that will corrode electronic circuits. If device does get wet, remove the battery and allow the device to dry completely before replacing. • Do not use or store the tool in dusty, dirty areas to keep electronic components clean. • Do not store the device in hot areas. High temperatures can shorten the life of electronic devices, damage batteries and warp or melt certain plastics. • Do not store the device in cold areas. When the device returns to its normal temperature, moisture can form inside the device and damage electronic circuit boards. • Do not attempt to open the device other than instructed in this guide. • Do not drop, knock or shake the device. Rough handling can break Internal circuit boards and mechanics. • Do not use harsh chemicals, cleaning solvent or strong detergent to clean the device. Do not paint the device. Paint can clog the moving parts and prevent proper operation. • Do not touch the main display with hard or angular materials. Objects like earrings or jewelry may scratch the display. • Use a soft, clean and dry cloth to clean the device. • Use o…
