XWK8650202Dosimetry Radio (US)

Dosimetry Radio instructions for use Instruction for product: Dosimetry Radio 8650202 Introduction The dosimetry radio is used as a wireless communication device for connection to dosimeters. The dosimetry radio implements a custom radio interface specific for dosimeter communication. For communication with host the dosimetry radio uses a standard USB connection. The device is designed as a standard HID and no drivers are needed if used with a standard computer and operating system. Installation No drivers are needed and the dosimetry radio can be used on Windows/Linux computers as well as custom communication devices that are intended to communicate with dosimeters. Follow the instructions below to install the dosimetry radio: 1. Connect the dosimetry radio to any free USB host port on computer / communication device. The radio is now detected by any software designed for communication with dosimeters. If the dosimetry radio is installed in a custom communication device and not a standard computer please make sure that the device is in power off state before radio is connected. Configuration No configuration is possible on the dosimetry radio. Safety Important safety directions If the product is not functioning correct or damage is visible, please contact your Unfors RaySafe representative, who will take appropriate actions in order not to create harm. Handle the product with care. Make sure that the product is used and stored in a secured environment to prevent unauthorized access. Maintenance & faults WARNING Do not use the product for any application until you are sure that the user routine‐checks have been satisfactorily completed, and that the periodic maintenance of the product is up to date. If any part of the product is known (or suspected) to be defective or wrongly adjusted, DO NOT USE the product until a repair has been made. Operation of the product with defective or wrongly adjusted components could expose the user or the patient to radiation or other safety hazards. This could lead to fatal or other serious personal injury. Safety awareness WARNING Do not use the product for any application until you have read, understood and know all the safety information, safety procedures and emergency procedures contained in this Safety section. Operation of the product without a proper awareness of how to use it safely could lead to fatal or other serious personal injury. Adequate training WARNING Do not use the product for any application until you have received adequate and proper training in its safe and effective operation. If you are unsure of your ability to operate this product safely and effectively, DO NOT USE IT. Operation of this product without proper and adequate training could lead to fatal or other serious personal injury. Safety devices Warning Never attempt to remove, modify, override or frustrate any safety device on the product. Interfering with safety devices could lead to fatal or other serious personal injury. Intended use and compatibility Warning Do not use the product for any purpose other than those for which it is intended. Do not use the product with products other than that which RaySafe recognizes as compatible. Operation of the product for unintended purposes, or with incompatible products, could lead to fatal or other serious injury. Electrical safety WARNING Do not remove covers or cables from this product. Dangerous electrical voltages are present within this product. Removing covers or cables could lead to serious or fatal personal injury. Covers or cables should only be removed by qualified and authorized service personnel. Use this product in rooms or areas that comply with all applicable laws (or regulations having the force of law) concerning electrical safety for this type of product. Electrically isolate this product from the mains electrical supply before cleaning, disinfecting or sterilizing it. Mechanical safety WARNING Do not remove covers from this product. Removing covers could lead to serious or fatal personal injury. Covers should only be removed by qualified and authorized service personnel. In this context, qualified means those legally permitted to work on this type of medical electrical product in the jurisdiction(s) in which the product is being used, and authorized means those authorized by the user of the product. Explosion safety WARNING Do not use this product in the presence of explosive gases or vapors. WARNING Do not use flammable or potentially explosive disinfecting sprays. WARNING Use of this product in an environment for which it was not designed can lead to fire or explosion. Fire safety Use of electrical product in an environment for which it was not designed can lead to fire or explosion. Fire regulations for the type of medical area being used should be fully applied, observed and enforced. Fire extinguishers should be available for both electrical and non‐electrical fires. WARNING Only use extinguishers on electrical or chemical fires, which are specifically labeled for those purposes. Using water or other liquids on an electrical fire can lead to fatal or other serious personal injury. If it is safe to do so, attempt to isolate the product from electrical and other supplies before attempting to fight a fire. This will reduce the risk of electric shocks. Electrostatic discharge (ESD) CAUTION Always wait at least ten seconds after the product is switched OFF before switching the product back to ON. CAUTION Always use proper static procedures, protection, and product prior to opening and during handling of this product. This product contains components that are electrostatic sensitive. Failure to use ESD procedures may cause damage to these components. Such damage to components is not covered by Unfors RaySafe warranties. ESD can amount to a significant voltage, which may cause damage to PCBs or other system components. ESD damage is cumulative and may not be apparent at first, as indicated by a hard failure, but can…

Text truncated - open the document above for the full version.

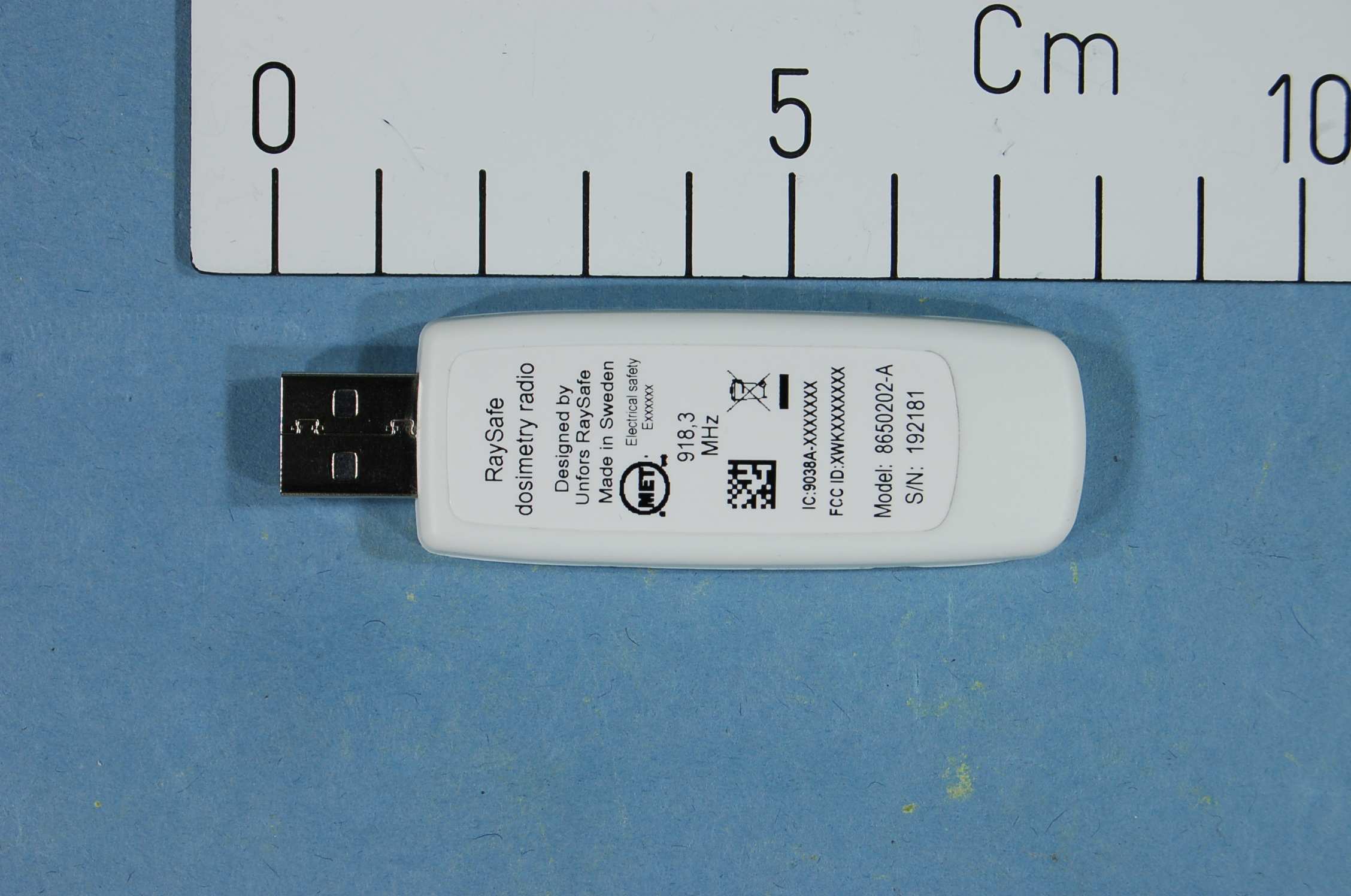

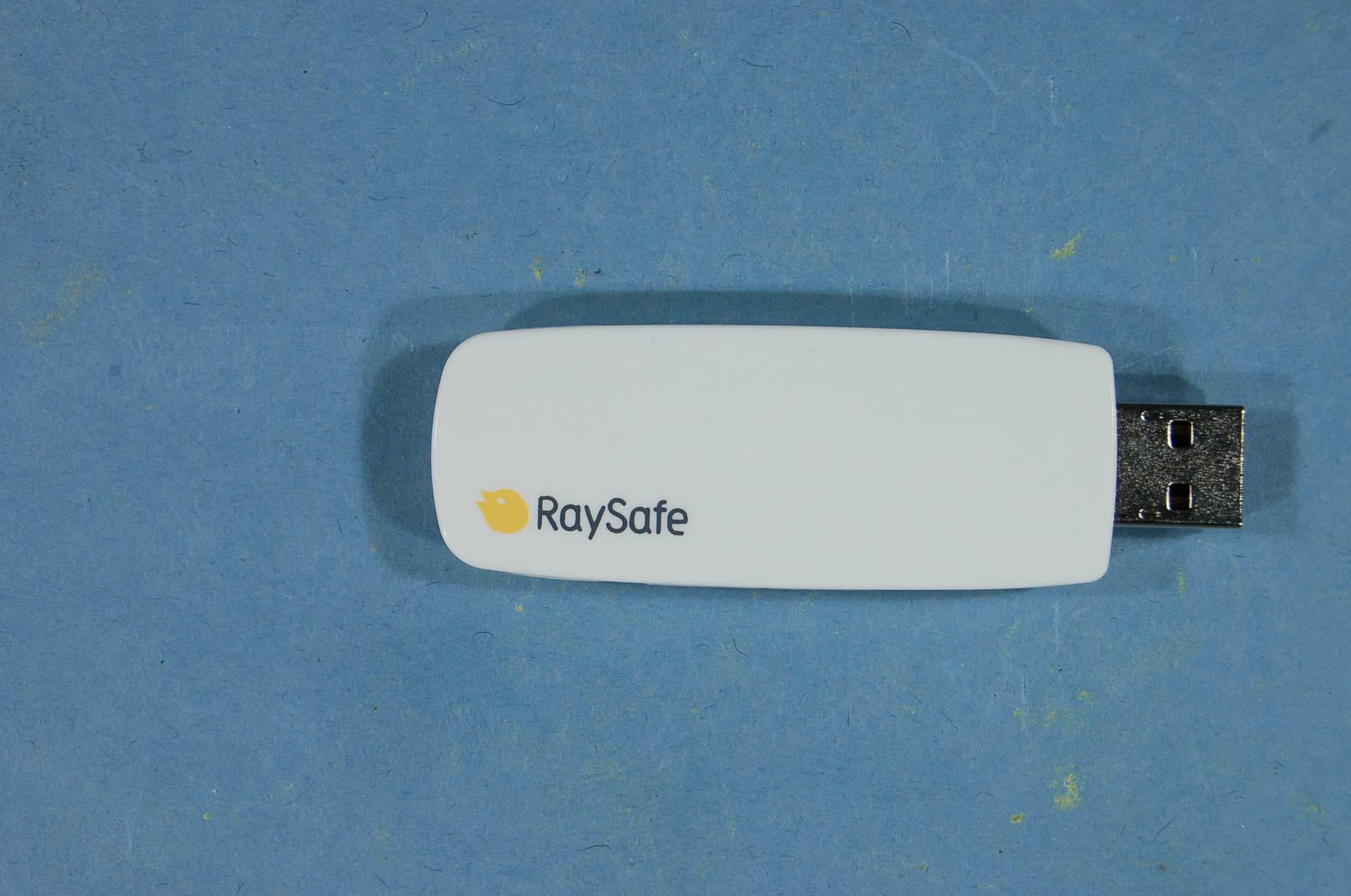

FCC ID: XWK8650201 Project no.: 205254 Page 1 of 4 EXTERNAL PHOTOS – Dosimetry USB Radio Dosimetry USB Radio (for radiated measurements)

Color 1 - backgroundSurface properties Color 2 - graphics and printProperties Black NCS S0500-N Matte. Title/Name (English) B Drawing numberRevision - Approved by m General Tolerances ISO 2768-class 1:11 (1)A4 ScaleSheetsSize MARHAN Drawn by Drawn by Date Fonts Font: Arial Narrow 2013-01-08 Color 1 - Background Color 2 - Graphics Data matrix ECC 200 to match serial number Serial number - updated by supplier 17,7mm 48mm RaySafe dosimetry radio Designed by Unfors RaySafe Made in Sweden Model: 8650202 Dosimetry Radio (US) 918,3 MHz Electrical Safety Exxxxxx IC: 9038A-8650202 FCC ID: XWK8650202 S/N: 123456 RaySafe dosimetry radio Designed by Unfors RaySafe Made in Sweden Model: 8650202 Dosimetry Radio (US) 918,3 MHz Electrical Safety Exxxxxx IC: 9038A-8650202 FCC ID: XWK8650202 S/N: 123456 Dosimetry radio - US/CAN 5600202 FCC ID: XWK8650201 Project no.: 205254 Page 1 of 4 EXTERNAL PHOTOS – Dosimetry USB Radio Dosimetry USB Radio (for radiated measurements)

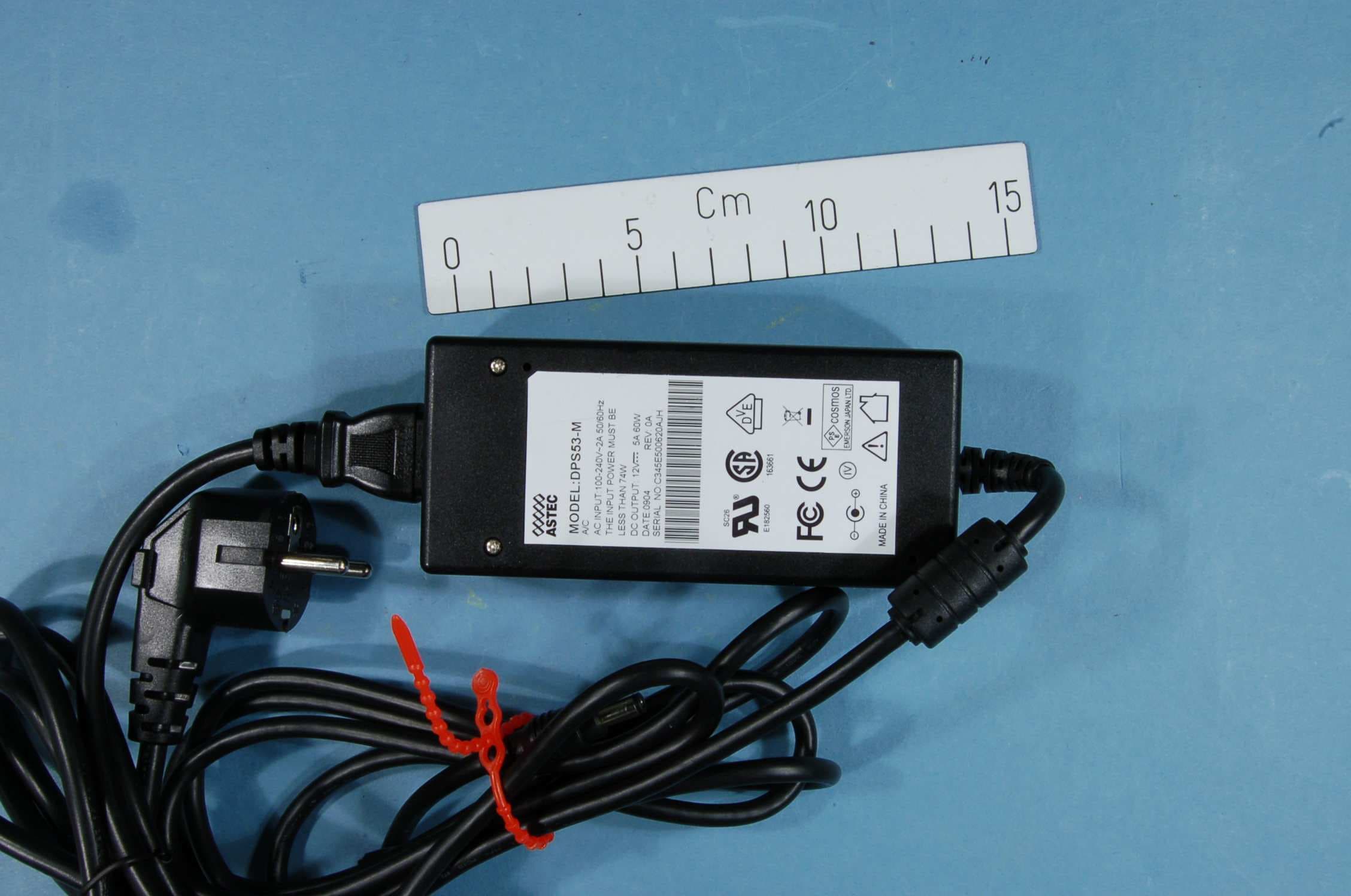

FCC ID: XWK8650201 Project no.: 205254 Page 2 of 4 Printed Board Assembly FCC ID: XWK8650201 Project no.: 205254 Page 3 of 4 Dosimetry USB Radio (with 50 ohms connector for conducted measurements) FCC ID: XWK8650201 Project no.: 205254 Page 4 of 4 Power supply using with the Laptop – DELL Precision M4300 S/N: CN-OUY141-48643-86B-0736

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Kjeller, Instituttveien 6, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Test report no. : 205254-5 Item tested : 8650202 Dosimetry Radio Type of equipment : Low power Transceiver 918.3 MHz FCC ID : XWK8650202 Client : Unfors RaySafe AB FCC Part 15.249 Low Power Transceiver 902-928 MHz Band RSS-210, Issue 8 and RSS-GEN, Issue 3 Low-Power License-exempt Radio communications devices 902 – 928 MHz Band 9 January 2013 Authorized by : .............................................. G. Suhanthakumar Technical Verificator TEST REPORT FCC part 15.249 Project no.: 205254-5 FCC ID: XWK8650202 Nemko AS, NO-2027 Kjeller Page 2 (27) CONTENTS 1 GENERAL INFORMATION ...................................................................................................... 3 1.1 Testhouse Info .......................................................................................................................... 3 1.2 Client Information ...................................................................................................................... 3 1.3 Manufacturer ............................................................................................................................. 3 2 Test Information ...................................................................................................................... 4 2.1 Test Item ................................................................................................................................... 4 2.2 Test Environment ...................................................................................................................... 5 2.3 Test Period................................................................................................................................ 5 3 TEST REPORT SUMMARY ..................................................................................................... 6 3.1 General ..................................................................................................................................... 6 3.2 Test Summary ........................................................................................................................... 7 3.3 Description of modification for Modification Filing ..................................................................... 7 3.4 Comments ................................................................................................................................ 7 3.5 Family List Rationale ................................................................................................................ 7 4 TEST RESULTS ....................................................................................................................... 8 4.1 Occupied Bandwidth ................................................................................................................. 8 4.2 Peak Power Output ................................................................................................................. 10 4.3 Power Line Conducted Emission ............................................................................................ 14 4.4 Spurious Emissions (Radiated) .............................................................................................. 17 5 LIST OF TEST EQUIPMENT .................................................................................................. 25 6 BLOCK DIAGRAM ................................................................................................................. 26 6.1 System set up for radiated measurements ............................................................................. 26 6.2 Test Site Radiated Emission ................................................................................................... 27 TEST REPORT FCC part 15.249 Project no.: 205254-5 FCC ID: XWK8650202 Nemko AS, NO-2027 Kjeller Page 3 (27) 1 GENERAL INFORMATION 1.1 Testhouse Info Name : Nemko AS Address : Nemko Kjeller Instituttveien 6, Box 96 NO-2027 Kjeller, NORWAY Telephone : +47 64 84 57 00 Fax : +47 64 84 57 05 Email: [email protected] FCC test firm : 994405 IC OATS : 2040D-1 Total Number of Pages: 27 1.2 Client Information Name : Unfors RaySafe AB Address : Uggledalsvägen 29, SE-427 40 Billdal, Sweden Telephone : +46 Fax : +46 Contact: Name : Stefan Horn Telephone : +1 508 596 0978 E-mail : [email protected] 1.3 Manufacturer Same as client TEST REPORT FCC part 15.249 Project no.: 205254-5 FCC ID: XWK8650202 Nemko AS, NO-2027 Kjeller Page 4 (27) 2 Test Information 2.1 Test Item Name : Unfors Raysafe Model/version : 8650202 Dosimetry Radio FCC ID: XWK8650202 IC ID: 9038A-8650202 Serial number : 192181 (for radiated measurements) 192182 (for conducted measurements) Hardware identity and/or version: - Software identity and/or version : - Frequency Range : 918.3 MHz Operating Frequency: 918.3 MHz Number of Channels : 1 Operating Modes : TX & RX Type of Modulation : Digital (GFSK) Data rate: - User Frequency Adjustment : None Conducted Output Power : 0.0008 Watts Type of Power Supply : USB power (nominal 5V)* Antenna Connector : None (for conducted testing purpose) Antenna type: Integral chip antenna Antenna Diversity Supported : N/A (*) Tested with a PC. Internal operated power is 3.3V DC. Description of Test Item The Dosimetry Radio is a transceiver USB radio. It is based on a system on-chip device with an integral chip antenna. TEST REPORT FCC part 15.249 Project no.: 205254-5 FCC ID: XWK8650202 Nemko AS, NO-2027 Kjeller Page 5 (27) 2.2 Test Environment 2.2.1 Normal test condition Temperature: 20 – 22 °C Relative humidity: 30 – 50 % Normal test voltage: 5.0 V DC (powered from USB port of computer) The values are the limit registered during the test period. 2.3 Test Period Item received date: 2012-09-05 Tes…

Text truncated - open the document above for the full version.

FCC ID: XWK8650201 Project no.: 205254 Page 1 of 5 PHOTOS OF TEST SET-UP – Dosimetry USB Radio Radiated Emissions – XY plane Radiated emissions – YZ plane FCC ID: XWK8650201 Project no.: 205254 Page 2 of 5 Radiated emissions – XZ plane Set-up for Radiated spurious emissions 30 – 1000 MHz FCC ID: XWK8650201 Project no.: 205254 Page 3 of 5 Radiated spurious emissions, 1 – 10 GHz Radiated Emissions < 30MHz FCC ID: XWK8650201 Project no.: 205254 Page 4 of 5 Radiated Emissions < 30MHz Conducted Emissions < 30MHz FCC ID: XWK8650201 Project no.: 205254 Page 5 of 5 Conducted Emissions < 30MHz
