XWX-CAN1120Access Control Panel

Guide Sheet - Access Control Subject to modifications Zebra Enterprise Solutions GmbH, Rossfelder Str. 65/5, 74564 Crailsheim, Germany, T: +49 7951 963610, F: +49 7951 963611, www.zebra.com/zes ©2009 ZIH Corp. proveo, Zebra Enterprise Solutions, and all product names and numbers are Zebra trademarks, and Zebra, and the Zebra head graphic are registered trademarks of ZIH Corp. All rights reserved. All other trademarks are the property of their respective owners. 06 /2009 CardReader / UserID Card This guide sheet describes the usage and functionality of the UserID System CardReader which is installed in the GSE. The usage is very similar on any type of GSE. The CardReader is necessary for the log-on of a user to a vehicle with a special ID card. The usage of the GSE equipped with the UserID System is only possible with a valid ID card. The CardReader is usually visibly installed on the dashboard of the GSE. 1. Successful Access 1. Switch on the ignition – the red LED illuminates. The engine can NOT be started. 2. Swipe the IDCard over the CardReader on the dashboard (see picture) 3. The green LED starts blinking, firstly three times then it will be on permanently. The engine can be started. 4. Start the engine. Remark: After successful authentication you have a predefined number of seconds to start the engine. If the engine is not started within this period of time after applying the card, steps 1 – 4 have to be repeated. After stopping the engine, it can be restarted within a predefined number of seconds without having to apply the ID card again. After that time the authentication procedure starts again 2. Denied Access The access can be denied due to the following possible reasons: 1. Card defective 2. CardReader defective 3. No authorisation / authentication If the authorisation is missing the red LED is blinking three times and the engine can not be started. In case of a denied access please contact your supervisor for clarification. Access Control ©2009 ZIH Corp. Navis, WhereNet, proveo, Multispectral Solutions, Zebra Enterprise Solutions, and all product names and numbers are Zebra trademarks, and Zebra, and the Zebra head graphic are registered trademarks of ZIH Corp. All rights reserved. All other trademarks are the property of their respective owners. 2 Agency Compliance FCC Compliance Statement This device complies with Part 15 rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) this device must accept any interference which may cause undesired operation This equipment has been tested and found to comply with the limits for Class B devices, pursuant to Part 15 of the FCC Rules & Regulations. Canadian DOC Compliance Statement This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. RF Notice Any changes or modifications to Zebra Enterprise Solutions (ZES) equipment not expressly approved by ZES could void the user’s authority to operate the equipment. EU \ EFTA Compliance Approved for use in the following countries. AT BE BG CY CZ DK EE FI FR DE GR HU IE IT LV LT LU MT NL PL PT RO SK SI ES SE GB IS LI NO CH TR Important Notice: This RF device is intended for indoor and outdoor use in all EU and EFTA countries.

©2009 ZIH Corp. Zebra Enterprise Solutions, and all product names and numbers are Zebra trademarks, and Zebra, and the Zebra head graphic are registered trademarks of ZIH Corp. All rights reserved. All other trademarks are the property of their respective owners. May 18, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Zebra Enterprise Solutions Corp., hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Access Control Panel, Model: CAN-1120 We affirm that between SIEMIC and Zebra Enterprise Solutions Corp., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Guzvaldo Medina Compliance Engineer Zebra Enterprise Solutions Corp.

©2009 ZIH Corp. Zebra Enterprise Solutions, and all product names and numbers are Zebra trademarks, and Zebra, and the Zebra head graphic are registered trademarks of ZIH Corp. All rights reserved. All other trademarks are the property of their respective owners. May 18, 2010 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: XWX-CAN1120 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagrams - Circuit Diagrams - Parts List - Operational Description - Schematics The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Guzvaldo Medina Compliance Engineer Zebra Enterprise Solutions Corp.

CAN-1120 Label Dimensions 1.7 in 2.2 in Label on Product

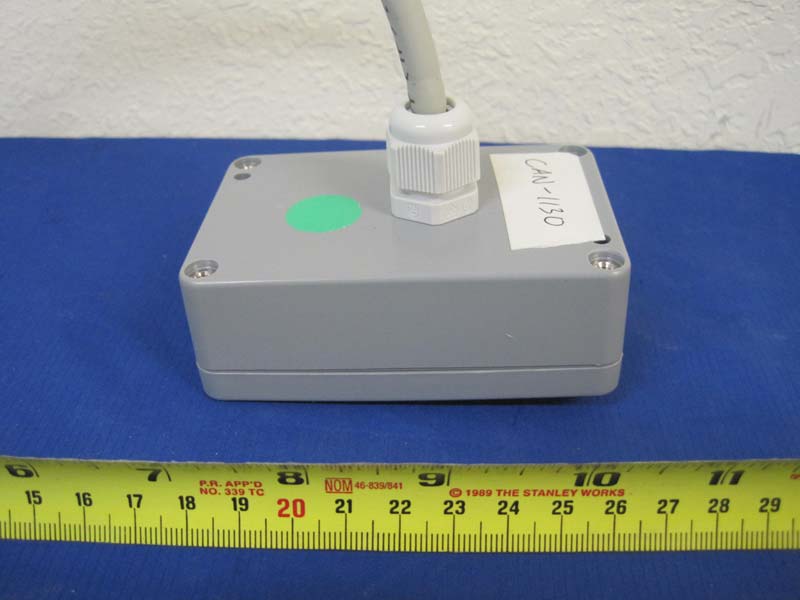

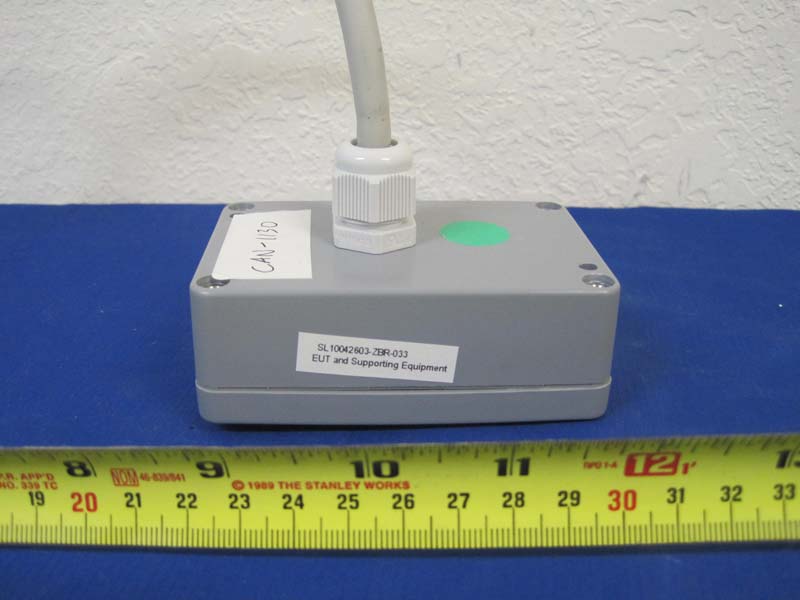

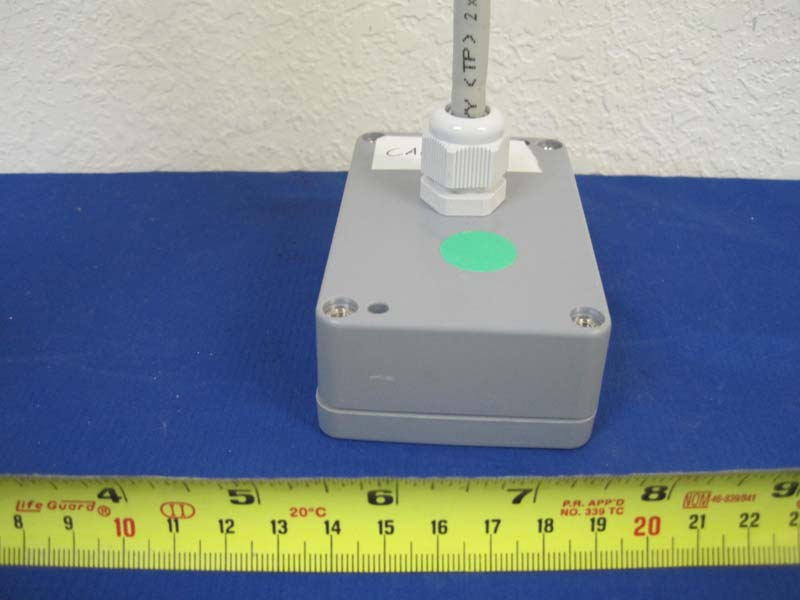

EUT Cover off View 13.56MHz RFID Antenna Solder View 13.56MHz Antenna 13.56MHz RFID Antenna Component View PCBA1 Top View PCBA1 Bottom View PCBA2 Top View PCBA2 Bottom View

ZEBRA ENTERPRISE SOLUTIONS CORP. ACCESS CONTROL PANEL CARD READER Model: CAN-1120 May 18th 2010 Report No.: SL10042603-ZBR-033_FCC,IC(CAN-1120) Rev1.0 (This report supersedes SL10042603-ZBR-033_FCC,IC(CAN-1120)) Modifications made to the product : None This Test Report is Issued Under the Authority of: David Zhang Test Engineer Leslie Bai Engineering Reviewer This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report of ACCESS CONTROL PANEL CARD READER Model : CAN-1120 To FCC 15.225 2009, RSS-210 Issue 7 : 2007 Serial# SL10042603-ZBR-033_FCC,IC(CAN-1120) Rev1.0 Issue Date May 18th 2010 Page 2 of 50 www.siemic.com This page has been left blank intentionally. Title: RF Test Report of ACCESS CONTROL PANEL CARD READER Model : CAN-1120 To FCC 15.225 2009, RSS-210 Issue 7 : 2007 Serial# SL10042603-ZBR-033_FCC,IC(CAN-1120) Rev1.0 Issue Date May 18th 2010 Page 3 of 50 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION...............................................................................................................5 2 TECHNICAL DETAILS.....................................................................................................................................................6 3 MODIFICATION...............................................................................................................................................................7 4 TEST SUMMARY.............................................................................................................................................................8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS.........................................................................................9 ANNEX A. TEST INSTRUMENT & METHOD...........................................................................................................................24 ANNEX B. TEST SETUP PHOTOGRAPHS.............................................................................................................................28 ANNEX B. I. EUT INTERNAL PHOTOGRAPHS.......................................................................................................................29 ANNEX B. II. EUT EXTERNAL PHOTOGRAPHS.....................................................................................................................30 ANNEX D USER MANUAL, BLOCK & CIRCUIT DIAGRAM.....................................................................................................35 ANNEX E SIEMIC ACCREDITATION......................................................................................................................................36 Title: RF Test Report of ACCESS CONTROL PANEL CARD READER Model : CAN-1120 To FCC 15.225 2009, RSS-210 Issue 7 : 2007 Serial# SL10042603-ZBR-033_FCC,IC(CAN-1120) Rev1.0 Issue Date May 18th 2010 Page 4 of 50 www.siemic.com This page has been left blank intentionally. Title: RF Test Report of ACCESS CONTROL PANEL CARD READER Model : CAN-1120 To FCC 15.225 2009, RSS-210 Issue 7 : 2007 Serial# SL10042603-ZBR-033_FCC,IC(CAN-1120) Rev1.0 Issue Date May 18th 2010 Page 5 of 50 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programmed was to demonstrate compliance of the ACCESS CONTROL PANEL CARD READER., Model:CAN-1120 against the current Stipulated Standards. The equipment under test radio operating frequency is 13.56 MHz. The test has demonstrated that this unit complies with stipulated standards. EUT Information EUT Description : The CardReader (supporting Mifare and HID technology) is an optional module for access control and user identification that can be installed in the GSE. The CardReader is necessary for the log-on of a user to a vehicle with a special ID card. The usage of the GSE equipped with the UserID system is only possible with a valid ID card. The CardReader can be connected to the GSE with an external CAN power supply unit. Model No : CAN-1120 Serial No : N/A Input Power : 12VDC Classification Per Stipulated Test Standard : RFID Reader Title: RF Test Report of ACCESS CONTROL PANEL CARD READER Model : CAN-1120 To FCC 15.225 2009, RSS-210 Issue 7 : 2007 Serial# SL10042603-ZBR-033_FCC,IC(CAN-1120) Rev1.0 Issue Date May 18th 2010 Page 6 of 50 www.siemic.com 2 TECHNICAL DETAILS Purpose Compliance testing of ACCESS CONTROL PANEL CARD READER with stipulated standard Applicant / Client Zebra Enterprise Solutions Corp. Manufacturer Zebra Enterprise Solutions Corp. 2940 N 1st Street San Jose, CA 95134 Laboratory performing the tests SIEMIC Laboratories Test report reference number SL10042603-ZBR-033_FCC,IC(CAN-1120) Rev1.0 Date EUT received May 13 th 2010 Standard applied 47 CFR §15.207, 15.209, 15.225: 2009 & Canadian Standards RSS-GEN Issue 2: 2007, RSS-210 Issue 7: 2007 Dates of test (from – to) May 13 th 2010 to May 20 th 2010 No of Units: 1 Equipment Category: DXX & DCD Model : CAN-1120 RF Operating Frequency (ies) 13.56 MHz (RFID) Number of Channels : 13.56 MHz (1) FCC ID : XWX-CAN1120 IC ID : 8701A-CAN1120 Title: RF Test Report of ACCESS CONTROL PANEL CARD READER Model : CAN-1120 To FCC 15.225 2009, RSS-210 Issue 7 : 2007 Serial# SL10042603-ZBR-033_FCC,IC(CAN-1120) Rev1.0 Issue Date May 18th 2010 Page 7 of 50 www.siemic.com 3 MODIFICATION NONE Title: RF Test Report of ACCESS CONTROL PANEL CARD READER Model : CAN-1120 To FCC 15.225 2009, RSS-210 Issue 7 : 2007 Serial# SL10042603-ZBR-033_FCC,IC(CAN-1120) Rev1.0 Issue Date May 18th 2010 Page 8 of 50 www.siemic.com 4 TEST SUMMARY The product was tested in accordance with the following specifications. All testing has been performed according to below product classification: RFID Reader Test Results Summary Test Standard 47 CFR Part 15.225: 2009 RSS 210 Issue 7: 2007 Description Pass / Fail 15.203 Antenna Requirement Pass 15.207(a) RSS Gen(7.2.2) Conducted Emissions Voltage Pass 15.225(a) RSS210(A2.6) Limit…

Text truncated - open the document above for the full version.

Radiated Emission View (>30MHz) Radiated Emission View (< 30Mhz) DC Line Conducted Emission Front View DC Line Conducted Emission Rear View
