___________________________________________________________________________ WhereLAN III User’s Guide ___________________________________________________________________________ 1 User’s Guide, WHERELAN III D1675 rev A © Copyright ZES, 2010 Zebra Confidential WhereLAN III LOS-5000 User’s Guide ___________________________________________________________________________ WhereLAN III User’s Guide ___________________________________________________________________________ 2 User’s Guide, WHERELAN III D1675 rev A © Copyright ZES, 2010 Zebra Confidential Typographical Conventions Warnings call attention to a procedure or practice that could result in personal injury if not correctly performed. Do not proceed until you fully understand and meet the required conditions. Cautions call attention to an operation procedure or practice that could damage the product, or degrade performance if not correctly performed. Do not proceed until understanding and meeting these required conditions. Notes provide information that can be helpful in understanding the operation of the product. _____________ _____________ ____________ Note ____________ ____________ ____________ ___________________________________________________________________________ WhereLAN III User’s Guide ___________________________________________________________________________ 3 User’s Guide, WHERELAN III D1675 rev A © Copyright ZES, 2010 Zebra Confidential Document Revision History Revision Description of Changes Date Approved A Initial Release 10/20/10 GLC ___________________________________________________________________________ WhereLAN III User’s Guide ___________________________________________________________________________ 4 User’s Guide, WHERELAN III D1675 rev A © Copyright ZES, 2010 Zebra Confidential Table of Contents Page TABLE OF FIGURES.................................................................................................................. 5 1 DOCUMENT OVERVIEW ................................................................................................. 6 2 PRODUCT DESCRIPTION AND FEATURES ................................................................ 6 3 PRODUCT SPECIFICATIONS.......................................................................................... 7 3.1 MECHANICAL................................................................................................................... 7 3.2 ELECTRICAL..................................................................................................................... 7 3.3 ENVIRONMENTAL............................................................................................................. 8 3.4 EXTERNAL CONNECTIONS................................................................................................ 8 4 ACCESSORIES ....................................................................................................................9 5 CONFIGURATION & CONTROL .................................................................................. 10 5.1 LOCATION SENSOR SELF BOOT...................................................................................... 10 5.2 LOCATION SENSOR INTERFACE...................................................................................... 10 5.3 LOCATION SENSOR MAC/ IP ADDRESS CONFIGURATION.............................................. 12 5.4 WLAN CLIENT CONFIGURATION (LOS-5000-00AB ONLY).......................................... 16 6 MOUNTING OVERVIEW ................................................................................................ 17 6.1 3/8THS THREADED ROD................................................................................................. 18 6.2 POLE MOUNT................................................................................................................. 20 7 ANTENNAS......................................................................................................................... 21 7.1 VERTICAL DIVERSITY MOUNTING................................................................................. 21 7.2 POWER, AC ................................................................................................................... 22 8 CABLING ............................................................................................................................ 23 8.1 TIMING CABLE INTERCONNECTION GUIDELINES............................................................ 24 8.2 TIMING CABLE PINOUT.................................................................................................. 25 ___________________________________________________________________________ WhereLAN III User’s Guide ___________________________________________________________________________ 5 User’s Guide, WHERELAN III D1675 rev A © Copyright ZES, 2010 Zebra Confidential 8.3 LOCATION SENSOR OPERATIONAL VERIFICATION......................................................... 26 9 REGULATORY INFORMATION ................................................................................... 28 9.1 RF NOTICE..................................................................................................................... 28 9.2 EU COMPLIANCE INFORMATION (LOS-5000-00AA & LOS-5000-00AB) .................... 28 APPENDIX A: LOS-5000 EFFECTIVE PROJECTED AREA (EPA) ................................. 30 APPENDIX B: LOS-5000 WEIGHT....................................................................................... 31 Table of Figures Figure 1 Example of LOS-5000-00AB Label .......................................................................................13 Figure 2 Threaded-Rod ...................................................................................................................................18 Figure 3 Safety Lanyard 2 ...............................................................................................................................19 Figure 4 Pole Mount.......…

Text truncated - open the document above for the full version.

___________________________________________________________________________ WhereLAN III User’s Guide ___________________________________________________________________________ 1 User’s Guide, WHERELAN III D1675 rev A © Copyright ZES, 2010 Zebra Confidential WhereLAN III LOS-5000 User’s Guide ___________________________________________________________________________ WhereLAN III User’s Guide ___________________________________________________________________________ 2 User’s Guide, WHERELAN III D1675 rev A © Copyright ZES, 2010 Zebra Confidential Typographical Conventions Warnings call attention to a procedure or practice that could result in personal injury if not correctly performed. Do not proceed until you fully understand and meet the required conditions. Cautions call attention to an operation procedure or practice that could damage the product, or degrade performance if not correctly performed. Do not proceed until understanding and meeting these required conditions. Notes provide information that can be helpful in understanding the operation of the product. _____________ _____________ ____________ Note ____________ ____________ ____________ ___________________________________________________________________________ WhereLAN III User’s Guide ___________________________________________________________________________ 3 User’s Guide, WHERELAN III D1675 rev A © Copyright ZES, 2010 Zebra Confidential Document Revision History Revision Description of Changes Date Approved A Initial Release 10/20/10 GLC ___________________________________________________________________________ WhereLAN III User’s Guide ___________________________________________________________________________ 4 User’s Guide, WHERELAN III D1675 rev A © Copyright ZES, 2010 Zebra Confidential Table of Contents Page TABLE OF FIGURES.................................................................................................................. 5 1 DOCUMENT OVERVIEW ................................................................................................. 6 2 PRODUCT DESCRIPTION AND FEATURES ................................................................ 6 3 PRODUCT SPECIFICATIONS.......................................................................................... 7 3.1 MECHANICAL................................................................................................................... 7 3.2 ELECTRICAL..................................................................................................................... 7 3.3 ENVIRONMENTAL............................................................................................................. 8 3.4 EXTERNAL CONNECTIONS................................................................................................ 8 4 ACCESSORIES ....................................................................................................................9 5 CONFIGURATION & CONTROL .................................................................................. 10 5.1 LOCATION SENSOR SELF BOOT...................................................................................... 10 5.2 LOCATION SENSOR INTERFACE...................................................................................... 10 5.3 LOCATION SENSOR MAC/ IP ADDRESS CONFIGURATION.............................................. 12 5.4 WLAN CLIENT CONFIGURATION (LOS-5000-00AB ONLY).......................................... 16 6 MOUNTING OVERVIEW ................................................................................................ 17 6.1 3/8THS THREADED ROD................................................................................................. 18 6.2 POLE MOUNT................................................................................................................. 20 7 ANTENNAS......................................................................................................................... 21 7.1 VERTICAL DIVERSITY MOUNTING................................................................................. 21 7.2 POWER, AC ................................................................................................................... 22 8 CABLING ............................................................................................................................ 23 8.1 TIMING CABLE INTERCONNECTION GUIDELINES............................................................ 24 8.2 TIMING CABLE PINOUT.................................................................................................. 25 ___________________________________________________________________________ WhereLAN III User’s Guide ___________________________________________________________________________ 5 User’s Guide, WHERELAN III D1675 rev A © Copyright ZES, 2010 Zebra Confidential 8.3 LOCATION SENSOR OPERATIONAL VERIFICATION......................................................... 26 9 REGULATORY INFORMATION ................................................................................... 28 9.1 RF NOTICE..................................................................................................................... 28 9.2 EU COMPLIANCE INFORMATION (LOS-5000-00AA & LOS-5000-00AB) .................... 28 APPENDIX A: LOS-5000 EFFECTIVE PROJECTED AREA (EPA) ................................. 30 APPENDIX B: LOS-5000 WEIGHT....................................................................................... 31 Table of Figures Figure 1 Example of LOS-5000-00AB Label .......................................................................................13 Figure 2 Threaded-Rod ...................................................................................................................................18 Figure 3 Safety Lanyard 2 ...............................................................................................................................19 Figure 4 Pole Mount.......…

Text truncated - open the document above for the full version.

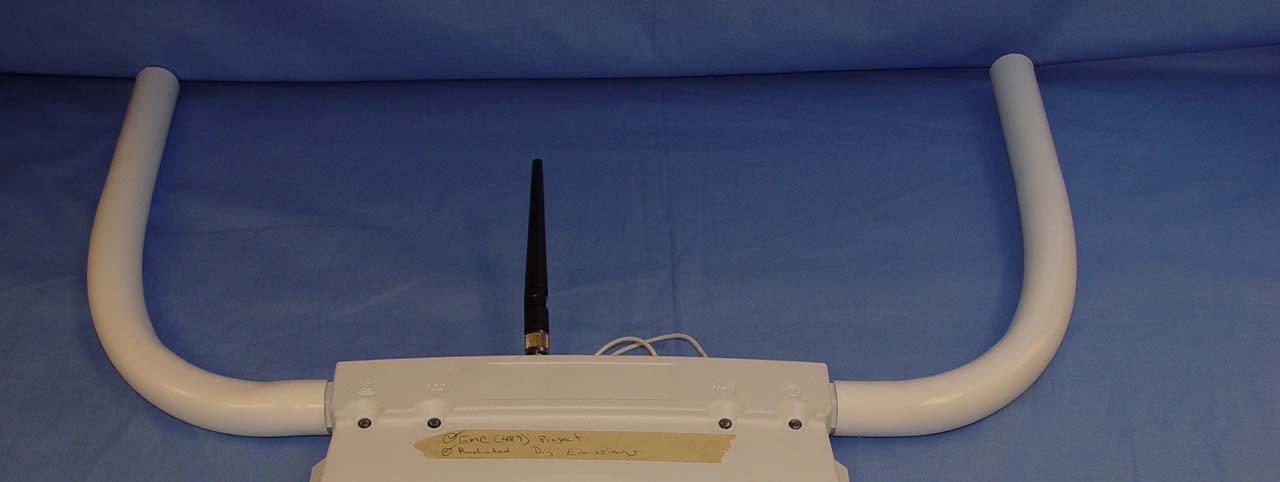

Zebra Enterprise Solutions Corp. WhereLAN III Location Sensor, model# LOS-5000 FCC ID: XWX-LOS5000 IC: 8701A-LOS5000 Page 1 of 1 External Photos WhereLAN III Location Sensor, model# LOS-5000

Zebra Enterprise Solutions Corp. WhereLAN III Location Sensor, model# LOS-5000 FCC ID: XWX-LOS5000 IC: 8701A-LOS5000 Page 1 of 2 ID Label and Location Zebra Enterprise Solutions Corp. WhereLAN III Location Sensor, model# LOS-5000 FCC ID: XWX-LOS5000 IC: 8701A-LOS5000 Page 2 of 2

Zebra Enterprise Solutions Corp. WhereLAN III Location Sensor, model# LOS-5000 FCC ID: XWX-LOS5000 IC: 8701A-LOS5000 Page 1 of 3 Internal Photos LOS-5000 internal view, top Zebra Enterprise Solutions Corp. WhereLAN III Location Sensor, model# LOS-5000 FCC ID: XWX-LOS5000 IC: 8701A-LOS5000 Page 2 of 3 LOS-5000, top Zebra Enterprise Solutions Corp. WhereLAN III Location Sensor, model# LOS-5000 FCC ID: XWX-LOS5000 IC: 8701A-LOS5000 Page 3 of 3 LOS-5000, bottom

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab 9 th December 2010 FCC, Part 15 Subpart C §15.407(f) Industry Canada RSS-Gen §5.5 Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm2) = EIRP/(4πd2) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) The peak power in the table below is calculated by assuming a worst case scenario where all of the EUT transmitters are operating simultaneously in the same band. The Peak Power in mW is the highest transmitter power measured and summed across all transmitters. Because the EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is 1.0 mW/cm2 Freq. Band (MHz) Antenna Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Safe Distance @ 1mW/cm 2 Limit(cm) Minimum Separation Distance (cm) 2400 – 2500 3.0 2.0 18.52 71.12 3.4 20.00 *Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Specification Maximum Permissible Exposure Limits §15.247(i) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency levels in excess of the Commission’s guidelines. FCC §1.1310 Limit = 1mW / cm2 from 1.310 Table 1 RSS-Gen §5.5 Before equipment certification is granted, the application requirements of RSS-102 shall be met.

Test of Zebr a Enterprise Solutions Corp. WhereLAN III Location Sensor To: FCC 47 CFR Part 15.247 & IC 210 Test Report Serial No.: GBCC01-U1 Rev A This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. TEST REPORT From Test of: Zebra Enterprise Solutions Corp. WhereLAN III Location Sensor To: FCC 47 CFR Part 15.247 & IC RSS-210 Test Report Serial No.: GBCC01-U1 Rev A This report supersedes: None Applicant: Zebra Enterprise Solutions Corp. 2940 N. First Street San Jose, CA 95134 USA Product Function: Wireless Location Sensor Copy No: pdf Issue Date: 6th December 2010 TESTING CERTIFICATE #2381.01 MiCOM Labs is an ISO 17025 Accredited Testing Laboratory This Test Report is Issued Under the Authority of; MiCOM Labs, Inc. 440 Boulder Court, Suite 200 Pleasanton, CA 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com Title: Zebra Enterprise Solutions WhereLAN III To: FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: GBCC01-U1 Issue Date: .6th December2010 Page: Page 3 of 72 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com TABLE OF CONTENTS 1 ACCREDITATION, LISTINGS & RECOGNITION ..................................................... 5 1.1 TESTING ACCREDITATION .................................................................................... 5 1.2 RECOGNITION ......................................................................................................... 6 1.3 PRODUCT CERTIFICATION .................................................................................... 7 2 DOCUMENT HISTORY ............................................................................................... 8 3 TEST RESULT CERTIFICATE ................................................................................... 9 4 REFERENCES AND MEASUREMENT UNCERTAINTY ........................................ 10 4.1 Normative References ............................................................................................. 10 4.2 Test and Uncertainty Procedures ............................................................................ 11 5 TEST SUMMARY ...................................................................................................... 12 6 PRODUCT DETAILS AND TEST CONFIGURATIONS .......................................... 14 6.1 Test Program Scope ................................................................................................ 14 6.2 EUT Details.............................................................................................................. 15 6.3 External A.C/D.C Power Adaptor............................................................................. 16 6.4 Operational Power Range ....................................................................................... 16 6.5 Types of Modulation Supported ............................................................................... 17 6.6 Antenna Details ....................................................................................................... 17 6.7 Cabling and I/O Ports .............................................................................................. 17 6.8 EUT Configurations ................................................................................................. 18 6.9 Equipment Details.................................................................................................... 18 6.10 Test Configurations.................................................................................................. 18 6.11 Equipment Modifications.......................................................................................... 19 6.12 Deviations from the Test Standard .......................................................................... 19 7 TEST RESULTS ........................................................................................................ 20 7.1 6 dB and 99% Bandwidth ........................................................................................ 20 7.1.1 6 dB and 99% Bandwidth Results: DSSS ................................................22 7.2 Peak Output Power.................................................................................................. 24 7.2.1 Measurement Results: DSSS...................................................................26 7.3 Peak Power Spectral Density .................................................................................. 27 7.3.1 Measurement results for DSSS................................................................28 7.4 Maximum Permissible Exposure ............................................................................. 30 7.5 Conducted Spurious ................................................................................................ 31 7.5.1 Measurement Results for DSSS ..............................................................33 7.6 Radiated Spurious Emissions .................................................................................. 37 7.6.1 Measurement Results DSSS mode: Transmitter Radiated Spurious Emissions..............................................................................................................43 7.6.2 DSSS Radiated Band Edge Emissions ....................................................44 7.6.3 Measurement Results AK-210-10 & AK-110-10: Band Edge...................45 7.6.4 Measurement Results AK-210-10 & AK-110-10: Peak Emissions ...........47 7.7 Radiated Spurious Emissions – Digital Apparatus .................................................. 52 Title: Zebra Enterprise Solutions WhereLAN III To: FCC 47 CFR Part 15.247 & IC RSS-210 Seri…

Text truncated - open the document above for the full version.

1 WhereLAN III Location Sensor Model: LOS-5000 Transmitter Duty Cycle Calculation and Measurements. The spectrum analyzer’s (Agilent 8595E) input was driven by a 2.4 GHz receiving antenna, which was coupled to the transmit antenna of EUT. The spectrum analyzer center frequency was set to EUT’s RF channel carrier. The frequency span on the analyzer was set to ZERO SPAN. The transmitter ON time was determined from the resultant time-amplitude display. Duty Cycle Calculation: Duty cycle = Maximum ON time in 100 msec/100. _ For DSSS mode (see plot #3), maximum duty cycle = 2.55 msec/100 msec = 2.55% Duty Cycle Measurements: Please see page 2. 2 Plot #1: DSSS Transmission at fastest repetition rate of 1.5 seconds. Each transmission consists of 8 “sub-blinks”. The number of sub-blinks is programmable from 1 to 8.

Zebra Enterprise Solutions Corp. WhereLAN III Location Sensor, model# LOS-5000 FCC ID: XWX-LOS5000 IC: 8701A-LOS5000 Page 1 of 4 Test Setup Photos WhereLAN III Location Sensor, model# LOS-5000, conducted RF measurements Zebra Enterprise Solutions Corp. WhereLAN III Location Sensor, model# LOS-5000 FCC ID: XWX-LOS5000 IC: 8701A-LOS5000 Page 2 of 4 WhereLAN III Location Sensor, model# LOS-5000, conducted measurements , <30MHz Zebra Enterprise Solutions Corp. WhereLAN III Location Sensor, model# LOS-5000 FCC ID: XWX-LOS5000 IC: 8701A-LOS5000 Page 3 of 4 WhereLAN III Location Sensor, model# LOS-5000, < 1GHz Zebra Enterprise Solutions Corp. WhereLAN III Location Sensor, model# LOS-5000 FCC ID: XWX-LOS5000 IC: 8701A-LOS5000 Page 4 of 4 WhereLAN III Location Sensor, model# LOS-5000, > 1GHz
