XWX-TFF2005WhereTag IV Module

User Guide ____________________________________________________________________________________________ 1 User Guide for WhereTag IV Module D1587 Rev 01 ©2010 Zebra Enterprise Solutions. WhereTag IV and all product names and numbers are Zebra Enterprise Solutions trademarks. All other trademarks are the property of their respective owners. WhereTag IV Module User Guide Part Numbers: 26048, 26391, 26683 User Guide ____________________________________________________________________________________________ 2 User Guide for WhereTag IV Module D1587 Rev 01 ©2010 Zebra Enterprise Solutions. WhereTag IV and all product names and numbers are Zebra Enterprise Solutions trademarks. All other trademarks are the property of their respective owners. ____________________________________________________________________________________________ 3 User Guide for WhereTag IV Module D1587 Rev 01 ©2010 Zebra Enterprise Solutions. WhereTag IV and all product names and numbers are Zebra Enterprise Solutions trademarks. All other trademarks are the property of their respective owners. Typographical Conventions Warnings call attention to a procedure or practice that could result in personal injury if not correctly performed. Do not proceed until you fully understand and meet the required conditions. Cautions call attention to an operation procedure or practice that could damage the product if not correctly performed. Do not proceed until understanding and meeting these required conditions. Notes provide information that can be helpful in understanding the operation of the product. ____________ CAUTION ____________ _________ Note _________ ____________________________________________________________________________________________ 4 User Guide for WhereTag IV Module D1587 Rev 01 ©2010 Zebra Enterprise Solutions. WhereTag IV and all product names and numbers are Zebra Enterprise Solutions trademarks. All other trademarks are the property of their respective owners. REGULATORY COMPLIANCE INFORMATION The following regulatory agency information is for WhereTag IV Module, which includes part numbers 26048, 26391, and 26683. RF Notice Any changes or modifications to Zebra Enterprise Solutions (ZES) equipment not expressly approved by ZES could void the user’s authority to operate the equipment. FCC Compliance Statement This device complies with Part 15 rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) this device must accept any interference which may cause undesired operation. FCC ID: XWX-TFF2005 This equipment has been tested and found to comply with the limits for both Class A and Class B devices, pursuant to Part 15 of the FCC Rules & Regulations. Canadian DOC Compliance Statement This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. IC: 8701A-TFF2005 Labeling If the FCC and IC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use the wording such as “Contains FCC ID: XWX-TFF2005” and “Contains IC: 8701A-TFF2005”. Any similar wording that expresses the same meaning may be used. The WhereTag IV Module will be only installed in devices produced by Zebra Enterprise Solutions Corp.. ____________________________________________________________________________________________ 5 User Guide for WhereTag IV Module D1587 Rev 01 ©2010 Zebra Enterprise Solutions. WhereTag IV and all product names and numbers are Zebra Enterprise Solutions trademarks. All other trademarks are the property of their respective owners. Document Revision History Revision Change Change Description Date Initials 01 Draft 7/3/10 HH ____________________________________________________________________________________________ 6 User Guide for WhereTag IV Module D1587 Rev 01 ©2010 Zebra Enterprise Solutions. WhereTag IV and all product names and numbers are Zebra Enterprise Solutions trademarks. All other trademarks are the property of their respective owners. Table of Contents Page REGULATORY COMPLIANCE INFORMATION ........................................................................................................4 1 INTRODUCTION ......................................................................................................................................................7 1.1 SYSTEM OVERVIEW...................................................................................................................................................7 1.2 WHERETAG IV MODULE..........................................................................................................................................7 1.3 WHERELAN LOCATION SENSOR (LOS) AND LOCATION ACCESS POINT (LAP) ........................................................9 1.4 WHEREPORT III AND WHEREPORT IV ....................................................................................................................10 1.5 WHEREWAND II PROGRAMMER.............................................................................................................................10 1.6 VISIBILITY SERVER SOFTWARE (VSS)....................................................................................................................10 2 SPECIFICATIONS (SUBJECT TO CHANGE WITHOUT NOTICE) ..............................................................12 2.1 WHERETAG IV MODULE.......................................................................................................................................12 Table of Figures Page FIGURE 1 ZES REAL TIME LOCATING SYSTEM BLOCK DIAGRAM.......................................................................................9 ____________________________________________________________________________________________ 7 User…

Text truncated - open the document above for the full version.

Date: August 2, 2010 Eurofins Product Service GmbH Storkower Strasse 38c D-15526 Reichenwalde bei Berlin Germany To Whom It May Concern: Please be advised that Zebra Enterprise Solutions Corp. authorizes Eurofins Product Service, Inc. to act on our behalf, until otherwise notified, for applications submitted to the Federal Communications Commission and/or Eurofins Product Service GmbH. We certify that we are not subject to denial of federal benefits, which include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1998, U.S.C. 862. Further, no party to the application, as defined in 47 CFR 1.2002(b), is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Sincerely, Name: Guzvaldo Medina Title: Senior Compliance Engineer Company: Zebra Enterprise Solutions Corp.

Date: August 2, 2010 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company Name: Zebra Enterprise Solutions Corp. FCC ID: XWX-TFF2005 FCC Part 15 Certification Dear Sir or Madame, In accordance with 0.459 of CFR 47, Zebra Enterprise Solutions Corp. hereby requests confidentiality of all (Block Diagrams, Circuit Diagrams, Parts List, Operational Description) attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which Zebra Enterprise Solutions Corp considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Zebra Enterprise Solutions Corp considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Name: Guzvaldo Medina Title: Senior Compliance Engineer Company: Zebra Enterprise Solutions Corp.

Date: August 2, 2010 Federal Communications Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Limited Modular Approval (LMA) Attestation for WhereTag IV Module, FCC ID: XWX-TFF2005 Gentlemen, We have the following attestation to the eight requirements described by FCC public notice DA00-1407 26 th June 2000 “Part 15 Unlicensed Modular Transmitter Approval“. Specifically, the criteria set out in this document are addressed below in bold. 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The WhereTag IV Module radio board does not have a RF shield. There is no provision on the PCB to install one. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 x 2 requirements under conditions of excessive data rates or over-modulation. There is no direct input to the modulator on the WhereTag IV Module G2C547 ASIC. Data can only be input into the chip via the low data rate serial port or SPI bus. 3. The modular transmitter must have its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. The electronics on WhereTag IV Module operates on 3 different voltage domains: VDD_AO, VDD_1V3, and V_Bat. VDD_AO is 1.2V and it is always on. This voltage is generated by the G2C547 ASIC. It is regulated and derived from V_Bat. VDD_1.3V is regulated and derived from V_Bat. This voltage is the supply for the CPU and baseband processor in the G2C547 ASIC. V_bat is the lithium battery voltage. This voltage is the supply for the RF power amplifier in the G2C547 ASIC. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna used with the module must be approved with the module, either at the time of initial authorization or through a Class II permissive change. The “professional installation” provision of Section 15.203 may not be applied to modules. The WhereTag IV Module radio board has two antenna options. Option 1 uses the integral Inverted-F antenna. Option 2 uses an integral external antenna with a U.FL connector. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and x 3 data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). The WhereTag IV Module was tested as a stand-alone configuration. The device is battery powered. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. The WhereTag IV Module is fitted with its own label, including the FCC ID number. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The WhereTag IV Module has been tested to comply with all rules under Part 15. x 4 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine en…

Text truncated - open the document above for the full version.

Zebra Enterprise Solutions Corp. WhereTag IV Module FCC ID: XWX-TFF2005 IC: 8701A-TFF2005 Page 1 of 4 External Photos WhereTag IV Module, bottom Zebra Enterprise Solutions Corp. WhereTag IV Module FCC ID: XWX-TFF2005 IC: 8701A-TFF2005 Page 2 of 4 WhereTag IV Module, top with Inverted-F antenna Zebra Enterprise Solutions Corp. WhereTag IV Module FCC ID: XWX-TFF2005 IC: 8701A-TFF2005 Page 3 of 4 WhereTag IV Module, bottom with flexible antenna Taoglas Zebra Enterprise Solutions Corp. WhereTag IV Module FCC ID: XWX-TFF2005 IC: 8701A-TFF2005 Page 4 of 4

Zebra Enterprise Solutions Corp. WhereTag IV Module FCC ID: XWX-TFF2005 IC: 8701A-TFF2005 Page 1 of 1 ID Label and Location

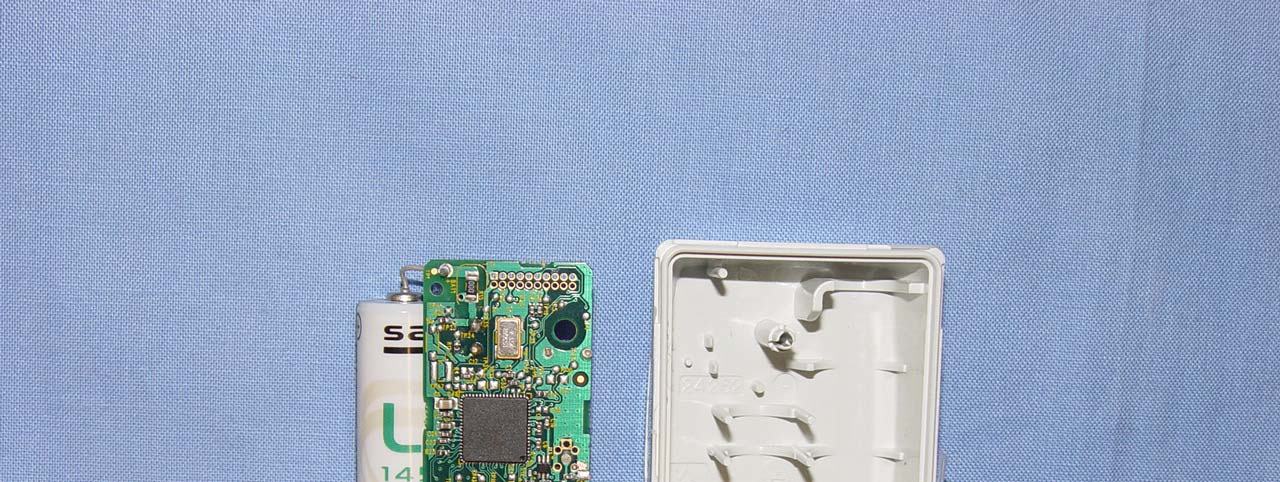

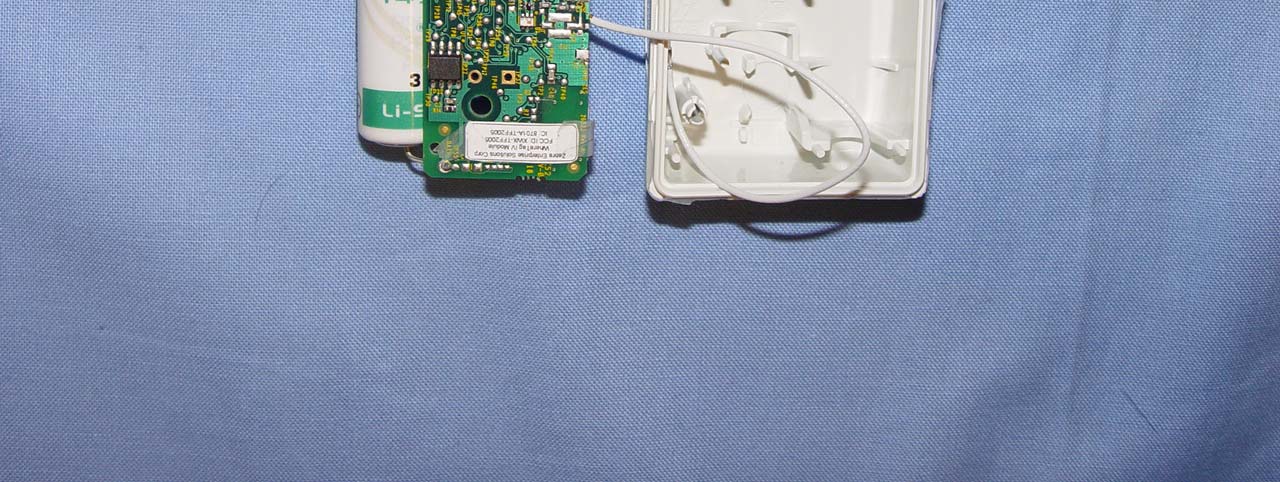

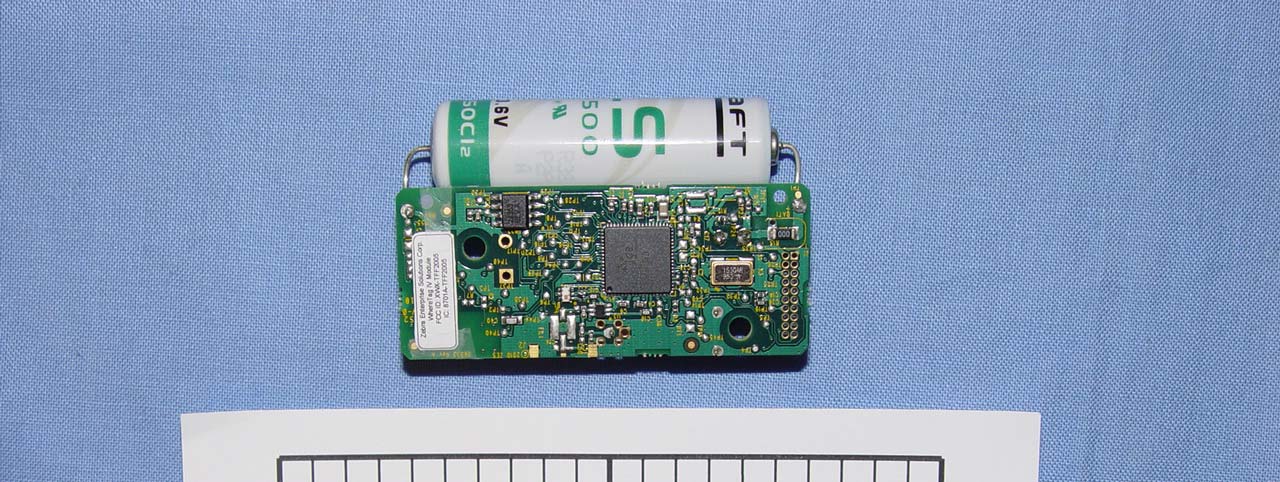

Zebra Enterprise Solutions Corp. WhereTag IV Module FCC ID: XWX-TFF2005 IC: 8701A-TFF2005 Page 1 of 4 Internal Photos WhereTag IV Module, bottom Zebra Enterprise Solutions Corp. WhereTag IV Module FCC ID: XWX-TFF2005 IC: 8701A-TFF2005 Page 2 of 4 WhereTag IV Module, top with Inverted-F antenna Zebra Enterprise Solutions Corp. WhereTag IV Module FCC ID: XWX-TFF2005 IC: 8701A-TFF2005 Page 3 of 4 WhereTag IV Module, bottom with flexible antenna Taoglas Zebra Enterprise Solutions Corp. WhereTag IV Module FCC ID: XWX-TFF2005 IC: 8701A-TFF2005 Page 4 of 4

RF Exposure Evaluation Applicant Name: Zebra Enterprise Solutions Corp. FCC ID: XWX-TFF2005 IC: 8701A-TFF2005 Model : TFF-2005, WhereTag IV Module RFID, Real Time Locating System Equipment Class: DTS Portable application Exhibit documents: - FCC/IC test report ETSD21-U1 - Duty cycle measurements and calculations for WhereTag IV Module, TFF- 2005 Max. measured peak output powers in CW: - P max (802.11b mode, 2412-2462 MHz) = 41.8 mW - P max (802.11g mode, 2412-2462 MHz) = 39.8 mW - P max (DSSS mode, 2441.75 MHz) = 31.0 mW - P max (OOK mode, 2446.519 MHz) = 1.4 mW Duty Cycle Correction Factors: - 802.11b mode = 3.6% - 802.11g mode = 0.72% - DSSS mode = 2.55% - OOK mode = 13% The source-based time-averaged output power calculates to: - P source (802.11b mode) = 41.8 mW x 0.036 = 1.5 mW - P spurce (802.11g mode) = 39.8 mW x 0.0072 = 0.29 mW - P source (DSSS mode) = 31.0 mW x 0.0255 = 0.79 mW - P source (OOK mode) = 1.4 mW x 0.13 = 0.18 mW The low threshold value is determined by (60/f[GHz]) = 60/2.462 = 24.4 mW. Based on the evaluation using sourced-based time-averaged output power the product output power is below the threshold value and therefore no SAR evaluation is required.

1 TFF-2005 Transmitter Duty Cycle Calculation and Measurements. The spectrum analyzer’s (Agilent 8595E) input was driven by a 2.4 GHz receiving antenna, which was coupled to the transmit antenna of EUT. The spectrum analyzer center frequency was set to EUT’s RF channel carrier. The frequency span on the analyzer was set to ZERO SPAN. The transmitter ON time was determined from the resultant time-amplitude display. Duty Cycle Calculation: Duty cycle = Maximum ON time in 100 msec/100. _ For DSSS mode (see plot #3), maximum duty cycle = 2.55 msec/100 msec = 2.55% _ For OOK mode (see plot #4), maximum duty cycle = 13 msec/100 msec = 13% _ For 802.11b mode (see plot #6) with 1 mbps, maximum duty cycle = 9*(0.4 msec)/100 msec = 3.6% _ For 802.11g mode (see plot #7) with 6 mbps, maximum duty cycle = 9*(0.08msec)/100msec = 0.72%. Duty Cycle Measurements: Please see pages 2-4. 2 Plot #1: DSSS Transmission at fastest repetition rate of 1.5 seconds. Each transmission consists of 8 “sub-blinks”. The number of sub-blinks is programmable from 1 to 8. Plot #2: Zoomed in view of Plot #1; Shortest time interval between sub-blinks is 125msec. 3 Plot #3: Transmit on time for a DSSS longest message (152-bit packet) is 2.55 msec. Plot #4: Transmit on time for an OOK longest message (256-bit packet) is 13 msec. 4 Plot #5: 802.11b (1Mbps) Transmission at fastest repetition rate of 1.5 seconds between “blinks”. Plot #6: Zoomed in view of Plot #5. Each “blink” in Plot #5 consists of 9 “sub-blinks”, which are programmable from 1 to 9. Transmit on time for each sub-blink is 400uSec. Shortest time interval between sub-blinks is 400uSec. As shown in this plot, the first 3 sub-blinks were set to channel 5, the next 3 sub-blinks were set to channel 6, and last 3 sub-blinks were set to channel 7. The transmit frequency for each group of 3 sub-blinks is programmable to any 802.11 channel. 5 Plot #7: Transmit on time for 802.11g (6Mbps) mode. Similar to 802.11b mode, each 802.11g “blink” consists of maximum 9 “sub-blinks”, which are programmable from 1 to 9. Transmit on time for each sub-blinks is 80uSec. Since the duration of all 9 sub-blinks is less than 100 msec, the maximum duty cycle can be calculated as follows: Duty Cycle = 9*80usec/100msec = 0.72%.

Test of Zebra Enterprise Solutions Corp WhereTag IV Module To: FCC 47 CFR Part 15, SubPart 15.247 and RSS- 210 Annex 8 Test Report Serial No.: ETSD21-U1 Rev A TITLE PAGE TEST REPORT FROM Test of: Zebra Enterprise Solutions Corp WhereTag IV Module To: FCC 47 CFR Part 15, SubPart 15.247 and RSS-210 Annex 8 Test Report Serial No.: ETSD21-U1 Rev A This report supersedes: NONE Applicant: Zebra Enterprise Solutions Corp 2940 N. First Street San Jose, CA 95134 USA Product Function: Remote Telemetry Module Copy No: pdf Issue Date: 2nd August 2010 This Test Report is Issued Under the Authority o f; MiCOM Labs, Inc. 440 Boulder Court, Suite 200 Pleasanton, CA 94566 USA Phone: +1 (925) 462-0 304 Fax: +1 (925) 462-0306 www.micomlabs.com CERTIFICATE #2381.01 MiCOM Labs is an ISO 17025 Accredited Testing Laboratory Title: Zebra Enterprise Solutions Corp WhereTag IV Module To: FCC 47 CFR Part 15, SubPart 15.247 Serial #: ETSD21-U1 Rev A Issue Date: 2nd August 2010 Page: Page 3 of 147 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com TABLE OF CONTENTS 1 ACCREDITATION, LISTINGS & RECOGNITION ..................................................... 5 1.1 ACCREDITATION ..................................................................................................... 5 1.2 LISTINGS .................................................................................................................. 6 1.3 RECOGNITION ......................................................................................................... 6 2 DOCUMENT HISTORY ............................................................................................... 7 3 TEST RESULT CERTIFICATE ................................................................................... 8 4 REFERENCES AND MEASUREMENT UNCERTAINTY .......................................... 9 4.1 Normative References ............................................................................................... 9 4.2 Test and Uncertainty Procedures ............................................................................ 10 5 TEST SUMMARY ...................................................................................................... 11 6 PRODUCT DETAILS AND TEST CONFIGURATIONS .......................................... 12 6.1 Test Program Scope ................................................................................................ 12 6.2 EUT Details.............................................................................................................. 14 6.3 External A.C/D.C Power Adaptor............................................................................. 15 6.4 Operational Power Range ....................................................................................... 15 6.5 Types of Modulation Supported ............................................................................... 15 6.6 Antenna Details ....................................................................................................... 15 6.7 Cabling and I/O Ports .............................................................................................. 16 6.8 EUT Configurations ................................................................................................. 16 6.9 Equipment Details.................................................................................................... 16 6.10 Test Configurations.................................................................................................. 17 6.11 Equipment Modifications.......................................................................................... 17 6.12 Deviations from the Test Standard .......................................................................... 17 7 TEST RESULTS ........................................................................................................ 18 7.1 6 dB and 99% Bandwidth ........................................................................................ 18 7.1.1 6 dB and 99% Bandwidth Results: 802.11 b ............................................19 7.1.2 6 dB and 99% Bandwidth Results: 802.11 g ............................................23 7.1.3 6 dB and 99% Bandwidth Results: DSSS ...............................................27 7.1.4 6 dB and 99% Bandwidth Results: OOK .................................................29 7.2 Peak Output Power.................................................................................................. 31 7.2.1 Measurement Results: 802.11 b ..............................................................33 7.2.2 Measurement Results: 802.11 g ..............................................................34 7.2.3 Measurement Results: DSSS...................................................................35 7.2.4 Measurement Results: OOK ....................................................................35 7.3 Peak Power Spectral Density .................................................................................. 36 7.3.1 Measurement results for 802.11 b ...........................................................37 7.3.2 Measurement results for 802.11 g ...........................................................41 7.3.3 Measurement Results: DSSS...................................................................45 7.3.4 Measurement Results: OOK ....................................................................46 7.4 Maximum Permissible Exposure ............................................................................. 47 Title: Zebra Enterprise Solutions Corp WhereTag IV Module To: FCC 47 CFR Part 15, SubPart 15.247 Serial #: ETSD21-U1 Rev A Issue Date: 2nd August 2010 Page: Page 4 of 147 This test report may be reproduced i…

Text truncated - open the document above for the full version.

Zebra Enterprise Solutions Corp. WhereTag IV Module FCC ID: XWX-TFF2005 IC: 8701A-TFF2005 Page 1 of 2 Test Setup Photos Zebra Enterprise Solutions Corp. WhereTag IV Module FCC ID: XWX-TFF2005 IC: 8701A-TFF2005 Page 2 of 2
