XXNTMSM200-1000AutoOn Motion Sensor

www.teltron.com Telecommunications (Model : TMSM200-1000) AutoOn Operation Manual • Venture Company, INNO-BIZ Company • ISO9001, ISO14001 #202 ITplex, 16 Sinseong-Ro, Yusong-Gu, Daejeon, 305-343 Korea Tel : +82-42-360-2020 Fax : +82-42-360-2010 E-mail : [email protected] Home : www.teltron.com www.teltron.com Telecommunications 2. Maximum ratings Not to be used in humid environment 35%~95% Humidity Limited to the interior usage -10 o C ~ 50 o C Ambient temperature 1000W max for the inductive loads such as incandescent lamps and motors etc. 1000W max Load 250VAC max Voltage Note Max. Ratings Item 1. Applications and Features ¾ Auto On (model: TMSM200-1000) is a microwave sensor that detects minute motion of human bodies and reflective objects. It is operated by AC source and automatically on and off electric instruments including lamps. So it can drastically reduce the amount of electricity. ¾ It can be applicable to all the lamps. ¾ It can detect moving objects more than 20m and insensitive to dust, light, and ambient temperature etc. ¾ The attached CDS detects environmental light not to turn on the lamps to reduce unnecessary lighting. ¾ The electric instruments can be used in parallel connection if the overall power consumption of used electric instruments doesn’t exceed 1500W. The case when the power consumption is more than 1500W, an external solid state relay should be used additionally to switching the devices. ¾ The detection range can be adjusted according to the area of the application. The coverage can be widened unlimitedly by parallel connection of Auto On’s. #202 ITplex, 16 Sinseong-Ro, Yusong-Gu, Daejeon, 305-343 Korea Tel : +82-42-360-2020 Fax : +82-42-360-2010 E-mail : [email protected] Home : www.teltron.com Auto On (Motion Sensor Module) Model: TMSM200-1000 www.teltron.com Telecommunications 3. Specifications ƒ min : always operates ƒ max : operates at dark ƒ 1 Lux~1500 Lux Always operates (min) ƒCWÆoperates at darker environment ƒCCWÆoperates at lighter environment brightnes s VR1 25mW max EIRP RF Doppler sensor 10,525±25 MHz Frequency 4 wires - Black 2, Yellow 2 Electric wires LEFT Æ Motion & Brightness Ri ght Æ Sensor Only ƒCWÆdecrease ƒCCWÆincrease ƒCWÆincrease ƒCCWÆdecrease 1000W max Every electric instruments Single phase 110~220VAC , 50~60Hz Specification Right Switch ƒ Less than 1000W for inductive loads ƒ unlimited using external SSR - Load Power - Controllable Instruments - Voltage VR3 VR2 ƒ coverage: 3~20m Max coverage coverage ƒ1sec~10min(0~1min/1~5m in/5~10min) ƒ3sector , linear per each 1sec(min) Time Note Factory setting Item • Variable Resistors(VR1/VR2/VR3) : 10 steps. Adjust by a cross screwdriver • The operation time is automatically initialized at every motion detection, so that unnecessary on-off of electric instruments is minimized. #202 ITplex, 16 Sinseong-Ro, Yusong-Gu, Daejeon, 305-343 Korea Tel : +82-42-360-2020 Fax : +82-42-360-2010 E-mail : [email protected] Home : www.teltron.com Auto On (Motion Sensor Module) Model: TMSM200-1000 www.teltron.com Telecommunications Fig.2. Tuning functions #202 ITplex, 16 Sinseong-Ro, Yusong-Gu, Daejeon, 305-343 Korea Tel : +82-42-360-2020 Fax : +82-42-360-2010 E-mail : [email protected] Home : www.teltron.com Auto On (Motion Sensor Module) Model: TMSM100-1500 Sensitivity (VR3) min max 1sec~1min : linear 1min~5min : linear 5min~10min : linear Relay on-time (VR2) coverage : 3m~15m 1min 0sec 10min 30sec 2min 3min 4min 5min Light threshold (VR1) brighter darker - CCW : brighter threshold (on/off for brighter environment) - CW : darker threshold (on/off for darker environment) - Center is nominal www.teltron.com Telecommunications 4. Wiring Fig.4. One AutoOn (when load is less than 1000W) Fig.3. IO’s of AutoOn (4 wires : B, B, Y, Y Æ3wires : R, R+Y, Y ) #202 ITplex, 16 Sinseong-Ro, Yusong-Gu, Daejeon, 305-343 Korea Tel : +82-42-360-2020 Fax : +82-42-360-2010 E-mail : [email protected] Home : www.teltron.com Auto On (Motion Sensor Module) Model: TMSM100-1500 cde B B&Y Y wire # Y e B+Y d B c ① ② ③ FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. www.teltron.com Telecommunications 5. Operation #202 ITplex, 16 Sinseong-Ro, Yusong-Gu, Daejeon, 305-343 Korea Tel : +82-42-360-2020 Fax : +82-42-360-2010 E-mail : [email protected] Home : www.teltron.com Auto On (Motion Sensor Module) Model: TMSM100-1500 Sensor only Motion & Brightness Mode Relay is in contact in case of detecting of movin g objects, and vice versa Right Relay is in contact in case of both darker than threshold value and detecting of moving objects, and vice versa LEFT Description Switch * Relay is open when the environment brightness is brighter than light threshold ƒ Applying line voltage, it operates after 10 sec. ƒ For sensor & brightness mode, relay is in contact in case of both darker than threshold value and detecting of moving objects, and vice versa ƒ For sensor only mode, relay is in contact in case of detecting of moving objects, and vice versa ƒ Relay contact time for sensor & brightness mode, is automatically extended if motion detection is made within relay contact time

FCC Confidential Authorization December 7, 2009 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: XXNTMSM200-1000 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Teltron, Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Choong Hwan Kim/ Manager 82-42-360-2020 #202 ITPlex, 16 Sinseong-Ro, Yusong-Gu, Daejeon, South Korea

Teltron Inc. FCC ID: XXNTMSM200-1000 Report Number: R0911233-245 Page 31 of 36 FCC Part15.245 Test Report 9 EXHIBIT C - EUT PHOTOGRAPHS 9.1 EUT – Top View 9.2 EUT – Bottom View Teltron Inc. FCC ID: XXNTMSM200-1000 Report Number: R0911233-245 Page 32 of 36 FCC Part15.245 Test Report 9.3 EUT – Side View 1 9.4 EUT – Side View 2

Teltron Inc. FCC ID: XXNTMSM200-1000 Report Number: R0911233-245 Page 22 of 36 FCC Part15.245 Test Report 7 EXHIBIT A – FCC EQUIPMENT LABELING REQUIREMENTS 7.1 FCC ID Label Requirement As Per FCC § 2.925, (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID: XXX123, where: XXX—Grantee Code 123—Equipment Product Code As Per FCC § 15.19 (a) In addition to the requirements in part 2 of this chapter, a device subject to certification, or verification shall be labeled as follows: (3) All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. (5) When the device is so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device. 7.2 FCC ID Label Content 7.3 Suggested FCC Label Location Label here

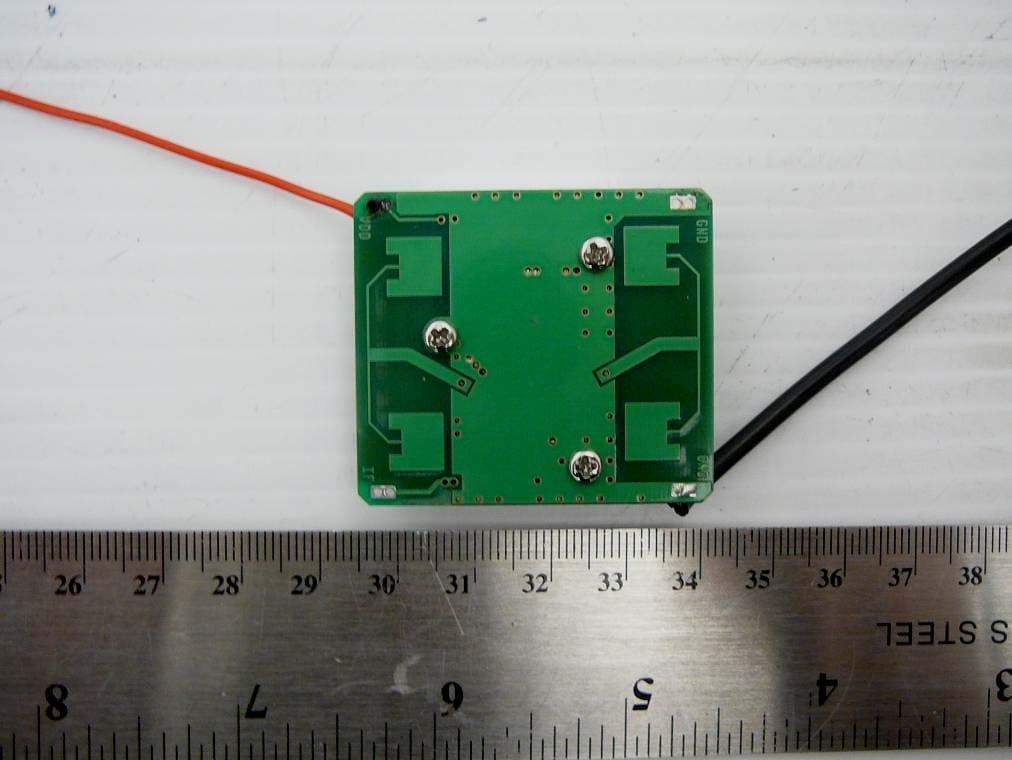

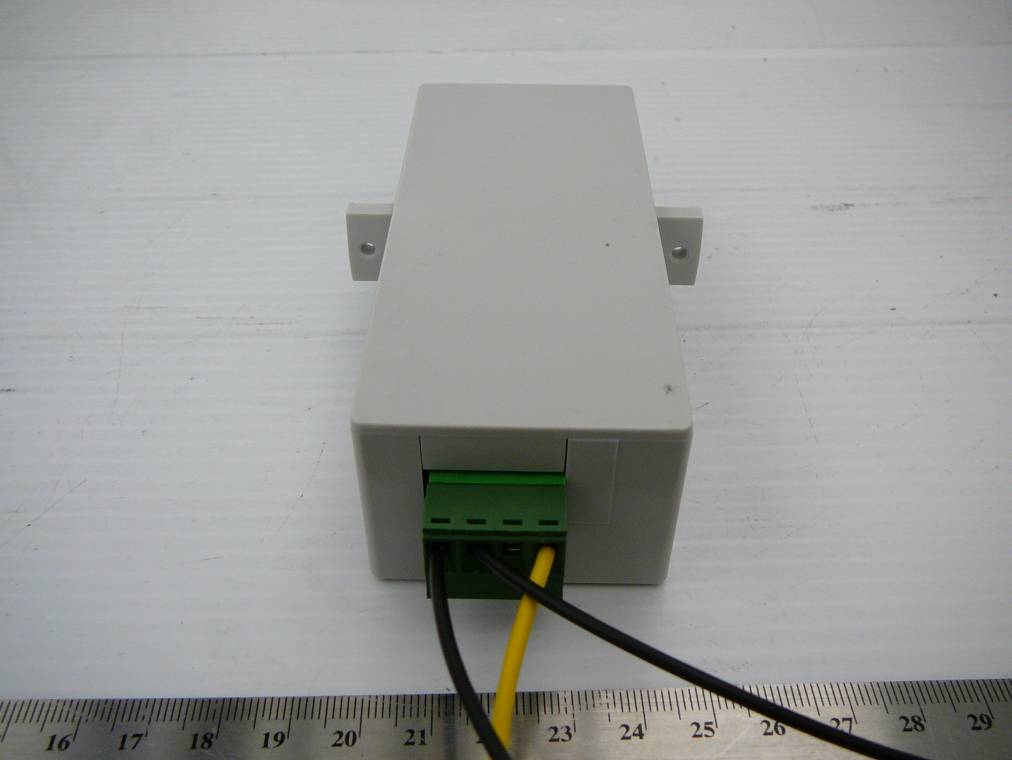

Teltron Inc. FCC ID: XXNTMSM200-1000 Report Number: R0911233-245 Page 33 of 36 FCC Part15.245 Test Report 9.5 EUT – Cover off View 9.6 EUT – All PCB Assembly Top View Teltron Inc. FCC ID: XXNTMSM200-1000 Report Number: R0911233-245 Page 34 of 36 FCC Part15.245 Test Report 9.7 EUT – All PCB Assembly Bottom View 9.8 EUT – PCB Assembly-1 Top View Teltron Inc. FCC ID: XXNTMSM200-1000 Report Number: R0911233-245 Page 35 of 36 FCC Part15.245 Test Report 9.9 EUT – PCB Assembly-1 Bottom View 9.10 EUT – PCB Assembly-1 Bottom View (Without Shielding) * Teltron Inc. FCC ID: XXNTMSM200-1000 Report Number: R0911233-245 Page 36 of 36 FCC Part15.245 Test Report 9.11 EUT – PCB Assembly-2 Top View (Without PCB Assembly-1) ***** End of Report *****

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15.245 TEST AND MEASUREMENT REPORT For Teltron, Inc. #202 Itplex, 16 Sinseong-Ro, Yusong-Gu, Daejeon, 305-343 South Korea FCC ID: XXNTMSM200-1000 Model: TMSM200-1000 Report Type: Original Report Product Type: Motion Sensor Test Engineer: Dennis Huang Report Number: R0911233-245 Report Date: 2009-12-11 Reviewed By: Boni Baniqued EMC/RF Supervisor Prepared By: (84) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 Teltron Inc. FCC ID: XXNTMSM200-1000 Report Number: R0911233-245 Page 2 of 36 FCC Part15.245 Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION.............................................................................................................................. 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................ 5 1.2 EUT MECHANICAL DESCRIPTION................................................................................................................... 5 1.3 EUT PHOTO.................................................................................................................................................... 5 1.4 OBJECTIVE...................................................................................................................................................... 5 1.5 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................... 6 1.6 TEST METHODOLOGY..................................................................................................................................... 6 1.7 MEASUREMENT UNCERTAINTY...................................................................................................................... 6 1.8 TEST FACILITY............................................................................................................................................... 6 2 SYSTEM TEST CONFIGURATION ................................................................................................................. 7 2.1 JUSTIFICATION................................................................................................................................................ 7 2.2 EUT EXERCISE SOFTWARE............................................................................................................................. 7 2.3 SPECIAL ACCESSORIES................................................................................................................................... 7 2.4 EQUIPMENT MODIFICATIONS.......................................................................................................................... 7 2.5 LOCAL SUPPORT EQUIPMENT......................................................................................................................... 7 2.6 EUT INTERNAL CONFIGURATION AND DETAILS............................................................................................. 7 2.7 INTERFACE PORTS AND CABLING................................................................................................................... 7 3 SUMMARY OF TEST RESULTS ...................................................................................................................... 8 4 FCC §15.207– CONDUCTED EMISSIONS ...................................................................................................... 9 4.1 APPLICABLE STANDARD................................................................................................................................. 9 4.2 EUT SETUP..................................................................................................................................................... 9 4.3 TEST SETUP BLOCK DIAGRAM...................................................................................................................... 10 4.4 TEST EQUIPMENT LIST AND DETAILS........................................................................................................... 10 4.5 TEST PROCEDURE......................................................................................................................................... 10 4.6 TEST ENVIRONMENTAL CONDITIONS............................................................................................................ 10 4.7 SUMMARY OF TEST RESULTS........................................................................................................................ 11 4.8 CONDUCTED EMISSIONS TEST PLOTS AND DATA......................................................................................... 11 5 FCC §15.245 (B) – FIELD STRENGTH OF FUNDAMENTAL.................................................................... 14 5.1 APPLICABLE STANDARDS.............................................................................................................................. 14 5.2 TEST SETUP.................................................................................................................................................. 14 5.3 TEST ENVIRONMENTAL CONDITIONS............................................................................................................ 14 5.4 TEST EQUIPMENT LIST AND DETAILS........................................................................................................... 14 5.5 TEST PROCEDURE......................................................…
