XY2CP09GSM MOBILE PHONE

1 Thanks for choosing our mobile phone ！ Please read this user manual before use We reserve the right to upgrade the software and product without prior notice. The icon in this user manual may differ from your phone, depending on the phone you used. We reserve the right to make changes to this user manual without prior notice. All rights reserved. 2 Please read below detail instructions care fully. It may have danger or illegality if you do not follow these instructions. This user manual includes detail information about safety instruction. Switch on Phone Safely Please do not switch on your phone when it might have interference or danger by using phone or phone is forbidden in this area. Pay attention to the traffic safety According to the recent research, it may have danger to use phone when you are driving even though you are using the hands-free device (such as hands-free device in auto, earphone, etc.). The driver is required not to use phone when they are driving. When phone is switched on, the electromagnetic wave from phone will interference the electronic system of auto, such as ABS anti-explosion brake system or SRS (supplemental restraint syst em). For safety, please follow below: - Do not put the phone on car control panel or ballonet area in car. - Confirm with the auto distributor or manufacturer to make sure that electronic system of automatics have good isolation. Interference All kinds of phones may be interfered by environment, and then the performance of phones might be influenced. Phone may interfere with some electric appliance such as electronic TV, radiogram, PC and so on. Turn off your cell phone in the site of medical and health care Please switch off your phone in the site of medical and health care except some designated area where phone can be used. Phone will interfere with the running of electronic equipment, electron device or radio frequency device near around, just like the other usual equipment. Switch off on airplane Please follow the related regulations. Please switch your phone before boarding. Switch off in gas station Please switch off your phone when you are in gas station or any position where fuel and chemical have been placed. Cell phone should be turned off around the site of explode. To avoid the interference to exploding, please switch off your phone when you see the mark of “site of explode” or “tur n off bidirectional radio devices”. Please abide any related forbidden regulation, and execute any regular or statute which related with cell phone’s using. Using phone correctly Please use phone in normal position. Please do not touch antenna area if not 3 necessary. Do not let children use phone without any tendance. SIM card can be taken out from phone. Please pay atte ntion to prevent children from swallow the small component like this. Do not let pregnant woman use phone for long time. Accessories and batteries Use only the approved accessories and batteries. Please do not connect with any product which doesn’t match with this phone. Please be sure the phone has been switched off before taking out battery. Please deal with the scrap batteries properly according to the local status. Waterproof The phone doesn’t have performance of waterproof. Please do not expose your phone in inclement weather or environment (such as wet, raining, liquid leakage, seawater, mirage, and so on). Emergency calling Please be sure your phone is power on and in the service available area. According to demands, press end key repeatedly to clear the content in screen and go back to standby mode, or press number key directly, then input emergency phone number. And then press answer key to describe where you are. Please do not hang up your phone without permission. 4 Contents Safety Instruction ........................................................................................................ 2 Start to Use ................................................................................................................... 6 Put in/Take out battery .................................................................................... 6 Insert/Take out SIM card ................................................................................. 7 Battery Charging ............................................................................................... 7 Switch On /Off phone ....................................................................................... 8 Switch On ........................................................................................................... 8 Your Phone ................................................................................................................. 9 Stand by Mode ................................................................................................ 9 Main Display .................................................................................................. 10 Icons on Screen ........................................................................................... 10 Voice Dial ................................................................................................................... 12 Dial out .............................................................................................................. 12 Emergency Dial ............................................................................................... 12 Make an International Call ............................................................................ 12 Dial extension No. of a Fixed line ............................................................... 13 Speed Dial ........................................................................................................ 13 Receiving a Call .............................................................................................. 13 Reject a Call ..................................................................................................... 13 Conference Call ..…

Text truncated - open the document above for the full version.

NEWPLAN ENTERPRISES LIMITED Date: 04 Dec, 2009 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The NEWPLAN ENTERPRISES LIMITED, the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the NEWPLAN ENTERPRISES LIMITED solely in matters relating to the application for an FCC equipment authorization for FCC ID: XY2CP09 including the signing of documents in connection with this Application. Necessary acts carried out by Shenzhen Morlab Communications Technology Co., Ltd. on our behalf of the NEWPLAN ENTERPRISES LIMITED in connection with the Application shall have the same effect as acts of the NEWPLAN ENTERPRISES LIMITED. The NEWPLAN ENTERPRISES LIMITED also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely, Xihan Chen/ Project Manager NEWPLAN ENTERPRISES LIMITED

NEWPLAN ENTERPRISES LIMITED Date: 04 Dec, 2009 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: NEWPLAN ENTERPRISES LIMITED FCC ID: XY2CP09 FCC Part 22H&24E Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. NEWPLAN ENTERPRISES LIMITED requests that the following documents regarding this submission for FCC ID: XY2CP09 be kept confidential: Exhibit Type File Name Block Diagram CONF APPENDIX XY2CP09_Block Diagram.pdf Schematics CONF APPENDIX XY2CP09_Schematics.pdf Operational Description CONF APPENDIX XY2CP09_Technical Specification.pdf Part list CONF APPENDIX XY2CP09_BOM.pdf Tune-Up-Procedure CONF APPENDIX XY2CP09_Tune up procedure.pdf Those documents contain detailed system and equipment description and related information about the product which NEWPLAN ENTERPRISES LIMITED considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, NEWPLAN ENTERPRISES LIMITED considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Xihan Chen/ Project Manager NEWPLAN ENTERPRISES LIMITED

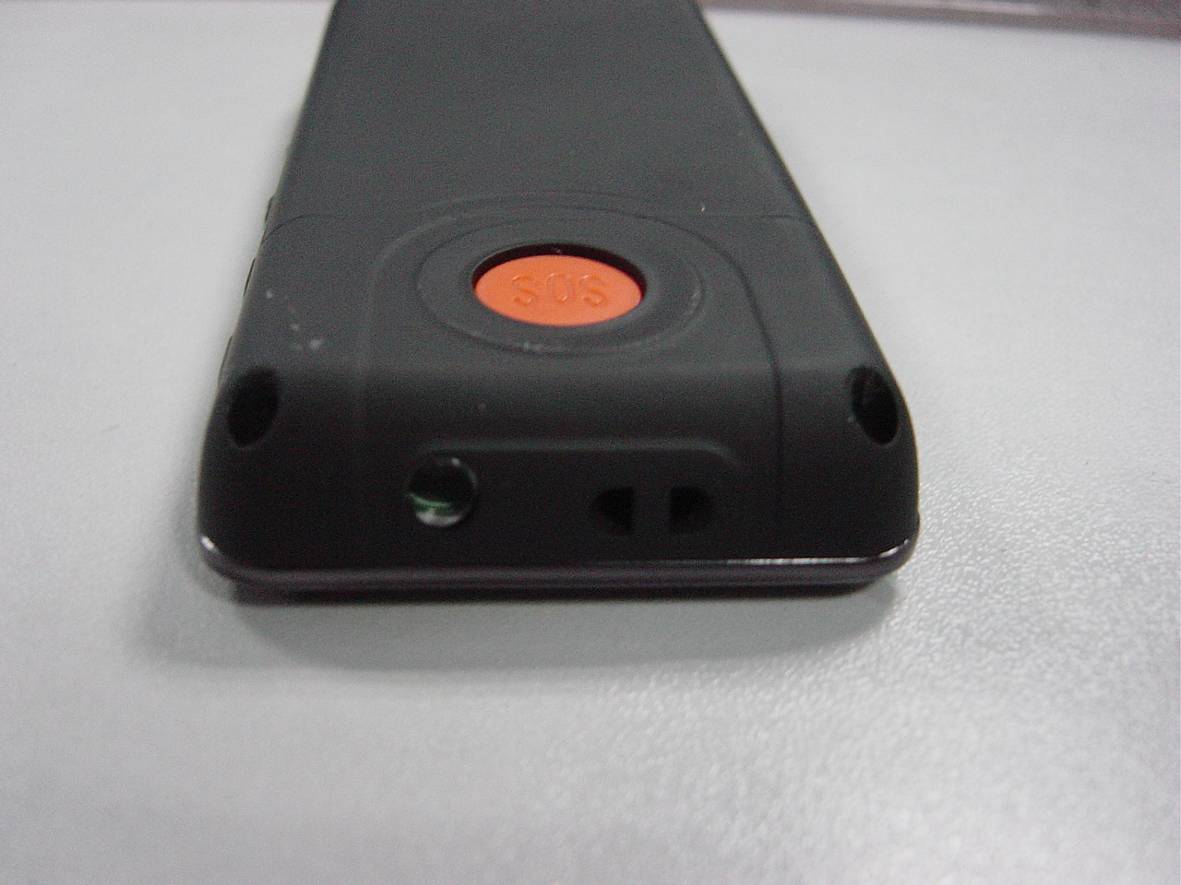

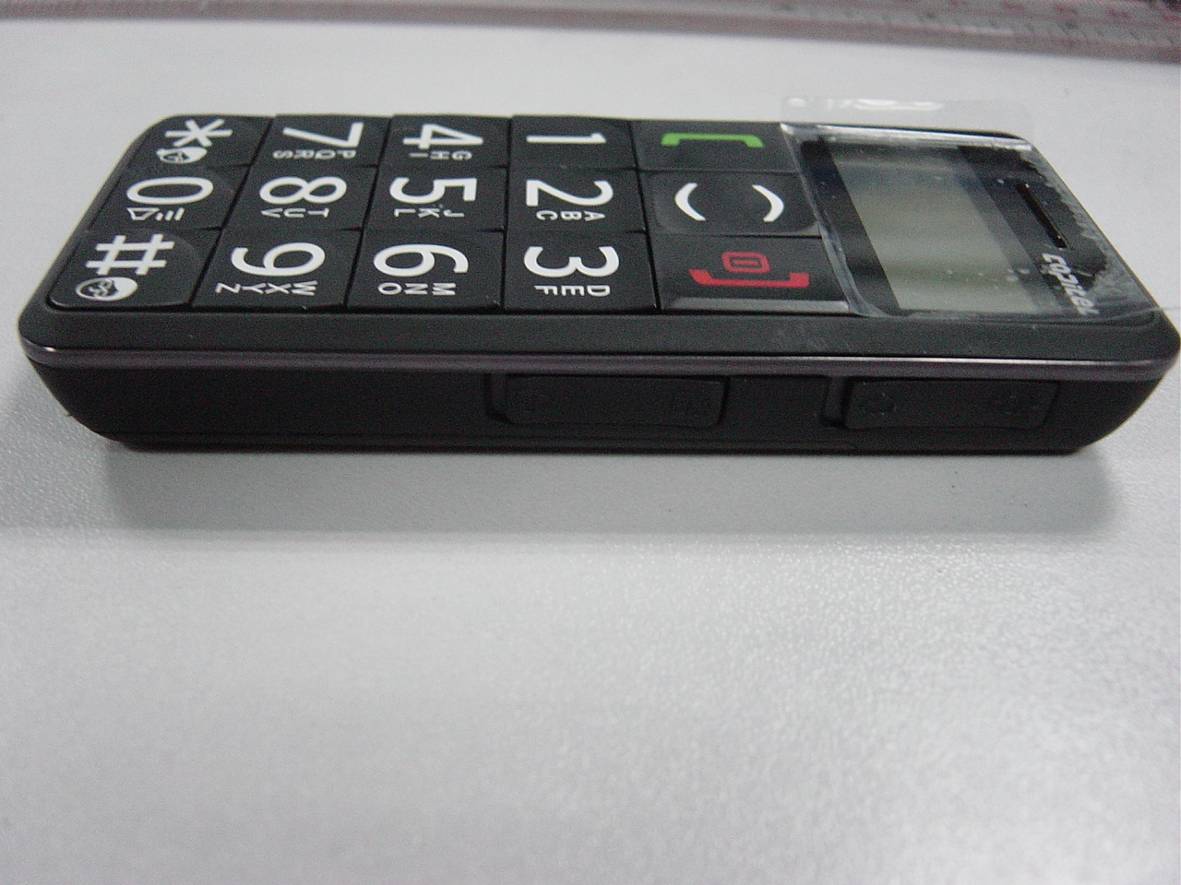

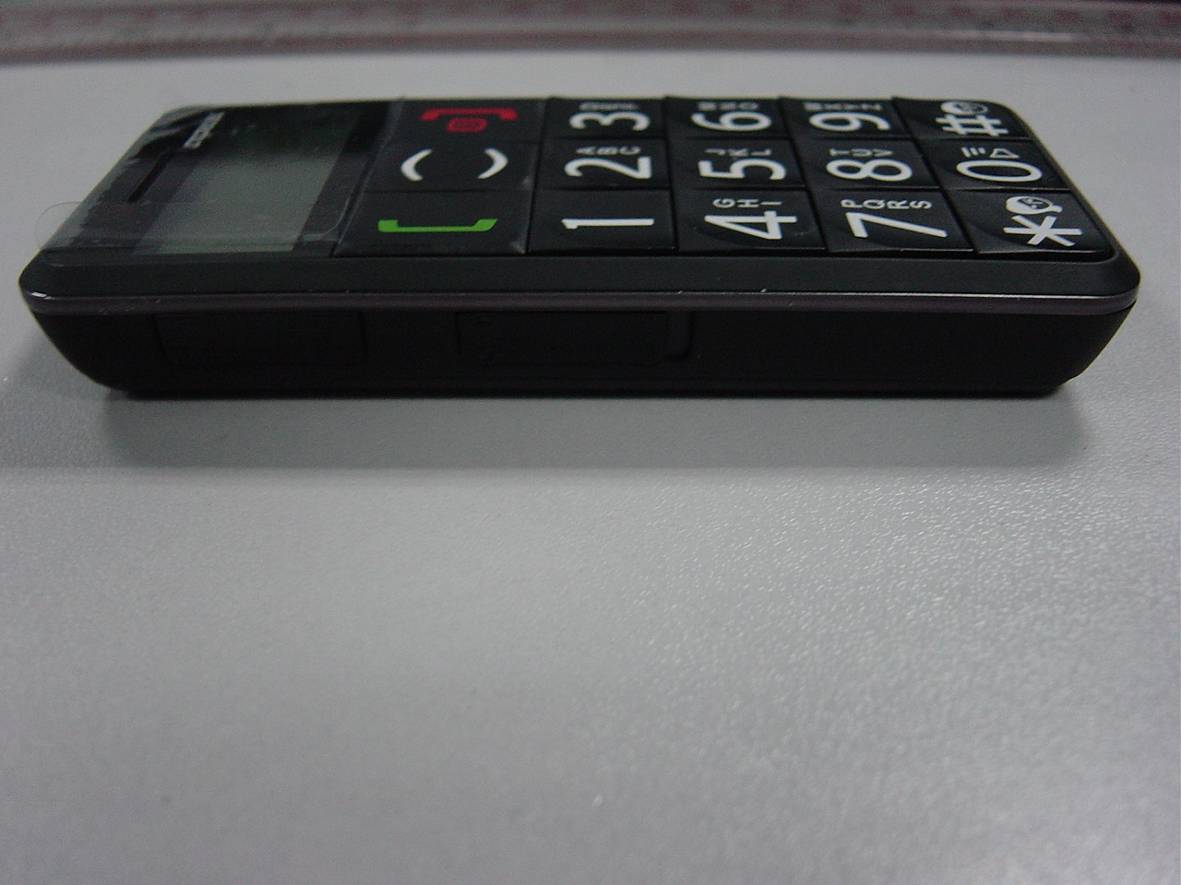

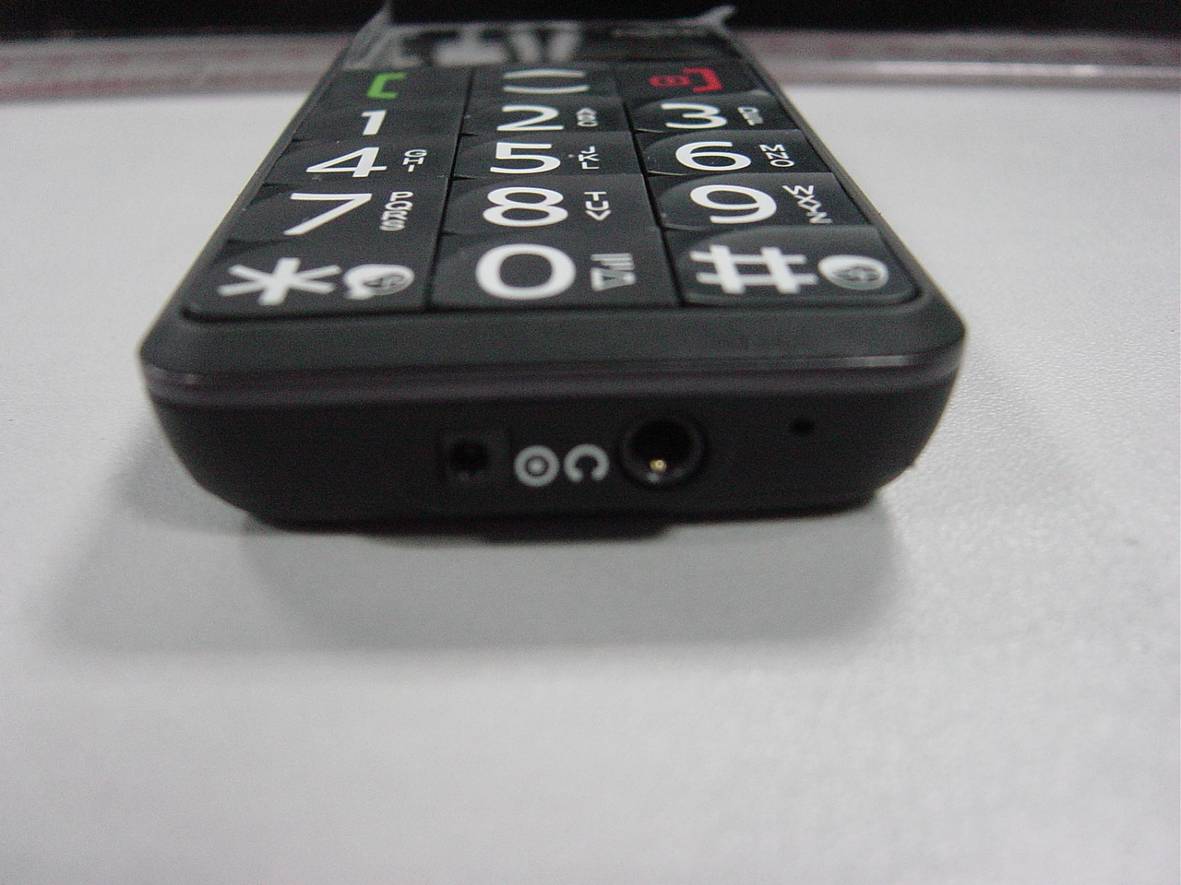

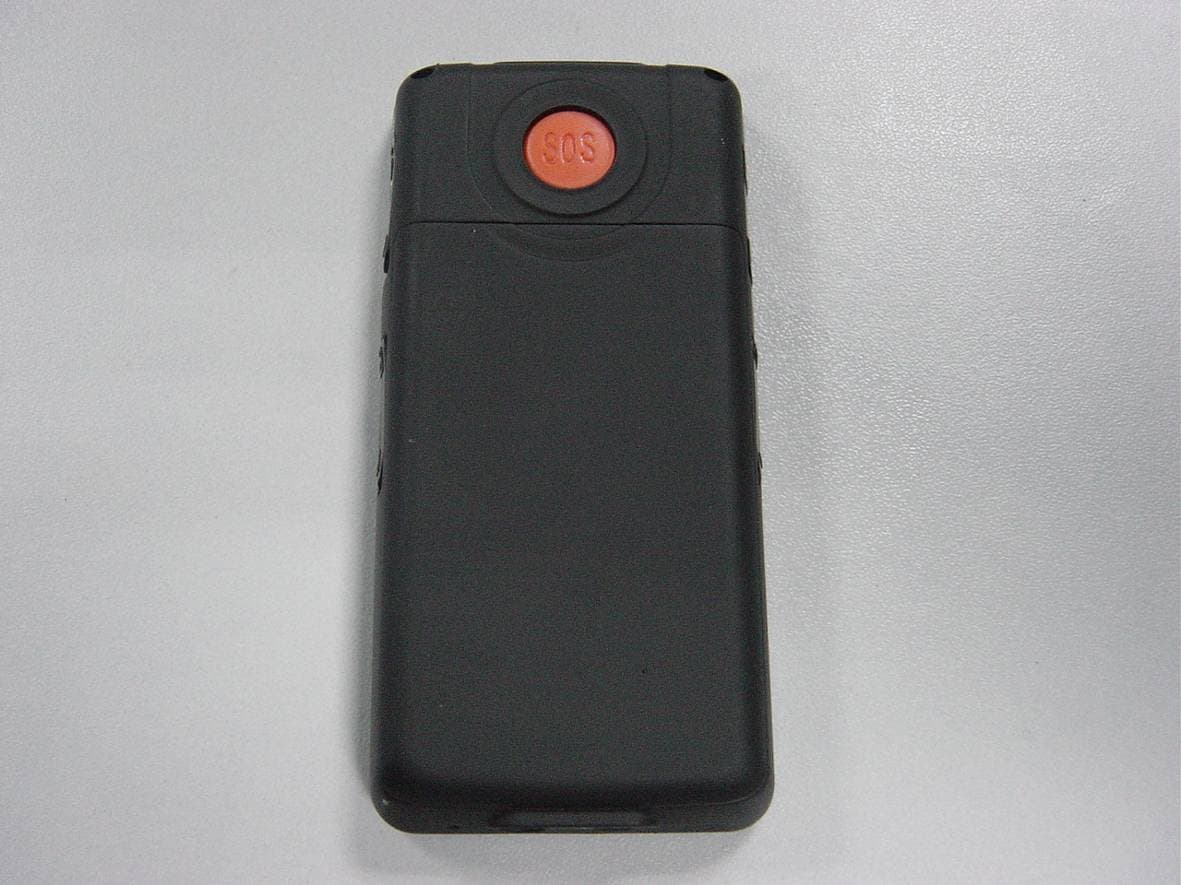

External Photos 1. Front View of EUT 2. Back View of EUT 3. Side View of EUT

Label Label Location

NEWPLAN ENTERPRISES LIMITED 04 Dec, 2009 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: XY2CP09 Dear Sirs: NEWPLAN ENTERPRISES LIMITED requests acceptance of the labeling proposal described below for cell phone bearing FCC identifier XY2CP09. The subject cell phone are compact handheld models as shown in figure 1, authorized under 47CFR Part 22&24 for GSM mobile services. Figure 1. Because the majority of the cell phone housing is composed of display, speaker, operating controls and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, NEWPLAN ENTERPRISES LIMITED proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. NEWPLAN ENTERPRISES LIMITED Figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a "gift box" which does not allow the transceiver to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), NEWPLAN ENTERPRISES LIMITED will add the FCC identifier " XY2CP09" to the outside of the consumer "gift box" packaging. Thank you for your attention to this matter. Yours Sincerely, Xihan Chen/ Project Manager NEWPLAN ENTERPRISES LIMITED

Internal Photos

Report No.: SZ09110036S01 Page 2 of 137 Contents 1.GENERAL INFORMATION....................................................................................................3 1.1.Notes.........................................................................................................................................3 1.2.Organization item....................................................................................................................3 1.3.Conclusion................................................................................................................................3 2.TESTING LABORATORY.......................................................................................................4 2.1.Identification of the Responsible Testing Laboratory..........................................................4 2.2.Identification of the Responsible Testing Location..............................................................4 2.3.Accreditation Certificate........................................................................................................4 2.4.List of Test Equipments..........................................................................................................4 3.TECHNICAL INFORMATION ...............................................................................................5 3.1.Identification of Applicant......................................................................................................5 3.2.Identification of Manufacturer..............................................................................................5 3.3.Equipment Under Test (EUT)................................................................................................5 3.3.1.Photographs of the EUT..................................................................................................6 3.3.2.Identification of all used EUTs........................................................................................6 4.TEST RESULTS.........................................................................................................................6 4.1.Applied Reference Documents...............................................................................................6 4.2.Test Environment/Conditions................................................................................................7 4.3.Operational Conditions During Test.....................................................................................7 4.3.1.Informations On The Testing..........................................................................................8 4.3.2.The Measurement System.............................................................................................10 4.3.3.Uncertainty Assessment.................................................................................................12 4.4.MEASUREMENT PROCEDURES....................................................................................13 4.4.1.Procedures Used To Establish Test Signal....................................................................14 4.5.Items used in the Test Results List.......................................................................................15 4.6.Test Results List.....................................................................................................................16 ANNEX AACCREDITATION CERTIFICATE..........................................................................17 ANNEX BPHOTOGRAPHS OF THE EUT ................................................................................19 ANNEX CGRAPH TEST RESULTS ...........................................................................................22 Report No.: SZ09110036S01 Page 4 of 137 2. Testing Laboratory 2.1. Identification of the Responsible Testing Laboratory Company Name: Shenzhen Electronic Product Quality Testing Center Department: Morlab Laboratory Address: 3/F, Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, 518055 P. R. China Responsible Test Lab Manager: Mr. Shu Luan Telephone: +86 755 86130268 Facsimile: +86 755 86130218 2.2. Identification of the Responsible Testing Location Name: Shenzhen Electronic Product Quality Testing Center Morlab Laboratory Address: 3/F, Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, 518055 P. R. China 2.3. Accreditation Certificate Accredited Testing Laboratory: No. CNAS L1659 (see 0) 2.4. List of Test Equipments No. Instrument Type 1 PC Dell (Pentium IV 2.4GHz, SN:X10-23533) 2 Network Emulator Rohde&Schwarz (CMU200, SN:105894) 3 Voltmeter Keithley (2000, SN:1000572) 4 Synthetizer Rohde&Schwarz (SML_03, SN:101868) 5 Amplifier Nucl udes (ALB216, SN:10800) 6 Power Meter Rohde&Schwarz (NRVD, SN:101066) 7 Probe Antennessa (SN:SN_3708_EP80) 8 Phantom Antennessa (SN:SN_36_08_SAM62) 9 Liquid Antennessa (Last Calibration:21 08 04) Report No.: SZ09110036S01 Page 5 of 137 3. Technical Information Note: the following data is based on the information by the applicant. 3.1. Identification of Applicant Company Name: NEWPLAN ENTERPRISES LIMITED Address: 10/F Ideal Center 320-322 Kwun Tong Road, Kwun Tong KL,HK 3.2. Identification of Manufacturer Company Name: NEWPLAN ENTERPRISES LIMITED Address: 10/F Ideal Center 320-322 Kwun Tong Road, Kwun Tong KL,HK 3.3. Equipment Under Test (EUT) Brand Name: Newplan Mobile Type Name: Newplan Mobile Marking Name: CP09 Hardware Version: CP09 V2.0 081028 Software Version: CP09_A10_081126_S3229 Frequency Bands: GSM 850MHz (channel 128:824.20MHz,channel 190:836.59MHz, channel 251:848.29MHz) PCS 1900MHz (channel 512:1850.19MHz,channel 661:1880.00MHz, channel 810:1909.80MHz) Modulation Mode: GMSK Antenna type:Build inside Development Stage: Identical prototype Battery Model: CP09 Battery specification: 1000mAh 3.7V Report No.: SZ09110036S01 Page 6 of 137 3.3.1. Photographs of the EUT Please see for photographs…

Text truncated - open the document above for the full version.

Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 1/26 Issue: A Date: 2009/10/05 1 COMOSAR E-FIELD PROBE CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 2/26 Issue: A Date: 2009/10/05 2 COMOSAR SEPT ISOTROPIC E-FIELD PROBE CALIBRATION REPORT DATE: 14/11/2008 REFERENCE: SN 37/08 EP80 OBJECT: COMOSAR SEPT ISOTROPIC E-FIELD PROBE MANUFACTURER: SATIMO SERIAL NUMBER: SN 37/08 EP80 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 2 3/09/2009 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 3/26 Issue: A Date: 2009/10/05 3 PRODUCT DESCRIPTION Frequency Range 100 MHz - 30 GHz Probe length 330 mm Length of one dipole 4.5 mm Maximum external diameter 8 mm Probe extremity diameter 6.5 mm Distance between dipoles/probe extremity < 2.7 mm Resistance of the three dipole (at the connector) Dipole 1: R1=1.4382 MΩ Dipole 2: R2=1.4894 MΩ Dipole 3: R3=1.4683 MΩ Connector (HIROSE series SR30) 6 wire male (Hirose SR30series) The probe could be checked by measuring the resistance of the three dipoles. CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION Calibration bench CALISAR Multimeter Keithley 2000 Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 4/26 Issue: A Date: 2009/10/05 4 MEASUREMENT PROCEDURE Probe calibration is realized, in compliance with CENELEC EN 50361 and IEEE 1528 std, with CALISAR, Antennessa proprietary calibration system. The calibration is performed with the EN 50361 annexe technique using reference guide at the five frequencies. Where : P fw = Forward Power P bw = Backward Power a and b = Waveguide dimensions
= Skin depth Keithley configuration: Rate = Medium; Filter =ON; RDGS=10; FILTER TYPE =MOVING AVERAGE; RANGE AUTO After each calibration, a SAR measurement is performed on a validation dipole and compared with a NPL calibrated probe, to verify it. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 5/26 Issue: A Date: 2009/10/05 5 PROBE UNCERTAINTIES Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 6/26 Issue: A Date: 2009/10/05 6 1. Calibration at 450.00 MHz A. Calibration parameters. Label GSM450 Epsilon 43.33 Sigma 0.84 S/m Temperature 21°C Antenna gain 2.03 dB Antenna S11 -10.50 dB Low limit detection (CW) 0.72 V/m (0.47 mW/kg) Calibration curves ei=f(V) (i=1,2,3) allow to obtain E-field value using the formula: E=(e1*e1+e2*e2+e3*e3)pow(1/2) The following tables represent the calibration curves linearization by curve segment in CW signal. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 7/26 Issue: A Date: 2009/10/05 7 Calibration coefficients for the three dipoles in CW: v1 e1 v2 e2 v3 e3 0.584004 419.557857 -0.696059 435.622023 0.541191 412.830715 0.467833 339.207465 -0.556278 351.381991 0.469757 336.297240 0.376994 276.348283 -0.452232 288.647980 0.378826 274.224190 0.302778 224.954643 -0.359005 232.397390 0.305842 224.365698 0.241038 182.154071 -0.286978 188.889931 0.246562 183.825274 0.192549 148.484090 -0.230386 154.650994 0.195712 148.993075 0.154033 121.674762 -0.185412 127.378480 0.157543 122.783107 0.123397 100.276479 -0.147311 104.193802 0.125866 100.956090 0.099878 83.770361 -0.118637 86.660489 0.101471 84.063863 0.081165 70.553219 -0.095250 72.263937 0.082289 70.694342 0.065166 59.152028 -0.076788 60.795323 0.066427 59.538957 0.051916 49.592416 -0.061280 51.041514 0.053353 50.232492 0.041968 42.297602 -0.048746 43.022565 0.042906 42.675214 0.033724 36.126757 -0.039149 36.748110 0.034686 36.605243 0.021855 26.962568 -0.024798 27.024723 0.022272 27.149463 0.018405 23.975145 -0.020856 24.085809 0.018755 24.141334 0.015467 21.515985 -0.017534 21.515985 0.015767 21.615299 0.013018 19.309065 -0.014750 19.398191 0.013276 19.487731 0.010938 17.408496 -0.012392 17.529166 0.011157 17.569575 0.009022 15.586953 -0.010228 15.658899 0.009215 15.676938 0.007353 13.956010 -0.008328 13.988181 0.007484 14.020428 0.005989 12.466979 -0.006801 12.495719 0.006111 12.567858 0.004890 11.214019 -0.005573 11.265779 0.005003 11.330818 0.004019 10.133541 -0.004570 10.121882 0.004099 10.168601 0.003279 9.094132 -0.003739 9.157170 0.003352 9.125596 0.002660 8.095827 -0.003041 8.293946 0.002769 8.265350 0.002126 7.324219 -0.002453 7.366500 0.002188 7.358024 0.001685 6.565400 -0.001947 6.580536 0.001724 6.542765 0.001300 5.784440 -0.001511 5.718225 0.001334 5.757862 0.001123 5.245191 -0.001307 5.269400 0.001174 5.275471 0.000891 4.701768 -0.001057 4.723470 0.000924 4.728912 0.000704 4.209798 -0.000850 4.226839 0.000736 4.243862 0.000574 3.790376 -0.000689 3.791428 0.000603 3.830551 0.000457 3.396200 -0.000570 3.434303 0.000483 3.421852 0.000365 3.050686 -0.000463 3.078014 0.000389 3.079630 0.000292 2.745766 -0.000369 2.726866 0.000311 2.759206 0.000236 2.486639 -0.000312 2.489933 0.000246 2.46…

Text truncated - open the document above for the full version.

Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 1/6 Issue: B Date: 2009/10/05 1 DIPOLE 835 MHZ CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 2/6 Issue: B Date: 2009/10/05 2 DIPOLE 835 MHz CALIBRATION REPORT DATE: 19/02/2009 REFERENCE: SN 36/08 DIPC99 OBJECT: COMOSAR IEEE REFERENCE DIPOLE MANUFACTURER: SATIMO SERIAL NUMBER: SN 36/08 DIPC99 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 2 3/09/2009 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 3/6 Issue: B Date: 2009/10/05 3 PRODUCT DESCRIPTION Dimension: L=161 mm/ h=89.8mm / d=3.6 mm CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION DATE OF CALIBRATION Vector Network Analyzer HP8753D (SN: 5410A08882) 10-05-2009 MEASUREMENT PROCEDURE We placed the dipole under the flat part of SAM phantom fill with 835 MHz head liquid. Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 4/6 Issue: B Date: 2009/10/05 4 Calibration was performed according to IEEE Std P1528-2003 and OET bulletin 65 Supplement C (Ed. 01-01) VSWR at 835 MHz: -24.77 dB. -24,77 -40 -35 -30 -25 -20 -15 -10 -5 0 0,7350,8350,935 Frequency (GHz) S11 (dB) Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 5/6 Issue: B Date: 2009/10/05 5 SAR MEASUREMENT EQUIPEMENT Voltmeter Keithley (2000, SN:1000572) Date of calibration: 01-07-2009 Signal generator Rohde&Schwarz (SML_03, SN:101868) Date of calibration: 15-11-2008 Power amplifier Nuclétudes (ALB216, SN:10800) Date of calibration: 24-10-2008 Power meter Rohde&Schwarz (NRVD, SN:101066) Date of calibration: 04-07-200 9 Probe SATIMO Bretagne (SN:EP37) CF (30.41,29.18,32.33) Date of calibration: 19-06-2009 SAR MEASUREMENT CONDITION Software OpenSAR V3 Phantom SATIMO Bretagne (SN: SN_20_07_SAM42) Liquid SATIMO Bretagne (Last Calibration: 18 09 08) Head Liquid Values: eps’ : 41,20 sigma : 0,872 Distance between the center of the dipole and the liquid (set with a spacer) 15 mm Area scan resolution dx=8mm/dy=8mm Zoom scan resolution dx=8mm/dy=8m/dz=5mm Frequency 835 MHz Input power 30 dBm Expanded uncertainty (K=1) 8.09% SAR MEASUREMENT RESULT 10g 1g SAR measured Liquid : HL Input power : 1W 6,364 W/Kg + 2,64 % 9,805 W/Kg + 3,21 % Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 6/6 Issue: B Date: 2009/10/05 6 SAR MEASUREMENT PLOTS

Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 1/6 Issue: B Date: 2009/10/05 1 DIPOLE 1800 MHZ CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 2/6 Issue: B Date: 2009/10/05 2 DIPOLE 1800 MHz CALIBRATION REPORT DATE: 19/02/2009 REFERENCE: SN 36/08 DIPF101 OBJECT: COMOSAR IEEE REFERENCE DIPOLE MANUFACTURER: SATIMO SERIAL NUMBER: SN 36/08 DIPF101 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 2 3/09/2009 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 3/6 Issue: B Date: 2009/10/05 3 PRODUCT DESCRIPTION Dimension: L=72 mm/ h=41.7 mm / d=3.6 mm CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION DATE OF CALIBRATION Vector Network Analyzer HP8753D (SN: 5410A08882) 10-05-2009 MEASUREMENT PROCEDURE We placed the dipole under the flat part of SAM phantom fill with 1800 MHz head liquid. Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 4/6 Issue: B Date: 2009/10/05 4 Calibration was performed according to IEEE Std P1528-2003 and OET bulletin 65 Supplement C (Ed. 01-01) VSWR at 1800 MHz: -25.09 dB -25,09 -35 -30 -25 -20 -15 -10 -5 0 1,71,81,9 Frequency (GHz) S11 (dB) Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 5/6 Issue: B Date: 2009/10/05 5 SAR MEASUREMENT EQUIPEMENT Voltmeter Keithley (2000, SN:1000572) Date of calibration: 01-07-2009 Signal generator Rohde&Schwarz (SML_03, SN:101868) Date of calibration: 15-11-2008 Power amplifier Nuclétudes (ALB216, SN:10800) Date of calibration: 24-10-2008 Power meter Rohde&Schwarz (NRVD, SN:101066) Date of calibration: 04-07-2009 Probe SATIMO Bretagne (SN:EP37) CF (35.35,34.93,37.42) Date of calibration: 19-06-2009 SAR MEASUREMENT CONDITION Software OpenSAR V3 Phantom SATIMO Bretagne (SN: SN_20_07_SAM42) Liquid SATIMO Bretagne (Last Calibration: 19 09 08) Head Liquid Values: eps’ : 39,80 sigma : 1,45 Distance between the center of the dipole and the liquid (set with a spacer) 10 mm Area scan resolution dx=8mm/dy=8mm Zoom scan resolution dx=8mm/dy=8m/dz=5mm Frequency 1800 MHz Input power 30 dBm Expanded uncertainty (K=1) 8.09% SAR MEASUREMENT RESULT 10g 1g SAR measured Liquid : HL Input power : 1W 20,05 W/Kg + 1,24 % 39,32 W/Kg + 3,20 % Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 6/6 Issue: B Date: 2009/10/05 6 SAR MEASUREMENT PLOTS

Report No.: SZ09110036E01 Page 2 of 38 TABLE OF CONTENTS 1.TEST CERTIFICATION ........................................................................................................... 3 2.GENERAL INFORMATION .................................................................................................... 4 2.1EUT Description .........................................................................................…
