XY2CP18MOBILE PHONE

1 CP18 Product Manual User Manual...................................................................1 Security Password............................................................4 Phonebook.....................................................................4 Settings..........................................................................4 Toolkit...........................................................................5 Messages.........................................................................5 Call Records...................................................................6 Troubleshooting...............................................................7 Other Important Security Information.................................11 User Manual To use your phone safely and effectively, please read the following information before use. Safety Switch on Do not use your phone whenever it is forbidden to use it, or when it may cause interference or danger. Road safety at all times 2 Do not use your phone while driving so as not to affect driving. Switch off your phone at forbidden areas. Follow any regulations or rules in force. Switch off your phone in aircraft or near inflammable articles, chemicals or medical equipments. Interference All wireless phones may be subject to interference, which could affect their performance. Water resistance Your phone is not water-resistant. Keep it dry. Keep the phone and all its parts (including accessories) out of the reach of small children. Parts and battery CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Professionalized service Please do not disassemble the phone and its parts without authorization. Only authorized agency may repair the phone. 3 Your phone Thanks for your selecting single card and single standby mobile phone. You can fully learn about the usage of cp18 mobile phone by reading this manual, experiencing its sound functions and simple operation steps. In standby state, long press “0” to have a shift among normal mode, mute mode and vibration mode. Insert SIM card and battery This phone is a single card and single standby model which can hold 1 SIM card. Insert and slide the SIM card under the tab. The SIM card and its contacts can be easily damaged by scratches or bending, so be careful when handling, inserting or removing the card. 1. Remove the battery cover (The phone is switched off if it is in working state.) 2. Take out of the battery (Before taking out of the battery, make sure that the phone is switched off and the phone and the charger are disconnected.) 3. Slide the SIM card under holder 4. Install battery 5. Close the battery cover Charge the battery When the battery is weak, the phone will give a warning tone to indicate low battery with an empty battery icon displayed. In this state, some of 4 phone functions may not be operated. When the battery becomes too weak for the phone to operate, it switches off automatically, and please charge it. When the phone is switched on and charged, the battery icon will flash on the screen. When charging is finished, the battery icon will show a full level (no flashing) on the screen. When the phone is switched off and charged, a charging status will be displayed on the screen. After charging is finished, an indicator for full charging will be on the screen. In standby mode, the charging time is approximately 2-3hours. 1. Plug the charger into a standard AC power outlet. 2. A charging indicator displays on the screen. (If the battery power is completely exhausted, the charging indicator will appear on the screen after waiting for several minutes.) 3. After the charging is finished, pull the charger out of power outlet, and then take off the charger from the phone. Note: If the battery is charged only about 50% of full power, the phone can be used after being disconnected from the charger. You are advised to fully charge the phone after it is completely exhausted for the first time. You are also advised to fully charge the phone after it is completely exhausted for the second time. After following the above consecutively for three times, the battery is easy to reach the best use state. Switch on and switch off In switch on state, long press [Switch On/Off] key to switch on; In switch off state, long press [Switch On/Off] key to switch off; Press the dial icon on standby interface to enter dial interface, input area 5 code and phone number and then press Call 1 or Call 2; When making an international call, keep pressing “*” key for 2 times to get “+” and then input country code, area code and phone number. When dialing an extension phone number and after inputting switchboard number, keep pressing “*” keys for three times until “P” number appears or keep pressing “*” keys for four times until “W” number appears. Answer a call When a call comes in, you will be reminded by such ringtone modes as ring, vibrate, vibrate and ring or vibrate then ring. At this moment, the backlight is on and the screen displays the incoming call. Press Call key or press “Receive” key to answer the call; press End key or press “Mute” key and then press “Refuse” key to refuse the incoming call. Note: With the earphone, you can answer a call by pressing the button on earphone. View missed calls In standby state, if there are any missed calls, they will be displayed on the screen. The function during a call: During a call, you can adjust the volume via up and down / left and right keys. Security Password 6 Phone password To prevent an illegal use, you can set a password protection for your phone. After selecting this option, you must input the password to unlock the phone every time when you switch on the phone. Then, you can send or receive a call. You can close your phone password, but in this case, you will not be able to prevent an illegal use. Input the phone password and press OK to finish inputting. For example, if your phone passw…

Text truncated - open the document above for the full version.

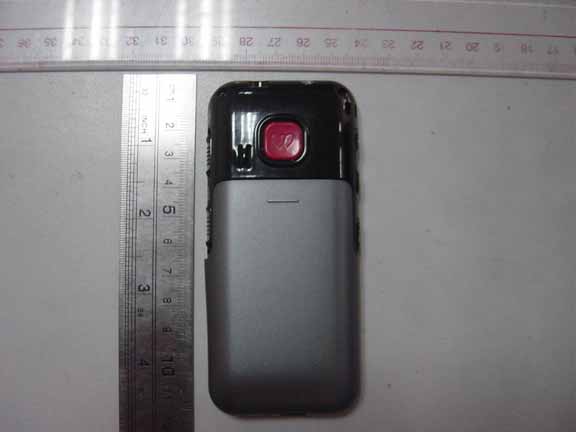

External Photos of CP18

FCC ID: XY2CP18 Label Label Location

Date: Dec.2, 2011 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: XY2CP18 Dear Sirs: NEWPLAN ENTERPRISES LIMITED requests acceptance of the labeling proposal described below for cell phone bearing FCC identifier XY2CP18. The subject cell phone are compact handheld models as shown in figure 1, authorized under 47CFR Part 22H&24E for GSM mobile services. Figure 1. Because the majority of the cell phone housing is composed of display, speaker, operating controls and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, NEWPLAN ENTERPRISES LIMITED proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a "gift box" which does not allow the transceiver to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), NEWPLAN ENTERPRISES LIMITED will add the FCC identifier " XY2CP18 " to the outside of the consumer "gift box" packaging. Thank you for your attention to this matter.

Internal Photos of CP18

SZ11110006S02 Page 2 of 58 DIRECTORY 1. TESTING LABORATORY ....................................................................................................... 4 1.1. Identification of the Responsible Testing Laboratory ......................................................... 4 1.2. Identification of the Responsible Testing Location .............................................................. 4 1.3. Accreditation Certificate ........................................................................................................ 4 1.4. List of Test Equipments .......................................................................................................... 4 2. TECHNICAL INFORMATION ............................................................................................... 5 2.1. Identification of Applicant ..................................................................................................... 5 2.2. Identification of Manufacturer .............................................................................................. 5 2.3. Equipment Under Test (EUT) ................................................................................................ 5 2.3.1. Photographs of the EUT .................................................................................................. 5 2.3.2. Identification of all used EUT ......................................................................................... 5 2.4. Applied Reference Documents ............................................................................................... 6 2.5. Device Category and SAR Limits .......................................................................................... 6 2.6. Test Environment/Conditions ................................................................................................ 7 3. SPECIFIC ABSORPTION RATE (SAR) ................................................................................ 8 3.1. Introduction ............................................................................................................................. 8 3.2. SAR Definition......................................................................................................................... 8 4. SAR MEASUREMENT SETUP ............................................................................................... 9 4.1. The Measurement System ...................................................................................................... 9 4.2. Probe ........................................................................................................................................ 9 4.3. Phantom ................................................................................................................................. 11 4.4. Device Holder ........................................................................................................................ 11 5. TISSUE SIMULATING LIQUIDS ......................................................................................... 12 6. UNCERTAINTY ASSESSMENT ........................................................................................... 14 6.1. UNCERTAINTY EVALUATION FOR HANDSET SAR TEST ...................................... 14 6.2. UNCERTAINTY FOR SYSTEM PERFORMANCE CHECK ........................................ 15 7. SAR MEASUREMENT EVALUATION ............................................................................... 17 7.1. System Setup .......................................................................................................................... 17 7.2. Validation Results .................................................................................................................. 17 8. OPERATIONAL CONDITIONS DURING TEST ................................................................ 18 8.1. Informations on the testing .................................................................................................. 18 SZ11110006S02 Page 3 of 58 8.2. Body-worn Configurations ................................................................................................... 18 8.3. Measurement procedure ....................................................................................................... 19 8.4. Description of interpolation/extrapolation scheme ............................................................ 19 9. MEASUREMENT OF CONDUCTED OUTPUT POWER ................................................. 21 10. TEST RESULTS LIST ............................................................................................................. 22 ANNEX A EUT SETUP PHOTOS ................................................................................................. 23 ANNEX B GRAPH TEST RESULTS ........................................................................................... 26 Change History Issue Date Reason for change 1.0 Dec.1, 2011 First edition 2.1 Dec.8, 2011 Add System Performance Check Data for body Parameters of 835MHz and 1900MHz SZ11110006S02 Page 4 of 58 1. Testing Laboratory 1.1. Identification of the Responsible Testing Laboratory Company Name: Shenzhen Morlab Communications Technology Co., Ltd. Department: Morlab Laboratory Address: 3/F, Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, 518055 P. R. China Responsible Test Lab Manager: Mr. Shu Luan Telephone: +86 755 86130268 Facsimile: +86 755 86130218 1.2. Identification of the Responsible Testing Location Name: Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory Address: 3/F, Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, 518055 P. R. China 1.3. Accreditation Certificate Accredited Testing Laboratory: No. CNAS L3572 1.4. List of Test Equipments No. Instrument Type Cal. Date Cal. Due 1 PC Dell (Pentium IV 2.4GHz, SN:X10-23533) (n.a) (n.a) 2 Network Emulator Rohde&Schwarz (CMU200, SN:105894) 2011-9-26 1year 3 Voltmeter Ke…

Text truncated - open the document above for the full version.

 Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report         1    COMOSAR E-FIELD PROBE CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology          This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO.  Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report         2  COMOSAR SEPT ISOTROPIC E-FIELD PROBE CALIBRATION REPORT DATE: 12/02/2009 REFERENCE: SN 37/08 EP80 OBJECT: COMOSAR SEPT ISOTROPIC E-FIELD PROBE MANUFACTURER: SATIMO SERIAL NUMBER: SN 37/08 EP80 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 24/09/20 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Date SAR TEAM MANAGER  Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report         3  PRODUCT DESCRIPTION Frequency Range 100 MHz - 30 GHz Probe length 330 mm Length of one dipole 4.5 mm Maximum external diameter 8 mm Probe extremity diameter 6.5 mm Distance between dipoles/probe extremity < 2.7 mm Resistance of the three dipole (at the connector) Dipole 1: R1=1.4382 MΩ Dipole 2: R2=1.4894 MΩ Dipole 3: R3=1.4683 MΩ Connector (HIROSE series SR30) 6 wire male (Hirose SR30series) The probe could be checked by measuring the resistance of the three dipoles. CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION Calibration bench CALISAR Multimeter Keithley 2000  Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report         4  MEASUREMENT PROCEDURE Probe calibration is realized, in compliance with CENELEC EN 50361 and IEEE 1528 std, with CALISAR, Antennessa proprietary calibration system. The calibration is performed with the EN 50361 annexe technique using reference guide at the five frequencies. Where : P fw = Forward Power P bw = Backward Power a and b = Waveguide dimensions
= Skin depth Keithley configuration: Rate = Medium; Filter =ON; RDGS=10; FILTER TYPE =MOVING AVERAGE; RANGE AUTO After each calibration, a SAR measurement is performed on a validation dipole and compared with a NPL calibrated probe, to verify it.  Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report         5  PROBE UNCERTAINTIES  Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report         6  1. Calibration at 450.00 MHz A. Calibration parameters. Label GSM450 Epsilon 43.33 Sigma 0.84 S/m Temperature 21°C Antenna gain 2.03 dB Antenna S11 -10.50 dB Low limit detection (CW)     Calibration curves ei=f(V) (i=1,2,3) allow to obtain E-field value using the formula:   EEEE= The following tables represent the calibration curves linearization by curve segment in CW signal.  Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report         7  Calibration coefficients for the three dipoles in CW: v1 e1 v2 e2 v3 e3 0.584004 419.557857 -0.696059 435.622023 0.541191 412.830715 0.467833 339.207465 -0.556278 351.381991 0.469757 336.297240 0.376994 276.348283 -0.452232 288.647980 0.378826 274.224190 0.302778 224.954643 -0.359005 232.397390 0.305842 224.365698 0.241038 182.154071 -0.286978 188.889931 0.246562 183.825274 0.192549 148.484090 -0.230386 154.650994 0.195712 148.993075 0.154033 121.674762 -0.185412 127.378480 0.157543 122.783107 0.123397 100.276479 -0.147311 104.193802 0.125866 100.956090 0.099878 83.770361 -0.118637 86.660489 0.101471 84.063863 0.081165 70.553219 -0.095250 72.263937 0.082289 70.694342 0.065166 59.152028 -0.076788 60.795323 0.066427 59.538957 0.051916 49.592416 -0.061280 51.041514 0.053353 50.232492 0.041968 42.297602 -0.048746 43.022565 0.042906 42.675214 0.033724 36.126757 -0.039149 36.748110 0.034686 36.605243 0.021855 26.962568 -0.024798 27.024723 0.022272 27.149463 0.018405 23.975145 -0.020856 24.085809 0.018755 24.141334 0.015467 21.515985 -0.017534 21.515985 0.015767 21.615299 0.013018 19.309065 -0.014750 19.398191 0.013276 19.487731 0.010938 17.408496 -0.012392 17.529166 0.011157 17.569575 0.009022 15.586953 -0.010228 15.658899 0.009215 15.676938 0.007353 13.956010 -0.008328 13.988181 0.007484 14.020428 0.005989 12.466979 -0.006801 12.495719 0.006111 12.567858 0.004890 11.214019 -0.005573 11.265779 0.005003 11.330818 0.004019 10.133541 -0.004570 10.121882 0.004099 10.168601 0.003279 9.094132 -0.003739 9.157170 0.003352 9.125596 0.002660 8.095827 -0.003041 8.293946 0.002769 8.265350 0.002126 7.324219 -0.002453 7.366500 0.002188 7.358024 0.001685 6.565400 -0.001947 6.580536 0.001724 6.542765 0.001300 5.784440 -0.001511 5.718225 0.001334 5.757862 0.001123 5.245191 -0.001307 5.269400 0.001174 5.275471 0.000891 4.701768 -0.001057 4.723470 0.000924 4.728912 0.000704 4.209798 -0.000850 4.226839 0.000736 4.243862 0.000574 3.790376 -0.000689 3.791428 0.000603 3.830551 0.000457 3.396200 -0.000570 3.434303 0.000483 3.421852 0.000365 3.050686 -0.000463 3.078014 0.000389 3.079630 0.000292 2.745766 -0.000369 2.726866 0.00031…

Text truncated - open the document above for the full version.

                              !"#$ %#!!&$"    !"# $% &'( ())&*!"+#,!#,-. /&0,* 1!2*32*$&45& *)()&*#(2*&4&             #2)  &( * )  )  5 !"# $%  )* (&*6)*( * )  *& & 5 & ( )* 72&4 & )*  7)2&  2 )& 7)* ) )&*8 #2 )*6&)&* (&*)* 2)* )  & 5  &*4 6& 2  & 6&72)(2))  5)*) *&&54 )*72&4&)*7)2& 2)&7)* ) )&*&6!"# $%8                    !"#$ #!!&$"   $    $'$$&$!- 9 /  ($%$%!"+ ,,,+,/,+,-, %,  &)')$!"# $%  $!#&)$!- 9 /  ) $!2*32*$&45& *)()&*#(2*&4&  &/95:!"+:$&45  $'#!!&     *&+ #2)  4)5)&* ()6)(  *& 5 & ( &2 2* )* 6 448 4)5)&* ()6)(  7)2&  )*  * 4  *& ;4)8 #2)  &( *)&* (&*)*  & )*6&)&* 72)(2 )  &( 5 (&)28 "44 )2   ;8 -&  &6 2)  &( *  5 2&&(&)  & ( 7)2&  2 )& 7)* * &6 !"# $%8 !"# $% 244 *& 5 4)54 6& &  (&*)* 2)* & 6& )*()*4 & (&* < *)4 )* (&**()&* 7)2 2 6 *) 2)*  6&*( &  &6 2)  )48 =* & *> 4 & -&4 7  -&4   &   & )*)*  &)* 44)&*8      !"+#,"$$"-"?,+   "+#,"$$"-"?,+                 @  ")$ !"!&   )* )&*AB 2AC8B A8   #!!&$ $,)!"$& +"$!$&!'!!&$'#!!& D(&-7&E"*43 .9B@0!-@C"9991F@F   $ )$$&"$)$ =4(2)&4 *264&6!"$2*&6)447)2$.324)< )8             C     C  4)5)&*7 6&((&)*& ,,,!@9F*%,#5 44)* @! 4*0,8F1  - *  ./  F@  F@ F F@ F F@ F F@   9   '01 23456 4/6                        @     @  $ )$$&$,)!"$$&   -7 G)240 !-@B1&6(4)5)&*FBF 8 8  +&2H!(2730!$: !-9 91 &6(4)5)&*@FF "97 - (4  0" !-91&6(4)5)&*CFF "97 +&2H!(2730-+D !- 1 &6(4)5)&*CFBF " !"# $%*0!-,B1 /0@8@ C8 B8C1 &6(4)5)&*F F   $ )$$&&!!& 9 %*!"+D ": 7 !"# $%*0!-!-::B:!"$C1 #01/ !"# $%*0 4)5)&*1 .)< )D4   > 9 ) C@ ; 29 : 2 :/ / :01/4;9: ;26  ;2 ;1  IA9 A9 %7;2 ;1  IA9 A9 3A@ '01 23 $.3 ! 19  $< //1 2 3 4=>6 98J  $ )$$&$ )#                    !"+  )< ). * &7= ?@A*B=8 C ? DE D? *B=8 C ?F E                    $ )$$&"#

SZ11110006W02 Page 2 of 38 DIRECTORY 1. GENERAL INFORMATION .................................................................................................... 3 1.1. EUT Description ....................................................................................................................... 3 1.2. Test Standards and Results ........................................................................................................ 4 1.3. Facilities and Accreditations ..................................................................................................... 5 2. 47 CFR PART 2, PART 22H & 24E REQUIREMENTS ........................................................ 6 2.1. Conducted RF Output Power .................................................................................................... 6 2.2. 99% Occupied Bandwidth ...................................................................................................... 11 2.3. Frequency Stability ................................................................................................................. 15 2.4. Conducted Out of Band Emissions ......................................................................................... 17 2.5. Band Edge ............................................................................................................................... 24 2.6. Transmitter Radiated Power (EIRP/ERP) ............................................................................... 27 2.7. Radiated Out of Band Emissions ............................................................................................ 31 Change History Issue Date Reason for change 1.0 Nov 25, 2011 First edition 2.0 December 9, 2011 Add some details description about the test of Radiated Out of Band Emissions SZ11110006W02 Page 3 of 38 1. General Information 1.1. EUT Description EUT Type ............................. : GSM MOBILE PHONE Serial No. .............................. : (n.a, marked #1 by test site) Hardware Version ................. : CP18-MB-V4-111010 Software Version .................. : Applicant .............................. : Manufacturer ........................ : CP18_V011 NEWPLAN ENTERPRISESLIMITED 10/F Ideal Center 320-322 kwun Tong Road, Kwun Tong, Kowloon, Hong Kong NEWPLAN ENTERPRISES LITMITED 10/F Ideal Center 320-322 kwun Tong Road, Kwun Tong, Kowloon, Hong Kong Frequency Range .................. : GSM 850MHz: Tx: 824.20 - 848.80MHz (at intervals of 200kHz); Rx: 869.20 - 893.80MHz (at intervals of 200kHz) GSM 1900MHz: Tx: 1850.20 - 1909.80MHz (at intervals of 200kHz); Rx: 1930.20 - 1989.80MHz (at intervals of 200kHz) Modulation Type .................. : GMSK Emission Designators ........... : 300KGXW Note 1: The transmitter (Tx) frequency arrangement of the Cellular 850MHz band used by the EUT can be represented with the formula F(n)=824.2+0.2*(n-128), 128<=n<=251; the lowest, middle, highest channel numbers (ARFCHs) used and tested in this report are separately 128 (824.2MHz), 190 (836.6MHz) and 251 (848.8MHz). Note 2: The transmitter (Tx) frequency arrangement of the PCS 1900MHz band used by the EUT can be represented with the formula F(n)=1850.2+0.2*(n-512), 512<=n<=810; the lowest, middle and highest channel numbers (ARFCHs) used and tested in this report are separately 512 (1850.2MHz), 661 (1880.0MHz) and 810 (1909.8MHz). Note 3: Note 4: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. SZ11110006W02 Page 4 of 38 1.2. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 2, Part 22 and Part 24 for the EUT FCC ID Certification: No. Identity Document Title 1 47 CFR Part 2 (10-1-09 Edition) Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 47 CFR Part 22 (10-1-09 Edition) Public Mobile Services 3 47 CFR Part 24 (10-1-09 Edition) Personal Communications Services Test detailed items/section required by FCC rules and results are as below: No. Section Description Result 1 2.1046 Conducted RF Output Power PASS 2 2.1049 20dB Occupied Bandwidth PASS 3 2.1055 22.355 24.235 Frequency Stability PASS 4 2.1051 2.1057 22.917 24.238 Conducted Out of Band Emissions PASS 5 2.1051 2.1057 22.917 24.238 Band Edge PASS 6 22.913 24.232 Transmitter Radiated Power (EIPR/ERP) PASS 7 2.1053 2.1057 22.917 24.238 Radiated Out of Band Emissions PASS Note: Measurement method according to ANSI/TIA-603-D 2010. SZ11110006W02 Page 5 of 38 1.3. Facilities and Accreditations 1.3.1. Facilities Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory is a testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L3572. All measurement facilities used to collect the measurement data are located at 3/F, Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055 P. R. China. The test site is constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22; the FCC registration number is 741109. 1.3.2. Test Environment Conditions During the measurement, the environmental conditions were within the listed ranges: Temperature (°C): 15 - 35 Relative Humidity (%): 30 -60 Atmospheric Pressure (kPa): 86-106 SZ11110006W02 Page 6 of 38 2. 47 CFR Part 2, Part 22H & 24E Requirements 2.1. Conducted RF Output Power 2.1.1. Requirement According to FCC section 2.1046(a), for transmitters other than single sideband, independent sideband and controlled carrier radiotelephone, power output shall be measured at the RF output terminals when the transmitter is adjusted in accordance with the tune-up procedure to give the values of current and voltage on the circuit elements specified in FCC section 2.1033(c)(8). 2.1.2. Test Description A. Test Setup: The EUT, which is powered by the Battery, is coupled to the Spectrum A…

Text truncated - open the document above for the full version.

Test Setup Photos 1. CSE 2. RSE
