XYALOK8UFRMBSFREEDOM-MBS

Freedom User Guide V1.0 User Guide Wandering prevention and Emergency Alert FreedomUser Guide V1.07 1 Table of Contents Preface 2 LOK8u and its subsidiaries 4 1. Product Design and Functionality Summary 5 2. Getting Started 7 2.1 Charging Freedom and the Portable receiver 7 2.2 Create an Account and register Freedom 8 2.3 Activate Freedom 13 2.4 Setting the Proximity range of your Freedom solution 13 2.5 Synchronizing or Changing the time 16 2.6 Wearing the Freedom watch 19 3. Using your Freedom watch 21 3.1 Wandering event 21 3.2 Panic button Alert 23 3.3 In proximity wru 25 4. Features of the Portable receiver 26 4.1 Last notified address 26 4.2 Set Preferences 27 4.3 Mute Sound 27 4.4 Flight safe 29 5. The Freedom portal explained 30 5.1 Right hand dashboard 31 5.2 Left hand dashboard 32 5.3 My details 32 5.4 wru 34 5.5 Live track 34 5.6 Alerts 34 5.7 History 34 6. Product specification 35 7. Waterproof specification 35 8. Certification 36 8.1 CE 36 8.2 WEE 36 8.3 SAR 37 8.4 FCC 37 9. Product information 38 10. Useful information 40 11. Troubleshooting 41 12. Imagery 42 FreedomUser Guide V1.07 2 Preface “Why wait for the wander” Wandering is an ever-present danger for those who suffer from Dementia and Autism. It is one of the daunting challenges that most caregivers need to face on a daily basis. The elderly and infirm, whilst ferociously independent, often require that extra care and attention. Historically, protection has been available through a standard landline connected, RF PERS solution. Freedom affords the same level of home protection anywhere. FREEDOM is specifically engineered to allow a higher degree of safe independence for those who may be at risk of wandering while giving caregivers greater peace of mind. FREEDOM allows you to set movable safe zones in or outdoors using the portable receiver. If these safe zones are crossed, the FREEDOM watch sets off both an audible and visual alarm on the portable receiver. It then turns into a personal beacon that can be quickly located using a Smartphone or computer from anywhere in the world. At LOK8u our mission is to not only help those who need care but to enhance the quality life for those who are entrusted to give that care. This is why we are proud to introduce a new kind of Freedom Steven K Salmon Chief Executive FreedomUser Guide V1.07 3 User Guide This user guide is to introduce the Freedom wandering prevention and emergency alert solution with the complete technical data and the instructions showing how to operate Freedom easily and correctly. Please read this manual carefully before using this product. Most problems could be solved through the explanations and the troubleshooting tips. Once you finish reading it, keep it handy for necessary reference. Trademarks Lok8u, Freedom and certain other trademarks and logos appearing in this document are filed or registered trademarks of Lok8u and / or in other countries. Copyright This manual is copyrighted by Lok8u with all rights reserved. No part of this manual may be reproduced, modified or disclosed to third parties in any form without the prior written permission of Lok8u. Lok8u hereby grants permission to download a copy of this user manual from the Lok8u website, www.lok8u.com , onto a hard disk or other electronic storage medium to be viewed and to print a copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Disclaimer and Limitation of Liability The content of this user guide is accurate and reliable and is provided “as is”. Lok8u makes no warranties of any kind, either express or implied, including, but not limited to, any implied warranties of merchantability, fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. The recipient of the documentation shall endorse all risks arising from its use. In no event shall Lok8u be liable for any incidental, direct, indirect, consequential, or punitive damages arising from the use or inadequacy of the documentation, even if Lok8u has been advised of the possibility of such damages and to the extent permitted by law. Information in this document is subject to change without notice. Lok8u reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Lok8u website, www.lok8u.com , for current updates and supplemental information concerning the use and operation of this and other Lok8u products. General information about Lok8u and its range of products is available at the following internet address, www.lok8u.com . Important Notice Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the Freedom solution are used in a normal manner with a well-constructed network, Lok8u accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using its products, or for failure of its products to transmit or receive such data. FreedomUser Guide V1.07 4 Lok8u Ltd and its Subsidiaries United Kingdom (UK) United States (USA) South Africa (SA) Lok8u Ltd Lok8u LLC Lok8u SA (Pty) Ltd Avon House 50 Harrison Street PO Box 4459 Buntsford Drive Suite 211B Tygervalley Stoke Heath Hoboken Western Cape Bromsgrove NJ 07030 7536 B60 4JE Tel: 01527 910912 Tel: 1 888 423 1887 Tel: +27 861 6 56588 email: [email protected] email: [email protected] email: [email protected] Europe Czeck Republic Australia Lok8u Ltd eLokator Lok8u Ltd Avon House Povltavska 5 Lok8u Pty Ltd Trading as Bu…

Text truncated - open the document above for the full version.

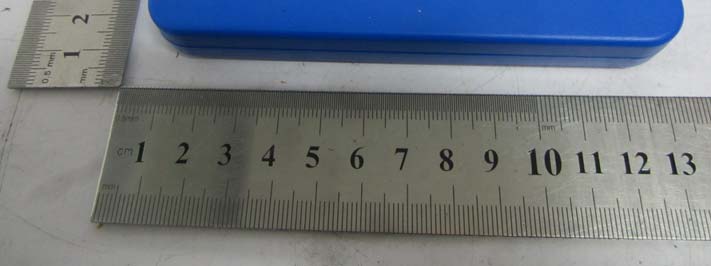

Lok8u Limited Model: FREEDOM-MBS001 REPORT NO.: STR11108076I FCC PART 15.231 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

Lok8u Limited Model: FREEDOM-MBS001 REPORT NO.: STR11108076I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format Lok8u Limited Model: FREEDOM-MBS001 Product Name: FREEDOM-MBS FCC ID: XYALOK8UFRMBS IC: 9995A-FRMBS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Lok8u Limited Model: FREEDOM-MBS001 REPORT NO.: STR11108076I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format Lok8u Limited Model: FREEDOM-MBS001 Product Name: FREEDOM-MBS FCC ID: XYALOK8UFRMBS IC: 9995A-FRMBS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Lok8u Limited Model: FREEDOM-MBS001 REPORT NO.: STR11108076I FCC PART 15.231 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Lok8u Limited Model: FREEDOM-MBS001 REPORT NO.: STR11108076I FCC PART 15.231 Solder Board-Component View 2 Solder Board-Component View 3

Parts List Model: FREEDOM-MBS001 No. Name Spectrial Description Number Place 1 Capacitor 0.1uf, 0402 5 C1, C2, C3, C4, C5 2 Capacitor 12pf, 0402 2 C6, C7 3 Capacitor 2.2Uf, 0603 10 C8, C9, C10, C11, C12, C13, C14, C15, C16, C17 4 Capacitor 10nF, 0402 2 C18, C30 5 Capacitor 220pF, 0402 3 C19, C28, C26 6 Capacitor 2.7pF, 0402 1 C20 7 Capacitor 68pF, 0603 1 C21 8 Capacitor 5.1pF, 0402 1 C22 9 Capacitor 10nF, 0402 1 C23 10 Capacitor 4.7uF, 0603 5 C24, C25, C31, C33, C34 11 Capacitor 1uf, 0402 4 C27, C29, C35, C36 12 Capacitor 100nF, 0402 1 C32 13 Connector ICP 1 CON1 14 Connector LCD 1 CON3 15 Connector CHARGE 1 CON4 16 Connector BATT 1 CON5 17 IC PIC18F87K90 1 IC1 18 IC MRF49XA 1 IC2 19 IC MCP73831 1 IC3 20 IC TC1263 1 IC4 21 IC MAX9788 1 IC5 22 IC MAX5407 1 IC6 23 Inductor 390nH 1 L1 24 Inductor 33nH 1 L2 25 Inductor 47nH 1 L3 26 LED LED, 0603 5 LED1, LED2, LED3, LED4, LED5 27 Speaker PIEZO/Speaker 1 PZ1 28 Resistor 4K7, 0402 4 R1, R7, R11, R14 29 Resistor 470R, 0402 2 R2, R3 30 Resistor 10K, 0402 9 R5, R6, R12, R13, R22, R26, R27, R29, R30 31 Resistor 56R, 0402 3 R8, R9, R10 32 Resistor 100K, 0402 6 R4, R15, R16, R17, R25, R28 33 Resistor 100R, 0402 3 R18, R19, R20 34 Resistor 2K0, 0402 1 R21 35 Resistor 25K, 0402 1 R23 36 Resistor 10R, 0402 1 R24 37 Switch SW_UP 1 S1 38 Switch SW_SEL 1 S2 39 Switch SW_DN 1 S3 40 Switch SW_nc 1 S4 41 IC BC807 1 TR1 42 IC BC817 3 TR2, TR3, TR4 43 XTAL 32.768KHz 1 X1 44 XTAL 10MHz 1 X2 45 PCB pcb 1 46 LCD LCD 1 47 Connector LCD Connector 1 48 Battery Battery 1 49 Antenna 433 Antennas 1

Lok8u Limited Model: FREEDOM-MBS001 REPORT NO.: STR11108076I PAGE 1 OF 23 FCC PART 15.231 FCC PART 15.231 MEASUREMENT AND TEST REPORT FOR Lok8u Limited Vally Farm, Hanbury Road, Hanbury, Worcs, B604HJ, United Kingdom FCC ID: XYALOK8UFRMBS Report Concerns: Original Report Equipment Type: FREEDOM-MBS Model: FREEDOM-MBS001 Report No.: STR11108076I Test Date: 2011-11-25 to 2011-12-13 Issue Date: 2011-12-16 Tested By: Seven Song / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Lok8u Limited Model: FREEDOM-MBS001 REPORT NO.: STR11108076I PAGE 2 OF 23 FCC PART 15.231 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................3 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 ANTENNA REQUIREMENT ....................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.207 (A) CONDUCTED EMISSION ..................................................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.3 TEST PROCEDURE...................................................................................................................................................7 4.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................7 4.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 4.6 TEST RECEIVER SETUP...........................................................................................................................................8 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 4.8 CONDUCTED EMISSIONS TEST DATA......................................................................................................................8 5. §15.205, §15.209, §15.231 (B) RADIATED EMISSION .......................................................................................11 5.1 MEASUREMENT UNCERTAINTY............................................................................................................................11 5.2 STANDARD APPLICABLE.......................................................................................................................................11 5.3 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................12 5.4 TEST PROCEDURE.................................................................................................................................................12 5.5 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................13 5.6 ENVIRONMENTAL CONDITIONS............................................................................................................................13 5.7 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................13 6. §15.231(C) 20DB BANDWIDTH TESTING .........................................................................................................18 6.1 STANDARD APPLICABLE.......................................................................................................................................18 6.2 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................…

Text truncated - open the document above for the full version.

Lok8u Limited Model: FREEDOM-MBS001 REPORT NO.: STR11108076I FCC PART 15.231 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Charging Radiation Emission Test Setup Charging Lok8u Limited Model: FREEDOM-MBS001 REPORT NO.: STR11108076I FCC PART 15.231 Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) Lok8u Limited Model: FREEDOM-MBS001 REPORT NO.: STR11108076I FCC PART 15.231 Radiation Emission Test Setup (Above 1GHz)
